Husqvarna 141 IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

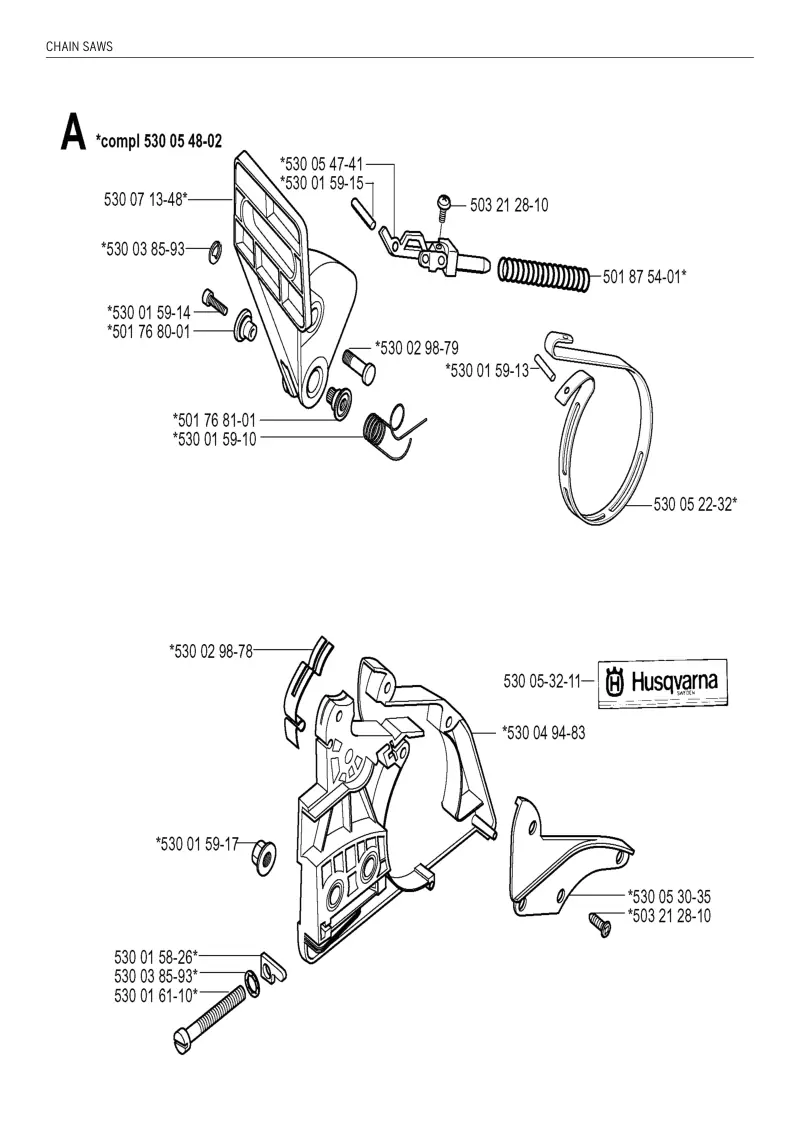

CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 530 02 05 48- | CHAIN BRAKE ASSY | 530054802 | 530054802-Online | 1 |
| 530 48 07 13- | LEVER | 530071348 | 530071348-Online | 1 |
| 530 93 03 85- | RETAINER | 530038593 | 530038593-Online | 1 |
| 530 14 01 59- | SCREW | 530015914 | 530015914-Online | 1 |
| 501 01 76 80- | SHAFT | 501768001 | 501768001-Online | 1 |
| 501 01 76 81- | SHAFT | 501768101 | 501768101-Online | 1 |
| 530 10 01 59- | SPRING | 530015910 | 530015910-Online | 1 |
| 530 78 02 98- | SPRING | 530029878 | 530029878-Online | 1 |
| 530 17 01 59- | NUT | 530015917 | 530015917-Online | 1 |
| 530 26 01 58- | PEN | 530015826 | 530015826-Online | 1 |
| 530 10 01 61- | SCREW | 530016110 | 530016110-Online | 1 |
| 503 10 21 28- | SCREW CCRPANT | 503212810 | 503212810-Online | 1 |
| 530 35 05 30- | COVER | 530053035 | 530053035-Online | 1 |
| 530 83 04 94- | CLUTCH COVER | 530049483 | 530049483-Online | 1 |
| 530 32-11 05- | DECAL | 530053211 | 530053211-Online | 1 |
| 530 32 05 22- | BRAKE BAND | 530052232 | 530052232-Online | 1 |
| 530 13 01 59- | PEN | 530015913 | 530015913-Online | 1 |
| 530 79 02 98- | SCREW | 530029879 | 530029879-Online | 1 |
| 530 15 01 59- | SCREW | 530015915 | 530015915-Online | 1 |
| 530 41 05 47- | KNEE LINK | 530054741 | 530054741-Online | 1 |
| 501 01 87 54- | BRAKE SPRING | 501875401 | 501875401-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 530 15 06 94- | MUFFLER | 530069415 | 530069415-Online | 1 |
| 530 10 02 98- | SCREEN | 530029810 | 530029810-Online | 1 |
| 530 44 01 60- | BOLT | 530016044 | 530016044-Online | 2 |
| 530 02 01 59- | SCREW | 530015902 | 530015902-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 501 01 69 17- | COMBINATION WRENCH | 501691701 | 501691701-Online | 1 |
| 503 01 26 72- | GLUE | 503267201 | 503267201-Online | 1 |
| 502 01 51 94- | MANDREL | 502519401 | 502519401-Online | 1 |
| 502 01 54 15- | PISTON STOP | 502541501 | 502541501-Online | 1 |
| 530 36 03 11- | PULLER | 530031136 | 530031136-Online | 1 |
| 530 12 03 11- | PULLER | 530031112 | 530031112-Online | 1 |
| 502 02 51 00- | SPANNER | 502510002 | 502510002-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 530 09 04 76- | COVER | 530047609 | 530047609-Online | 1 |
| 530 54 01 61- | SCREW | 530016154 | 530016154-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 530 91 03 84- | HANDLE | 530038491 | 530038491-Online | 1 |
| 530 32 06 92- | STARTER ROPE | 530069232 | 530069232-Online | 1 |
| 530 20 01 59- | SCREW | 530015920 | 530015920-Online | 1 |
| 530 80 01 60- | SCREW | 530016080 | 530016080-Online | 1 |
| 530 13 06 93- | STARTER PULLEY | 530069313 | 530069313-Online | 1 |
| 530 99 04 75- | STARTER HOUSING | 530047599 | 530047599-Online | 1 |
| 530 93 01 58- | SCREW | 530015893 | 530015893-Online | 1 |
| 530 60 05 34- | DECAL 141 | 530053460 | 530053460-Online | 1 |
| 530 59 05 34- | DECAL 136 | 530053459 | 530053459-Online | 1 |
| 530 92 01 58- | SCREW | 530015892 | 530015892-Online | 1 |
| 501 01 76 31- | SPRING CASSETTE ASSY | 501763101 | 501763101-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 01 48 17- | VALVE | 503481701 | 503481701-Online | 1 |
| 503 01 48 18- | SCREW | 503481801 | 503481801-Online | 1 |
| 503 01 48 16- | LEVER | 503481601 | 503481601-Online | 1 |
| 503 01 48 15- | SPRING | 503481501 | 503481501-Online | 1 |
| 503 01 47 97- | VALVE REPAIR KIT 530 06 99-22 | 503479701 | 503479701-Online | 1 |
| 503 01 48 00- | PIN RETAINING SCREW REPAIR KIT 530 06 99-22 | 503480001 | 503480001-Online | 1 |
| 503 01 48 13- | STRAINER REPAIR KIT 530 06 99-22 | 503481301 | 503481301-Online | 1 |
| 503 01 75 53- | SCREW | 503755301 | 503755301-Online | 1 |
| 503 01 47 96- | SCREW | 503479601 | 503479601-Online | 1 |
| 503 01 47 91- | VALVE | 503479101 | 503479101-Online | 1 |
| 503 01 47 92- | SCREW | 503479201 | 503479201-Online | 1 |
| 531 27 00 45- | RETURN SPRING | 531004527 | 531004527-Online | 1 |
| 503 01 47 99- | SPRING REPAIR KIT 530 06 99-22 | 503479901 | 503479901-Online | 1 |
| 503 01 66 59- | LEVER REPAIR KIT 530 06 99-22 | 503665901 | 503665901-Online | 1 |
| 503 01 48 01- | SCREW | 503480101 | 503480101-Online | 1 |
| 503 01 47 90- | SCREW | 503479001 | 503479001-Online | 1 |
| 503 01 97 43- | COVER | 503974301 | 503974301-Online | 1 |
| 503 01 48 05- | SCREW | 503480501 | 503480501-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 530 19 03 21- | BUSHING | 530032119 | 530032119-Online | 1 |
| 501 02 45 74- | RIM | 501457402 | 501457402-Online | 1 |
| 530 16 06 93- | CLUTCH DRUM .325X7 | 530069316 | 530069316-Online | 1 |
| 530 42 06 93- | CLUTCH DRUM .325X7 | 530069342 | 530069342-Online | 1 |
| 530 11 01 56- | WASHER | 530015611 | 530015611-Online | 1 |
| 530 88 09 41- | SPRING | 530094188 | 530094188-Online | 1 |
| 530 49 01 49- | CLUTCH | 530014949 | 530014949-Online | 1 |
| 530 55 04 78- | PLATE | 530047855 | 530047855-Online | 1 |
| 530 07 01 59- | WASHER | 530015907 | 530015907-Online | 1 |
| 530 74 01 91- | SEALING | 530019174 | 530019174-Online | 1 |
| 530 34 02 98- | BARREL | 530029834 | 530029834-Online | 1 |
| 530 76 01 47- | OIL PICK-UP | 530014776 | 530014776-Online | 1 |
| 530 33 02 98- | PUMP | 530029833 | 530029833-Online | 1 |
| 530 38 02 98- | PISTON | 530029838 | 530029838-Online | 1 |
| 530 96 01 58- | SCREW | 530015896 | 530015896-Online | 1 |
| 530 35 02 98- | HOUSING | 530029835 | 530029835-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 530 94 02 97- | CRANKSHAFT | 530029794 | 530029794-Online | 1 |
| 530 59 01 92- | BEARING | 530019259 | 530019259-Online | 2 |
| 530 17 03 21- | NEEDLE BEARING | 530032117 | 530032117-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 530 42 06 99- | CHASSIS | 530069942 | 530069942-Online | 1 |
| 530 28 05 24- | COVER | 530052428 | 530052428-Online | 1 |
| 530 93 01 58- | SCREW | 530015893 | 530015893-Online | 1 |
| 530 40 05 24- | TUBE | 530052440 | 530052440-Online | 1 |
| 530 37 01 59- | SCREW | 530015937 | 530015937-Online | 1 |
| 530 50 02 98- | CHAIN CATCHER | 530029850 | 530029850-Online | 1 |
| 530 43 03 60- | SUPPORT | 530036043 | 530036043-Online | 1 |
| 530 28 01 92- | SEALING | 530019228 | 530019228-Online | 1 |
| 530 77 01 58- | BOLT | 530015877 | 530015877-Online | 1 |
| 501 02 76 56- | TANK CAP ASSY | 501765602 | 501765602-Online | 1 |
| 503 01 57 89- | HOLDER | 503578901 | 503578901-Online | 1 |
| 740 00 44 05- | O-RING | 740440500 | 740440500-Online | 1 |
| 530 37 01 60- | SCREW | 530016037 | 530016037-Online | 4 |
| 530 00 02 98- | AIR CONDUCTOR | 530029800 | 530029800-Online | 1 |
| 530 22 01 59- | NUT | 530015922 | 530015922-Online | 3 |
| 530 30 02 98- | GUIDE | 530029830 | 530029830-Online | 1 |
| 530 31 02 98- | CHOKE CONTROL | 530029831 | 530029831-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 530 82 03 54- | CARBURETTOR WALBRO WT 542 | 530035482 | 530035482-Online | 1 |
| 530 29 06 96- | CARBURETTOR WALBRO WT 289 (EPA) | 530069629 | 530069629-Online | 1 |
| 530 88 03 51- | SPRING | 530035188 | 530035188-Online | 1 |
| 503 01 11 70- | NEEDLE VALVE | 503117001 | 503117001-Online | 1 |
| 505 27 52 01- | LEVER | 505520127 | 505520127-Online | 1 |
| 505 25 52 01- | PIN | 505520125 | 505520125-Online | 1 |
| 530 16 03 50- | SCREW | 530035016 | 530035016-Online | 1 |
| 530 65 03 51- | GASKET 530 GASKETS 06 98-44 SET OF | 530035165 | 530035165-Online | 1 |
| 503 01 89 67- | DIAPHRAGM 530 GASKETS 06 98-44 SET OF | 503896701 | 503896701-Online | 1 |
| 530 21 03 50- | SCREW | 530035021 | 530035021-Online | 1 |
| 504 10 10 00- | PLUG | 504100010 | 504100010-Online | 1 |
| 530 62 03 51- | PLUG | 530035162 | 530035162-Online | 1 |
| 530 29 04 91- | HUB CAP | 530049129 | 530049129-Online | 1 |
| 530 28 04 91- | HUB CAP | 530049128 | 530049128-Online | 1 |
| 531 26 00 39- | NEEDLE | 531003926 | 531003926-Online | 1 |
| 530 81 03 52- | LOW SPEED NEEDLE | 530035281 | 530035281-Online | 1 |
| 530 95 03 52- | SPRING | 530035295 | 530035295-Online | 1 |
| 530 93 03 52- | SPRING | 530035293 | 530035293-Online | 1 |
| 507 82 43 25- | SCREEN | 507432582 | 507432582-Online | 1 |
| 504 07 13 08- | DIAPHRAGM PUMP 530 GASKETS 06 98-44 SET OF | 504130807 | 504130807-Online | 1 |
| 504 06 13 09- | GASKET 530 GASKETS 06 98-44 SET OF | 504130906 | 504130906-Online | 1 |
| 530 96 03 52- | SCREW | 530035296 | 530035296-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 530 13 02 98- | JET | 530029813 | 530029813-Online | 1 |
| 530 14 01 58- | SCREW | 530015814 | 530015814-Online | 2 |
| 530 35 05 34- | HOSE | 530053435 | 530053435-Online | 1 |
| 530 14 02 98- | PIPE | 530029814 | 530029814-Online | 1 |
| 530 65 03 74- | ADAPTER | 530037465 | 530037465-Online | 1 |
| 530 03 01 92- | SEALING | 530019203 | 530019203-Online | 1 |
| 530 72 01 91- | GASKET | 530019172 | 530019172-Online | 1 |
| 530 29 06 96- | CARBURETTOR EPA | 530069629 | 530069629-Online | 1 |
| 530 82 03 54- | CARBURETTOR | 530035482 | 530035482-Online | 1 |
| 530 67 04 77- | SUPPORT | 530047767 | 530047767-Online | 1 |
| 530 96 01 58- | SCREW | 530015896 | 530015896-Online | 2 |
| 530 82 03 65- | HOLDER | 530036582 | 530036582-Online | 1 |
| 530 08 02 99- | AIR FILTER MEDIUM MESH | 530029908 | 530029908-Online | 1 |
| 530 11 02 98- | AIR FILTER FELT | 530029811 | 530029811-Online | 1 |
| 530 99 01 58- | SCREW | 530015899 | 530015899-Online | 2 |
| 530 08 01 60- | NUT | 530016008 | 530016008-Online | 1 |
| 530 68 01 59- | SCREW | 530015968 | 530015968-Online | 1 |
| 530 66 03 74- | GUIDE | 530037466 | 530037466-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 530 40 06 99- | CYLINDER 136 | 530069940 | 530069940-Online | 1 |
| 530 41 06 99- | CYLINDER 141 | 530069941 | 530069941-Online | 1 |
| 503 08 23 51- | SPARK PLUG | 503235108 | 503235108-Online | 1 |
| 530 52 03 76- | DEFLECTOR | 530037652 | 530037652-Online | 1 |
| 530 40 03 76- | PLATE | 530037640 | 530037640-Online | 1 |
| 530 05 01 92- | GASKET | 530019205 | 530019205-Online | 1 |
| 503 01 41 41- | NEEDLE BEARING | 503414101 | 503414101-Online | 1 |
| 530 97 01 58- | SCREW | 530015897 | 530015897-Online | 4 |
| 530 54 06 94- | PISTON 141 | 530069454 | 530069454-Online | 1 |
| 530 44 06 99- | PISTON 136 | 530069944 | 530069944-Online | 1 |
| 530 97 01 56- | LOCKING RING | 530015697 | 530015697-Online | 1 |
| 530 82 02 99- | PISTON RING 141 | 530029982 | 530029982-Online | 1 |
| 530 05 02 98- | PISTON RING 136 | 530029805 | 530029805-Online | 1 |
| 530 96 01 56- | CABLE CLAMP | 530015696 | 530015696-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 530 46 05 24- | TANK | 530052446 | 530052446-Online | 1 |
| 530 47 06 92- | HOSE | 530069247 | 530069247-Online | 1 |
| 530 97 01 44- | FILTER | 530014497 | 530014497-Online | 1 |
| 530 84 02 99- | LIMITER | 530029984 | 530029984-Online | 2 |
| 501 01 62 87- | ANTIVIBRATION ELEMENT | 501628701 | 501628701-Online | 1 |
| 530 40 01 59- | SCREW | 530015940 | 530015940-Online | 1 |
| 530 39 05 24- | MOVEMENT LIMITER | 530052439 | 530052439-Online | 1 |
| 530 06 01 59- | SCREW | 530015906 | 530015906-Online | 1 |
| 530 76 04 98- | HANDLE | 530049876 | 530049876-Online | 1 |
| 501 02 81 96- | TANK CAP ASSY | 501819602 | 501819602-Online | 1 |
| 503 17 26 30- | O-RING | 503263017 | 503263017-Online | 1 |
| 503 01 57 89- | HOLDER | 503578901 | 503578901-Online | 1 |
| 530 68 02 98- | PLUG | 530029868 | 530029868-Online | 1 |
| 530 19 02 61- | CHECK VALVE | 530026119 | 530026119-Online | 1 |
| 530 63 02 98- | HUB CAP | 530029863 | 530029863-Online | 1 |
| 530 69 02 98- | THROTTLE ROD | 530029869 | 530029869-Online | 1 |
| 530 17 02 38- | SPRING | 530023817 | 530023817-Online | 1 |
| 530 60 02 98- | SCREW | 530029860 | 530029860-Online | 1 |
| 530 87 06 95- | THROTTLE TRIGGER | 530069587 | 530069587-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 01 71 79- | STOP SWITCH | 503717901 | 503717901-Online | 1 |
| 530 96 01 58- | SCREW | 530015896 | 530015896-Online | 1 |
| 530 57 40 32- | CABLE | 530403257 | 530403257-Online | 1 |
| 501 02 48 54- | SPARK PLUG CAP | 501485402 | 501485402-Online | 1 |
| 530 43 03 91- | IGNITION MODULE | 530039143 | 530039143-Online | 1 |
| 530 47 03 91- | FLYWHEEL ASSY | 530039147 | 530039147-Online | 1 |
| 530 26 01 52- | PEN | 530015226 | 530015226-Online | 1 |
| 530 84 02 37- | PAWL | 530023784 | 530023784-Online | 1 |
| 530 17 02 38- | SPRING | 530023817 | 530023817-Online | 1 |
| 530 95 01 58- | SCREW | 530015895 | 530015895-Online | 1 |
| 530 27 01 51- | WASHER | 530015127 | 530015127-Online | 1 |
| 530 71 01 60- | NUT | 530016071 | 530016071-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 506 02 02 39- | PUMP PISTON VEG.OIL | 506023902 | 506023902-Online | 1 |
| 530 81 01 43- | FELLING DOG CORRECTION: | 530014381 | 530014381-Online | 1 |
| 530 06 01 59- | SCREW CORRECTION: | 530015906 | 530015906-Online | 1 |
| 530 59 03 67- | PROTECTOR WINTER | 530036759 | 530036759-Online | 1 |
