Husqvarna 141 LE IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

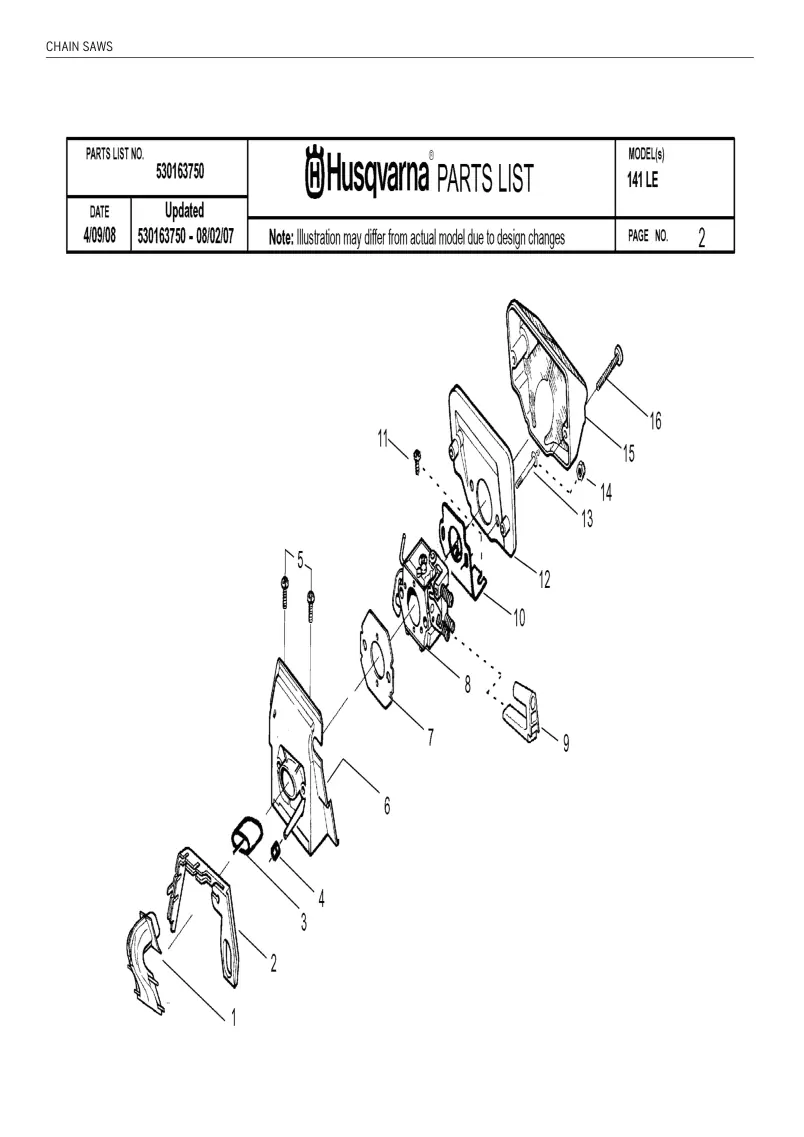

CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | JET | 530029813 | 530029813-Online | 1 |
| 2 | SEALING | 530019203 | 530019203-Online | 1 |
| 3 | PIPE | 530029814 | 530029814-Online | 1 |
| 4 | HOSE | 530053435 | 530053435-Online | 1 |
| 5 | SCREW | 530015814 | 530015814-Online | 1 |
| 6 | ADAPTER | 530037465 | 530037465-Online | 1 |
| 7 | GASKET | 530019172 | 530019172-Online | 1 |
| 8 | CARBURETTOR | 530071692 | 530071692-Online | 1 |
| 9 | PASSAGE | 530035587 | 530035587-Online | 1 |
| 10 | SUPPORT | 530047767 | 530047767-Online | 1 |
| 11 | SCREW | 530015896 | 530015896-Online | 1 |
| 12 | HOLDER | 530036582 | 530036582-Online | 1 |
| 13 | SCREW | 530015968 | 530015968-Online | 1 |
| 14 | NUT | 530016008 | 530016008-Online | 1 |
| 15 | AIR FILTER | 530029811 | 530029811-Online | 1 |
| 16 | SCREW | 530015899 | 530015899-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | LEVER | 530071348 | 530071348-Online | 1 |
| 2 | SCREW | 530029879 | 530029879-Online | 1 |
| 3 | SCREW | 530015915 | 530015915-Online | 1 |
| 4 | SCREW | 530015911 | 530015911-Online | 1 |
| 5 | KNEE LINK | 530054741 | 530054741-Online | 1 |
| 6 | SPRING | 530016237 | 530016237-Online | 1 |
| 7 | RETAINER | 530038593 | 530038593-Online | 1 |
| 8 | SCREW | 530016384 | 530016384-Online | 1 |
| 9 | SHAFT PIVOT | 530056531 | 530056531-Online | 1 |
| 10 | SHAFT PIVOT | 530029881 | 530029881-Online | 1 |
| 11 | SPRING | 530015910 | 530015910-Online | 1 |
| 12 | PEN | 530015913 | 530015913-Online | 1 |
| 13 | BRAKE BAND | 530052232 | 530052232-Online | 1 |
| 14 | CHAIN BRAKE ASSY | 530054802 | 530054802-Online | 1 |
| 15 | SPRING | 530029878 | 530029878-Online | 1 |
| 16 | CLUTCH COVER | 530049483 | 530049483-Online | 1 |
| 17 | PEN | 530015826 | 530015826-Online | 1 |
| 18 | RETAINER | 530038593 | 530038593-Online | 1 |
| 19 | SCREW | 530016110 | 530016110-Online | 1 |
| 20 | COVER | 530053035 | 530053035-Online | 1 |
| 21 | SCREW | 530015911 | 530015911-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CLUTCH | 530014949 | 530014949-Online | 1 |
| 2 | WASHER | 530015611 | 530015611-Online | 1 |
| 3 | CLUTCH DRUM ASSY | 530047061 | 530047061-Online | 1 |
| 4 | WASHER | 530015907 | 530015907-Online | 1 |
| 5 | OIL PICK-UP | 530014776 | 530014776-Online | 1 |
| 6 | SCREEN | 530056533 | 530056533-Online | 1 |
| 7 | SEALING | 545037101 | 545037101-Online | 1 |
| 8 | SCREW | 530015896 | 530015896-Online | 1 |
| 9 | OIL PUMP | 530014410 | 530014410-Online | 1 |
| 10 | PUMP | 530029833 | 530029833-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 22 | SCREW | 530016154 | 530016154-Online | 1 |
| 23 | COVER | 530047609 | 530047609-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CLUTCH | 530014949 | 530014949-Online | 1 |
| 2 | WASHER | 530015611 | 530015611-Online | 1 |
| 3 | CLUTCH DRUM ASSY | 530047061 | 530047061-Online | 1 |
| 4 | WASHER | 530015907 | 530015907-Online | 1 |
| 5 | OIL PICK-UP | 530014776 | 530014776-Online | 1 |
| 6 | SCREEN | 530056533 | 530056533-Online | 1 |
| 7 | SEALING | 545037101 | 545037101-Online | 1 |
| 8 | SCREW | 530015896 | 530015896-Online | 1 |
| 9 | OIL PUMP | 530014410 | 530014410-Online | 1 |
| 10 | PUMP | 530029833 | 530029833-Online | 1 |
| 11 | HOSE | 545033501 | 545033501-Online | 1 |
| 12 | NUT | 530055322 | 530055322-Online | 1 |
| 13 | PROTECTION | 530055174 | 530055174-Online | 1 |
| 14 | SCREW | 530015896 | 530015896-Online | 1 |
| 15 | NUT | 530015917 | 530015917-Online | 1 |
| 16 | PLATE | 530047855 | 530047855-Online | 1 |
| 17 | SEALING | 530019228 | 530019228-Online | 1 |
| 18 | SUPPORT | 530036043 | 530036043-Online | 1 |
| 19 | BOLT | 530015877 | 530015877-Online | 1 |
| 20 | SCREW | 530015878 | 530015878-Online | 1 |
| 21 | CHAIN CATCHER | 530029850 | 530029850-Online | 1 |
| 22 | SCREW | 530015893 | 530015893-Online | 1 |
| 23 | COVER | 530052428 | 530052428-Online | 1 |
| 24 | NUT | 530015922 | 530015922-Online | 1 |
| 25 | GUIDE | 530029830 | 530029830-Online | 1 |
| 26 | CHOKE CONTROL | 530029831 | 530029831-Online | 1 |
| 27 | CHASSIS | 530069942 | 530069942-Online | 1 |
| 28 | NUT | 530015922 | 530015922-Online | 1 |
| 29 | AIR CONDUCTOR | 530029800 | 530029800-Online | 1 |
| 30 | SCREW | 530016037 | 530016037-Online | 1 |
| 31 | TANK CAP ASSY | 501765602 | 501765602-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | JET | 530029813 | 530029813-Online | 1 |
| 2 | SEALING | 530019203 | 530019203-Online | 1 |
| 3 | PIPE | 530029814 | 530029814-Online | 1 |
| 4 | HOSE | 530053435 | 530053435-Online | 1 |
| 5 | SCREW | 530015814 | 530015814-Online | 1 |
| 6 | ADAPTER | 530037465 | 530037465-Online | 1 |
| 7 | GASKET | 530019172 | 530019172-Online | 1 |
| 8 | CARBURETTOR | 530071692 | 530071692-Online | 1 |
| 9 | PASSAGE | 530035587 | 530035587-Online | 1 |
| 10 | SUPPORT | 530047767 | 530047767-Online | 1 |
| 11 | SCREW | 530015896 | 530015896-Online | 1 |
| 12 | HOLDER | 530036582 | 530036582-Online | 1 |
| 13 | SCREW | 530015968 | 530015968-Online | 1 |
| 14 | NUT | 530016008 | 530016008-Online | 1 |
| 15 | AIR FILTER | 530029811 | 530029811-Online | 1 |
| 16 | SCREW | 530015899 | 530015899-Online | 1 |
| 17 | KIT | 545006044 | 545006044-Online | 1 |
| 18 | NUT | 530016359 | 530016359-Online | 1 |
| 19 | WASHER | 530055600 | 530055600-Online | 1 |
| 20 | BOLT | 530016338 | 530016338-Online | 1 |
| 21 | GASKET | 530055128 | 530055128-Online | 1 |
| 22 | COUVERCLE | 530055171 | 530055171-Online | 1 |
| 23 | BEARING | 530056363 | 530056363-Online | 1 |
| 24 | CRANKSHAFT | 530029794 | 530029794-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | LEVER | 530071348 | 530071348-Online | 1 |
| 2 | SCREW | 530029879 | 530029879-Online | 1 |
| 3 | SCREW | 530015915 | 530015915-Online | 1 |
| 4 | SCREW | 530015911 | 530015911-Online | 1 |
| 5 | KNEE LINK | 530054741 | 530054741-Online | 1 |
| 6 | SPRING | 530016237 | 530016237-Online | 1 |
| 7 | RETAINER | 530038593 | 530038593-Online | 1 |
| 8 | SCREW | 530016384 | 530016384-Online | 1 |
| 9 | SHAFT PIVOT | 530056531 | 530056531-Online | 1 |
| 10 | SHAFT PIVOT | 530029881 | 530029881-Online | 1 |
| 11 | SPRING | 530015910 | 530015910-Online | 1 |
| 12 | PEN | 530015913 | 530015913-Online | 1 |
| 13 | BRAKE BAND | 530052232 | 530052232-Online | 1 |
| 14 | CHAIN BRAKE ASSY | 530054802 | 530054802-Online | 1 |
| 15 | SPRING | 530029878 | 530029878-Online | 1 |
| 16 | CLUTCH COVER | 530049483 | 530049483-Online | 1 |
| 17 | PEN | 530015826 | 530015826-Online | 1 |
| 18 | RETAINER | 530038593 | 530038593-Online | 1 |
| 19 | SCREW | 530016110 | 530016110-Online | 1 |
| 20 | COVER | 530053035 | 530053035-Online | 1 |
| 21 | SCREW | 530015911 | 530015911-Online | 1 |
| 22 | SCREW | 530016154 | 530016154-Online | 1 |
| 23 | COVER | 530047609 | 530047609-Online | 1 |
| 24 | SPARK PLUG | 952030150 | 952030150-Online | 1 |
| 25 | CYLINDER | 530069941 | 530069941-Online | 1 |
| 26 | PISTON | 530069454 | 530069454-Online | 1 |
| 27 | PISTON RING | 530029982 | 530029982-Online | 1 |
| 28 | LOCKING RING | 530015697 | 530015697-Online | 1 |
| 29 | CRANKCASE | 530049794 | 530049794-Online | 1 |
| 30 | SCREW | 530015897 | 530015897-Online | 1 |
| - | WRENCH | 530031135 | 530031135-Online | 1 |
| - | DECAL | 530047839 | 530047839-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | HANDLE | 530150318 | 530150318-Online | 1 |
| 2 | STARTER ROPE | 530069232 | 530069232-Online | 1 |
| 3 | SCREW | 530015920 | 530015920-Online | 1 |
| 4 | SCREW | 530016080 | 530016080-Online | 1 |
| 5 | STARTER PULLEY | 530069313 | 530069313-Online | 1 |
| 6 | RETURN SPRING | 530015891 | 530015891-Online | 1 |
| 7 | STARTER HOUSING | 530047599 | 530047599-Online | 1 |
| 8 | SCREW | 530015892 | 530015892-Online | 1 |
| 9 | SCREW | 530015893 | 530015893-Online | 1 |
| 10 | DECAL | 530058562 | 530058562-Online | 1 |
| 11 | CABLE | 530403257 | 530403257-Online | 1 |
| 12 | SCREW | 530015896 | 530015896-Online | 1 |
| 13 | STOP SWITCH | 503717901 | 503717901-Online | 1 |
| 14 | FLYWHEEL ASSY | 530039147 | 530039147-Online | 1 |
| 15 | WASHER | 530015127 | 530015127-Online | 1 |
| 16 | NUT | 530016071 | 530016071-Online | 1 |
| 17 | SCREW | 545121901 | 545121901-Online | 1 |
| 18 | IGNITION MODULE | 530039143 | 530039143-Online | 1 |
| 19 | THROTTLE ROD | 530029869 | 530029869-Online | 1 |
| 20 | HUB CAP | 530029863 | 530029863-Online | 1 |
| 21 | SCREW | 530029860 | 530029860-Online | 1 |
| 22 | SPRING | 530029861 | 530029861-Online | 1 |
| 23 | THROTTLE TRIGGER | 530069587 | 530069587-Online | 1 |
| 24 | HOSE | 530069247 | 530069247-Online | 1 |
| 25 | FILTER | 530014497 | 530014497-Online | 1 |
| 26 | SCREW | 530015940 | 530015940-Online | 1 |
| 27 | INSULATOR | 530029870 | 530029870-Online | 1 |
| 28 | FUEL TANK | 530055613 | 530055613-Online | 1 |
| 29 | SCREW | 530015843 | 530015843-Online | 1 |
| 30 | HANDLE | 530049876 | 530049876-Online | 1 |
| 31 | MOVEMENT LIMITER | 530052439 | 530052439-Online | 1 |
| 32 | LIMITER | 530029984 | 530029984-Online | 1 |
| 33 | CHECK VALVE | 530026119 | 530026119-Online | 1 |
| 34 | PLUG | 530038264 | 530038264-Online | 1 |
| 35 | FUEL CAP | 530071266 | 530071266-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 11 | CABLE | 530403257 | 530403257-Online | 1 |
| 12 | SCREW | 530015896 | 530015896-Online | 1 |
| 13 | STOP SWITCH | 503717901 | 503717901-Online | 1 |
| 14 | FLYWHEEL ASSY | 530039147 | 530039147-Online | 1 |
| 15 | WASHER | 530015127 | 530015127-Online | 1 |
| 16 | NUT | 530016071 | 530016071-Online | 1 |
| 17 | SCREW | 545121901 | 545121901-Online | 1 |
| 18 | IGNITION MODULE | 530039143 | 530039143-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 17 | KIT | 545006044 | 545006044-Online | 1 |
| 18 | NUT | 530016359 | 530016359-Online | 1 |
| 19 | WASHER | 530055600 | 530055600-Online | 1 |
| 20 | BOLT | 530016338 | 530016338-Online | 1 |
| 21 | GASKET | 530055128 | 530055128-Online | 1 |
| 22 | COUVERCLE | 530055171 | 530055171-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | HANDLE | 530150318 | 530150318-Online | 1 |
| 2 | STARTER ROPE | 530069232 | 530069232-Online | 1 |
| 3 | SCREW | 530015920 | 530015920-Online | 1 |
| 4 | SCREW | 530016080 | 530016080-Online | 1 |
| 5 | STARTER PULLEY | 530069313 | 530069313-Online | 1 |
| 6 | RETURN SPRING | 530015891 | 530015891-Online | 1 |
| 7 | STARTER HOUSING | 530047599 | 530047599-Online | 1 |
| 8 | SCREW | 530015892 | 530015892-Online | 1 |
| 9 | SCREW | 530015893 | 530015893-Online | 1 |
| 10 | DECAL | 530058562 | 530058562-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 19 | THROTTLE ROD | 530029869 | 530029869-Online | 1 |
| 20 | HUB CAP | 530029863 | 530029863-Online | 1 |
| 21 | SCREW | 530029860 | 530029860-Online | 1 |
| 22 | SPRING | 530029861 | 530029861-Online | 1 |
| 23 | THROTTLE TRIGGER | 530069587 | 530069587-Online | 1 |
| 24 | HOSE | 530069247 | 530069247-Online | 1 |
| 25 | FILTER | 530014497 | 530014497-Online | 1 |
