Husqvarna 142 R IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

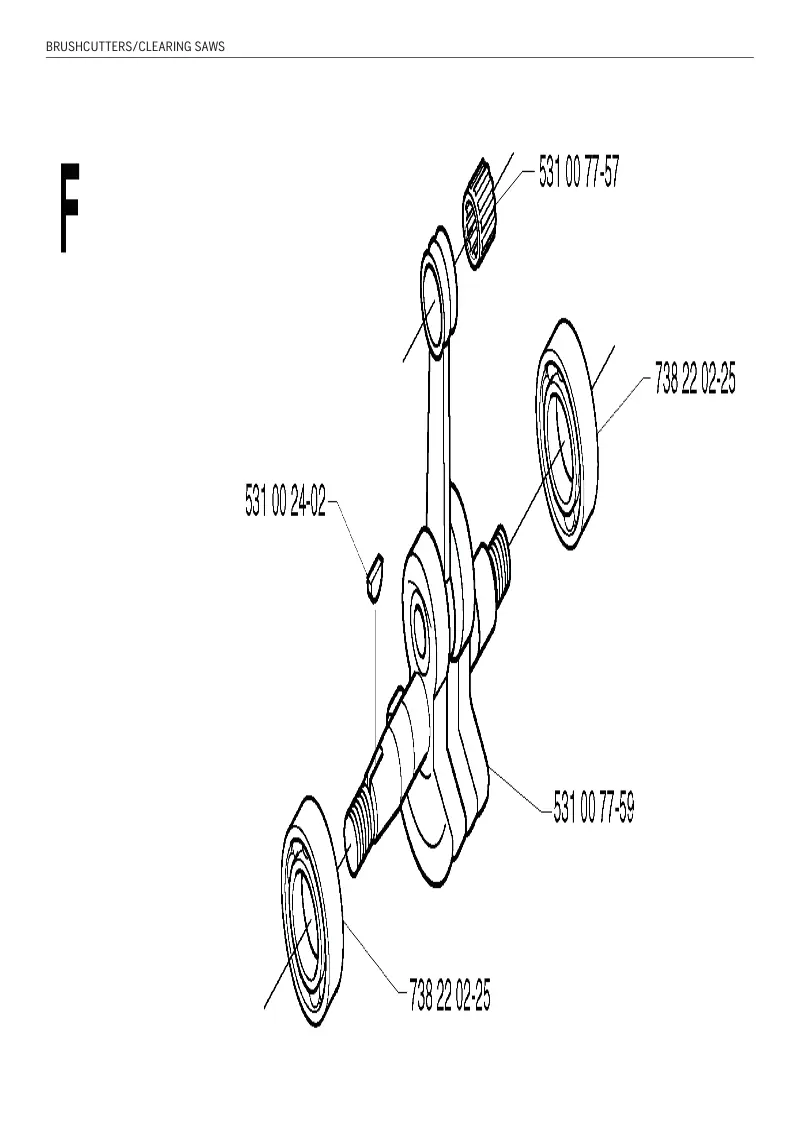

BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 02 00 24- | KEY | 531002402 | 531002402-Online | 1 |
| 531 59 00 77- | CRANKSHAFT | 531007759 | 531007759-Online | 1 |
| 738 25 22 02- | BALL BEARING | 738220225 | 738220225-Online | 1 |
| 531 57 00 77- | NEEDLE BEARING | 531007757 | 531007757-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 44 00 77- | SCREW | 531007744 | 531007744-Online | 1 |
| 503 16 20 02- | SCREW IHSCFM | 503200216 | 503200216-Online | 1 |
| 531 43 00 77- | DEFLECTOR | 531007743 | 531007743-Online | 1 |
| 531 32 00 77- | MUFFLER | 531007732 | 531007732-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 34 00 77- | CLUTCH COVER | 531007734 | 531007734-Online | 1 |
| 725 71 23 74- | SCREW EHHM | 725237471 | 725237471-Online | 1 |
| 725 01 53 70- | SCREW IHSCM | 725537001 | 725537001-Online | 1 |
| 531 74 00 77- | BUMPER | 531007774 | 531007774-Online | 1 |
| 531 73 00 77- | BUMPER | 531007773 | 531007773-Online | 1 |
| 531 76 00 77- | WASHER | 531007776 | 531007776-Online | 1 |
| 735 10 31 33- | CIRCLIP | 735313310 | 735313310-Online | 1 |
| 723 31 23 29- | SCREW SLPANM | 723232931 | 723232931-Online | 1 |
| 735 01 11 46- | SPRING WASHER | 735114601 | 735114601-Online | 1 |
| 531 71 00 77- | CLUTCH COVER | 531007771 | 531007771-Online | 1 |
| 738 19 22 02- | BALL BEARING | 738220219 | 738220219-Online | 1 |
| 531 51 00 22- | CLUTCH DRUM | 531002251 | 531002251-Online | 1 |
| 531 64 00 77- | SCREW | 531007764 | 531007764-Online | 1 |
| 531 63 00 77- | WASHER | 531007763 | 531007763-Online | 1 |
| 531 61 00 77- | SPRING | 531007761 | 531007761-Online | 1 |
| 531 60 00 77- | CLUTCH | 531007760 | 531007760-Online | 1 |
| 531 62 00 77- | WASHER | 531007762 | 531007762-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 69 00 77- | BEVEL GEAR | 531007769 | 531007769-Online | 1 |
| 725 71 23 66- | SCREW EHHM | 725236671 | 725236671-Online | 1 |
| 725 71 23 74- | SCREW EHHM | 725237471 | 725237471-Online | 1 |
| 503 41 21 83- | SCREW | 503218341 | 503218341-Online | 1 |
| 531 70 00 77- | GEAR HOUSING | 531007770 | 531007770-Online | 1 |
| 738 00 21 99- | BALL BEARING | 738219900 | 738219900-Online | 1 |
| 531 25 00 77- | GEAR | 531007725 | 531007725-Online | 1 |
| 531 26 00 77- | SHAFT | 531007726 | 531007726-Online | 1 |
| 738 00 21 02- | BALL BEARING | 738210200 | 738210200-Online | 1 |
| 735 10 31 31- | CIRCLIP | 735313110 | 735313110-Online | 1 |
| 502 01 04 55- | NUT | 502045501 | 502045501-Online | 1 |
| 502 01 18 10- | FLANGE | 502181001 | 502181001-Online | 1 |
| 531 31 00 77- | CARRIER | 531007731 | 531007731-Online | 1 |
| 531 29 00 77- | SEALING RING | 531007729 | 531007729-Online | 1 |
| 531 28 00 77- | RING | 531007728 | 531007728-Online | 1 |
| 531 30 00 77- | SHAFT | 531007730 | 531007730-Online | 1 |
| 738 00 21 00- | BALL BEARING | 738210000 | 738210000-Online | 1 |
| 738 01 21 00- | BALL BEARING | 738210001 | 738210001-Online | 1 |
| 735 00 31 12- | CIRCLIP | 735311200 | 735311200-Online | 1 |
| 735 10 31 27- | CIRCLIP | 735312710 | 735312710-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 29 00 78- | HANDLE ASSY | 531007829 | 531007829-Online | 1 |
| 531 69 00 78- | HANDLE | 531007869 | 531007869-Online | 1 |
| 531 64 00 78- | SCREW | 531007864 | 531007864-Online | 1 |
| 531 28 00 78- | HANDLE | 531007828 | 531007828-Online | 1 |
| 531 24 00 78- | HOLDER | 531007824 | 531007824-Online | 1 |
| 725 71 23 74- | SCREW EHHM | 725237471 | 725237471-Online | 1 |
| 531 26 00 78- | HANDLE | 531007826 | 531007826-Online | 1 |
| 725 71 23 72- | SCREW EHHM | 725237271 | 725237271-Online | 1 |
| 531 61 00 78- | LEVER | 531007861 | 531007861-Online | 1 |
| 724 01 13 35- | SCREW CRPANM | 724133501 | 724133501-Online | 1 |
| 531 62 00 78- | THROTTLE LOCK | 531007862 | 531007862-Online | 1 |
| 531 63 00 78- | RETURN SPRING | 531007863 | 531007863-Online | 1 |
| 531 65 00 78- | COVER | 531007865 | 531007865-Online | 1 |
| 531 27 00 78- | HANDLE | 531007827 | 531007827-Online | 1 |
| 731 05 23 14- | HEXAGON NUT | 731231405 | 731231405-Online | 1 |
| 531 70 00 78- | HANDLE | 531007870 | 531007870-Online | 1 |
| 531 82 00 78- | WIRE | 531007882 | 531007882-Online | 1 |
| 531 67 00 78- | CABLE ASSY | 531007867 | 531007867-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 03 73 63- | HARNESS | 503736303 | 503736303-Online | 1 |
| 503 01 97 64- | GREASE | 503976401 | 503976401-Online | 1 |
| 531 19 00 78- | PIN RETAINING SCREW | 531007819 | 531007819-Online | 1 |
| 502 01 21 58- | WRENCH | 502215801 | 502215801-Online | 1 |
| 502 03 03 55- | TRANSPORT GUARD | 502035503 | 502035503-Online | 1 |
| 502 02 03 55- | TRANSPORTSKYDD KPL | 502035502 | 502035502-Online | 1 |
| 501 01 31 40- | SPANNER OPEN-ENDED | 501314001 | 501314001-Online | 1 |
| 502 01 19 30- | COMBI TOOL | 502193001 | 502193001-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 03 00 78- | HOUSING | 531007803 | 531007803-Online | 1 |
| 531 41 00 77- | GASKET | 531007741 | 531007741-Online | 1 |
| 531 29 00 48- | ATTACHMENT | 531004829 | 531004829-Online | 1 |
| 503 25 20 02- | SCREW IHSCFM | 503200225 | 503200225-Online | 1 |
| 531 38 00 77- | SPACER | 531007738 | 531007738-Online | 1 |
| 531 39 00 77- | PROTECTOR | 531007739 | 531007739-Online | 1 |
| 531 07 00 78- | BRACKET | 531007807 | 531007807-Online | 1 |
| 531 04 00 78- | CHOKE FLAP | 531007804 | 531007804-Online | 1 |
| 531 05 00 78- | WASHER | 531007805 | 531007805-Online | 1 |
| 531 06 00 78- | RING | 531007806 | 531007806-Online | 1 |
| 531 09 00 78- | SCREEN | 531007809 | 531007809-Online | 1 |
| 531 10 00 78- | AIR FILTER | 531007810 | 531007810-Online | 1 |
| 531 51 00 41- | RETAINER RING | 531004151 | 531004151-Online | 1 |
| 531 11 00 78- | COVER | 531007811 | 531007811-Online | 1 |
| 531 12 00 78- | SCREW | 531007812 | 531007812-Online | 1 |
| 531 08 00 78- | SCREW | 531007808 | 531007808-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 90 00 77- | CARBURETTOR | 531007790 | 531007790-Online | 1 |
| 531 97 00 77- | SCREW | 531007797 | 531007797-Online | 1 |
| 531 96 00 77- | PLATE | 531007796 | 531007796-Online | 1 |
| 531 36 00 24- | BULB | 531002436 | 531002436-Online | 1 |
| 531 95 00 77- | HOUSING | 531007795 | 531007795-Online | 1 |
| 531 29 00 24- | DIAPHRAGM | 531002429 | 531002429-Online | 1 |
| 531 94 00 77- | GASKET | 531007794 | 531007794-Online | 1 |
| 531 93 00 77- | HOUSING | 531007793 | 531007793-Online | 1 |
| 531 37 00 48- | SPANNHJUL | 531004837 | 531004837-Online | 1 |
| 531 36 00 48- | MOULDING | 531004836 | 531004836-Online | 1 |
| 531 91 00 77- | RING | 531007791 | 531007791-Online | 1 |
| 531 02 00 78- | GASKET | 531007802 | 531007802-Online | 1 |
| 531 99 00 77- | PLUG | 531007799 | 531007799-Online | 1 |
| 531 43 00 41- | SCREW | 531004143 | 531004143-Online | 1 |
| 531 45 00 24- | NUT | 531002445 | 531002445-Online | 1 |
| 531 80 00 78- | JET #52 | 531007880 | 531007880-Online | 1 |
| 531 79 00 78- | JET #51 | 531007879 | 531007879-Online | 1 |
| 531 78 00 78- | JET #49 | 531007878 | 531007878-Online | 1 |
| 531 77 00 78- | JET #48 | 531007877 | 531007877-Online | 1 |
| 531 92 00 77- | JET #50 STD. | 531007792 | 531007792-Online | 1 |
| 531 51 00 24- | GASKET | 531002451 | 531002451-Online | 1 |
| 531 39 00 24- | CIRCLIP | 531002439 | 531002439-Online | 1 |
| 531 98 00 77- | THROTTLE | 531007798 | 531007798-Online | 1 |
| 531 43 00 24- | SCREW | 531002443 | 531002443-Online | 1 |
| 531 42 00 24- | CONNECTION | 531002442 | 531002442-Online | 1 |
| 531 39 00 79- | BRACKET | 531007939 | 531007939-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 725 71 23 74- | SCREW EHHM | 725237471 | 725237471-Online | 1 |
| 531 03 00 77- | BRACKET | 531007703 | 531007703-Online | 1 |
| 734 01 11 46- | WASHER | 734114601 | 734114601-Online | 1 |
| 731 01 23 14- | HEXAGON NUT | 731231401 | 731231401-Online | 1 |
| 531 04 00 77- | BRACKET | 531007704 | 531007704-Online | 1 |
| 735 01 11 46- | SPRING WASHER | 735114601 | 735114601-Online | 1 |
| 531 05 00 77- | BLADE | 531007705 | 531007705-Online | 1 |
| 531 01 00 77- | COMBINATION GUARD | 531007701 | 531007701-Online | 1 |
| 725 71 23 29- | SCREW EHHM | 725232971 | 725232971-Online | 1 |
| 531 06 00 77- | PROTECTOR | 531007706 | 531007706-Online | 1 |
| 503 25 20 02- | SCREW IHSCFM | 503200225 | 503200225-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 67 00 77- | IGNITION MODULE | 531007767 | 531007767-Online | 1 |
| 731 51 71 20- | HEXAGON NUT FLANGE | 731712051 | 731712051-Online | 1 |
| 531 01 00 24- | SLEEVE | 531002401 | 531002401-Online | 1 |
| 531 72 00 77- | PROTECTOR | 531007772 | 531007772-Online | 1 |
| 531 66 00 77- | FLYWHEEL | 531007766 | 531007766-Online | 1 |
| 531 68 00 77- | CABLE | 531007768 | 531007768-Online | 1 |
| 531 98 00 23- | SPARK PLUG CONNECTION | 531002398 | 531002398-Online | 1 |
| 531 99 00 23- | SPRING | 531002399 | 531002399-Online | 1 |
| 503 25 20 25- | SCREW IHSCM | 503202525 | 503202525-Online | 1 |
| 531 04 00 24- | SPACER | 531002404 | 531002404-Online | 1 |
| 531 75 00 77- | CABLE | 531007775 | 531007775-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 17 00 78- | FILTER | 531007817 | 531007817-Online | 1 |
| 531 10 00 24- | VALVE | 531002410 | 531002410-Online | 1 |
| 531 17 00 24- | PAD | 531002417 | 531002417-Online | 1 |
| 531 18 00 78- | SLEEVE | 531007818 | 531007818-Online | 1 |
| 531 13 00 78- | TANK UNIT | 531007813 | 531007813-Online | 1 |
| 531 06 00 40- | GASKET | 531004006 | 531004006-Online | 1 |
| 531 14 00 78- | TANK CAP | 531007814 | 531007814-Online | 1 |
| 531 16 00 78- | PIPE | 531007816 | 531007816-Online | 1 |
| 531 11 00 24- | SLEEVE | 531002411 | 531002411-Online | 1 |
| 531 15 00 78- | HOSE | 531007815 | 531007815-Online | 1 |
| 531 15 00 24- | CLIP | 531002415 | 531002415-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 33 00 77- | STARTER ASSY | 531007733 | 531007733-Online | 1 |
| 531 85 00 77- | PAWL | 531007785 | 531007785-Online | 1 |
| 531 86 00 77- | SPRING | 531007786 | 531007786-Online | 1 |
| 531 88 00 77- | RETAINER RING | 531007788 | 531007788-Online | 1 |
| 531 87 00 77- | PLATE | 531007787 | 531007787-Online | 1 |
| 731 01 23 18- | HEXAGON NUT | 731231801 | 731231801-Online | 1 |
| 531 84 00 77- | SCREW | 531007784 | 531007784-Online | 1 |
| 531 83 00 77- | WASHER | 531007783 | 531007783-Online | 1 |
| 531 82 00 77- | STARTER PULLEY | 531007782 | 531007782-Online | 1 |
| 531 81 00 77- | RETURN SPRING | 531007781 | 531007781-Online | 1 |
| 537 03 09 74- | DECAL | 537097403 | 537097403-Online | 1 |
| 531 79 00 77- | STARTER ROPE | 531007779 | 531007779-Online | 1 |
| 503 16 20 25- | SCREW IHSCM | 503202516 | 503202516-Online | 1 |
| 531 78 00 77- | HANDLE | 531007778 | 531007778-Online | 1 |
| 531 80 00 77- | INSERT | 531007780 | 531007780-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 25 20 02- | SCREW IHSCFM | 503200225 | 503200225-Online | 1 |
| 531 37 00 77- | GASKET | 531007737 | 531007737-Online | 1 |
| 531 54 00 77- | PISTON RING | 531007754 | 531007754-Online | 1 |
| 531 52 00 77- | PISTON | 531007752 | 531007752-Online | 1 |
| 531 56 00 77- | PISTON BOLT | 531007756 | 531007756-Online | 1 |
| 531 57 00 77- | NEEDLE BEARING | 531007757 | 531007757-Online | 1 |
| 531 58 00 77- | RETAINER RING | 531007758 | 531007758-Online | 1 |
| 531 35 00 77- | CYLINDER | 531007735 | 531007735-Online | 1 |
| 531 28 00 48- | SPARK PLUG NGK BPM6Y | 531004828 | 531004828-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 45 00 77- | CYLINDER COVER | 531007745 | 531007745-Online | 1 |
| 503 27 98 12- | LABEL | 503981227 | 503981227-Online | 1 |
| 531 48 00 77- | RETAINER RING | 531007748 | 531007748-Online | 1 |
| 531 47 00 77- | RING | 531007747 | 531007747-Online | 1 |
| 531 46 00 77- | SCREW | 531007746 | 531007746-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 49 00 77- | CRANKCASE | 531007749 | 531007749-Online | 1 |
| 531 50 00 77- | SEALING RING | 531007750 | 531007750-Online | 1 |
| 531 65 00 77- | HOUSING | 531007765 | 531007765-Online | 1 |
| 503 20 20 02- | SCREW IHSCFM | 503200220 | 503200220-Online | 1 |
| 503 40 20 02- | SCREW IHSCFM | 503200240 | 503200240-Online | 1 |
| 735 10 31 33- | CIRCLIP | 735313310 | 735313310-Online | 1 |
| 531 51 00 77- | SEALING RING | 531007751 | 531007751-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 22 00 78- | TUBE | 531007822 | 531007822-Online | 1 |
| 531 23 00 78- | BRACKET | 531007823 | 531007823-Online | 1 |
| 723 31 23 29- | SCREW SLPANM | 723232931 | 723232931-Online | 1 |
| 531 27 00 77- | SHAFT | 531007727 | 531007727-Online | 1 |
| 537 01 02 76- | LABEL | 537027601 | 537027601-Online | 1 |
| 531 25 00 78- | HOLDER | 531007825 | 531007825-Online | 1 |
