Husqvarna 150BF IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

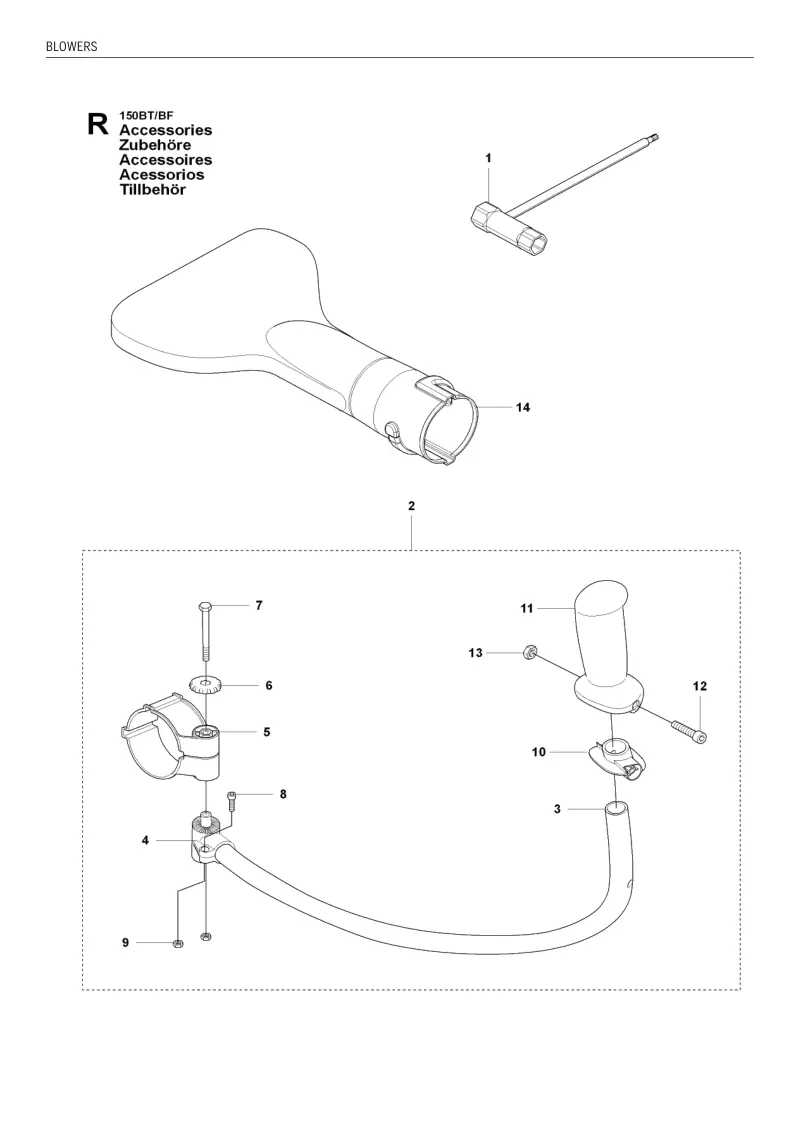

BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SOCKET | 544274401 | 544274401-Online | 1 |
| 2 | HANDLEBAR ASSY | 544400002 | 544400002-Online | 1 |
| 3 | HANDLEBAR | 537241301 | 537241301-Online | 1 |
| 4 | BRACKET | 537292901 | 537292901-Online | 1 |
| 5 | HOLDER | 544275902 | 544275902-Online | 1 |
| 6 | KNOB | 502204001 | 502204001-Online | 1 |
| 7 | SCREW EHHM | 725234751 | 725234751-Online | 1 |
| 8 | SCREW IHSCM | 725532555 | 725532555-Online | 1 |
| 9 | HEXAGON NUT | 731231401 | 731231401-Online | 2 |
| 10 | COVER | 537172901 | 537172901-Online | 1 |
| 11 | HANDLE | 537172801 | 537172801-Online | 1 |
| 12 | SCREW IHSCFM | 503200245 | 503200245-Online | 1 |
| 13 | HEXAGON NUT | 731231401 | 731231401-Online | 1 |
| 14 | TUBE | 502444001 | 502444001-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CRANKCASE | 502848901 | 502848901-Online | 1 |
| 2 | SEALING | 502849001 | 502849001-Online | 1 |
| 3 | BEARING | 502849101 | 502849101-Online | 2 |
| 4 | SEALING | 502849201 | 502849201-Online | 1 |
| 5 | SNAP RING | 502849301 | 502849301-Online | 1 |
| 6 | BOLT | 544258801 | 544258801-Online | 4 |
| 7 | GASKET | 502849401 | 502849401-Online | 1 |
| 8 | BOLT | 544259101 | 544259101-Online | 6 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | PISTON RING | 502849501 | 502849501-Online | 2 |
| 2 | PISTON | 502849601 | 502849601-Online | 1 |
| 3 | PISTON PIN | 502849701 | 502849701-Online | 1 |
| 4 | SNAP RING | 502849801 | 502849801-Online | 2 |
| 5 | BEARING | 502849901 | 502849901-Online | 1 |
| 6 | WASHER | 502850001 | 502850001-Online | 2 |
| 7 | KEY | 544260001 | 544260001-Online | 1 |
| 8 | CRANKSHAFT | 502850101 | 502850101-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | PIPE BEND | 502842501 | 502842501-Online | 1 |
| 2 | O-RING | 544264501 | 544264501-Online | 1 |
| 3 | BELLOWS | 502842601 | 502842601-Online | 1 |
| 4 | CLAMP | 544274101 | 544274101-Online | 1 |
| 5 | CLAMP | 504064901 | 504064901-Online | 1 |
| 6 | PIPE | 504064801 | 504064801-Online | 1 |
| 7 | TUBE | 504064701 | 504064701-Online | 2 |
| 8 | TUBE | 504064601 | 504064601-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | COVER | 502844201 | 502844201-Online | 1 |
| 2 | KNOB | 502844301 | 502844301-Online | 2 |
| 3 | AIR FILTER | 502844401 | 502844401-Online | 1 |
| 4 | GASKET | 502844501 | 502844501-Online | 1 |
| 7 | SCREW | 502844601 | 502844601-Online | 2 |
| 8 | PLATE | 502844701 | 502844701-Online | 1 |
| 9 | CARBURETTOR BODY | 502844901 | 502844901-Online | 1 |
| 14 | LABEL | 544363401 | 544363401-Online | 1 |
| 15 | COVER | 544263801 | 544263801-Online | 1 |
| 16 | CARBURETTOR | 502845001 | 502845001-Online | 1 |
| 17 | GASKET | 502845301 | 502845301-Online | 1 |
| 18 | BOLT | 544257001 | 544257001-Online | 4 |
| 19 | INSULATION | 502845401 | 502845401-Online | 1 |
| 20 | THROTTLE ROD | 504845501 | 504845501-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CARBURETTOR | 502845001 | 502845001-Online | 1 |
| 2 | BODY CARBURETTOR | 544363501 | 544363501-Online | 1 |
| 3 | SCREW | 544364701 | 544364701-Online | 2 |
| 4 | BRACKET | 544364801 | 544364801-Online | 1 |
| 5 | NUT | 544364901 | 544364901-Online | 1 |
| 6 | SCREW | 544365001 | 544365001-Online | 1 |
| 7 | SWIVEL CARB | 544364101 | 544364101-Online | 1 |
| 8 | WASHER | 544364001 | 544364001-Online | 1 |
| 9 | RING | 544364201 | 544364201-Online | 1 |
| 10 | O-RING | 544365401 | 544365401-Online | 1 |
| 11 | JET | 504643201 | 504643201-Online | 1 |
| 12 | GASKET | 544364301 | 544364301-Online | 1 |
| 13 | DIAPHRAGM CARBURETTOR | 544364401 | 544364401-Online | 1 |
| 14 | GASKET | 544364501 | 544364501-Online | 1 |
| 15 | DIAPHRAGM CARBURETTOR | 504643101 | 504643101-Online | 1 |
| 16 | BODY CARBURETTOR | 544363601 | 544363601-Online | 1 |
| 17 | PUMP | 544363901 | 544363901-Online | 1 |
| 18 | COVER | 544363801 | 544363801-Online | 1 |
| 19 | SCREW | 544365201 | 544365201-Online | 4 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SCREW | 544256801 | 544256801-Online | 2 |
| 2 | PLATE | 502846501 | 502846501-Online | 1 |
| 3 | BOLT | 544256601 | 544256601-Online | 4 |
| 4 | CYLINDER | 502848701 | 502848701-Online | 1 |
| 5 | GASKET | 502848801 | 502848801-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CYLINDER COVER | 502843001 | 502843001-Online | 1 |
| 2 | SCREW | 544263601 | 544263601-Online | 4 |
| 3 | LABEL | 544363401 | 544363401-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SCREW | 544263601 | 544263601-Online | 3 |
| 2 | FUNNEL | 544264801 | 544264801-Online | 1 |
| 3 | SCREW | 544264601 | 544264601-Online | 2 |
| 4 | SCREW | 544263601 | 544263601-Online | 9 |
| 5 | FAN HOUSING | 544264101 | 544264101-Online | 1 |
| 6 | BOLT | 544265101 | 544265101-Online | 4 |
| 7 | FAN | 502850201 | 502850201-Online | 1 |
| 8 | NUT | 544264701 | 544264701-Online | 2 |
| 9 | CLAMP | 504122301 | 504122301-Online | 1 |
| 10 | SCREW | 544264301 | 544264301-Online | 1 |
| 11 | CLAMP | 544264901 | 544264901-Online | 1 |
| 12 | SCREW | 544264301 | 544264301-Online | 1 |
| 13 | FAN HOUSING | 502850301 | 502850301-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | NET | 544270301 | 544270301-Online | 1 |
| 2 | CLIP | 544363301 | 544363301-Online | 4 |
| 3 | PAD COMP | 544270101 | 544270101-Online | 1 |
| 4 | CLIP | 544270201 | 544270201-Online | 7 |
| 5 | DAMPER | 544270901 | 544270901-Online | 2 |
| 6 | SCREW | 544270801 | 544270801-Online | 2 |
| 7 | BOLT | 544270701 | 544270701-Online | 1 |
| 8 | WASHER | 502850501 | 502850501-Online | 1 |
| 9 | DAMPER | 544270501 | 544270501-Online | 1 |
| 10 | FRAME | 502850601 | 502850601-Online | 1 |
| 11 | CLIP | 544363301 | 544363301-Online | 2 |
| 12 | CUSHION | 544363201 | 544363201-Online | 1 |
| 13 | NUT | 544271001 | 544271001-Online | 2 |
| 14 | DECAL | 502850401 | 502850401-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1A | TANK ASSY | 502846001 | 502846001-Online | 1 |
| 1B | TANK ASSY.EVP | 502846101 | 502846101-Online | 1 |
| 2 | FUEL HOSE | 544272801 | 544272801-Online | 1 |
| 3 | CLIP | 544273001 | 544273001-Online | 1 |
| 4 | FILTER | 544272901 | 544272901-Online | 1 |
| 5 | TANK CAP ASSY | 504117701 | 504117701-Online | 1 |
| 6 | FILTER | 544272601 | 544272601-Online | 1 |
| 7 | PACKING | 544272501 | 544272501-Online | 1 |
| 8 | HOLDER | 504117901 | 504117901-Online | 1 |
| 9 | HOLDER | 544272401 | 544272401-Online | 1 |
| 11 | DECAL | 502846201 | 502846201-Online | 1 |
| 12 | CLIP | 544273201 | 544273201-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | HANDLE ASSY | 502842901 | 502842901-Online | 1 |
| 2 | LEVER | 544276301 | 544276301-Online | 1 |
| 3 | HUB CAP | 544277401 | 544277401-Online | 1 |
| 4 | NUT | 544277101 | 544277101-Online | 1 |
| 5 | WASHER | 544277001 | 544277001-Online | 1 |
| 6 | SPRING | 544276901 | 544276901-Online | 1 |
| 7 | WASHER | 544277201 | 544277201-Online | 1 |
| 8 | SCREW | 544365801 | 544365801-Online | 2 |
| 9 | BRACKET | 544276701 | 544276701-Online | 1 |
| 10 | WASHER | 544276501 | 544276501-Online | 1 |
| 11 | NUT | 544276401 | 544276401-Online | 1 |
| 12 | ARM | 544276601 | 544276601-Online | 1 |
| 13 | WASHER | 544277201 | 544277201-Online | 1 |
| 14 | BOLT | 544276801 | 544276801-Online | 1 |
| 15 | SWITCH | 504554601 | 504554601-Online | 1 |
| 16 | CABLE | 544277501 | 544277501-Online | 1 |
| 17 | TUBE | 544277601 | 544277601-Online | 1 |
| 18 | GRIP | 504554701 | 504554701-Online | 1 |
| 19 | SCREW IHSCFM | 503200745 | 503200745-Online | 1 |
| 20 | HANDLE | 537172801 | 537172801-Online | 1 |
| 21 | COVER | 537172901 | 537172901-Online | 1 |
| 22 | HEXAGON NUT | 731231401 | 731231401-Online | 1 |
| 23 | STAY | 537260201 | 537260201-Online | 1 |
| 24 | SQUARE NUT | 503226504 | 503226504-Online | 1 |
| 25 | HOLDER | 544275902 | 544275902-Online | 1 |
| 26 | KNOB | 502204001 | 502204001-Online | 1 |
| 27 | SCREW EHHM | 725234451 | 725234451-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | BAND | 544269801 | 544269801-Online | 1 |
| 2 | CLIP | 544270001 | 544270001-Online | 2 |
| 3 | BAND | 544269901 | 544269901-Online | 1 |
| 4 | RING | 544269701 | 544269701-Online | 2 |
| 5 | BAND | 544274501 | 544274501-Online | 1 |
| 6 | BAND | 544274601 | 544274601-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | NUT | 544259901 | 544259901-Online | 1 |
| 2 | KEY | 544260001 | 544260001-Online | 1 |
| 3 | FLYWHEEL | 502846301 | 502846301-Online | 1 |
| 4 | IGNITION MODULE | 502846401 | 502846401-Online | 1 |
| 5 | SPARK PLUG CAP | 544260301 | 544260301-Online | 1 |
| 6 | SPRING | 504118201 | 504118201-Online | 1 |
| 7 | GROMMET | 544260601 | 544260601-Online | 1 |
| 8 | SPARK PLUG | 544260901 | 544260901-Online | 1 |
| 9 | BOLT | 544257501 | 544257501-Online | 2 |
| 10 | CABLE | 544260801 | 544260801-Online | 1 |
| 11 | BOLT | 544259001 | 544259001-Online | 1 |
| 12 | COVER | 544258901 | 544258901-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | GASKET | 502845601 | 502845601-Online | 1 |
| 2 | BOLT | 544257901 | 544257901-Online | 2 |
| 3 | BOLT | 544258001 | 544258001-Online | 1 |
| 4 | MUFFLER ASSY | 502845701 | 502845701-Online | 1 |
| 5 | SPARK ARRESTER SCREEN | 502845801 | 502845801-Online | 1 |
| 6 | EXHAUST DUCT | 502845901 | 502845901-Online | 1 |
| 7 | BOLT | 544362701 | 544362701-Online | 4 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | STARTER ASSY | 502843101 | 502843101-Online | 1 |
| 2 | KNOB | 502843201 | 502843201-Online | 1 |
| 3 | SPRING | 502843301 | 502843301-Online | 1 |
| 4 | STARTER PULLEY | 502843401 | 502843401-Online | 1 |
| 5 | CORD | 502843501 | 502843501-Online | 1 |
| 6 | STARTER PAWL | 504554801 | 504554801-Online | 1 |
| 7 | WASHER | 502843601 | 502843601-Online | 1 |
| 8 | RETAINER | 504554901 | 504554901-Online | 1 |
| 9 | WASHER | 502843701 | 502843701-Online | 1 |
| 10 | SCREW | 502843801 | 502843801-Online | 1 |
| 11 | SCREW | 502843901 | 502843901-Online | 4 |
| 12A | DECAL | 502844001 | 502844001-Online | 1 |
| 12B | DECAL | 502844101 | 502844101-Online | 1 |
| 13 | PULLEY | 504555001 | 504555001-Online | 1 |
| 14 | NUT | 544259901 | 544259901-Online | 1 |
