Husqvarna 180 BT IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.
BLOWERS

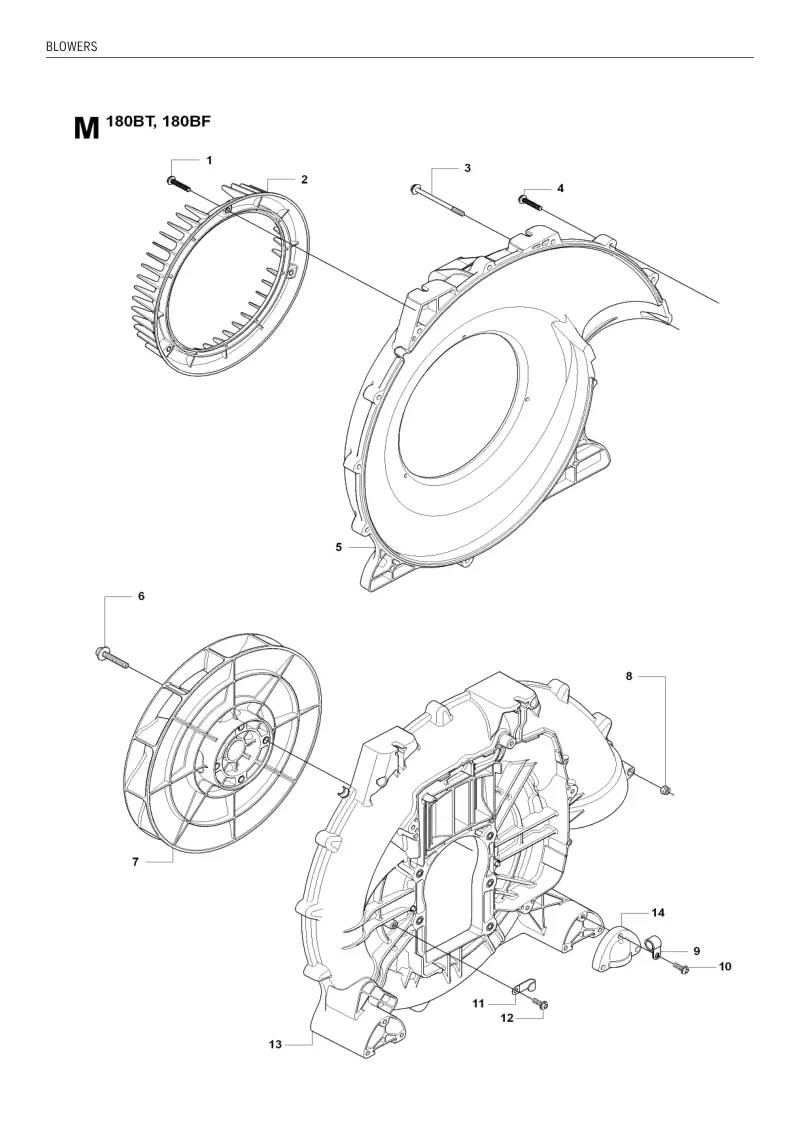

| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SCREW | 544264301 | 544264301-Online | 3 |
| 2 | FUNNEL | 505184301 | 505184301-Online | 1 |
| 3 | SCREW | 544264601 | 544264601-Online | 2 |
| 4 | SCREW | 544263601 | 544263601-Online | 11 |
| 5 | FAN HOUSING | 505184101 | 505184101-Online | 1 |
| 6 | BOLT | 544265101 | 544265101-Online | 2 |
| 7 | FAN | 505184401 | 505184401-Online | 1 |
| 8 | NUT | 544264701 | 544264701-Online | 2 |
| 9 | CLAMP | 504122301 | 504122301-Online | 1 |
| 10 | SCREW | 544263601 | 544263601-Online | 6 |
| 11 | CLAMP | 544264901 | 544264901-Online | 1 |
| 12 | SCREW | 544264301 | 544264301-Online | 1 |
| 13 | FAN HOUSING | 505184201 | 505184201-Online | 1 |
| 14 | COVER | 505184501 | 505184501-Online | 2 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | BAND | 505185601 | 505185601-Online | 1 |
| 2 | CLIP | 544270001 | 544270001-Online | 2 |
| 3 | BAND | 505185501 | 505185501-Online | 1 |
| 4 | RING | 544269701 | 544269701-Online | 2 |
| 5 | BAND | 544274501 | 544274501-Online | 1 |
| 6 | BAND | 544274601 | 544274601-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | FRAME | 505185101 | 505185101-Online | 1 |
| 2 | RING | 544269701 | 544269701-Online | 2 |
| 3 | GUARD | 505185301 | 505185301-Online | 1 |
| 4 | GUARD | 505185401 | 505185401-Online | 1 |
| 5 | SCREW | 544264301 | 544264301-Online | 6 |
| 6 | SCREEN | 505185201 | 505185201-Online | 1 |
| 7 | SCREW | 544264301 | 544264301-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | NET-C | 505184601 | 505184601-Online | 1 |
| 2 | CLIP | 505184701 | 505184701-Online | 4 |
| 3 | PAD | 505184801 | 505184801-Online | 1 |
| 4 | CLIP | 544270201 | 544270201-Online | 6 |
| 5 | DAMPER | 544270901 | 544270901-Online | 2 |
| 6 | CLIP | 505184901 | 505184901-Online | 2 |
| 7 | BOLT | 544270701 | 544270701-Online | 1 |
| 8 | WASHER | 502850501 | 502850501-Online | 1 |
| 9 | DAMPER | 544270501 | 544270501-Online | 1 |
| 10 | NUT | 544271001 | 544271001-Online | 2 |
| 11 | LABEL | 505185001 | 505185001-Online | 1 |
| 12 | LABEL | 505185002 | 505185002-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CARBURETTOR | 505183101 | 505183101-Online | 1 |
| 2 | BODY CARBURETTOR | 544363501 | 544363501-Online | 1 |
| 3 | SCREW | 544364701 | 544364701-Online | 2 |
| 4 | BRACKET | 544364801 | 544364801-Online | 1 |
| 5 | NUT | 544364901 | 544364901-Online | 1 |
| 6 | SCREW | 544365001 | 544365001-Online | 1 |
| 7 | SWIVEL CARB | 544364101 | 544364101-Online | 1 |
| 8 | WASHER | 544364001 | 544364001-Online | 1 |
| 9 | RING | 544364201 | 544364201-Online | 1 |
| 10 | O-RING | 544365401 | 544365401-Online | 1 |
| 11 | JET | 544365301 | 544365301-Online | 1 |
| 12 | GASKET | 544364301 | 544364301-Online | 1 |
| 13 | DIAPHRAGM CARBURETTOR | 544364401 | 544364401-Online | 1 |
| 14 | GASKET | 544364501 | 544364501-Online | 1 |
| 15 | DIAPHRAGM CARBURETTOR | 504643101 | 504643101-Online | 1 |
| 16 | DIAPHRAGM CARBURETTOR | 544364601 | 544364601-Online | 1 |
| 17 | PUMP | 544363901 | 544363901-Online | 1 |
| 18 | COVER | 544363801 | 544363801-Online | 1 |
| 19 | SCREW | 544365201 | 544365201-Online | 4 |
| 20 | RING | 544365101 | 544365101-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | TUBE | 505180801 | 505180801-Online | 1 |
| 2 | O-RING | 505179801 | 505179801-Online | 1 |
| 3 | HOSE | 505180901 | 505180901-Online | 1 |
| 4 | CLAMP | 544274101 | 544274101-Online | 1 |
| 5 | CLAMP | 544274001 | 544274001-Online | 1 |
| 6 | SWIVEL | 505181101 | 505181101-Online | 1 |
| 7 | PIPE | 544273801 | 544273801-Online | 2 |
| 8 | TUBE | 505181301 | 505181301-Online | 1 |
| 9 | CLAMP | 544276001 | 544276001-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | PISTON RING | 504796501 | 504796501-Online | 2 |
| 2 | PISTON | 504796301 | 504796301-Online | 1 |
| 3 | PISTON PIN | 504796401 | 504796401-Online | 1 |
| 4 | SNAP RING | 544259501 | 544259501-Online | 2 |
| 5 | BEARING | 544259601 | 544259601-Online | 1 |
| 6 | WASHER | 544259701 | 544259701-Online | 2 |
| 7 | KEY | 544260001 | 544260001-Online | 1 |
| 8 | CRANKSHAFT | 544259801 | 544259801-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1A | TANK ASSY | 505183301 | 505183301-Online | 1 |
| 1B | TANK ASSY.EVP | 505183401 | 505183401-Online | 1 |
| 2 | FUEL HOSE | 544272801 | 544272801-Online | 1 |
| 3 | FILTER | 544272901 | 544272901-Online | 1 |
| 4 | CLIP | 544273001 | 544273001-Online | 1 |
| 5 | TANK CAP ASSY | 504117701 | 504117701-Online | 1 |
| 6 | HOLDER | 504117901 | 504117901-Online | 1 |
| 7 | FILTER | 544272601 | 544272601-Online | 1 |
| 8 | HOLDER | 544272401 | 544272401-Online | 1 |
| 9 | PACKING | 544272501 | 544272501-Online | 1 |
| 10 | CLIP | 544273201 | 544273201-Online | 1 |
| 11 | SCREW | 544273101 | 544273101-Online | 3 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | BOLT | 544258801 | 544258801-Online | 4 |
| 2 | SEALING | 544258601 | 544258601-Online | 1 |
| 3 | SNAP RING | 544258701 | 544258701-Online | 2 |
| 4 | CRANKCASE | 544258201 | 544258201-Online | 1 |
| 5 | GASKET | 544258301 | 544258301-Online | 1 |
| 6 | BEARING | 544258401 | 544258401-Online | 2 |
| 7 | SEALING | 544258501 | 544258501-Online | 1 |
| 8 | BOLT | 544259101 | 544259101-Online | 6 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | PULLEY | 544262701 | 544262701-Online | 1 |
| 2 | E-CLIP | 544263001 | 544263001-Online | 2 |
| 3 | SPRING | 544262901 | 544262901-Online | 2 |
| 4 | STARTER PAWL | 544262801 | 544262801-Online | 2 |
| 5 | STARTER ASSY | 544261001 | 544261001-Online | 1 |
| 6 | SCREW | 544261301 | 544261301-Online | 1 |
| 7 | WASHER | 544261701 | 544261701-Online | 1 |
| 8 | PLATE | 544262001 | 544262001-Online | 1 |
| 9 | SPRING | 544261901 | 544261901-Online | 1 |
| 10 | WASHER | 544261801 | 544261801-Online | 1 |
| 11 | REEL | 544261101 | 544261101-Online | 1 |
| 12 | SPRING | 544261201 | 544261201-Online | 1 |
| 13 | COVER | 544261601 | 544261601-Online | 1 |
| 14 | KNOB | 544261501 | 544261501-Online | 1 |
| 15 | STARTER ROPE | 544261401 | 544261401-Online | 1 |
| 16 | BOLT | 544263101 | 544263101-Online | 4 |
| 17A | DECAL | 504795801 | 504795801-Online | 1 |
| 17B | DECAL | 504795901 | 504795901-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SCREW | 544256801 | 544256801-Online | 2 |
| 2 | PLATE | 505183801 | 505183801-Online | 1 |
| 3 | BOLT | 544256601 | 544256601-Online | 4 |
| 4 | CYLINDER | 504796201 | 504796201-Online | 1 |
| 5 | GASKET | 544256501 | 544256501-Online | 1 |
| 6 | COVER | 505183901 | 505183901-Online | 1 |
| 7 | GASKET | 544257601 | 544257601-Online | 2 |
| 8 | COVER | 505184001 | 505184001-Online | 1 |
| 9 | BOLT | 544257501 | 544257501-Online | 4 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | GASKET | 504796101 | 504796101-Online | 1 |
| 2 | SCREW | 504798401 | 504798401-Online | 2 |
| 3 | BOLT | 544258001 | 544258001-Online | 1 |
| 4 | MUFFLER ASSY | 504796001 | 504796001-Online | 1 |
| 5 | SPARK ARRESTER | 504798201 | 504798201-Online | 1 |
| 6 | EXHAUST DUCT | 504798301 | 504798301-Online | 1 |
| 7 | BOLT | 544362701 | 544362701-Online | 4 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SOCKET | 544274401 | 544274401-Online | 1 |
| 2 | HANDLEBAR ASSY | 544400001 | 544400001-Online | 1 |
| 3 | HANDLEBAR | 537241301 | 537241301-Online | 1 |
| 4 | BRACKET | 537292901 | 537292901-Online | 1 |
| 5 | HOLDER | 544275901 | 544275901-Online | 1 |
| 6 | KNOB | 502204001 | 502204001-Online | 1 |
| 7 | SCREW EHHM | 725234751 | 725234751-Online | 1 |
| 8 | SCREW IHSCM | 725532555 | 725532555-Online | 1 |
| 9 | HEXAGON NUT | 731231401 | 731231401-Online | 2 |
| 10 | COVER | 537172901 | 537172901-Online | 1 |
| 11 | HANDLE | 537172801 | 537172801-Online | 1 |
| 12 | SCREW IHSCFM | 503200245 | 503200245-Online | 1 |
| 13 | HEXAGON NUT | 731231401 | 731231401-Online | 1 |
| 14 | NOZZLE | 544274801 | 544274801-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | LEVER ASSY | 505181401 | 505181401-Online | 1 |
| 2 | WIRING ASSY | 505004001 | 505004001-Online | 1 |
| 3 | CONNECTOR | 537226201 | 537226201-Online | 1 |
| 4 | CONNECTOR | 537226301 | 537226301-Online | 1 |
| 5 | CORD | 505181701 | 505181701-Online | 1 |
| 6 | CABLE | 505181801 | 505181801-Online | 1 |
| 7 | TUBE | 505181901 | 505181901-Online | 1 |
| 8 | SCREW IHSCT | 503216618 | 503216618-Online | 2 |
| 9 | HANDLE HALF | 502244901 | 502244901-Online | 1 |
| 10 | SCREW | 505290801 | 505290801-Online | 1 |
| 11 | WASHER | 735583501 | 735583501-Online | 1 |
| 12 | WASHER | 505181501 | 505181501-Online | 1 |
| 13 | SPRING | 537373901 | 537373901-Online | 1 |
| 14 | CONTROL | 502245501 | 502245501-Online | 1 |
| 15 | SCREW CCRPANT | 503212906 | 503212906-Online | 1 |
| 16 | RETAINER | 502246001 | 502246001-Online | 1 |
| 17 | SPRING THROTTLE TRIG | 537174201 | 537174201-Online | 1 |
| 18 | TRIGGER | 502245401 | 502245401-Online | 1 |
| 19 | SPRING | 505567901 | 505567901-Online | 1 |
| 20 | HANDLE HALF | 502244801 | 502244801-Online | 1 |
| 21 | PLATE | 502641701 | 502641701-Online | 1 |
| 22 | SHAFT PIVOT | 537141203 | 537141203-Online | 1 |
| 23 | HEXAGON NUT | 503221013 | 503221013-Online | 1 |
| 24 | HOLDER | 502245301 | 502245301-Online | 1 |
| 25 | SQUARE NUT | 503226504 | 503226504-Online | 1 |
| 26 | HOLDER | 544275901 | 544275901-Online | 1 |
| 27 | TURNING KNOB | 504800301 | 504800301-Online | 1 |
| 28 | SCREW EHHM | 725234451 | 725234451-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | COVER | 505182201 | 505182201-Online | 1 |
| 2 | KNOB | 505182301 | 505182301-Online | 2 |
| 3 | COVER | 544271301 | 544271301-Online | 1 |
| 4 | SCREW | 544263601 | 544263601-Online | 2 |
| 5 | AIR FILTER | 544271601 | 544271601-Online | 1 |
| 6 | AIR FILTER | 544271501 | 544271501-Online | 1 |
| 7 | BOLT | 544272001 | 544272001-Online | 4 |
| 8 | BODY | 505182501 | 505182501-Online | 1 |
| 9 | NUT | 505182601 | 505182601-Online | 4 |
| 10 | CUP | 505182901 | 505182901-Online | 1 |
| 11 | BOLT | 544263201 | 544263201-Online | 2 |
| 12 | GASKET | 544257101 | 544257101-Online | 1 |
| 13 | INSULATING PIECE | 544256901 | 544256901-Online | 1 |
| 14 | GASKET | 544257201 | 544257201-Online | 1 |
| 15 | COVER | 544263801 | 544263801-Online | 1 |
| 16 | BOLT | 544257001 | 544257001-Online | 4 |
| 17 | CARBURETTOR | 505183101 | 505183101-Online | 1 |
| 18 | SCREW | 544263601 | 544263601-Online | 3 |
| 19 | COVER | 544263301 | 544263301-Online | 1 |
| 20 | SCREEN | 544263401 | 544263401-Online | 1 |
| 21 | SCREW | 544263501 | 544263501-Online | 2 |
| 22 | CLAMP | 544271901 | 544271901-Online | 1 |
| 23 | GASKET | 544263701 | 544263701-Online | 1 |
| 24 | HOSE | 505182801 | 505182801-Online | 1 |
| 25 | CLAMP | 544271901 | 544271901-Online | 1 |
| 26 | CASSETTE | 505182401 | 505182401-Online | 1 |
| 27 | CARBURETTOR | 505183001 | 505183001-Online | 1 |
| 28 | CORD | 505183201 | 505183201-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | NUT | 544259901 | 544259901-Online | 1 |
| 2 | KEY | 544260001 | 544260001-Online | 1 |
| 3 | ROTOR | 544260101 | 544260101-Online | 1 |
| 4 | IGNITION MODULE | 505183501 | 505183501-Online | 1 |
| 5 | TUBE | 544260501 | 544260501-Online | 1 |
| 6 | SPARK PLUG CAP | 544260301 | 544260301-Online | 1 |
| 7 | SPRING | 505183601 | 505183601-Online | 1 |
| 8 | GROMMET | 544260601 | 544260601-Online | 1 |
| 9 | SPARK PLUG | 544260901 | 544260901-Online | 1 |
| 10 | TUBE | 544362901 | 544362901-Online | 1 |
| 11 | BOLT | 544257501 | 544257501-Online | 2 |
| 12 | CORD | 505183701 | 505183701-Online | 1 |
| 13 | BOLT | 544259001 | 544259001-Online | 1 |
| 14 | COVER | 544258901 | 544258901-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | ENGINE COVER | 505182001 | 505182001-Online | 1 |
| 2 | SCREW | 544263601 | 544263601-Online | 4 |
| 3 | LABEL | 544363401 | 544363401-Online | 1 |
| 4 | TAPE | 505182101 | 505182101-Online | 1 |
