Husqvarna 180 BF IPL

Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

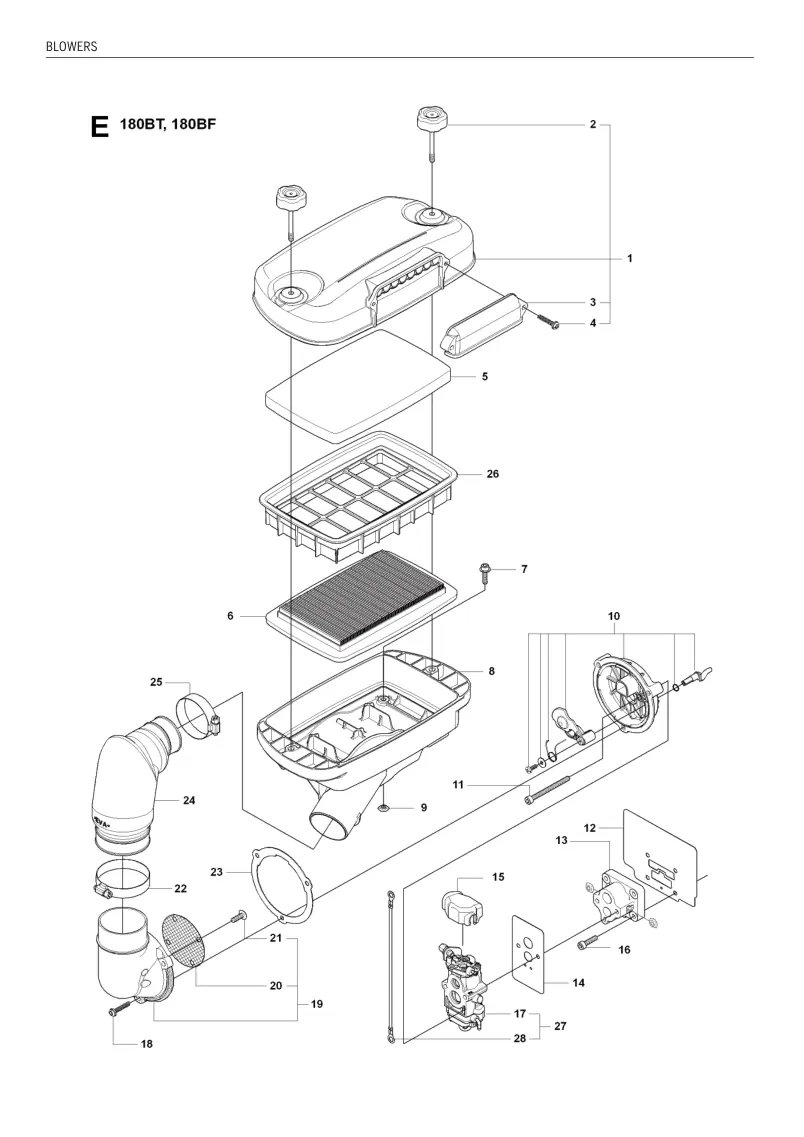

BLOWERS

Ref	Description	Part Number	Cutsmart SKU	Qty
1	COVER	505182201	505182201-Online	1
2	KNOB	505182301	505182301-Online	2
3	COVER	544271301	544271301-Online	1
4	SCREW	544263601	544263601-Online	2
5	AIR FILTER	544271601	544271601-Online	1
6	AIR FILTER	544271501	544271501-Online	1
7	BOLT	544272001	544272001-Online	4
8	BODY	505182501	505182501-Online	1
9	NUT	505182601	505182601-Online	4
10	CUP	505182901	505182901-Online	1
11	BOLT	544263201	544263201-Online	2
12	GASKET	544257101	544257101-Online	1
13	INSULATING PIECE	544256901	544256901-Online	1
14	GASKET	544257201	544257201-Online	1
15	COVER	544263801	544263801-Online	1
16	BOLT	544257001	544257001-Online	4
17	CARBURETTOR	505183101	505183101-Online	1
18	SCREW	544263601	544263601-Online	3
19	COVER	544263301	544263301-Online	1
20	SCREEN	544263401	544263401-Online	1
21	SCREW	544263501	544263501-Online	2
22	CLAMP	544271901	544271901-Online	1
23	GASKET	544263701	544263701-Online	1
24	HOSE	505182801	505182801-Online	1
25	CLAMP	544271901	544271901-Online	1
26	CASSETTE	505182401	505182401-Online	1
27	CARBURETTOR	505183001	505183001-Online	1
28	CORD	505183201	505183201-Online	1

BLOWERS

Ref	Description	Part Number	Cutsmart SKU	Qty
1	CARBURETTOR	505183101	505183101-Online	1
2	BODY CARBURETTOR	544363501	544363501-Online	1
3	SCREW	544364701	544364701-Online	2
4	BRACKET	544364801	544364801-Online	1
5	NUT	544364901	544364901-Online	1
6	SCREW	544365001	544365001-Online	1
7	SWIVEL CARB	544364101	544364101-Online	1
8	WASHER	544364001	544364001-Online	1
9	RING	544364201	544364201-Online	1
10	O-RING	544365401	544365401-Online	1
11	JET	544365301	544365301-Online	1
12	GASKET	544364301	544364301-Online	1
13	DIAPHRAGM CARBURETTOR	544364401	544364401-Online	1
14	GASKET	544364501	544364501-Online	1
15	DIAPHRAGM CARBURETTOR	504643101	504643101-Online	1
16	DIAPHRAGM CARBURETTOR	544364601	544364601-Online	1
17	PUMP	544363901	544363901-Online	1
18	COVER	544363801	544363801-Online	1
19	SCREW	544365201	544365201-Online	4
20	RING	544365101	544365101-Online	1

BLOWERS

Ref	Description	Part Number	Cutsmart SKU	Qty
1	BOLT	544258801	544258801-Online	4
2	SEALING	544258601	544258601-Online	1
3	SNAP RING	544258701	544258701-Online	2
4	CRANKCASE	544258201	544258201-Online	1
5	GASKET	544258301	544258301-Online	1
6	BEARING	544258401	544258401-Online	2
7	SEALING	544258501	544258501-Online	1
8	BOLT	544259101	544259101-Online	6

BLOWERS

Ref	Description	Part Number	Cutsmart SKU	Qty
1	SCREW	544256801	544256801-Online	2
2	PLATE	505183801	505183801-Online	1
3	BOLT	544256601	544256601-Online	4
4	CYLINDER	504796201	504796201-Online	1
5	GASKET	544256501	544256501-Online	1
6	COVER	505183901	505183901-Online	1
7	GASKET	544257601	544257601-Online	2
8	COVER	505184001	505184001-Online	1
9	BOLT	544257501	544257501-Online	4

BLOWERS

Ref	Description	Part Number	Cutsmart SKU	Qty
1	ENGINE COVER	505182001	505182001-Online	1
2	SCREW	544263601	544263601-Online	4
3	LABEL	544363401	544363401-Online	1
4	TAPE	505182101	505182101-Online	1

BLOWERS

Ref	Description	Part Number	Cutsmart SKU	Qty
1	SCREW	544264301	544264301-Online	3
2	FUNNEL	505184301	505184301-Online	1
3	SCREW	544264601	544264601-Online	2
4	SCREW	544263601	544263601-Online	11
5	FAN HOUSING	505184101	505184101-Online	1
6	BOLT	544265101	544265101-Online	2
7	FAN	505184401	505184401-Online	1
8	NUT	544264701	544264701-Online	2
9	CLAMP	504122301	504122301-Online	1
10	SCREW	544263601	544263601-Online	6
11	CLAMP	544264901	544264901-Online	1
12	SCREW	544264301	544264301-Online	1
13	FAN HOUSING	505184201	505184201-Online	1
14	COVER	505184501	505184501-Online	2

BLOWERS

Ref	Description	Part Number	Cutsmart SKU	Qty
1	NET-C	505184601	505184601-Online	1
2	CLIP	505184701	505184701-Online	4
3	PAD	505184801	505184801-Online	1
4	CLIP	544270201	544270201-Online	6
5	DAMPER	544270901	544270901-Online	2
6	CLIP	505184901	505184901-Online	2
7	BOLT	544270701	544270701-Online	1
8	WASHER	502850501	502850501-Online	1
9	DAMPER	544270501	544270501-Online	1
10	NUT	544271001	544271001-Online	2
11	LABEL	505185001	505185001-Online	1
12	LABEL	505185002	505185002-Online	1

BLOWERS

Ref	Description	Part Number	Cutsmart SKU	Qty
1	FRAME	505185101	505185101-Online	1
2	RING	544269701	544269701-Online	2
3	GUARD	505185301	505185301-Online	1
4	GUARD	505185401	505185401-Online	1
5	SCREW	544264301	544264301-Online	6
6	SCREEN	505185201	505185201-Online	1
7	SCREW	544264301	544264301-Online	1

BLOWERS

Ref	Description	Part Number	Cutsmart SKU	Qty
1A	TANK ASSY	505183301	505183301-Online	1
1B	TANK ASSY.EVP	505183401	505183401-Online	1
2	FUEL HOSE	544272801	544272801-Online	1
3	FILTER	544272901	544272901-Online	1
4	CLIP	544273001	544273001-Online	1
5	TANK CAP ASSY	504117701	504117701-Online	1
6	HOLDER	504117901	504117901-Online	1
7	FILTER	544272601	544272601-Online	1
8	HOLDER	544272401	544272401-Online	1
9	PACKING	544272501	544272501-Online	1
10	CLIP	544273201	544273201-Online	1
11	SCREW	544273101	544273101-Online	3

BLOWERS

Ref	Description	Part Number	Cutsmart SKU	Qty
1	LEVER	544276201	544276201-Online	1
2	LEVER	544276301	544276301-Online	1
3	HUB CAP	544277401	544277401-Online	1
4	NUT	544277101	544277101-Online	1
5	WASHER	544277001	544277001-Online	1
6	SPRING	544276901	544276901-Online	1
7	WASHER	544277201	544277201-Online	1
8	SCREW	544365801	544365801-Online	2
9	BRACKET	544276701	544276701-Online	1
10	WASHER	544276501	544276501-Online	1
11	NUT	544276401	544276401-Online	1
12	ARM	544276601	544276601-Online	1
13	WASHER	544277201	544277201-Online	1
14	BOLT	544276801	544276801-Online	1
15	SWITCH	544277301	544277301-Online	1
16	CABLE	544277501	544277501-Online	1
17	TUBE	544277601	544277601-Online	1
18	GRIP	544277701	544277701-Online	1
19	SCREW IHSCFM	503200745	503200745-Online	1
20	HANDLE	537172801	537172801-Online	1
21	COVER	537172901	537172901-Online	1
22	HEXAGON NUT	731231401	731231401-Online	1
23	STAY	537260201	537260201-Online	1
24	SQUARE NUT	503226504	503226504-Online	1
25	HOLDER	544275901	544275901-Online	1
26	KNOB	502204001	502204001-Online	1
27	SCREW EHHM	725234451	725234451-Online	1

BLOWERS

Ref	Description	Part Number	Cutsmart SKU	Qty
1	BAND	505185601	505185601-Online	1
2	CLIP	544270001	544270001-Online	2
3	BAND	505185501	505185501-Online	1
4	RING	544269701	544269701-Online	2
5	BAND	544274501	544274501-Online	1
6	BAND	544274601	544274601-Online	1

BLOWERS

Ref	Description	Part Number	Cutsmart SKU	Qty
1	NUT	544259901	544259901-Online	1
2	KEY	544260001	544260001-Online	1
3	ROTOR	544260101	544260101-Online	1
4	IGNITION MODULE	505183501	505183501-Online	1
5	TUBE	544260501	544260501-Online	1
6	SPARK PLUG CAP	544260301	544260301-Online	1
7	SPRING	505183601	505183601-Online	1
8	GROMMET	544260601	544260601-Online	1
9	SPARK PLUG	544260901	544260901-Online	1
10	TUBE	544362901	544362901-Online	1
11	BOLT	544257501	544257501-Online	2
12	CORD	505183701	505183701-Online	1
13	BOLT	544259001	544259001-Online	1
14	COVER	544258901	544258901-Online	1

BLOWERS

Ref	Description	Part Number	Cutsmart SKU	Qty
1	GASKET	504796101	504796101-Online	1
2	SCREW	504798401	504798401-Online	2
3	BOLT	544258001	544258001-Online	1
4	MUFFLER ASSY	504796001	504796001-Online	1
5	SPARK ARRESTER	504798201	504798201-Online	1
6	EXHAUST DUCT	504798301	504798301-Online	1
7	BOLT	544362701	544362701-Online	4

BLOWERS

Ref	Description	Part Number	Cutsmart SKU	Qty
1	PISTON RING	504796501	504796501-Online	2
2	PISTON	504796301	504796301-Online	1
3	PISTON PIN	504796401	504796401-Online	1
4	SNAP RING	544259501	544259501-Online	2
5	BEARING	544259601	544259601-Online	1
6	WASHER	544259701	544259701-Online	2
7	KEY	544260001	544260001-Online	1
8	CRANKSHAFT	544259801	544259801-Online	1

BLOWERS

Ref	Description	Part Number	Cutsmart SKU	Qty
1	PULLEY	544262701	544262701-Online	1
2	E-CLIP	544263001	544263001-Online	2
3	SPRING	544262901	544262901-Online	2
4	STARTER PAWL	544262801	544262801-Online	2
5	STARTER ASSY	544261001	544261001-Online	1
6	SCREW	544261301	544261301-Online	1
7	WASHER	544261701	544261701-Online	1
8	PLATE	544262001	544262001-Online	1
9	SPRING	544261901	544261901-Online	1
10	WASHER	544261801	544261801-Online	1
11	REEL	544261101	544261101-Online	1
12	SPRING	544261201	544261201-Online	1
13	COVER	544261601	544261601-Online	1
14	KNOB	544261501	544261501-Online	1
15	STARTER ROPE	544261401	544261401-Online	1
16	BOLT	544263101	544263101-Online	4
17A	DECAL	504795801	504795801-Online	1
17B	DECAL	504795901	504795901-Online	1

BLOWERS

Ref	Description	Part Number	Cutsmart SKU	Qty
1	TUBE	505180801	505180801-Online	1
2	O-RING	505179801	505179801-Online	1
3	HOSE	505180901	505180901-Online	1
4	CLAMP	544274101	544274101-Online	1
5	CLAMP	544274001	544274001-Online	1
6	SWIVEL	505181101	505181101-Online	1
7	PIPE	544273801	544273801-Online	2
8	TUBE	505181301	505181301-Online	1

BLOWERS

Ref	Description	Part Number	Cutsmart SKU	Qty
1	SOCKET	544274401	544274401-Online	1
2	HANDLEBAR ASSY	544400001	544400001-Online	1
3	HANDLEBAR	537241301	537241301-Online	1
4	BRACKET	537292901	537292901-Online	1
5	HOLDER	544275901	544275901-Online	1
6	KNOB	502204001	502204001-Online	1
7	SCREW EHHM	725234751	725234751-Online	1
8	SCREW IHSCM	725532555	725532555-Online	1
9	HEXAGON NUT	731231401	731231401-Online	2
10	COVER	537172901	537172901-Online	1
11	HANDLE	537172801	537172801-Online	1
12	SCREW IHSCFM	503200245	503200245-Online	1
13	HEXAGON NUT	731231401	731231401-Online	1
14	NOZZLE	544274801	544274801-Online	1
