Husqvarna 225 BV IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

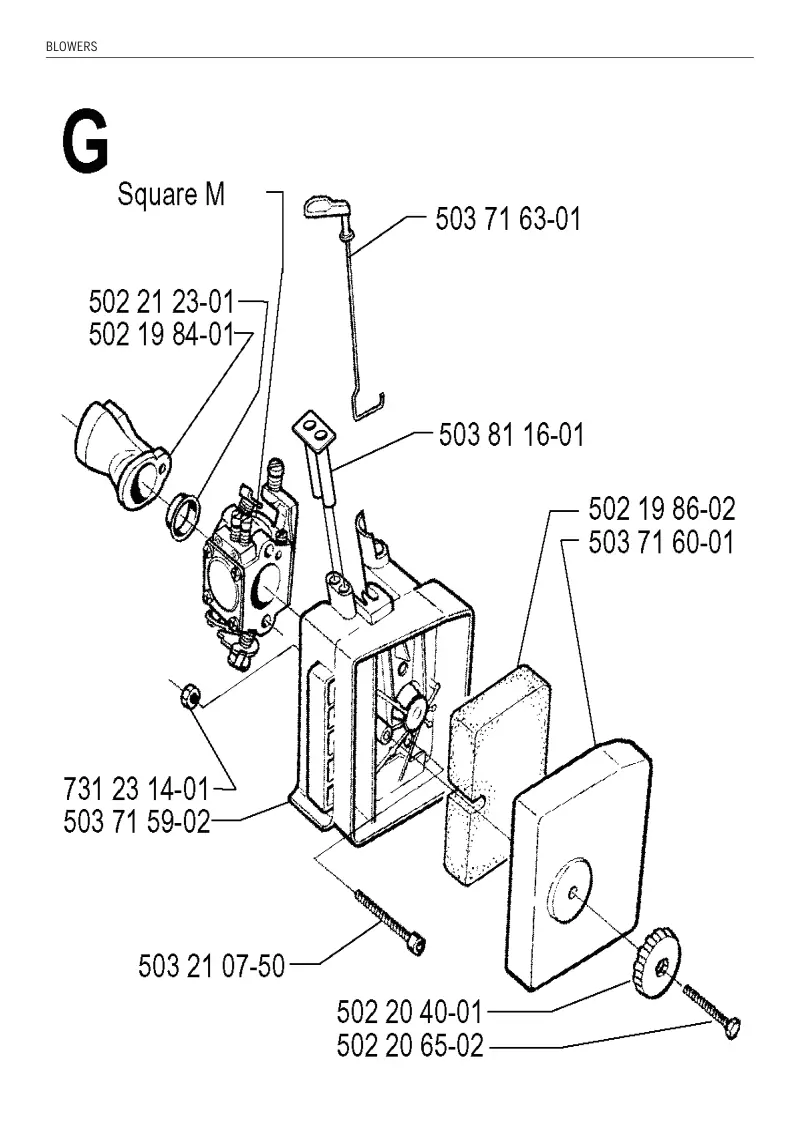

BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 502 01 21 23- | SUPPORT RING | 502212301 | 502212301-Online | 1 |
| 502 01 19 84- | INLET PIPE | 502198401 | 502198401-Online | 1 |
| 731 01 23 14- | HEXAGON NUT | 731231401 | 731231401-Online | 1 |
| 503 02 71 59- | FILTER HOLDER | 503715902 | 503715902-Online | 1 |
| 503 50 21 07- | SCREW IHSCFT | 503210750 | 503210750-Online | 1 |
| 502 02 20 65- | SCREW EHHM | 502206502 | 502206502-Online | 1 |
| 502 01 20 40- | KNOB | 502204001 | 502204001-Online | 1 |
| 503 01 71 60- | FILTER COVER | 503716001 | 503716001-Online | 1 |
| 502 02 19 86- | AIR FILTER | 502198602 | 502198602-Online | 1 |
| 503 01 81 16- | GUIDE BUSHING | 503811601 | 503811601-Online | 1 |
| 503 01 71 63- | CHOKE CONTROL | 503716301 | 503716301-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 01 10 87- | SCREW | 503108701 | 503108701-Online | 1 |
| 502 01 10 30- | DISTANCE | 502103001 | 502103001-Online | 1 |
| 502 01 21 32- | LEVER THROTTLE | 502213201 | 502213201-Online | 1 |
| 502 01 21 39- | SHAFT ASSY | 502213901 | 502213901-Online | 1 |
| 506 01 02 81- | VALVE | 506028101 | 506028101-Online | 1 |
| 501 01 46 87- | SCREW | 501468701 | 501468701-Online | 1 |
| 502 01 10 31- | BUSHING | 502103101 | 502103101-Online | 1 |
| 505 82 31 67- | LEVER | 505316782 | 505316782-Online | 1 |
| 502 01 11 97- | RECOIL SPRING | 502119701 | 502119701-Online | 1 |
| 501 01 46 69- | SCREW | 501466901 | 501466901-Online | 1 |
| 502 01 21 38- | COVER | 502213801 | 502213801-Online | 1 |
| 504 06 13 09- | GASKET 530 GASKETS 03 51-73 SET OF | 504130906 | 504130906-Online | 1 |
| 504 07 13 08- | DIAPHRAGM PUMP 530 GASKETS 03 51-73 SET OF | 504130807 | 504130807-Online | 1 |
| 503 01 62 52- | SCREW ASSY | 503625201 | 503625201-Online | 1 |
| 501 01 66 61- | SCREEN | 501666101 | 501666101-Online | 1 |
| 502 01 21 37- | FITTING | 502213701 | 502213701-Online | 1 |
| 502 01 21 35- | SEAT INLET VALVE | 502213501 | 502213501-Online | 1 |
| 503 01 11 70- | NEEDLE VALVE | 503117001 | 503117001-Online | 1 |
| 503 06 28 15- | CARBURETTOR WALBRO WT 270 | 503281506 | 503281506-Online | 1 |
| 503 05 28 15- | CARBURETTOR WALBRO WT 235 | 503281505 | 503281505-Online | 1 |
| 505 54 31 67- | LOCK STYRMEMBRAN | 505316754 | 505316754-Online | 1 |
| 503 01 89 67- | DIAPHRAGM 530 GASKETS 03 51-73 SET OF | 503896701 | 503896701-Online | 1 |
| 505 10 52 01- | GASKET 530 GASKETS 03 51-73 SET OF | 505520110 | 505520110-Online | 1 |
| 505 17 31 67- | SCREW | 505316717 | 505316717-Online | 1 |
| 505 27 52 01- | LEVER | 505520127 | 505520127-Online | 1 |
| 530 39 03 51- | SPRING | 530035139 | 530035139-Online | 1 |
| 503 01 91 57- | SPRING WT 270 | 503915701 | 503915701-Online | 1 |
| 505 25 52 01- | PIN | 505520125 | 505520125-Online | 1 |
| 503 01 57 42- | PLUG | 503574201 | 503574201-Online | 1 |
| 503 01 58 15- | NOZZLE ASSY | 503581501 | 503581501-Online | 1 |
| 503 01 52 42- | NOZZLE ASSY WT 270 | 503524201 | 503524201-Online | 1 |
| 504 49 21 00- | SPRING | 504210049 | 504210049-Online | 1 |
| 504 50 21 00- | SPRING | 504210050 | 504210050-Online | 1 |
| 502 01 21 34- | SHAFT ASS THROTTLE | 502213401 | 502213401-Online | 1 |
| 505 45 31 67- | SPRING | 505316745 | 505316745-Online | 1 |
| 503 01 10 47- | SCREW | 503104701 | 503104701-Online | 1 |
| 501 01 66 78- | SPRING | 501667801 | 501667801-Online | 1 |
| 502 01 21 33- | VALVE THROTTLE | 502213301 | 502213301-Online | 1 |
| 503 01 61 24- | NEEDLE-HIGH SPEED WT 235 | 503612401 | 503612401-Online | 1 |
| 503 01 61 23- | NEEDLE IDLE SPEED WT 235 | 503612301 | 503612301-Online | 1 |
| 503 01 91 54- | RETAINER | 503915401 | 503915401-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 01 91 39- | LIMITER CAP | 503913901 | 503913901-Online | 1 |
| 503 01 91 40- | LIMITER CAP | 503914001 | 503914001-Online | 1 |
| 503 01 91 51- | NEEDLE | 503915101 | 503915101-Online | 1 |
| 503 01 91 58- | NEEDLE | 503915801 | 503915801-Online | 1 |
| 503 01 92 23- | LIMITER CAP WT 270 | 503922301 | 503922301-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 01 93 46- | CRANKSHAFT ASSY | 503934601 | 503934601-Online | 1 |
| 503 01 90 95- | CUP | 503909501 | 503909501-Online | 1 |
| 503 01 71 22- | BEARING | 503712201 | 503712201-Online | 1 |
| 503 01 91 34- | BEARING CAGE | 503913401 | 503913401-Online | 1 |
| 738 25 22 01- | BALL BEARING | 738220125 | 738220125-Online | 1 |
| 503 01 91 07- | BEARING CAGE | 503910701 | 503910701-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 738 04 21 01- | BALL BEARING | 738210104 | 738210104-Online | 1 |
| 513 00 84 41- | WASHER | 513844100 | 513844100-Online | 1 |
| 514 00 96 19- | WASHER | 514961900 | 514961900-Online | 1 |
| 514 00 96 18- | SCREW | 514961800 | 514961800-Online | 1 |
| 511 68 82 06- | CUTTING HEAD ASSY | 511820668 | 511820668-Online | 1 |
| 513 00 84 00- | BLADE-CLIP ON GDN.VAC SHREDR. | 513840000 | 513840000-Online | 1 |
| 511 68 81 59- | FAN | 511815968 | 511815968-Online | 1 |
| 514 00 96 20- | SPACER | 514962000 | 514962000-Online | 1 |
| 510 67 67 89- | ENGINE CHASSI | 510678967 | 510678967-Online | 1 |
| 512 00 76 00- | ANTIVIBRATION ELEMENT | 512760000 | 512760000-Online | 1 |
| 503 01 93 44- | BEARING KIT | 503934401 | 503934401-Online | 1 |
| 503 10 20 02- | SCREW IHSCFM 3X | 503200210 | 503200210-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 01 90 40- | MUFFLER ASSY | 503904001 | 503904001-Online | 1 |
| 503 63 20 21- | SCREW IHSCM | 503202163 | 503202163-Online | 1 |
| 503 01 90 38- | EXHAUST DUCT | 503903801 | 503903801-Online | 1 |
| 503 01 91 25- | SPARK ARRESTER SCREEN | 503912501 | 503912501-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 511 00 82 56- | HARNESS | 511825600 | 511825600-Online | 1 |
| 510 68 67 50- | BAG FRAME | 510675068 | 510675068-Online | 1 |
| 510 00 67 51- | COLLECTION BAG | 510675100 | 510675100-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 25 21 44- | SCREW IHSCFTO | 503214425 | 503214425-Online | 1 |
| 503 01 92 98- | LABEL | 503929801 | 503929801-Online | 1 |
| 503 01 87 41- | CYLINDER COVER | 503874101 | 503874101-Online | 1 |
| 503 01 90 60- | HEAT PROTECTOR | 503906001 | 503906001-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 501 03 43 14- | TANK CAP ASSY | 501431403 | 501431403-Online | 1 |
| 503 03 77 11- | CRANKCASE | 503771103 | 503771103-Online | 1 |
| 503 01 90 92- | INSERT | 503909201 | 503909201-Online | 1 |
| 503 02 57 14- | VENTILATING HOSE | 503571402 | 503571402-Online | 1 |
| 503 01 16 40- | TANK VENT | 503164001 | 503164001-Online | 1 |
| 501 21 76 83- | FUEL HOSE | 501768321 | 501768321-Online | 1 |
| 504 01 35 72- | PLUG | 504357201 | 504357201-Online | 1 |
| 503 01 44 32- | FUEL FILTER | 503443201 | 503443201-Online | 1 |
| 501 13 76 83- | FUEL HOSE | 501768313 | 501768313-Online | 1 |
| 503 01 22 63- | NUT QUICK-COUPLING | 503226301 | 503226301-Online | 4 |
| 725 55 53 72- | SCREW IHSCM | 725537255 | 725537255-Online | 4 |
| 501 01 27 82- | GASKET | 501278201 | 501278201-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 01 89 94- | CYLINDER ASSY | 503899401 | 503899401-Online | 1 |
| 503 02 85 97- | PISTON ASSY | 503859702 | 503859702-Online | 1 |
| 501 01 83 89- | CLUTCH SPRING | 501838901 | 501838901-Online | 1 |
| 503 02 49 21- | GASKET | 503492102 | 503492102-Online | 1 |
| 503 08 23 51- | SPARK PLUG CHAMPION RCJ 7Y | 503235108 | 503235108-Online | 1 |
| 503 11 23 51- | SPARK PLUG NGK BPMR 7A | 503235111 | 503235111-Online | 1 |
| 503 30 28 90- | PISTON RING | 503289030 | 503289030-Online | 1 |
| 503 01 71 22- | BEARING | 503712201 | 503712201-Online | 1 |
| 737 00 44 08- | CIRCLIP | 737440800 | 737440800-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 511 68 81 60- | HANDLE | 511816068 | 511816068-Online | 1 |
| 514 00 96 54- | KNOB | 514965400 | 514965400-Online | 1 |
| 514 00 95 85- | SCREW | 514958500 | 514958500-Online | 1 |
| 514 00 96 53- | KNOB | 514965300 | 514965300-Online | 1 |
| 514 00 96 52- | HUB CAP | 514965200 | 514965200-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 01 79 06- | FLYWHEEL | 503790601 | 503790601-Online | 1 |
| 503 11 22 10- | HEXAGON NUT | 503221011 | 503221011-Online | 1 |
| 503 01 23 01- | WASHER | 503230101 | 503230101-Online | 1 |
| 503 01 86 58- | ELECTRONIC MODULE | 503865801 | 503865801-Online | 1 |
| 501 02 48 54- | SPARK PLUG CAP | 501485402 | 501485402-Online | 1 |
| 503 16 20 25- | SCREW IHSCM | 503202516 | 503202516-Online | 1 |
| 503 01 81 29- | SPRING | 503812901 | 503812901-Online | 1 |
| 503 01 81 24- | STARTER PAWL | 503812401 | 503812401-Online | 1 |
| 503 01 79 05- | RIVET | 503790501 | 503790501-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 01 77 34- | STARTER | 503773401 | 503773401-Online | 1 |
| 503 09 77 15- | LABEL | 503771509 | 503771509-Online | 1 |
| 503 01 77 35- | STARTER HOUSING | 503773501 | 503773501-Online | 1 |
| 530 60 03 71- | STARTER HANDLE | 530037160 | 530037160-Online | 1 |
| 505 25 30 51- | STARTER ROPE | 505305125 | 505305125-Online | 1 |
| 503 01 77 53- | STARTER PULLEY | 503775301 | 503775301-Online | 1 |
| 503 35 23 00- | WASHER | 503230035 | 503230035-Online | 1 |
| 503 16 21 06- | SCREW IHSCT | 503210616 | 503210616-Online | 1 |
| 503 06 21 29- | SCREW CCRPANT | 503212906 | 503212906-Online | 1 |
| 502 01 20 06- | SPRING CASSETTE ASSY | 502200601 | 502200601-Online | 1 |
| 502 22 21 07- | SCREW | 502210722 | 502210722-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 510 00 67 84- | LABEL | 510678400 | 510678400-Online | 1 |
| 510 68 67 88- | THROTTLE | 510678868 | 510678868-Online | 1 |
| 514 01 96 50- | BLAS-SUGRORSH | 514965001 | 514965001-Online | 1 |
| 510 00 67 83- | LABEL | 510678300 | 510678300-Online | 1 |
| 503 01 88 98- | WIRING | 503889801 | 503889801-Online | 1 |
| 514 00 66 72- | SCREW | 514667200 | 514667200-Online | 1 |
| 514 00 95 38- | SCREW | 514953800 | 514953800-Online | 1 |
| 503 01 71 82- | SWITCH | 503718201 | 503718201-Online | 1 |
| 512 68 75 92- | THROTTLE TRIGGER | 512759268 | 512759268-Online | 1 |
