Husqvarna 225 HBV IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

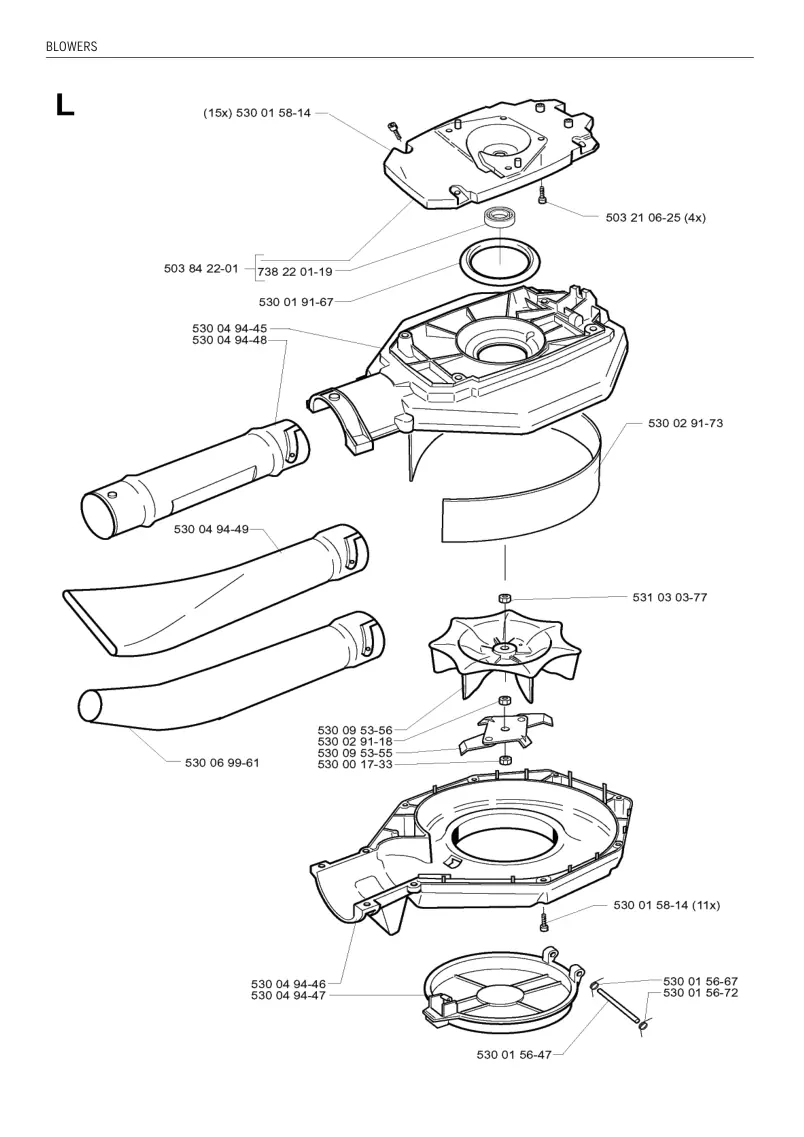

BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 530 14 01 58- | SCREW 11X | 530015814 | 530015814-Online | 1 |
| 503 01 84 22- | COVER | 503842201 | 503842201-Online | 1 |
| 530 45 04 94- | FAN HOUSING | 530049445 | 530049445-Online | 1 |
| 530 48 04 94- | TUBE | 530049448 | 530049448-Online | 1 |
| 530 49 04 94- | NOZZLE | 530049449 | 530049449-Online | 1 |
| 530 61 06 99- | TUBE | 530069961 | 530069961-Online | 1 |
| 530 46 04 94- | FAN HOUSING | 530049446 | 530049446-Online | 1 |
| 530 47 04 94- | INLET COVER | 530049447 | 530049447-Online | 1 |
| 530 33 00 17- | NUT | 530001733 | 530001733-Online | 1 |
| 530 55 09 53- | MULCH BLADE ASSY | 530095355 | 530095355-Online | 1 |
| 530 18 02 91- | HUB | 530029118 | 530029118-Online | 1 |
| 530 56 09 53- | IMPELLER | 530095356 | 530095356-Online | 1 |
| 530 67 01 91- | O-RING | 530019167 | 530019167-Online | 1 |
| 738 19 22 01- | BALL BEARING | 738220119 | 738220119-Online | 1 |
| 530 47 01 56- | PEN | 530015647 | 530015647-Online | 1 |
| 530 72 01 56- | SPRING | 530015672 | 530015672-Online | 1 |
| 530 67 01 56- | SPRING | 530015667 | 530015667-Online | 1 |
| 531 77 03 03- | SPACER | 531030377 | 531030377-Online | 1 |
| 530 73 02 91- | BAND | 530029173 | 530029173-Online | 1 |
| 503 25 21 06- | SCREW IHSCFT | 503210625 | 503210625-Online | 4 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 502 01 19 92- | THROTTLE TRIGGER | 502199201 | 502199201-Online | 1 |
| 503 01 79 41- | RECOIL SPRING | 503794101 | 503794101-Online | 1 |
| 503 01 71 82- | SWITCH | 503718201 | 503718201-Online | 1 |
| 502 03 19 90- | HANDLE HALF | 502199003 | 502199003-Online | 1 |
| 503 04 22 65- | SQUARE NUT | 503226504 | 503226504-Online | 1 |
| 531 05 03 02- | SUSPENSION BAIL | 531030205 | 531030205-Online | 1 |
| 502 01 19 94- | THROTTLE LOCKOUT | 502199401 | 502199401-Online | 1 |
| 502 05 19 91- | HANDLE HALF | 502199105 | 502199105-Online | 1 |
| 503 01 87 43- | WIRING | 503874301 | 503874301-Online | 1 |
| 503 35 20 02- | SCREW IHSCFM | 503200235 | 503200235-Online | 1 |
| 503 22 21 07- | SCREW IHSCT | 503210722 | 503210722-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 01 79 06- | FLYWHEEL | 503790601 | 503790601-Online | 1 |
| 503 11 22 10- | HEXAGON NUT | 503221011 | 503221011-Online | 1 |
| 503 01 23 01- | WASHER | 503230101 | 503230101-Online | 1 |
| 503 01 84 32- | IGNITION MODULE | 503843201 | 503843201-Online | 1 |
| 501 02 48 54- | SPARK PLUG CAP | 501485402 | 501485402-Online | 1 |
| 503 16 20 25- | SCREW IHSCM | 503202516 | 503202516-Online | 1 |
| 503 01 81 29- | SPRING | 503812901 | 503812901-Online | 1 |
| 503 01 81 24- | STARTER PAWL | 503812401 | 503812401-Online | 1 |
| 503 02 79 05- | RIVET | 503790502 | 503790502-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 03 90 40- | MUFFLER ASSY | 503904003 | 503904003-Online | 1 |
| 503 63 20 29- | SCREW IHSCFM | 503202963 | 503202963-Online | 3 |
| 503 03 90 38- | EXHAUST DUCT | 503903803 | 503903803-Online | 1 |
| 503 01 91 25- | SPARK ARRESTER SCREEN | 503912501 | 503912501-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 01 77 34- | STARTER | 503773401 | 503773401-Online | 1 |
| 503 08 77 15- | LABEL | 503771508 | 503771508-Online | 1 |
| 503 01 77 35- | STARTER HOUSING | 503773501 | 503773501-Online | 1 |
| 537 01 00 84- | STARTER HANDLE | 537008401 | 537008401-Online | 1 |
| 505 25 30 51- | STARTER ROPE | 505305125 | 505305125-Online | 1 |
| 503 01 77 53- | STARTER PULLEY | 503775301 | 503775301-Online | 1 |
| 503 35 23 00- | WASHER | 503230035 | 503230035-Online | 1 |
| 503 16 21 06- | SCREW IHSCT | 503210616 | 503210616-Online | 1 |
| 503 06 21 29- | SCREW CCRPANT | 503212906 | 503212906-Online | 1 |
| 502 01 20 06- | SPRING CASSETTE ASSY | 502200601 | 502200601-Online | 1 |
| 503 22 21 07- | SCREW IHSCT | 503210722 | 503210722-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 01 74 16- | HARNESS ASSY | 503741601 | 503741601-Online | 1 |
| 503 02 74 16- | HARNESS ASSY USA | 503741602 | 503741602-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 502 01 21 23- | SUPPORT RING | 502212301 | 502212301-Online | 1 |
| 502 01 19 84- | INLET PIPE | 502198401 | 502198401-Online | 1 |
| 731 01 23 14- | HEXAGON NUT | 731231401 | 731231401-Online | 1 |
| 537 01 02 49- | FILTER HOLDER | 537024901 | 537024901-Online | 1 |
| 503 50 21 07- | SCREW IHSCFT | 503210750 | 503210750-Online | 1 |
| 502 02 20 65- | SCREW EHHM | 502206502 | 502206502-Online | 1 |
| 502 01 20 40- | KNOB | 502204001 | 502204001-Online | 1 |
| 503 01 71 60- | FILTER COVER | 503716001 | 503716001-Online | 1 |
| 502 02 19 86- | AIR FILTER | 502198602 | 502198602-Online | 1 |
| 503 01 71 63- | CHOKE CONTROL | 503716301 | 503716301-Online | 1 |
| 503 16 28 15- | CARBURETTOR | 503281516 | 503281516-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 01 10 87- | SCREW | 503108701 | 503108701-Online | 1 |
| 502 01 10 30- | DISTANCE | 502103001 | 502103001-Online | 1 |
| 503 01 86 43- | LEVER | 503864301 | 503864301-Online | 1 |
| 503 01 99 46- | SHAFT ASSY | 503994601 | 503994601-Online | 1 |
| 506 01 02 81- | VALVE | 506028101 | 506028101-Online | 1 |
| 502 01 10 31- | BUSHING | 502103101 | 502103101-Online | 1 |
| 505 82 31 67- | LEVER | 505316782 | 505316782-Online | 1 |
| 503 01 99 47- | SPRING | 503994701 | 503994701-Online | 1 |
| 501 01 46 84- | SPRING | 501468401 | 501468401-Online | 1 |
| 501 01 46 85- | BALL | 501468501 | 501468501-Online | 1 |
| 501 01 46 69- | SCREW | 501466901 | 501466901-Online | 1 |
| 503 01 99 44- | COVER | 503994401 | 503994401-Online | 1 |
| 504 06 13 09- | GASKET 530 GASKETS 03 51-73 SET OF | 504130906 | 504130906-Online | 1 |
| 504 07 13 08- | DIAPHRAGM PUMP 530 GASKETS 03 51-73 SET OF | 504130807 | 504130807-Online | 1 |
| 501 01 66 61- | SCREEN | 501666101 | 501666101-Online | 1 |
| 502 01 21 37- | FITTING | 502213701 | 502213701-Online | 1 |
| 502 01 21 35- | SEAT INLET VALVE | 502213501 | 502213501-Online | 1 |
| 503 01 11 70- | NEEDLE VALVE | 503117001 | 503117001-Online | 1 |
| 502 01 21 34- | SHAFT ASS THROTTLE | 502213401 | 502213401-Online | 1 |
| 502 01 11 96- | RECOIL SPRING | 502119601 | 502119601-Online | 1 |
| 501 01 66 78- | SPRING | 501667801 | 501667801-Online | 1 |
| 503 01 10 47- | SCREW | 503104701 | 503104701-Online | 1 |
| 502 01 21 33- | VALVE THROTTLE | 502213301 | 502213301-Online | 1 |
| 501 01 46 87- | SCREW | 501468701 | 501468701-Online | 1 |
| 504 50 21 00- | SPRING | 504210050 | 504210050-Online | 1 |
| 504 49 21 00- | SPRING | 504210049 | 504210049-Online | 1 |
| 503 01 99 48- | FITTING | 503994801 | 503994801-Online | 1 |
| 503 01 52 42- | NOZZLE ASSY | 503524201 | 503524201-Online | 1 |
| 503 01 57 42- | PLUG | 503574201 | 503574201-Online | 1 |
| 505 25 52 01- | PIN | 505520125 | 505520125-Online | 1 |
| 503 01 91 57- | SPRING | 503915701 | 503915701-Online | 1 |
| 505 27 52 01- | LEVER | 505520127 | 505520127-Online | 1 |
| 505 17 31 67- | SCREW | 505316717 | 505316717-Online | 1 |
| 505 10 52 01- | GASKET 530 GASKETS 03 51-73 SET OF | 505520110 | 505520110-Online | 1 |
| 503 01 89 67- | DIAPHRAGM 530 GASKETS 03 51-73 SET OF | 503896701 | 503896701-Online | 1 |
| 505 54 31 67- | LOCK STYRMEMBRAN | 505316754 | 505316754-Online | 1 |
| 503 01 91 54- | RETAINER | 503915401 | 503915401-Online | 1 |
| 503 01 91 39- | LIMITER CAP | 503913901 | 503913901-Online | 1 |
| 503 01 91 40- | LIMITER CAP | 503914001 | 503914001-Online | 1 |
| 503 01 91 51- | NEEDLE | 503915101 | 503915101-Online | 1 |
| 503 01 91 58- | NEEDLE | 503915801 | 503915801-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 01 92 23- | LIMITER CAP | 503922301 | 503922301-Online | 1 |
| 503 16 28 15- | CARBURETTOR WALBRO WT 500B | 503281516 | 503281516-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 25 21 44- | SCREW IHSCFTO | 503214425 | 503214425-Online | 1 |
| 503 03 87 41- | CYLINDER COVER | 503874103 | 503874103-Online | 1 |
| 503 01 90 60- | HEAT PROTECTOR | 503906001 | 503906001-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 501 03 43 14- | TANK CAP ASSY | 501431403 | 501431403-Online | 1 |
| 503 04 77 11- | CRANKCASE | 503771104 | 503771104-Online | 1 |
| 503 01 90 92- | INSERT | 503909201 | 503909201-Online | 1 |
| 503 01 22 72- | SPEED NUT | 503227201 | 503227201-Online | 4 |
| 503 01 44 32- | FUEL FILTER | 503443201 | 503443201-Online | 1 |
| 501 13 76 83- | FUEL HOSE | 501768313 | 501768313-Online | 1 |
| 501 29 76 83- | FUEL HOSE | 501768329 | 501768329-Online | 2 |
| 503 01 93 66- | PURGE | 503936601 | 503936601-Online | 1 |
| 725 55 53 72- | SCREW IHSCM | 725537255 | 725537255-Online | 4 |
| 501 01 27 82- | GASKET | 501278201 | 501278201-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 01 93 46- | CRANKSHAFT ASSY | 503934601 | 503934601-Online | 1 |
| 503 01 91 07- | BEARING CAGE | 503910701 | 503910701-Online | 1 |
| 738 25 22 01- | BALL BEARING | 738220125 | 738220125-Online | 1 |
| 503 01 90 95- | CUP | 503909501 | 503909501-Online | 1 |
| 503 01 71 22- | BEARING | 503712201 | 503712201-Online | 1 |
| 503 01 91 34- | BEARING CAGE | 503913401 | 503913401-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 01 89 94- | CYLINDER ASSY | 503899401 | 503899401-Online | 1 |
| 503 02 85 97- | PISTON ASSY | 503859702 | 503859702-Online | 1 |
| 503 02 49 21- | GASKET | 503492102 | 503492102-Online | 1 |
| 503 08 23 51- | SPARK PLUG CHAMPION BPMR 7A RCJ 7Y NGK | 503235108 | 503235108-Online | 1 |
| 503 30 28 90- | PISTON RING | 503289030 | 503289030-Online | 1 |
| 503 01 71 22- | BEARING | 503712201 | 503712201-Online | 1 |
| 737 00 44 08- | CIRCLIP | 737440800 | 737440800-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 16 21 07- | SCREW IHSCT | 503210716 | 503210716-Online | 1 |
| 503 01 87 61- | ANTIVIBRATION ELEMENT | 503876101 | 503876101-Online | 1 |
| 503 01 89 78- | BRACKET | 503897801 | 503897801-Online | 1 |
| 503 01 85 92- | PIPE | 503859201 | 503859201-Online | 1 |
| 503 01 84 23- | COVER | 503842301 | 503842301-Online | 1 |
