Husqvarna 455 RANCHER IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

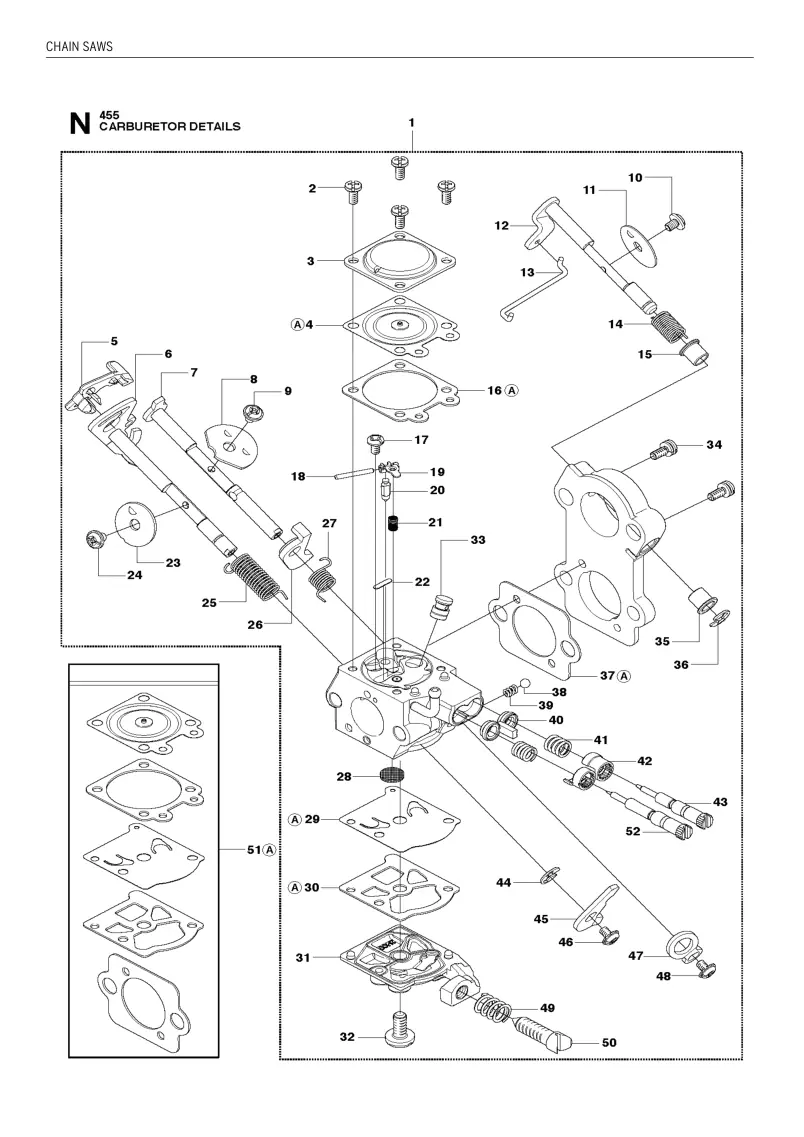

CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CARBURETTOR WALBRO, WTEA-1 | 544883001 | 544883001-Online | 1 |
| 2 | SCREW | 503584601 | 503584601-Online | 1 |
| 3 | LOCK STYRMEMBRAN | 505316754 | 505316754-Online | 1 |
| 4 | DIAPHRAGM | 502847001 | 502847001-Online | 1 |
| 5 | LEVER | 537306201 | 537306201-Online | 1 |
| 6 | SHAFT ASSY | 537407401 | 537407401-Online | 1 |
| 7 | SHAFT ASSY | 537407501 | 537407501-Online | 1 |
| 8 | VALVE | 537407701 | 537407701-Online | 1 |
| 9 | SCREW | 537003401 | 537003401-Online | 1 |
| 10 | SCREW | 537003401 | 537003401-Online | 1 |
| 11 | VALVE | 537406801 | 537406801-Online | 1 |
| 12 | SHAFT ASSY | 537406901 | 537406901-Online | 1 |
| 13 | ROD | 537407201 | 537407201-Online | 1 |
| 14 | SPRING THROTT.RETURN | 537407001 | 537407001-Online | 1 |
| 15 | BUSHING | 537406701 | 537406701-Online | 1 |
| 16 | GASKET | 504350906 | 504350906-Online | 1 |
| 17 | SCREW | 502847101 | 502847101-Online | 1 |
| 18 | PIN | 505520125 | 505520125-Online | 1 |
| 19 | LEVER | 502847401 | 502847401-Online | 1 |
| 20 | NEEDLE VALVE | 503563401 | 503563401-Online | 1 |
| 21 | SPRING | 503914701 | 503914701-Online | 1 |
| 22 | PLUG | 502846901 | 502846901-Online | 1 |
| 23 | VALVE | 502846601 | 502846601-Online | 1 |
| 24 | SCREW | 544111501 | 544111501-Online | 1 |
| 25 | SPRING THROTT.RETURN | 537408401 | 537408401-Online | 1 |
| 26 | LEVER | 537409201 | 537409201-Online | 1 |
| 27 | SPRING CHOKE RETURN | 537408601 | 537408601-Online | 1 |
| 28 | SCREEN | 501666101 | 501666101-Online | 1 |
| 29 | DIAPHRAGM PUMP | 502213601 | 502213601-Online | 1 |
| 30 | GASKET | 504130906 | 504130906-Online | 1 |
| 31 | COVER | 537407301 | 537407301-Online | 1 |
| 32 | SCREW | 501466901 | 501466901-Online | 1 |
| 33 | NOZZLE ASSY | 502846801 | 502846801-Online | 1 |
| 34 | SCREW | 537408301 | 537408301-Online | 1 |
| 35 | BUSHING | 537406601 | 537406601-Online | 1 |
| 36 | RING | 505316736 | 505316736-Online | 1 |
| 37 | GASKET | 537408101 | 537408101-Online | 1 |
| 38 | BALL | 501468501 | 501468501-Online | 1 |
| 39 | SPRING | 501468401 | 501468401-Online | 1 |
| 40 | RETAINER | 544971401 | 544971401-Online | 1 |
| 41 | SPRING | 544971001 | 544971001-Online | 1 |
| 42 | LIMITER CAP | 544970801 | 544970801-Online | 1 |
| 43 | NEEDLE High Speed | 502847201 | 502847201-Online | 1 |
| 44 | RING | 505316736 | 505316736-Online | 1 |
| 45 | LEVER | 537407101 | 537407101-Online | 1 |
| 46 | SCREW | 501468701 | 501468701-Online | 1 |
| 47 | LEVER | 537407601 | 537407601-Online | 1 |
| 48 | SCREW | 501468701 | 501468701-Online | 1 |
| 49 | SPRING | 503564201 | 503564201-Online | 1 |
| 50 | SCREW | 537408201 | 537408201-Online | 1 |
| 51 | KIT A = Set of Gaskets | 505278401 | 505278401-Online | 1 |
| 52 | NEEDLE Low Speed | 502847301 | 502847301-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CLUTCH ASSY | 537110503 | 537110503-Online | 1 |
| 2 | CLUTCH SPRING | 537359101 | 537359101-Online | 1 |
| 3 | CLUTCH DRUM ASSY .325x7 SPUR | 537291702 | 537291702-Online | 1 |
| 3 | CLUTCH DRUM ASSY 8x7 SPUR | 537291604 | 537291604-Online | 1 |
| 4 | NEEDLE BEARING | 503255201 | 503255201-Online | 1 |
| 5 | PUMP PINION | 537252601 | 537252601-Online | 1 |
| 6 | OIL PUMP ASSY | 544180104 | 544180104-Online | 1 |
| 7 | SPRING | 503891601 | 503891601-Online | 1 |
| 8 | WASHER | 503230060 | 503230060-Online | 1 |
| 9 | PUMP PISTON | 537069302 | 537069302-Online | 1 |
| 10 | SPRING | 503891501 | 503891501-Online | 1 |
| 11 | GROOVED PIN | 721116430 | 721116430-Online | 1 |
| 12 | ADJUSTER | 537027101 | 537027101-Online | 1 |
| 13 | SCREW IHSCT | 503217416 | 503217416-Online | 1 |
| 14 | OIL PRESSURE HOSE | 537261501 | 537261501-Online | 1 |
| 15 | OIL HOSE | 585514001 | 585514001-Online | 1 |
| 16 | OIL SCREEN | 510044301 | 510044301-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CLUTCH COVER ASSY | 537286301 | 537286301-Online | 1 |
| 2 | PIN | 503892901 | 503892901-Online | 1 |
| 3 | SCREW CCRPANT | 503217010 | 503217010-Online | 1 |
| 4 | KNEE JOINT ASSY | 503890802 | 503890802-Online | 1 |
| 5 | BRAKE SPRING | 503465901 | 503465901-Online | 1 |
| 6 | E-CLIP | 735310820 | 735310820-Online | 1 |
| 7 | LABEL | 537298601 | 537298601-Online | 1 |
| 8 | BRAKE BAND ASSY | 537043001 | 537043001-Online | 1 |
| 9 | GUIDE BUSHING | 503855201 | 503855201-Online | 1 |
| 10 | HUB CAP | 537108002 | 537108002-Online | 1 |
| 11 | BEARING SLEEVE | 537017401 | 537017401-Online | 1 |
| 12 | PAWL | 537286601 | 537286601-Online | 1 |
| 13 | WEAR PROTECTION | 537089001 | 537089001-Online | 1 |
| 14 | SCREW CCRPANT | 503217010 | 503217010-Online | 1 |
| 15 | CHAIN TENSIONER KIT | 575260403 | 575260403-Online | 1 |
| 16 | SCREW CCRPANT | 503217010 | 503217010-Online | 1 |
| 17 | COVER | 537286401 | 537286401-Online | 1 |
| 18 | WORM WHEEL | 537079402 | 537079402-Online | 1 |
| 19 | WASHER | 503230063 | 503230063-Online | 1 |
| 20 | O-RING | 740480702 | 740480702-Online | 1 |
| 21 | HEXAGON NUT | 503220001 | 503220001-Online | 2 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CYLINDER COVER | 537308901 | 537308901-Online | 1 |
| 2 | SCREW | 503203476 | 503203476-Online | 1 |
| 3 | LABEL | 503987401 | 503987401-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | FUEL HOSE | 537042408 | 537042408-Online | 1 |
| 2 | BUSHING | 503735801 | 503735801-Online | 2 |
| 3 | FUEL HOSE | 581756202 | 581756202-Online | 1 |
| 4 | FUEL FILTER | 503443201 | 503443201-Online | 1 |
| 5 | FUEL HOSE | 537042402 | 537042402-Online | 1 |
| 6 | NUT | 503226902 | 503226902-Online | 3 |
| 7 | PURGE | 503936601 | 503936601-Online | 1 |
| 8 | AIR NOZZLE | 537317901 | 537317901-Online | 1 |
| 9 | SCREW IHSCT | 503217412 | 503217412-Online | 1 |
| 10 | GROUND PLATE | 537278001 | 537278001-Online | 1 |
| 11 | TANK CAP ASSY | 537215202 | 537215202-Online | 2 |
| 12 | HOLDER | 503578901 | 503578901-Online | 1 |
| 13 | SEALING | 537215001 | 537215001-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SCREW IHSCT | 503218876 | 503218876-Online | 1 |
| 2 | THROTTLE LOCKOUT | 502440201 | 502440201-Online | 1 |
| 3 | RECOIL SPRING | 503998601 | 503998601-Online | 1 |
| 4 | THROTTLE TRIGGER | 537260503 | 537260503-Online | 1 |
| 5 | REAR HANDLE | 580945901 | 580945901-Online | 1 |
| 6 | SCREW IHSCT | 503210270 | 503210270-Online | 3 |
| 7 | ANTIVIBRATION ELEMENT | 537304601 | 537304601-Online | 1 |
| 8 | ANTIVIBRATION ELEMENT | 503854101 | 503854101-Online | 1 |
| 9 | SCREW IHSCT | 503218876 | 503218876-Online | 1 |
| 10 | SCREW IHSCT | 503210270 | 503210270-Online | 3 |
| 11 | BUSHING | 503869201 | 503869201-Online | 1 |
| 12 | FRONT HANDLE | 537230502 | 537230502-Online | 1 |
| 13 | BUSHING | 503869201 | 503869201-Online | 3 |
| 14 | SCREW | 537242901 | 537242901-Online | 1 |
| 15 | SCREW IHSCT | 503218876 | 503218876-Online | 1 |
| 16 | ANTIVIBRATION ELEMENT | 503923101 | 503923101-Online | 1 |
| 17 | HUB CAP | 537230704 | 537230704-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | MUFFLER KIT | 575743002 | 575743002-Online | 1 |
| 2 | SPARK ARRESTER SCREEN | 544116802 | 544116802-Online | 1 |
| 3 | SCREW CRPANM | 724128759 | 724128759-Online | 1 |
| 4 | GASKET | 537287701 | 537287701-Online | 1 |
| 5 | HEAT DEFLECTOR | 577223301 | 577223301-Online | 1 |
| 6 | SCREW IHSCM | 725537055 | 725537055-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | STARTER ASSY | 537284201 | 537284201-Online | 1 |
| 2 | STARTER ROPE | 505305125 | 505305125-Online | 1 |
| 3 | STARTER HANDLE | 537232501 | 537232501-Online | 1 |
| 4 | STARTER HOUSING | 537284102 | 537284102-Online | 1 |
| 5 | SLEEVE | 537283201 | 537283201-Online | 1 |
| 6 | STARTER PULLEY | 537092502 | 537092502-Online | 1 |
| 7 | SCREW IHSCT | 503217716 | 503217716-Online | 1 |
| 8 | SCREW CCRPANT | 503212810 | 503212810-Online | 1 |
| 9 | SPRING CASSETTE ASSY | 537241701 | 537241701-Online | 1 |
| 10 | SCREW | 503217321 | 503217321-Online | 4 |
| 12 | DECAL | 537323304 | 537323304-Online | 1 |
| 13 | DECAL | 537323306 | 537323306-Online | 1 |
| 14 | AIR CONDUCTOR | 537260901 | 537260901-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | COMBINATION WRENCH | 501691701 | 501691701-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CLAMP | 537304901 | 537304901-Online | 1 |
| 2 | AIR FILTER ASSY 80 | 537255701 | 537255701-Online | 1 |
| 2 | AIR FILTER ASSY 44 | 537255702 | 537255702-Online | 1 |
| 2 | AIR FILTER ASSY FELT | 537255703 | 537255703-Online | 1 |
| 3 | SCREW IHSCT | 503215525 | 503215525-Online | 2 |
| 4 | SCREW IHSCT | 503217450 | 503217450-Online | 2 |
| 5 | THROTTLE CABLE ASSY | 537260802 | 537260802-Online | 1 |
| 6 | INLET ELBOW | 537323001 | 537323001-Online | 1 |
| 7 | CARBURETTOR Walbro WTEA-1 | 544883001 | 544883001-Online | 1 |
| 8 | STOP SWITCH | 537255501 | 537255501-Online | 1 |
| 9 | SPRING | 503869702 | 503869702-Online | 1 |
| 10 | CHOKE CONTROL | 537255601 | 537255601-Online | 1 |
| 11 | GUIDE SLEEVE | 544071401 | 544071401-Online | 1 |
| 12 | FLANGE | 537241501 | 537241501-Online | 1 |
| 13 | SCREW IHSCFM | 503200216 | 503200216-Online | 3 |
| 14 | PIPE ASSY | 537321002 | 537321002-Online | 1 |
| 15 | INSULATION WALL | 537371401 | 537371401-Online | 1 |
| 16 | FLANGE | 537241401 | 537241401-Online | 1 |
| 17 | IMPULSE HOSE | 503400610 | 503400610-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SCREW CCRPANT | 503217010 | 503217010-Online | 1 |
| 2 | CHAIN GUIDE PLATE | 537271302 | 537271302-Online | 1 |
| 3 | HAND GUARD | 537284301 | 537284301-Online | 1 |
| 4 | SCREW | 537296501 | 537296501-Online | 2 |
| 5 | SUPPORT | 503869301 | 503869301-Online | 2 |
| 6 | BELLOWS | 537260401 | 537260401-Online | 1 |
| 7 | BAR BOLT | 537227801 | 537227801-Online | 16 |
| 8 | LOCK | 503892401 | 503892401-Online | 1 |
| 9 | POSITION SPRING | 503436501 | 503436501-Online | 1 |
| 10 | FILTER | 537403501 | 537403501-Online | 1 |
| 11 | CHECK VALVE | 530026119 | 530026119-Online | 1 |
| 12 | SPIKE | 503973801 | 503973801-Online | 1 |
| 13 | SCREW IHSCT | 503216872 | 503216872-Online | 2 |
| 14 | KIT | 503910671 | 503910671-Online | 1 |
| 15 | TANK VENT ASSY | 537359501 | 537359501-Online | 1 |
| 16 | CRANKCASE | 510065902 | 510065902-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CRANKSHAFT ASSY | 537314002 | 537314002-Online | 1 |
| 2 | SEALING | 503261901 | 503261901-Online | 1 |
| 3 | BALL BEARING | 503251602 | 503251602-Online | 1 |
| 4 | NEEDLE BEARING | 501861801 | 501861801-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | DECOMPRESSION VALVE | 585236301 | 585236301-Online | 1 |
| 2 | PLUG | 503552201 | 503552201-Online | 1 |
| 3 | SPARK PLUG HQT-1 | 577484001 | 577484001-Online | 1 |
| 4 | IMPULSE NIPPLE | 503424301 | 503424301-Online | 1 |
| 5 | CYLINDER KIT 455 | 537320402 | 537320402-Online | 1 |
| 6 | GASKET | 537245801 | 537245801-Online | 1 |
| 7 | GASKET | 537245701 | 537245701-Online | 1 |
| 8 | SCREW IHSCM | 503200527 | 503200527-Online | 4 |
| 9 | PISTON RING 455 | 503289050 | 503289050-Online | 1 |
| 10 | PISTON ASSY 455 | 537293004 | 537293004-Online | 1 |
| 11 | SNAP RING | 737431200 | 737431200-Online | 2 |
| 12 | NEEDLE BEARING | 501861801 | 501861801-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | FLYWHEEL ASSY | 537292701 | 537292701-Online | 1 |
| 2 | SPRING | 529271101 | 529271101-Online | 1 |
| 3 | STARTER PAWL | 537245601 | 537245601-Online | 1 |
| 4 | SCREW | 501819903 | 501819903-Online | 1 |
| 5 | NUT | 503220401 | 503220401-Online | 1 |
| 6 | SPARK PLUG CAP | 501485402 | 501485402-Online | 1 |
| 7 | WIRING ASSY | 537272701 | 537272701-Online | 1 |
| 8 | IGNITION MODULE | 544047001 | 544047001-Online | 1 |
| 8 | IGNITION MODULE With spark plug cap | 544047003 | 544047003-Online | 1 |
| 9 | SCREW IHSCT | 503215525 | 503215525-Online | 2 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | AIR FILTER ASSY 80 | 537255701 | 537255701-Online | 1 |
| 2 | WINTER PLUG | 503405901 | 503405901-Online | 1 |
| 3 | WINTER KIT | 537356001 | 537356001-Online | 1 |
| 4 | SCREW CCRPANT | 503217016 | 503217016-Online | 2 |
