Husqvarna 570 BTS IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

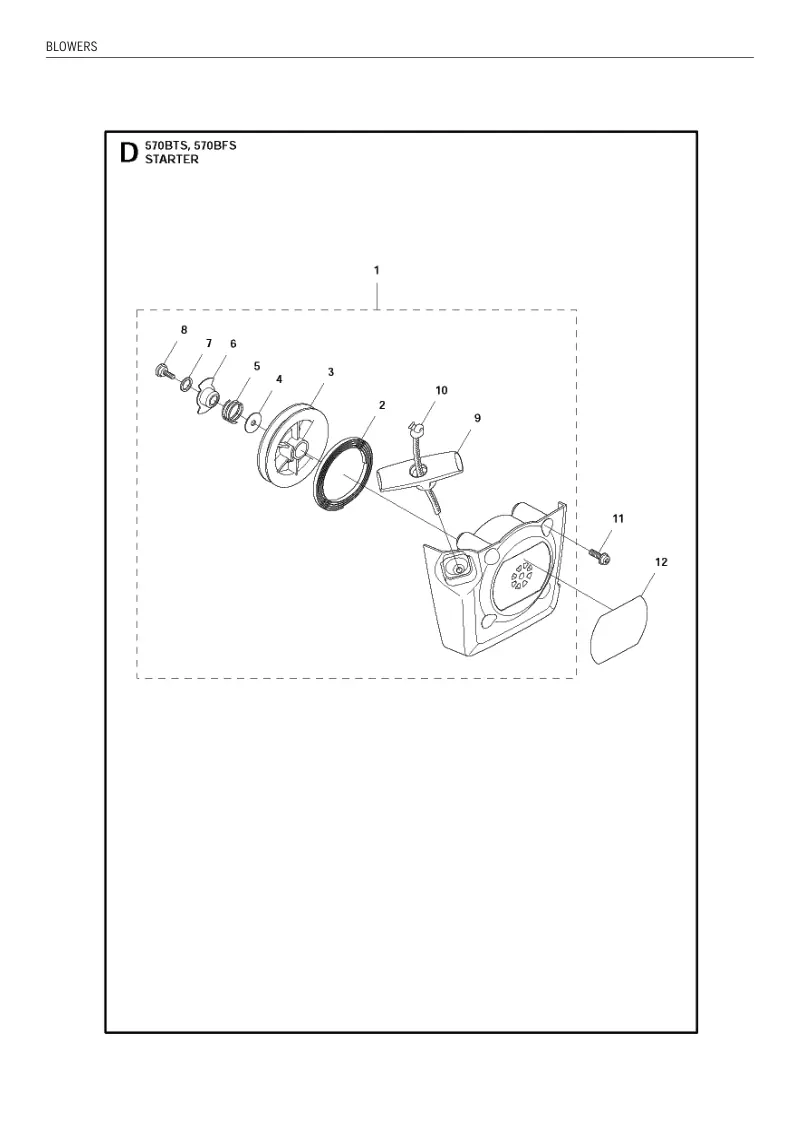

BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | STARTER ASSY | 578283501 | 578283501-Online | 1 |
| 2 | SPRING | 521629601 | 521629601-Online | 1 |
| 3 | REEL | 576594201 | 576594201-Online | 1 |
| 4 | WASHER | 521630801 | 521630801-Online | 1 |
| 5 | SPRING | 521630601 | 521630601-Online | 1 |
| 6 | PLATE | 521630301 | 521630301-Online | 1 |
| 7 | WASHER | 521631201 | 521631201-Online | 1 |
| 8 | SCREW | 515367101 | 515367101-Online | 1 |
| 9 | STARTER HANDLE | 537232501 | 537232501-Online | 1 |
| 10 | ROPE | 577053101 | 577053101-Online | 1 |
| 11 | BOLT | 506745601 | 506745601-Online | 4 |
| 12 | DECAL For 570BTS | 576580801 | 576580801-Online | 1 |
| 12 | DECAL For 570BFS. | 577467301 | 577467301-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | HANDLE HALF | 502244801 | 502244801-Online | 1 |
| 2 | PLATE | 502641701 | 502641701-Online | 1 |
| 3 | SHAFT PIVOT | 537141203 | 537141203-Online | 1 |
| 4 | CONTROL | 502245501 | 502245501-Online | 1 |
| 5 | NUT | 510911201 | 510911201-Online | 1 |
| 6 | SPRING | 505567901 | 505567901-Online | 1 |
| 7 | RETAINER | 502246001 | 502246001-Online | 1 |
| 8 | SCREW | 505291001 | 505291001-Online | 1 |
| 9 | SPRING | 537373901 | 537373901-Online | 1 |
| 10 | WASHER | 505181501 | 505181501-Online | 1 |
| 11 | WASHER | 735583501 | 735583501-Online | 1 |
| 12 | CONNECTOR | 537226301 | 537226301-Online | 1 |
| 13 | CONNECTOR | 537226201 | 537226201-Online | 1 |
| 14 | TRIGGER | 502245401 | 502245401-Online | 1 |
| 15 | SPRING THROTTLE TRIG | 537174201 | 537174201-Online | 1 |
| 16 | HANDLE HALF | 502244901 | 502244901-Online | 1 |
| 17 | SCREW | 505291201 | 505291201-Online | 2 |
| 18 | SCREW | 505290801 | 505290801-Online | 1 |
| 19 | SQUARE NUT | 503226501 | 503226501-Online | 1 |
| 20 | HOLDER | 502245301 | 502245301-Online | 1 |
| 21 | HANDLE HOLDER | 576579701 | 576579701-Online | 1 |
| 22 | TURNING KNOB | 504800301 | 504800301-Online | 1 |
| 23 | SCREW EHHM | 725234451 | 725234451-Online | 1 |
| 24 | TUBE | 577756901 | 577756901-Online | 1 |
| 25 | WIRING ASSY | 576785601 | 576785601-Online | 1 |
| 26 | CORD | 576785701 | 576785701-Online | 1 |
| 27 | CABLE | 576785801 | 576785801-Online | 1 |
| 28 | LEVER | 576579601 | 576579601-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | PIPE | 576581801 | 576581801-Online | 1 |
| 2 | PIPE | 576581701 | 576581701-Online | 1 |
| 3 | JOINT | 576581401 | 576581401-Online | 1 |
| 4 | CLAMP | 544274101 | 544274101-Online | 2 |
| 5 | HOSE | 576564701 | 576564701-Online | 1 |
| 6 | CLAMP | 502842801 | 502842801-Online | 1 |
| 7 | ELBOW | 576578301 | 576578301-Online | 1 |
| 8 | O-RING | 581290801 | 581290801-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SOCKET | 521533001 | 521533001-Online | 1 |
| 2 | HANDLEBAR ASSY | 544400004 | 544400004-Online | 1 |
| 3 | HANDLEBAR | 537241301 | 537241301-Online | 1 |
| 4 | BRACKET | 537292901 | 537292901-Online | 1 |
| 5 | HANDLE HOLDER | 576579701 | 576579701-Online | 1 |
| 6 | KNOB | 502204001 | 502204001-Online | 1 |
| 7 | SCREW EHHM | 725234751 | 725234751-Online | 1 |
| 8 | SCREW IHSCM | 725532555 | 725532555-Online | 1 |
| 9 | HEXAGON NUT | 731231401 | 731231401-Online | 2 |
| 10 | COVER | 537172901 | 537172901-Online | 1 |
| 11 | HANDLE | 537172801 | 537172801-Online | 1 |
| 12 | HEXAGON NUT | 731231401 | 731231401-Online | 1 |
| 13 | SCREW IHSCFM | 503200245 | 503200245-Online | 1 |
| 14 | NOZZLE | 576582701 | 576582701-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | VOLUTE | 576578201 | 576578201-Online | 1 |
| 2 | SCREW | 544264601 | 544264601-Online | 2 |
| 4 | SCREW | 512848101 | 512848101-Online | 8 |
| 5 | FAN | 576561501 | 576561501-Online | 1 |
| 6 | BOLT | 576561601 | 576561601-Online | 4 |
| 8 | VOLUTE | 576578101 | 576578101-Online | 1 |
| 10 | BRACKET | 576579401 | 576579401-Online | 2 |
| 11 | CLAMP | 504122301 | 504122301-Online | 1 |
| 12 | SCREW | 512848101 | 512848101-Online | 6 |
| 13 | SCREW | 512847901 | 512847901-Online | 1 |
| 14 | CLAMP | 521525101 | 521525101-Online | 1 |
| 15 | SCREW | 512847901 | 512847901-Online | 1 |
| 16 | CLAMP | 521525101 | 521525101-Online | 1 |
| 17 | NUT | 514183901 | 514183901-Online | 2 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | FRAME | 576578901 | 576578901-Online | 1 |
| 2 | DAMPER | 576562201 | 576562201-Online | 2 |
| 3 | SCREW | 544270801 | 544270801-Online | 2 |
| 4 | SCREW | 577628801 | 577628801-Online | 2 |
| 5 | NUT | 513667501 | 513667501-Online | 2 |
| 6 | NUT | 505182601 | 505182601-Online | 2 |
| 7 | NET | 579659502 | 579659502-Online | 1 |
| 8 | DAMPER | 513666701 | 513666701-Online | 1 |
| 9 | BOLT | 521517201 | 521517201-Online | 1 |
| 10 | WASHER | 577357901 | 577357901-Online | 1 |
| 11 | CLIP | 526243901 | 526243901-Online | 4 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SPARK PLUG CAP | 587984701 | 587984701-Online | 1 |
| 2 | SPRING | 506655201 | 506655201-Online | 1 |
| 3 | SPARK PLUG | 521233401 | 521233401-Online | 1 |
| 5 | SPACER | 588171401 | 588171401-Online | 2 |
| 6 | GROMMET | 515415301 | 515415301-Online | 1 |
| 7 | CORD | 576593801 | 576593801-Online | 1 |
| 8 | BOLT | 579383001 | 579383001-Online | 2 |
| 9 | RING | 587654801 | 587654801-Online | 10 |
| 10 | ROTOR | 587655101 | 587655101-Online | 1 |
| 11 | KEY | 506689401 | 506689401-Online | 1 |
| 12 | RATCHET | 587655001 | 587655001-Online | 10 |
| 13 | NUT | 513241901 | 513241901-Online | 1 |
| 14 | COIL | 587984501 | 587984501-Online | 1 |
| 15 | SPRING | 587654901 | 587654901-Online | 10 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | AIR FILTER COVER | 576580001 | 576580001-Online | 1 |
| 2 | AIR FILTER | 512654101 | 512654101-Online | 1 |
| 3 | AIR FILTER | 512652001 | 512652001-Online | 1 |
| 5 | AIR FILTER HOLDER | 578311401 | 578311401-Online | 1 |
| 6 | SNAP LOCKING | 503894701 | 503894701-Online | 4 |
| 7 | SCREW | 512848101 | 512848101-Online | 4 |
| 8 | CLAMP | 544271901 | 544271901-Online | 1 |
| 9 | HOSE | 576580101 | 576580101-Online | 1 |
| 10 | CLAMP | 544274001 | 544274001-Online | 1 |
| 11 | SCREW | 506673801 | 506673801-Online | 15 |
| 12 | PLATE | 576594901 | 576594901-Online | 1 |
| 13 | PLATE | 576594701 | 576594701-Online | 1 |
| 14 | BOLT | 515390701 | 515390701-Online | 2 |
| 15 | CUP | 576594501 | 576594501-Online | 1 |
| 16 | O-RING | 516136001 | 516136001-Online | 1 |
| 17 | LEVER | 576594801 | 576594801-Online | 1 |
| 19 | RING | 521631501 | 521631501-Online | 1 |
| 20 | CARBURETTOR | 544363001 | 544363001-Online | 1 |
| 21 | COVER | 506744201 | 506744201-Online | 1 |
| 22 | GASKET | 577089601 | 577089601-Online | 1 |
| 24 | BOLT | 576589801 | 576589801-Online | 1 |
| 25 | INSULATOR | 578108401 | 578108401-Online | 1 |
| 26 | GASKET | 577694801 | 577694801-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | NUT | 513241901 | 513241901-Online | 1 |
| 2 | COUPLING | 576592701 | 576592701-Online | 1 |
| 3 | KEY | 506689401 | 506689401-Online | 1 |
| 5 | CRANKCASE | 576591101 | 576591101-Online | 1 |
| 6 | BOLT | 515388101 | 515388101-Online | 4 |
| 7 | BOLT | 576564301 | 576564301-Online | 4 |
| 9 | PIN | 577167401 | 577167401-Online | 2 |
| 10 | GASKET | 576591601 | 576591601-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SERVICE KIT | 578385101 | 578385101-Online | 1 |
| 2 | KEY | 506689401 | 506689401-Online | 1 |
| 3 | BEARING | 521521301 | 521521301-Online | 1 |
| 4 | SEAL | 521521901 | 521521901-Online | 1 |
| 5 | BEARING | 576696401 | 576696401-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | ENGINE COVER | 576578501 | 576578501-Online | 1 |
| 2 | SCREW | 512848101 | 512848101-Online | 5 |
| 3 | COVER | 576578601 | 576578601-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SCREW | 544256801 | 544256801-Online | 2 |
| 2 | PLATE | 576589501 | 576589501-Online | 1 |
| 3 | GROMMET | 576589601 | 576589601-Online | 1 |
| 4 | BOLT | 506745201 | 506745201-Online | 4 |
| 5 | CYLINDER | 578384901 | 578384901-Online | 1 |
| 6 | PISTON-G | 529094701 | 529094701-Online | 1 |
| 7 | WASHER | 521520501 | 521520501-Online | 2 |
| 8 | BEARING | 576696401 | 576696401-Online | 1 |
| 9 | PISTON | 544259201 | 544259201-Online | 1 |
| 10 | PISTON PIN | 544259401 | 544259401-Online | 1 |
| 11 | SNAP RING | 521531901 | 521531901-Online | 2 |
| 12 | PISTON RING | 544259301 | 544259301-Online | 2 |
| 13 | GASKET | 576589401 | 576589401-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | MUFFLER ASSY | 577953501 | 577953501-Online | 1 |
| 2 | GASKET | 576590901 | 576590901-Online | 1 |
| 3 | SPARK ARRESTER | 576590501 | 576590501-Online | 1 |
| 4 | DIFFUSOR | 576590601 | 576590601-Online | 1 |
| 5 | BOLT | 576590701 | 576590701-Online | 2 |
| 6 | BOLT | 576590801 | 576590801-Online | 1 |
| 7 | BOLT | 544362701 | 544362701-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CARBURETTOR | 544363001 | 544363001-Online | 1 |
| 2 | BODY CARBURETTOR | 544363501 | 544363501-Online | 1 |
| 3 | SCREW | 505307901 | 505307901-Online | 1 |
| 4 | BRACKET | 506746001 | 506746001-Online | 1 |
| 5 | NUT | 506612601 | 506612601-Online | 1 |
| 6 | SCREW | 506741301 | 506741301-Online | 1 |
| 7 | SWIVEL | 506741201 | 506741201-Online | 1 |
| 8 | WASHER | 506746101 | 506746101-Online | 1 |
| 9 | RETAINER RING | 506738601 | 506738601-Online | 1 |
| 10 | O-RING | 505307501 | 505307501-Online | 1 |
| 11 | JET | 544365301 | 544365301-Online | 1 |
| 12 | GASKET | 506745101 | 506745101-Online | 1 |
| 13 | DIAPHRAGM | 506689801 | 506689801-Online | 1 |
| 14 | GASKET | 506740801 | 506740801-Online | 1 |
| 15 | DIAPHRAGM | 505306801 | 505306801-Online | 1 |
| 16 | BODY | 506740901 | 506740901-Online | 1 |
| 17 | PUMP | 505306701 | 505306701-Online | 1 |
| 18 | COVER | 506741001 | 506741001-Online | 1 |
| 19 | SCREW | 506741101 | 506741101-Online | 1 |
| 20 | RING | 521631501 | 521631501-Online | 1 |
| 21 | GASKET KIT | 511459501 | 511459501-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CLIP | 506741501 | 506741501-Online | 1 |
| 2 | HOSE ASSY | 579138304 | 579138304-Online | 1 |
| 5 | CLIP | 506707001 | 506707001-Online | 1 |
| 6 | FILTER | 506742601 | 506742601-Online | 1 |
| 7 | TANK CAP ASSY | 504031801 | 504031801-Online | 1 |
| 8 | FUEL TANK For Canada all except USA and | 577467801 | 577467801-Online | 1 |
| 8 | TANK ASSY For USA and Canada | 579140501 | 579140501-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | PAD | 576625301 | 576625301-Online | 1 |
| 3 | CLIP | 544270201 | 544270201-Online | 3 |
| 4 | SCREW | 544270801 | 544270801-Online | 2 |
| 5 | CLIP | 544270001 | 544270001-Online | 2 |
