Husqvarna 570BFS IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.
BLOWERS

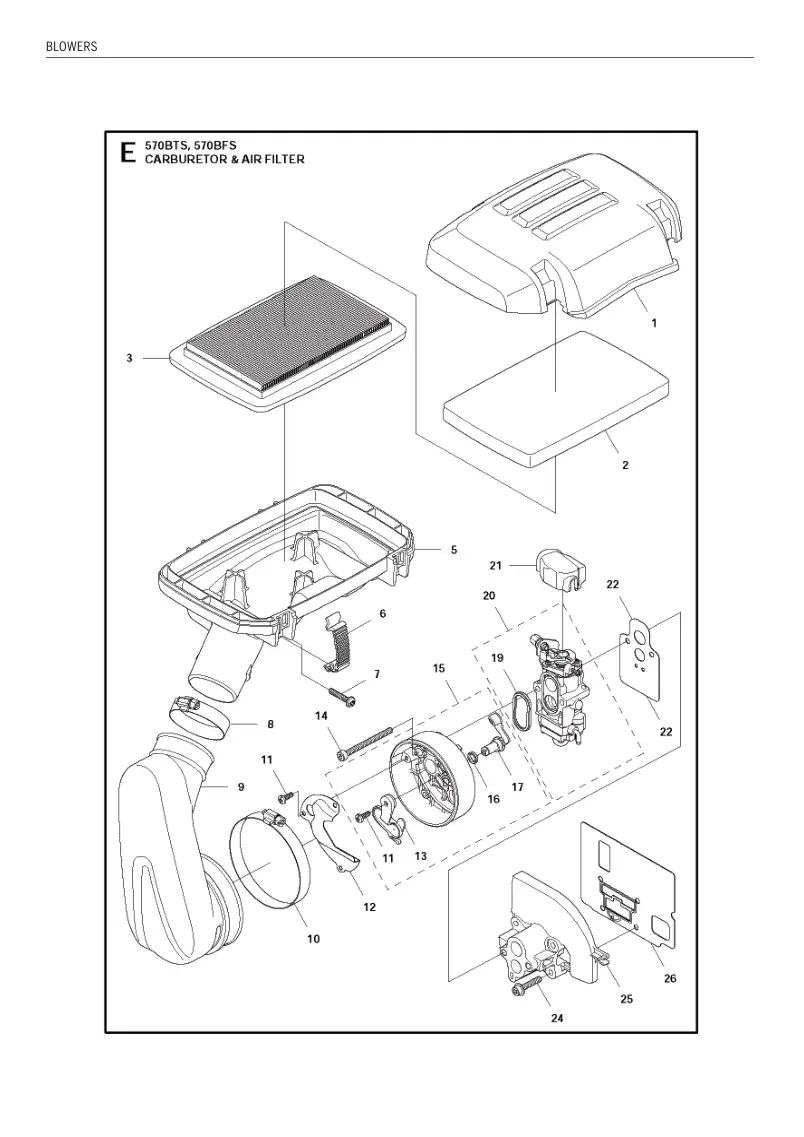

| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | AIR FILTER COVER | 576580001 | 576580001-Online | 1 |
| 2 | AIR FILTER | 512654101 | 512654101-Online | 1 |
| 3 | AIR FILTER | 512652001 | 512652001-Online | 1 |
| 5 | AIR FILTER HOLDER | 578311401 | 578311401-Online | 1 |
| 6 | SNAP LOCKING | 503894701 | 503894701-Online | 4 |
| 7 | SCREW | 512848101 | 512848101-Online | 4 |
| 8 | CLAMP | 544271901 | 544271901-Online | 1 |
| 9 | HOSE | 576580101 | 576580101-Online | 1 |
| 10 | CLAMP | 544274001 | 544274001-Online | 1 |
| 11 | SCREW | 506673801 | 506673801-Online | 15 |
| 12 | PLATE | 576594901 | 576594901-Online | 1 |
| 13 | PLATE | 576594701 | 576594701-Online | 1 |
| 14 | BOLT | 515390701 | 515390701-Online | 2 |
| 15 | CUP | 576594501 | 576594501-Online | 1 |
| 16 | O-RING | 516136001 | 516136001-Online | 1 |
| 17 | LEVER | 576594801 | 576594801-Online | 1 |
| 19 | RING | 521631501 | 521631501-Online | 1 |
| 20 | CARBURETTOR | 544363001 | 544363001-Online | 1 |
| 21 | COVER | 506744201 | 506744201-Online | 1 |
| 22 | GASKET | 577089601 | 577089601-Online | 1 |
| 24 | BOLT | 576589801 | 576589801-Online | 1 |
| 25 | INSULATOR | 578108401 | 578108401-Online | 1 |
| 26 | GASKET | 577694801 | 577694801-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CLIP | 506741501 | 506741501-Online | 1 |
| 2 | HOSE ASSY | 579138304 | 579138304-Online | 1 |
| 5 | CLIP | 506707001 | 506707001-Online | 1 |
| 6 | FILTER | 506742601 | 506742601-Online | 1 |
| 7 | TANK CAP ASSY | 504031801 | 504031801-Online | 1 |
| 8 | FUEL TANK For Canada all except USA and | 577467801 | 577467801-Online | 1 |
| 8 | TANK ASSY For USA and Canada | 579140501 | 579140501-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SPARK PLUG CAP | 587984701 | 587984701-Online | 1 |
| 2 | SPRING | 506655201 | 506655201-Online | 1 |
| 3 | SPARK PLUG | 521233401 | 521233401-Online | 1 |
| 5 | SPACER | 588171401 | 588171401-Online | 2 |
| 6 | GROMMET | 515415301 | 515415301-Online | 1 |
| 7 | CORD | 576593801 | 576593801-Online | 1 |
| 8 | BOLT | 579383001 | 579383001-Online | 2 |
| 9 | RING | 587654801 | 587654801-Online | 10 |
| 10 | ROTOR | 587655101 | 587655101-Online | 1 |
| 11 | KEY | 506689401 | 506689401-Online | 1 |
| 12 | RATCHET | 587655001 | 587655001-Online | 10 |
| 13 | NUT | 513241901 | 513241901-Online | 1 |
| 14 | COIL | 587984501 | 587984501-Online | 1 |
| 15 | SPRING | 587654901 | 587654901-Online | 10 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | HANDLE HALF | 502244801 | 502244801-Online | 1 |
| 2 | PLATE | 502641701 | 502641701-Online | 1 |
| 3 | SHAFT PIVOT | 537141203 | 537141203-Online | 1 |
| 4 | CONTROL | 502245501 | 502245501-Online | 1 |
| 5 | NUT | 510911201 | 510911201-Online | 1 |
| 6 | SPRING | 505567901 | 505567901-Online | 1 |
| 7 | RETAINER | 502246001 | 502246001-Online | 1 |
| 8 | SCREW | 505291001 | 505291001-Online | 1 |
| 9 | SPRING | 537373901 | 537373901-Online | 1 |
| 10 | WASHER | 505181501 | 505181501-Online | 1 |
| 11 | WASHER | 735583501 | 735583501-Online | 1 |
| 12 | CONNECTOR | 537226301 | 537226301-Online | 1 |
| 13 | CONNECTOR | 537226201 | 537226201-Online | 1 |
| 14 | TRIGGER | 502245401 | 502245401-Online | 1 |
| 15 | SPRING THROTTLE TRIG | 537174201 | 537174201-Online | 1 |
| 16 | HANDLE HALF | 502244901 | 502244901-Online | 1 |
| 17 | SCREW | 505291201 | 505291201-Online | 2 |
| 18 | SCREW | 505290801 | 505290801-Online | 1 |
| 19 | SQUARE NUT | 503226501 | 503226501-Online | 1 |
| 20 | HOLDER | 502245301 | 502245301-Online | 1 |
| 21 | HANDLE HOLDER | 576579701 | 576579701-Online | 1 |
| 22 | TURNING KNOB | 504800301 | 504800301-Online | 1 |
| 23 | SCREW EHHM | 725234451 | 725234451-Online | 1 |
| 24 | TUBE | 577756901 | 577756901-Online | 1 |
| 25 | WIRING ASSY | 576785601 | 576785601-Online | 1 |
| 26 | CORD | 576785701 | 576785701-Online | 1 |
| 27 | CABLE | 576785801 | 576785801-Online | 1 |
| 28 | LEVER | 576579601 | 576579601-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | GRIP | 576658001 | 576658001-Online | 1 |
| 2 | HANDLE | 537172801 | 537172801-Online | 1 |
| 3 | SCREW | 575725401 | 575725401-Online | 1 |
| 4 | NUT | 575960601 | 575960601-Online | 1 |
| 5 | COVER | 537172901 | 537172901-Online | 1 |
| 6 | STAY | 537260201 | 537260201-Online | 1 |
| 7 | HANDLE HOLDER | 576579701 | 576579701-Online | 1 |
| 8 | TURNING KNOB | 504800301 | 504800301-Online | 1 |
| 9 | SCREW EHHM | 725234451 | 725234451-Online | 1 |
| 10 | LEVER | 576562401 | 576562401-Online | 1 |
| 11 | ARM | 576562601 | 576562601-Online | 1 |
| 12 | LEVER | 576562901 | 576562901-Online | 1 |
| 13 | PLATE | 576563201 | 576563201-Online | 1 |
| 14 | STOPPER | 576562801 | 576562801-Online | 1 |
| 16 | WASHER | 576563301 | 576563301-Online | 1 |
| 17 | PLATE | 576563101 | 576563101-Online | 1 |
| 18 | BOLT | 576563501 | 576563501-Online | 10 |
| 19 | BOLT | 506745201 | 506745201-Online | 1 |
| 20 | HUB CAP | 513351901 | 513351901-Online | 1 |
| 22 | NUT | 521519601 | 521519601-Online | 1 |
| 23 | WASHER | 514336501 | 514336501-Online | 1 |
| 24 | SPRING | 514336301 | 514336301-Online | 1 |
| 25 | WASHER | 514336701 | 514336701-Online | 10 |
| 26 | SCREW | 544270801 | 544270801-Online | 2 |
| 29 | BOLT | 514336201 | 514336201-Online | 1 |
| 30 | TUBE | 544277601 | 544277601-Online | 1 |
| 31 | CABLE | 576563401 | 576563401-Online | 1 |
| 32 | SWITCH | 576563001 | 576563001-Online | 1 |
| 33 | COVER | 576562701 | 576562701-Online | 1 |
| 34 | BRACKET | 576563601 | 576563601-Online | 1 |
| 35 | SQUARE NUT | 503226501 | 503226501-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | PIPE | 576581801 | 576581801-Online | 1 |
| 2 | PIPE | 576581701 | 576581701-Online | 1 |
| 3 | JOINT | 576581401 | 576581401-Online | 1 |
| 4 | CLAMP | 544274101 | 544274101-Online | 2 |
| 5 | HOSE | 576564701 | 576564701-Online | 1 |
| 6 | CLAMP | 502842801 | 502842801-Online | 1 |
| 7 | ELBOW | 576578301 | 576578301-Online | 1 |
| 8 | O-RING | 581290801 | 581290801-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SOCKET | 521533001 | 521533001-Online | 1 |
| 2 | HANDLEBAR ASSY | 544400004 | 544400004-Online | 1 |
| 3 | HANDLEBAR | 537241301 | 537241301-Online | 1 |
| 4 | BRACKET | 537292901 | 537292901-Online | 1 |
| 5 | HANDLE HOLDER | 576579701 | 576579701-Online | 1 |
| 6 | KNOB | 502204001 | 502204001-Online | 1 |
| 7 | SCREW EHHM | 725234751 | 725234751-Online | 1 |
| 8 | SCREW IHSCM | 725532555 | 725532555-Online | 1 |
| 9 | HEXAGON NUT | 731231401 | 731231401-Online | 2 |
| 10 | COVER | 537172901 | 537172901-Online | 1 |
| 11 | HANDLE | 537172801 | 537172801-Online | 1 |
| 12 | HEXAGON NUT | 731231401 | 731231401-Online | 1 |
| 13 | SCREW IHSCFM | 503200245 | 503200245-Online | 1 |
| 14 | NOZZLE | 576582701 | 576582701-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CARBURETTOR | 544363001 | 544363001-Online | 1 |
| 2 | BODY CARBURETTOR | 544363501 | 544363501-Online | 1 |
| 3 | SCREW | 505307901 | 505307901-Online | 1 |
| 4 | BRACKET | 506746001 | 506746001-Online | 1 |
| 5 | NUT | 506612601 | 506612601-Online | 1 |
| 6 | SCREW | 506741301 | 506741301-Online | 1 |
| 7 | SWIVEL | 506741201 | 506741201-Online | 1 |
| 8 | WASHER | 506746101 | 506746101-Online | 1 |
| 9 | RETAINER RING | 506738601 | 506738601-Online | 1 |
| 10 | O-RING | 505307501 | 505307501-Online | 1 |
| 11 | JET | 544365301 | 544365301-Online | 1 |
| 12 | GASKET | 506745101 | 506745101-Online | 1 |
| 13 | DIAPHRAGM | 506689801 | 506689801-Online | 1 |
| 14 | GASKET | 506740801 | 506740801-Online | 1 |
| 15 | DIAPHRAGM | 505306801 | 505306801-Online | 1 |
| 16 | BODY | 506740901 | 506740901-Online | 1 |
| 17 | PUMP | 505306701 | 505306701-Online | 1 |
| 18 | COVER | 506741001 | 506741001-Online | 1 |
| 19 | SCREW | 506741101 | 506741101-Online | 1 |
| 20 | RING | 521631501 | 521631501-Online | 1 |
| 21 | GASKET KIT | 511459501 | 511459501-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | NUT | 513241901 | 513241901-Online | 1 |
| 2 | COUPLING | 576592701 | 576592701-Online | 1 |
| 3 | KEY | 506689401 | 506689401-Online | 1 |
| 5 | CRANKCASE | 576591101 | 576591101-Online | 1 |
| 6 | BOLT | 515388101 | 515388101-Online | 4 |
| 7 | BOLT | 576564301 | 576564301-Online | 4 |
| 9 | PIN | 577167401 | 577167401-Online | 2 |
| 10 | GASKET | 576591601 | 576591601-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SERVICE KIT | 578385101 | 578385101-Online | 1 |
| 2 | KEY | 506689401 | 506689401-Online | 1 |
| 3 | BEARING | 521521301 | 521521301-Online | 1 |
| 4 | SEAL | 521521901 | 521521901-Online | 1 |
| 5 | BEARING | 576696401 | 576696401-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | ENGINE COVER | 576578501 | 576578501-Online | 1 |
| 2 | SCREW | 512848101 | 512848101-Online | 5 |
| 3 | COVER | 576578601 | 576578601-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SCREW | 544256801 | 544256801-Online | 2 |
| 2 | PLATE | 576589501 | 576589501-Online | 1 |
| 3 | GROMMET | 576589601 | 576589601-Online | 1 |
| 4 | BOLT | 506745201 | 506745201-Online | 4 |
| 5 | CYLINDER | 578384901 | 578384901-Online | 1 |
| 6 | PISTON-G | 529094701 | 529094701-Online | 1 |
| 7 | WASHER | 521520501 | 521520501-Online | 2 |
| 8 | BEARING | 576696401 | 576696401-Online | 1 |
| 9 | PISTON | 544259201 | 544259201-Online | 1 |
| 10 | PISTON PIN | 544259401 | 544259401-Online | 1 |
| 11 | SNAP RING | 521531901 | 521531901-Online | 2 |
| 12 | PISTON RING | 544259301 | 544259301-Online | 2 |
| 13 | GASKET | 576589401 | 576589401-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | VOLUTE | 576578201 | 576578201-Online | 1 |
| 2 | SCREW | 544264601 | 544264601-Online | 2 |
| 4 | SCREW | 512848101 | 512848101-Online | 8 |
| 5 | FAN | 576561501 | 576561501-Online | 1 |
| 6 | BOLT | 576561601 | 576561601-Online | 4 |
| 8 | VOLUTE | 576578101 | 576578101-Online | 1 |
| 10 | BRACKET | 576579401 | 576579401-Online | 2 |
| 11 | CLAMP | 504122301 | 504122301-Online | 1 |
| 12 | SCREW | 512848101 | 512848101-Online | 6 |
| 13 | SCREW | 512847901 | 512847901-Online | 1 |
| 14 | CLAMP | 521525101 | 521525101-Online | 1 |
| 15 | SCREW | 512847901 | 512847901-Online | 1 |
| 16 | CLAMP | 521525101 | 521525101-Online | 1 |
| 17 | NUT | 514183901 | 514183901-Online | 2 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | FRAME | 576578901 | 576578901-Online | 1 |
| 2 | DAMPER | 576562201 | 576562201-Online | 2 |
| 3 | SCREW | 544270801 | 544270801-Online | 2 |
| 4 | SCREW | 577628801 | 577628801-Online | 2 |
| 5 | NUT | 513667501 | 513667501-Online | 2 |
| 6 | NUT | 505182601 | 505182601-Online | 2 |
| 7 | NET | 579659502 | 579659502-Online | 1 |
| 8 | DAMPER | 513666701 | 513666701-Online | 1 |
| 9 | BOLT | 521517201 | 521517201-Online | 1 |
| 10 | WASHER | 577357901 | 577357901-Online | 1 |
| 11 | CLIP | 526243901 | 526243901-Online | 4 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | PAD | 576625301 | 576625301-Online | 1 |
| 3 | CLIP | 544270201 | 544270201-Online | 3 |
| 4 | SCREW | 544270801 | 544270801-Online | 2 |
| 5 | CLIP | 544270001 | 544270001-Online | 2 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | MUFFLER ASSY | 577953501 | 577953501-Online | 1 |
| 2 | GASKET | 576590901 | 576590901-Online | 1 |
| 3 | SPARK ARRESTER | 576590501 | 576590501-Online | 1 |
| 4 | DIFFUSOR | 576590601 | 576590601-Online | 1 |
| 5 | BOLT | 576590701 | 576590701-Online | 2 |
| 6 | BOLT | 576590801 | 576590801-Online | 1 |
| 7 | BOLT | 544362701 | 544362701-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | STARTER ASSY | 578283501 | 578283501-Online | 1 |
| 2 | SPRING | 521629601 | 521629601-Online | 1 |
| 3 | REEL | 576594201 | 576594201-Online | 1 |
| 4 | WASHER | 521630801 | 521630801-Online | 1 |
| 5 | SPRING | 521630601 | 521630601-Online | 1 |
| 6 | PLATE | 521630301 | 521630301-Online | 1 |
| 7 | WASHER | 521631201 | 521631201-Online | 1 |
| 8 | SCREW | 515367101 | 515367101-Online | 1 |
| 9 | STARTER HANDLE | 537232501 | 537232501-Online | 1 |
| 10 | ROPE | 577053101 | 577053101-Online | 1 |
| 11 | BOLT | 506745601 | 506745601-Online | 4 |
| 12 | DECAL For 570BTS | 576580801 | 576580801-Online | 1 |
| 12 | DECAL For 570BFS. | 577467301 | 577467301-Online | 1 |
