Worx WX240 IPL Parts Diagram & Parts List

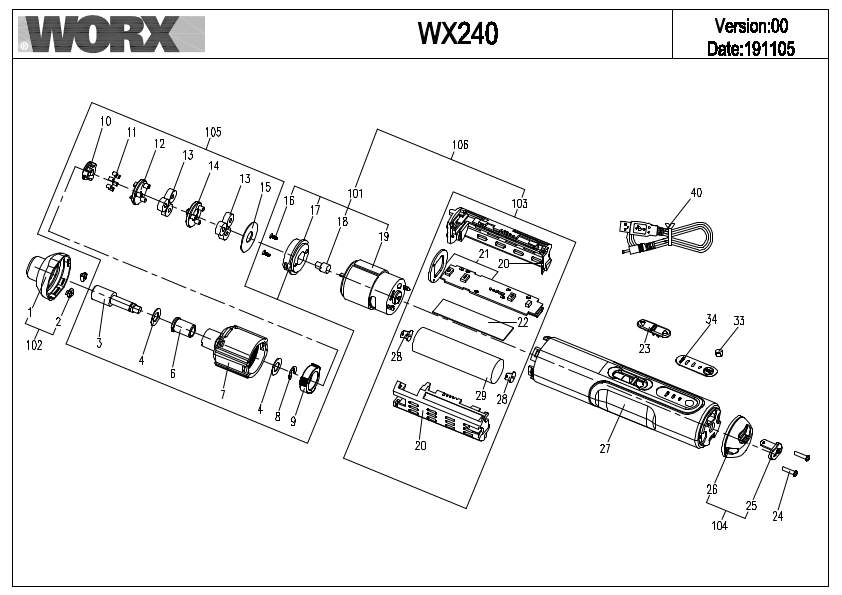

Use the exploded drawing and parts table below to identify Worx WX240 replacement parts.
Click any Cutsmart SKU to open the product lookup page.
| Ref | Description | Part Number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | Fore Cover | 60056856 | 1 | 60056856-Online |
| 2 | Lamp cap | 60056857 | 2 | 60056857-Online |
| 3 | Output shaft | 60056858 | 1 | 60056858-Online |
| 4 | Spring washer | 60056859 | 1 | 60056859-Online |
| 6 | Shaft cover | 60056861 | 1 | 60056861-Online |
| 7 | Gear case | 60056862 | 1 | 60056862-Online |
| 8 | Circlip | 60056863 | 1 | 60056863-Online |
| 9 | Fixing Ring | 60056864 | 1 | 60056864-Online |
| 10 | Self-locking core | 60056865 | 1 | 60056865-Online |
| 11 | Self-locking pin | 60056866 | 6 | 60056866-Online |
| 12 | Self-locking block | 60056867 | 1 | 60056867-Online |
| 13 | Planet Gear | 60056868 | 6 | 60056868-Online |
| 14 | Center toothed disc | 60056869 | 1 | 60056869-Online |
| 15 | Shim Ring | 60056870 | 1 | 60056870-Online |
| 16 | Screw | 60056871 | 2 | 60056871-Online |
| 17 | Fixed Plate | 60056872 | 1 | 60056872-Online |
| 18 | Motor gear | 60056873 | 1 | 60056873-Online |
| 19 | Motor | 60056874 | 1 | 60056874-Online |
| 20 | Left/Right Fixing frame | 60056875 | 1 | 60056875-Online |
| 21 | Protection board | 60056876 | 1 | 60056876-Online |
| 22 | Insulating paper | 60056877 | 1 | 60056877-Online |
| 23 | Button | 60056878 | 1 | 60056878-Online |
| 23 | Button | 60066873 | 1 | 60066873-Online |
| 24 | Self tapping screw | 60056879 | 2 | 60056879-Online |
| 25 | Charging plug | 60056880 | 1 | 60056880-Online |
| 26 | Rear Cover | 60056881 | 1 | 60056881-Online |
| 27 | Housing | 60066868 | 1 | 60066868-Online |
| 27 | Housing | 60056882 | 1 | 60056882-Online |
| 28 | Terminal | 60056883 | 2 | 60056883-Online |
| 29 | Cell | 60056884 | 1 | 60056884-Online |
| 33 | Button | 60056885 | 1 | 60056885-Online |
| 33 | Button | 60066875 | 1 | 60066875-Online |
| 34 | Torque label | 60056900 | 1 | 60056900-Online |
| 40 | USB charging cable(Type-C) | 60056892 | 1 | 60056892-Online |
| 101 | Motor Set | 60056886 | 1 | 60056886-Online |
| 102 | Fore Cover Set | 60056887 | 1 | 60056887-Online |
| 103 | Battery and circuit board set | 60056888 | 1 | 60056888-Online |
| 104 | Rear cover set | 60056889 | 1 | 60056889-Online |
| 105 | Gearbox set | 60056890 | 1 | 60056890-Online |
| 106 | Motor circuit board set | 60056891 | 1 | 60056891-Online |
SKU convention used in this article: Worx part number with WRX- prefix and @online suffix. Links use the Cutsmart SKU resolver, not fixed product slugs.
Source drawing file(s): WX240 exploded drawing.pdf
