Worx WX255 IPL Parts Diagram & Parts List

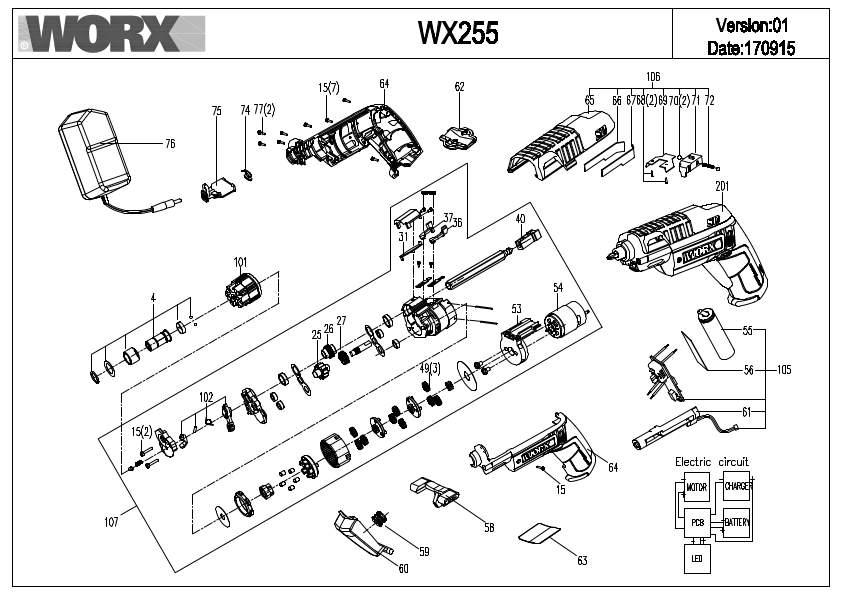

Use the exploded drawing and parts table below to identify Worx WX255 replacement parts.
Click any Cutsmart SKU to open the product lookup page.
| Ref | Description | Part Number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 4 | Shaft Sleeve | 50031438 | 1 | 50031438-Online |
| 15 | Self Tapping Screw | 50024175 | 11 | 50024175-Online |
| 25 | Gear | 50024185 | 1 | 50024185-Online |
| 26 | Gear | 50025178 | 1 | 50025178-Online |
| 27 | Gear | 50024186 | 1 | 50024186-Online |
| 31 | Brake Band Slider | 50025180 | 1 | 50025180-Online |
| 36 | Bracket | 50025183 | 1 | 50025183-Online |
| 37 | Bracket | 50025184 | 1 | 50025184-Online |
| 40 | Block | 50024202 | 1 | 50024202-Online |
| 49 | Planetary Gear | 50019716 | 3 | 50019716-Online |
| 53 | Adapter Ring | 50025191 | 1 | 50025191-Online |
| 54 | Dc Motor | 50020791 | 1 | 50020791-Online |
| 55 | Battery Unit(Li-ion) | 50034105 | 1 | 50034105-Online |
| 56 | Velcro Strip | 50019250 | 1 | 50019250-Online |
| 58 | F/R Button | 50026417 | 1 | 50026417-Online |
| 59 | Compression Spring | 50026418 | 1 | 50026418-Online |
| 60 | Trigger | 50026419 | 1 | 50026419-Online |
| 61 | Light support | 50031440 | 1 | 50031440-Online |
| 62 | Rear Cover | 50025197 | 1 | 50025197-Online |
| 63 | Rated Label | 50029255 | 1 | 50029255-Online |
| 64 | Left/Right Housing | 50031445 | 1 | 50031445-Online |
| 65 | Top Cover Housing | 50025201 | 1 | 50025201-Online |
| 66 | Bracket | 50025202 | 1 | 50025202-Online |
| 67 | Bracket | 50025203 | 1 | 50025203-Online |
| 68 | Screw | 50025204 | 2 | 50025204-Online |
| 69 | Press Plate | 50025205 | 1 | 50025205-Online |
| 70 | Steel ball | 50003254 | 2 | 50003254-Online |
| 71 | Baffler Body | 50025206 | 1 | 50025206-Online |
| 72 | Compression Spring | 50025207 | 1 | 50025207-Online |
| 74 | Lock Button | 50031437 | 1 | 50031437-Online |
| 75 | Collet | 50027383 | 1 | 50027383-Online |
| 76 | Adapter | 50039990 | 1 | 50039990-Online |
| 76 | Adapter | 50027157 | 1 | 50027157-Online |
| 77 | Screw | 50025212 | 2 | 50025212-Online |
| 102 | Cam Assembly | 50025175 | 1 | 50025175-Online |
| 105 | Power Supply Board | 50033789 | 1 | 50033789-Online |
| 106 | Top Cover | 50025200 | 1 | 50025200-Online |
| 107 | Gear case set | 50034106 | 1 | 50034106-Online |
SKU convention used in this article: Worx part number with WRX- prefix and @online suffix. Links use the Cutsmart SKU resolver, not fixed product slugs.
Source drawing file(s): WX255(CSD24A) Exploded Drawing-V01.pdf
