Illustrated Parts List
Hustler® X-ONE i Parts Manual - 931949EX
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 931949EXModel: 931956EXModel: 604466Model: 117605Model: 117604Model: 603162Model: 117147Model: 353961Model: 600197Model: 789537+2 more modelsSKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.
Sections

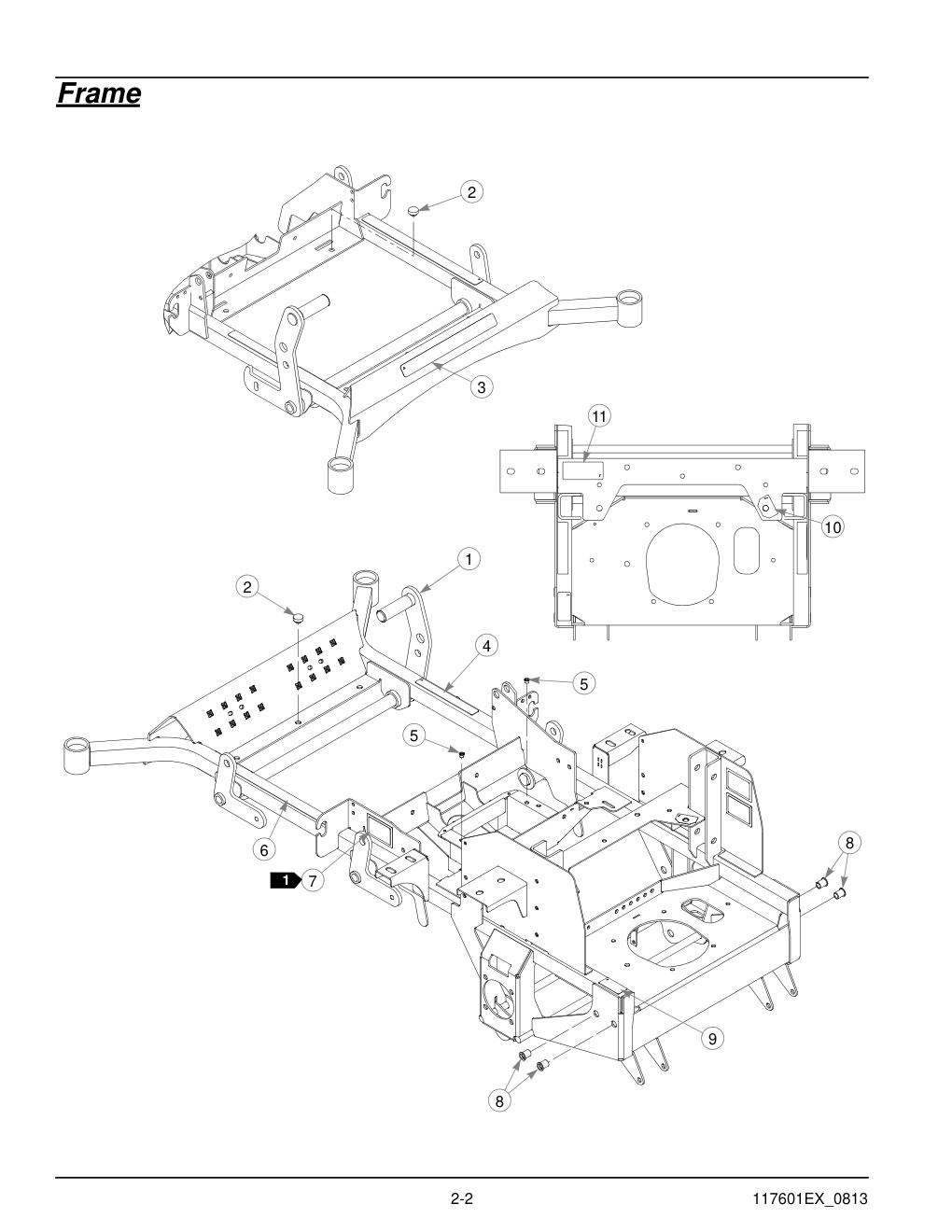

FrameEngine GuardHydraulic SystemHydraulic Service PartsSteeringSteering Box AssemblySteering Box AssemblySteering Box AssemblyBrakeWheel & Tire, Flex ForksFront Tire AssemblyDrive Wheel BreakdownEngine, Kawasaki FX691V & FX730VEngine, Kawasaki FX691V & FX730VEngine Service Parts, Kawasaki FX691V & FX730VFuel SystemFuel Tank Service PartsBatteryInstrument Panel52" Service Deck52" Deck Pulleys & Spindles52" Deck60" Service Deck60" Deck Pulleys & Spindles60" DeckDeck LiftDeck Mounting HardwareSeat, DeluxeSeat Service Parts, DeluxeROPSFrame
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 60" FRAME (WITH DECALS & RIVET NUTS) | 551798 | 1 | 551798-Online |
| 1 | 52" FRAME (WITH DECALS & RIVET NUTS) | 551799 | 1 | 551799-Online |
| 2 | BUMPER | 781880 | 5 | HT781880-Online |
| 3 | HUSTLER ID DECAL | 602407 | 1 | 602407-Online |
| 4 | DECK HEIGHT DECAL | 781427 | 1 | 781427-Online |
| 5 | 1/4-20 THREAD RIVET NUT | 808477 | 2 | 808477-Online |
| 6 | SAFE OPERATION DECAL | 601993 | 1 | 601993-Online |
| 7 | SERIAL NUMBER / SPEC DECAL | N/A | 1 | No SKU |
| 8 | 1/2-13 THREAD RIVET NUT | 600961 | 4 | 600961-Online |
| 9 | HOT DECAL | 602041 | 1 | 602041-Online |
| 10 | FUEL INDICATOR DECAL | 791848 | 1 | 791848-Online |
| 11 | ENGINE COMPARTMENT DECAL | 601967 | 1 | 601967-Online |

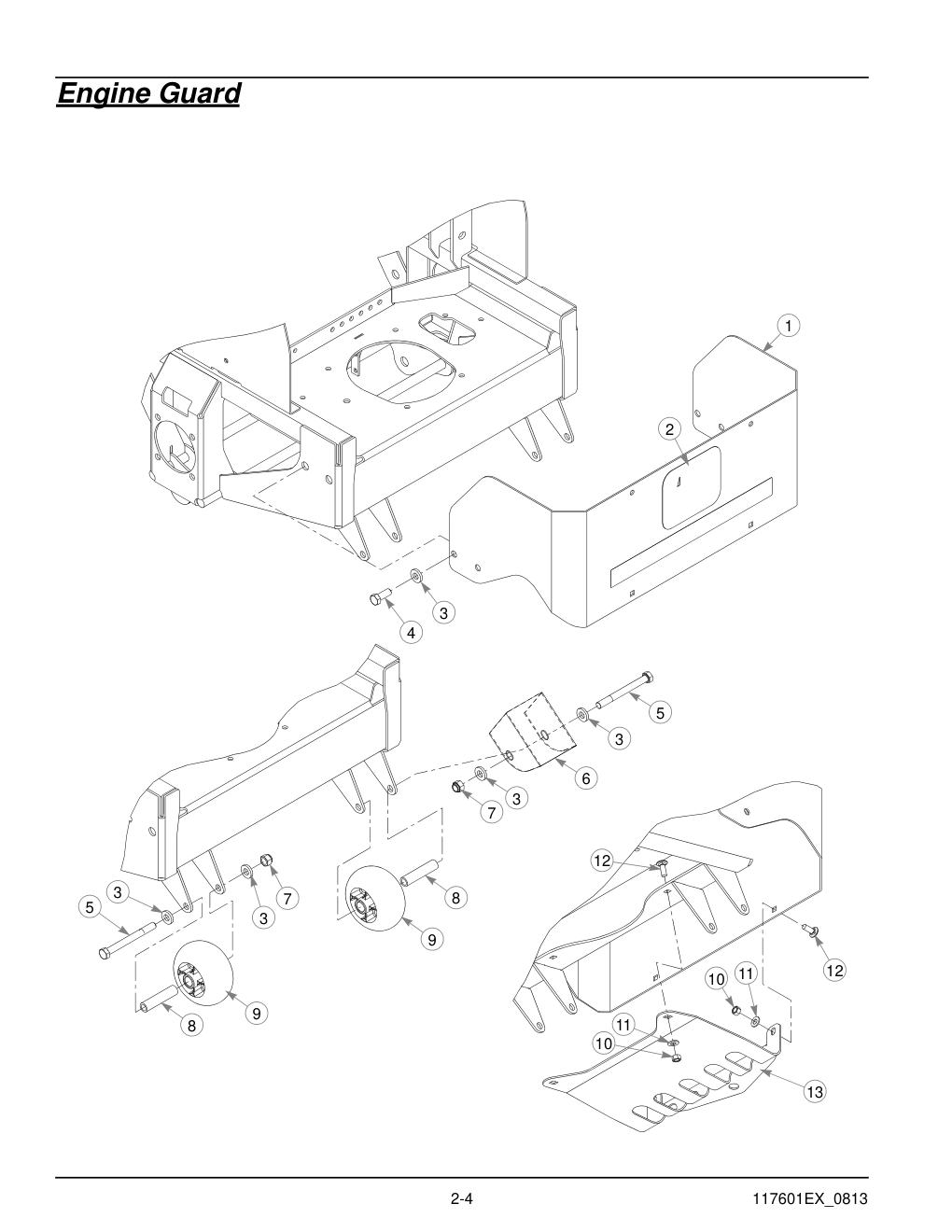

Engine Guard
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | ENGINE GUARD (WITH DECAL) | 551810 | 1 | 551810-Online |
| 2 | H LOGO DECAL | 604352 | 1 | 604352-Online |
| 3 | FW .531 X 1.063 X .090 SAE | 767962 | 8 | HT767962-Online |
| 4 | CS .500-13 X 1.25 HX G5 ZN | 705954 | 4 | HT705954-Online |
| 5 | CS .500-13 X 5.00 HX G5 | 051151 | 2 | HT051151-Online |
| 6 | SHIELD | 377994 | 1 | 377994-Online |
| 7 | NT .500-13 HX G8 ZY NL | 781567 | 2 | HT781567-Online |
| 8 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 9 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 10 | NT .375-16 HX G5 ZNY | 054502 | 4 | HT054502-Online |
| 11 | FW .406 X .812 X .060 SAE | 767954 | 4 | HT767954-Online |
| 12 | CB .375-16 X 1.00 G5 ZNY | 025395 | 4 | HT025395-Online |
| 13 | HITCH | 116982 | 1 | 116982-Online |

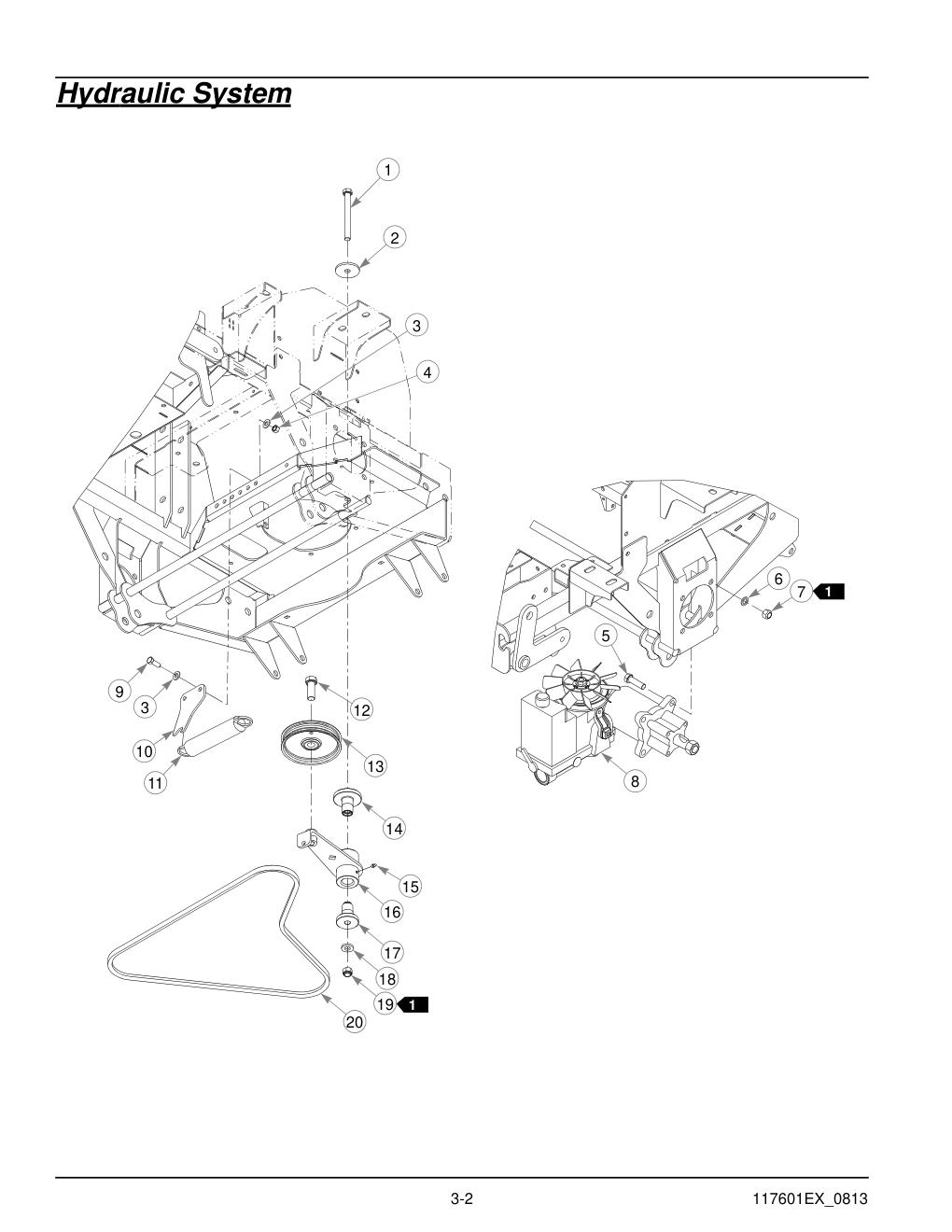

Hydraulic System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .500-13 X 5.00 HX G5 | 051151 | 1 | HT051151-Online |
| 2 | FW .510 X 2.15 X .187 SPL | 344267 | 1 | HT344267-Online |
| 3 | FW .406 X .812 X .060 SAE | 767954 | 4 | HT767954-Online |
| 4 | NT .375-16 HX G5 ZNY | 054502 | 2 | HT054502-Online |
| 5 | CS .500-13 X 1.75 HX G5 | 017616 | 8 | HT017616-Online |
| 6 | FW 0.531 X .812 X .089 | 604486 | 8 | 604486-Online |
| 7 | NT .500-13 UNT LK G8 ZN | 023317 | 8 | 023317-Online |
| 8 | LS TRANSMISSION | 604104 | 1 | 604104-Online |
| 8 | RS TRANSMISSION (NOT SHOWN) | 604105 | 1 | 604105-Online |
| 9 | CS .375-16 X 1.00 HX G5 | 036244 | 2 | HT036244-Online |
| 10 | IDLER SPRING MOUNT | 117004 | 1 | HT117004-Online |
| 11 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 12 | CS .625-11 X 1.75 HX G5 | 025007 | 1 | HT025007-Online |
| 13 | 5" FLAT IDLER PULLEY | 602304 | 1 | 602304-Online |
| 14 | IDLER PIVOT BUSHING | 602880 | 1 | 602880-Online |
| 15 | GREASE FITTING STRAIGHT | 015495 | 1 | HT015495-Online |
| 16 | TENSIONER | 117000 | 1 | HT117000-Online |
| 17 | IDLER PIVOT BUSHING | 602879 | 1 | 602879-Online |
| 18 | FW .531 X 1.063 X .09 SAE HRD ZN | 767962 | 1 | HT767962-Online |
| 19 | NT .500-13 HX G5 ZN NY | 781567 | 1 | HT781567-Online |
| 20 | BELT, A 64" EL | 788794 | 1 | HT788794-Online |

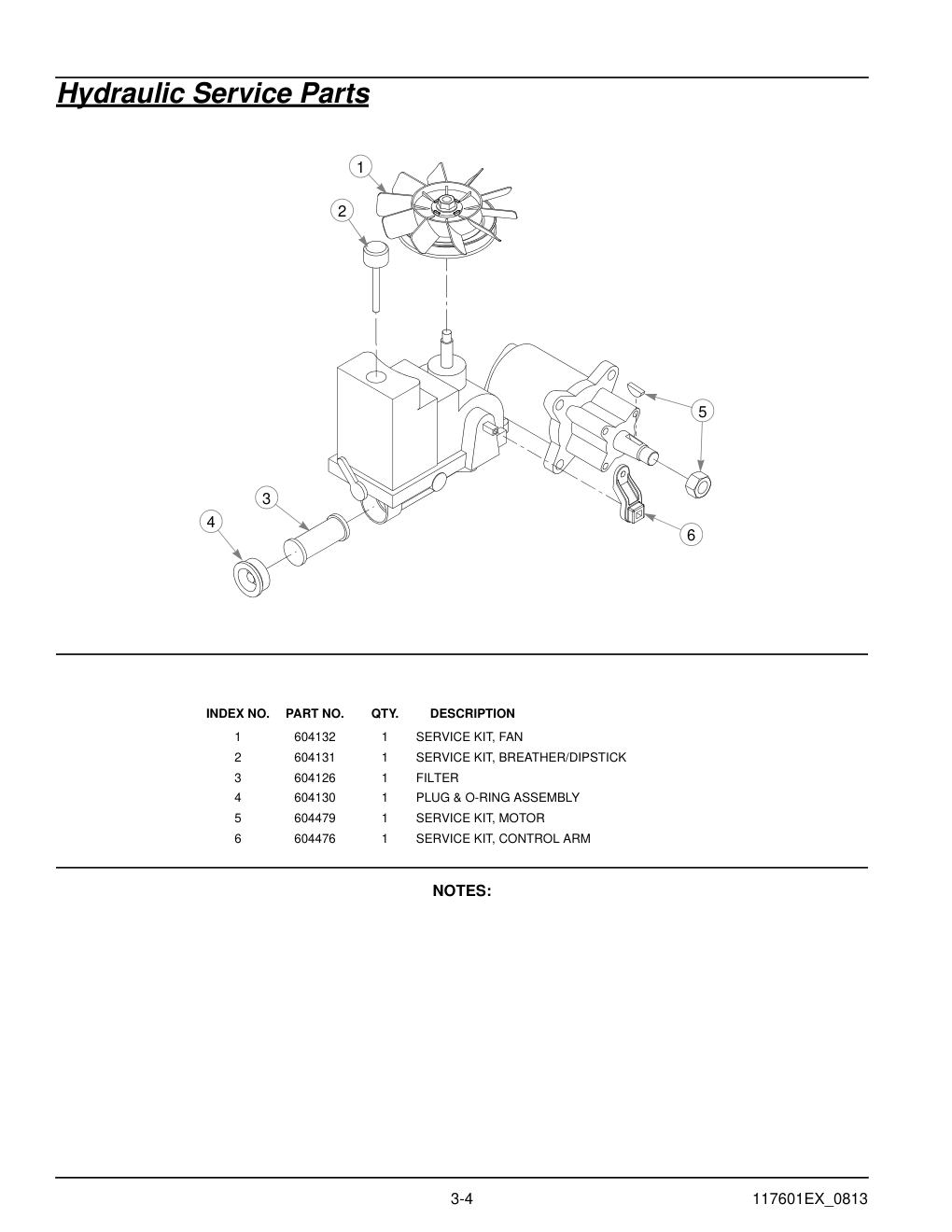

Hydraulic Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SERVICE KIT, FAN | 604132 | 1 | 604132-Online |
| 2 | SERVICE KIT, BREATHER/DIPSTICK | 604131 | 1 | 604131-Online |
| 3 | FILTER | 604126 | 1 | 604126-Online |
| 4 | PLUG & O-RING ASSEMBLY | 604130 | 1 | 604130-Online |
| 5 | SERVICE KIT, MOTOR | 604479 | 1 | 604479-Online |
| 6 | SERVICE KIT, CONTROL ARM | 604476 | 1 | 604476-Online |

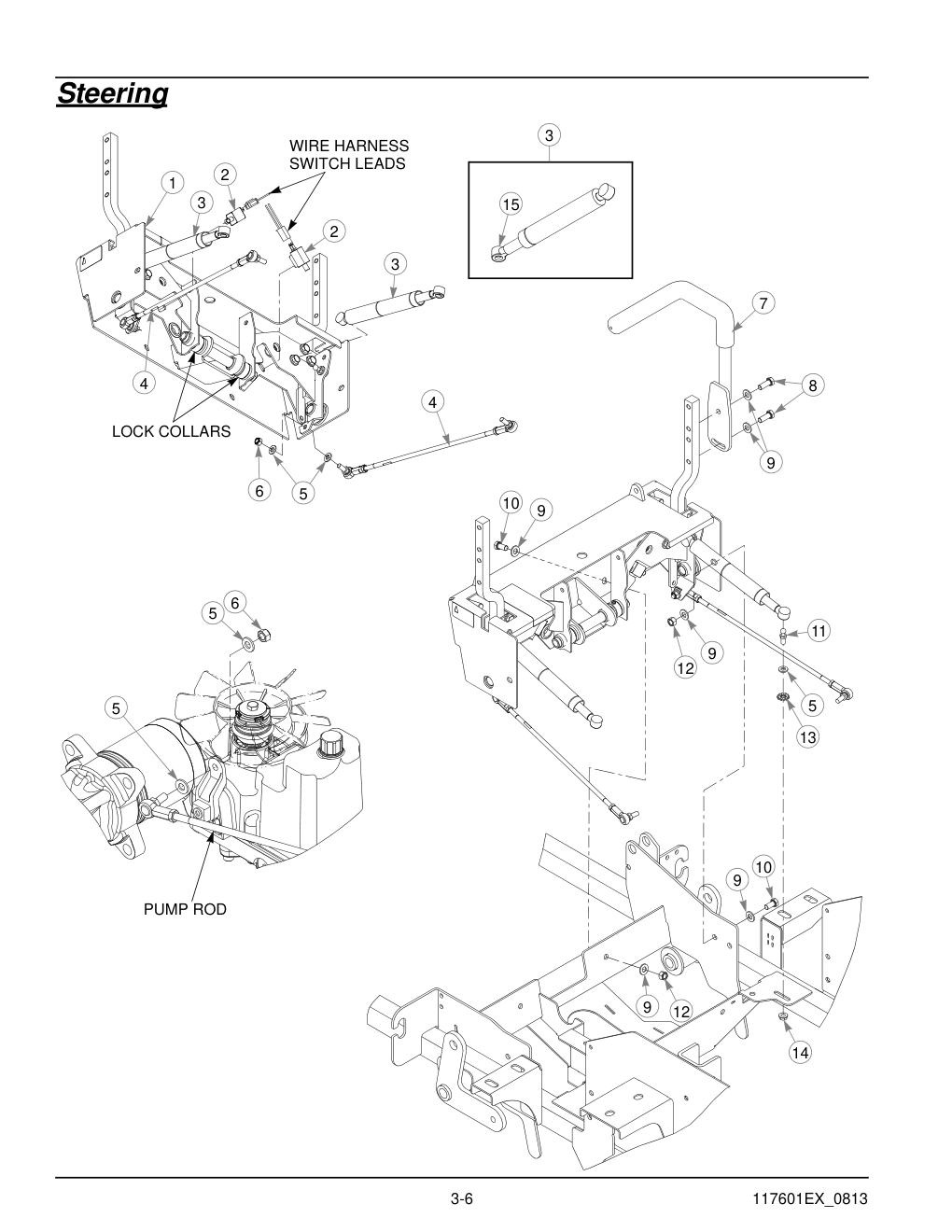

Steering
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING BOX ASSEMBLY | 604410 | 1 | 604410-Online |
| 2 | SWITCH | 601087 | 2 | HT601087-Online |
| 3 | DAMPER | 795351 | 2 | 795351-Online |
| 4 | PUMP ROD | 604187 | 2 | 604187-Online |
| 5 | FW .343 X .687 X .051/.080H | 768523 | 10 | HT768523-Online |
| 6 | NT .312-24 HX NL ZN | 023655 | 4 | HT023655-Online |
| 7 | HANDLE | 109839 | 2 | 109839-Online |
| 8 | CS .375-16 X 1.00 HX G5 | 036244 | 4 | HT036244-Online |
| 9 | FW .406 X .812 X .060 SAE | 767954 | 12 | HT767954-Online |
| 10 | CS .375-16 X .75 HX G5 | 055822 | 4 | HT055822-Online |
| 11 | BALL STUD | 781922 | 2 | 781922-Online |
| 12 | NT .375-16 HX G5 ZNY | 054502 | 4 | HT054502-Online |
| 13 | LW .312 INT-EXT TOOTH | 029876 | 2 | 029876-Online |
| 14 | NT .312-18 HX FLK ZNYC | 016832 | 2 | 016832-Online |
| 15 | CAP LOCK | 601426 | 1 | 601426-Online |

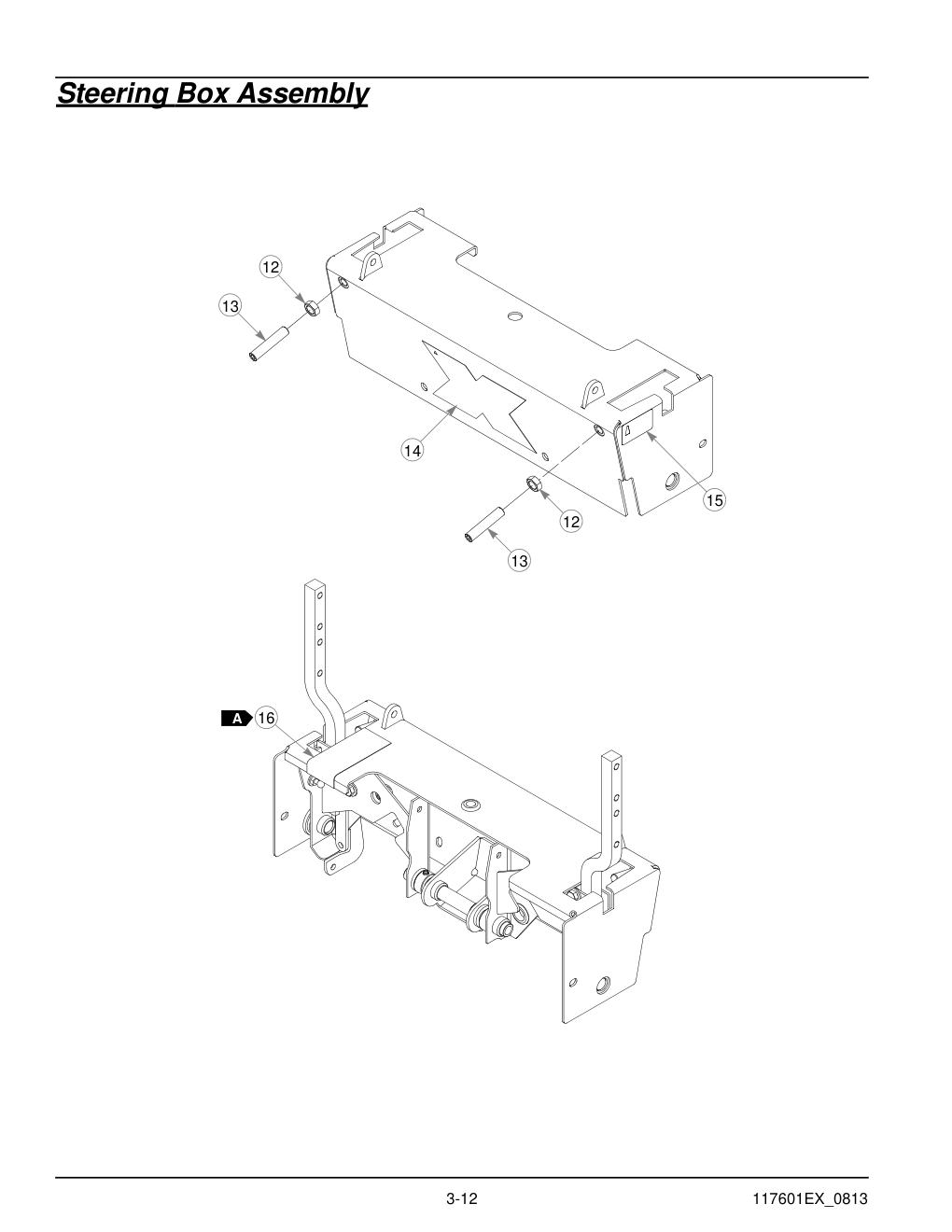

Steering Box Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS STEERING BOX SUB | 604408 | 1 | 604408-Online |
| 2 | LS STEERING BOX SUB | 604409 | 1 | 604409-Online |
| 3 | BUSHING | 781153 | 6 | HT781153-Online |
| 4 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 5 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 6 | BALL STUD | 781922 | 2 | 781922-Online |
Steering Box Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 7 | STEERING COVER | 113221 | 1 | 113221-Online |
| 8 | LOCK COLLAR 0.757 ID | 784439 | 2 | HT784439-Online |
| 9 | FW .750 X 1.50 X .156 ZN | 603078 | 2 | 603078-Online |
| 10 | STEER PIVOT TUBE | 113365 | 1 | HT113365-Online |
| 11 | GM .50 X 1.00 X .75 X .12 | 080358 | 1 | 080358-Online |
Steering Box Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 12 | NT .500-13 HX JAM ZNYC | 053199 | 2 | HT053199-Online |
| 13 | SS 1/2-13 X 2.50 SH ZNYC | 603055 | 2 | 603055-Online |
| 14 | X-ONEI DECAL | 604417 | 1 | 604417-Online |
| 15 | MADE IN USA DECAL | 727172 | 1 | 727172-Online |
| 16 | WEAR TAPE | 722199 | 5.5" | 722199-Online |

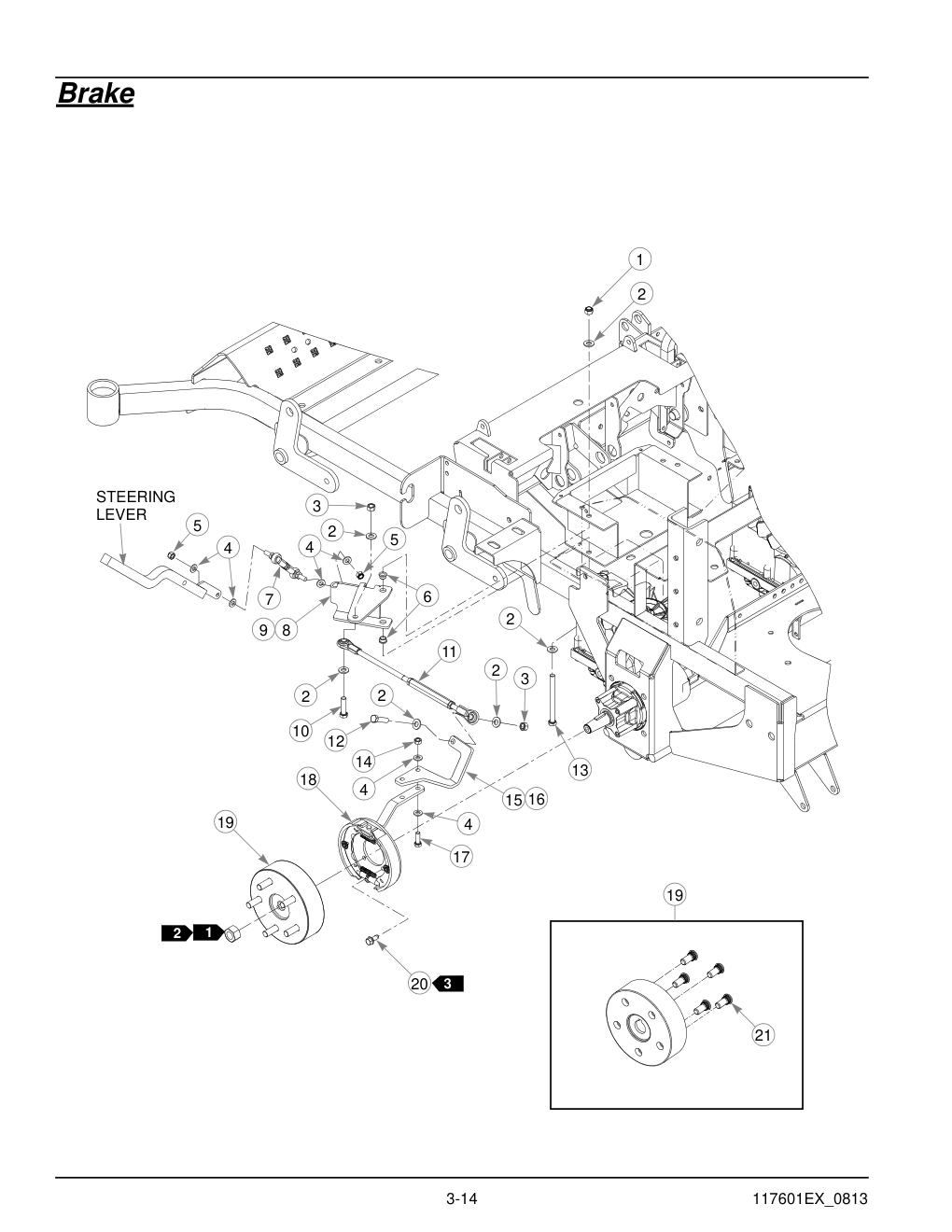

Brake
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .375-16 HXZY NL | 086660 | 2 | HT086660-Online |
| 2 | FW .406 X .812 X .060 SAE | 767954 | 12 | HT767954-Online |
| 3 | NT .375-16 HX G5 ZNY | 054502 | 4 | HT054502-Online |
| 4 | FW .343 X .687 X .051/.080H | 768523 | 16 | HT768523-Online |
| 5 | NT .312-24 HX NL ZN | 023655 | 4 | HT023655-Online |
| 6 | BUSHING | 765339 | 4 | HT765339-Online |
| 7 | BRAKE ROD ASSEMBLY | 781583 | 2 | HT781583-Online |
| 8 | LS BRAKE BELLCRANK | 116993 | 1 | 116993-Online |
| 9 | RS BRAKE BELLCRANK (NOT SHOWN) | 116992 | 1 | 116992-Online |
| 10 | CS .375-16 X 1.50 HX G5 | 080655 | 2 | HT080655-Online |
| 11 | BRAKE LINK TURNBUCKLE | 350397 | 2 | 350397-Online |
| 12 | CS .375-16 X 1.375 HX G5 | 005116 | 2 | HT005116-Online |
| 13 | CS .375-16 X 4.50 HX G5 | 052514 | 2 | 052514-Online |
| 14 | NT .312-18 HX G5 ZNYC | 034272 | 4 | HT034272-Online |
| 15 | LS BRAKE ARM | 117493 | 1 | 117493-Online |
| 16 | RS BRAKE ARM (NOT SHOWN) | 117494 | 1 | 117494-Online |
| 17 | CS .312-18 X 1.00 HX G5 | 036236 | 4 | 036236-Online |
| 18 | BRAKE ASSEMBLY | 602383 | 2 | 602383-Online |
| 19 | HUB ASSEMBLY (WITH STUDS) | 604368 | 2 | 604368-Online |
| 20 | CS 0.312-18 X 0.75 HS G8 FLANGE HEAD | 604461 | 8 | 604461-Online |
| 21 | STUD, WHEEL LUG 1/2-20 | 601085 | 1 | HT601085-Online |

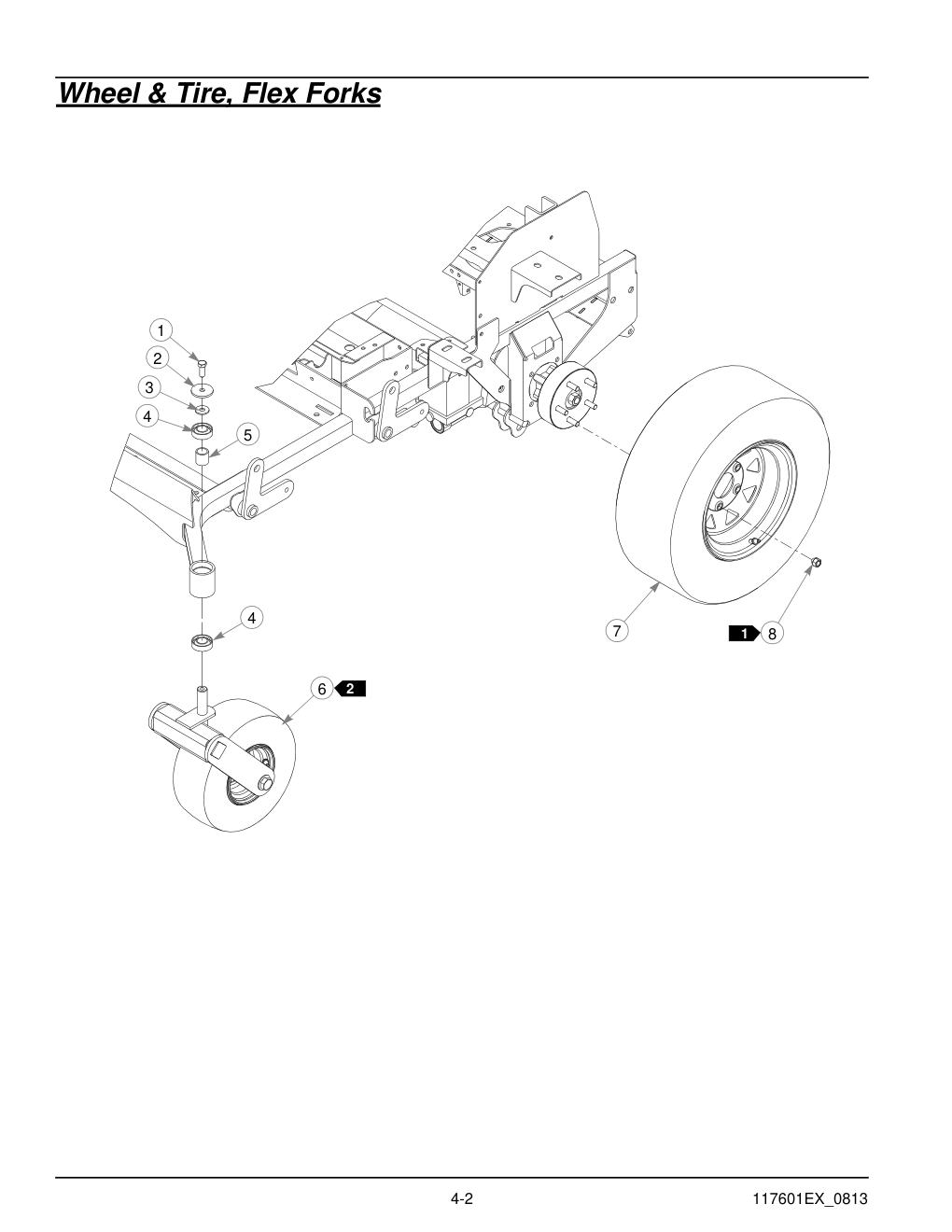

Wheel & Tire, Flex Forks
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .500-13 X 1.25 HX G5 ZN | 705954 | 2 | HT705954-Online |
| 2 | FW .510 X 2.15 X .187 SPL | 344267 | 2 | HT344267-Online |
| 3 | FW .531 X 1.375 X .125 ZNY | 712976 | 2 | HT712976-Online |
| 4 | BEARING | 784223 | 4 | HT784223-Online |
| 5 | SPACER | 784603 | 2 | HT784603-Online |
| 6 | FRONT TIRE ASSEMBLY | 604905 | 1 | 604905-Online |
| 7 | TIRE/WHEEL ASSEMBLY 24 X 9.5-12 (52" MOWER) | 604106 | 2 | 604106-Online |
| 7 | TIRE/WHEEL ASSEMBLY 24 X 12-12 (60" MOWER) | 604108 | 2 | 604108-Online |
| 8 | WHEEL NUT | 061077 | 10 | HT061077-Online |

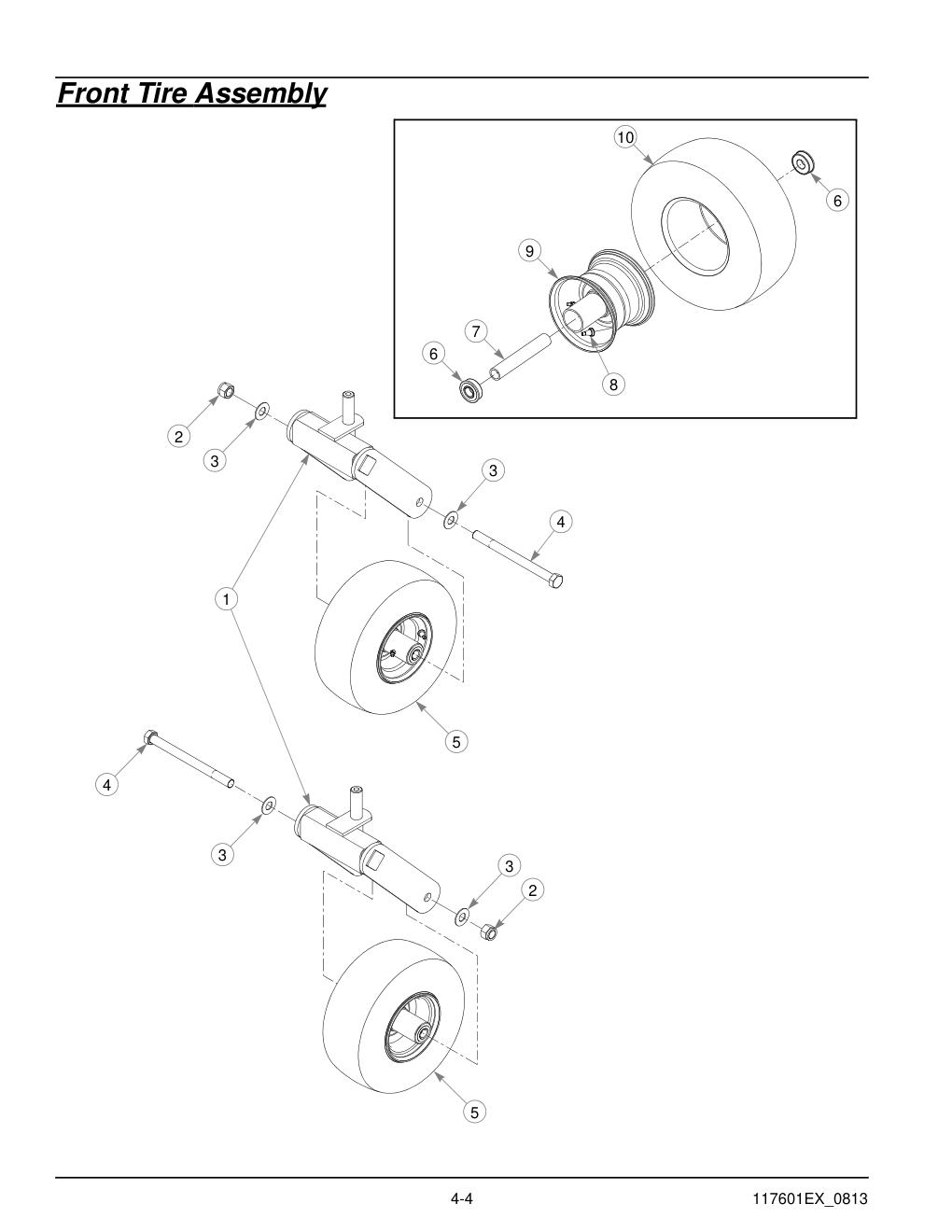

Front Tire Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FLEX FORKS KIT (CONTAINS TWO FORKS) | 603162 | 1 | 603162-Online |
| 2 | NT .750-10 HX ZY NL | 061101 | 2 | HT061101-Online |
| 3 | FW .760 X 1.625 X .08 ZNYC | 025296 | 4 | HT025296-Online |
| 4 | CS .750-10 X 9.50 HX ZY | 041475 | 2 | HT041475-Online |
| 5 | TIRE/WHEEL ASSEMBLY 13 X 6.50 | 604898 | 2 | 604898-Online |
| 6 | WHEEL BEARING | 039677 | 2 | HT039677-Online |
| 7 | BEARING SPACER | 782771 | 1 | HT782771-Online |
| 8 | VALVE STEM | 019521 | 1 | HT019521-Online |
| 9 | WHEEL, 6 X 4.5 | 747832 | 1 | 747832-Online |
| 10 | TIRE, 13 X 6.50-6 SMOOTH | 604843 | 1 | 604843-Online |

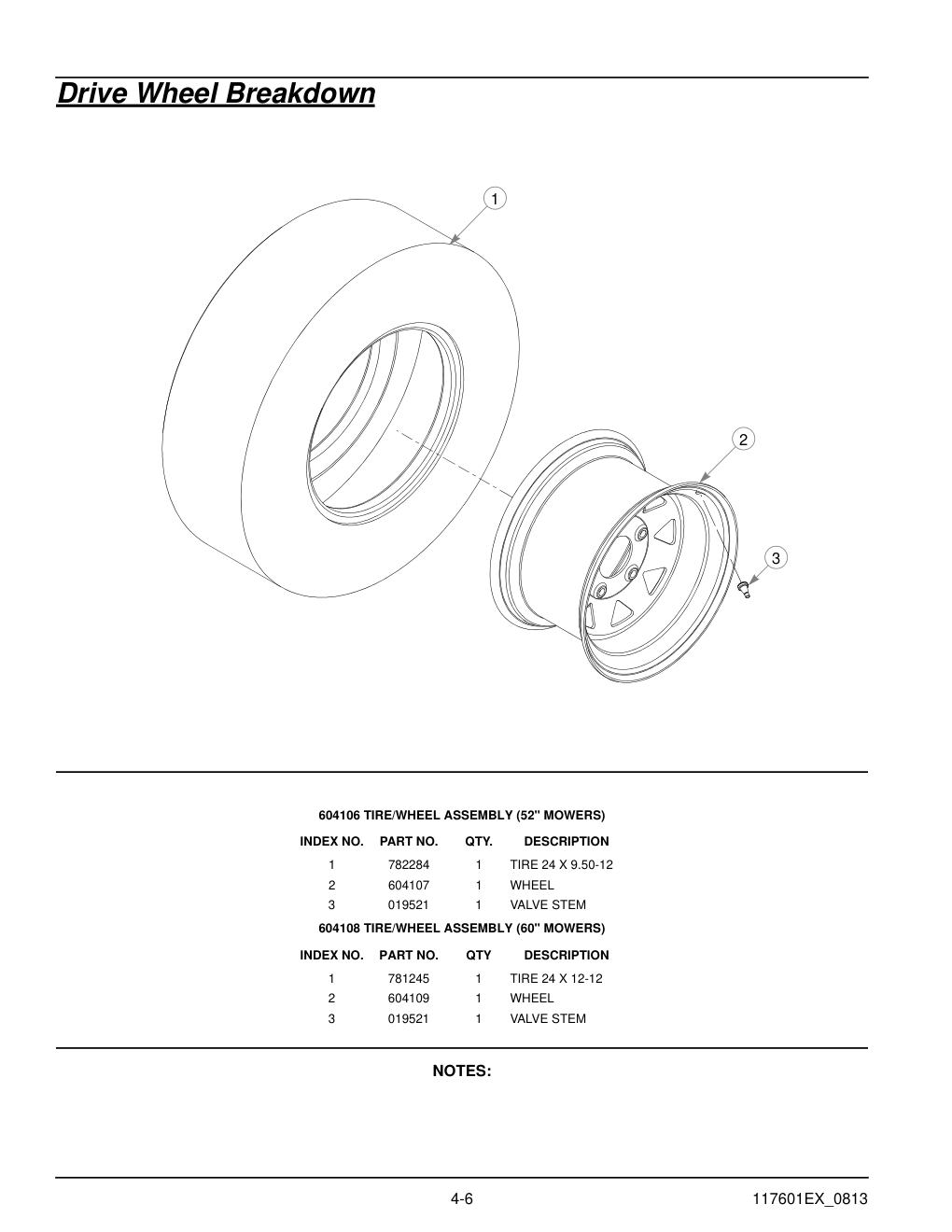

Drive Wheel Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIRE 24 X 9.50-12 | 782284 | 1 | 782284-Online |
| 2 | WHEEL | 604107 | 1 | 604107-Online |
| 3 | VALVE STEM | 019521 | 1 | HT019521-Online |
| 1 | TIRE 24 X 12-12 | 781245 | 1 | HT781245-Online |
| 2 | WHEEL | 604109 | 1 | 604109-Online |
| 3 | VALVE STEM | 019521 | 1 | HT019521-Online |

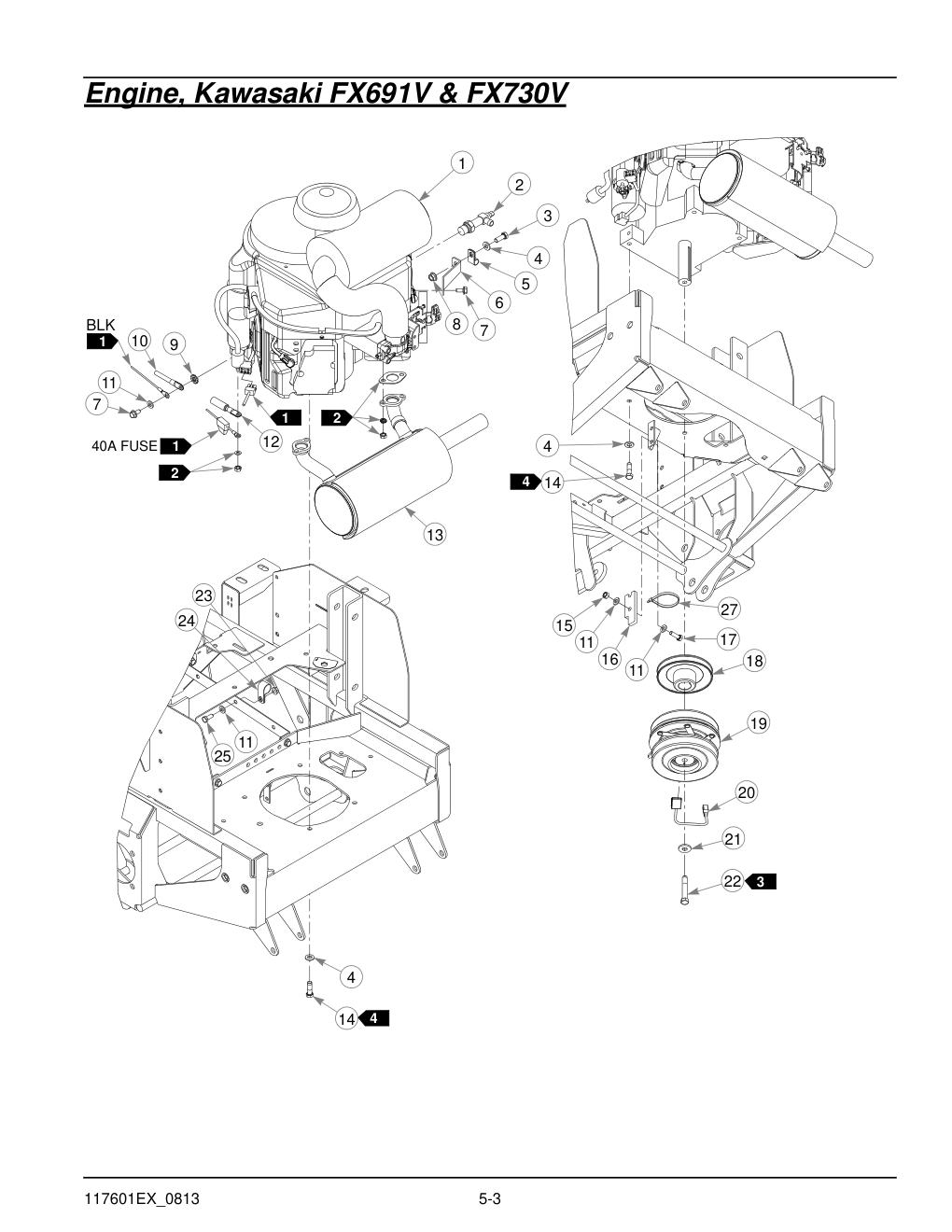

Engine, Kawasaki FX691V & FX730V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAWASAKI FX691V & FX730V ENGINE | N/A | 1 | No SKU |
| 2 | OIL DRAIN VALVE | 796524 | 1 | HT796524-Online |
| 3 | CS .375-16 X 1.00 HX G5 | 036244 | 1 | HT036244-Online |
| 4 | FW .406 X .812 X .060 SAE | 767954 | 5 | HT767954-Online |
| 5 | LOOP CLAMP | 000398 | 1 | HT000398-Online |
| 6 | CABLE GUIDE | 113970 | 1 | 113970-Online |
| 7 | CS M8 X 1.25 X 16 HX G10.9 | 720516 | 3 | 720516-Online |
| 8 | NT .375-16 HX FLK ZNYC | 016899 | 1 | HT016899-Online |
| 9 | LW .312 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 10 | NEGATIVE BATTERY CABLE | 601063 | 1 | 601063-Online |
| 11 | FW .343 X .687 X .051/.080H | 768523 | 7 | HT768523-Online |
| 12 | RED POSITIVE BATTERY CABLE | 786632 | 1 | 786632-Online |
| 13 | MUFFLER | 604250 | 1 | 604250-Online |
| 14 | CS .375-16 X 1.25 HX G5 P85 | 602580 | 4 | 602580-Online |
| 15 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 16 | CLUTCH ANCHOR | 113946 | 1 | HT113946-Online |
| 17 | CS .312-18 X 1.00 HX G5 | 036236 | 2 | 036236-Online |
| 18 | SINGLE ENGINE PULLEY | 779876 | 1 | HT779876-Online |
| 19 | CLUTCH KIT | 601785K | 1 | 601785K-Online |
| 20 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 21 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 22 | CS .437-20 X 2.50 HX G5 P85 | 785659 | 1 | HT785659-Online |
| 23 | NT .312-18 HX FLK ZN | 016832 | 2 | 016832-Online |
| 24 | LOOP CLAMP | 043570 | 2 | 043570-Online |
| 25 | CS .312-18 X 1.75 HX G5 | 034280 | 2 | HT034280-Online |

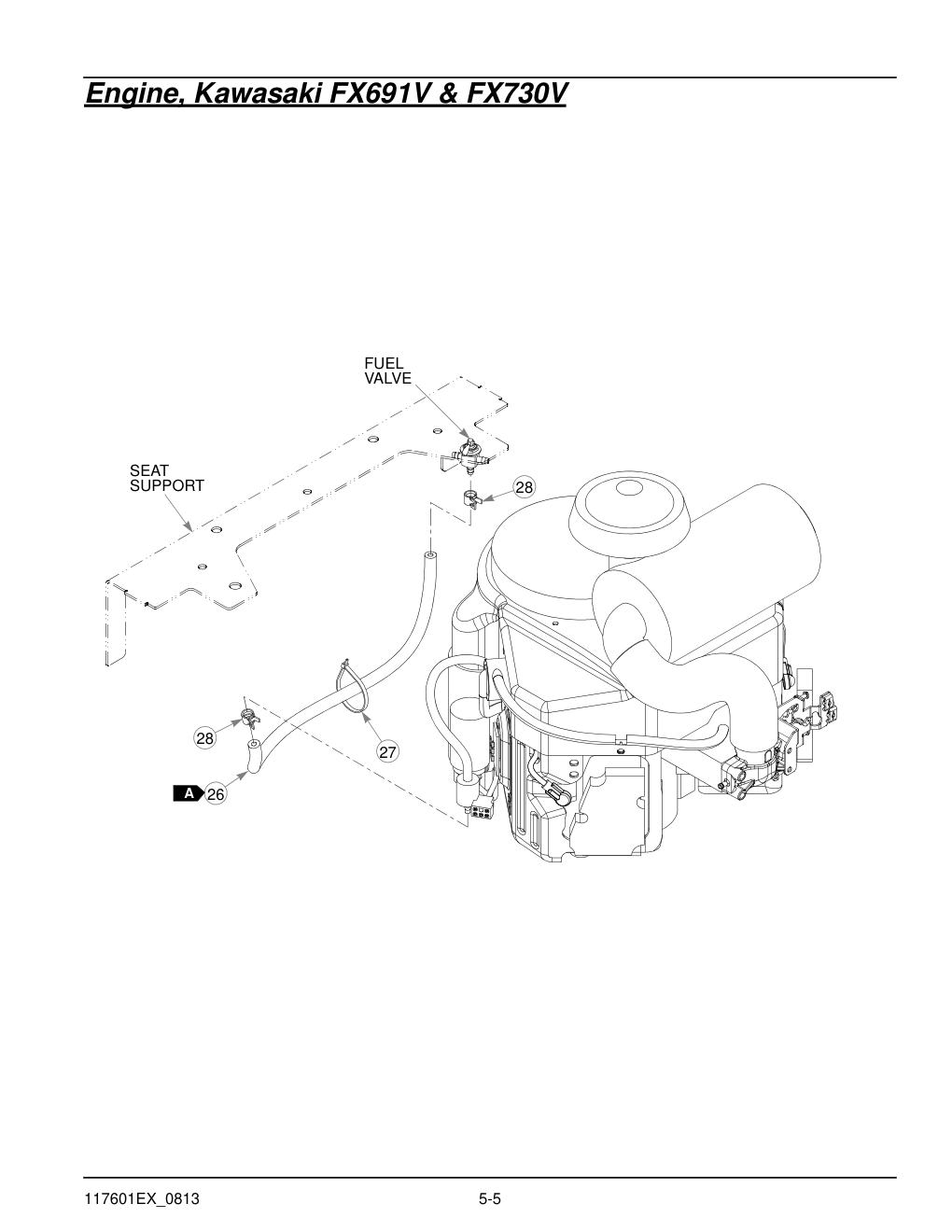

Engine, Kawasaki FX691V & FX730V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 26 | 1/4" FUEL LINE | 015818 | 18" | HT015818-Online |
| 27 | WIRE TIE | 000331 | 2 | 000331-Online |
| 28 | HOSE CLAMP | 000323 | 2 | 000323-Online |

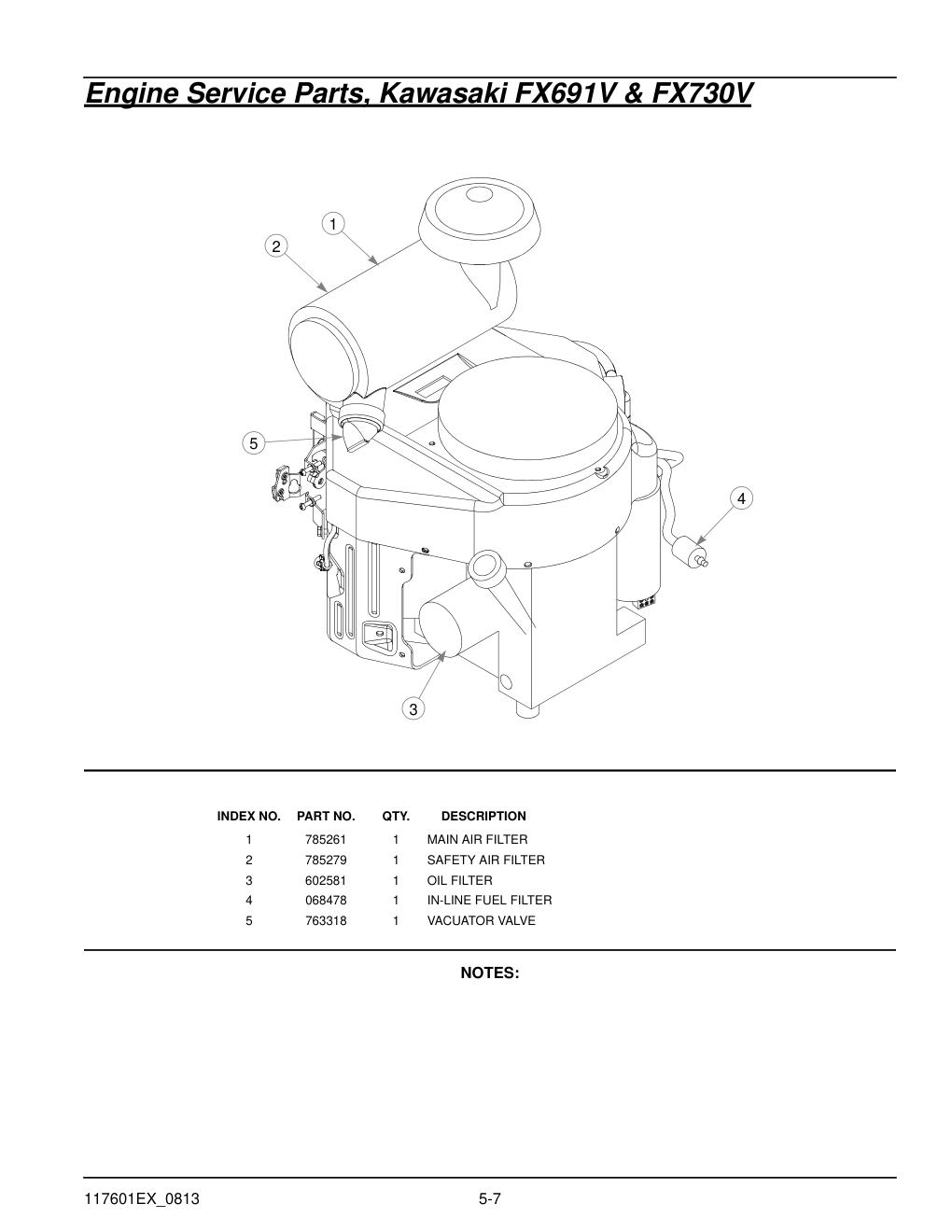

Engine Service Parts, Kawasaki FX691V & FX730V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | MAIN AIR FILTER | 785261 | 1 | 785261-Online |
| 2 | SAFETY AIR FILTER | 785279 | 1 | 785279-Online |
| 3 | OIL FILTER | 602581 | 1 | 602581-Online |
| 4 | IN-LINE FUEL FILTER | 068478 | 1 | 068478-Online |
| 5 | VACUATOR VALVE | 763318 | 1 | HT763318-Online |

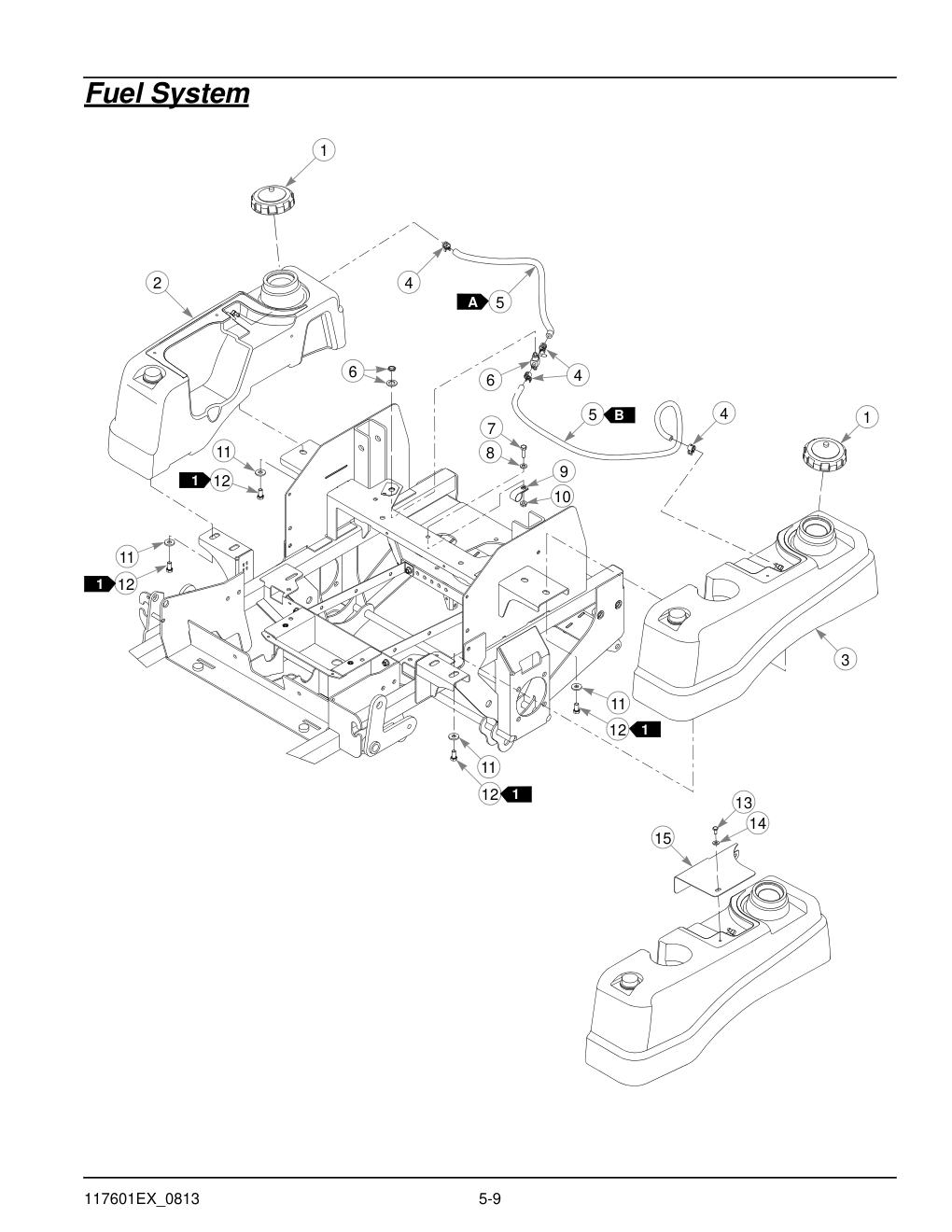

Fuel System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FUEL CAP, 3.5" | 779306 | 2 | HT779306-Online |
| 2 | RS FUEL TANK ASSEMBLY | 604509 | 1 | 604509-Online |
| 3 | LS FUEL TANK ASSEMBLY | 604510 | 1 | 604510-Online |
| 4 | HOSE CLAMP | 000323 | 4 | 000323-Online |
| 5 | 1/4" FUEL LINE | 015818 | 57" | HT015818-Online |
| 6 | FUEL VALVE 3-WAY | 745059 | 1 | HT745059-Online |
| 7 | CS .312-18 X 1.00 HX G5 | 036236 | 3 | 036236-Online |
| 8 | FW .343 X .687 X .051/.080H | 768523 | 3 | HT768523-Online |
| 9 | LOOP CLAMP | 043570 | 3 | 043570-Online |
| 10 | NT .312-18 HX FLK ZNYC | 016832 | 3 | 016832-Online |
| 11 | FW .406 X 1.00 X .12 HRD Z | 712919 | 8 | HT712919-Online |
| 12 | CS .375-16 X .75 HX G5 | 055822 | 8 | HT055822-Online |
| 13 | CS .250-20 X .50 HX G5 | 055947 | 1 | 055947-Online |
| 14 | FW .281 X .625 X .051/.080H | 768515 | 1 | HT768515-Online |
| 15 | COVER PANEL | 115872 | 1 | 115872-Online |

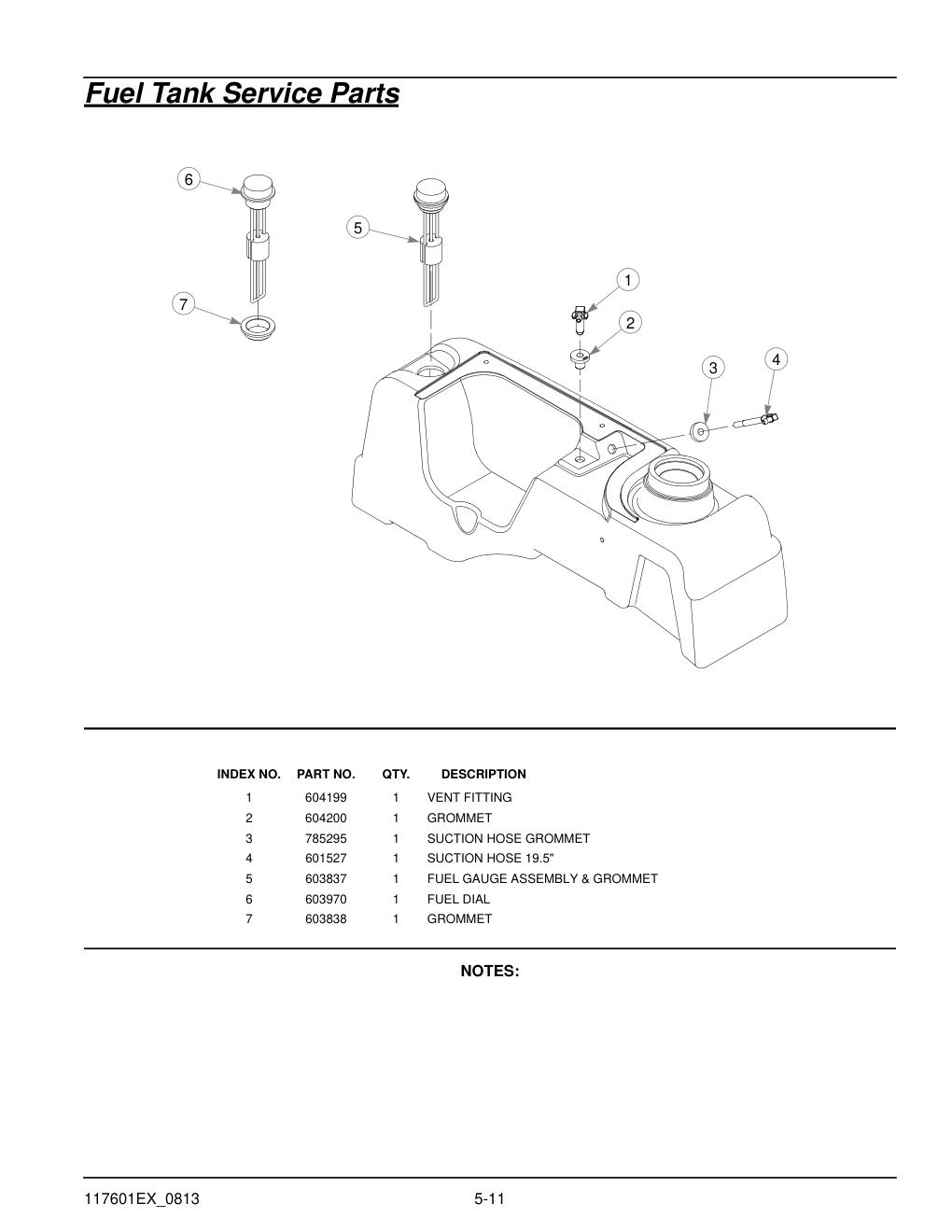

Fuel Tank Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | VENT FITTING | 604199 | 1 | 604199-Online |
| 2 | GROMMET | 604200 | 1 | 604200-Online |
| 3 | SUCTION HOSE GROMMET | 785295 | 1 | HT785295-Online |
| 4 | SUCTION HOSE 19.5" | 601527 | 1 | 601527-Online |
| 5 | FUEL GAUGE ASSEMBLY & GROMMET | 603837 | 1 | 603837-Online |
| 6 | FUEL DIAL | 603970 | 1 | 603970-Online |
| 7 | GROMMET | 603838 | 1 | 603838-Online |

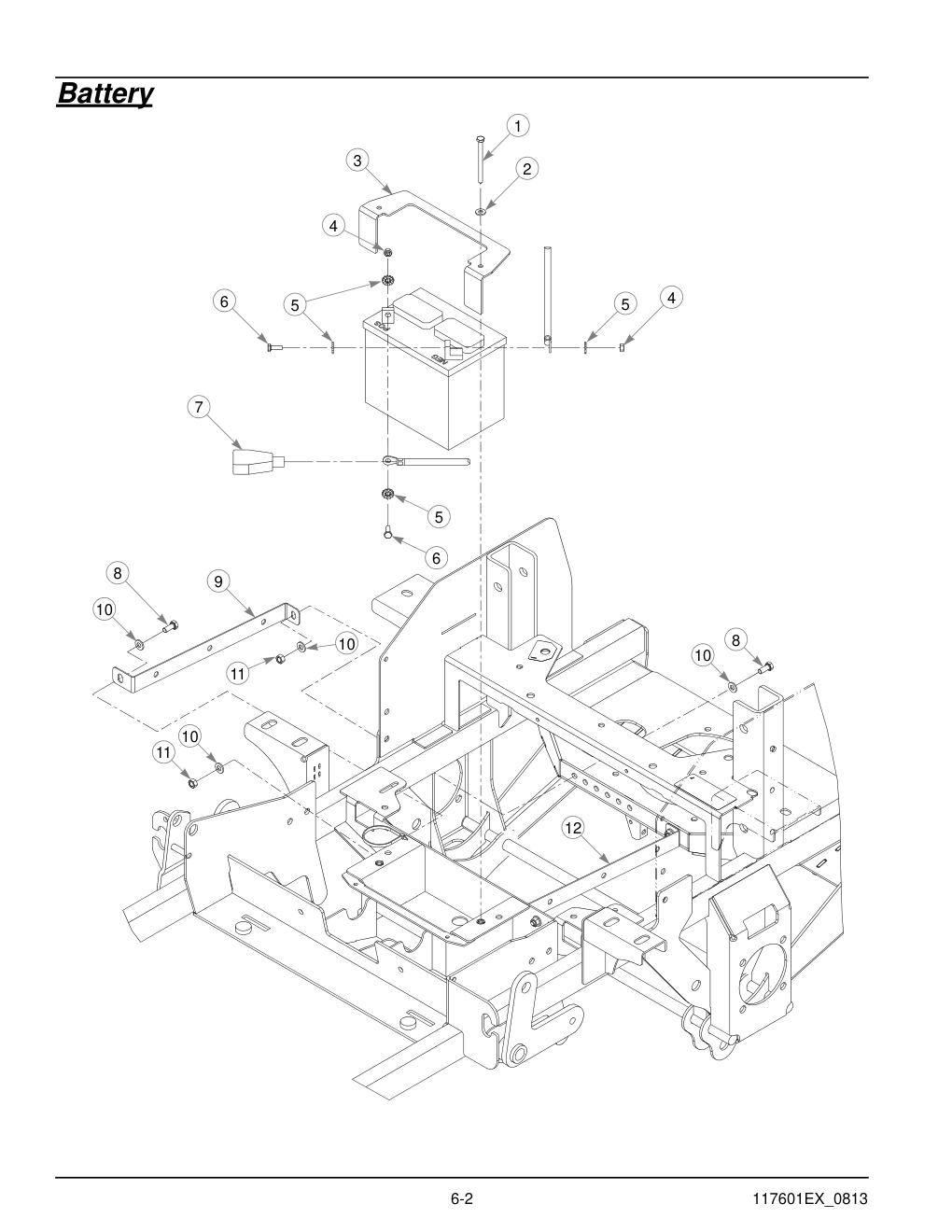

Battery
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .250-20 X 3.25 HX ZNYC | 075994 | 2 | 075994-Online |
| 2 | FW .281 X .625 X .051/.080 HD ZN/YL | 768515 | 2 | HT768515-Online |
| 3 | BATTERY STRAP | 113147 | 1 | 113147-Online |
| 4 | NT .250-20 HX G5 ZNYC | 024927 | 2 | HT024927-Online |
| 5 | LW .250 INT-EXT TOOTH Z | 029868 | 4 | 029868-Online |
| 6 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 7 | RED BATTERY CABLE BOOT | 771428 | 1 | 771428-Online |
| 8 | CS .312-18 X .75 HX G5 | 034280 | 4 | HT034280-Online |
| 9 | RS BATTERY CABLE BRACKET | 117006 | 1 | 117006-Online |
| 10 | FW .343 X .687 X .051/.080H | 768523 | 8 | HT768523-Online |
| 11 | NT .312-18 HX G5 ZNYC | 034272 | 4 | HT034272-Online |
| 12 | LS BATTERY CABLE BRACKET | 117005 | 1 | 117005-Online |
| 13 | WIRE TIE (NOT SHOWN) | 000331 | 1 | 000331-Online |

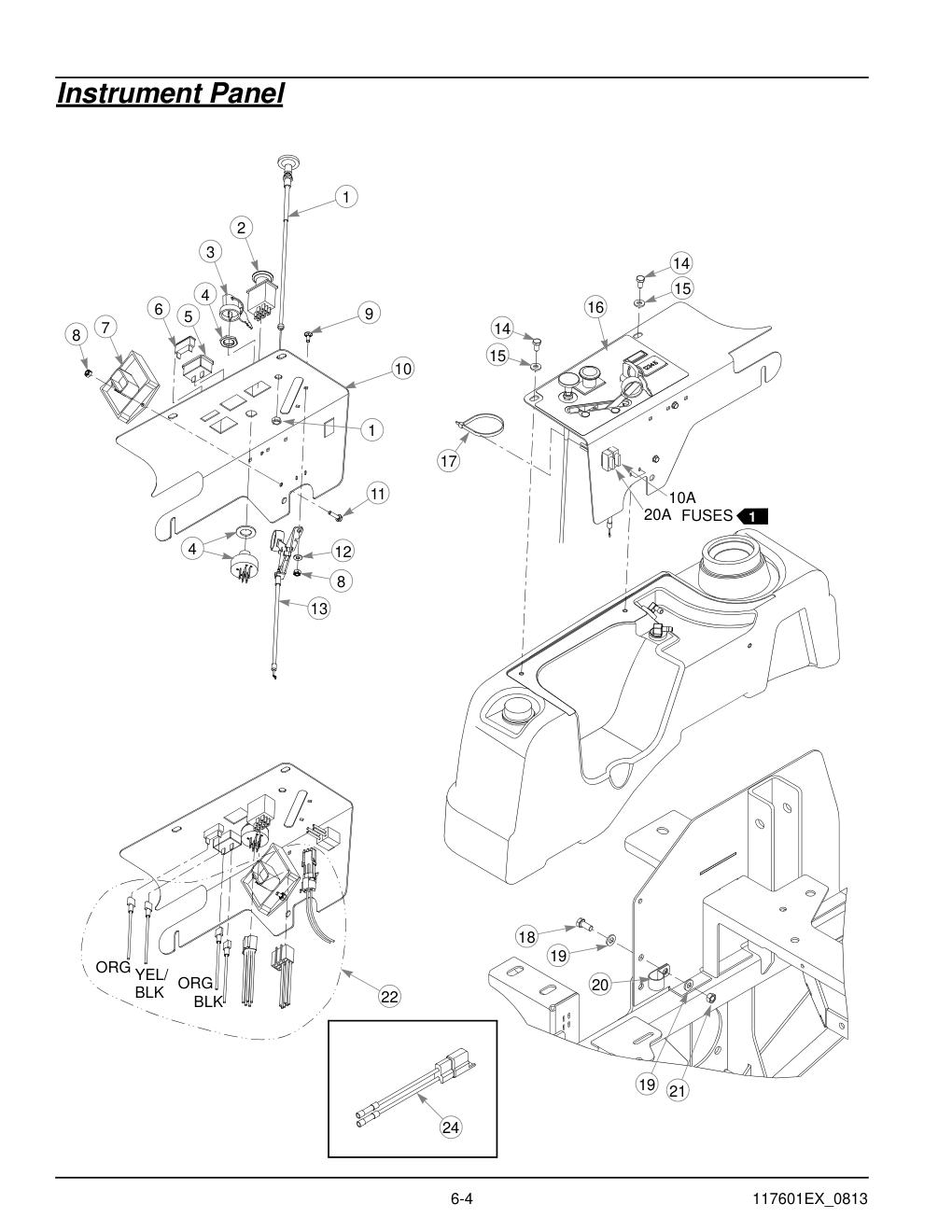

Instrument Panel
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CHOKE CABLE | 601095 | 1 | HT601095-Online |
| 2 | PTO SWITCH | 776476 | 1 | HT776476-Online |
| 3 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 4 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 5 | HOUR METER | 769166 | 1 | HT769166-Online |
| 6 | RED INDICATOR LIGHT | 712257 | 1 | HT712257-Online |
| 7 | IGNITION CONTROLLER | 604373 | 1 | 604373-Online |
| 8 | NT #10-24 HX NL ZN | 059832 | 4 | 059832-Online |
| 9 | CB 10-24 X .50 ZYNC | 601098 | 2 | 601098-Online |
| 10 | INSTRUMENT PANEL (WITH DECAL) | 551398 | 1 | 551398-Online |
| 11 | CS 10-24 X .75 HX FLK ZN | 063198 | 2 | 063198-Online |
| 12 | FW .219 X .50 X .048 ZNYC | 704932 | 2 | HT704932-Online |
| 13 | THROTTLE CABLE | 601094 | 1 | HT601094-Online |
| 14 | CS .250-20 X .50 HX G5 | 055947 | 2 | 055947-Online |
| 15 | FW .281 X .625 X .051/.080H | 768515 | 2 | HT768515-Online |
| 16 | INSTRUMENT PANEL DECAL | 603915 | 1 | 603915-Online |
| 17 | WIRE TIE | 000430 | 1 | 000430-Online |
| 18 | CS .312-18 X .75 HX G5 | 034280 | 1 | HT034280-Online |
| 19 | FW .343 X .687 X .051/.080H | 768523 | 2 | HT768523-Online |
| 20 | LOOP CLAMP | 043570 | 1 | 043570-Online |
| 21 | NT .312-18 HX G5 ZNYC | 034272 | 1 | HT034272-Online |
| 22 | WIRE HARNESS | 603810 | 1 | 603810-Online |
| 23 | WIRE TIE | 000331 | 6 | 000331-Online |
| 24 | CLUTCH CONNECTOR REPAIR KIT | 114052 | 1 | HT114052-Online |

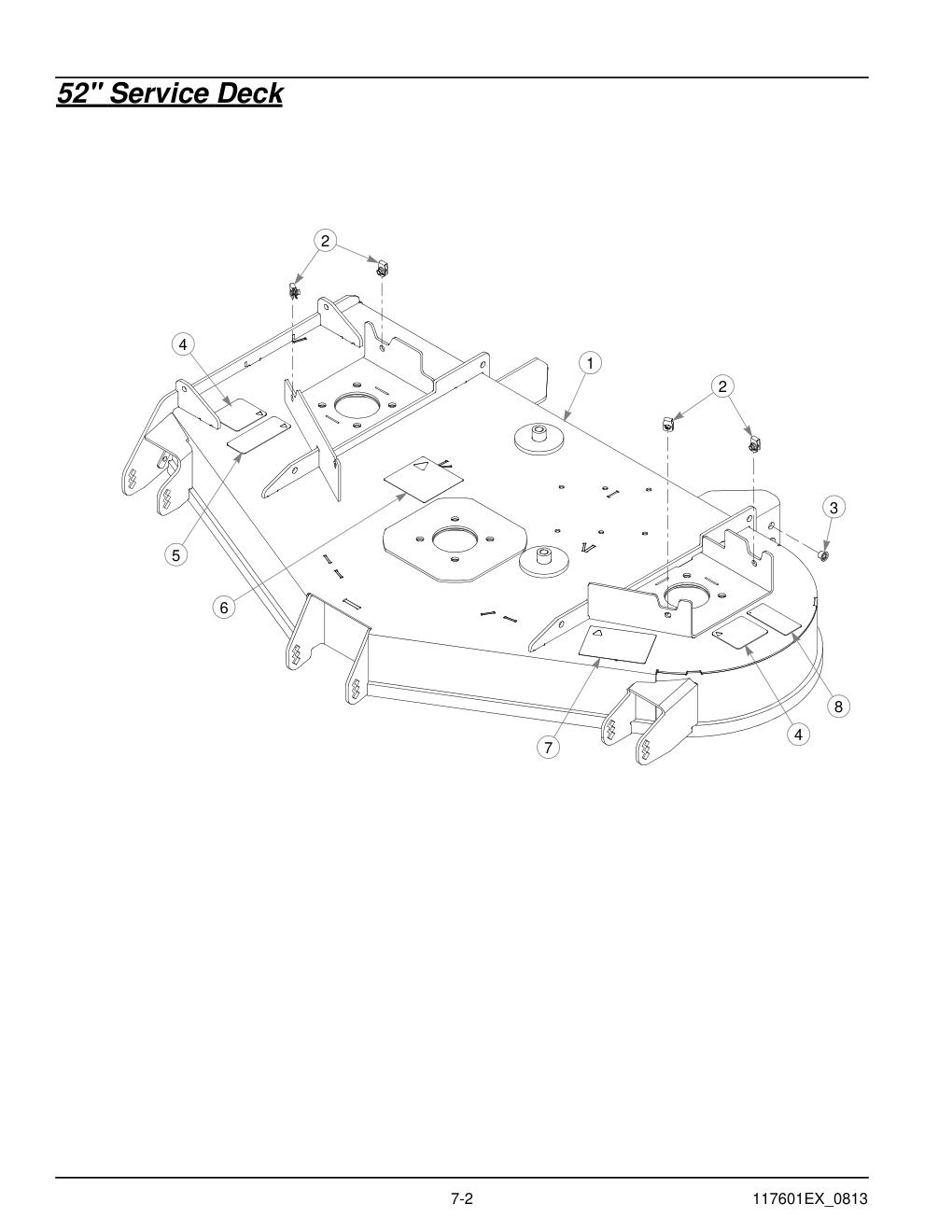

52" Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 52" DECK (WITH DECALS & HARDWARE) | 551871 | 1 | 551871-Online |
| 2 | CN .312-18 X .20 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | 5/16-18 THREAD RIVET NUT | 808485 | 1 | HT808485-Online |
| 4 | DECK DANGERS DECAL | 601837 | 2 | 601837-Online |
| 5 | DISCHARGE CHUTE DECAL | 601624 | 1 | 601624-Online |
| 6 | BELT ROUTING DECAL | 781419 | 1 | 781419-Online |
| 7 | 52" DECK DECAL | 785535 | 1 | 785535-Online |
| 8 | THROWN OBJECTS DECAL | 601892 | 1 | 601892-Online |
52" Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.50 HX G5 | 794446 | 3 | HT794446-Online |
| 2 | DECK BELT IDLER GUIDE | 347443 | 1 | HT347443-Online |
| 3 | FW .625 X 1.00 X .134 ZNYC | 028118 | 6 | HT028118-Online |
| 4 | DUST SHIELD WITH OFFSET | 603057 | 3 | 603057-Online |
| 5 | IDLER PULLEY NHI 5.0" | 781856 | 1 | HT781856-Online |
| 6 | DECK IDLER SLIDE | 350884 | 1 | HT350884-Online |
| 7 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 8 | CHAIN, 13 LINK | 259812 | 1 | HT259812-Online |
| 9 | CS .312-18 X 1.50 FLT SH ZY | 797910 | 6 | HT797910-Online |
| 10 | UHMW IDLER SLIDE | 601434 | 2 | 601434-Online |
| 11 | IDLER PULLEY NHI 6.0" | 781385 | 2 | HT781385-Online |
| 12 | CS .500-13 X 1.25 HX G5 ZN | 705954 | 3 | HT705954-Online |
| 13 | CW .515 X 2.25 X .204 BLK | 752386 | 3 | HT752386-Online |
| 14 | B-SEC 5.44 EOD PULLEY | 798967 | 3 | HT798967-Online |
| 15 | NT .500-13 HX G5 ZNYC | 008193 | 12 | HT008193-Online |
| 16 | FW .531 X 1.063 X .090 SAE | 767962 | 27 | HT767962-Online |
| 17 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 18 | BLADE SPINDLE | 604249 | 3 | 604249-Online |
| 19 | CS .500-13 X 1.50 HX G5 | 074252 | 12 | HT074252-Online |
| 20 | FW .343 X .687 X .051/.080H | 768523 | 7 | HT768523-Online |
| 21 | NT .312-18 HX ZY NL | 058776 | 6 | HT058776-Online |
| 22 | CB .500-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 23 | SPACER 5.73 | 602344 | 1 | 602344-Online |
| 24 | PLASTIC WHEEL | 602341 | 1 | 602341-Online |
| 25 | NT .500-13 HX G8 ZY NL | 781567 | 3 | HT781567-Online |
| 26 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 27 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 28 | CB .500-13 X 4.50 STD ZN | 602339 | 2 | 602339-Online |
| 29 | GREASE FITTING STRAIGHT | 015495 | 4 | HT015495-Online |
| 30 | PUSHER | 117349 | 2 | 117349-Online |
| 31 | PLATED PIVOT TUBE | 361295 | 1 | 361295-Online |
| 32 | CS .312-18 X 1.00 HX G5 | 036236 | 1 | 036236-Online |

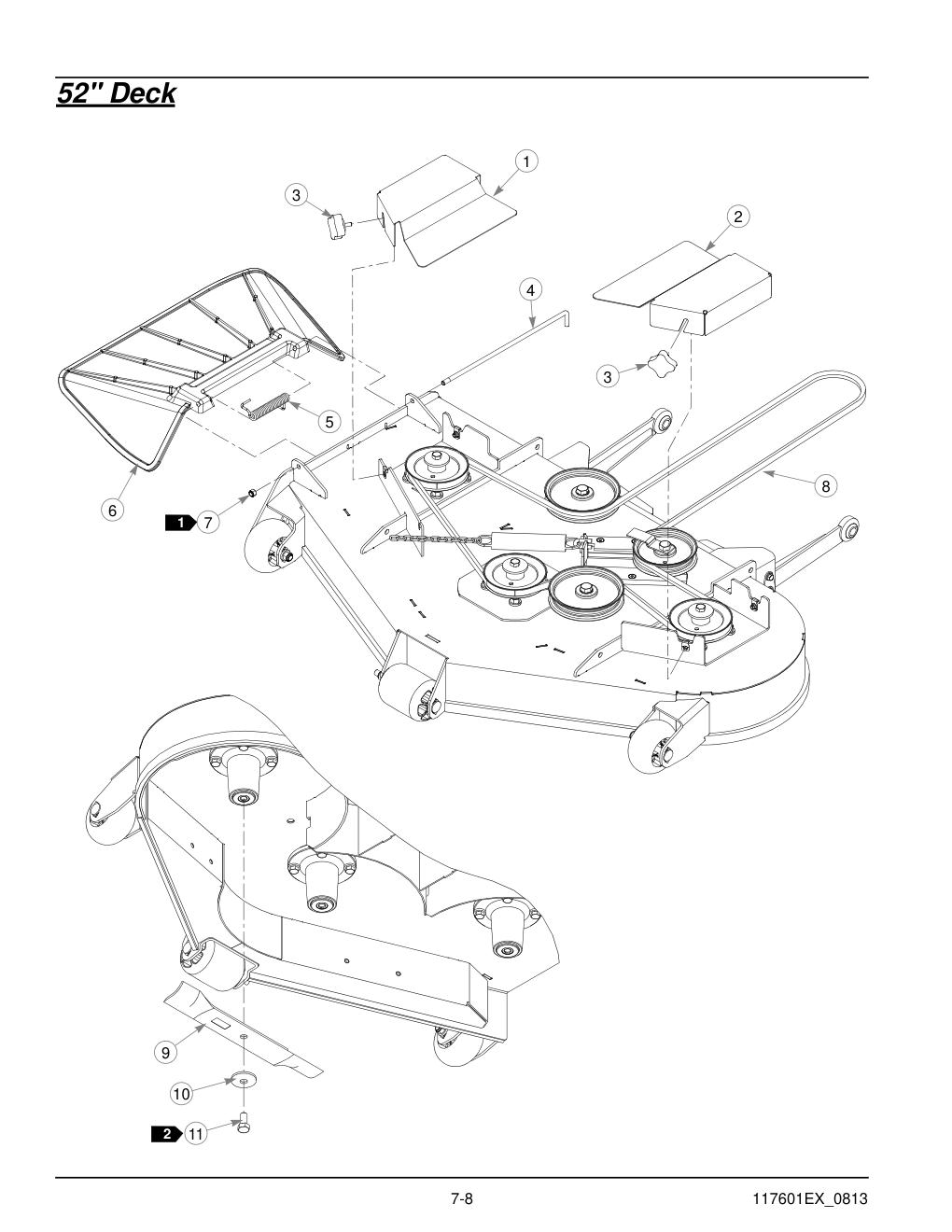

52" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER | 112184 | 1 | 112184-Online |
| 2 | LS PULLEY COVER | 112185 | 1 | 112185-Online |
| 3 | KNOB 5/16-18 X 3/4" | 792002 | 4 | HT792002-Online |
| 4 | CHUTE PIN | 602432 | 1 | 602432-Online |
| 5 | TORSION SPRING | 602435 | 1 | 602435-Online |
| 6 | DISCHARGE CHUTE | 602429 | 1 | 602429-Online |
| 7 | NT .375-16 HX ZY NL | 086660 | 1 | HT086660-Online |
| 8 | BELT, B 152" EL | 789388 | 1 | HT789388-Online |
| 9 | BLADE, 17.86"-H-F-CW | 787721 | 3 | HT787721-Online |
| 10 | CW .631 X 2.25 X .187 PNT | 782474 | 3 | HT782474-Online |
| 11 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |

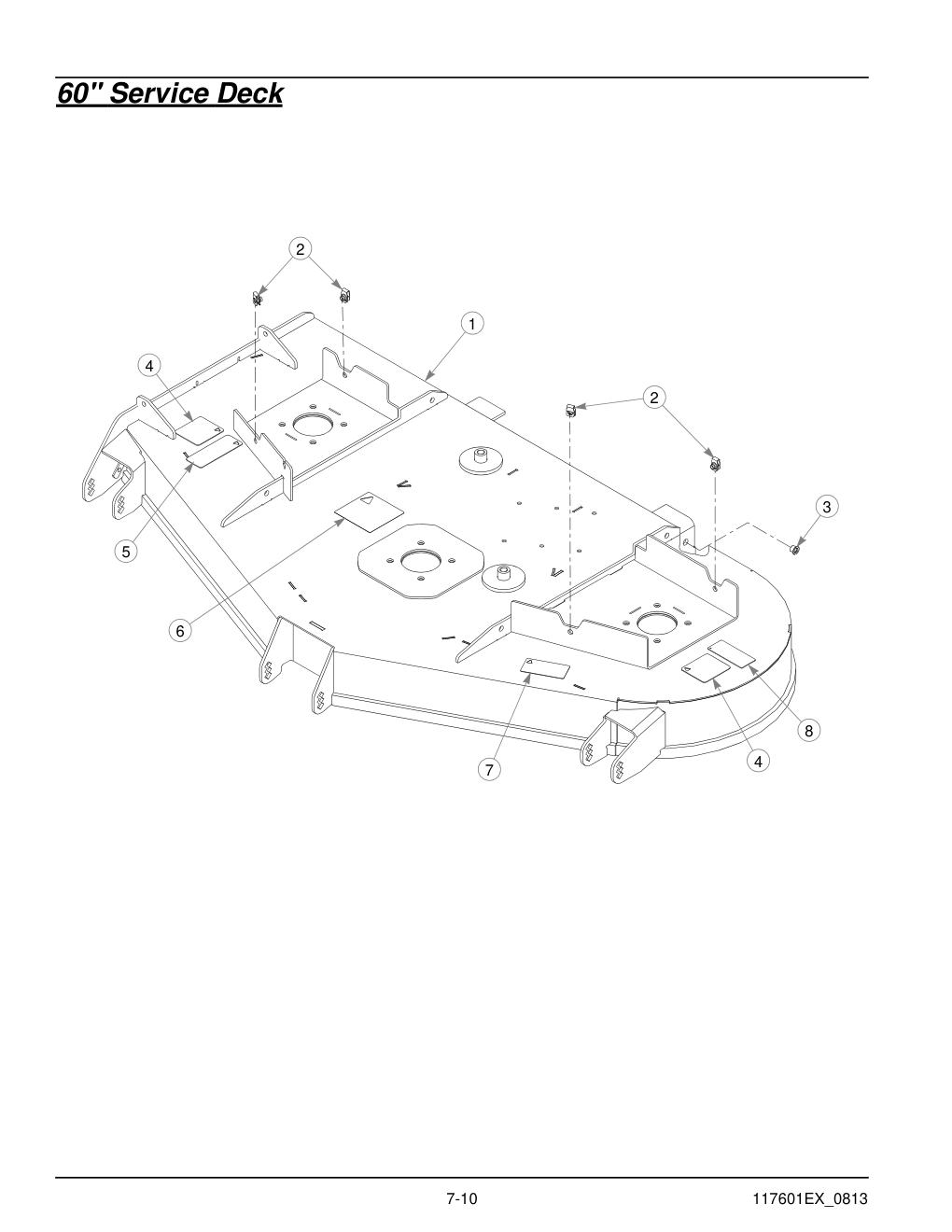

60" Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 60" DECK (WITH DECALS & HARDWARE) | 551872 | 1 | 551872-Online |
| 2 | CN .312-18 X .20 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | 5/16-18 THREAD RIVET NUT | 808485 | 1 | HT808485-Online |
| 4 | DECK DANGERS DECAL | 601837 | 2 | 601837-Online |
| 5 | DISCHARGE CHUTE DECAL | 601624 | 1 | 601624-Online |
| 6 | BELT ROUTING DECAL | 781419 | 1 | 781419-Online |
| 7 | 60" DECK DECAL | 786277 | 1 | 786277-Online |
| 8 | THROWN OBJECTS DECAL | 601892 | 1 | 601892-Online |
60" Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.50 HX G5 | 794446 | 3 | HT794446-Online |
| 2 | DECK BELT IDLER GUIDE | 347443 | 1 | HT347443-Online |
| 3 | FW .625 X 1.00 X .134 ZNYC | 028118 | 6 | HT028118-Online |
| 4 | DUST SHIELD WITH OFFSET | 603057 | 3 | 603057-Online |
| 5 | IDLER PULLEY NHI 6.0" | 781385 | 3 | HT781385-Online |
| 6 | DECK IDLER SLIDE | 350884 | 1 | HT350884-Online |
| 7 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 8 | CHAIN, 21 LINK | 373191 | 1 | HT373191-Online |
| 9 | CS .312-18 X 1.50 FLT SH ZY | 797910 | 6 | HT797910-Online |
| 10 | UHMW IDLER SLIDE | 601434 | 2 | 601434-Online |
| 11 | CS .500-13 X 1.25 HX G5 ZN | 705954 | 3 | HT705954-Online |
| 12 | CW .515 X 2.25 X .204 BLK | 752386 | 3 | HT752386-Online |
| 13 | DECK DRIVE PULLEY | 770842 | 3 | HT770842-Online |
| 14 | NT .500-13 HX G5 ZNYC | 008193 | 12 | HT008193-Online |
| 15 | FW .531 X 1.063 X .090 SAE | 767962 | 27 | HT767962-Online |
| 16 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 17 | BLADE SPINDLE | 604249 | 3 | 604249-Online |
| 18 | CS .500-13 X 1.50 HX G5 | 074252 | 12 | HT074252-Online |
| 19 | FW .343 X .687 X .051/.080H | 768523 | 7 | HT768523-Online |
| 20 | NT .312-18 HX ZY NL | 058776 | 6 | HT058776-Online |
| 21 | CB .500-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 22 | SPACER 5.73 | 602344 | 1 | 602344-Online |
| 23 | PLASTIC WHEEL | 602341 | 1 | 602341-Online |
| 24 | NT .500-13 HX G8 ZY NL | 781567 | 3 | HT781567-Online |
| 25 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 26 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 27 | CB .500-13 X 4.50 STD ZN | 602339 | 2 | 602339-Online |
| 28 | PUSHER | 117349 | 2 | 117349-Online |
| 29 | GREASE FITTING STRAIGHT | 015495 | 4 | HT015495-Online |
| 30 | PLATED PIVOT TUBE | 361295 | 1 | 361295-Online |
| 31 | CS .312-18 X 1.00 HX G5 | 036236 | 1 | 036236-Online |

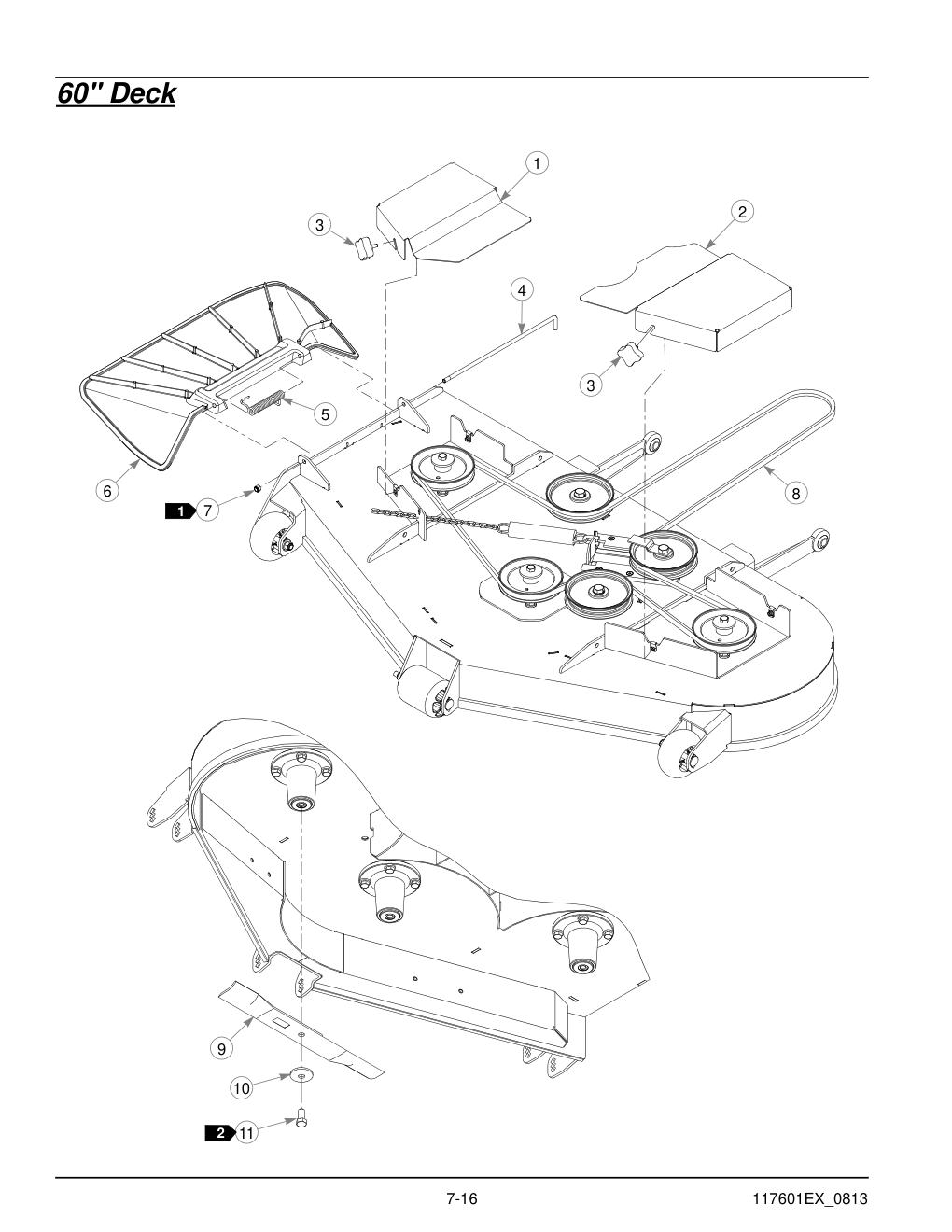

60" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER | 112182 | 1 | 112182-Online |
| 2 | LS PULLEY COVER | 112183 | 1 | 112183-Online |
| 3 | KNOB 5/16-18 X 3/4" | 792002 | 4 | HT792002-Online |
| 4 | CHUTE PIN | 602432 | 1 | 602432-Online |
| 5 | TORSION SPRING | 602435 | 1 | 602435-Online |
| 6 | DISCHARGE CHUTE | 602891 | 1 | 602891-Online |
| 7 | NT .375-16 HX ZY NL | 086660 | 1 | HT086660-Online |
| 8 | BELT, B 165.56" EL | 782292 | 1 | HT782292-Online |
| 9 | BLADE, 20.95" 1.09" HS CW | 602439 | 3 | 602439-Online |
| 10 | CW .631 X 2.25 X .187 PNT | 782474 | 3 | HT782474-Online |
| 11 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |
Deck Lift
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECK HEIGHT PIN | 600437 | 1 | 600437-Online |
| 2 | E CLIP 1.00 X .625 X .05 | 781294 | 6 | HT781294-Online |
| 3 | STOP HANDLE | 348318 | 1 | HT348318-Online |
| 4 | CE .750 X 2.25 X 1.75 HEAD | 781229 | 1 | 781229-Online |
| 5 | DECK LIFT INDICATOR | 602898 | 1 | 602898-Online |
| 6 | CS .437-14 X 1.75 HX G5 | 055749 | 7 | HT055749-Online |
| 7 | DECK LIFT CHAIN | 348391 | 4 | HT348391-Online |
| 8 | NT .437-14 HX FLG ZN | 704643 | 16 | HT704643-Online |
| 9 | DECK LIFT SPRING | 782995 | 2 | HT782995-Online |
| 10 | GREASE FITTING STRAIGHT | 015495 | 4 | HT015495-Online |
| 11 | CS .312-18 X 1.50 FLTHR HX | 756270 | 1 | 756270-Online |
| 12 | NT .312-18 HX G5 ZNYC | 034272 | 1 | HT034272-Online |
| 13 | DECK LEVELER YOKE | 348458 | 1 | HT348458-Online |
| 14 | FW .625 X 1.50 X .105 ZN | 704783 | 1 | 704783-Online |
| 15 | CS .625-11 X 1.25 HX G5 Z | 781872 | 1 | HT781872-Online |
| 16 | CS .437-14 X 1.75 FULTH | 781831 | 1 | HT781831-Online |

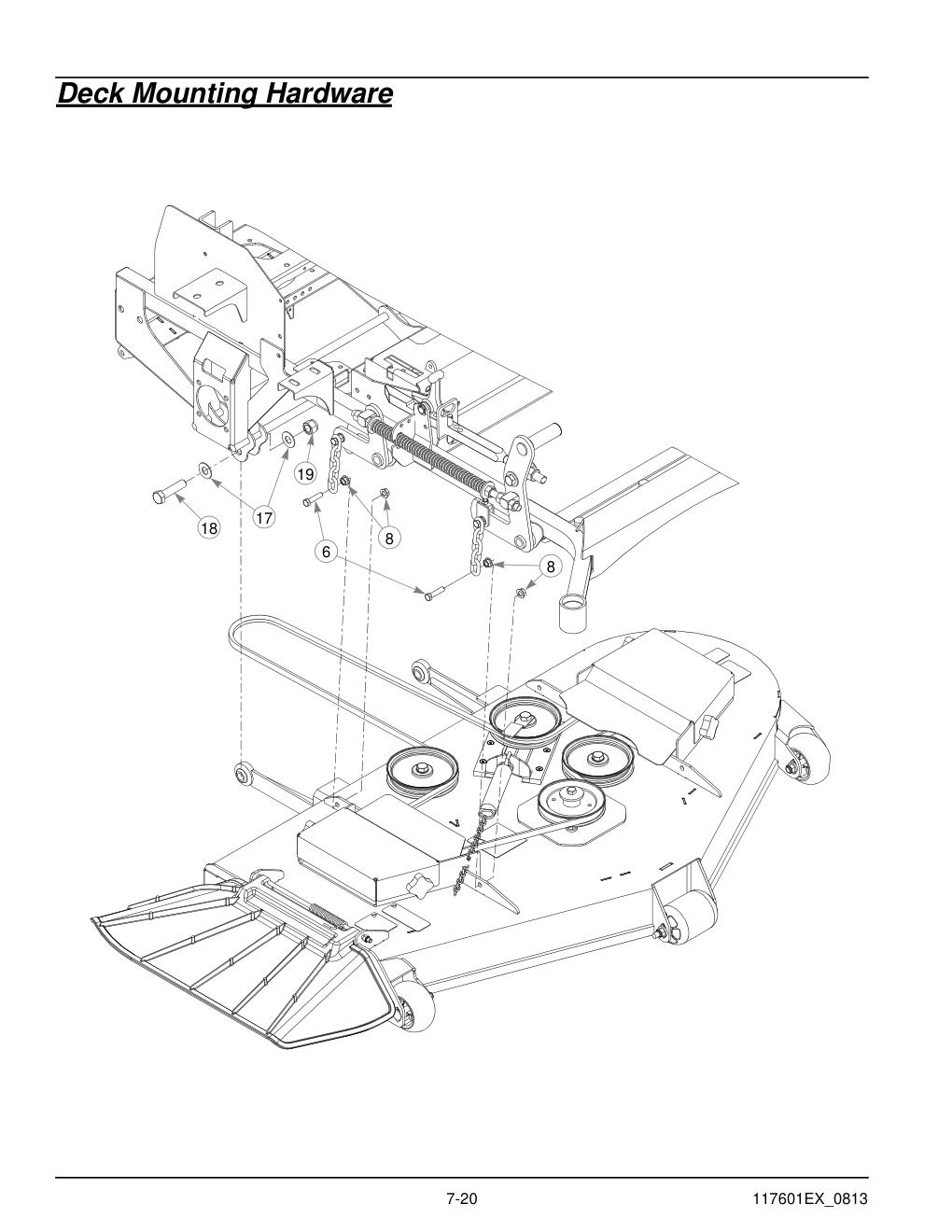

Deck Mounting Hardware
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 17 | FW .760 X 1.625 X .08 ZNYC | 025296 | 4 | HT025296-Online |
| 18 | CS .750-10 X 3.00 HX G5 | 051169 | 2 | 051169-Online |
| 19 | NT .750-10 HX ZY NL | 061101 | 2 | HT061101-Online |

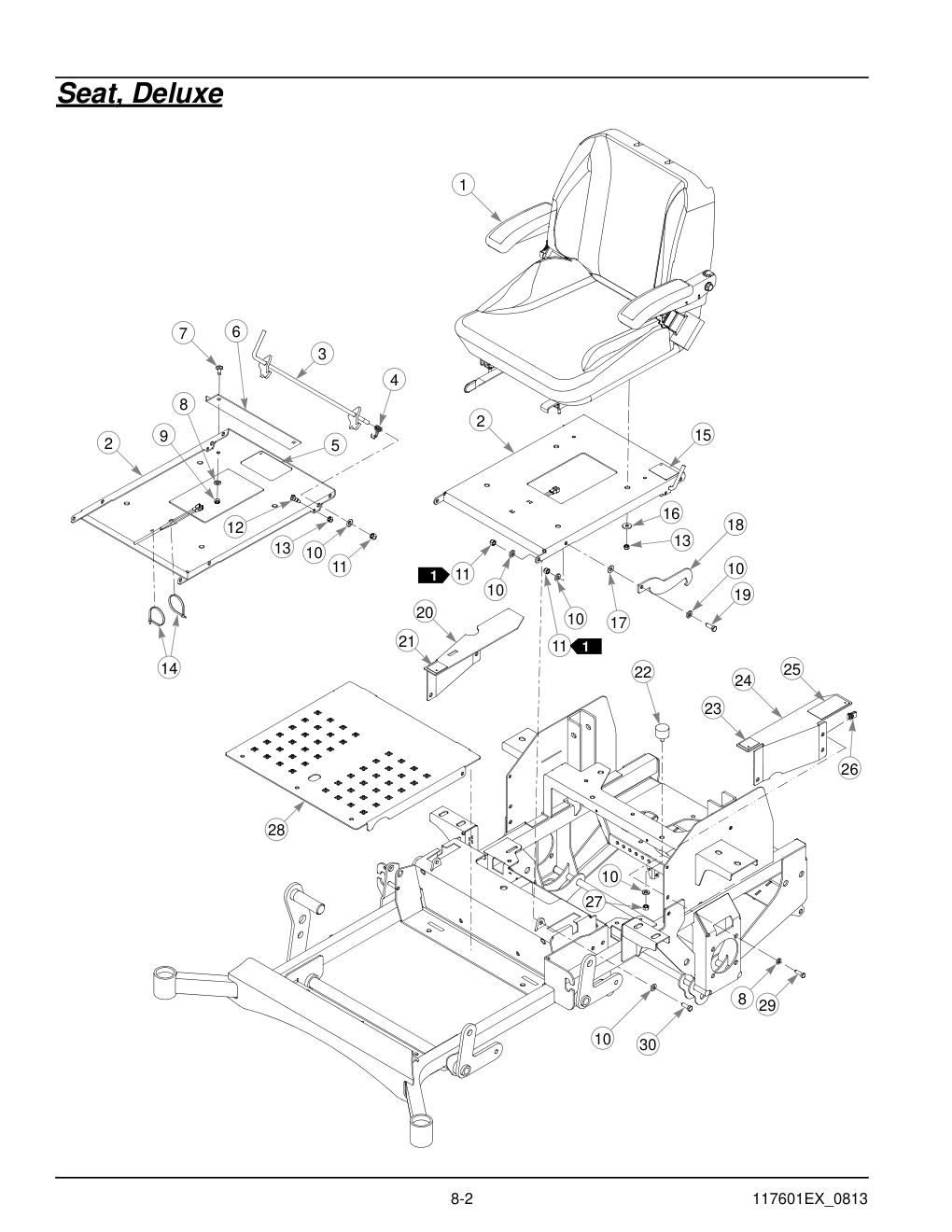

Seat, Deluxe
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DELUXE SEAT | 602967 | 1 | 602967-Online |
| 2 | SEAT PAN (WITH DECAL & INSTALLATION KIT) | 550741 | 1 | 550741-Online |
| 3 | SEAT LATCH | 113393 | 1 | 113393-Online |
| 4 | TORSION SPRING | 783910 | 1 | HT783910-Online |
| 5 | BATTERY WARNINGS DECAL | 601815 | 1 | 601815-Online |
| 6 | SEAT STOP | 113713 | 1 | 113713-Online |
| 7 | CB .312-18 X .75 FUL ZN | 016253 | 2 | 016253-Online |
| 8 | FW .343 X .687 X .051/.080H | 768523 | 7 | HT768523-Online |
| 9 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 10 | FW .406 X .812 X .060 SAE | 767954 | 9 | HT767954-Online |
| 11 | NT .375-16 HX ZY NL | 086660 | 4 | HT086660-Online |
| 12 | SB .375 X .375 SH .312-18 | 754358 | 1 | 754358-Online |
| 13 | NT .312-18 HX ZY NL | 058776 | 5 | HT058776-Online |
| 14 | WIRE TIE | 000331 | 2 | 000331-Online |
| 15 | ARMREST WARNING DECAL | 785188 | 1 | 785188-Online |
| 16 | FW .344 X 1.00 X .12 HRD Z | 712927 | 4 | HT712927-Online |
| 17 | FIBER WASHER | 724716 | 1 | 724716-Online |
| 18 | SEAT PAN STOP | 350421 | 1 | 350421-Online |
| 19 | CS .375-16 X 1.00 HX G5 | 036244 | 1 | HT036244-Online |
| 20 | RS FRAME COVER (WITH DECAL) | 550765 | 1 | 550765-Online |
| 21 | RS STEERING DECAL | 785220 | 1 | 785220-Online |
| 22 | VIBRATION MOUNT | 601650 | 2 | 601650-Online |
| 23 | LS STEERING DECAL | 785139 | 1 | 785139-Online |
| 24 | LS FRAME COVER (WITH DECAL) | 550766 | 1 | 550766-Online |
| 25 | PUMP BELT WARNING DECAL | 600899 | 1 | 600899-Online |
| 26 | CN .312-18 X .20 MAX THK | 601069 | 5 | HT601069-Online |
| 27 | NT .375-16 HX G5 ZNY | 054502 | 2 | HT054502-Online |
| 28 | FLOOR PLATE | 113234 | 1 | 113234-Online |
| 29 | CS .312-18 X 1.00 HX G5 | 036236 | 5 | 036236-Online |
| 30 | CS .375-16 X 1.25 HX G5 ZN | 052860 | 2 | HT052860-Online |

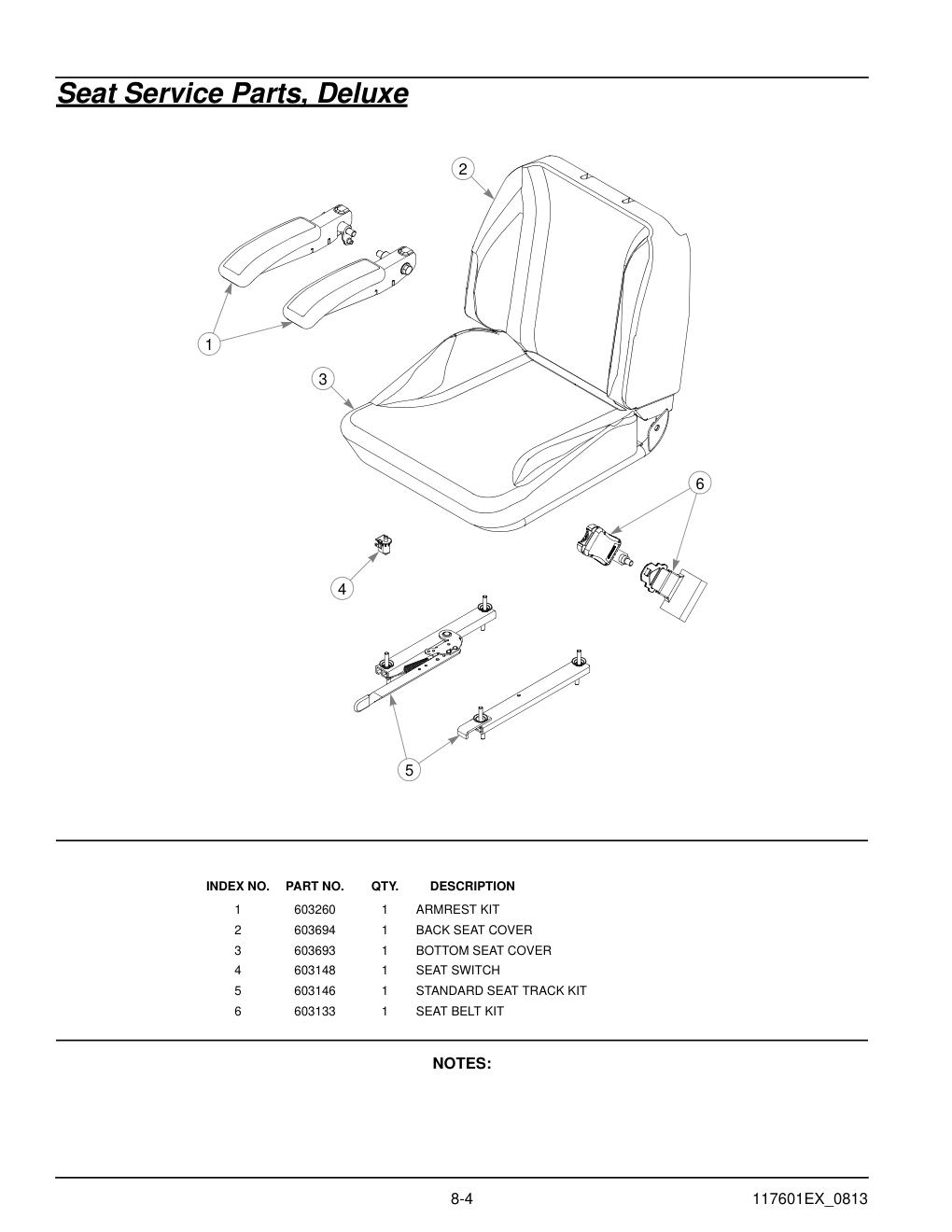

Seat Service Parts, Deluxe
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | ARMREST KIT | 603260 | 1 | 603260-Online |
| 2 | BACK SEAT COVER | 603694 | 1 | 603694-Online |
| 3 | BOTTOM SEAT COVER | 603693 | 1 | 603693-Online |
| 4 | SEAT SWITCH | 603148 | 1 | 603148-Online |
| 5 | STANDARD SEAT TRACK KIT | 603146 | 1 | 603146-Online |
| 6 | SEAT BELT KIT | 603133 | 1 | 603133-Online |
ROPS
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | ROPS KIT (WITH DECALS, HARDWARE & SEATBELT) | 603280 | 1 | 603280-Online |
| 2 | HAND KNOB | 601470 | 2 | 601470-Online |
| 3 | LYNCH PIN W/ LANYARD | 601471 | 2 | 601471-Online |
| 4 | CS .500-13 X 3.50 HX G5 | 061812 | 1 | 061812-Online |
| 5 | NT .500-13 UNT LK G8 ZN | 023317 | 6 | 023317-Online |
| 6 | ROPS STOP | 603099 | 1 | 603099-Online |
| 7 | CS .500-13 X 3.25 HX G5 | 077859 | 5 | 077859-Online |
| 8 | FW .531 X 1.063 X .090 SAE | 767962 | 8 | HT767962-Online |
| 9 | ROPS DECAL | 601635 | 2 | 601635-Online |
