Illustrated Parts List
Hustler® X-One Parts Manual - 932715
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 932715Model: 932723Model: 932731Model: 932749Model: 932756Model: 932764Model: 932772Model: 932780Model: 932798Model: 933317US+27 more modelsSKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.
Sections
FrameEngine GuardEngine Guard & HitchEngine Guard-Kawasaki FX801VHydraulic SystemSteeringSteering Cover Sub-AssemblySteering Cover Sub-AssemblySteering Cover Sub-AssemblySteering Box BreakdownPump DrivePump Drive-Kawasaki FX801VBrakeWheel & TireFront Wheel BreakdownEngine, Kawasaki FX691V/FX730V/FX850VEngine, Kawasaki FX801VFuel System-Without Carbon CanisterFuel System-With Carbon CanisterVapor System-With Carbon CanisterBatteryInstrument Panel48" Side Discharge Service Deck48" Side Discharge Deck Pulleys & Spindles48" Side Discharge Deck54" Side Discharge Service Deck54" Side Discharge Deck Pulleys & Spindles54" Side Discharge Deck60" Side Discharge Service Deck60" Side Discharge Deck Pulleys & Spindles60" Side Discharge DeckSide Discharge Deck LiftSide Discharge Deck Mounting Hardware54" Rear Discharge Service Deck54" Rear Discharge Pulleys & Spindles54" Rear Discharge Deck Dust Shield60" Rear Discharge Service Deck60" Rear Discharge Pulleys60" Rear Discharge Spindles60" Rear Discharge Deck60" Rear Discharge Dust Shield60" Rear Discharge DeckRear Discharge Deck LiftRear Discharge Deck Mounting HardwareSeat, SuspensionSeat, Super DeluxeROPSFrame
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 48" FRAME (WITH DECALS & RIVET NUTS) | 552162 | 1 | 552162-Online |
| 1 | 54" FRAME (WITH DECALS & RIVET NUTS) | 552163 | 1 | 552163-Online |
| 1 | 60" FRAME (WITH DECALS & RIVET NUTS) | 552164 | 1 | 552164-Online |
| 1 | 54" RD FRAME (WITH DECALS & RIVET NUTS) | 552165 | 1 | 552165-Online |
| 1 | 60" RD FRAME (WITH DECALS & RIVET NUTS) | 552166 | 1 | 552166-Online |
| 2 | DECK HEIGHT INDICATOR DECAL | 781427 | 1 | 781427-Online |
| 3 | 1/4-20 THREAD RIVET NUT | 808477 | 2 | 808477-Online |
| 4 | SERIAL NO. / SPEC DECAL | N/A | 3 | No SKU |
| 5 | SAFE OPERATION DECAL | 601993 | 1 | 601993-Online |
| 6 | 3/8-16 THREAD RIVET NUT | 808493 | 4 | 808493-Online |
| 7 | 1/2-13 THREAD RIVET NUT | 600961 | 4 | 600961-Online |
| 8 | HOT DECAL | 602041 | 2 | 602041-Online |
| 9 | HUSTLER ID DECAL | 602407 | 1 | 602407-Online |
Engine Guard
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | ENGINE GUARD | 118935 | 1 | 118935-Online |
| 2 | H LOGO DECAL | 604352 | 1 | 604352-Online |
| 3 | FW .531 X 1.063 X .090 SAE | 767962 | 8 | HT767962-Online |
| 4 | CS .500-13 X 1.25 HX G5 ZN | 705954 | 4 | HT705954-Online |
| 5 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 6 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 7 | SHIELD | 377994 | 1 | 377994-Online |
| 8 | CS .500-13 X 4.50 HX G5 | 068239 | 2 | HT068239-Online |
| 9 | NT .500-13 NL G5 | 781567 | 2 | HT781567-Online |
Engine Guard & Hitch
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | ENGINE GUARD | 118935 | 1 | 118935-Online |
| 2 | H LOGO DECAL | 604352 | 1 | 604352-Online |
| 3 | NT .375-16 NL G5 | 086660 | 4 | HT086660-Online |
| 4 | FW .406 X .812 X .060 SAE | 767954 | 4 | HT767954-Online |
| 5 | FW .531 X 1.063 X .090 SAE | 767962 | 8 | HT767962-Online |
| 6 | CS .500-13 X 1.25 HX G5 ZN | 705954 | 4 | HT705954-Online |
| 7 | HITCH | 118936 | 1 | 118936-Online |
| 8 | CB .375-16 X 1.00 G5 ZNY | 025395 | 4 | HT025395-Online |
| 9 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 10 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 11 | SHIELD | 377994 | 1 | 377994-Online |
| 12 | CS .500-13 X 4.50 HX G5 | 068239 | 2 | HT068239-Online |
| 13 | NT .500-13 NL G5 | 781567 | 2 | HT781567-Online |
Engine Guard-Kawasaki FX801V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DEFLECTOR | 113858 | 1 | 113858-Online |
| 2 | CS .500-13 X 4.50 HX G5 | 068239 | 2 | HT068239-Online |
| 3 | FW .531 X 1.063 X .090 SAE | 767962 | 8 | HT767962-Online |
| 4 | NT .500-13 HX G8 ZY NL | 781567 | 2 | HT781567-Online |
| 5 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 6 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 7 | SHIELD | 113704 | 1 | 113704-Online |
| 8 | SHIELD SPACER | 603076 | 4 | 603076-Online |
| 9 | CN .312-18 X .20 MAX THK | 601069 | 6 | HT601069-Online |
| 10 | RS ENGINE GUARD | 113371 | 1 | 113371-Online |
| 11 | CENTER BUMPER | 551168 | 1 | 551168-Online |
| 12 | LS ENGINE GUARD | 113372 | 1 | 113372-Online |
| 13 | CS .375-16 X 1.00 HX G5 | 036244 | 4 | HT036244-Online |
| 14 | FW .406 X .812 X .060 SAE | 767954 | 4 | HT767954-Online |
| 15 | 3/8-16 THREAD RIVET NUT | 808493 | 4 | 808493-Online |
| 16 | CS .312-18 X 1.25 HX G5 | 079186 | 4 | 079186-Online |
| 17 | FW .343 X .687 X .051/.080H | 768523 | 6 | HT768523-Online |
| 18 | CS .500-13 X 1.25 HX G5 ZN | 705954 | 4 | HT705954-Online |
| 19 | CS .312-18 X .875 HX G5 ZN | 064014 | 2 | 064014-Online |
| 20 | CABLE SHIELD | 113964 | 1 | 113964-Online |
| 21 | CN .250-20 X .15 MAX THK | 601982 | 2 | 601982-Online |
| 22 | FW .281 X .625 X .051/.080H | 768515 | 2 | HT768515-Online |
| 23 | CS .250-20 X .625 HX G5 | 064329 | 2 | 064329-Online |

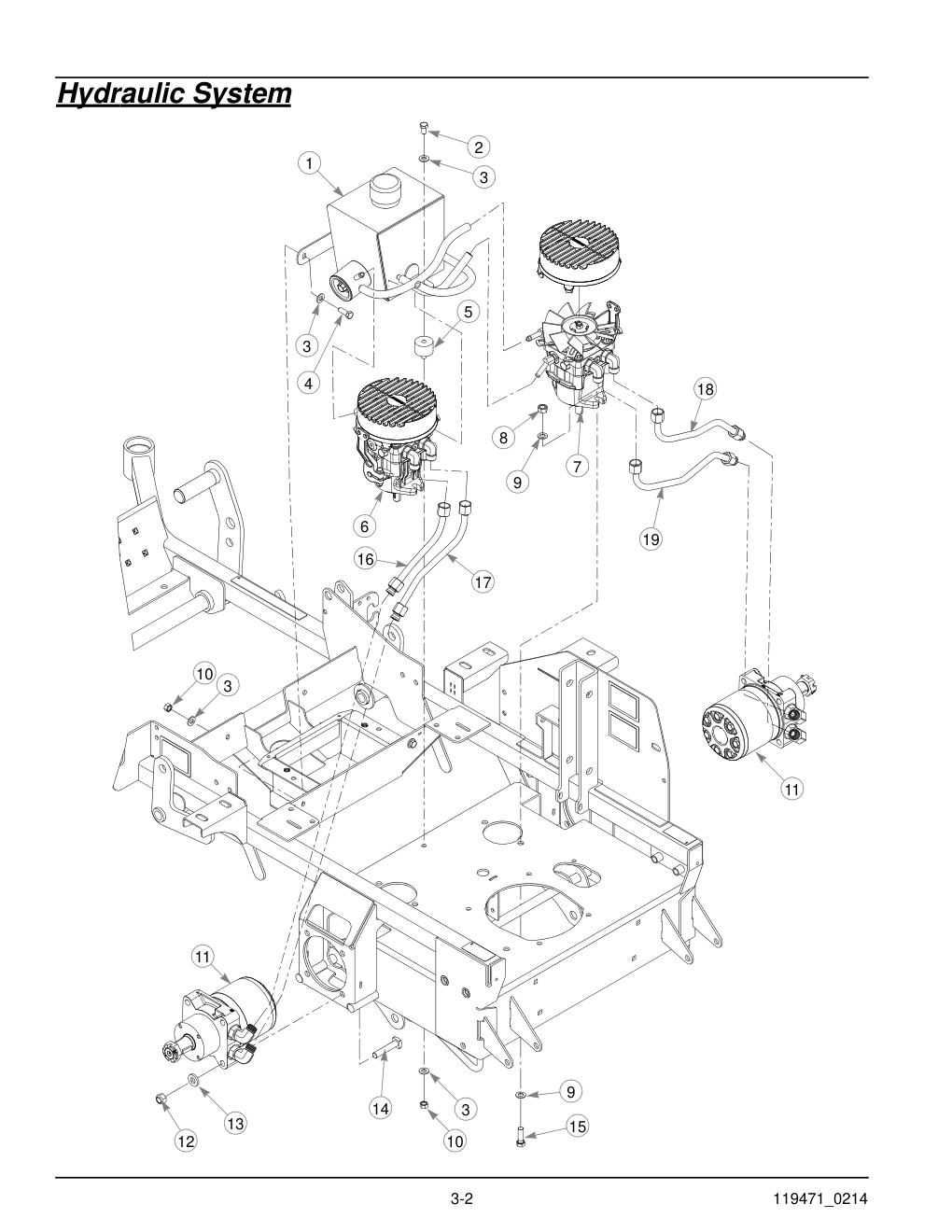

Hydraulic System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RESERVOIR SUB-ASSEMBLY | N/A | 1 | No SKU |
| 2 | CS .375-16 X .625 HX G5 | 056069 | 1 | 056069-Online |
| 3 | FW .406 X .812 X .060 SAE | 767954 | 6 | HT767954-Online |
| 4 | CS .375-16 X 1.00 HX G5 | 036244 | 2 | HT036244-Online |
| 5 | VIBRATION MOUNT | 601571 | 1 | 601571-Online |
| 6 | LS PUMP SUB-ASSEMBLY | N/A | 1 | No SKU |
| 7 | RS PUMP SUB-ASSEMBLY | N/A | 1 | No SKU |
| 8 | NT .437-14 HX G5 ZNYC | 041707 | 4 | 041707-Online |
| 9 | FW .453 X .812 X .060 ZNYC | 704742 | 8 | 704742-Online |
| 10 | NT .375-16 HX G5 ZNY | 054502 | 3 | HT054502-Online |
| 11 | MOTOR SUB-ASSEMBLY | N/A | 2 | No SKU |
| 12 | NT .500-13 UNT LK G8 ZN | 023317 | 8 | 023317-Online |
| 13 | FW .531 X 1.063 X .090 SAE | 767962 | 8 | HT767962-Online |
| 14 | CS .500-13 X 2.50 SQ G5 | 602256 | 8 | 602256-Online |
| 15 | CS .437-14 X 1.375 HX G5 | 705186 | 4 | 705186-Online |
| 16 | TUBE, LP-TM LT LOOP | 603015 | 1 | 603015-Online |
| 17 | TUBE, RP-BM LT LOOP | 603016 | 1 | 603016-Online |
| 18 | TUBE, RP-BM RT LOOP | 603013 | 1 | 603013-Online |
| 19 | TUBE, LP-TM RT LOOP | 603014 | 1 | 603014-Online |
Steering
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING COVER SUB-ASSEMBLY | N/A | 1 | No SKU |
| 2 | SWITCH | 601087 | 2 | HT601087-Online |
| 3 | DAMPER | 795351 | 2 | 795351-Online |
| 4 | HANDLE (WITH GRIP) | 109839 | 2 | 109839-Online |
| 4 | STEERING BAR GRIP | 781260 | 1 | 781260-Online |
| 5 | FW .406 X .812 X .060 SAE | 767954 | 12 | HT767954-Online |
| 6 | CS .375-16 X 1.00 HX G5 | 036244 | 4 | HT036244-Online |
| 7 | CS .375-16 X .75 HX G5 | 055822 | 4 | HT055822-Online |
| 8 | NT .375-16 HX G5 ZNY | 054502 | 4 | HT054502-Online |
| 9 | BALL STUD | 781922 | 2 | 781922-Online |
| 10 | FW .343 X .687 X .051/.080H | 768523 | 6 | HT768523-Online |
| 11 | LW .312 INT-EXT TOOTH | 029876 | 2 | 029876-Online |
| 12 | NT .312-18 HX FLK ZNYC | 016832 | 2 | 016832-Online |
| 13 | NT .312-24 HX NL ZN | 023655 | 2 | HT023655-Online |
| 14 | CAP LOCK | 601426 | 1 | 601426-Online |
Steering Cover Sub-Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | LS STEERING BOX | N/A | 1 | No SKU |
| 2 | RS STEERING BOX | N/A | 1 | No SKU |
| 3 | NT .312-24 HX NL ZN | 023655 | 2 | HT023655-Online |
| 4 | FW .343 X .687 X .051/.080H | 768523 | 6 | HT768523-Online |
| 5 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 6 | FW .344 X 1.00 X .12 HRD Z | 712927 | 2 | HT712927-Online |
| 7 | BALL STUD | 781922 | 2 | 781922-Online |
| 8 | PUMP ROD ADJUSTER | 781286 | 2 | HT781286-Online |
Steering Cover Sub-Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 9 | STEERING COVER | 113221 | 1 | 113221-Online |
| 10 | BUSHING | 781153 | 2 | HT781153-Online |
| 11 | FW .750 X 1.50 X .156 ZN | 603078 | 2 | 603078-Online |
| 12 | LOCK COLLAR 0.757 ID | 784439 | 2 | HT784439-Online |
| 13 | STEER PIVOT TUBE | 113365 | 1 | HT113365-Online |
Steering Cover Sub-Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 14 | NT .500-13 HX JAM ZNYC | 053199 | 2 | HT053199-Online |
| 15 | SS 1/2-13 X 2.50 SH ZNYC | 603055 | 2 | 603055-Online |
| 16 | X-ONE ID DECAL | 603106 | 1 | 603106-Online |
| 17 | MADE IN USA DECAL | 727172 | 1 | 727172-Online |
| 18 | WEAR TAPE | 722199 | 5.5" | 722199-Online |
| 19 | GM .50 X 1.00 X .75 X .12 | 080358 | 1 | 080358-Online |

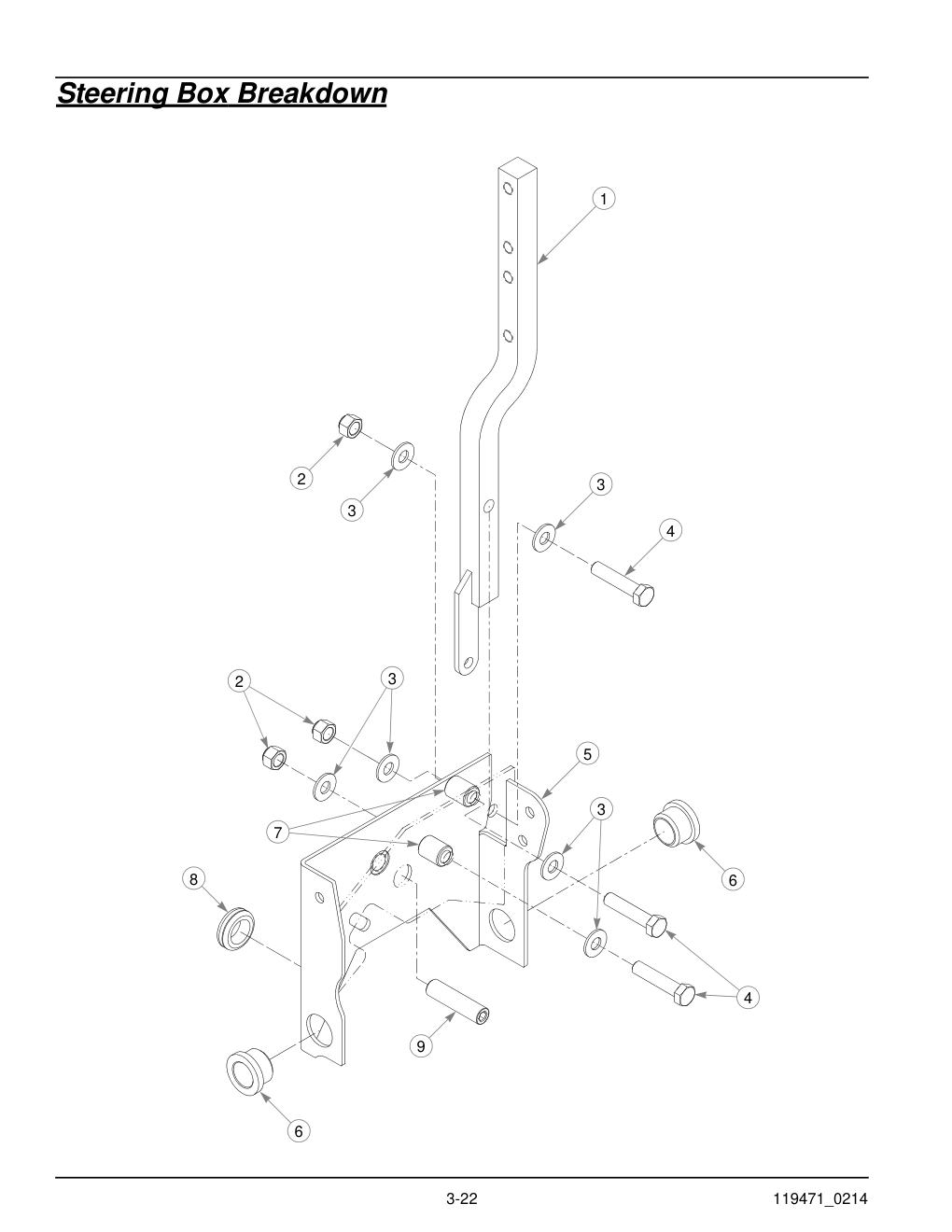

Steering Box Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING ARM | 113578 | 1 | 113578-Online |
| 2 | NT .375-16 HXZY NL | 086660 | 3 | HT086660-Online |
| 3 | FW .406 X .812 X .060 SAE | 767954 | 6 | HT767954-Online |
| 4 | CS .375-16 X 1.75 HX G5 | 705178 | 3 | HT705178-Online |
| 5 | RS STEERING BOX | 112898 | 1 | 112898-Online |
| 6 | BUSHING | 781153 | 2 | HT781153-Online |
| 7 | STEERLEVER BUSHING | 348862 | 2 | HT348862-Online |
| 8 | GM .750 X .188 X 1.00 X .12 | 047456 | 1 | 047456-Online |
| 9 | SS .500-13 X 2.00 SH ZY | 797738 | 1 | 797738-Online |
| 10 | LS STEERING BOX (NOT SHOWN) | 112899 | 2 | 112899-Online |
Pump Drive
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .500-13 X 5.00 HX G5 | 051151 | 1 | HT051151-Online |
| 2 | FW .510 X 2.15 X .187 SPL | 344267 | 1 | HT344267-Online |
| 3 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 4 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 5 | CLUTCH ANCHOR | 113347 | 1 | HT113347-Online |
| 6 | CS .312-18 X 1.00 HX G5 | 036236 | 2 | 036236-Online |
| 7 | KEY 1/4 SQ X 1.50 LG | 212076 | 1 | HT212076-Online |
| 8 | ENG PULLEY 5.78 OP | 602903 | 1 | 602903-Online |
| 9 | CLUTCH KIT | 601311K | 1 | 601311K-Online |
| 10 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 11 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 12 | CS .437-20 X 2.50 HX G5 P85 | 785659 | 1 | HT785659-Online |
| 13 | PUMP PULLEY 5.78 OP | 602904 | 2 | 602904-Online |
| 14 | SS .312-18 X .75 SQ-HD | 083196 | 4 | 083196-Online |
| 15 | KEY 5MM X 30MM | 768127 | 2 | 768127-Online |
| 16 | IDLER PIVOT BUSHING | 602880 | 1 | 602880-Online |
| 17 | CS .625-11 X 1.75 HX G5 | 025007 | 1 | HT025007-Online |
| 18 | BELT, 57.00" EL A-SECTION | 604858 | 1 | 604858-Online |
| 19 | TENSIONER | 115536 | 1 | HT115536-Online |
| 20 | IDLER SPRING | 601016 | 1 | HT601016-Online |
| 21 | EB, .375-16 X 3.00 FULL THD | 601486 | 1 | 601486-Online |
| 22 | NT .375-16 HX G5 ZNY | 054502 | 2 | HT054502-Online |
| 23 | FW .406 X .812 X .060 SAE | 767954 | 2 | HT767954-Online |
| 24 | GREASE FITTING STRAIGHT | 015495 | 1 | HT015495-Online |
| 25 | IDLER PIVOT BUSHING | 602879 | 1 | 602879-Online |
| 26 | FW .531 X 1.063 X .090 SAE | 767962 | 1 | HT767962-Online |
| 27 | NT .500-13 NL G5 | 781567 | 1 | HT781567-Online |
| 28 | PULLEY 5" FLAT | 604827 | 1 | 604827-Online |
| 29 | WIRE TIE | 000331 | 2 | 000331-Online |
Pump Drive-Kawasaki FX801V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | .500-13 X 5.00 HX G5 | 051151 | 1 CS | HT051151-Online |
| 2 | .510 X 2.15 X .187 SPL | 344267 | 1 FW | HT344267-Online |
| 3 | .312-18 HX G5 ZNYC | 034272 | 2 NT | HT034272-Online |
| 4 | .343 X .687 X .051/.080H | 768523 | 4 FW | HT768523-Online |
| 5 | ANCHOR | 113347 | 1 CLUTCH | HT113347-Online |
| 6 | .312-18 X 1.00 HX G5 | 036236 | 2 CS | 036236-Online |
| 7 | 1/4 SQ X 1.50 LG | 212076 | 1 KEY | HT212076-Online |
| 8 | PULLEY 5.78 OP | 602903 | 1 ENG | 602903-Online |
| 9 | KIT | 601311K | 1 CLUTCH | 601311K-Online |
| 10 | HARNESS PIGTAIL | 791251 | 1 CLUTCH | HT791251-Online |
| 11 | .453 X 1.12 X .119 HRD | 602680 | 1 FW | 602680-Online |
| 12 | .437-20 X 2.50 HX G5 P85 | 785659 | 1 CS | HT785659-Online |
| 13 | PULLEY 5.78 OP | 602904 | 2 PUMP | 602904-Online |
| 14 | .312-18 X .75 SQ-HD | 083196 | 4 SS | 083196-Online |
| 15 | 5MM X 30MM | 768127 | 2 KEY | 768127-Online |
| 16 | PIVOT BUSHING | 602880 | 1 IDLER | 602880-Online |
| 17 | .625-11 X 1.75 HX G5 | 025007 | 1 CS | HT025007-Online |
| 18 | FLAT IDLER PULLEY | 602304 | 1 5" | 602304-Online |
| 20 | SPRING | 601016 | 1 IDLER | HT601016-Online |
| 21 | .375-16 X 3.00 FUL THD | 601486 | 1 EB, | 601486-Online |
| 22 | .375-16 HX G5 ZNY | 054502 | 2 NT | HT054502-Online |
| 23 | .406 X .812 X .060 SAE | 767954 | 2 FW | HT767954-Online |
| 24 | FITTING STRAIGHT | 015495 | 1 GREASE | HT015495-Online |
| 25 | PIVOT BUSHING | 602879 | 1 IDLER | 602879-Online |
| 26 | .531 X 1.063 X .090 SAE | 767962 | 1 FW | HT767962-Online |
| 27 | .500-13 HX G8 ZY NL | 781567 | 1 NT | HT781567-Online |
| 28 | 61.5 A-SEC | 602907 | 1 BELT, | 602907-Online |
Brake
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .375-16 HX ZY NL | 086660 | 2 | HT086660-Online |
| 2 | FW .406 X .812 X .060 SAE | 767954 | 12 | HT767954-Online |
| 3 | BUSHING | 765339 | 4 | HT765339-Online |
| 4 | NT .312-24 HX NL ZN | 023655 | 4 | HT023655-Online |
| 5 | FW .343 X .687 X .051/.080H | 768523 | 12 | HT768523-Online |
| 6 | BRAKE ROD ASSEMBLY | 781583 | 2 | HT781583-Online |
| 7 | RS BRAKE BELLCRANK | 113215 | 1 | 113215-Online |
| 8 | LS BRAKE BELLCRANK | 113216 | 1 | 113216-Online |
| 9 | NT .375-16 HX G5 ZNY | 054502 | 4 | HT054502-Online |
| 10 | CS .375-16 X 1.50 HX G5 | 080655 | 2 | HT080655-Online |
| 11 | CS .375-16 X 4.50 HX G5 | 052514 | 2 | 052514-Online |
| 12 | BRAKE LINK TURNBUCKLE | 350397 | 2 | 350397-Online |
| 13 | NT .312-18 HX G5 ZNYC | 034272 | 4 | HT034272-Online |
| 14 | BRAKE ASSEMBLY | 602383 | 2 | 602383-Online |
| 15 | HUB ASSEMBLY (WITH STUDS) | 602384 | 2 | 602384-Online |
| 16 | BRAKE ARM | 111309 | 2 | HT111309-Online |
| 17 | CS 0.312-18 X 0.75 HS G8 FLANGE HEAD | 604461 | 8 | 604461-Online |
| 18 | CS .375-16 X 1.375 HX G5 | 005116 | 2 | HT005116-Online |
| 19 | CB .312-18 X 1.00 FULL ZN | 037887 | 4 | HT037887-Online |
| 20 | WHEEL STUD LUG 1/2-20 | 601085 | 5 | HT601085-Online |
Wheel & Tire
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 7 061077 | NUT | 10 | WHEEL | 10-Online |
Front Wheel Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FORK | 602870 | 1 | 602870-Online |
| 2 | CS .750-10 X 9.50 HX ZY | 041475 | 1 | HT041475-Online |
| 3 | FW .760 X 1.625 X .08 ZNYC | 025296 | 2 | HT025296-Online |
| 4 | NT .750-10 HX ZY NL | 061101 | 1 | HT061101-Online |
| 5 | TIRE/WHEEL ASSEMBLY 13 X 6.50 | 604898 | 1 | 604898-Online |
| 6 | TIRE, 13 X 6.50-6 SMOOTH | 604843 | 1 | 604843-Online |
| 7 | WHEEL 6 X 4.5 | 747832 | 1 | 747832-Online |
| 8 | BEARING SPACER | 782771 | 1 | HT782771-Online |
| 9 | WHEEL BEARING | 039677 | 2 | HT039677-Online |

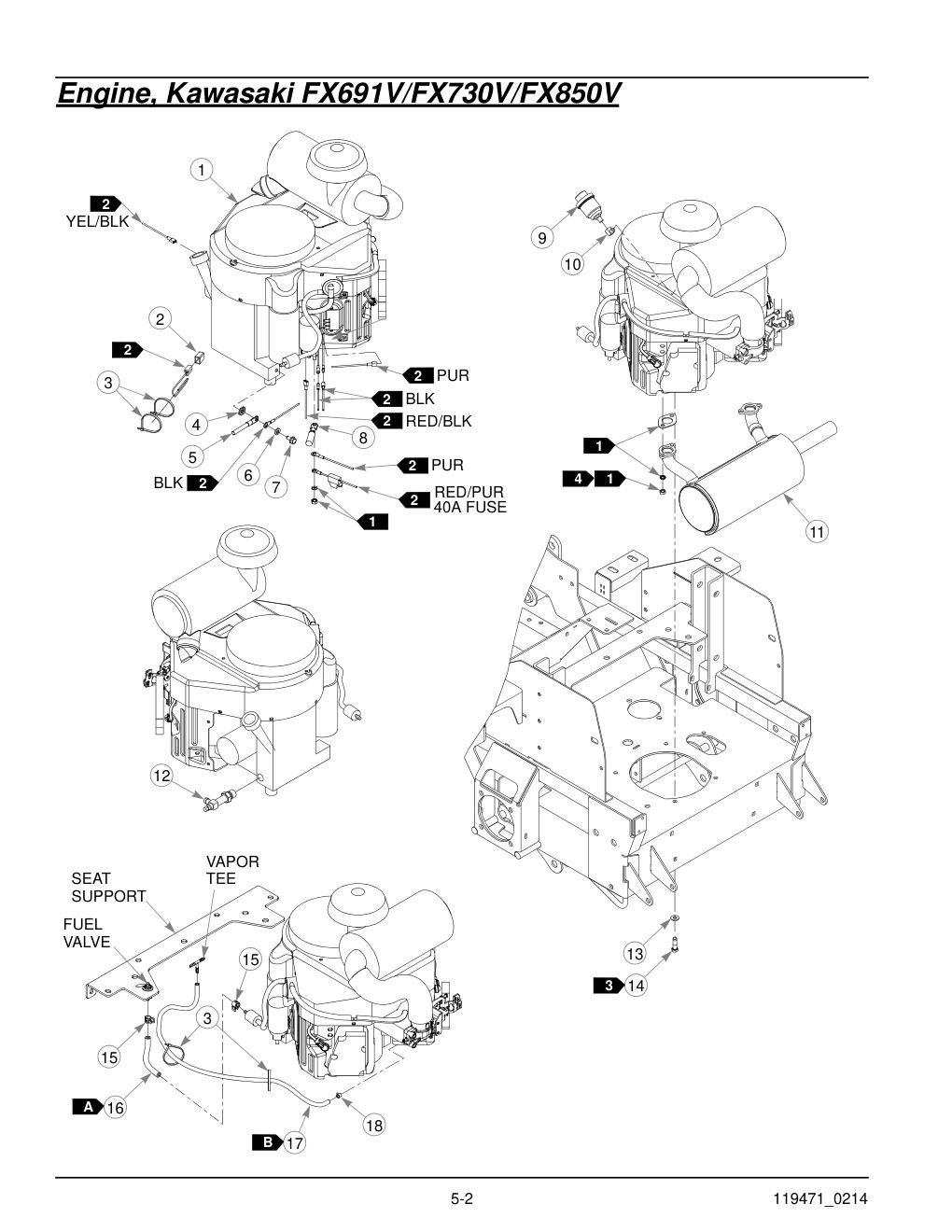

Engine, Kawasaki FX691V/FX730V/FX850V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAWASAKI FX691V, FX730V & FX850V ENGINE | N/A | 1 | No SKU |
| 2 | FAN CAP | 789131 | 1 | 789131-Online |
| 3 | WIRE TIE | 000331 | 4 | 000331-Online |
| 4 | LW .312 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 5 | NEGATIVE BATTERY CABLE | 744284 | 1 | 744284-Online |
| 6 | FW .343 X .687 X .051/.080H | 768523 | 1 | HT768523-Online |
| 7 | CS M8 X 1.25 X 16 HX G10.9 | 720516 | 1 | 720516-Online |
| 8 | POSITIVE BATTERY CABLE | 605059 | 1 | 605059-Online |
| 9 | AIR FILTER INDICATOR | 788943 | 1 | HT788943-Online |
| 10 | ELBOW STREET FITTING | 601216 | 1 | 601216-Online |
| 11 | MUFFLER (FX691V & FX730V ENGINES) | 604250 | 1 | 604250-Online |
| 11 | MUFFLER (FX850V ENGINE) | 603012 | 1 | 603012-Online |
| 12 | OIL DRAIN VALVE | 796524 | 1 | HT796524-Online |
| 13 | FW .406 X .812 X .060 SAE | 767954 | 4 | HT767954-Online |
| 14 | CS .375-16 X 1.25 HX G5 P85 | 602580 | 4 | 602580-Online |
| 15 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 16 | 1/4" FUEL LINE | 015818 | 14" | HT015818-Online |
| 17 | 3/16" VAPOR LINE | 603326 | 35" | 603326-Online |
| 18 | CLAMP, 3/16" | 603112 | 1 | 603112-Online |
Engine, Kawasaki FX801V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAWASAKI FX801V ENGINE | N/A | 1 | No SKU |
| 2 | FAN CAP | 789131 | 1 | 789131-Online |
| 3 | WIRE TIE | 000331 | 4 | 000331-Online |
| 4 | LW .312 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 5 | NEGATIVE BATTERY CABLE | 744284 | 1 | 744284-Online |
| 6 | FW .343 X .687 X .051/.080H | 768523 | 2 | HT768523-Online |
| 7 | CS M8 X 1.25 X 16 HX G10.9 | 720516 | 1 | 720516-Online |
| 8 | POSITIVE BATTERY CABLE | 605059 | 1 | 605059-Online |
| 9 | AIR FILTER INDICATOR | 788943 | 1 | HT788943-Online |
| 10 | ELBOW STREET FITTING | 601216 | 1 | 601216-Online |
| 11 | MUFFLER | 603012 | 1 | 603012-Online |
| 12 | NT .312-18 HX FLK ZNYC | 016832 | 1 | 016832-Online |
| 13 | LOOP CLAMP | 043570 | 1 | 043570-Online |
| 14 | CS .312-18 X 1.00 HX G5 | 036236 | 1 | 036236-Online |
| 15 | FW .406 X .812 X .060 SAE | 767954 | 4 | HT767954-Online |
| 16 | CS .375-16 X 1.25 HX G5 P85 | 602580 | 4 | 602580-Online |
| 17 | OIL DRAIN VALVE | 796524 | 1 | HT796524-Online |
| 18 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 19 | 1/4" FUEL LINE | 015818 | 14" | HT015818-Online |
| 20 | 3/16" FUEL LINE | 603326 | 43" | 603326-Online |
| 21 | CLAMP, 3/16" | 603112 | 1 | 603112-Online |
Fuel System-Without Carbon Canister
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RATCHETING GAS CAP, 3.5" | 603807 | 2 | 603807-Online |
| 2 | RS FUEL TANK ASSEMBLY | 604524 | 1 | 604524-Online |
| 3 | LS FUEL TANK ASSEMBLY | 604525 | 1 | 604525-Online |
| 4 | HOSE CLAMP | 000323 | 4 | 000323-Online |
| 5 | 1/4" FUEL LINE | 015818 | 59" | HT015818-Online |
| 6 | FUEL VALVE 3-WAY | 745059 | 1 | HT745059-Online |
| 7 | 3/16" VAPOR LINE | 603326 | 58" | 603326-Online |
| 8 | VACUUM BREAKER | 604305 | 1 | 604305-Online |
| 9 | PLASTIC TEE, 3/16" | 604281 | 1 | 604281-Online |
| 10 | FW .406 X 1.00 X .12 HRD Z | 712919 | 10 | HT712919-Online |
| 11 | CS .375-16 X .75 HX G5 | 055822 | 10 | HT055822-Online |
| 12 | CS .312-18 X 1.00 HX G5 | 036236 | 3 | 036236-Online |
| 13 | FW .343 X .687 X .051/.080H | 768523 | 3 | HT768523-Online |
| 14 | LOOP CLAMP | 043570 | 3 | 043570-Online |
| 15 | NT .312-18 HX FLK ZNYC | 016832 | 3 | 016832-Online |
| 16 | REAR COVER | 116229 | 1 | 116229-Online |
| 17 | CS .250-20 X .500 HX G5 | 055947 | 4 | 055947-Online |
| 18 | FW .281 X .625 X .051/.080 HD ZN/YL | 768515 | 4 | HT768515-Online |
| 19 | FRONT COVER | 116228 | 1 | 116228-Online |
Fuel System-With Carbon Canister
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RATCHETING GAS CAP, 3.5" | 603807 | 2 | 603807-Online |
| 2 | RS FUEL TANK ASSEMBLY | 604524 | 1 | 604524-Online |
| 3 | LS FUEL TANK ASSEMBLY | 604525 | 1 | 604525-Online |
| 4 | HOSE CLAMP | 000323 | 4 | 000323-Online |
| 5 | 1/4" FUEL LINE | 015818 | 59" | HT015818-Online |
| 6 | WIRE TIE | 000331 | 2 | 000331-Online |
| 7 | FUEL VALVE 3-WAY | 745059 | 1 | HT745059-Online |
| 8 | FW .406 X 1.00 X .12 HRD Z | 712919 | 10 | HT712919-Online |
| 9 | CS .375-16 X .75 HX G5 | 055822 | 10 | HT055822-Online |
| 10 | CS .312-18 X 1.00 HX G5 | 036236 | 9 | 036236-Online |
| 11 | FW .343 X .687 X .051/.080H | 768523 | 9 | HT768523-Online |
| 12 | HOSE BRACKET | 120438 | 1 | 120438-Online |
| 13 | HOSE CLAMP | 045088 | 2 | 045088-Online |
| 14 | LOOP CLAMP | 043570 | 2 | 043570-Online |
| 15 | NT .312-18 HX FLK ZNYC | 016832 | 5 | 016832-Online |
| 16 | GROMMET | 794644 | 1 | 794644-Online |
| 17 | REAR COVER | 116229 | 1 | 116229-Online |
| 18 | CS .250-20 X .500 HX G5 | 055947 | 4 | 055947-Online |
| 19 | FW .281 X .625 X .051/.080 HD ZN/YL | 768515 | 8 | HT768515-Online |
| 20 | FRONT COVER | 116228 | 1 | 116228-Online |
Vapor System-With Carbon Canister
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 21 | CS .250-20 X .75 HX G5 | 055939 | 4 | 055939-Online |
| 22 | CARBON CANISTER | 604314 | 2 | 604314-Online |
| 23 | PLATE | 120132 | 2 | 120132-Online |
| 24 | CN .250-20 X .15 MAX THK | 601982 | 4 | 601982-Online |
| 25 | CN .312-18 X .20 MAX THK | 601069 | 4 | HT601069-Online |
| 26 | PLASTIC TEE, 3/16" | 604281 | 1 | 604281-Online |
| 27 | 3/16" VAPOR LINE | 603326 | 92" | 603326-Online |
| 28 | VACUUM BREAKER FILTER | 603161 | 1 | 603161-Online |
Battery
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BATTERY STRAP | 113147 | 1 | 113147-Online |
| 2 | CS .250-20 X 3.25 ZNYC | 075994 | 2 | 075994-Online |
| 3 | FW .281 X .625 X .051/.080H | 768515 | 2 | HT768515-Online |
| 4 | NT .250-20 HX G5 ZNYC | 024927 | 2 | HT024927-Online |
| 5 | LW .250 INT-EXT TOOTH Z | 029868 | 4 | 029868-Online |
| 6 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 7 | RED BATTERY CABLE BOOT | 771428 | 1 | 771428-Online |
| 8 | WIRE TIE | 000331 | 3 | 000331-Online |
Instrument Panel
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CHOKE CABLE | 786657 | 1 | HT786657-Online |
| 2 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 3 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 4 | FUEL DISPLAY/HOUR METER | 603748 | 1 | 603748-Online |
| 5 | KNOB | 603523 | 1 | 603523-Online |
| 6 | RED INDICATOR LIGHT | 712257 | 1 | HT712257-Online |
| 7 | CB 10-24 X .500 ZYNC | 601098 | 2 | 601098-Online |
| 8 | PTO SWITCH | 776476 | 1 | HT776476-Online |
| 9 | RELAY CONTROL MODULE | 604373 | 1 | 604373-Online |
| 10 | NT #10-24 HX NL ZN | 059832 | 4 | 059832-Online |
| 11 | CS 10-24 X .75 HX FLK ZN | 063198 | 2 | 063198-Online |
| 12 | THROTTLE CABLE | 603475 | 1 | 603475-Online |
| 13 | FW .219 X .500 X .048 ZNYC | 704932 | 2 | HT704932-Online |
| 14 | WIRE TIE | 000430 | 1 | 000430-Online |
| 15 | INSTRUMENT PANEL DECAL | 603916 | 1 | 603916-Online |
| 16 | CS .250-20 X .500 HX G5 | 055947 | 4 | 055947-Online |
| 17 | FW .281 X .625 X .051/.080 HD ZN/YL | 768515 | 4 | HT768515-Online |
| 18 | INSTRUMENT PANEL (WITH DECAL) | 551399 | 1 | 551399-Online |
| 19 | LOOP CLAMP | 043570 | 1 | 043570-Online |
| 20 | CS .312-18 X .75 HX G5 | 034280 | 1 | HT034280-Online |
| 21 | FW .343 X .687 X .051/.080H | 768523 | 2 | HT768523-Online |
| 22 | NT .312-18 HX G5 ZNYC | 034272 | 1 | HT034272-Online |
| 23 | WIRE TIE | 000331 | 8 | 000331-Online |
| 24 | WIRE HARNESS | 604241 | 1 | 604241-Online |
| 25 | CLUTCH CONNECTOR REPAIR KIT | 114052 | 1 | HT114052-Online |
| 26 | SOLENOID JUMPER | 604430 | 1 | 604430-Online |
48" Side Discharge Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 48" DECK (WITH DECALS & HARDWARE) | 550737 | 1 | 550737-Online |
| 2 | CN .312-18 X .20 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | BELT ROUTING DECAL | 781419 | 1 | 781419-Online |
| 4 | DISCHARGE CHUTE DECAL | 601624 | 1 | 601624-Online |
| 5 | DECK DANGERS DECAL | 601837 | 2 | 601837-Online |
| 6 | THROWN OBJECTS DECAL | 601892 | 1 | 601892-Online |
| 7 | 48" DECK ID DECAL | 793976 | 1 | 793976-Online |
| 8 | VX4 TECHNOLOGY DECAL | 603092 | 1 | 603092-Online |

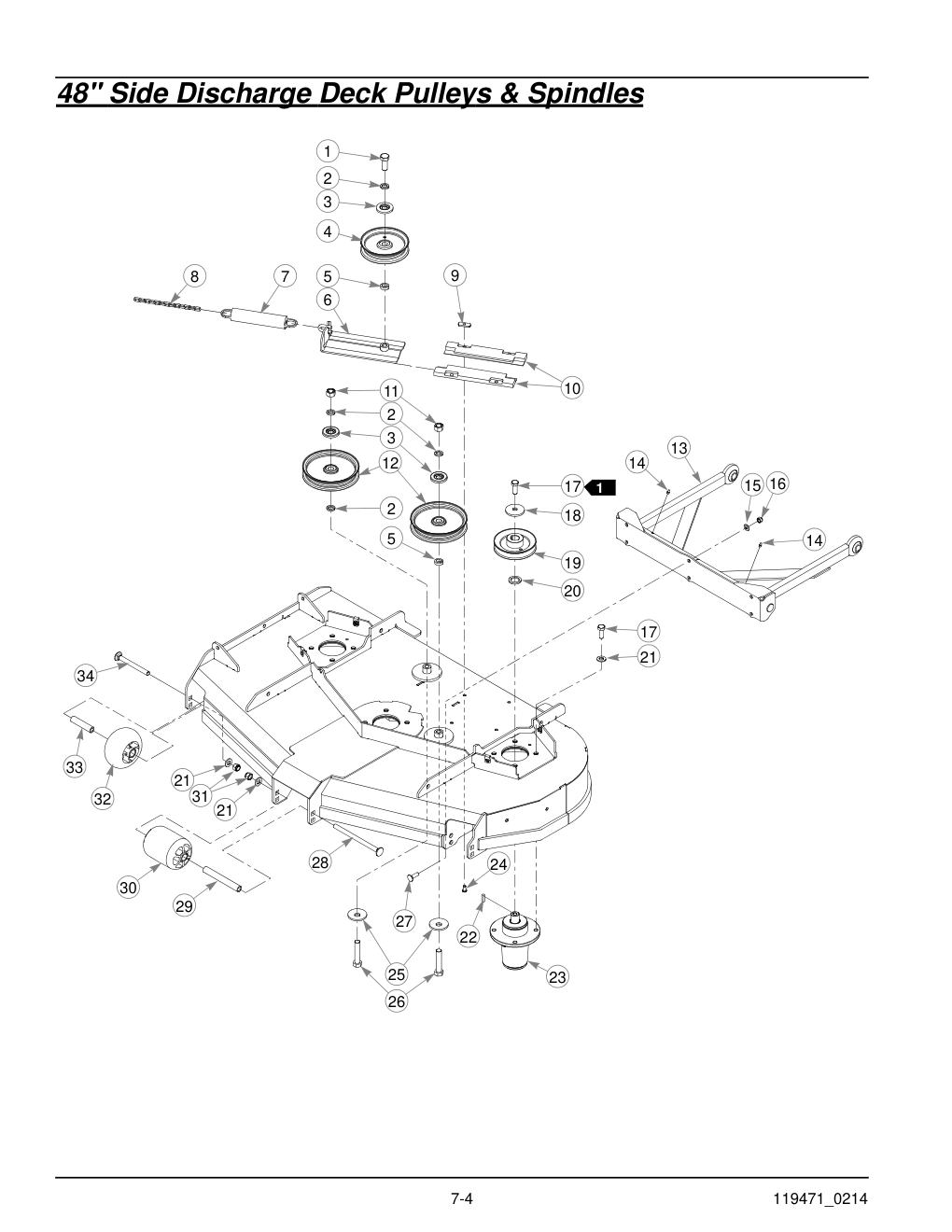

48" Side Discharge Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.50 HX G5 | 794446 | 1 | HT794446-Online |
| 2 | FW .625 X 1.00 X .134 ZNYC | 028118 | 4 | HT028118-Online |
| 3 | DUST SHIELD WITH OFFSET | 603057 | 3 | 603057-Online |
| 4 | IDLER PULLEY NHI 5.0" | 781856 | 1 | HT781856-Online |
| 5 | DECK IDLER SPACER | 600296 | 2 | HT600296-Online |
| 6 | DECK IDLER SLIDE | 350884 | 1 | HT350884-Online |
| 7 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 8 | CHAIN | 259812 | 1 | HT259812-Online |
| 9 | WN .312-18 ZN | 603023 | 4 | 603023-Online |
| 10 | UHMW IDLER SLIDE | 602936 | 2 | 602936-Online |
| 11 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 12 | IDLER PULLEY NHI 6.0" | 781385 | 2 | HT781385-Online |
| 13 | PUSHER | 113340 | 1 | 113340-Online |
| 14 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 15 | FW .406 X .812 X .060 SAE | 767954 | 6 | HT767954-Online |
| 16 | NT .375-16 HX ZY NL | 086660 | 6 | HT086660-Online |
| 17 | CS .500-13 X 1.25 HX G5 ZN | 705954 | 15 | HT705954-Online |
| 18 | CW .515 X 2.25 X .204 BLK | 752386 | 3 | HT752386-Online |
| 19 | DRIVE PULLEY 5.187 OP | 602842 | 3 | 602842-Online |
| 20 | FW 1.030 X 1.50 X .134 ZN | 045765 | 3 | HT045765-Online |
| 21 | FW .531 X 1.063 X .090 SAE | 767962 | 15 | HT767962-Online |
| 22 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 23 | BLADE SPINDLE CW | 604255 | 3 | 604255-Online |
| 24 | CS .312-18 X .625 BH ZN | 603022 | 4 | 603022-Online |
| 25 | CW .631 X 2.25 X .187 PNT | 782474 | 2 | HT782474-Online |
| 26 | CS .625-11 X 3.00 FULL HX G5 | 783738 | 2 | HT783738-Online |
| 27 | CB .375-16 X 1.25 G5 ZN | 603113 | 6 | 603113-Online |
| 28 | CB .50-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 29 | SPACER 5.73 | 602344 | 1 | 602344-Online |
| 30 | PLASTIC WHEEL | 602341 | 1 | 602341-Online |
| 31 | NT .500-13 HX G8 ZY NL | 781567 | 3 | HT781567-Online |
| 32 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 33 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 34 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |
48" Side Discharge Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER | 113241 | 2 | 113241-Online |
| 2 | KNOB 5/16-18 X 3/4" | 792002 | 4 | HT792002-Online |
| 3 | DISCHARGE CHUTE | 602429 | 1 | 602429-Online |
| 4 | NT .375-16 NL G5 | 086660 | 5 | HT086660-Online |
| 5 | TORSION SPRING | 602435 | 1 | 602435-Online |
| 6 | CHUTE PIN | 602432 | 1 | 602432-Online |
| 7 | BELT, B 140.08" EL | 786491 | 1 | 786491-Online |
| 8 | RUBBER BUMPER | 602817 | 1 | 602817-Online |
| 9 | FW .344 X 1.00 X .06 ZNYC | 079210 | 2 | 079210-Online |
| 10 | CS .312-18 X .875 HX G5 ZN | 064014 | 2 | 064014-Online |
| 11 | BACKING PLATE | 113563 | 1 | 113563-Online |
| 12 | BLADE, F16.50"-H-F-CW | 795757 | 3 | HT795757-Online |
| 12 | BLADE, F16.50"-L-F-CW | 601014 | 3 | 601014-Online |
| 12 | BLADE, 16.50"-L-F-CW | 601123 | 3 | HT601123-Online |
| 12 | BLADE, 16.50"-MUL-F-CW | 796623 | 3 | HT796623-Online |
| 12 | BLADE, 16.50"-GAT-F-CW | 796631 | 3 | 796631-Online |
| 13 | CW .631 X 2.25 X .187 PNT | 782474 | 3 | HT782474-Online |
| 14 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |
| 15 | LS ADJ INNER WALL | 113266 | 1 | 113266-Online |
| 16 | RS ADJ INNER WALL | 113267 | 1 | 113267-Online |
| 17 | CB .375-16 X 1.00 G5 ZNY | 025395 | 4 | HT025395-Online |
| 18 | FW .406 X .812 X .060 SAE | 767954 | 4 | HT767954-Online |
54" Side Discharge Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 54" DECK (WITH DECALS & HARDWARE) | 550738 | 1 | 550738-Online |
| 2 | CN .312-18 X .20 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | BELT ROUTING DECAL | 781419 | 1 | 781419-Online |
| 4 | DISCHARGE CHUTE DECAL | 601624 | 1 | 601624-Online |
| 5 | DECK DANGERS DECAL | 601837 | 2 | 601837-Online |
| 6 | THROWN OBJECTS DECAL | 601892 | 1 | 601892-Online |
| 7 | 54" DECK ID DECAL | 799171 | 1 | 799171-Online |
| 8 | VX4 TECHNOLOGY DECAL | 603092 | 1 | 603092-Online |

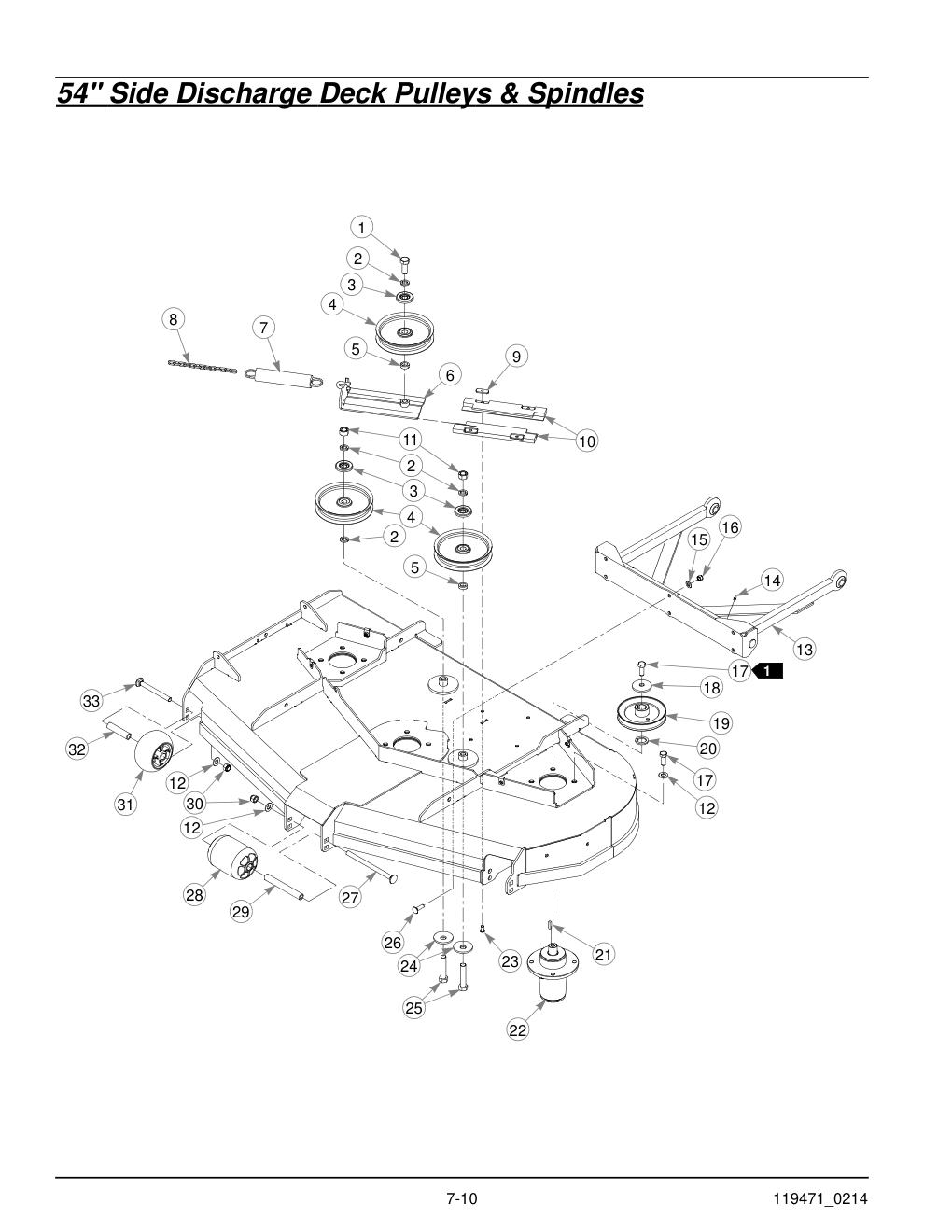

54" Side Discharge Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.50 HX G5 | 794446 | 1 | HT794446-Online |
| 2 | FW .625 X 1.00 X .134 ZNYC | 028118 | 4 | HT028118-Online |
| 3 | DUST SHIELD WITH OFFSET | 603057 | 3 | 603057-Online |
| 4 | IDLER PULLEY, NHI 6.0" | 781385 | 3 | HT781385-Online |
| 5 | DECK IDLER SPACER | 600296 | 2 | HT600296-Online |
| 6 | DECK IDLER SLIDE | 350884 | 1 | HT350884-Online |
| 7 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 8 | CHAIN | 259812 | 1 | HT259812-Online |
| 9 | WN .312-18 ZN | 603023 | 4 | 603023-Online |
| 10 | UHMW IDLER SLIDE | 602936 | 2 | 602936-Online |
| 11 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 12 | FW .531 X 1.063 X .090 SAE | 767962 | 15 | HT767962-Online |
| 13 | PUSHER | 113340 | 1 | 113340-Online |
| 14 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 15 | FW .406 X .812 X .060 SAE | 767954 | 6 | HT767954-Online |
| 16 | NT .375-16 HXZY NL | 086660 | 6 | HT086660-Online |
| 17 | CS .500-13 X 1.25 HX G5 ZN | 705954 | 15 | HT705954-Online |
| 18 | CW .515 X 2.25 X .204 BLK | 752386 | 3 | HT752386-Online |
| 19 | DECK DRIVE PULLEY | 798967 | 3 | HT798967-Online |
| 20 | FW 1.030 X 1.50 X .134 ZN | 045765 | 3 | HT045765-Online |
| 21 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 22 | BLADE SPINDLE CW | 604255 | 3 | 604255-Online |
| 23 | CS .312-18 X .625 BH ZN | 603022 | 4 | 603022-Online |
| 24 | CW .631 X 2.25 X .187 PNT | 782474 | 2 | HT782474-Online |
| 25 | CS .625-11 X 3.00 FULL HX | 783738 | 2 | HT783738-Online |
| 26 | CB .375-16 X 1.25 G5 ZN | 603113 | 6 | 603113-Online |
| 27 | CB .500-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 28 | PLASTIC WHEEL | 602341 | 1 | 602341-Online |
| 29 | SPACER 5.73 | 602344 | 1 | 602344-Online |
| 30 | NT .500-13 HX G8 ZY NL | 781567 | 3 | HT781567-Online |
| 31 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 32 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 33 | CB .50-13 X 4.75 STD ZN | 603049 | 2 | 603049-Online |
54" Side Discharge Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PULLEY COVER | 113241 | 1 RS | 113241-Online |
| 2 | PULLEY COVER | 113240 | 1 LS | 113240-Online |
| 3 | CHUTE | 602429 | 1 DISCHARGE | 602429-Online |
| 4 | SPRING | 602435 | 1 TORSION | 602435-Online |
| 5 | PIN | 602432 | 1 CHUTE | 602432-Online |
| 6 | .375-16 NL G5 | 086660 | 5 NT | HT086660-Online |
| 7 | 5/16-18 X 3/4" | 792002 | 4 KNOB | HT792002-Online |
| 8 | B 152" EL | 789388 | 1 BELT, | HT789388-Online |
| 9 | BUMPER | 602817 | 1 RUBBER | 602817-Online |
| 10 | PLATE | 113563 | 1 BACKING | 113563-Online |
| 11 | .344 X 1.00 X .06 ZNYC | 079210 | 2 FW | 079210-Online |
| 12 | .312-18 X .875 HX G5 ZN | 064014 | 2 CS | 064014-Online |
| 13 | F18.50"-H-F-CW | 797696 | 3 BLADE, | 797696-Online |
| 13 | F18.50"-L-F-CW | 601012 | 3 BLADE, | 601012-Online |
| 13 | 18.50"-MUL-F-CW | 797704 | 3 BLADE, | HT797704-Online |
| 13 | 18.50"-GAT-F-CW | 797712 | 3 BLADE, | HT797712-Online |
| 14 | .631 X 2.25 X .187 PNT | 782474 | 3 CW | HT782474-Online |
| 15 | .625-11 X 1.25 HX G5 Z | 781872 | 3 CS | HT781872-Online |
| 16 | ADJ INNER WALL | 113210 | 1 LS | 113210-Online |
| 17 | .406 X .812 X .060 SAE | 767954 | 4 FW | HT767954-Online |
| 18 | .375-16 X 1.00 G5 ZNY | 025395 | 4 CB | HT025395-Online |
| 19 | ADJ INNER WALL | 113211 | 1 RS | 113211-Online |

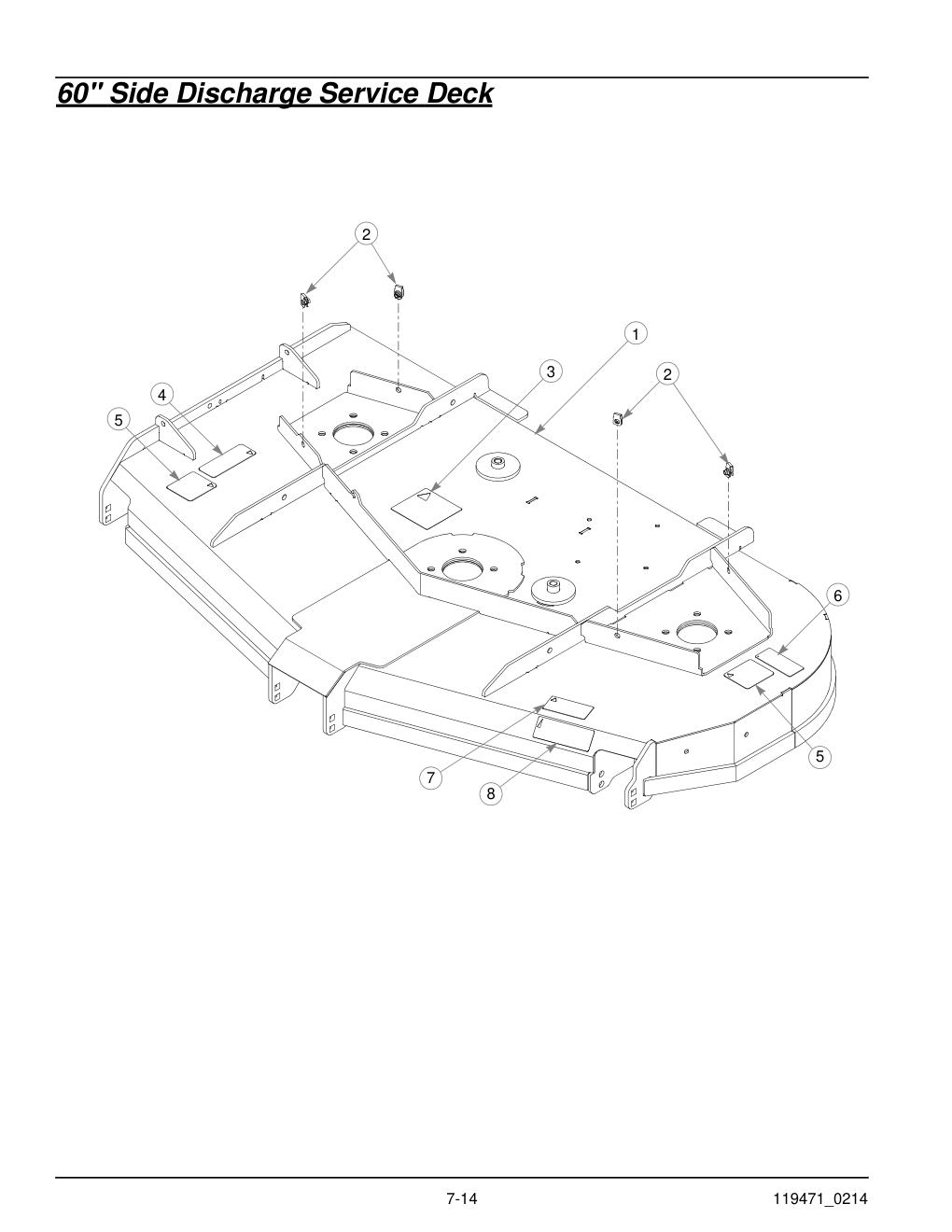

60" Side Discharge Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 60" VX4 DECK (WITH DECALS & HARDWARE) | 550739 | 1 | 550739-Online |
| 2 | CN .312-18 X .20 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | BELT ROUTING DECAL | 781419 | 1 | 781419-Online |
| 4 | DISCHARGE CHUTE DECAL | 601624 | 1 | 601624-Online |
| 5 | DECK DANGERS DECAL | 601837 | 2 | 601837-Online |
| 6 | THROWN OBJECTS DECAL | 601892 | 1 | 601892-Online |
| 7 | 60" DECK DECAL | 786277 | 1 | 786277-Online |
| 8 | VX4 TECHNOLOGY DECAL | 603092 | 1 | 603092-Online |

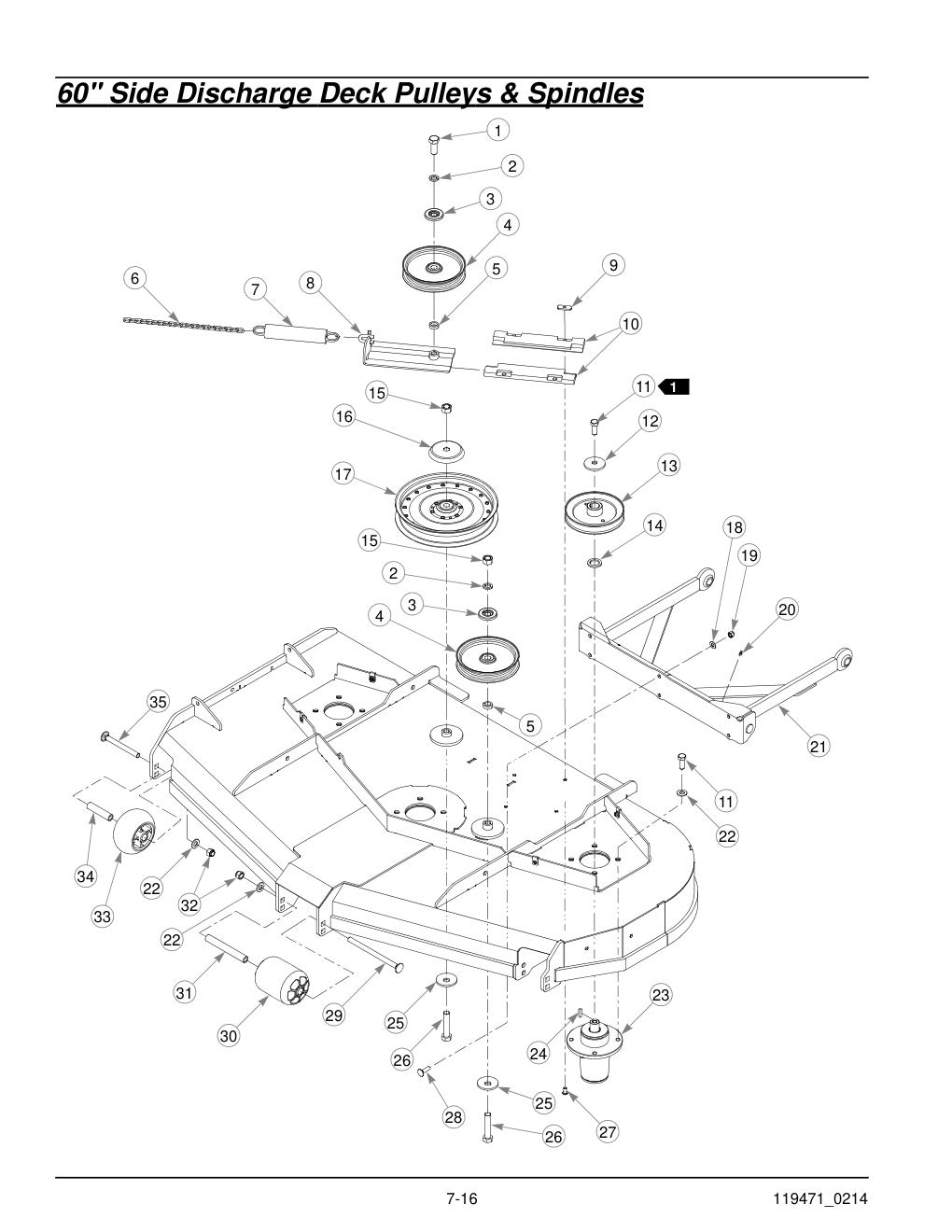

60" Side Discharge Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.50 HX G5 | 794446 | 1 | HT794446-Online |
| 2 | FW .625 X 1.00 X .134 ZNYC | 028118 | 2 | HT028118-Online |
| 3 | DUST SHIELD WITH OFFSET | 603057 | 2 | 603057-Online |
| 4 | IDLER PULLEY NHI 6.0" | 781385 | 2 | HT781385-Online |
| 5 | DECK IDLER SPACER | 600296 | 2 | HT600296-Online |
| 6 | CHAIN | 373191 | 1 | HT373191-Online |
| 7 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 8 | DECK IDLER SLIDE | 350884 | 1 | HT350884-Online |
| 9 | WN .312-18 ZN | 603023 | 4 | 603023-Online |
| 10 | UHMW IDLER SLIDE | 602936 | 2 | 602936-Online |
| 11 | CS .500-13 X 1.25 HX G5 ZN | 705954 | 15 | HT705954-Online |
| 12 | CW .515 X 2.25 X .204 BLK | 752386 | 3 | HT752386-Online |
| 13 | DECK DRIVE PULLEY | 770842 | 3 | HT770842-Online |
| 14 | FW 1.030 X 1.50 X .134 ZN | 045765 | 3 | HT045765-Online |
| 15 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 16 | IDLER DUST SHIELD LG | 602963 | 1 | 602963-Online |
| 17 | IDLER 10.0" RIVETED | 602743 | 1 | 602743-Online |
| 18 | FW .406 X .812 X .060 SAE | 767954 | 6 | HT767954-Online |
| 19 | NT .375-16 HX ZY NL | 086660 | 6 | HT086660-Online |
| 20 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 21 | PUSHER | 113340 | 1 | 113340-Online |
| 22 | FW .531 X 1.063 X .090 SAE | 767962 | 15 | HT767962-Online |
| 23 | BLADE SPINDLE CW | 604255 | 3 | 604255-Online |
| 24 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 25 | CW .631 X 2.25 X .187 PNT | 782474 | 2 | HT782474-Online |
| 26 | CS .625-11 X 3.00 FULL HX G5 | 783738 | 2 | HT783738-Online |
| 27 | CS .312-18 X .625 BH ZN | 603022 | 4 | 603022-Online |
| 28 | CB .375-16 X 1.25 G5 ZN | 603113 | 6 | 603113-Online |
| 29 | CB .500-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 30 | PLASTIC WHEEL | 602341 | 1 | 602341-Online |
| 31 | SPACER 5.73 | 602344 | 1 | 602344-Online |
| 32 | NT .500-13 HX G8 ZY NL | 781567 | 3 | HT781567-Online |
| 33 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 34 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 35 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |
60" Side Discharge Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PULLEY COVER | 112933 | 1 RS | 112933-Online |
| 2 | PULLEY COVER | 112934 | 1 LS | 112934-Online |
| 3 | 5/16-18 X 3/4" | 792002 | 4 KNOB | HT792002-Online |
| 4 | B 165.56" EL | 782292 | 1 BELT, | HT782292-Online |
| 5 | CHUTE LG | 602891 | 1 DISCHARGE | 602891-Online |
| 6 | SPRING | 602435 | 1 TORSION | 602435-Online |
| 7 | PIN | 602432 | 1 CHUTE | 602432-Online |
| 8 | .375-16 NL G5 | 086660 | 7 NT | HT086660-Online |
| 9 | PLATE | 113563 | 1 BACKING | 113563-Online |
| 10 | BUMPER | 602817 | 1 RUBBER | 602817-Online |
| 11 | .344 X 1.00 X .06 ZNYC | 079210 | 2 FW | 079210-Online |
| 12 | .312-18 X .875 HX G5 ZN | 064014 | 2 CS | 064014-Online |
| 13 | .406 X .812 X .060 SAE | 767954 | 6 FW | HT767954-Online |
| 14 | INNER WALL ADJ. | 113180 | 1 RS | HT113180-Online |
| 15 | .375-16 X 1.00 G5 ZNY | 025395 | 6 CB | HT025395-Online |
| 16 | INNER WALL ADJ. | 113179 | 1 LS | HT113179-Online |
| 17 | F20.50"-H-F-CW | 794685 | 3 BLADE, | HT794685-Online |
| 17 | F20.50" EHN-F-CW | 602771 | 3 BLADE, | 602771-Online |
| 17 | 20.50"-L-F-CW | 793794 | 3 BLADE, | HT793794-Online |
| 17 | 20.50"-MUL-F-CW | 794214 | 3 BLADE, | HT794214-Online |
| 17 | 20.50"-GAT-F-CW | 794230 | 3 BLADE, | HT794230-Online |
| 18 | .631 X 2.25 X .187 PNT | 782474 | 3 CW | HT782474-Online |
| 19 | .625-11 X 1.25 HX G5 Z | 781872 | 3 CS | HT781872-Online |

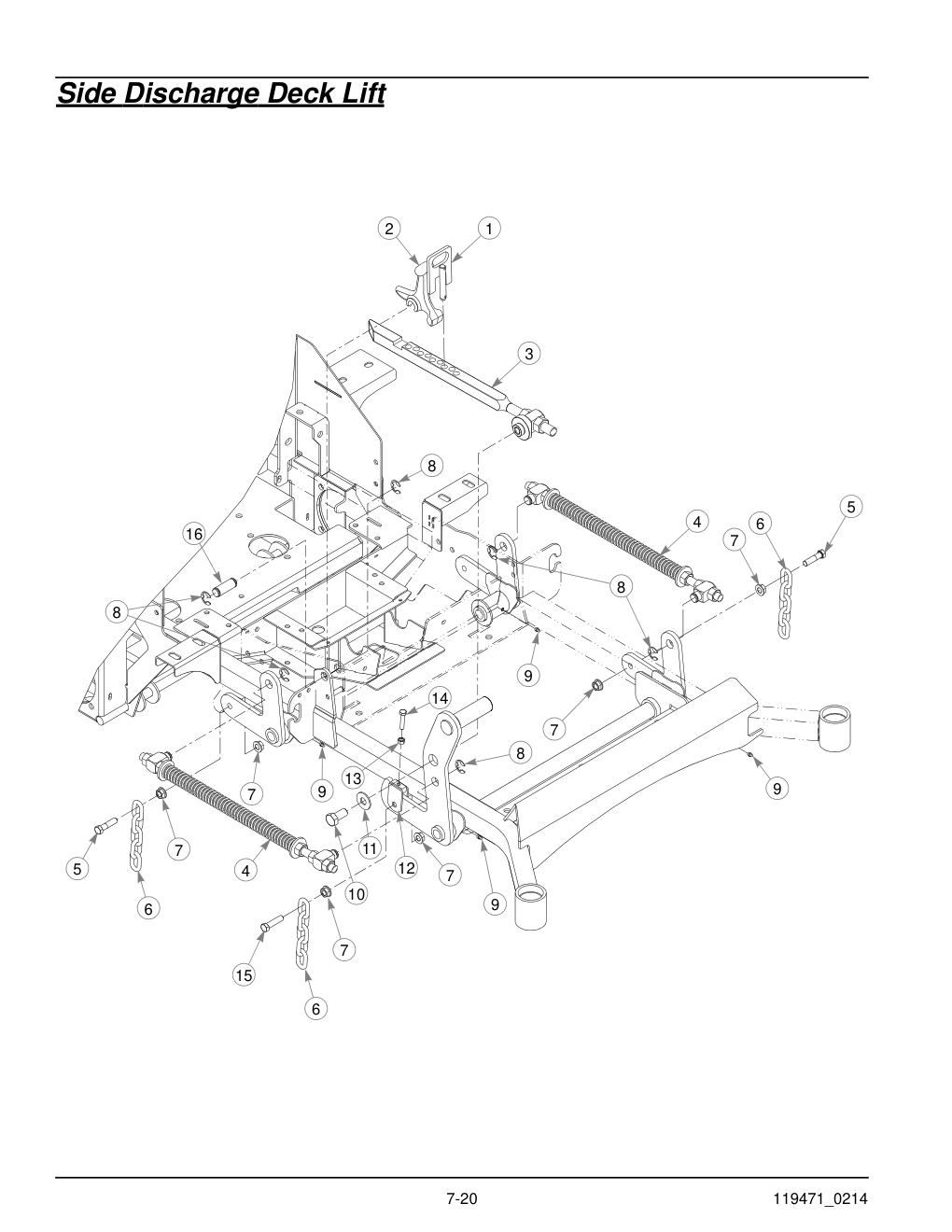

Side Discharge Deck Lift
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECK HEIGHT PIN | 600437 | 1 | 600437-Online |
| 2 | STOP HANDLE | 348318 | 1 | HT348318-Online |
| 3 | DECK LIFT INDICATOR | 602898 | 1 | 602898-Online |
| 4 | DECK LIFT SPRING | 782995 | 2 | HT782995-Online |
| 5 | CS .437-14 X 1.75 HX G5 | 055749 | 7 | HT055749-Online |
| 6 | DECK LIFT CHAIN | 348391 | 4 | HT348391-Online |
| 7 | NT .437-14 HX FLG ZN | 704643 | 16 | HT704643-Online |
| 8 | E CLIP 1.00 X .625 X .05 | 781294 | 6 | HT781294-Online |
| 9 | GREASE FITTING STRAIGHT | 015495 | 4 | HT015495-Online |
| 10 | CS .625-11 X 1.25 HX G5 Z | 781872 | 1 | HT781872-Online |
| 11 | FW .625 X 1.50 X .105 ZN | 704783 | 1 | 704783-Online |
| 12 | DECK LEVELER YOKE | 348458 | 1 | HT348458-Online |
| 13 | NT .312-18 HX G5 ZNYC | 034272 | 1 | HT034272-Online |
| 14 | CS .312-18 X 1.50 FLTHR HX | 756270 | 1 | 756270-Online |
| 15 | CS .437-14 X 1.75 FULTH | 781831 | 1 | HT781831-Online |
| 16 | CE .750 X 2.25 X 1.75 HEAD | 781229 | 1 | 781229-Online |

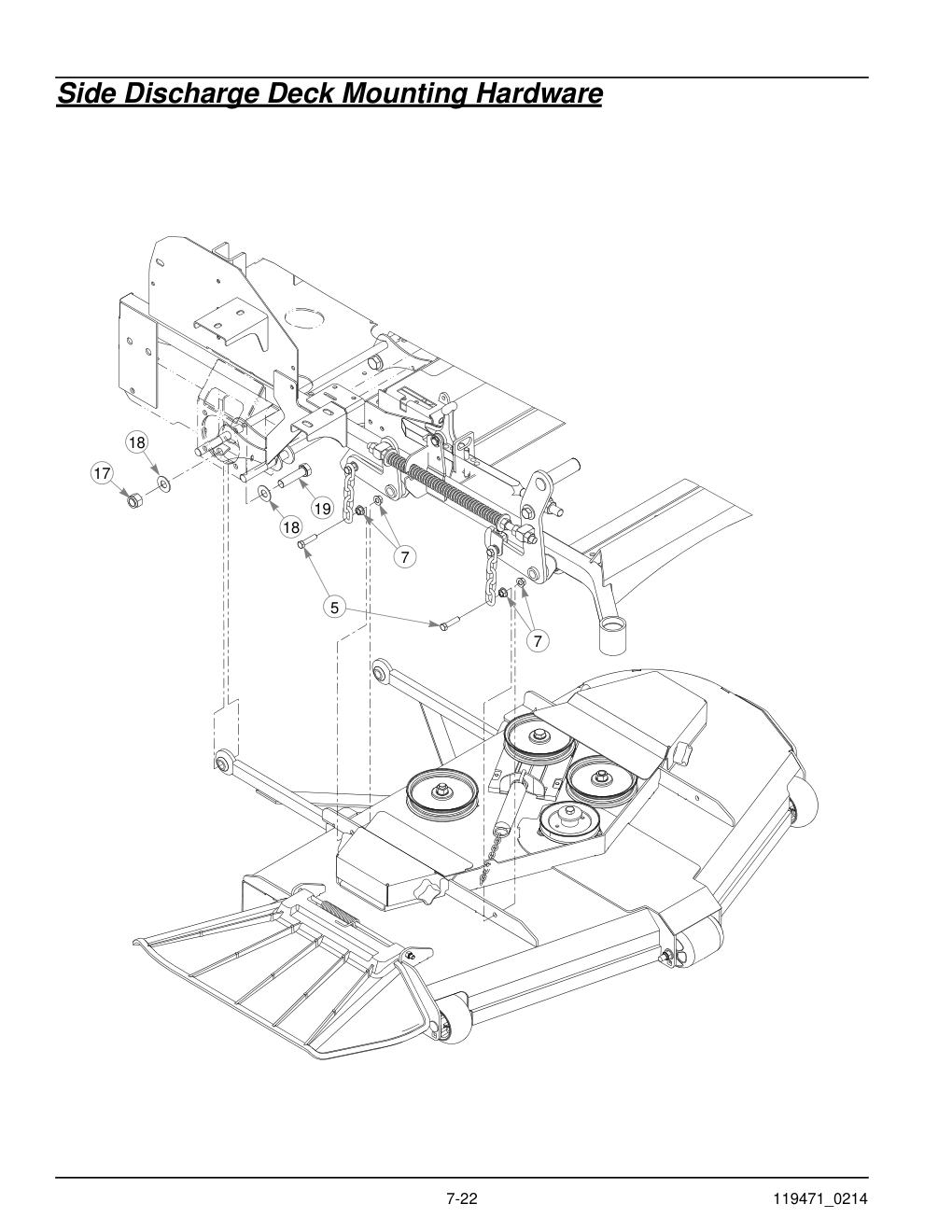

Side Discharge Deck Mounting Hardware
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 17 | NT .750-10 HX ZY NL | 061101 | 2 | HT061101-Online |
| 18 | FW .760 X 1.625 X .08 ZNYC | 025296 | 4 | HT025296-Online |
| 19 | CS .750-10 X 3.00 HX G5 | 051169 | 2 | 051169-Online |
54" Rear Discharge Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 54" RD DECK (WITH DECALS & HARDWARE) | 550934 | 1 | 550934-Online |
| 2 | CN .312-18 X .20 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | THROWN OBJECTS DECAL | 601892 | 2 | 601892-Online |
| 4 | RUBBER FLAP DECAL | 603391 | 2 | 603391-Online |
| 5 | RD DECK ROUTING DECAL | 796953 | 1 | 796953-Online |
| 6 | DECK DANGERS DECAL | 601837 | 2 | 601837-Online |
| 7 | 54" DECK ID DECAL | 799171 | 1 | 799171-Online |
54" Rear Discharge Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.50 HX G5 | 794446 | 1 | HT794446-Online |
| 2 | FW .625 X 1.00 X .134 ZNYC | 028118 | 7 | HT028118-Online |
| 3 | 6" HB IDLER PULLEY | 796714 | 5 | HT796714-Online |
| 4 | DECK IDLER SPACER | 600296 | 1 | HT600296-Online |
| 5 | IDLER ARM | 109948 | 1 | 109948-Online |
| 6 | NT .500-13 HX G8 ZY NL | 781567 | 1 | HT781567-Online |
| 7 | FW .531 X 1.063 X .090 SAE | 767962 | 13 | HT767962-Online |
| 8 | BUSHING | 770867 | 2 | HT770867-Online |
| 9 | BUSHING | 109549 | 1 | HT109549-Online |
| 10 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 11 | CHAIN | 259812 | 1 | HT259812-Online |
| 12 | NT .625-11 HX G5 ZNYC | 016972 | 4 | HT016972-Online |
| 13 | FW .500 X 1.25 X .075 ZNY | 704759 | 1 | 704759-Online |
| 14 | CS .312-18 X 1.50 FLT SH ZY | 797910 | 2 | HT797910-Online |
| 15 | IDLER GUIDE | 601779 | 1 | 601779-Online |
| 16 | CW .631 X 2.25 X .187 PNT | 782474 | 2 | HT782474-Online |
| 17 | CS .625-11 X 3.00 FULL HX G5 | 783738 | 2 | HT783738-Online |
| 18 | FW .343 X .687 X .051/.080H | 768523 | 1 | HT768523-Online |
| 19 | NT .312-18 HX ZY NL | 058776 | 1 | HT058776-Online |
| 20 | CS .500-13 X 1.00 HX G5 ZN | 016527 | 3 | 016527-Online |
| 21 | CW .515 X 2.25 X .204 BLK | 752386 | 3 | HT752386-Online |
| 22 | B-SEC 5.44 EOD PULLEY | 798967 | 3 | HT798967-Online |
| 23 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 24 | CS .500-13 X 1.25 HX G5 ZN | 705954 | 12 | HT705954-Online |
| 25 | BLADE SPINDLE CW | 604255 | 3 | 604255-Online |
| 26 | BLADE SPINDLE CCW | 604256 | 1 | 604256-Online |

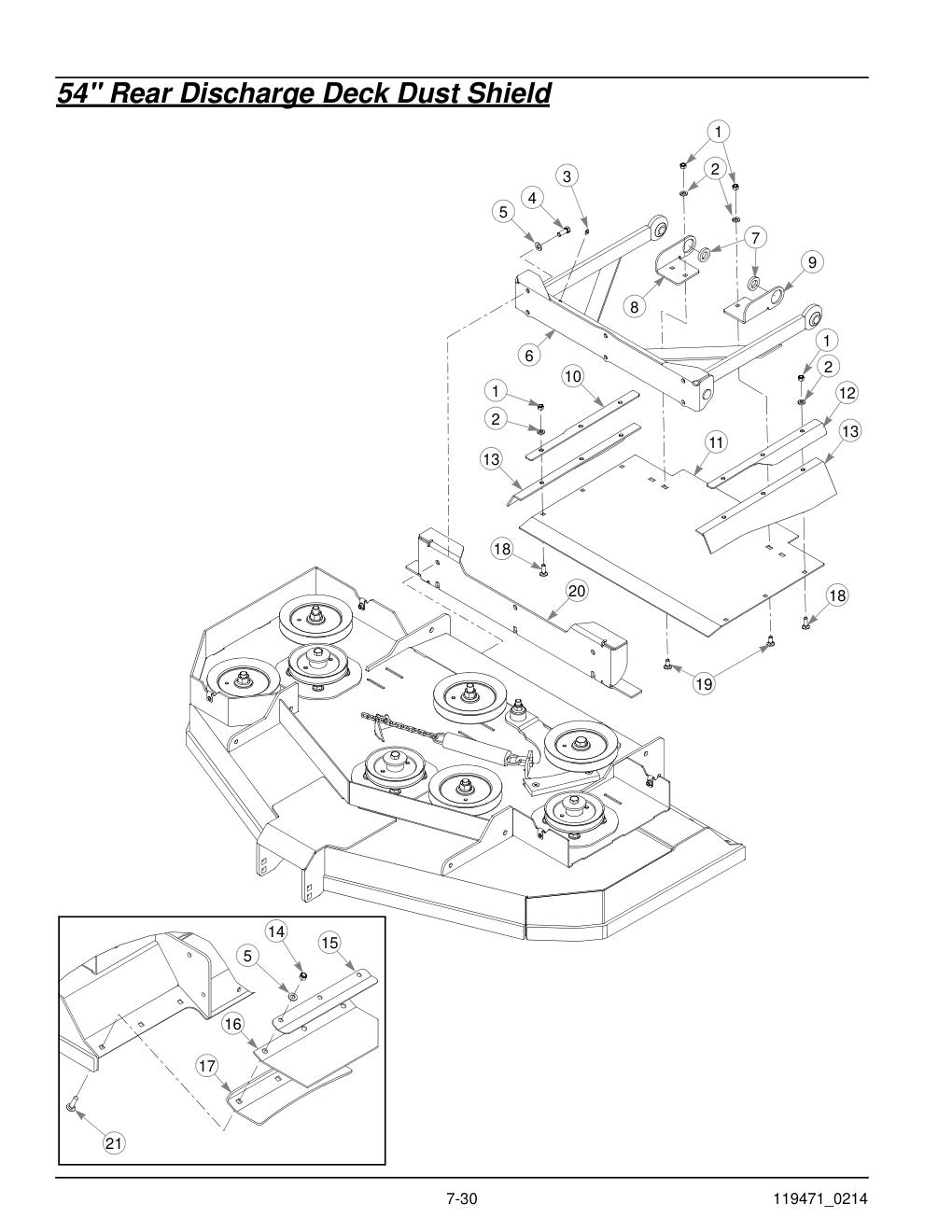

54" Rear Discharge Deck Dust Shield
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .312-18 HX ZY NL | 058776 | 10 | HT058776-Online |
| 2 | FW .343 X .687 X .051/.080H | 768523 | 10 | HT768523-Online |
| 3 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 4 | CS .375-16 X 1.00 HX G5 | 036244 | 6 | HT036244-Online |
| 5 | FW .406 X .812 X .060 SAE | 767954 | 12 | HT767954-Online |
| 6 | PUSHER | 113340 | 1 | 113340-Online |
| 7 | FW .781 X 1.375 X .250 ZNY | 778399 | 2 | 778399-Online |
| 8 | RS CHUTE BRACKET | 109482 | 1 | 109482-Online |
| 9 | LS CHUTE BRACKET | 109483 | 1 | 109483-Online |
| 10 | RS CLAMP ANGLE | 109487 | 1 | 109487-Online |
| 11 | DISCHARGE SHIELD | 113980 | 1 | 113980-Online |
| 12 | LS CLAMP ANGLE | 109486 | 1 | 109486-Online |
| 13 | RUBBER SIDE FLAP | 601483 | 2 | 601483-Online |
| 14 | NT .375-16 HX ZY NL | 086660 | 6 | HT086660-Online |
| 15 | RD DISCHARGE FLAP ANGLE | 107972 | 2 | 107972-Online |
| 16 | RD RUBBER DISCHARGE CHUTE | 601017 | 2 | 601017-Online |
| 17 | DECK STIFFENER ANGLE | 107973 | 2 | 107973-Online |
| 18 | CB .312-18 X 1.00 FULL ZN | 037887 | 6 | HT037887-Online |
| 19 | CB .312-18 X .75 FUL ZN | 016253 | 4 | 016253-Online |
| 20 | REAR DECK STOP | 114522 | 1 | 114522-Online |
| 21 | CB .375-16 X 1.50 STD G5 | 710194 | 6 | 710194-Online |
60" Rear Discharge Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 60" RD DECK (WITH DECALS & HARDWARE) | 550935 | 1 | 550935-Online |
| 2 | CN .312-18 X .20 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | 2 BELT ROUTING DECAL | 603349 | 1 | 603349-Online |
| 4 | DECK DANGERS DECAL | 601837 | 2 | 601837-Online |
| 5 | THROWN OBJECTS DECAL | 601892 | 2 | 601892-Online |
| 6 | RUBBER FLAP DECAL | 603391 | 2 | 603391-Online |
| 7 | 60" DECK DECAL | 786277 | 1 | 786277-Online |
| 8 | 5/16-18 THREAD HEX RIVET NUT | 792887 | 1 | 792887-Online |
60" Rear Discharge Pulleys
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 2.50 HX G5 | 025015 | 1 | HT025015-Online |
| 2 | FW .625 X 1.00 X .134 ZNYC | 028118 | 12 | HT028118-Online |
| 3 | BELT GUIDE | 113088 | 1 | 113088-Online |
| 4 | DECK IDLER SPACER 1/2" LG | 603256 | 1 | 603256-Online |
| 5 | IDLER DUST SHIELD SM | 602935 | 2 | 602935-Online |
| 6 | IDLER 6.0" RIVETED | 602821 | 2 | 602821-Online |
| 7 | RD DECK IDLER ARM | 114133 | 1 | 114133-Online |
| 8 | CS .312-18 X 1.50 FLT SH ZY | 797910 | 2 | HT797910-Online |
| 9 | IDLER GUIDE | 601779 | 1 | 601779-Online |
| 10 | CS .625-11 X 1.50 HX G5 | 794446 | 1 | HT794446-Online |
| 11 | DUST SHIELD WITH OFFSET | 603057 | 4 | 603057-Online |
| 12 | PULLEY V-IDLER HBB 5.0" | 602672 | 2 | 602672-Online |
| 13 | CHAIN | 373191 | 2 | HT373191-Online |
| 14 | NT .500-13 HX G8 ZY NL | 781567 | 1 | HT781567-Online |
| 15 | FW .531 X 1.063 X .090 SAE | 767962 | 13 | HT767962-Online |
| 16 | BUSHING | 770867 | 2 | HT770867-Online |
| 17 | BUSHING | 109549 | 1 | HT109549-Online |
| 18 | TENSION SPRING | 781302 | 2 | 781302-Online |
| 19 | FW .500 X 1.25 X .075 ZNY | 704759 | 1 | 704759-Online |
| 20 | CS .312-18 X 1.25 FLT SH | 784199 | 4 | HT784199-Online |
| 21 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 22 | IDLER DUST SHIELD LG | 602963 | 1 | 602963-Online |
| 23 | IDLER 8.0" RIVETED | 602838 | 1 | 602838-Online |
| 24 | IDLER SLIDE | 114105 | 1 | 114105-Online |
| 25 | IDLER SLIDE UHMW | 601619 | 2 | 601619-Online |
| 26 | CS .625-11 X 2.00 HX G5 Z | 016642 | 3 | 016642-Online |
| 27 | 6" HB IDLER PULLEY | 796714 | 2 | HT796714-Online |
| 28 | FW .343 X .687 X .051/.080H | 768523 | 6 | HT768523-Online |
| 29 | NT .312-18 HX ZY NL | 058776 | 6 | HT058776-Online |
| 30 | CW .631 X 2.25 X .187 PNT | 782474 | 1 | HT782474-Online |
| 31 | CS .625-11 X 3.00 FULL HX G5 | 783738 | 1 | HT783738-Online |
60" Rear Discharge Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 32 | CS .500-13 X 1.25 HX G5 ZN | 705954 | 1 | HT705954-Online |
| 33 | CS .500-13 X 1.75 HX G5 | 017616 | 2 | HT017616-Online |
| 34 | CW .515 X 2.25 X .204 BLK | 752386 | 3 | HT752386-Online |
| 35 | DECK DRIVE PULLEY | 770842 | 2 | HT770842-Online |
| 36 | DOUBLE PULLEY 6.00 EFF | 524785 | 1 | HT524785-Online |
| 37 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 38 | FW 1.030 X 1.50 X .134 ZN | 045765 | 2 | HT045765-Online |
| 39 | CS .500-13 X 1.00 HX G5 ZN | 016527 | 12 | 016527-Online |
| 40 | SPACER | 114108 | 1 | 114108-Online |
| 41 | BLADE SPINDLE CCW | 604256 | 1 | 604256-Online |
| 42 | BLADE SPINDLE CW | 604255 | 3 | 604255-Online |
60" Rear Discharge Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER (WITH DECALS) | 550939 | 1 | 550939-Online |
| 2 | DECK DANGERS DECAL | 601837 | 1 | 601837-Online |
| 3 | KNOB 5/16-18 X 3/4" | 792002 | 5 | HT792002-Online |
| 4 | CENTER PULLEY COVER | 114209 | 1 | 114209-Online |
| 5 | LS PULLEY COVER | 114210 | 1 | 114210-Online |
| 6 | BELT, B 138.25" EL | 784322 | 1 | 784322-Online |
| 7 | BELT, BB-SECTION | 603397 | 1 | 603397-Online |
| 8 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |
| 9 | FW .531 X 1.063 X .090 SAE | 767962 | 3 | HT767962-Online |
| 10 | NT .500-13 NL G5 | 781567 | 3 | HT781567-Online |
| 11 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 12 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 13 | CB .500-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 14 | PLASTIC WHEEL | 602341 | 1 | 602341-Online |
| 15 | SPACER 5.73 | 602344 | 1 | 602344-Online |
60" Rear Discharge Dust Shield
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .312-18 HX ZY NL | 058776 | 10 | HT058776-Online |
| 2 | FW .343 X .687 X .051/.080H | 768523 | 10 | HT768523-Online |
| 3 | FW .781 X 1.375 X .250 ZNY | 778399 | 2 | 778399-Online |
| 4 | LS CHUTE BRACKET | 109483 | 1 | 109483-Online |
| 5 | RS CHUTE BRACKET | 109482 | 1 | 109482-Online |
| 6 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 7 | CS .375-16 X 1.00 HX G5 | 036244 | 6 | HT036244-Online |
| 8 | FW .406 X .812 X .060 SAE | 767954 | 12 | HT767954-Online |
| 9 | PUSHER | 113340 | 1 | 113340-Online |
| 10 | RS CLAMP ANGLE | 109487 | 1 | 109487-Online |
| 11 | RUBBER SIDE FLAP | 601483 | 2 | 601483-Online |
| 12 | DUST SHIELD | 114439 | 1 | 114439-Online |
| 13 | LS CLAMP ANGLE | 109486 | 1 | 109486-Online |
| 14 | CB .312-18 X 1.00 FULL ZN | 037887 | 6 | HT037887-Online |
| 15 | CB .312-18 X .75 FUL ZN | 016253 | 4 | 016253-Online |
| 16 | REAR DECK STOP | 114522 | 1 | 114522-Online |
| 17 | NT .375-16 HX ZY NL | 086660 | 6 | HT086660-Online |
| 18 | DISCHARGE CHUTE ANGLE | 106716 | 2 | 106716-Online |
| 19 | RD REAR FLAP | 600254 | 2 | 600254-Online |
| 20 | DECK STIFFENER ANGLE | 351676 | 2 | 351676-Online |
| 21 | CB .375-16 X 1.50 STD G5 | 710194 | 6 | 710194-Online |
60" Rear Discharge Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER (WITH DECALS) | 550939 | 1 | 550939-Online |
| 2 | DECK DANGERS DECAL | 601837 | 1 | 601837-Online |
| 3 | KNOB 5/16-18 X 3/4" | 792002 | 5 | HT792002-Online |
| 4 | CENTER PULLEY COVER | 114209 | 1 | 114209-Online |
| 5 | LS PULLEY COVER | 114210 | 1 | 114210-Online |
| 6 | BELT, B 138.25" EL | 784322 | 1 | 784322-Online |
| 7 | BELT, BB-SECTION | 603397 | 1 | 603397-Online |
| 8 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |
| 9 | FW .531 X 1.063 X .090 SAE | 767962 | 3 | HT767962-Online |
| 10 | NT .500-13 NL G5 | 781567 | 3 | HT781567-Online |
| 11 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 12 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 13 | CB .500-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 14 | PLASTIC WHEEL | 602341 | 1 | 602341-Online |
| 15 | SPACER 5.73 | 602344 | 1 | 602344-Online |
Rear Discharge Deck Lift
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECK HEIGHT PIN | 600437 | 1 | 600437-Online |
| 2 | STOP HANDLE | 348318 | 1 | HT348318-Online |
| 3 | DECK LIFT INDICATOR | 602898 | 1 | 602898-Online |
| 4 | E CLIP 1.00 X .625 X .05 | 781294 | 6 | HT781294-Online |
| 5 | CE .750 X 2.25 X 1.75 HEAD | 781229 | 1 | 781229-Online |
| 6 | DECK LIFT SPRING | 782995 | 2 | HT782995-Online |
| 7 | CS .437-14 X 1.75 HX G5 | 055749 | 7 | HT055749-Online |
| 8 | DECK LIFT CHAIN | 348391 | 4 | HT348391-Online |
| 9 | NT .437-14 HX FLG ZN | 704643 | 16 | HT704643-Online |
| 10 | GREASE FITTING STRAIGHT | 015495 | 4 | HT015495-Online |
| 11 | CS .312-18 X 1.50 FLTHR HX | 756270 | 1 | 756270-Online |
| 12 | NT .312-18 HX G5 ZNYC | 034272 | 1 | HT034272-Online |
| 13 | FW .625 X 1.50 X .105 ZN | 704783 | 1 | 704783-Online |
| 14 | CS .625-11 X 1.25 HX G5 Z | 781872 | 1 | HT781872-Online |
| 15 | DECK LEVELER YOKE | 348458 | 1 | HT348458-Online |
| 16 | CS .437-14 X 1.75 FULTH | 781831 | 1 | HT781831-Online |
Rear Discharge Deck Mounting Hardware
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 17 | FW .760 X 1.625 X .08 ZNYC | 025296 | 4 | HT025296-Online |
| 18 | NT .750-10 HX ZY NL | 061101 | 2 | HT061101-Online |
| 19 | CS .750-10 X 3.50 HX G5 | 789115 | 2 | 789115-Online |
Seat, Suspension
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SUSPENSION SEAT | 792051 | 1 | 792051-Online |
| 2 | SEAT BELT | 601444 | 1 | 601444-Online |
| 3 | CS .437-20 X 1.00 HX G8 ZNYC | 797076 | 2 | 797076-Online |
| 4 | FW .440 X 1.00 X .083 ZNY | 017129 | 2 | 017129-Online |
| 5 | SEAT LATCH | 113393 | 1 | 113393-Online |
| 6 | TORSION SPRING | 783910 | 1 | HT783910-Online |
| 7 | BATTERY WARNINGS DECAL | 601815 | 1 | 601815-Online |
| 8 | FW .406 X .812 X .060 SAE | 767954 | 13 | HT767954-Online |
| 9 | NT .375-16 NL G5 | 086660 | 4 | HT086660-Online |
| 10 | SB .375 X .375 SH .312-18 | 754358 | 1 | 754358-Online |
| 11 | NT .312-18 HX NL G5 | 058776 | 5 | HT058776-Online |
| 12 | WIRE TIE | 000331 | 2 | 000331-Online |
| 13 | SEAT PAN (WITH DECALS) | 550741 | 1 | 550741-Online |
| 14 | ARMREST WARNING DECAL | 785188 | 1 | 785188-Online |
| 15 | FW .344 X 1.00 X .12 HRD Z | 712927 | 4 | HT712927-Online |
| 16 | FIBER WASHER | 724716 | 1 | 724716-Online |
| 17 | SEAT PAN STOP | 350421 | 1 | 350421-Online |
| 18 | CS .375-16 X 1.00 HX G5 | 036244 | 5 | HT036244-Online |
| 19 | HYDRAULIC PRESSURE DECAL | 601968 | 1 | 601968-Online |
| 20 | VIBRATION MOUNT | 601650 | 2 | 601650-Online |
| 21 | SEAT SUPPORT ANGLE (WITH DECALS) | 552386 | 1 | 552386-Online |
| 22 | ENGINE COMPARTMENT DECAL | 601967 | 1 | 601967-Online |
| 23 | FUEL INDICATOR DECAL | 791848 | 1 | 791848-Online |
| 24 | LS FRAME COVER (WITH DECALS) | 550766 | 1 | 550766-Online |
| 25 | PUMP BELT WARNING DECAL | 600899 | 1 | 600899-Online |
| 26 | CN .312-18 X .20 MAX THK | 601069 | 5 | HT601069-Online |
| 27 | LS STEERING DECAL | 785139 | 1 | 785139-Online |
| 28 | NT .375-16 HX G5 ZNY | 054502 | 2 | HT054502-Online |
| 29 | HOT & HYD OIL DECAL | 779280 | 1 | 779280-Online |
| 30 | RS FRAME COVER (WITH DECAL) | 550765 | 1 | 550765-Online |
| 31 | RS STEERING DECAL | 785220 | 1 | 785220-Online |
| 32 | FW .343 X .687 X .051/.080H | 768523 | 5 | HT768523-Online |
| 33 | CS .312-18 X .75 HX G5 | 034280 | 5 | HT034280-Online |
| 34 | CS .375-16 X 1.25 HX G5 | 052860 | 2 | HT052860-Online |
| 35 | BUMPER | 781880 | 5 | HT781880-Online |
| 36 | FLOOR PLATE | 113234 | 1 | 113234-Online |
Seat, Super Deluxe
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SUPER DELUXE SEAT | 602966 | 1 | 602966-Online |
| 2 | SEAT LATCH | 113393 | 1 | 113393-Online |
| 3 | TORSION SPRING | 783910 | 1 | HT783910-Online |
| 4 | CB .312-18 X .75 FUL ZN | 016253 | 2 | 016253-Online |
| 5 | SEAT STOP | 113713 | 1 | 113713-Online |
| 6 | BATTERY WARNINGS DECAL | 601815 | 1 | 601815-Online |
| 7 | FW .406 X .812 X .060 SAE | 767954 | 13 | HT767954-Online |
| 8 | NT .375-16 HX ZY NL | 086660 | 4 | HT086660-Online |
| 9 | FW .343 X .687 X .051/.080H | 768523 | 7 | HT768523-Online |
| 10 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 11 | SB .375 X .375 SH .312-18 | 754358 | 1 | 754358-Online |
| 12 | NT .312-18 HX ZY NL | 058776 | 5 | HT058776-Online |
| 13 | WIRE TIE | 000331 | 2 | 000331-Online |
| 14 | SEAT PAN (WITH DECALS) | 550741 | 1 | 550741-Online |
| 15 | ARMREST WARNING DECAL | 785188 | 1 | 785188-Online |
| 16 | FW .344 X 1.00 X .12 HRD Z | 712927 | 4 | HT712927-Online |
| 17 | FIBER WASHER | 724716 | 1 | 724716-Online |
| 18 | SEAT PAN STOP | 350421 | 1 | 350421-Online |
| 19 | CS .375-16 X 1.00 HX G5 | 036244 | 5 | HT036244-Online |
| 20 | HYDRAULIC PRESSURE DECAL | 601968 | 1 | 601968-Online |
| 21 | SEAT SUPPORT ANGLE (WITH DECALS) | 552386 | 1 | 552386-Online |
| 22 | VIBRATION MOUNT | 601650 | 2 | 601650-Online |
| 23 | HOT & HYD OIL DECAL | 779280 | 1 | 779280-Online |
| 24 | FUEL INDICATOR DECAL | 791848 | 1 | 791848-Online |
| 25 | ENGINE COMPARTMENT DECAL | 601967 | 1 | 601967-Online |
| 26 | LS FRAME COVER (WITH DECALS) | 550766 | 1 | 550766-Online |
| 27 | PUMP BELT WARNING DECAL | 600899 | 1 | 600899-Online |
| 28 | CN .312-18 X .20 MAX THK | 601069 | 5 | HT601069-Online |
| 29 | NT .375-16 HX G5 ZNY | 054502 | 2 | HT054502-Online |
| 30 | LS STEERING DECAL | 785139 | 1 | 785139-Online |
| 31 | RS FRAME COVER (WITH DECAL) | 550765 | 1 | 550765-Online |
| 32 | RS STEERING DECAL | 785220 | 1 | 785220-Online |
| 33 | CS .312-18 X 1.00 HX G5 | 036236 | 5 | 036236-Online |
| 34 | CS .375-16 X 1.25 HX G5 ZN | 052860 | 2 | HT052860-Online |
| 35 | BUMPER | 781880 | 5 | HT781880-Online |
| 36 | FLOOR PLATE | 113234 | 1 | 113234-Online |

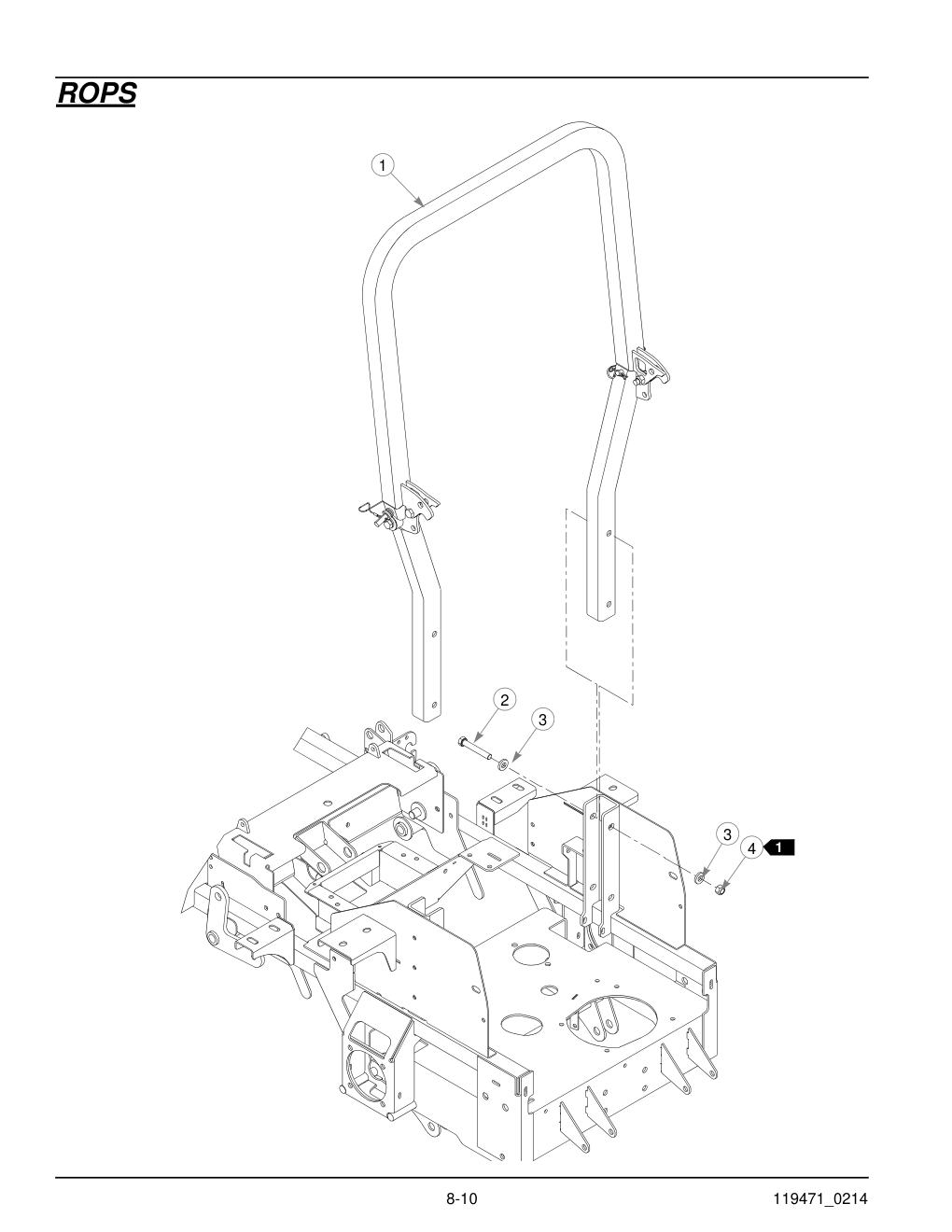

ROPS
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | ROPS ASSEMBLY | 604890 | 1 | 604890-Online |
| 2 | CS .500-13 X 3.25 HX G5 | 077859 | 4 | 077859-Online |
| 3 | FW .531 X 1.063 X .090 SAE | 767962 | 8 | HT767962-Online |
| 4 | NT .500-13 UNT LK G8 ZN | 023317 | 4 | 023317-Online |
