Echo SRM-4510 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: SRM-4510-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.

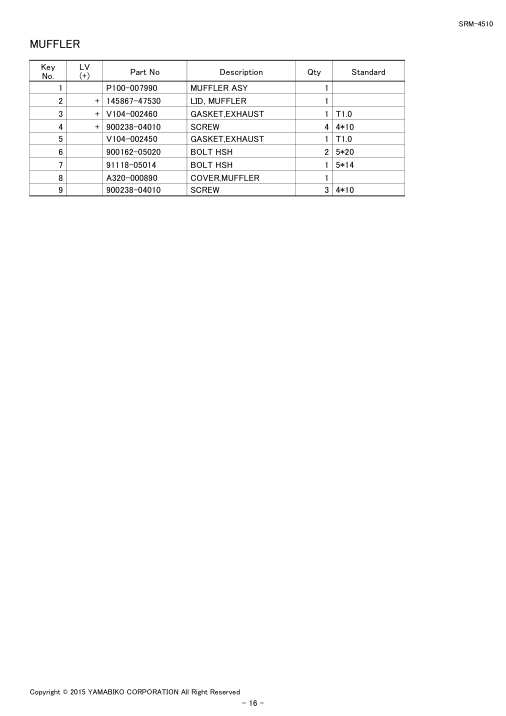

Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.
Page 23
Tap or click the page image to enlarge it.
Page 24
Tap or click the page image to enlarge it.
Page 25
Tap or click the page image to enlarge it.
Page 26
Tap or click the page image to enlarge it.
Page 27
Tap or click the page image to enlarge it.
Page 28
Tap or click the page image to enlarge it.
Page 29
Tap or click the page image to enlarge it.
Page 30
Tap or click the page image to enlarge it.
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Crankshaft,Asy | A011-001590 | A011-001590-Online | |||
| 2 | Cylinder | 101011-47530 | 101011-47530-Online | |||
| 3 | Gasket, Cyl. Base | 101010-42231 | 101010-42231-Online | |||
| 4 | Piston Kit | P100-007980 | P100-007980-Online | 1 | 5 | + V307-000050 | WASHER,CIRCULAR 10 | ||
| 10 | Cover, Cylinder (Bs) | 101514-42230 | 101514-42230-Online | |||
| 11 | Screw | 900238-05010 | 900238-05010-Online | 1 5*10 | ||
| 12 | Bolt Hsh | 900162-05020 | 900162-05020-Online | 4 5*20 | ||
| 13 | Guard,Top | A162-000260 | A162-000260-Online | |||
| 14 | Screw | 900238-05014 | 900238-05014-Online | 3 5*14 | CYLINDER, PISTON, CRANKSHAFT | SRM-4510 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Crankcase Set | P100-007970 | P100-007970-Online | 1 | 2 | + V508-000120 | SEAL,OIL 15 | ||
| 9 | Lead, Ground | 156635-43130 | 156635-43130-Online | |||
| 10 | Screw | 900238-05010 | 900238-05010-Online | 1 5*10 | CRANKCASE | SRM-4510 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Rotor, Magneto | A409-001380 | A409-001380-Online | 1 EMG-29 | ||
| 2 | Coil, Ignition | A411-001880 | A411-001880-Online | 1 EMG-52B | ||
| 3 | Nut | 900503-00010 | 900503-00010-Online | 1 10 P1.25 | ||
| 4 | Washer | 900600-00010 | 900600-00010-Online | 1 10 | ||
| 5 | Washer, Spring | 900605-00010 | 900605-00010-Online | 1 10 | ||
| 6 | Screw | 900238-05020 | 900238-05020-Online | 2 5*20 | ||
| 7 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 8 | Plug, Spark (Bpm-7A) | 159010-10630 | 159010-10630-Online | 1 BPM-7A | ||
| 9 | Cap, Spark Plug | 159012-01620 | 159012-01620-Online | |||
| 10 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | |||
| 11 | Lead | 162021-42230 | 162021-42230-Online | |||
| 12 | Grommet | 156112-40630 | 156112-40630-Online | 1 | MAGNETO | SRM-4510 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Clutch Shoe Set | P021-051120 | P021-051120-Online | |||
| 2 | Shaft,Clutch | A557-000000 | A557-000000-Online | |||
| 3 | Spring, Clutch | A566-000260 | A566-000260-Online | 1 3.2 361N | ||
| 4 | Washer,Wave | V346-000000 | V346-000000-Online | |||
| 5 | Washer | 175049-03920 | 175049-03920-Online | |||
| 6 | Cover,Fan | A172-003530 | A172-003530-Online | |||
| 7 | Label,Echo | X547-003540 | X547-003540-Online | 1 ECHO+ | SRM-4510 | ||
| 8 | Label,Caution | X505-007710 | X505-007710-Online | |||
| 9 | Bolt Hsh | 91118-05025 | 91118-05025-Online | 4 5*25 | ||
| 10 | Case,Clutch Asy | P100-008630 | P100-008630-Online | 1 | 11 | + P022-055250 | CLUTCH CASE | ||
| 16 | Fixture, Main Pipe | P022-055260 | P022-055260-Online | |||
| 17 | Cushion | P022-055270 | P022-055270-Online | |||
| 18 | Bolt | P022-055290 | P022-055290-Online | 1 5*12 | ||
| 19 | Bolt | P022-055080 | P022-055080-Online | 1 6*30 | ||
| 20 | Bolt | P022-055340 | P022-055340-Online | 1 6*30 | ||
| 21 | Circlip | P022-055310 | P022-055310-Online | 1 45 | CLUTCH | SRM-4510 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Carburetor, | A021-004980 | A021-004980-Online | DIAPHRAGM | 1 HR02-2B01-0000 | ||
| 2 | Gasket,Intake | V103-002090 | V103-002090-Online | 1 15.5/T:0.5 | ||
| 3 | Insulator, Intake | A200-001230 | A200-001230-Online | 1 PM-9685Yｸﾛ | ||
| 4 | Bolt Hsh | 900162-05025 | 900162-05025-Online | 2 5*25 | ||
| 5 | Gasket, Intake | 130016-42231 | 130016-42231-Online | |||
| 6 | Case,Cleaner Asy | P021-036950 | P021-036950-Online | |||
| 7 | Plate, Prevent | A244-000380 | A244-000380-Online | 1 M5X0.8 P付き | ||
| 8 | Screw | 900242-05064 | 900242-05064-Online | 2 5*64 | ||
| 9 | Element, Air Filter | A226-002280 | A226-002280-Online | 1 5000MF | ||
| 10 | Cleaner Cover Asy | P100-008010 | P100-008010-Online | 1 | 11 | + V299-000520 | KNOB,FASTENER | ||
| 12 | Label, Choke | 890332-52730 | 890332-52730-Online | 1 | AIR CLEANER, CARBURETOR | SRM-4510 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Carburetor, | A021-004980 | A021-004980-Online | DIAPHRAGM | 1 HR02-2B01-0000 | 2 | + P006-000290 |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Tank, Fuel | A350-002680 | A350-002680-Online | |||
| 2 | Cushion | 131924-43130 | 131924-43130-Online | |||
| 3 | Bracket,Fueltank(Bl) | 131910-43130 | 131910-43130-Online | |||
| 4 | Bolt Hsh | 91118-05014 | 91118-05014-Online | 2 5*14 | ||
| 5 | Cushion | 131923-11120 | 131923-11120-Online | |||
| 6 | Cap,Fuel Asy | P100-006640 | P100-006640-Online | 1 | 7 | + V107-000190 | GASKET,FUEL CAP | ||
| 9 | Grommet, Fuel | 132115-55931 | 132115-55931-Online | 1 3 φ5 | ||
| 10 | Pipe | V471-005421 | V471-005421-Online | 1 3*6*30 | ||
| 11 | Pipe | 132012-56030 | 132012-56030-Online | 1 3*6*80 YL | ||
| 12 | Pipe | V471-001231 | V471-001231-Online | 1 3*5*210 | ||
| 13 | Vent Assembly, Fuel | 131300-56431 | 131300-56431-Online | |||
| 14 | Clip | V490-001230 | V490-001230-Online | |||
| 15 | Cover, Vent | 131328-40630 | 131328-40630-Online | |||
| 16 | Strainer, Fuel | A369-000450 | A369-000450-Online | |||
| 17 | Clip | V490-001240 | V490-001240-Online | 1 | FUEL TANK | SRM-4510 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Muffler Asy | P100-007990 | P100-007990-Online | 1 | 2 | + 145867-47530 | LID, MUFFLER | ||
| 5 | Gasket,Exhaust | V104-002450 | V104-002450-Online | 1 T1.0 | ||
| 6 | Bolt Hsh | 900162-05020 | 900162-05020-Online | 2 5*20 | ||
| 7 | Bolt Hsh | 91118-05014 | 91118-05014-Online | 1 5*14 | ||
| 8 | Cover,Muffler | A320-000890 | A320-000890-Online | |||
| 9 | Screw | 900238-04010 | 900238-04010-Online | 3 4*10 | MUFFLER | SRM-4510 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Starter,Recoil | A051-000160 | A051-000160-Online | 1 | 2 | + P022-047670 | CASE, STARTER | ||
| 10 | Starter Pully Assy | A052-000370 | A052-000370-Online | 1 | 11 | + A514-000080 | RATCHET | ||
| 14 | Bolt Hsh | 91118-04020 | 91118-04020-Online | 4 4*20 | ||
| 15 | Label,Echo | X502-000780 | X502-000780-Online | |||
| 16 | Nut | 900502-00008 | 900502-00008-Online | 1 8 | RECOIL STARTER, PULLY | SRM-4510 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 22 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Gear Case Asy | P022-055470 | P022-055470-Online | 1 | 2 | + P002-000000 | CASE,GEAR | ||
| 22 | Shield,Asm Blade | C055-000090 | C055-000090-Online | 1 | 23 | + P022-055400 | SHIELD,BLADE |
Page 24 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Handle Asy | P100-003860 | P100-003860-Online | 1 | 2 | + C403-000031 | GRIP,HANDLE | ||
| 3 | Main Pipe Asy | P100-008590 | P100-008590-Online | 1 | 4 | + P022-055120 | LABEL, CAUTION | ||
| 5 | Shaft, Drive | P022-055110 | P022-055110-Online | |||
| 6 | Clip | P022-055320 | P022-055320-Online | |||
| 7 | Fixture,Asy Handle | P022-055180 | P022-055180-Online | 1 | 8 | + P022-055210 | FIXTURE,HANDLE | ||
| 13 | Hook Asy | P022-055130 | P022-055130-Online | 1 | 14 | + P022-055140 | HOOK,LIFTING |
Page 26 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Throttle Asy | P100-008620 | P100-008620-Online | 1 | 2 | + C450-000270 | CONTROL, THROTTLE | ||
| 11 | Cable,Bowden | V430-005260 | V430-005260-Online | 1 OUT:980,IN:87 | ||
| 12 | Nut | 900502-00006 | 900502-00006-Online | 2 6 | ||
| 13 | Tube | V475-007760 | V475-007760-Online | 1 7*860 | ||
| 14 | Clip | 159112-09961 | 159112-09961-Online | 1 | THROTTLE | SRM-4510 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 28 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Goggle | X690-000080 | X690-000080-Online | 1 SI CHINA, Z87.1 | ||
| 2 | Harness, Shoulder | C062-000710 | C062-000710-Online | |||
| 3 | Tool,Wrench | P022-055350 | P022-055350-Online | 1 17*19 | ||
| 4 | Tool,Bar | P022-055390 | P022-055390-Online | 1 5 | ||
| 5 | Tool,Spanner | P022-055360 | P022-055360-Online | 1 8*10 | ||
| 6 | Tool,L Wrench | P022-055370 | P022-055370-Online | 1 M4,23-67 | ||
| 7 | Tool,L Wrench | P022-055380 | P022-055380-Online | 1 M5,25-77 | ACCESSORIES | SRM-4510 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 29 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | Pin, Piston | 100013-00410 | 100013-00410-Online | |||
| 2 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 6 | Gasket, Cyl. Base | 101010-42231 | 101010-42231-Online | |||
| 2 | Cylinder | 101011-47530 | 101011-47530-Online | |||
| 2 | Cover, Cylinder (Bs) | 101514-42230 | 101514-42230-Online | |||
| 2 | Gasket, Intake | 130016-42231 | 130016-42231-Online | |||
| 10 | Clip, Fuel Cap | 131051-56030 | 131051-56030-Online | |||
| 14 | Vent Assembly, Fuel | 131300-56431 | 131300-56431-Online | |||
| 14 | Cover, Vent | 131328-40630 | 131328-40630-Online | |||
| 14 | Bracket,Fueltank(Bl) | 131910-43130 | 131910-43130-Online | |||
| 14 | Cushion | 131923-11120 | 131923-11120-Online | |||
| 14 | Cushion | 131924-43130 | 131924-43130-Online | |||
| 14 | Pipe | 132012-56030 | 132012-56030-Online | |||
| 14 | Grommet, Fuel | 132115-55931 | 132115-55931-Online | |||
| 14 | Lid, Muffler | 145867-47530 | 145867-47530-Online | |||
| 16 | Grommet | 156112-40630 | 156112-40630-Online | |||
| 6 | Lead, Ground | 156635-43130 | 156635-43130-Online | |||
| 4 | Plug, Spark (Bpm-7A) | 159010-10630 | 159010-10630-Online | |||
| 6 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | |||
| 6 | Cap, Spark Plug | 159012-01620 | 159012-01620-Online | |||
| 6 | Clip | 159112-09961 | 159112-09961-Online | |||
| 24 | Lead | 162021-42230 | 162021-42230-Online | |||
| 6 | Washer | 175049-03920 | 175049-03920-Online | |||
| 8 | Washer | 177214-41030 | 177214-41030-Online | |||
| 18 | Drum, Starter | 177215-43130 | 177215-43130-Online | |||
| 18 | Spring, Rewind | 177220-40630 | 177220-40630-Online | |||
| 18 | Rope, Starter | 177226-01110 | 177226-01110-Online | |||
| 18 | Grip, Starter | 177228-11120 | 177228-11120-Online | |||
| 18 | Screw | 177236-40630 | 177236-40630-Online | |||
| 18 | Label, Choke | 890332-52730 | 890332-52730-Online | |||
| 10 | Bolt Hsh | 900162-05020 | 900162-05020-Online | |||
| 2 | Bolt Hsh | 900162-05020 | 900162-05020-Online | |||
| 16 | Bolt Hsh | 900162-05025 | 900162-05025-Online | |||
| 10 | Bolt Hsh | 900162-05030 | 900162-05030-Online | |||
| 4 | Screw | 900238-04010 | 900238-04010-Online | |||
| 16 | Screw | 900238-05010 | 900238-05010-Online | |||
| 2 | Screw | 900238-05010 | 900238-05010-Online | |||
| 4 | Screw | 900238-05014 | 900238-05014-Online | |||
| 2 | Screw | 900238-05020 | 900238-05020-Online | |||
| 6 | Screw | 900242-05064 | 900242-05064-Online | |||
| 10 | Screw, Tapping | 900256-04016 | 900256-04016-Online | |||
| 24 | Nut | 900502-00008 | 900502-00008-Online | 18 | Part No | Part descrition | Page | ||
| 6 | Washer | 900600-00010 | 900600-00010-Online | |||
| 6 | Washer, Spring | 900605-00010 | 900605-00010-Online | |||
| 6 | Retaining Ring, | 900702-00035 | 900702-00035-Online | INTERNAL | ||
| 4 | Bearing, Ball | 900800-06001 | 900800-06001-Online | |||
| 20 | Bearing, Ball | 900803-06001 | 900803-06001-Online | |||
| 20 | Bolt Hsh | 91118-04020 | 91118-04020-Online | |||
| 18 | Bolt Hsh | 91118-05014 | 91118-05014-Online | |||
| 14 | Bolt Hsh | 91118-05014 | 91118-05014-Online | |||
| 16 | Bolt Hsh | 91118-05025 | 91118-05025-Online | |||
| 8 | Bolt Hsh | 91119-05030 | 91119-05030-Online | |||
| 24 | Bearing, Ball | 94095-36201 | 94095-36201-Online | |||
| 4 | Bearing, Ball | 94095-36202 | 94095-36202-Online | |||
| 4 | Crankshaft,Asy | A011-001590 | A011-001590-Online | |||
| 2 | Carburetor, | A021-004980 | A021-004980-Online | DIAPHRAGM | ||
| 10 | Carburetor, | A021-004980 | A021-004980-Online | DIAPHRAGM | ||
| 12 | Starter,Recoil | A051-000160 | A051-000160-Online | |||
| 18 | Starter Pully Assy | A052-000370 | A052-000370-Online | |||
| 18 | Ring, Piston | A101-000760 | A101-000760-Online | |||
| 2 | Guard,Top | A162-000260 | A162-000260-Online | |||
| 2 | Cover,Fan | A172-003530 | A172-003530-Online | |||
| 8 | Insulator, Intake | A200-001230 | A200-001230-Online | |||
| 10 | Element, Air Filter | A226-002280 | A226-002280-Online | |||
| 10 | Plate, Prevent | A244-000380 | A244-000380-Online | |||
| 10 | Cover,Muffler | A320-000890 | A320-000890-Online | |||
| 16 | Tank, Fuel | A350-002680 | A350-002680-Online | |||
| 14 | Strainer, Fuel | A369-000450 | A369-000450-Online | |||
| 14 | Rotor, Magneto | A409-001380 | A409-001380-Online | |||
| 6 | Coil, Ignition | A411-001880 | A411-001880-Online | |||
| 6 | Switch, On Off | A440-003110 | A440-003110-Online | |||
| 24 | Ratchet | A514-000080 | A514-000080-Online | |||
| 18 | Shaft,Clutch | A557-000000 | A557-000000-Online | |||
| 8 | Spring, Clutch | A566-000260 | A566-000260-Online | |||
| 8 | Shield,Asm Blade | C055-000090 | C055-000090-Online | |||
| 20 | Harness, Shoulder | C062-000710 | C062-000710-Online | |||
| 26 | Grip,Handle | C403-000031 | C403-000031-Online | |||
| 22 | Control, Throttle | C450-000270 | C450-000270-Online | |||
| 24 | Lockout, Throttle | C460-000111 | C460-000111-Online | |||
| 24 | Knob, Latch | C463-000020 | C463-000020-Online | |||
| 24 | Case,Gear | P002-000000 | P002-000000-Online | |||
| 20 | Pump, Primer | P006-000290 | P006-000290-Online | |||
| 12 | Retainer | P006-000300 | P006-000300-Online | |||
| 12 | Gasket, M. Diaphragm | P006-000310 | P006-000310-Online | |||
| 12 | Diaphragm Pump | P006-000320 | P006-000320-Online | 12 | Part No | Part descrition | Page | ||
| 12 | Needle | P006-000340 | P006-000340-Online | |||
| 12 | Spring | P006-000350 | P006-000350-Online | |||
| 12 | Ring, Packing | P006-000360 | P006-000360-Online | |||
| 12 | Screw | P006-000370 | P006-000370-Online | |||
| 12 | Screw | P006-000380 | P006-000380-Online | |||
| 12 | Body Assembly, Pump | P006-000390 | P006-000390-Online | |||
| 12 | Spring, Meter. Lever | P006-000400 | P006-000400-Online | |||
| 12 | Screw | P006-000410 | P006-000410-Online | |||
| 12 | Screen,Inlet | P006-000420 | P006-000420-Online | |||
| 12 | Lever, Metering | P006-000430 | P006-000430-Online | |||
| 12 | Pin, Metering Lever | P006-000440 | P006-000440-Online | |||
| 12 | Valve, Inlet Needle | P006-000450 | P006-000450-Online | |||
| 12 | Base, Asy Primer | P006-000460 | P006-000460-Online | |||
| 12 | Swivel | P006-000470 | P006-000470-Online | |||
| 12 | E-Ring | P006-000480 | P006-000480-Online | |||
| 12 | Bracket Cable | P006-000490 | P006-000490-Online | |||
| 12 | Diaphragm ,Metering | P006-000500 | P006-000500-Online | |||
| 12 | Washer | P006-000510 | P006-000510-Online | |||
| 12 | Case,Cleaner Asy | P021-036950 | P021-036950-Online | |||
| 10 | Clutch Shoe Set | P021-051120 | P021-051120-Online | |||
| 8 | Stopper, Rope | P022-037670 | P022-037670-Online | |||
| 18 | Case, Starter | P022-047670 | P022-047670-Online | |||
| 18 | Shaft, Gear | P022-054930 | P022-054930-Online | |||
| 20 | Fixture, Blade | P022-054940 | P022-054940-Online | |||
| 20 | Fixture, Blade | P022-054950 | P022-054950-Online | |||
| 20 | Adapter,Saw | P022-054960 | P022-054960-Online | |||
| 20 | Cover,Gear Case | P022-054970 | P022-054970-Online | |||
| 20 | Bearing, Ball | P022-054990 | P022-054990-Online | |||
| 8 | Circlip | P022-055000 | P022-055000-Online | |||
| 20 | Circlip | P022-055010 | P022-055010-Online | |||
| 20 | Circlip | P022-055020 | P022-055020-Online | |||
| 8 | Circlip | P022-055020 | P022-055020-Online | |||
| 20 | Oilseal | P022-055030 | P022-055030-Online | |||
| 20 | Bolt | P022-055050 | P022-055050-Online | |||
| 20 | Bolt | P022-055060 | P022-055060-Online | |||
| 20 | Bolt | P022-055070 | P022-055070-Online | |||
| 20 | Bolt | P022-055080 | P022-055080-Online | |||
| 8 | Bolt | P022-055080 | P022-055080-Online | |||
| 20 | Shaft, Drive | P022-055110 | P022-055110-Online | |||
| 22 | Label, Caution | P022-055120 | P022-055120-Online | |||
| 22 | Hook Asy | P022-055130 | P022-055130-Online | |||
| 22 | Hook,Lifting | P022-055140 | P022-055140-Online | |||
| 22 | Bolt | P022-055150 | P022-055150-Online | 22 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-1 |
Page 30 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 22 | Fixture,Asy Handle | P022-055180 | P022-055180-Online | |||
| 22 | Fixture,Handle | P022-055190 | P022-055190-Online | |||
| 22 | Fixture,Handle | P022-055200 | P022-055200-Online | |||
| 22 | Fixture,Handle | P022-055210 | P022-055210-Online | |||
| 22 | Bolt | P022-055220 | P022-055220-Online | |||
| 22 | Bolt | P022-055230 | P022-055230-Online | |||
| 22 | Clutch Case | P022-055250 | P022-055250-Online | |||
| 8 | Fixture, Main Pipe | P022-055260 | P022-055260-Online | |||
| 8 | Cushion | P022-055270 | P022-055270-Online | |||
| 8 | Drum, Clutch | P022-055280 | P022-055280-Online | |||
| 8 | Bolt | P022-055290 | P022-055290-Online | |||
| 8 | Circlip | P022-055300 | P022-055300-Online | |||
| 8 | Circlip | P022-055310 | P022-055310-Online | |||
| 8 | Clip | P022-055320 | P022-055320-Online | |||
| 22 | Bolt | P022-055340 | P022-055340-Online | |||
| 8 | Tool,Wrench | P022-055350 | P022-055350-Online | |||
| 26 | Tool,Spanner | P022-055360 | P022-055360-Online | |||
| 26 | Tool,L Wrench | P022-055370 | P022-055370-Online | |||
| 26 | Tool,L Wrench | P022-055380 | P022-055380-Online | |||
| 26 | Tool,Bar | P022-055390 | P022-055390-Online | |||
| 26 | Shield,Blade | P022-055400 | P022-055400-Online | |||
| 20 | Plate,Shield | P022-055410 | P022-055410-Online | |||
| 20 | Bolt | P022-055420 | P022-055420-Online | |||
| 20 | Bracket,Shield | P022-055430 | P022-055430-Online | |||
| 20 | Knife, Cord | P022-055440 | P022-055440-Online | |||
| 20 | Screw Tapping | P022-055450 | P022-055450-Online | |||
| 20 | Bolt | P022-055460 | P022-055460-Online | |||
| 20 | Gear Case Asy | P022-055470 | P022-055470-Online | |||
| 20 | Bearing, Ball | P022-055680 | P022-055680-Online | |||
| 20 | Handle Asy | P100-003860 | P100-003860-Online | |||
| 22 | Cap,Fuel Asy | P100-006640 | P100-006640-Online | |||
| 14 | Crankcase Set | P100-007970 | P100-007970-Online | |||
| 4 | Piston Kit | P100-007980 | P100-007980-Online | |||
| 2 | Muffler Asy | P100-007990 | P100-007990-Online | |||
| 16 | Cleaner Cover Asy | P100-008010 | P100-008010-Online | |||
| 10 | Gear Set, Bevel | P100-008580 | P100-008580-Online | |||
| 20 | Main Pipe Asy | P100-008590 | P100-008590-Online | |||
| 22 | Throttle Asy | P100-008620 | P100-008620-Online | |||
| 24 | Case,Clutch Asy | P100-008630 | P100-008630-Online | |||
| 8 | Gasket,Crankcase | V102-000330 | V102-000330-Online | |||
| 4 | Gasket,Intake | V103-002090 | V103-002090-Online | |||
| 10 | Gasket,Exhaust | V104-002450 | V104-002450-Online | |||
| 16 | Gasket,Exhaust | V104-002460 | V104-002460-Online | 16 | Part No | Part descrition | Page | ||
| 14 | Knob,Fastener | V299-000520 | V299-000520-Online | |||
| 10 | Washer,Circular 10 | V307-000050 | V307-000050-Online | |||
| 2 | Washer,Wave | V346-000000 | V346-000000-Online | |||
| 8 | Cable,Bowden | V430-005260 | V430-005260-Online | |||
| 24 | Spring,Torsion | V452-000350 | V452-000350-Online | |||
| 24 | Spring,Torsion | V452-000360 | V452-000360-Online | |||
| 24 | Return Spring | V452-000520 | V452-000520-Online | |||
| 18 | Pipe | V471-001231 | V471-001231-Online | |||
| 14 | Pipe | V471-005421 | V471-005421-Online | |||
| 14 | Tube | V475-007760 | V475-007760-Online | |||
| 24 | Clip | V490-001230 | V490-001230-Online | |||
| 14 | Clip | V490-001240 | V490-001240-Online | |||
| 14 | Seal,Oil 12 | V505-000170 | V505-000170-Online | |||
| 4 | Seal,Oil 15 | V508-000120 | V508-000120-Online | |||
| 4 | Ring,End | V580-000010 | V580-000010-Online | |||
| 2 | Ring | V583-000140 | V583-000140-Online | |||
| 18 | Label,Echo | X502-000780 | X502-000780-Online | |||
| 18 | Label,Caution | X505-007710 | X505-007710-Online | |||
| 8 | Label,Echo | X547-003540 | X547-003540-Online | |||
| 8 | Goggle | X690-000080 | X690-000080-Online | 26 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-2 |
Source PDF: 20200226-681_SRM-4510_20_20000001_24FEB2020.pdf. Generated 2026-06-25 14:39.
