Echo SRM-4600 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: SRM-4600-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.

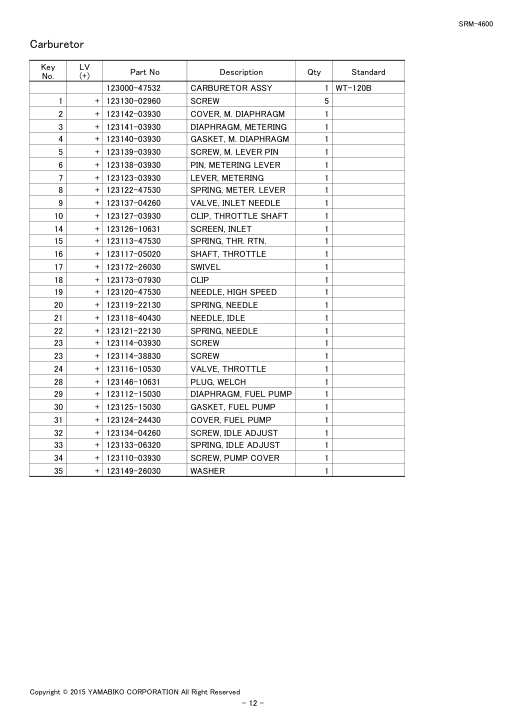

Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.

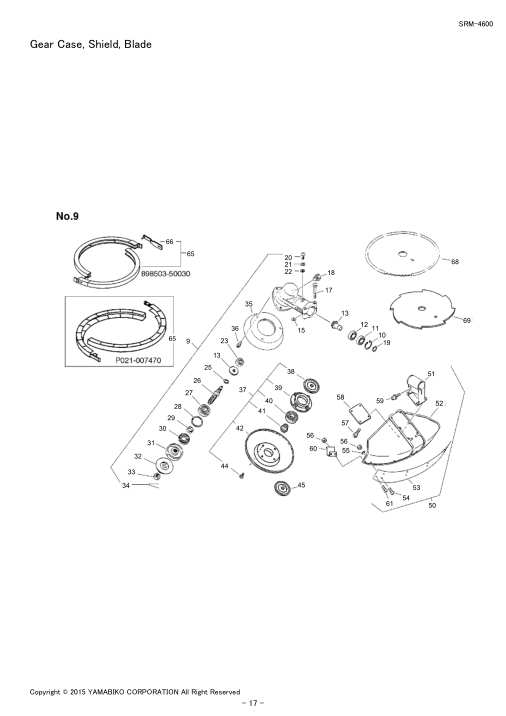

Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.
Page 23
Tap or click the page image to enlarge it.

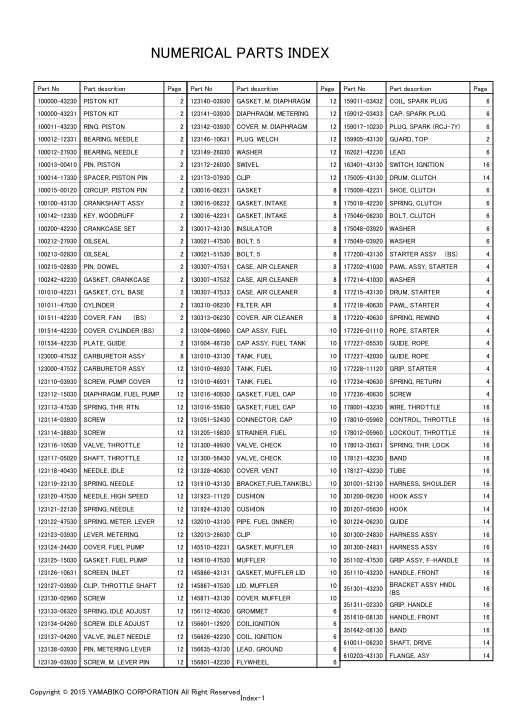

Page 24
Tap or click the page image to enlarge it.
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | Screw 5*14 | 900238-05014 | 900238-05014-Online | 3 5*14 | ||
| 6 | Guard, Top | 159905-43130 | 159905-43130-Online | |||
| 7 | Screw 5*10 | 900238-05010 | 900238-05010-Online | 1 5*10 | ||
| 8 | Cover, Cylinder (Bs) | 101514-42230 | 101514-42230-Online | |||
| 9 | Cylinder | 101011-47530 | 101011-47530-Online | |||
| 10 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 4 5*20 W,SW | ||
| 11 | Gasket, Cyl. Base | 101010-42231 | 101010-42231-Online | |||
| 13 | Piston Kit | 100000-43230 | 100000-43230-Online | |||
| 13 | Piston Kit | 100000-43231 | 100000-43231-Online | 1 | 12 | + 100011-43230 | RING, PISTON | ||
| 18 | Oilseal | 100212-27930 | 100212-27930-Online | 1 ISD 12 25 7 | ||
| 19 | Crankcase Set | 100200-42230 | 100200-42230-Online | 1 | 20 | + 100215-02830 | PIN, DOWEL | ||
| 21 | Bearing, Ball 6201 | 900810-36201 | 900810-36201-Online | 1 6201/C3 | ||
| 21 | Bearing Ball | 94035-36201 | 94035-36201-Online | 1 6201X3JR2C3 | ||
| 22 | Crankshaft Assy | 100100-43130 | 100100-43130-Online | |||
| 23 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 24 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | 1 6202/C3 | ||
| 25 | Gasket, Crankcase | 100242-42230 | 100242-42230-Online | |||
| 27 | Screw 4*10 | 900238-04010 | 900238-04010-Online | 4 4*10 | ||
| 28 | Plate, Guide | 101534-42230 | 101534-42230-Online | |||
| 29 | Cover, Fan (Bs) | 101511-42230 | 101511-42230-Online | |||
| 30 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 4 5*25 W,SW | ||
| 31 | Circlip 35 | 900702-00035 | 900702-00035-Online | 1 CRｰ35 | ||
| 32 | Oilseal | 100213-02830 | 100213-02830-Online | 1 ISMX15,35,6 | ||
| 33 | Label, Model | 890112-43230 | 890112-43230-Online | 1 | Cylinder, Crankcase, Piston, Fan Cover | SRM-4600 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | Pawl Assy, Starter | 177202-41030 | 177202-41030-Online | 1 | 6 | + 900700-00004 | E-RING 4 | ||
| 10 | Nut 8 (3N) | 900502-00008 | 900502-00008-Online | 1 3N8 | ||
| 11 | Starter Assy (Bs) | 177200-43130 | 177200-43130-Online | |||
| 11 | Starter,Recoil | A051-000170 | A051-000170-Online | 1 | 12 | + 177236-40630 | SCREW | ||
| 20 | Bolt, H.S. 4*20 | 900162-04020 | 900162-04020-Online | 4 4*20 W,SW | ||
| 21 | Label, Echo | 890118-49330 | 890118-49330-Online | 1 | Starter | SRM-4600 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | Plug, Spark (Rcj-7Y) | 159017-10230 | 159017-10230-Online | 1 RCJ-7Y | ||
| 6 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | |||
| 7 | Cap, Spark Plug | 159012-03433 | 159012-03433-Online | |||
| 8 | Grommet | 156112-40630 | 156112-40630-Online | |||
| 9 | Coil, Ignition | 156626-42230 | 156626-42230-Online | |||
| 9 | Coil,Ignition | 156601-12920 | 156601-12920-Online | |||
| 10 | Screw 5*20 | 900238-05020 | 900238-05020-Online | 2 5*20 | ||
| 11 | Lead | 162021-42230 | 162021-42230-Online | |||
| 12 | Lead, Ground | 156635-43130 | 156635-43130-Online | |||
| 13 | Flywheel | 156801-42230 | 156801-42230-Online | |||
| 14 | Washer 10 | 900600-00010 | 900600-00010-Online | 1 10 | ||
| 15 | Washer, Spring 10 | 900605-00010 | 900605-00010-Online | 1 10 | ||
| 16 | Nut 10 (3N *1.25) | 900503-00010 | 900503-00010-Online | 1 3N10*P1.25 | ||
| 17 | Washer | 175049-03920 | 175049-03920-Online | |||
| 18 | Shoe, Clutch | 175009-42231 | 175009-42231-Online | |||
| 19 | Spring, Clutch | 175018-42230 | 175018-42230-Online | |||
| 20 | Washer | 175048-03920 | 175048-03920-Online | |||
| 21 | Bolt, Clutch | 175046-06230 | 175046-06230-Online | |||
| 22 | Washer 6 | 900600-00006 | 900600-00006-Online | 2 6 | ||
| 23 | Screw 5*10 | 900238-05010 | 900238-05010-Online | 1 5*10 | Magneto, Clutch | SRM-4600 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 4 | Nut 5 | 900500-00005 | 900500-00005-Online | 2 5 | ||
| 5 | Gasket, Intake | 130016-42231 | 130016-42231-Online | |||
| 6 | Insulator | 130017-43130 | 130017-43130-Online | |||
| 7 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 2 5*25 W,SW | ||
| 8 | Gasket | 130016-06231 | 130016-06231-Online | |||
| 8 | Gasket, Intake | 130016-06232 | 130016-06232-Online | |||
| 9 | Carburetor Assy | 123000-47532 | 123000-47532-Online | 1 WT-120B | ||
| 10 | Case, Air Cleaner | 130307-47531 | 130307-47531-Online | |||
| 10 | Case, Air Cleaner | 130307-47532 | 130307-47532-Online | |||
| 10 | Case, Air Cleaner | 130307-47533 | 130307-47533-Online | |||
| 12 | Washer, Spring 5 | 900605-00005 | 900605-00005-Online | 2 5 | ||
| 13 | Bolt, 5 | 130021-47530 | 130021-47530-Online | |||
| 13 | Bolt, 5 | 130021-51530 | 130021-51530-Online | |||
| 14 | Filter, Air | 130310-06230 | 130310-06230-Online | |||
| 15 | Cover, Air Cleaner | 130313-06230 | 130313-06230-Online | |||
| 16 | Label, Choke | 890121-21430 | 890121-21430-Online | |||
| 17 | Screw 4*8 | 900238-04008 | 900238-04008-Online | 2 4*8 | ||
| 18 | Label, Adjusting | 890169-47530 | 890169-47530-Online | 1 | Air Cleaner | SRM-4600 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 4 | Cap Assy, Fuel Tank | 131004-46730 | 131004-46730-Online | |||
| 4 | Cap Assy, Fuel | 131004-08960 | 131004-08960-Online | 1 | 5 | + 131016-40930 | GASKET, FUEL CAP | ||
| 7 | Cushion | 131923-11120 | 131923-11120-Online | |||
| 8 | Tank, Fuel | 131010-43130 | 131010-43130-Online | |||
| 8 | Tank, Fuel | 131010-46930 | 131010-46930-Online | |||
| 8 | Tank, Fuel | 131010-46931 | 131010-46931-Online | |||
| 9 | Cushion | 131924-43130 | 131924-43130-Online | |||
| 10 | Bracket,Fueltank(Bl) | 131910-43130 | 131910-43130-Online | |||
| 11 | Screw 5*14 | 900238-05014 | 900238-05014-Online | 2 5*14 | ||
| 12 | Cover, Vent | 131328-40630 | 131328-40630-Online | |||
| 13 | Valve, Check | 131300-49930 | 131300-49930-Online | |||
| 13 | Valve, Check | 131300-56430 | 131300-56430-Online | |||
| 14 | Clip | 132013-26630 | 132013-26630-Online | 1 6.5MM | ||
| 15 | Pipe, Fuel (Inner) | 132010-43130 | 132010-43130-Online | 1 NBR | ||
| 17 | Strainer, Fuel | 131205-19830 | 131205-19830-Online | |||
| 20 | Gasket, Muffler | 145510-42231 | 145510-42231-Online | |||
| 22 | Muffler | 145610-47530 | 145610-47530-Online | |||
| 23 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 2 5*20 W,SW | ||
| 25 | Gasket, Muffler Lid | 145866-43131 | 145866-43131-Online | |||
| 26 | Lid, Muffler | 145867-47530 | 145867-47530-Online | |||
| 27 | Screw 4*10 | 900238-04010 | 900238-04010-Online | 7 4*10 | ||
| 28 | Cover, Muffler | 145871-43130 | 145871-43130-Online | |||
| 29 | Screw 5*14 | 900238-05014 | 900238-05014-Online | 1 5*14 | Muffler, Fuel Tank | SRM-4600 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | Shaft, Drive | 610011-06230 | 610011-06230-Online | |||
| 6 | Label, Caution | 890617-46830 | 890617-46830-Online | |||
| 6 | Label,Caution | 890617-43130 | 890617-43130-Online | |||
| 7 | Hook Ass'Y | 301200-06230 | 301200-06230-Online | 1 | 8 | + 301207-05630 | HOOK | ||
| 13 | Housing Assy, D.Shft | 610206-43130 | 610206-43130-Online | |||
| 20 | Bolt 5*25 (W/W,Sw) | 900142-05025 | 900142-05025-Online | 2 5*25 | ||
| 21 | Holder | 610922-40430 | 610922-40430-Online | |||
| 22 | Holder | 610923-40430 | 610923-40430-Online | |||
| 23 | Cushion | 610910-40430 | 610910-40430-Online | |||
| 24 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 4 5*20 W,SW | ||
| 25 | Flange (Bs) | 610205-43130 | 610205-43130-Online | |||
| 25 | Flange, Asy | 610203-43130 | 610203-43130-Online | 1 | 20 | + 900142-05025 | BOLT 5*25 (W/W,SW) | ||
| 26 | Circlip 12 | 900701-00012 | 900701-00012-Online | 1 CS-12 | ||
| 27 | Bearing, Ball 6001 | 900807-06001 | 900807-06001-Online | 2 6001V(LB) | ||
| 28 | Circlip 28 | 900702-00028 | 900702-00028-Online | 1 CR-28 | ||
| 29 | Drum, Clutch | 175005-43130 | 175005-43130-Online | |||
| 61 | L-Wrench (4Mm) | 895610-00130 | 895610-00130-Online | |||
| 63 | Pin 2*22 (W/Pouch) | 898502-01130 | 898502-01130-Online | |||
| 64 | Tool,Bar | X606-000080 | X606-000080-Online | 1 5*120 | ||
| 65 | Spanner 8*10 | 895112-00330 | 895112-00330-Online | |||
| 66 | Wrench, W/S. Driver | 895410-08030 | 895410-08030-Online | |||
| 66 | Tool,Wrench | X602-000020 | X602-000020-Online | 1 17*19 L200 | Drive Shaft, Tools | SRM-4600 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | Grip Assy, F-Handle | 351102-47530 | 351102-47530-Online | 1 | 6 | + 900246-03025 | SCREW 3*25 | ||
| 9 | Lockout, Throttle | 178012-05960 | 178012-05960-Online | |||
| 10 | Spring, Thr. Lock | 178013-35631 | 178013-35631-Online | |||
| 11 | Control, Throttle | 178010-05960 | 178010-05960-Online | |||
| 12 | Switch, Ignition | 163401-43130 | 163401-43130-Online | |||
| 14 | Wire, Throttle | 178001-43230 | 178001-43230-Online | |||
| 15 | Tube | 178127-43230 | 178127-43230-Online | 1 7*820 | ||
| 16 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 2 3N6 | ||
| 17 | Washer, Spring 6 | 900605-00006 | 900605-00006-Online | 2 6 | ||
| 19 | Band | 178121-43230 | 178121-43230-Online | 2 CV-150 BL | ||
| 24 | Handle, Front | 351110-43230 | 351110-43230-Online | |||
| 25 | Bracket Assy Hndl | 351301-43230 | 351301-43230-Online | (BS | 1 | 26 | + 900142-05025 | ||
| 28 | Band | 351642-08130 | 351642-08130-Online | |||
| 29 | Bolt 6*14 | 900100-06014 | 900100-06014-Online | 1 6*14 | ||
| 30 | Handle, Front | 351610-08130 | 351610-08130-Online | |||
| 31 | Grip, Handle | 351311-02330 | 351311-02330-Online | |||
| 32 | Harness Assy | 301300-24830 | 301300-24830-Online | |||
| 32 | Harness Assy | 301300-24831 | 301300-24831-Online | |||
| 32 | Harness, Shoulder | 301001-52130 | 301001-52130-Online | |||
| 33 | Label, Switch | 890157-39130 | 890157-39130-Online | 1 | Handle | SRM-4600 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 9 | Housing Assy, Gear | 610400-40430 | 610400-40430-Online | |||
| 9 | Case Asy, Gear | 610400-40431 | 610400-40431-Online | |||
| 9 | Case Asy, Gear | 610400-40433 | 610400-40433-Online | 1 | 10 | + 900702-00028 | CIRCLIP 28 | ||
| 37 | Cup Assy, Free | 699200-07131 | 699200-07131-Online | 1 | 38 | + 610333-07130 | PLATE, ADAPTER (L) | ||
| 45 | Plate, Adapter (L) | 610336-07131 | 610336-07131-Online | |||
| 50 | Shield Assy | 699001-50430 | 699001-50430-Online | 1 | 51 | + 699011-43130 | BRACKET, SHIELD |
Page 22 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 65 | Scabbard Kit, Blade | 898503-50030 | 898503-50030-Online | |||
| 65 | Scabbard,Blade | P021-007470 | P021-007470-Online | 1 | 66 | + 898562-43230 | FIXTURE, SCABBARD | ||
| 68 | Saw,Circular 10*80T | 695001-55630 | 695001-55630-Online | |||
| 68 | Saw, Circular 10*80T | 695001-55631 | 695001-55631-Online | 1 255*80T*1.4 | PD25 | ||
| 69 | Blade, 8-Cutter 10In | 696001-55630 | 696001-55630-Online | |||
| 69 | Blade, 8-Cutter 10In | 696001-55631 | 696001-55631-Online | 1 255*8T*1.4 | PD25 | Gear Case, Shield, Blade | SRM-4600 |
Page 23 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | Piston Kit | 100000-43231 | 100000-43231-Online | |||
| 2 | Ring, Piston | 100011-43230 | 100011-43230-Online | |||
| 2 | Bearing, Needle | 100012-12331 | 100012-12331-Online | |||
| 2 | Bearing, Needle | 100012-27930 | 100012-27930-Online | |||
| 2 | Pin, Piston | 100013-00410 | 100013-00410-Online | |||
| 2 | Spacer, Piston Pin | 100014-17330 | 100014-17330-Online | |||
| 2 | Circlip, Piston Pin | 100015-00120 | 100015-00120-Online | |||
| 2 | Crankshaft Assy | 100100-43130 | 100100-43130-Online | |||
| 2 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 2 | Crankcase Set | 100200-42230 | 100200-42230-Online | |||
| 2 | Oilseal | 100212-27930 | 100212-27930-Online | |||
| 2 | Oilseal | 100213-02830 | 100213-02830-Online | |||
| 2 | Pin, Dowel | 100215-02830 | 100215-02830-Online | |||
| 2 | Gasket, Crankcase | 100242-42230 | 100242-42230-Online | |||
| 2 | Gasket, Cyl. Base | 101010-42231 | 101010-42231-Online | |||
| 2 | Cylinder | 101011-47530 | 101011-47530-Online | |||
| 2 | Cover, Fan (Bs) | 101511-42230 | 101511-42230-Online | |||
| 2 | Cover, Cylinder (Bs) | 101514-42230 | 101514-42230-Online | |||
| 2 | Plate, Guide | 101534-42230 | 101534-42230-Online | |||
| 2 | Carburetor Assy | 123000-47532 | 123000-47532-Online | |||
| 8 | Carburetor Assy | 123000-47532 | 123000-47532-Online | |||
| 12 | Screw, Pump Cover | 123110-03930 | 123110-03930-Online | |||
| 12 | Diaphragm, Fuel Pump | 123112-15030 | 123112-15030-Online | |||
| 12 | Spring, Thr. Rtn. | 123113-47530 | 123113-47530-Online | |||
| 12 | Screw | 123114-03930 | 123114-03930-Online | |||
| 12 | Screw | 123114-38830 | 123114-38830-Online | |||
| 12 | Valve, Throttle | 123116-10530 | 123116-10530-Online | |||
| 12 | Shaft, Throttle | 123117-05020 | 123117-05020-Online | |||
| 12 | Needle, Idle | 123118-40430 | 123118-40430-Online | |||
| 12 | Spring, Needle | 123119-22130 | 123119-22130-Online | |||
| 12 | Needle, High Speed | 123120-47530 | 123120-47530-Online | |||
| 12 | Spring, Needle | 123121-22130 | 123121-22130-Online | |||
| 12 | Spring, Meter. Lever | 123122-47530 | 123122-47530-Online | |||
| 12 | Lever, Metering | 123123-03930 | 123123-03930-Online | |||
| 12 | Cover, Fuel Pump | 123124-24430 | 123124-24430-Online | |||
| 12 | Gasket, Fuel Pump | 123125-15030 | 123125-15030-Online | |||
| 12 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |||
| 12 | Clip, Throttle Shaft | 123127-03930 | 123127-03930-Online | |||
| 12 | Screw | 123130-02960 | 123130-02960-Online | |||
| 12 | Spring, Idle Adjust | 123133-06320 | 123133-06320-Online | |||
| 12 | Screw, Idle Adjust | 123134-04260 | 123134-04260-Online | |||
| 12 | Valve, Inlet Needle | 123137-04260 | 123137-04260-Online | |||
| 12 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |||
| 12 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | 12 | Part No | Part descrition | Page | ||
| 12 | Diaphragm, Metering | 123141-03930 | 123141-03930-Online | |||
| 12 | Cover, M. Diaphragm | 123142-03930 | 123142-03930-Online | |||
| 12 | Plug, Welch | 123146-10631 | 123146-10631-Online | |||
| 12 | Washer | 123149-26030 | 123149-26030-Online | |||
| 12 | Swivel | 123172-26030 | 123172-26030-Online | |||
| 12 | Clip | 123173-07930 | 123173-07930-Online | |||
| 12 | Gasket | 130016-06231 | 130016-06231-Online | |||
| 8 | Gasket, Intake | 130016-06232 | 130016-06232-Online | |||
| 8 | Gasket, Intake | 130016-42231 | 130016-42231-Online | |||
| 8 | Insulator | 130017-43130 | 130017-43130-Online | |||
| 8 | Bolt, 5 | 130021-47530 | 130021-47530-Online | |||
| 8 | Bolt, 5 | 130021-51530 | 130021-51530-Online | |||
| 8 | Case, Air Cleaner | 130307-47531 | 130307-47531-Online | |||
| 8 | Case, Air Cleaner | 130307-47532 | 130307-47532-Online | |||
| 8 | Case, Air Cleaner | 130307-47533 | 130307-47533-Online | |||
| 8 | Filter, Air | 130310-06230 | 130310-06230-Online | |||
| 8 | Cover, Air Cleaner | 130313-06230 | 130313-06230-Online | |||
| 8 | Cap Assy, Fuel | 131004-08960 | 131004-08960-Online | |||
| 10 | Cap Assy, Fuel Tank | 131004-46730 | 131004-46730-Online | |||
| 10 | Tank, Fuel | 131010-43130 | 131010-43130-Online | |||
| 10 | Tank, Fuel | 131010-46930 | 131010-46930-Online | |||
| 10 | Tank, Fuel | 131010-46931 | 131010-46931-Online | |||
| 10 | Gasket, Fuel Cap | 131016-40930 | 131016-40930-Online | |||
| 10 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |||
| 10 | Connector, Cap | 131051-52430 | 131051-52430-Online | |||
| 10 | Strainer, Fuel | 131205-19830 | 131205-19830-Online | |||
| 10 | Valve, Check | 131300-49930 | 131300-49930-Online | |||
| 10 | Valve, Check | 131300-56430 | 131300-56430-Online | |||
| 10 | Cover, Vent | 131328-40630 | 131328-40630-Online | |||
| 10 | Bracket,Fueltank(Bl) | 131910-43130 | 131910-43130-Online | |||
| 10 | Cushion | 131923-11120 | 131923-11120-Online | |||
| 10 | Cushion | 131924-43130 | 131924-43130-Online | |||
| 10 | Pipe, Fuel (Inner) | 132010-43130 | 132010-43130-Online | |||
| 10 | Clip | 132013-26630 | 132013-26630-Online | |||
| 10 | Gasket, Muffler | 145510-42231 | 145510-42231-Online | |||
| 10 | Muffler | 145610-47530 | 145610-47530-Online | |||
| 10 | Gasket, Muffler Lid | 145866-43131 | 145866-43131-Online | |||
| 10 | Lid, Muffler | 145867-47530 | 145867-47530-Online | |||
| 10 | Cover, Muffler | 145871-43130 | 145871-43130-Online | |||
| 10 | Grommet | 156112-40630 | 156112-40630-Online | |||
| 6 | Coil,Ignition | 156601-12920 | 156601-12920-Online | |||
| 6 | Coil, Ignition | 156626-42230 | 156626-42230-Online | |||
| 6 | Lead, Ground | 156635-43130 | 156635-43130-Online | |||
| 6 | Flywheel | 156801-42230 | 156801-42230-Online | 6 | Part No | Part descrition | Page | ||
| 6 | Cap, Spark Plug | 159012-03433 | 159012-03433-Online | |||
| 6 | Plug, Spark (Rcj-7Y) | 159017-10230 | 159017-10230-Online | |||
| 6 | Guard, Top | 159905-43130 | 159905-43130-Online | |||
| 2 | Lead | 162021-42230 | 162021-42230-Online | |||
| 6 | Switch, Ignition | 163401-43130 | 163401-43130-Online | |||
| 16 | Drum, Clutch | 175005-43130 | 175005-43130-Online | |||
| 14 | Shoe, Clutch | 175009-42231 | 175009-42231-Online | |||
| 6 | Spring, Clutch | 175018-42230 | 175018-42230-Online | |||
| 6 | Bolt, Clutch | 175046-06230 | 175046-06230-Online | |||
| 6 | Washer | 175048-03920 | 175048-03920-Online | |||
| 6 | Washer | 175049-03920 | 175049-03920-Online | |||
| 6 | Starter Assy (Bs) | 177200-43130 | 177200-43130-Online | |||
| 4 | Pawl Assy, Starter | 177202-41030 | 177202-41030-Online | |||
| 4 | Washer | 177214-41030 | 177214-41030-Online | |||
| 4 | Drum, Starter | 177215-43130 | 177215-43130-Online | |||
| 4 | Pawl, Starter | 177218-40630 | 177218-40630-Online | |||
| 4 | Spring, Rewind | 177220-40630 | 177220-40630-Online | |||
| 4 | Rope, Starter | 177226-01110 | 177226-01110-Online | |||
| 4 | Guide, Rope | 177227-05530 | 177227-05530-Online | |||
| 4 | Guide, Rope | 177227-42030 | 177227-42030-Online | |||
| 4 | Grip, Starter | 177228-11120 | 177228-11120-Online | |||
| 4 | Spring, Return | 177234-40630 | 177234-40630-Online | |||
| 4 | Screw | 177236-40630 | 177236-40630-Online | |||
| 4 | Wire, Throttle | 178001-43230 | 178001-43230-Online | |||
| 16 | Control, Throttle | 178010-05960 | 178010-05960-Online | |||
| 16 | Lockout, Throttle | 178012-05960 | 178012-05960-Online | |||
| 16 | Spring, Thr. Lock | 178013-35631 | 178013-35631-Online | |||
| 16 | Band | 178121-43230 | 178121-43230-Online | |||
| 16 | Tube | 178127-43230 | 178127-43230-Online | |||
| 16 | Harness, Shoulder | 301001-52130 | 301001-52130-Online | |||
| 16 | Hook Ass'Y | 301200-06230 | 301200-06230-Online | |||
| 14 | Hook | 301207-05630 | 301207-05630-Online | |||
| 14 | Guide | 301224-06230 | 301224-06230-Online | |||
| 14 | Harness Assy | 301300-24830 | 301300-24830-Online | |||
| 16 | Harness Assy | 301300-24831 | 301300-24831-Online | |||
| 16 | Grip Assy, F-Handle | 351102-47530 | 351102-47530-Online | |||
| 16 | Handle, Front | 351110-43230 | 351110-43230-Online | |||
| 16 | Bracket Assy Hndl | 351301-43230 | 351301-43230-Online | (BS | ||
| 16 | Grip, Handle | 351311-02330 | 351311-02330-Online | |||
| 16 | Handle, Front | 351610-08130 | 351610-08130-Online | |||
| 16 | Band | 351642-08130 | 351642-08130-Online | |||
| 16 | Shaft, Drive | 610011-06230 | 610011-06230-Online | |||
| 14 | Flange, Asy | 610203-43130 | 610203-43130-Online | 14 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-1 |
Page 24 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 14 | Housing Assy, D.Shft | 610206-43130 | 610206-43130-Online | |||
| 14 | Washer, Shim | 610239-04130 | 610239-04130-Online | |||
| 18 | Gear Set | 610300-40430 | 610300-40430-Online | |||
| 18 | Shaft, P.T.O. | 610310-07130 | 610310-07130-Online | |||
| 18 | Plate, Adapter (U) | 610313-07130 | 610313-07130-Online | |||
| 18 | Plate, Adapter (U) | 610313-07131 | 610313-07131-Online | |||
| 18 | Plate, Adapter (U) | 610313-07132 | 610313-07132-Online | |||
| 18 | Plate, Adapter (L) | 610314-07130 | 610314-07130-Online | |||
| 18 | Spacer | 610315-07130 | 610315-07130-Online | |||
| 18 | Plate, Adapter (L) | 610333-07130 | 610333-07130-Online | |||
| 18 | Plate, Adapter (L) | 610336-07131 | 610336-07131-Online | |||
| 18 | Housing Assy, Gear | 610400-40430 | 610400-40430-Online | |||
| 18 | Case Asy, Gear | 610400-40431 | 610400-40431-Online | |||
| 18 | Case Asy, Gear | 610400-40433 | 610400-40433-Online | |||
| 18 | Oilseal | 610413-07130 | 610413-07130-Online | |||
| 18 | Bolt 8* 6 | 610434-50030 | 610434-50030-Online | |||
| 18 | Bolt 8* 8 | 610434-50031 | 610434-50031-Online | |||
| 18 | Plate, Guard | 610443-21232 | 610443-21232-Online | |||
| 18 | Cushion | 610910-40430 | 610910-40430-Online | |||
| 14 | Cushion | 610910-51830 | 610910-51830-Online | |||
| 14 | Holder | 610922-40430 | 610922-40430-Online | |||
| 14 | Holder, Main Pipe | 610922-43130 | 610922-43130-Online | |||
| 14 | Holder, Pipe | 610922-55630 | 610922-55630-Online | |||
| 14 | Holder | 610923-40430 | 610923-40430-Online | |||
| 14 | Saw,Circular 10*80T | 695001-55630 | 695001-55630-Online | |||
| 20 | Saw, Circular 10*80T | 695001-55631 | 695001-55631-Online | |||
| 20 | Blade, 8-Cutter 10In | 696001-55630 | 696001-55630-Online | |||
| 20 | Blade, 8-Cutter 10In | 696001-55631 | 696001-55631-Online | |||
| 20 | Shield Assy | 699001-50430 | 699001-50430-Online | |||
| 18 | Shield, Blade | 699010-54430 | 699010-54430-Online | |||
| 18 | Bracket, Shield | 699011-43130 | 699011-43130-Online | |||
| 18 | Plate, Shield | 699013-52130 | 699013-52130-Online | |||
| 18 | Plate, Shield | 699015-52130 | 699015-52130-Online | |||
| 20 | Knife, Cord | 699016-52130 | 699016-52130-Online | |||
| 20 | Knife | 699016-54530 | 699016-54530-Online | |||
| 20 | Cup Assy, Free | 699200-07131 | 699200-07131-Online | |||
| 18 | Holder, Bearing | 699226-05430 | 699226-05430-Online | |||
| 18 | Plate, Cover | 699228-08930 | 699228-08930-Online | |||
| 18 | Label, Model | 890112-43230 | 890112-43230-Online | |||
| 2 | Label, Echo | 890118-49330 | 890118-49330-Online | |||
| 4 | Label, Choke | 890121-21430 | 890121-21430-Online | |||
| 8 | Label, Switch | 890157-39130 | 890157-39130-Online | |||
| 16 | Label, Adjusting | 890169-47530 | 890169-47530-Online | 8 | Part No | Part descrition | Page | ||
| 14 | Label, Caution | 890617-46830 | 890617-46830-Online | |||
| 14 | Spanner 8*10 | 895112-00330 | 895112-00330-Online | |||
| 14 | Wrench, W/S. Driver | 895410-08030 | 895410-08030-Online | |||
| 14 | L-Wrench (4Mm) | 895610-00130 | 895610-00130-Online | |||
| 14 | Pin 2*22 (W/Pouch) | 898502-01130 | 898502-01130-Online | |||
| 14 | Scabbard Kit, Blade | 898503-50030 | 898503-50030-Online | |||
| 20 | Fixture, Scabbard | 898562-43230 | 898562-43230-Online | |||
| 20 | Bolt 6*14 | 900100-06014 | 900100-06014-Online | |||
| 16 | Bolt 5*12 | 900141-05012 | 900141-05012-Online | |||
| 18 | Bolt 5*25 (W/W,Sw) | 900142-05025 | 900142-05025-Online | |||
| 14 | Bolt 5*25 (W/W,Sw) | 900142-05025 | 900142-05025-Online | |||
| 16 | Bolt 5*25 (W/W,Sw) | 900142-05025 | 900142-05025-Online | |||
| 20 | Bolt 5*30 (W/W,Sw) | 900142-05030 | 900142-05030-Online | |||
| 16 | Bolt 5*30 (W/W,Sw) | 900142-05030 | 900142-05030-Online | |||
| 18 | Bolt, H.S. 4*20 | 900162-04020 | 900162-04020-Online | |||
| 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | |||
| 2 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | |||
| 10 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | |||
| 14 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | |||
| 2 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | |||
| 8 | Bolt, H.S. 5*30 | 900162-05030 | 900162-05030-Online | |||
| 2 | Screw 5*10 | 900220-05010 | 900220-05010-Online | |||
| 18 | Screw 5*30 | 900220-05030 | 900220-05030-Online | |||
| 16 | Screw 4*8 | 900238-04008 | 900238-04008-Online | |||
| 8 | Screw 4*10 | 900238-04010 | 900238-04010-Online | |||
| 2 | Screw 4*10 | 900238-04010 | 900238-04010-Online | |||
| 10 | Screw 5*10 | 900238-05010 | 900238-05010-Online | |||
| 2 | Screw 5*10 | 900238-05010 | 900238-05010-Online | |||
| 6 | Screw 5*14 | 900238-05014 | 900238-05014-Online | |||
| 2 | Screw 5*14 | 900238-05014 | 900238-05014-Online | |||
| 10 | Screw 5*20 | 900238-05020 | 900238-05020-Online | |||
| 6 | Screw 5*20 | 900238-05020 | 900238-05020-Online | |||
| 18 | Screw 5*12 | 900242-05012 | 900242-05012-Online | |||
| 20 | Screw 5*14 | 900242-05014 | 900242-05014-Online | |||
| 14 | Screw 5*14 | 900242-05014 | 900242-05014-Online | |||
| 20 | Screw 5*18 | 900242-05018 | 900242-05018-Online | |||
| 18 | Screw 3*25 | 900246-03025 | 900246-03025-Online | |||
| 16 | Pin, Split 2*22 | 900300-20022 | 900300-20022-Online | |||
| 18 | Nut 5 | 900500-00005 | 900500-00005-Online | |||
| 8 | Nut 5 | 900500-00005 | 900500-00005-Online | |||
| 16 | Nut 5 | 900500-00005 | 900500-00005-Online | |||
| 18 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | |||
| 16 | Nut 8 (3N) | 900502-00008 | 900502-00008-Online | |||
| 4 | Nut 10 (3N *1.25) | 900503-00010 | 900503-00010-Online | 6 | Part No | Part descrition | Page | ||
| 18 | Washer 5 | 900600-00005 | 900600-00005-Online | |||
| 18 | Washer 6 | 900600-00006 | 900600-00006-Online | |||
| 6 | Washer 10 | 900600-00010 | 900600-00010-Online | |||
| 6 | Washer 5 | 900603-00005 | 900603-00005-Online | |||
| 18 | Washer, Spring 5 | 900605-00005 | 900605-00005-Online | |||
| 8 | Washer, Spring 5 | 900605-00005 | 900605-00005-Online | |||
| 18 | Washer, Spring 6 | 900605-00006 | 900605-00006-Online | |||
| 16 | Washer, Spring 10 | 900605-00010 | 900605-00010-Online | |||
| 6 | E-Ring 4 | 900700-00004 | 900700-00004-Online | |||
| 4 | Circlip 12 | 900701-00012 | 900701-00012-Online | |||
| 14 | Circlip 12 | 900701-00012 | 900701-00012-Online | |||
| 18 | Circlip 28 | 900702-00028 | 900702-00028-Online | |||
| 14 | Circlip 28 | 900702-00028 | 900702-00028-Online | |||
| 18 | Circlip 32 | 900702-00032 | 900702-00032-Online | |||
| 18 | Circlip 35 | 900702-00035 | 900702-00035-Online | |||
| 2 | Circlip 12 | 900706-00012 | 900706-00012-Online | |||
| 18 | Bearing | 900800-06001 | 900800-06001-Online | |||
| 18 | Bearing, Ball 6000 | 900800-36000 | 900800-36000-Online | |||
| 18 | Bearing, Ball 6001 | 900807-06001 | 900807-06001-Online | |||
| 14 | Bearing, Ball 6001 | 900807-06001 | 900807-06001-Online | |||
| 18 | Bearing, Ball 6201 | 900810-06201 | 900810-06201-Online | |||
| 18 | Bearing, Ball 6201 | 900810-36201 | 900810-36201-Online | |||
| 2 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | |||
| 2 | Bearing, Ball 6202 | 900814-06202 | 900814-06202-Online | |||
| 18 | Bearing Ball | 94035-36201 | 94035-36201-Online | |||
| 2 | Starter,Recoil | A051-000170 | A051-000170-Online | |||
| 4 | Cover,Gear Case | C536-000030 | C536-000030-Online | |||
| 18 | Scabbard,Blade | P021-007470 | P021-007470-Online | |||
| 20 | Washer,Circular 10 | V307-000050 | V307-000050-Online | |||
| 2 | Tool,Wrench | X602-000020 | X602-000020-Online | |||
| 14 | Tool,Bar | X606-000080 | X606-000080-Online | 14 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-2 |
Source PDF: 20200701-822_SRM-4600_AA_00000000_EN.pdf. Generated 2026-06-25 14:40.
