Echo SRM-4300R IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: SRM-4300R-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | Cylinder | A130-000870 | A130-000870-Online | |||
| 3 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 4 5*20 W,SW | ||
| 4 | Gasket,Cyl | V100-000040 | V100-000040-Online | |||
| 9 | Piston Kit | P021-015550 | P021-015550-Online | 1 | 10 | + 100011-10530 | RING, PISTON | ||
| 15 | Crankshaft,Asm | A011-000330 | A011-000330-Online | |||
| 16 | Crankcase Set | P021-002471 | P021-002471-Online | 1 | 17 | + 100213-05530 | OILSEAL | ||
| 34 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 4 5*20 W,SW | ||
| 35 | Cover,Fan | A172-000350 | A172-000350-Online | |||
| 36 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | 1 5*20 | ||
| 37 | Collar,5 | V353-000020 | V353-000020-Online | 1 12*5.5*4.5L | ||
| 38 | Guard,Top | A162-000020 | A162-000020-Online | |||
| 39 | Cover,Cylinder | A160-000241 | A160-000241-Online | |||
| 40 | Label,Echo | X547-001040 | X547-001040-Online | 1 ECHO+ | SRM-4300 | ||
| 41 | Bolt, H.S. 5*12 | 900106-05012 | 900106-05012-Online | 1 5*12 | ||
| 43 | Holder,Cable | G186-000010 | G186-000010-Online | 1 | CYLINDER, CRANKCASE, PISTON | SRM-4300R | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Cap,Spark Plug | A427-000000 | A427-000000-Online | |||
| 2 | Terminal,Sparkplug | A426-000000 | A426-000000-Online | |||
| 3 | Plug, Spark (Bpm-7A) | 159010-10630 | 159010-10630-Online | 1 BPM-7A | ||
| 4 | Grommet,Plug | V141-000020 | V141-000020-Online | |||
| 5 | Tube | V475-001610 | V475-001610-Online | 1 7*8.6*55 | HST-10 | ||
| 6 | Grommet | 156114-04920 | 156114-04920-Online | |||
| 8 | Lead, Ground | 162010-55630 | 162010-55630-Online | 1 170L | ||
| 9 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 2 5*20 W,SW | ||
| 10 | Coil,Ignition | A411-000050 | A411-000050-Online | |||
| 12 | Bolt, Clutch | 175046-06230 | 175046-06230-Online | |||
| 13 | Spring, Clutch | 175018-42230 | 175018-42230-Online | |||
| 14 | Washer | 175048-03920 | 175048-03920-Online | |||
| 15 | Clutch Shoe Set | P021-006200 | P021-006200-Online | |||
| 16 | Washer | 175049-03920 | 175049-03920-Online | |||
| 17 | Nut, Flange 10 | 900519-00010 | 900519-00010-Online | 1 10*1.25 | ||
| 19 | Rotor,Magneto Kit | P021-005911 | P021-005911-Online | 1 | 20 | + 900323-03014 | KEY WOODRUFF |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 20 | Pulley,Asm Starter | A052-000011 | A052-000011-Online | 1 | 21 | + P022-002100 | E-RING | ||
| 24 | Nut 8 (3N) | 900502-00008 | 900502-00008-Online | 1 3N8 | ||
| 26 | Starter,Recoil | A051-000070 | A051-000070-Online | 1 | 27 | + 177236-06910 | SCREW | ||
| 33 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | 2 5*20 | ||
| 35 | Label,Echo | X502-000460 | X502-000460-Online | 1 | RECOIL STARTER | SRM-4300R | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | Gasket,Intake | V103-000070 | V103-000070-Online | |||
| 3 | Insulator,Intake | A200-000140 | A200-000140-Online | |||
| 4 | Bolt, H.S. 5*25 | 900106-05025 | 900106-05025-Online | 2 5*25 | ||
| 5 | Gasket, Intake | 130016-06232 | 130016-06232-Online | |||
| 6 | Carburetor, | A021-000681 | A021-000681-Online | DIAPHRAGM | 1 C1Q-K73A | ||
| 7 | Case, Air Cleaner | P021-010232 | P021-010232-Online | |||
| 9 | Screw 5*50 | 900242-05050 | 900242-05050-Online | 2 5*50 | ||
| 10 | Element, Air Filter | A226-000300 | A226-000300-Online | |||
| 11 | Grid, Cleaner | A230-000000 | A230-000000-Online | |||
| 13 | Label, Choke | 890332-52730 | 890332-52730-Online | |||
| 14 | Lid,Cleaner | A232-000312 | A232-000312-Online | |||
| 15 | Element, Air Filter | A226-000310 | A226-000310-Online | |||
| 19 | Gasket,Exhaust | V104-000210 | V104-000210-Online | |||
| 20 | Bolt, H.S. 5*12 | 900162-05012 | 900162-05012-Online | 1 5*12 W,SW | ||
| 21 | Muffler,Exhaust | A300-000400 | A300-000400-Online | |||
| 22 | Plate,Eye | V150-000550 | V150-000550-Online | |||
| 23 | Bolt, H.S. 6*60 | 900105-06060 | 900105-06060-Online | 2 6*60 | ||
| 24 | Cover,Muffler | A320-000080 | A320-000080-Online | |||
| 25 | Bolt, H.S. 5*12 | 900106-05012 | 900106-05012-Online | 1 5*12 | AIR CLEANER, MUFFLER | SRM-4300R | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | 1 | 3 | + 131016-55830 | GASKET, FUEL CAP | ||
| 8 | Bracket,Fuel Tank | A393-000030 | A393-000030-Online | |||
| 9 | Bolt, H.S. 5*12 | 900106-05012 | 900106-05012-Online | 4 5*12 | ||
| 10 | Seat,Fuel Tank | A390-000000 | A390-000000-Online | |||
| 11 | Tank,Fuel | A350-000131 | A350-000131-Online | |||
| 12 | Seat,Fuel Tank | A390-000010 | A390-000010-Online | |||
| 14 | Bracket,Fuel Tank | A393-000050 | A393-000050-Online | |||
| 16 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | 2 5*20 | ||
| 17 | Bolt, H.S. 5*25 | 900106-05025 | 900106-05025-Online | 2 5*25 | ||
| 20 | Pipe 3*6*230 | 132010-35430 | 132010-35430-Online | 1 3*6*230 | ||
| 21 | Pipe 3* 6*110 | 132010-06460 | 132010-06460-Online | 1 3*6*110 YL | ||
| 22 | Valve, Check | 131300-56430 | 131300-56430-Online | |||
| 23 | Clip | 132013-26630 | 132013-26630-Online | 1 6.5MM | ||
| 24 | Pipe, Fuel | 132012-02960 | 132012-02960-Online | 1 3*6*120L | ||
| 25 | Grommet, Fuel | 132115-55930 | 132115-55930-Online | |||
| 26 | Clip | 132013-26630 | 132013-26630-Online | 1 6.5MM | ||
| 27 | Strainer, Fuel | A369-000000 | A369-000000-Online | 1 125-528 | FUEL TANK | SRM-4300R | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 3 | Bolt | P022-007000 | P022-007000-Online | 3 M6-16 | ||
| 4 | Hanger | P022-006990 | P022-006990-Online | |||
| 5 | Nut | P022-007010 | P022-007010-Online | 2 M6 | ||
| 6 | Clamp | P022-007210 | P022-007210-Online | |||
| 8 | Clamp Asy | P022-007020 | P022-007020-Online | |||
| 13 | Spacer | P022-007030 | P022-007030-Online | |||
| 16 | Bolt | P022-007110 | P022-007110-Online | |||
| 17 | Fixture,Handle | P022-007081 | P022-007081-Online | |||
| 18 | Fixture,Handle | P022-007090 | P022-007090-Online | |||
| 19 | Holder | P022-024750 | P022-024750-Online | |||
| 21 | Handle | P022-024740 | P022-024740-Online | |||
| 22 | Spacer | P022-007120 | P022-007120-Online | |||
| 23 | Label | P022-007070 | P022-007070-Online | |||
| 24 | Pipe | P022-024710 | P022-024710-Online | |||
| 25 | Shaft,Drive | P022-006980 | P022-006980-Online | |||
| 30 | Handle | P022-024730 | P022-024730-Online | 1 | 31 | + P022-007140 | GRIP | ||
| 35 | Case,Asm Clutch | P022-024760 | P022-024760-Online | 1 | 36 | + P022-037020 | DRUM | ||
| 46 | Bolt | P022-007220 | P022-007220-Online | |||

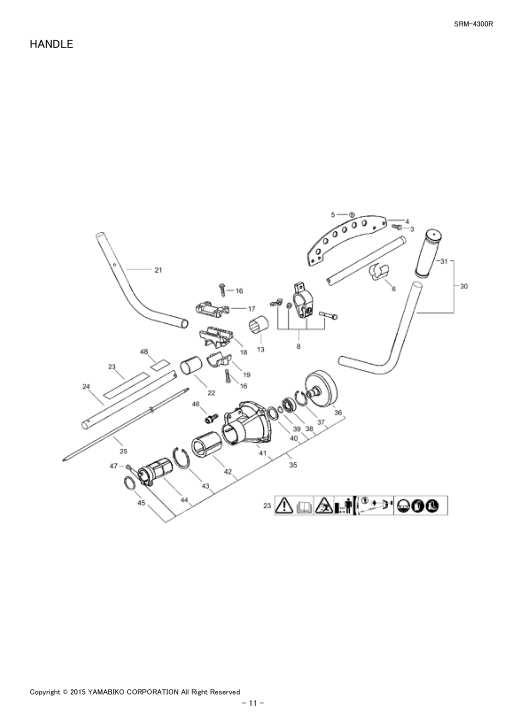

| 48 | Label | P022-024720 | P022-024720-Online | 1 | HANDLE | SRM-4300R | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | Grip,Lever Asy | P022-007230 | P022-007230-Online | 1 | 3 | + P022-007350 | SPRING | ||
| 30 | Cord | P022-007440 | P022-007440-Online | |||
| 31 | Wire, Throttle | P022-007430 | P022-007430-Online | |||
| 32 | Tube | P022-007450 | P022-007450-Online | |||
| 33 | Cap | V494-000080 | V494-000080-Online | 1 | SWITCH | SRM-4300R | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Saw,Bush Cutter | 696001-64133 | 696001-64133-Online | 1 4X255X25.4 T1.4 | ||
| 2 | Spanner | P022-007200 | P022-007200-Online | 1 8*10 | ||
| 3 | Driver And Socket | P022-007180 | P022-007180-Online | 1 17*19 | ||
| 4 | L-Wrench | P022-007190 | P022-007190-Online | 1 M5 | ||
| 5 | Mixer, Fuel | 898520-17130 | 898520-17130-Online | |||
| 9 | Housing Assy,Gear | P022-007041 | P022-007041-Online | 1 | 10 | + 900702-00028 | CIRCLIP 28 | ||
| 40 | Shield Asy | P022-007160 | P022-007160-Online | 1 | 41 | + P022-007470 | BOLT | ||
| 44 | Haeness Asy | P022-007170 | P022-007170-Online | |||
| 45 | Goggle | X690-000021 | X690-000021-Online | |||
| 46 | Scabbard,Blade | P021-007470 | P021-007470-Online | 1 | GEAR CASE | SRM-4300R | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 44 | Cap,Limiter | A259-000040 | A259-000040-Online | 1 | CARBURETOR | SRM-4300R | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 21 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | Oilseal | 100213-00310 | 100213-00310-Online | |||
| 2 | Oilseal | 100213-05530 | 100213-05530-Online | |||
| 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |||
| 2 | Screw | 125310-13930 | 125310-13930-Online | |||
| 18 | Screw | 125314-13930 | 125314-13930-Online | |||
| 18 | Arm, Valve | 125323-08260 | 125323-08260-Online | |||
| 18 | Gasket, Pump | 125325-08360 | 125325-08360-Online | |||
| 18 | Clip | 125327-13930 | 125327-13930-Online | |||
| 18 | Spring,Idle Adjuster | 125333-06960 | 125333-06960-Online | |||
| 18 | Valve, Inlet Needle | 125337-08260 | 125337-08260-Online | |||
| 18 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |||
| 18 | Screw | 125339-13930 | 125339-13930-Online | |||
| 18 | Diaphragm | 125341-07360 | 125341-07360-Online | |||
| 18 | Screw | 125344-05360 | 125344-05360-Online | |||
| 18 | Screw | 125344-08560 | 125344-08560-Online | |||
| 18 | Plug, Welch | 125345-51030 | 125345-51030-Online | |||
| 18 | Screw | 125348-13930 | 125348-13930-Online | |||
| 18 | Swivel | 125372-42030 | 125372-42030-Online | |||
| 18 | Pump, Priming | 125381-08660 | 125381-08660-Online | |||
| 18 | Gasket, Intake | 130016-06232 | 130016-06232-Online | |||
| 8 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | |||
| 10 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |||
| 10 | Clip, Fuel Cap | 131051-56030 | 131051-56030-Online | |||
| 10 | Valve, Check | 131300-56430 | 131300-56430-Online | |||
| 10 | Pipe 3* 6*110 | 132010-06460 | 132010-06460-Online | |||
| 10 | Pipe 3*6*230 | 132010-35430 | 132010-35430-Online | |||
| 10 | Pipe, Fuel | 132012-02960 | 132012-02960-Online | |||
| 10 | Clip | 132013-26630 | 132013-26630-Online | |||
| 10 | Grommet, Fuel | 132115-55930 | 132115-55930-Online | |||
| 10 | Grommet | 156114-04920 | 156114-04920-Online | |||
| 4 | Plug, Spark (Bpm-7A) | 159010-10630 | 159010-10630-Online | |||
| 4 | Lead, Ground | 162010-55630 | 162010-55630-Online | |||
| 4 | Spring, Clutch | 175018-42230 | 175018-42230-Online | |||
| 4 | Bolt, Clutch | 175046-06230 | 175046-06230-Online | |||
| 4 | Washer | 175048-03920 | 175048-03920-Online | |||
| 4 | Washer | 175049-03920 | 175049-03920-Online | |||
| 4 | Pawl, Starter | 177218-40630 | 177218-40630-Online | |||
| 6 | Spring, Rewind | 177220-06310 | 177220-06310-Online | |||
| 6 | Rope, Starter | 177226-06310 | 177226-06310-Online | |||
| 6 | Guide, Rope | 177227-42030 | 177227-42030-Online | |||
| 6 | Grip, Starter | 177228-27030 | 177228-27030-Online | |||
| 6 | Screw | 177236-06910 | 177236-06910-Online | |||
| 6 | Washer, Shim | 610239-04130 | 610239-04130-Online | |||
| 16 | Shaft, P.T.O. | 610310-05730 | 610310-05730-Online | 16 | Part No | Part descrition | Page | ||
| 16 | Plate, Adapter | 610314-21231 | 610314-21231-Online | |||
| 16 | Spacer | 610315-07130 | 610315-07130-Online | |||
| 16 | Oilseal | 610413-07130 | 610413-07130-Online | |||
| 16 | Bolt 8* 8 | 610434-50031 | 610434-50031-Online | |||
| 16 | Saw,Bush Cutter | 696001-64133 | 696001-64133-Online | |||
| 16 | Label, Choke | 890332-52730 | 890332-52730-Online | |||
| 8 | Mixer, Fuel | 898520-17130 | 898520-17130-Online | |||
| 16 | Bolt, H.S. 6*60 | 900105-06060 | 900105-06060-Online | |||
| 8 | Bolt, H.S. 5*12 | 900106-05012 | 900106-05012-Online | |||
| 2 | Bolt, H.S. 5*12 | 900106-05012 | 900106-05012-Online | |||
| 10 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | |||
| 2 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | |||
| 6 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | |||
| 10 | Bolt, H.S. 5*25 | 900106-05025 | 900106-05025-Online | |||
| 8 | Bolt, H.S. 5*25 | 900106-05025 | 900106-05025-Online | |||
| 10 | Bolt, H.S. 5*12 | 900162-05012 | 900162-05012-Online | |||
| 8 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | |||
| 2 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | |||
| 4 | Bolt, H.S. 5*35 | 900162-05035 | 900162-05035-Online | |||
| 2 | Screw 5*20 | 900242-05020 | 900242-05020-Online | |||
| 16 | Screw 5*50 | 900242-05050 | 900242-05050-Online | |||
| 8 | Key Woodruff | 900323-03014 | 900323-03014-Online | |||
| 4 | Nut 8 (3N) | 900502-00008 | 900502-00008-Online | |||
| 6 | Nut, Flange 10 | 900519-00010 | 900519-00010-Online | |||
| 4 | Circlip 12 | 900701-00012 | 900701-00012-Online | |||
| 16 | Circlip 28 | 900702-00028 | 900702-00028-Online | |||
| 16 | Circlip 32 | 900702-00032 | 900702-00032-Online | |||
| 16 | Circlip 12 | 900706-00012 | 900706-00012-Online | |||
| 16 | Bearing, Ball 6001 | 900800-06001 | 900800-06001-Online | |||
| 16 | Bearing, Ball 6000 | 900800-36000 | 900800-36000-Online | |||
| 16 | Bearing, Ball 6001 | 900807-06001 | 900807-06001-Online | |||
| 16 | Bearing, Ball 6201 | 900810-06201 | 900810-06201-Online | |||
| 16 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | |||
| 2 | Bearing Ball | 94035-36201 | 94035-36201-Online | |||
| 2 | Crankshaft,Asm | A011-000330 | A011-000330-Online | |||
| 2 | Carburetor, | A021-000681 | A021-000681-Online | DIAPHRAGM | ||
| 8 | Carburetor, | A021-000681 | A021-000681-Online | DIAPHRAGM | ||
| 18 | Starter,Recoil | A051-000070 | A051-000070-Online | |||
| 6 | Pulley,Asm Starter | A052-000011 | A052-000011-Online | |||
| 6 | Cylinder | A130-000870 | A130-000870-Online | |||
| 2 | Cover,Cylinder | A160-000241 | A160-000241-Online | 2 | Part No | Part descrition | Page | ||
| 2 | Cover,Fan | A172-000350 | A172-000350-Online | |||
| 2 | Insulator,Intake | A200-000140 | A200-000140-Online | |||
| 8 | Element, Air Filter | A226-000300 | A226-000300-Online | |||
| 8 | Element, Air Filter | A226-000310 | A226-000310-Online | |||
| 8 | Grid, Cleaner | A230-000000 | A230-000000-Online | |||
| 8 | Lid,Cleaner | A232-000312 | A232-000312-Online | |||
| 8 | Cap,Limiter | A259-000040 | A259-000040-Online | |||
| 18 | Muffler,Exhaust | A300-000400 | A300-000400-Online | |||
| 8 | Cover,Muffler | A320-000080 | A320-000080-Online | |||
| 8 | Tank,Fuel | A350-000131 | A350-000131-Online | |||
| 10 | Strainer, Fuel | A369-000000 | A369-000000-Online | |||
| 10 | Seat,Fuel Tank | A390-000000 | A390-000000-Online | |||
| 10 | Seat,Fuel Tank | A390-000010 | A390-000010-Online | |||
| 10 | Bracket,Fuel Tank | A393-000030 | A393-000030-Online | |||
| 10 | Bracket,Fuel Tank | A393-000050 | A393-000050-Online | |||
| 10 | Coil,Ignition | A411-000050 | A411-000050-Online | |||
| 4 | Terminal,Sparkplug | A426-000000 | A426-000000-Online | |||
| 4 | Cap,Spark Plug | A427-000000 | A427-000000-Online | |||
| 4 | Cover,Gear Case | C536-000030 | C536-000030-Online | |||
| 16 | Holder,Cable | G186-000010 | G186-000010-Online | |||
| 2 | Retainer | P005-000620 | P005-000620-Online | |||
| 18 | Spring,Thrt.Return | P005-000790 | P005-000790-Online | |||
| 18 | Valve, Throttle | P005-000810 | P005-000810-Online | |||
| 18 | Screen, Fuel Inlet | P005-000860 | P005-000860-Online | |||
| 18 | Nozzle, Check Valve | P005-001080 | P005-001080-Online | |||
| 18 | Shaft Asy,Throttle | P005-001090 | P005-001090-Online | |||
| 18 | Lever, Throttle | P005-001100 | P005-001100-Online | |||
| 18 | Diaphragm, Pump | P005-001110 | P005-001110-Online | |||
| 18 | Spring, Meter. Lever | P005-001130 | P005-001130-Online | |||
| 18 | Gasket, Metering | P005-001140 | P005-001140-Online | |||
| 18 | Screw, Idle Mixture | P005-001150 | P005-001150-Online | |||
| 18 | Screw,Mainn Mixture | P005-001160 | P005-001160-Online | |||
| 18 | Base, Asy Primer | P005-001170 | P005-001170-Online | |||
| 18 | Cover, Pump | P005-001340 | P005-001340-Online | |||
| 18 | Crankcase Set | P021-002471 | P021-002471-Online | |||
| 2 | Rotor,Magneto Kit | P021-005911 | P021-005911-Online | |||
| 4 | Clutch Shoe Set | P021-006200 | P021-006200-Online | |||
| 4 | Scabbard,Blade | P021-007470 | P021-007470-Online | |||
| 16 | Case, Air Cleaner | P021-010232 | P021-010232-Online | |||
| 8 | Piston Kit | P021-015550 | P021-015550-Online | |||
| 2 | Drum, Starter | P022-002080 | P022-002080-Online | |||
| 6 | Spring, Return | P022-002090 | P022-002090-Online | |||
| 6 | E-Ring | P022-002100 | P022-002100-Online | |||
| 6 | Housing | P022-006870 | P022-006870-Online | 12 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-1 |
Page 22 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 12 | Bearing | P022-006890 | P022-006890-Online | |||
| 12 | Ring | P022-006900 | P022-006900-Online | |||
| 12 | Ring | P022-006920 | P022-006920-Online | |||
| 12 | Cushion | P022-006940 | P022-006940-Online | |||
| 12 | Ring | P022-006950 | P022-006950-Online | |||
| 12 | Shaft,Drive | P022-006980 | P022-006980-Online | |||
| 12 | Hanger | P022-006990 | P022-006990-Online | |||
| 12 | Bolt | P022-007000 | P022-007000-Online | |||
| 12 | Clamp Asy | P022-007020 | P022-007020-Online | |||
| 12 | Spacer | P022-007030 | P022-007030-Online | |||
| 12 | Housing Assy,Gear | P022-007041 | P022-007041-Online | |||
| 16 | Bolt | P022-007050 | P022-007050-Online | |||
| 16 | Bolt | P022-007060 | P022-007060-Online | |||
| 16 | Label | P022-007070 | P022-007070-Online | |||
| 12 | Fixture,Handle | P022-007081 | P022-007081-Online | |||
| 12 | Fixture,Handle | P022-007090 | P022-007090-Online | |||
| 12 | Bolt | P022-007110 | P022-007110-Online | |||
| 12 | Spacer | P022-007120 | P022-007120-Online | |||
| 12 | Grip | P022-007140 | P022-007140-Online | |||
| 12 | Shield Asy | P022-007160 | P022-007160-Online | |||
| 16 | Haeness Asy | P022-007170 | P022-007170-Online | |||
| 16 | Driver And Socket | P022-007180 | P022-007180-Online | |||
| 16 | L-Wrench | P022-007190 | P022-007190-Online | |||
| 16 | Spanner | P022-007200 | P022-007200-Online | |||
| 16 | Clamp | P022-007210 | P022-007210-Online | |||
| 12 | Bolt | P022-007220 | P022-007220-Online | |||
| 12 | Grip,Lever Asy | P022-007230 | P022-007230-Online | |||
| 14 | Grip R | P022-007240 | P022-007240-Online | |||
| 14 | Grip L | P022-007250 | P022-007250-Online | |||
| 14 | Control, Throttle | P022-007260 | P022-007260-Online | |||
| 14 | Lockout, Throttle | P022-007270 | P022-007270-Online | |||
| 14 | Switch | P022-007280 | P022-007280-Online | |||
| 14 | Holder | P022-007290 | P022-007290-Online | |||
| 14 | Knob | P022-007300 | P022-007300-Online | |||
| 14 | Spring | P022-007310 | P022-007310-Online | |||
| 14 | Spring | P022-007320 | P022-007320-Online | |||
| 14 | Spring | P022-007330 | P022-007330-Online | |||
| 14 | Spring | P022-007340 | P022-007340-Online | |||
| 14 | Spring | P022-007350 | P022-007350-Online | |||
| 14 | Spring | P022-007360 | P022-007360-Online | |||
| 14 | Screw | P022-007370 | P022-007370-Online | |||
| 14 | Screw | P022-007380 | P022-007380-Online | |||
| 14 | Nut | P022-007390 | P022-007390-Online | 14 | Part No | Part descrition | Page | ||
| 14 | Screw | P022-007410 | P022-007410-Online | |||
| 14 | Label | P022-007420 | P022-007420-Online | |||
| 14 | Wire, Throttle | P022-007430 | P022-007430-Online | |||
| 14 | Cord | P022-007440 | P022-007440-Online | |||
| 14 | Tube | P022-007450 | P022-007450-Online | |||
| 14 | Gear Set | P022-007460 | P022-007460-Online | |||
| 16 | Bolt | P022-007470 | P022-007470-Online | |||
| 16 | Plate | P022-007480 | P022-007480-Online | |||
| 16 | Joint | P022-024680 | P022-024680-Online | |||
| 12 | Ring O | P022-024690 | P022-024690-Online | |||
| 12 | Boltm5-5 | P022-024700 | P022-024700-Online | |||
| 12 | Pipe | P022-024710 | P022-024710-Online | |||
| 12 | Label | P022-024720 | P022-024720-Online | |||
| 12 | Handle | P022-024730 | P022-024730-Online | |||
| 12 | Handle | P022-024740 | P022-024740-Online | |||
| 12 | Holder | P022-024750 | P022-024750-Online | |||
| 12 | Case,Asm Clutch | P022-024760 | P022-024760-Online | |||
| 12 | Drum | P022-037020 | P022-037020-Online | |||
| 12 | Gasket,Cyl | V100-000040 | V100-000040-Online | |||
| 2 | Gasket,Crankcase | V102-000001 | V102-000001-Online | |||
| 2 | Gasket,Intake | V103-000070 | V103-000070-Online | |||
| 8 | Gasket,Exhaust | V104-000210 | V104-000210-Online | |||
| 8 | Grommet,Plug | V141-000020 | V141-000020-Online | |||
| 4 | Plate,Eye | V150-000550 | V150-000550-Online | |||
| 8 | Washer,Circular 10 | V307-000060 | V307-000060-Online | |||
| 2 | Collar,5 | V353-000020 | V353-000020-Online | |||
| 2 | Tube | V475-001610 | V475-001610-Online | |||
| 14 | Bearing,Needle 10 | V555-000010 | V555-000010-Online | |||
| 2 | Ring,End | V580-000010 | V580-000010-Online | |||
| 2 | Pin,Eng 10 | V608-000000 | V608-000000-Online | |||
| 2 | Label,Echo | X502-000460 | X502-000460-Online | |||
| 6 | Label,Echo | X547-001040 | X547-001040-Online | |||
| 2 | Goggle | X690-000021 | X690-000021-Online | 16 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-2 |
Source PDF: 20200226-684_SRM-4300R_20_20000001_24FEB2020.pdf. Generated 2026-06-25 14:39.
