Echo SRM-4300R IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: SRM-4300R-Online
Source Pages

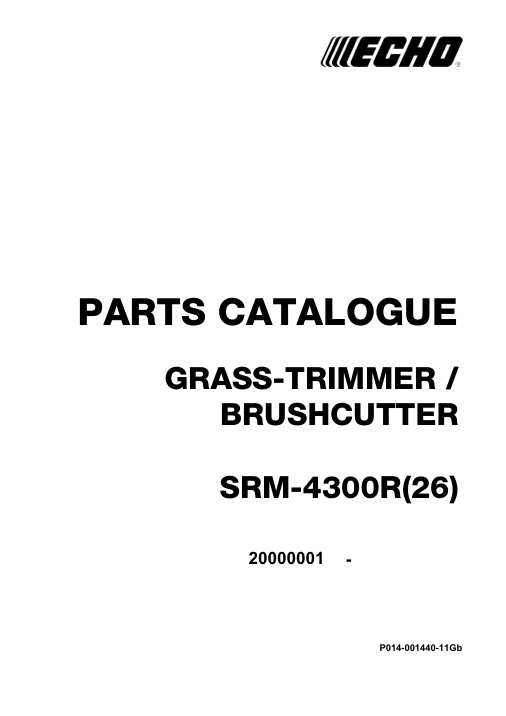

Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.

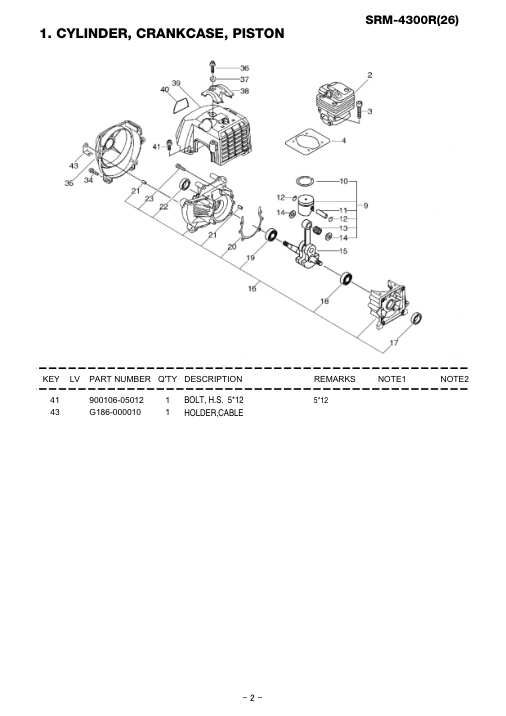

Page 3
Tap or click the page image to enlarge it.

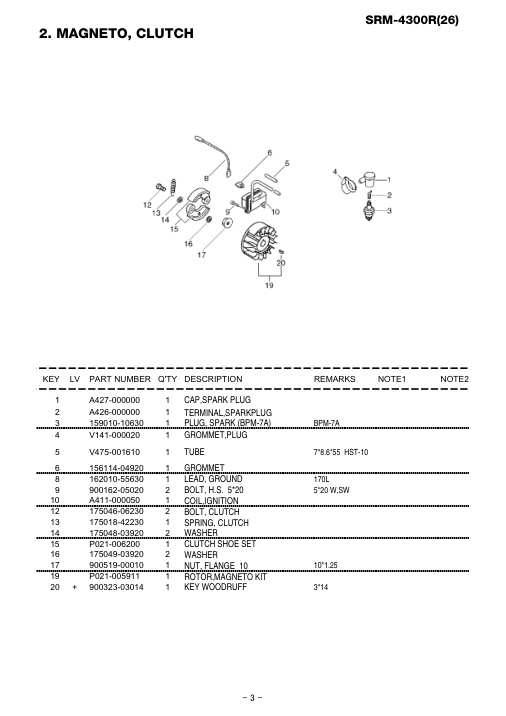

Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.

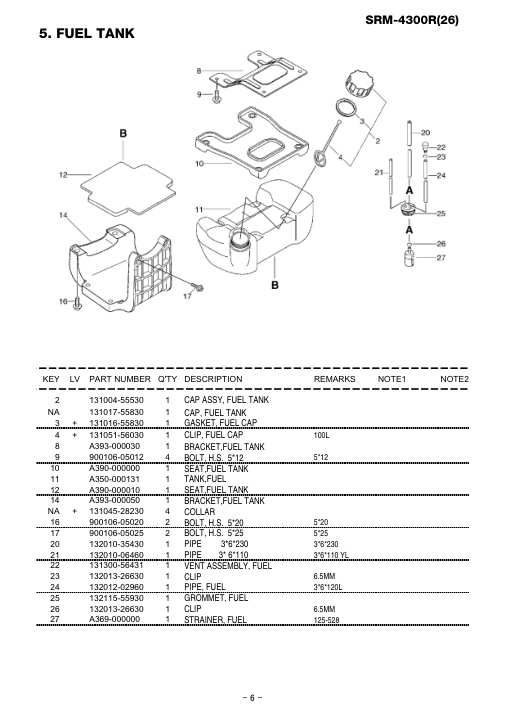

Page 7
Tap or click the page image to enlarge it.

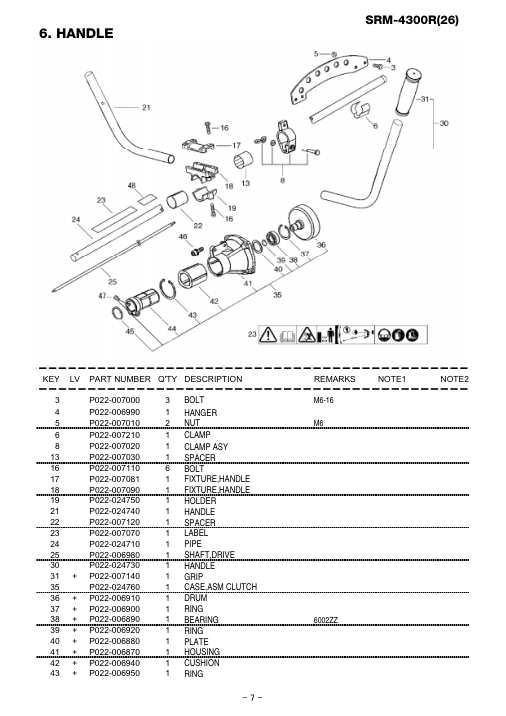

Page 8
Tap or click the page image to enlarge it.

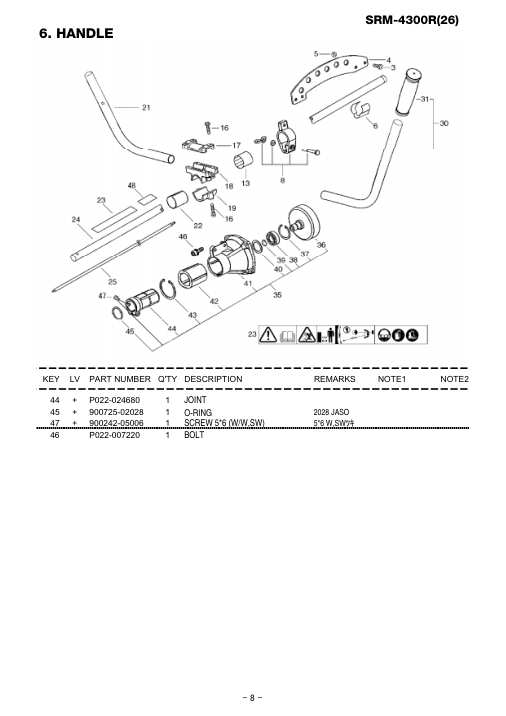

Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.

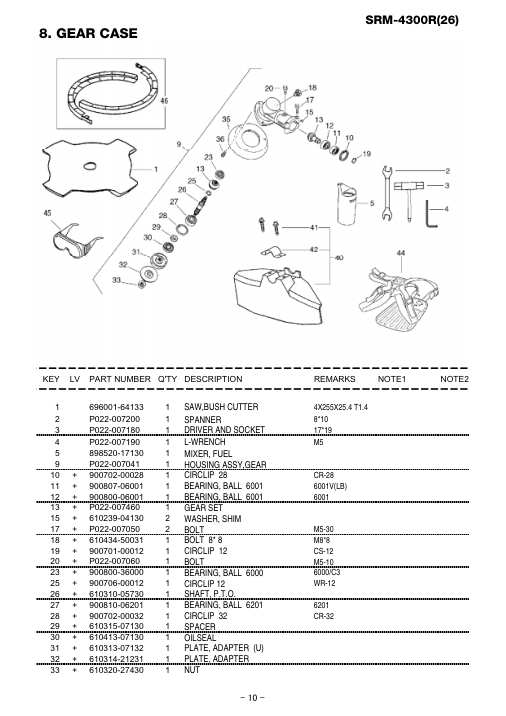

Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.

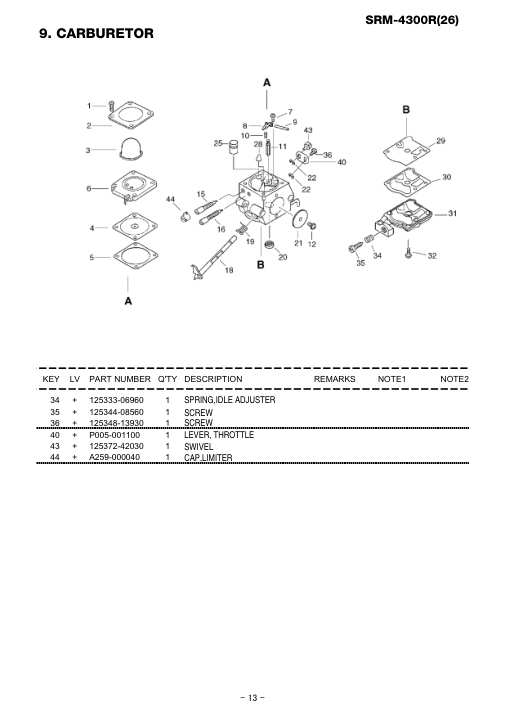

Page 14
Tap or click the page image to enlarge it.

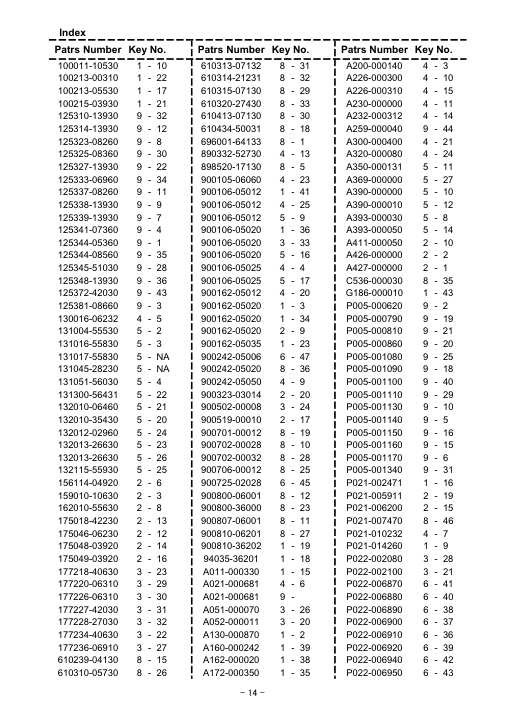

Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Cylinder | A130-000870 | A130-000870-Online | ||
| 3 | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 4 | 1 | Gasket,Cyl | V100-000040 | V100-000040-Online | ||
| 9 | 1 | Piston Kit | P021-014260 | P021-014260-Online | ||
| 10 | + | 1 | Ring, Piston | 100011-10530 | 100011-10530-Online | |
| 11 | + | 1 | Pin,Eng 10 | V608-000000 | V608-000000-Online | |
| 12 | + | 2 | Ring,End | V580-000010 | V580-000010-Online | ij0.8 |
| 13 | + | 1 | Bearing,Needle 10 | V555-000010 | V555-000010-Online | |
| 14 | + | 2 | Washer,Circular 10 | V307-000060 | V307-000060-Online | |
| 15 | 1 | Crankshaft,Asm | A011-000330 | A011-000330-Online | ||
| 16 | 1 | Crankcase Set | P021-002471 | P021-002471-Online | ||
| 17 | + | 1 | Oilseal | 100213-05530 | 100213-05530-Online | ISCD 12 22 7 |
| 18 | + | 1 | Bearing Ball | 94035-36201 | 94035-36201-Online | 6201X3JR2C3 |
| 19 | + | 1 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | 6202/C3 |
| 20 | + | 1 | Gasket,Crankcase | V102-000001 | V102-000001-Online | |
| 21 | + | 4 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 22 | + | 1 | Oilseal | 100213-00310 | 100213-00310-Online | ISCD 15 25 7 |
| 23 | + | 4 | Bolt, H.S. 5*35 | 900162-05035 | 900162-05035-Online | 5*35 W,SW |
| 34 | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 35 | 1 | Cover,Fan | A172-000350 | A172-000350-Online | ||
| 36 | 1 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | 5*20 | |
| 37 | 1 | Collar,5 | V353-000020 | V353-000020-Online | 12*5.5*4.5L | |
| 38 | 1 | Guard,Top | A162-000020 | A162-000020-Online | ||
| 39 | 1 | Cover,Cylinder | A160-000242 | A160-000242-Online | ||
| 40 | 1 | Label,Echo | X547-001040 | X547-001040-Online | ECHO+SRM-4300 |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 41 | 1 | Bolt, H.S. 5*12 | 900106-05012 | 900106-05012-Online | 5*12 | |
| 43 | 1 | Holder,Cable | G186-000010 | G186-000010-Online |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cap,Spark Plug | A427-000000 | A427-000000-Online | ||
| 2 | 1 | Terminal,Sparkplug | A426-000000 | A426-000000-Online | ||
| 3 | 1 | Plug, Spark (Bpm-7A) | 159010-10630 | 159010-10630-Online | BPM-7A | |
| 4 | 1 | Grommet,Plug | V141-000020 | V141-000020-Online | ||
| 5 | 1 | Tube | V475-001610 | V475-001610-Online | 7*8.6*55 HST-10 | |
| 6 | 1 | Grommet | 156114-04920 | 156114-04920-Online | ||
| 8 | 1 | Lead, Ground | 162010-55630 | 162010-55630-Online | ||
| 9 | 2 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 10 | 1 | Coil,Ignition | A411-000050 | A411-000050-Online | ||
| 12 | 2 | Bolt, Clutch | 175046-06230 | 175046-06230-Online | ||
| 13 | 1 | Spring, Clutch | 175018-42230 | 175018-42230-Online | ||
| 14 | 2 | Washer | 175048-03920 | 175048-03920-Online | ||
| 15 | 1 | Clutch Shoe Set | P021-006200 | P021-006200-Online | ||
| 16 | 2 | Washer | 175049-03920 | 175049-03920-Online | ||
| 17 | 1 | Nut, Flange 10 | 900519-00010 | 900519-00010-Online | 10*1.25 | |
| 19 | 1 | Rotor,Magneto Kit | P021-005911 | P021-005911-Online | ||
| 20 | + | 1 | Key Woodruff | 900323-03014 | 900323-03014-Online | 3*14 |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 20 | 1 | Pulley,Asm Starter | A052-000011 | A052-000011-Online | ||
| 21 | + | 1 | E-Ring | P022-002100 | P022-002100-Online | |
| 22 | + | 1 | Spring, Return | 177234-40630 | 177234-40630-Online | |
| 23 | + | 1 | Pawl, Starter | 177218-40630 | 177218-40630-Online | WHITE |
| 24 | 1 | Nut 8 (3N) | 900502-00008 | 900502-00008-Online | 3N8 | |
| 26 | 1 | Starter,Recoil | A051-000070 | A051-000070-Online | ||
| 27 | + | 1 | Screw | 177236-06910 | 177236-06910-Online | |
| 28 | + | 1 | Drum, Starter | P022-002080 | P022-002080-Online | |
| 29 | + | 1 | Spring, Rewind | 177220-06310 | 177220-06310-Online | |
| 30 | + | 1 | Rope, Starter | 177226-06310 | 177226-06310-Online | 3.8*1150 |
| 31 | + | 1 | Guide, Rope | 177227-42030 | 177227-42030-Online | |
| 32 | + | 1 | Grip, Starter | 177228-27030 | 177228-27030-Online | |
| 33 | 2 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | 5*20 | |
| 35 | 1 | Label,Echo | X502-000460 | X502-000460-Online |

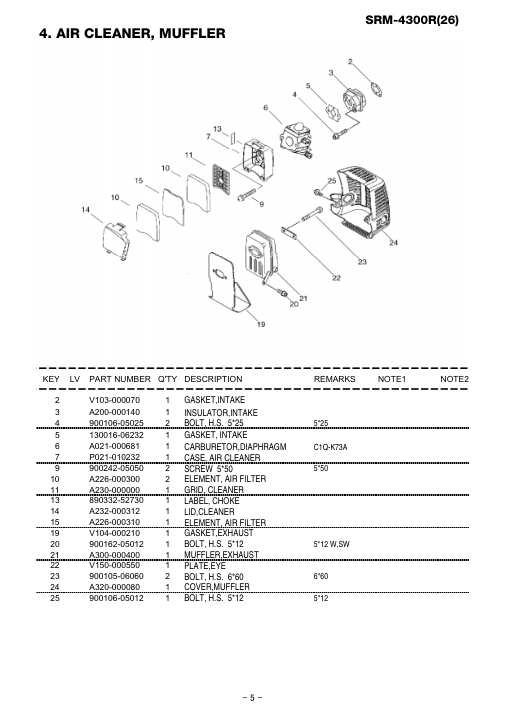

Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Gasket,Intake | V103-000070 | V103-000070-Online | ||
| 3 | 1 | Insulator,Intake | A200-000140 | A200-000140-Online | ||
| 4 | 2 | Bolt, H.S. 5*25 | 900106-05025 | 900106-05025-Online | 5*25 | |
| 5 | 1 | Gasket, Intake | 130016-06232 | 130016-06232-Online | ||
| 6 | 1 | Carburetor,Diaphragm | A021-000681 | A021-000681-Online | C1Q-K73A | |
| 7 | 1 | Case, Air Cleaner | P021-010232 | P021-010232-Online | ||
| 9 | 2 | Screw 5*50 | 900242-05050 | 900242-05050-Online | 5*50 | |
| 10 | 2 | Element, Air Filter | A226-000300 | A226-000300-Online | ||
| 11 | 1 | Grid, Cleaner | A230-000000 | A230-000000-Online | ||
| 13 | 1 | Label, Choke | 890332-52730 | 890332-52730-Online | ||
| 14 | 1 | Lid,Cleaner | A232-000312 | A232-000312-Online | ||
| 15 | 1 | Element, Air Filter | A226-000310 | A226-000310-Online | ||
| 19 | 1 | Gasket,Exhaust | V104-000210 | V104-000210-Online | ||
| 20 | 1 | Bolt, H.S. 5*12 | 900162-05012 | 900162-05012-Online | 5*12 W,SW | |
| 21 | 1 | Muffler,Exhaust | A300-000400 | A300-000400-Online | ||
| 22 | 1 | Plate,Eye | V150-000550 | V150-000550-Online | ||
| 23 | 2 | Bolt, H.S. 6*60 | 900105-06060 | 900105-06060-Online | 6*60 | |
| 24 | 1 | Cover,Muffler | A320-000080 | A320-000080-Online | ||
| 25 | 1 | Bolt, H.S. 5*12 | 900106-05012 | 900106-05012-Online | 5*12 |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | ||
| NA | 1 | Cap, Fuel Tank | 131017-55830 | 131017-55830-Online | ||
| 3 | + | 1 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |
| 4 | + | 1 | Clip, Fuel Cap | 131051-56030 | 131051-56030-Online | |
| 8 | 1 | Bracket,Fuel Tank | A393-000030 | A393-000030-Online | ||
| 9 | 4 | Bolt, H.S. 5*12 | 900106-05012 | 900106-05012-Online | 5*12 | |
| 10 | 1 | Seat,Fuel Tank | A390-000000 | A390-000000-Online | ||
| 11 | 1 | Tank,Fuel | A350-000131 | A350-000131-Online | ||
| 12 | 1 | Seat,Fuel Tank | A390-000010 | A390-000010-Online | ||
| 14 | 1 | Bracket,Fuel Tank | A393-000050 | A393-000050-Online | ||
| NA | + | 4 | Collar | 131045-28230 | 131045-28230-Online | |
| 16 | 2 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | 5*20 | |
| 17 | 2 | Bolt, H.S. 5*25 | 900106-05025 | 900106-05025-Online | 5*25 | |
| 20 | 1 | Pipe 3*6*230 | 132010-35430 | 132010-35430-Online | 3*6*230 | |
| 21 | 1 | Pipe 3* 6*110 | 132010-06460 | 132010-06460-Online | 3*6*110 YL | |
| 22 | 1 | Vent Assembly, Fuel | 131300-56431 | 131300-56431-Online | ||
| 23 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 24 | 1 | Pipe, Fuel | 132012-02960 | 132012-02960-Online | 3*6*120L | |
| 25 | 1 | Grommet, Fuel | 132115-55930 | 132115-55930-Online | ||
| 26 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 27 | 1 | Strainer, Fuel | A369-000000 | A369-000000-Online |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 3 | 3 | Bolt | P022-007000 | P022-007000-Online | M6-16 | |
| 4 | 1 | Hanger | P022-006990 | P022-006990-Online | ||
| 5 | 2 | Nut | P022-007010 | P022-007010-Online | M6 | |
| 6 | 1 | Clamp | P022-007210 | P022-007210-Online | ||
| 8 | 1 | Clamp Asy | P022-007020 | P022-007020-Online | ||
| 13 | 1 | Spacer | P022-007030 | P022-007030-Online | ||
| 16 | 6 | Bolt | P022-007110 | P022-007110-Online | ||
| 17 | 1 | Fixture,Handle | P022-007081 | P022-007081-Online | ||
| 18 | 1 | Fixture,Handle | P022-007090 | P022-007090-Online | ||
| 19 | 1 | Holder | P022-024750 | P022-024750-Online | ||
| 21 | 1 | Handle | P022-024740 | P022-024740-Online | ||
| 22 | 1 | Spacer | P022-007120 | P022-007120-Online | ||
| 23 | 1 | Label | P022-007070 | P022-007070-Online | ||
| 24 | 1 | Pipe | P022-024710 | P022-024710-Online | ||
| 25 | 1 | Shaft,Drive | P022-006980 | P022-006980-Online | ||
| 30 | 1 | Handle | P022-024730 | P022-024730-Online | ||
| 31 | + | 1 | Grip | P022-007140 | P022-007140-Online | |
| 35 | 1 | Case,Asm Clutch | P022-024760 | P022-024760-Online | ||
| 36 | + | 1 | Drum | P022-006910 | P022-006910-Online | |
| 37 | + | 1 | Ring | P022-006900 | P022-006900-Online | |
| 38 | + | 1 | Bearing | P022-006890 | P022-006890-Online | 6002ZZ |
| 39 | + | 1 | Ring | P022-006920 | P022-006920-Online | |
| 40 | + | 1 | Plate | P022-006880 | P022-006880-Online | |
| 41 | + | 1 | Housing | P022-006870 | P022-006870-Online | |
| 42 | + | 1 | Cushion | P022-006940 | P022-006940-Online | |
| 43 | + | 1 | Ring | P022-006950 | P022-006950-Online |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 44 | + | 1 | Joint | P022-024680 | P022-024680-Online | |
| 45 | + | 1 | O-Ring | 900725-02028 | 900725-02028-Online | 2028 JASO |
| 47 | + | 1 | Screw 5*6 (W/W,Sw) | 900242-05006 | 900242-05006-Online | 5*6 W,SW㺠㺕 |
| 46 | 1 | Bolt | P022-007220 | P022-007220-Online |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Grip,Lever Asy | P022-007230 | P022-007230-Online | ||
| 3 | + | 1 | Spring | P022-007350 | P022-007350-Online | |
| 4 | + | 1 | Switch | P022-007280 | P022-007280-Online | |
| 5 | + | 1 | Label | P022-007420 | P022-007420-Online | |
| 6 | + | 1 | Grip L | P022-007250 | P022-007250-Online | |
| 7 | + | 2 | Part | P022-007390 | P022-007390-Online | |
| 8 | + | 1 | Spring | P022-007340 | P022-007340-Online | |
| 9 | + | 1 | Spring | P022-007330 | P022-007330-Online | |
| 10 | + | 1 | Holder | P022-007290 | P022-007290-Online | |
| 11 | + | 1 | Screw | P022-007410 | P022-007410-Online | |
| 12 | + | 1 | Spring | P022-007320 | P022-007320-Online | |
| 13 | + | 1 | Lockout, Throttle | P022-007270 | P022-007270-Online | |
| 14 | + | 1 | Spring | P022-007310 | P022-007310-Online | |
| 15 | + | 1 | Control, Throttle | P022-007260 | P022-007260-Online | |
| 20 | + | 1 | Knob | P022-007300 | P022-007300-Online | |
| 21 | + | 1 | Spring | P022-007360 | P022-007360-Online | |
| 22 | + | 1 | Bolt | P022-007400 | P022-007400-Online | |
| 24 | + | 1 | Grip R | P022-007240 | P022-007240-Online | |
| 25 | + | 5 | Screw | P022-007370 | P022-007370-Online | |
| 26 | + | 1 | Screw | P022-007380 | P022-007380-Online | |
| 30 | 1 | Cord | P022-007440 | P022-007440-Online | ||
| 31 | 1 | Wire, Throttle | P022-007430 | P022-007430-Online | ||
| 32 | 1 | Tube | P022-007450 | P022-007450-Online | ||
| 33 | 1 | Part | V494-000080 | V494-000080-Online |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Saw,Bush Cutter | 696001-64133 | 696001-64133-Online | 4X255X25.4 T1.4 | |
| 2 | 1 | Spanner | P022-007200 | P022-007200-Online | 8*10 | |
| 3 | 1 | Driver And Socket | P022-007180 | P022-007180-Online | 17*19 | |
| 4 | 1 | L-Wrench | P022-007190 | P022-007190-Online | M5 | |
| 5 | 1 | Mixer, Fuel | 898520-17130 | 898520-17130-Online | ||
| 9 | 1 | Housing Assy,Gear | P022-007041 | P022-007041-Online | ||
| 10 | + | 1 | Circlip 28 | 900702-00028 | 900702-00028-Online | CR-28 |
| 11 | + | 1 | Bearing, Ball 6001 | 900807-06001 | 900807-06001-Online | 6001V(LB) |
| 12 | + | 1 | Bearing, Ball 6001 | 900800-06001 | 900800-06001-Online | |
| 13 | + | 1 | Gear Set | P022-007460 | P022-007460-Online | |
| 15 | + | 2 | Washer, Shim | 610239-04130 | 610239-04130-Online | |
| 17 | + | 2 | Bolt | P022-007050 | P022-007050-Online | M5-30 |
| 18 | + | 1 | Bolt 8* 8 | 610434-50031 | 610434-50031-Online | M8*8 |
| 19 | + | 1 | Circlip 12 | 900701-00012 | 900701-00012-Online | CS-12 |
| 20 | + | 1 | Bolt | P022-007060 | P022-007060-Online | M5-10 |
| 23 | + | 1 | Bearing, Ball 6000 | 900800-36000 | 900800-36000-Online | 6000/C3 |
| 25 | + | 1 | Circlip 12 | 900706-00012 | 900706-00012-Online | WR-12 |
| 26 | + | 1 | Shaft, P.T.O. | 610310-05730 | 610310-05730-Online | |
| 27 | + | 1 | Bearing, Ball 6201 | 900810-06201 | 900810-06201-Online | |
| 28 | + | 1 | Circlip 32 | 900702-00032 | 900702-00032-Online | CR-32 |
| 29 | + | 1 | Spacer | 610315-07130 | 610315-07130-Online | |
| 30 | + | 1 | Oilseal | 610413-07130 | 610413-07130-Online | |
| 31 | + | 1 | Plate, Adapter (U) | 610313-07132 | 610313-07132-Online | |
| 32 | + | 1 | Plate, Adapter | 610314-21231 | 610314-21231-Online | |
| 33 | + | 1 | Part | 610320-27430 | 610320-27430-Online |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 35 | + | 1 | Cover,Gear Case | C536-000030 | C536-000030-Online | |
| 36 | + | 3 | Screw 5*20 | 900242-05020 | 900242-05020-Online | 5*20 |
| 40 | 1 | Shield Asy | P022-007160 | P022-007160-Online | ||
| 41 | + | 2 | Bolt | P022-007470 | P022-007470-Online | M6-28 |
| 42 | + | 1 | Plate | P022-007480 | P022-007480-Online | |
| 44 | 1 | Haeness Asy | P022-007170 | P022-007170-Online | ||
| 45 | 1 | Goggle | X690-000050 | X690-000050-Online | GOGGLE + NOTE | |
| 46 | 1 | Scabbard,Blade | P021-007470 | P021-007470-Online |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 4 | Screw | 125344-05360 | 125344-05360-Online | |
| 2 | + | 1 | Retainer | P005-000620 | P005-000620-Online | |
| 3 | + | 1 | Pump, Priming | 125381-08660 | 125381-08660-Online | |
| 4 | + | 1 | Diaphragm | 125341-07360 | 125341-07360-Online | |
| 5 | + | 1 | Gasket, Metering | P005-001140 | P005-001140-Online | |
| 6 | + | 1 | Base, Asy Primer | P005-001170 | P005-001170-Online | |
| 7 | + | 1 | Screw | 125339-13930 | 125339-13930-Online | |
| 8 | + | 1 | Arm, Valve | 125323-08260 | 125323-08260-Online | |
| 9 | + | 1 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |
| 10 | + | 1 | Spring, Meter. Lever | P005-001130 | P005-001130-Online | |
| 11 | + | 1 | Valve, Inlet Needle | 125337-08260 | 125337-08260-Online | |
| 12 | + | 1 | Screw | 125314-13930 | 125314-13930-Online | 3*4 |
| 15 | + | 1 | Screw,Mainn Mixture | P005-001160 | P005-001160-Online | |
| 16 | + | 1 | Screw, Idle Mixture | P005-001150 | P005-001150-Online | |
| 18 | + | 1 | Shaft Asy,Throttle | P005-001090 | P005-001090-Online | |
| 19 | + | 1 | Spring,Thrt.Return | P005-000790 | P005-000790-Online | |
| 20 | + | 1 | Screen, Fuel Inlet | P005-000860 | P005-000860-Online | |
| 21 | + | 1 | Valve, Throttle | P005-000810 | P005-000810-Online | |
| 22 | + | 2 | Clip | 125327-13930 | 125327-13930-Online | |
| 25 | + | 1 | Nozzle, Check Valve | P005-001080 | P005-001080-Online | |
| 28 | + | 1 | Plug, Welch | 125345-51030 | 125345-51030-Online | |
| 29 | + | 1 | Diaphragm, Pump | P005-001110 | P005-001110-Online | |
| 30 | + | 1 | Gasket, Pump | 125325-08360 | 125325-08360-Online | |
| 31 | + | 1 | Cover, Pump | P005-001340 | P005-001340-Online | |
| 32 | + | 1 | Screw | 125310-13930 | 125310-13930-Online |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 34 | + | 1 | Spring,Idle Adjuster | 125333-06960 | 125333-06960-Online | |
| 35 | + | 1 | Screw | 125344-08560 | 125344-08560-Online | |
| 36 | + | 1 | Screw | 125348-13930 | 125348-13930-Online | |
| 40 | + | 1 | Lever, Throttle | P005-001100 | P005-001100-Online | |
| 43 | + | 1 | Swivel | 125372-42030 | 125372-42030-Online | |
| 44 | + | 1 | Cap,Limiter | A259-000040 | A259-000040-Online |
Source PDF: 20130718-306_SRM-4300R(26)_P014-001440-11Gb_EN.pdf. Generated 2026-06-25 14:38.
