Echo DM-6120 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: DM-6120-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.

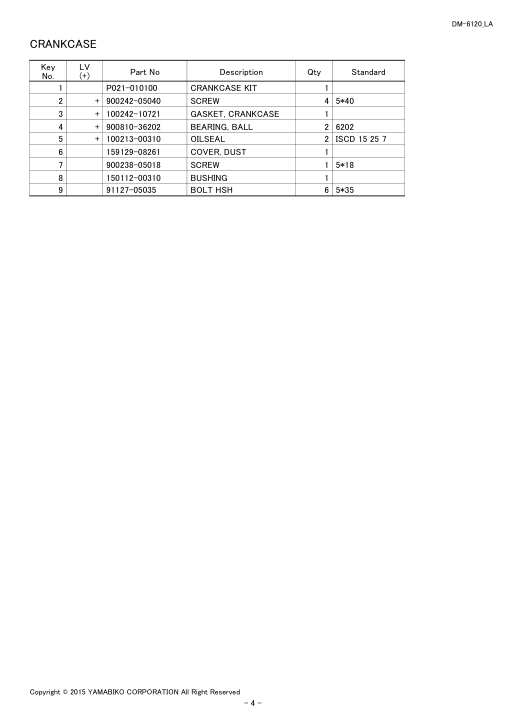

Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.

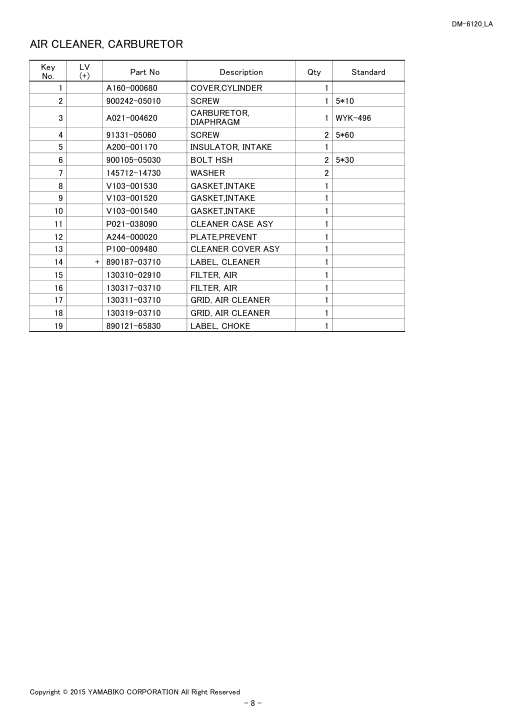

Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.

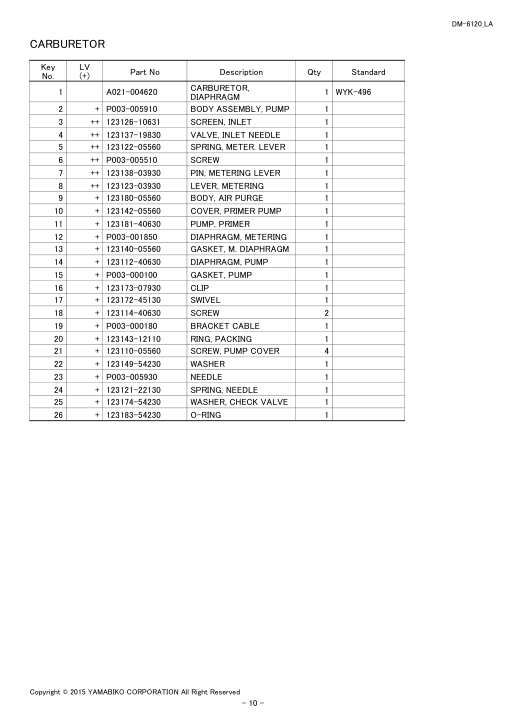

Page 12
Tap or click the page image to enlarge it.

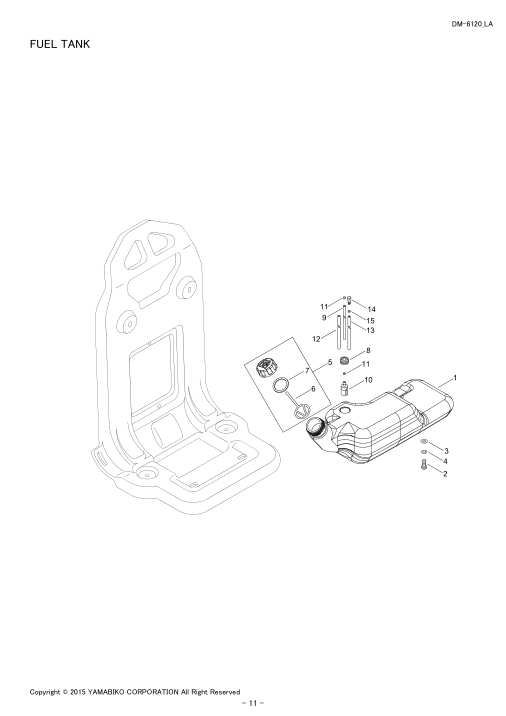

Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.

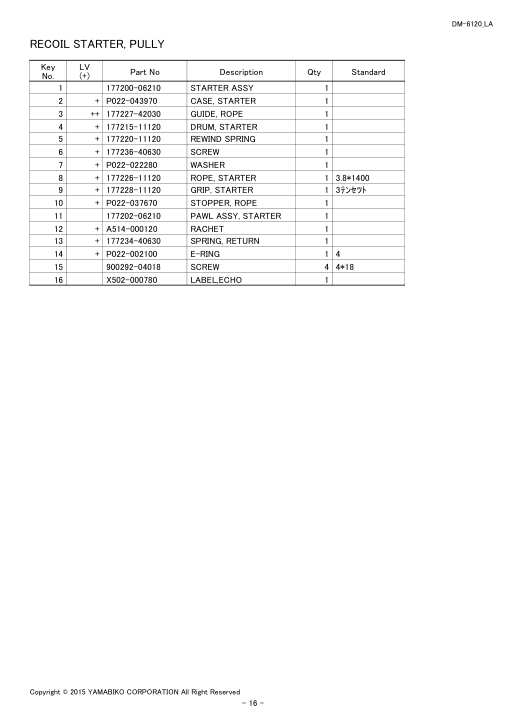

Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.

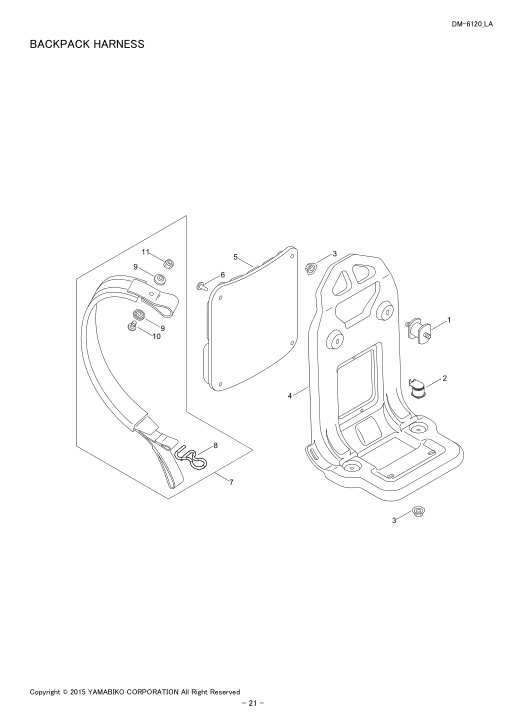

Page 23
Tap or click the page image to enlarge it.
Page 24
Tap or click the page image to enlarge it.
Page 25
Tap or click the page image to enlarge it.
Page 26
Tap or click the page image to enlarge it.
Page 27
Tap or click the page image to enlarge it.
Page 28
Tap or click the page image to enlarge it.
Page 29
Tap or click the page image to enlarge it.
Page 30
Tap or click the page image to enlarge it.
Page 31
Tap or click the page image to enlarge it.

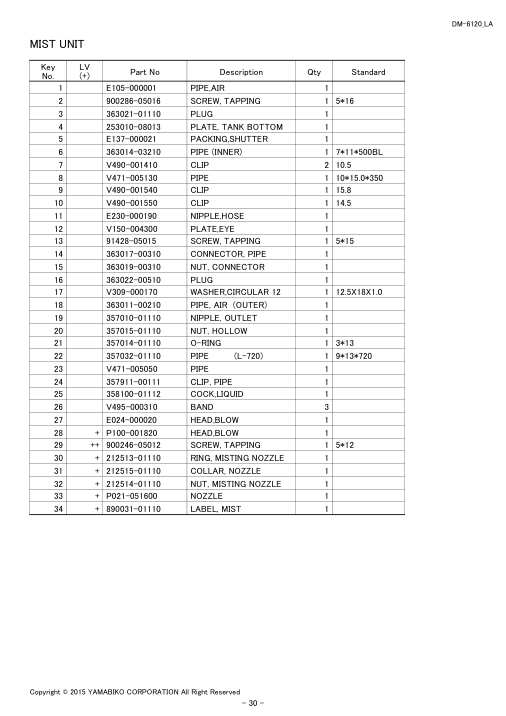

Page 32
Tap or click the page image to enlarge it.

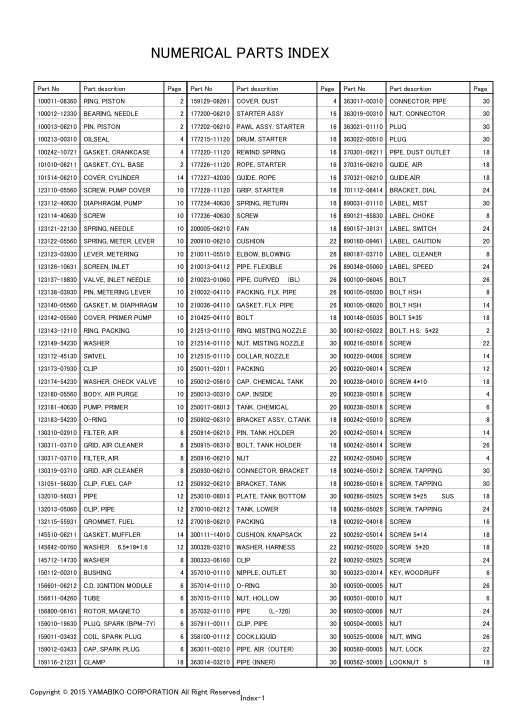

Page 33
Tap or click the page image to enlarge it.
Page 34
Tap or click the page image to enlarge it.
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Crankshaft Assy | A011-001310 | A011-001310-Online | |||
| 2 | Piston Kit | P021-051580 | P021-051580-Online | 1 | 3 | + 100011-08360 | RING, PISTON | ||
| 7 | Cylinder | A130-000310 | A130-000310-Online | |||
| 8 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | 4 5*22 W,SW | ||
| 9 | Gasket, Cyl. Base | 101010-06211 | 101010-06211-Online | 1 | CYLINDER, PISTON, CRANKSHAFT | DM-6120_LA | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Crankcase Kit | P021-010100 | P021-010100-Online | 1 | 2 | + 900242-05040 | SCREW | ||
| 6 | Cover, Dust | 159129-08261 | 159129-08261-Online | |||
| 7 | Screw | 900238-05018 | 900238-05018-Online | 1 5*18 | ||
| 8 | Bushing | 150112-00310 | 150112-00310-Online | |||
| 9 | Bolt Hsh | 91127-05035 | 91127-05035-Online | 6 5*35 | CRANKCASE | DM-6120_LA | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Rotor, Magneto | 156800-06161 | 156800-06161-Online | |||
| 2 | C.D. Ignition Module | 156601-06212 | 156601-06212-Online | |||
| 3 | Nut | 900501-00010 | 900501-00010-Online | 1 10 P1.25 | ||
| 4 | Washer | 900602-00010 | 900602-00010-Online | 1 10 | ||
| 5 | Washer, Spring | 900605-00010 | 900605-00010-Online | 1 10 | ||
| 6 | Screw | 900238-05018 | 900238-05018-Online | 2 5*18 | ||
| 7 | Key, Woodruff | 900323-03014 | 900323-03014-Online | 1 3*14 | ||
| 8 | Plug, Spark (Bpm-7Y) | 159010-19630 | 159010-19630-Online | 1 BPM-7Y | ||
| 9 | Cap, Spark Plug | 159012-03433 | 159012-03433-Online | |||
| 10 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | |||
| 11 | Tube | 156611-04260 | 156611-04260-Online | 1 6*8*340 | MAGNETO | DM-6120_LA | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Cover,Cylinder | A160-000680 | A160-000680-Online | |||
| 2 | Screw | 900242-05010 | 900242-05010-Online | 1 5*10 | ||
| 3 | Carburetor, | A021-004620 | A021-004620-Online | DIAPHRAGM | 1 WYK-496 | ||
| 4 | Screw | 91331-05060 | 91331-05060-Online | 2 5*60 | ||
| 5 | Insulator, Intake | A200-001170 | A200-001170-Online | |||
| 6 | Bolt Hsh | 900105-05030 | 900105-05030-Online | 2 5*30 | ||
| 7 | Washer | 145712-14730 | 145712-14730-Online | |||
| 8 | Gasket,Intake | V103-001530 | V103-001530-Online | |||
| 9 | Gasket,Intake | V103-001520 | V103-001520-Online | |||
| 10 | Gasket,Intake | V103-001540 | V103-001540-Online | |||
| 11 | Cleaner Case Asy | P021-038090 | P021-038090-Online | |||
| 12 | Plate,Prevent | A244-000020 | A244-000020-Online | |||
| 13 | Cleaner Cover Asy | P100-009480 | P100-009480-Online | 1 | 14 | + 890187-03710 | LABEL, CLEANER | ||
| 15 | Filter, Air | 130310-02910 | 130310-02910-Online | |||
| 16 | Filter, Air | 130317-03710 | 130317-03710-Online | |||
| 17 | Grid, Air Cleaner | 130311-03710 | 130311-03710-Online | |||
| 18 | Grid, Air Cleaner | 130319-03710 | 130319-03710-Online | |||
| 19 | Label, Choke | 890121-65830 | 890121-65830-Online | 1 | AIR CLEANER, CARBURETOR | DM-6120_LA | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Carburetor, | A021-004620 | A021-004620-Online | DIAPHRAGM | 1 WYK-496 | 2 | + P003-005910 |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Tank, Fuel | A350-001910 | A350-001910-Online | |||
| 2 | Screw | 900220-06014 | 900220-06014-Online | 2 6*14 | ||
| 3 | Washer 6.5*18*1.6 | 145642-00760 | 145642-00760-Online | 2 6.5*18*1.6 | ||
| 4 | Washer, Spring | 900605-00006 | 900605-00006-Online | 2 6 | ||
| 5 | Cap,Fuer Assy | P021-014061 | P021-014061-Online | 1 | 6 | + 131051-56030 | CLIP, FUEL CAP | ||
| 8 | Grommet, Fuel | 132115-55931 | 132115-55931-Online | 1 3 φ5 | ||
| 9 | Pipe | V471-000771 | V471-000771-Online | 1 3X6X280 | ||
| 10 | Strainer, Fuel | A369-000440 | A369-000440-Online | 1 125-952 | ||
| 11 | Clip | V490-001230 | V490-001230-Online | |||
| 12 | Pipe | V471-000550 | V471-000550-Online | 1 3*6*145 | ||
| 13 | Pipe | 132010-56031 | 132010-56031-Online | 1 3*6*110 | ||
| 14 | Valve,Check | A356-000031 | A356-000031-Online | |||
| 15 | Clip, Pipe | 132013-05060 | 132013-05060-Online | 1 | FUEL TANK | DM-6120_LA | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Cover, Cylinder | 101514-06210 | 101514-06210-Online | |||
| 2 | Muffler Asy | P021-051590 | P021-051590-Online | 1 | 3 | + 900220-04006 | SCREW | ||
| 4 | Bolt Hsh | 900105-06020 | 900105-06020-Online | 2 6*20 | ||
| 5 | Screw | 900242-05014 | 900242-05014-Online | 1 5*14 | ||
| 6 | Gasket,Exhaust | V104-002320 | V104-002320-Online | 1 NP9800 | ||
| 7 | Gasket, Muffler | 145510-06211 | 145510-06211-Online | 1 | MUFFLER | DM-6120_LA | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Starter Assy | 177200-06210 | 177200-06210-Online | 1 | 2 | + P022-043970 | CASE, STARTER | ||
| 11 | Pawl Assy, Starter | 177202-06210 | 177202-06210-Online | 1 | 12 | + A514-000120 | RACHET | ||
| 15 | Screw | 900292-04018 | 900292-04018-Online | 4 4*18 | ||
| 16 | Label,Echo | X502-000780 | X502-000780-Online | 1 | RECOIL STARTER, PULLY | DM-6120_LA | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Cover,Engine | A190-000500 | A190-000500-Online | |||
| 2 | Screw 5*20 | 900292-05020 | 900292-05020-Online | 3 5*20 SUS | ||
| 3 | Clamp | 159116-21231 | 159116-21231-Online | |||
| 4 | Label,Caution | X505-002310 | X505-002310-Online | 1 HOT CAUTION | ||
| 5 | Case,Fan | E103-001430 | E103-001430-Online | |||
| 6 | Case,Fan | E103-001420 | E103-001420-Online | 1 CASE,FAN | ||
| 7 | Screw 5*25 Sus | 900286-05025 | 900286-05025-Online | 11 5*25 SUS | ||
| 9 | Bolt 5*35 | 900148-05035 | 900148-05035-Online | 4 5*35 | ||
| 10 | Plate, Eng | C632-000240 | C632-000240-Online | |||
| 11 | Screw 4*10 | 900238-04010 | 900238-04010-Online | 2 4*10 | ||
| 12 | Pipe, Dust Outlet | 370301-06211 | 370301-06211-Online | |||
| 13 | Guide,Air | 370321-06210 | 370321-06210-Online | |||
| 14 | Guide, Air | 370316-06210 | 370316-06210-Online | |||
| 15 | Packing | 270018-06210 | 270018-06210-Online | |||
| 16 | Screw 5*14 | 900292-05014 | 900292-05014-Online | 4 5*14 SUS | ||
| 17 | Bracket Assy, C.Tank | 250902-06310 | 250902-06310-Online | 2 | 18 | + 250915-06310 | BOLT, TANK HOLDER | ||
| 22 | Locknut 5 | 900562-50005 | 900562-50005-Online | 2 5 | ||
| 23 | Washer 5 Sus | 900604-00005 | 900604-00005-Online | 2 5 SUS | ||
| 24 | Washer, Spring 5 Sus | 900609-00005 | 900609-00005-Online | 2 5 SUS | ||
| 25 | Bolt | 210425-04110 | 210425-04110-Online | |||
| 26 | Tank, Lower | 270010-06212 | 270010-06212-Online | |||
| 27 | Plug | V162-000720 | V162-000720-Online | 1 | FAN CASE | DM-6120_LA | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 22 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Fixture,Tank | E115-000060 | E115-000060-Online | |||
| 2 | Pin, Tank Holder | 250914-06210 | 250914-06210-Online | |||
| 3 | Bolt, Tapping | 91148-05035 | 91148-05035-Online | 4 5*35 | ||
| 4 | Tank, Chemical | 250017-08013 | 250017-08013-Online | 1 23 L | ||
| 5 | Cap, Chemical Tank | 250012-05610 | 250012-05610-Online | |||
| 6 | Cap, Inside | 250013-00310 | 250013-00310-Online | |||
| 7 | Packing | 250011-02011 | 250011-02011-Online | |||
| 8 | Label,Echo | X502-000440 | X502-000440-Online | |||
| 9 | Label, Caution | 890160-09461 | 890160-09461-Online | |||
| 10 | Label,Model | X503-013870 | X503-013870-Online | 1 DM-6120 LA | ||
| 11 | Filter,Tank | E220-000030 | E220-000030-Online | |||
| 12 | Filter,Tank | E220-000040 | E220-000040-Online | 1 | CHEMICAL TANK | DM-6120_LA | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 24 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Cushion | 200910-06210 | 200910-06210-Online | |||
| 2 | Cushion,6 | V402-000100 | V402-000100-Online | |||
| 4 | Frame, Backpack | C620-000500 | C620-000500-Online | |||
| 5 | Cushion, Knapsack | 300111-14010 | 300111-14010-Online | |||
| 6 | Clip | 300333-06160 | 300333-06160-Online | |||
| 7 | Harness,Asm | P021-041100 | P021-041100-Online | BACKPACK | 2 | 8 | + C646-000120 | ||
| 11 | Nut, Lock | 900560-00005 | 900560-00005-Online | 2 5 | BACKPACK HARNESS | DM-6120_LA | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 26 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Lever,Throttle | C453-000131 | C453-000131-Online | |||
| 2 | Knob,Lever | E151-000010 | E151-000010-Online | |||
| 3 | Cable,Bowden | V430-001330 | V430-001330-Online | |||
| 4 | Nut | 900503-00006 | 900503-00006-Online | 2 6 P0.75 | ||
| 5 | Washer | 900600-00006 | 900600-00006-Online | 2 6 | ||
| 6 | Bracket, Dial | 701112-06414 | 701112-06414-Online | |||
| 7 | Screw, Tapping | 900286-05025 | 900286-05025-Online | 4 5*25 | ||
| 8 | Dial,Metering | E150-000041 | E150-000041-Online | |||
| 9 | Screw | 900292-05025 | 900292-05025-Online | 2 5*25 | ||
| 10 | Nut | 900504-00005 | 900504-00005-Online | 2 5 | ||
| 11 | Label, Speed | 890348-05060 | 890348-05060-Online | |||
| 12 | Label, Switch | 890157-39131 | 890157-39131-Online | 1 | THROTTLE LEVER | DM-6120_LA | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 28 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Elbow, Blowing | 210011-05510 | 210011-05510-Online | |||
| 2 | Screw | 900242-05014 | 900242-05014-Online | 1 5*14 | ||
| 3 | Nut | 900500-00005 | 900500-00005-Online | 1 5 | ||
| 4 | Pipe, Flexible | 210013-04112 | 210013-04112-Online | |||
| 5 | Band | V495-001201 | V495-001201-Online | |||
| 6 | Band | V495-001171 | V495-001171-Online | |||
| 7 | Packing, Flx. Pipe | 210032-04110 | 210032-04110-Online | |||
| 8 | Gasket, Flx. Pipe | 210036-04110 | 210036-04110-Online | |||
| 9 | Pipe,Blower | E165-000600 | E165-000600-Online | |||
| 10 | Pipe, Curved (Bl) | 210023-01060 | 210023-01060-Online | |||
| 11 | Handle,Front | C040-000020 | C040-000020-Online | 1 | 12 | + 900100-06045 | BOLT |
Page 30 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Tool,Wrench | X602-000020 | X602-000020-Online | 1 17*19 L200 | ACCESSORIES | DM-6120_LA | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 32 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Pipe,Air | E105-000001 | E105-000001-Online | |||
| 2 | Screw, Tapping | 900286-05016 | 900286-05016-Online | 1 5*16 | ||
| 3 | Plug | 363021-01110 | 363021-01110-Online | |||
| 4 | Plate, Tank Bottom | 253010-08013 | 253010-08013-Online | |||
| 5 | Packing,Shutter | E137-000021 | E137-000021-Online | |||
| 6 | Pipe (Inner) | 363014-03210 | 363014-03210-Online | 1 7*11*500BL | ||
| 7 | Clip | V490-001410 | V490-001410-Online | 2 10.5 | ||
| 8 | Pipe | V471-005130 | V471-005130-Online | 1 10*15.0*350 | ||
| 9 | Clip | V490-001540 | V490-001540-Online | 1 15.8 | ||
| 10 | Clip | V490-001550 | V490-001550-Online | 1 14.5 | ||
| 11 | Nipple,Hose | E230-000190 | E230-000190-Online | |||
| 12 | Plate,Eye | V150-004300 | V150-004300-Online | |||
| 13 | Screw, Tapping | 91428-05015 | 91428-05015-Online | 1 5*15 | ||
| 14 | Connector, Pipe | 363017-00310 | 363017-00310-Online | |||
| 15 | Nut, Connector | 363019-00310 | 363019-00310-Online | |||
| 16 | Plug | 363022-00510 | 363022-00510-Online | |||
| 17 | Washer,Circular 12 | V309-000170 | V309-000170-Online | 1 12.5X18X1.0 | ||
| 18 | Pipe, Air (Outer) | 363011-00210 | 363011-00210-Online | |||
| 19 | Nipple, Outlet | 357010-01110 | 357010-01110-Online | |||
| 20 | Nut, Hollow | 357015-01110 | 357015-01110-Online | |||
| 21 | O-Ring | 357014-01110 | 357014-01110-Online | 1 3*13 | ||
| 22 | Pipe (L-720) | 357032-01110 | 357032-01110-Online | 1 9*13*720 | ||
| 23 | Pipe | V471-005050 | V471-005050-Online | |||
| 24 | Clip, Pipe | 357911-00111 | 357911-00111-Online | |||
| 25 | Cock,Liquid | 358100-01112 | 358100-01112-Online | |||
| 26 | Band | V495-000310 | V495-000310-Online | |||
| 27 | Head,Blow | E024-000020 | E024-000020-Online | 1 | 28 | + P100-001820 | HEAD,BLOW |
Page 33 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | Bearing, Needle | 100012-12330 | 100012-12330-Online | |||
| 2 | Pin, Piston | 100013-06210 | 100013-06210-Online | |||
| 2 | Oilseal | 100213-00310 | 100213-00310-Online | |||
| 4 | Gasket, Crankcase | 100242-10721 | 100242-10721-Online | |||
| 4 | Gasket, Cyl. Base | 101010-06211 | 101010-06211-Online | |||
| 2 | Cover, Cylinder | 101514-06210 | 101514-06210-Online | |||
| 14 | Screw, Pump Cover | 123110-05560 | 123110-05560-Online | |||
| 10 | Diaphragm, Pump | 123112-40630 | 123112-40630-Online | |||
| 10 | Screw | 123114-40630 | 123114-40630-Online | |||
| 10 | Spring, Needle | 123121-22130 | 123121-22130-Online | |||
| 10 | Spring, Meter. Lever | 123122-05560 | 123122-05560-Online | |||
| 10 | Lever, Metering | 123123-03930 | 123123-03930-Online | |||
| 10 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |||
| 10 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |||
| 10 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |||
| 10 | Gasket, M. Diaphragm | 123140-05560 | 123140-05560-Online | |||
| 10 | Cover, Primer Pump | 123142-05560 | 123142-05560-Online | |||
| 10 | Ring, Packing | 123143-12110 | 123143-12110-Online | |||
| 10 | Washer | 123149-54230 | 123149-54230-Online | |||
| 10 | Swivel | 123172-45130 | 123172-45130-Online | |||
| 10 | Clip | 123173-07930 | 123173-07930-Online | |||
| 10 | Washer, Check Valve | 123174-54230 | 123174-54230-Online | |||
| 10 | Body, Air Purge | 123180-05560 | 123180-05560-Online | |||
| 10 | Pump, Primer | 123181-40630 | 123181-40630-Online | |||
| 10 | O-Ring | 123183-54230 | 123183-54230-Online | |||
| 10 | Filter, Air | 130310-02910 | 130310-02910-Online | |||
| 8 | Grid, Air Cleaner | 130311-03710 | 130311-03710-Online | |||
| 8 | Filter, Air | 130317-03710 | 130317-03710-Online | |||
| 8 | Grid, Air Cleaner | 130319-03710 | 130319-03710-Online | |||
| 8 | Clip, Fuel Cap | 131051-56030 | 131051-56030-Online | |||
| 12 | Pipe | 132010-56031 | 132010-56031-Online | |||
| 12 | Clip, Pipe | 132013-05060 | 132013-05060-Online | |||
| 12 | Grommet, Fuel | 132115-55931 | 132115-55931-Online | |||
| 12 | Gasket, Muffler | 145510-06211 | 145510-06211-Online | |||
| 14 | Washer 6.5*18*1.6 | 145642-00760 | 145642-00760-Online | |||
| 12 | Washer | 145712-14730 | 145712-14730-Online | |||
| 8 | Bushing | 150112-00310 | 150112-00310-Online | |||
| 4 | C.D. Ignition Module | 156601-06212 | 156601-06212-Online | |||
| 6 | Tube | 156611-04260 | 156611-04260-Online | |||
| 6 | Rotor, Magneto | 156800-06161 | 156800-06161-Online | |||
| 6 | Plug, Spark (Bpm-7Y) | 159010-19630 | 159010-19630-Online | |||
| 6 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | |||
| 6 | Cap, Spark Plug | 159012-03433 | 159012-03433-Online | |||
| 6 | Clamp | 159116-21231 | 159116-21231-Online | 18 | Part No | Part descrition | Page | ||
| 4 | Starter Assy | 177200-06210 | 177200-06210-Online | |||
| 16 | Pawl Assy, Starter | 177202-06210 | 177202-06210-Online | |||
| 16 | Drum, Starter | 177215-11120 | 177215-11120-Online | |||
| 16 | Rewind Spring | 177220-11120 | 177220-11120-Online | |||
| 16 | Rope, Starter | 177226-11120 | 177226-11120-Online | |||
| 16 | Guide, Rope | 177227-42030 | 177227-42030-Online | |||
| 16 | Grip, Starter | 177228-11120 | 177228-11120-Online | |||
| 16 | Spring, Return | 177234-40630 | 177234-40630-Online | |||
| 16 | Screw | 177236-40630 | 177236-40630-Online | |||
| 18 | Cushion | 200910-06210 | 200910-06210-Online | |||
| 22 | Elbow, Blowing | 210011-05510 | 210011-05510-Online | |||
| 26 | Pipe, Flexible | 210013-04112 | 210013-04112-Online | |||
| 26 | Pipe, Curved (Bl) | 210023-01060 | 210023-01060-Online | |||
| 26 | Packing, Flx. Pipe | 210032-04110 | 210032-04110-Online | |||
| 26 | Gasket, Flx. Pipe | 210036-04110 | 210036-04110-Online | |||
| 26 | Bolt | 210425-04110 | 210425-04110-Online | |||
| 18 | Ring, Misting Nozzle | 212513-01110 | 212513-01110-Online | |||
| 30 | Nut, Misting Nozzle | 212514-01110 | 212514-01110-Online | |||
| 30 | Collar, Nozzle | 212515-01110 | 212515-01110-Online | |||
| 30 | Packing | 250011-02011 | 250011-02011-Online | |||
| 20 | Cap, Chemical Tank | 250012-05610 | 250012-05610-Online | |||
| 20 | Cap, Inside | 250013-00310 | 250013-00310-Online | |||
| 20 | Tank, Chemical | 250017-08013 | 250017-08013-Online | |||
| 20 | Bracket Assy, C.Tank | 250902-06310 | 250902-06310-Online | |||
| 18 | Pin, Tank Holder | 250914-06210 | 250914-06210-Online | |||
| 20 | Bolt, Tank Holder | 250915-06310 | 250915-06310-Online | |||
| 22 | Connector, Bracket | 250930-06210 | 250930-06210-Online | |||
| 18 | Bracket, Tank | 250932-06210 | 250932-06210-Online | |||
| 18 | Plate, Tank Bottom | 253010-08013 | 253010-08013-Online | |||
| 30 | Tank, Lower | 270010-06212 | 270010-06212-Online | |||
| 18 | Packing | 270018-06210 | 270018-06210-Online | |||
| 18 | Cushion, Knapsack | 300111-14010 | 300111-14010-Online | |||
| 22 | Washer, Harness | 300328-03210 | 300328-03210-Online | |||
| 22 | Clip | 300333-06160 | 300333-06160-Online | |||
| 22 | Nipple, Outlet | 357010-01110 | 357010-01110-Online | |||
| 30 | O-Ring | 357014-01110 | 357014-01110-Online | |||
| 30 | Nut, Hollow | 357015-01110 | 357015-01110-Online | |||
| 30 | Pipe (L-720) | 357032-01110 | 357032-01110-Online | |||
| 30 | Clip, Pipe | 357911-00111 | 357911-00111-Online | |||
| 30 | Cock,Liquid | 358100-01112 | 358100-01112-Online | |||
| 30 | Pipe, Air (Outer) | 363011-00210 | 363011-00210-Online | |||
| 30 | Pipe (Inner) | 363014-03210 | 363014-03210-Online | 30 | Part No | Part descrition | Page | ||
| 30 | Nut, Connector | 363019-00310 | 363019-00310-Online | |||
| 30 | Plug | 363021-01110 | 363021-01110-Online | |||
| 30 | Plug | 363022-00510 | 363022-00510-Online | |||
| 30 | Pipe, Dust Outlet | 370301-06211 | 370301-06211-Online | |||
| 18 | Guide, Air | 370316-06210 | 370316-06210-Online | |||
| 18 | Guide,Air | 370321-06210 | 370321-06210-Online | |||
| 18 | Bracket, Dial | 701112-06414 | 701112-06414-Online | |||
| 24 | Label, Mist | 890031-01110 | 890031-01110-Online | |||
| 30 | Label, Choke | 890121-65830 | 890121-65830-Online | |||
| 8 | Label, Switch | 890157-39131 | 890157-39131-Online | |||
| 24 | Label, Caution | 890160-09461 | 890160-09461-Online | |||
| 20 | Label, Cleaner | 890187-03710 | 890187-03710-Online | |||
| 8 | Label, Speed | 890348-05060 | 890348-05060-Online | |||
| 24 | Bolt | 900100-06045 | 900100-06045-Online | |||
| 26 | Bolt Hsh | 900105-05030 | 900105-05030-Online | |||
| 8 | Bolt Hsh | 900105-06020 | 900105-06020-Online | |||
| 14 | Bolt 5*35 | 900148-05035 | 900148-05035-Online | |||
| 18 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | |||
| 2 | Screw | 900216-05016 | 900216-05016-Online | |||
| 22 | Screw | 900220-04006 | 900220-04006-Online | |||
| 14 | Screw | 900220-06014 | 900220-06014-Online | |||
| 12 | Screw 4*10 | 900238-04010 | 900238-04010-Online | |||
| 18 | Screw | 900238-05018 | 900238-05018-Online | |||
| 4 | Screw | 900238-05018 | 900238-05018-Online | |||
| 6 | Screw | 900242-05010 | 900242-05010-Online | |||
| 8 | Screw | 900242-05014 | 900242-05014-Online | |||
| 14 | Screw | 900242-05014 | 900242-05014-Online | |||
| 26 | Screw | 900242-05040 | 900242-05040-Online | |||
| 4 | Screw, Tapping | 900246-05012 | 900246-05012-Online | |||
| 30 | Screw, Tapping | 900286-05016 | 900286-05016-Online | |||
| 30 | Screw 5*25 Sus | 900286-05025 | 900286-05025-Online | |||
| 18 | Screw, Tapping | 900286-05025 | 900286-05025-Online | |||
| 24 | Screw | 900292-04018 | 900292-04018-Online | |||
| 16 | Screw 5*14 | 900292-05014 | 900292-05014-Online | |||
| 18 | Screw 5*20 | 900292-05020 | 900292-05020-Online | |||
| 18 | Screw | 900292-05025 | 900292-05025-Online | |||
| 24 | Key, Woodruff | 900323-03014 | 900323-03014-Online | |||
| 24 | Nut, Wing | 900525-00006 | 900525-00006-Online | |||
| 26 | Nut, Lock | 900560-00005 | 900560-00005-Online | |||
| 22 | Locknut 5 | 900562-50005 | 900562-50005-Online | 18 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-1 |
Page 34 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 24 | Washer | 900600-00006 | 900600-00006-Online | |||
| 26 | Washer | 900602-00010 | 900602-00010-Online | |||
| 6 | Washer 5 Sus | 900604-00005 | 900604-00005-Online | |||
| 18 | Washer, Spring | 900605-00006 | 900605-00006-Online | |||
| 12 | Washer, Spring | 900605-00010 | 900605-00010-Online | |||
| 6 | Washer, Spring 5 Sus | 900609-00005 | 900609-00005-Online | |||
| 18 | Bearing, Ball | 900810-36202 | 900810-36202-Online | |||
| 4 | Bolt Hsh | 91127-05035 | 91127-05035-Online | |||
| 4 | Bolt, Tapping | 91148-05035 | 91148-05035-Online | |||
| 20 | Screw | 91331-05060 | 91331-05060-Online | |||
| 8 | Screw, Tapping | 91428-05015 | 91428-05015-Online | |||
| 30 | Crankshaft Assy | A011-001310 | A011-001310-Online | |||
| 2 | Carburetor, | A021-004620 | A021-004620-Online | DIAPHRAGM | ||
| 8 | Carburetor, | A021-004620 | A021-004620-Online | DIAPHRAGM | ||
| 10 | Cylinder | A130-000310 | A130-000310-Online | |||
| 2 | Cover,Cylinder | A160-000680 | A160-000680-Online | |||
| 8 | Cover,Engine | A190-000500 | A190-000500-Online | |||
| 18 | Insulator, Intake | A200-001170 | A200-001170-Online | |||
| 8 | Plate,Prevent | A244-000020 | A244-000020-Online | |||
| 8 | Tank, Fuel | A350-001910 | A350-001910-Online | |||
| 12 | Valve,Check | A356-000031 | A356-000031-Online | |||
| 12 | Strainer, Fuel | A369-000440 | A369-000440-Online | |||
| 12 | Rachet | A514-000120 | A514-000120-Online | |||
| 16 | Handle,Front | C040-000020 | C040-000020-Online | |||
| 26 | Lever,Throttle | C453-000131 | C453-000131-Online | |||
| 24 | Frame, Backpack | C620-000500 | C620-000500-Online | |||
| 22 | Plate, Eng | C632-000240 | C632-000240-Online | |||
| 18 | Ring, Harness | C646-000120 | C646-000120-Online | |||
| 22 | Head,Blow | E024-000020 | E024-000020-Online | |||
| 30 | Case,Fan | E103-001420 | E103-001420-Online | |||
| 18 | Case,Fan | E103-001430 | E103-001430-Online | |||
| 18 | Pipe,Air | E105-000001 | E105-000001-Online | |||
| 30 | Fixture,Tank | E115-000060 | E115-000060-Online | |||
| 20 | Packing,Shutter | E137-000021 | E137-000021-Online | |||
| 30 | Dial,Metering | E150-000041 | E150-000041-Online | |||
| 24 | Knob,Lever | E151-000010 | E151-000010-Online | |||
| 24 | Pipe,Blower | E165-000600 | E165-000600-Online | |||
| 26 | Filter,Tank | E220-000030 | E220-000030-Online | |||
| 20 | Filter,Tank | E220-000040 | E220-000040-Online | |||
| 20 | Nipple,Hose | E230-000190 | E230-000190-Online | |||
| 30 | Gasket, Pump | P003-000100 | P003-000100-Online | |||
| 10 | Bracket Cable | P003-000180 | P003-000180-Online | |||
| 10 | Diaphragm, Metering | P003-001850 | P003-001850-Online | 10 | Part No | Part descrition | Page | ||
| 10 | Body Assembly, Pump | P003-005910 | P003-005910-Online | |||
| 10 | Needle | P003-005930 | P003-005930-Online | |||
| 10 | Crankcase Kit | P021-010100 | P021-010100-Online | |||
| 4 | Cap,Fuer Assy | P021-014061 | P021-014061-Online | |||
| 12 | Cleaner Case Asy | P021-038090 | P021-038090-Online | |||
| 8 | Harness,Asm | P021-041100 | P021-041100-Online | BACKPACK | ||
| 22 | Piston Kit | P021-051580 | P021-051580-Online | |||
| 2 | Muffler Asy | P021-051590 | P021-051590-Online | |||
| 14 | Nozzle | P021-051600 | P021-051600-Online | |||
| 30 | E-Ring | P022-002100 | P022-002100-Online | |||
| 16 | Washer | P022-022280 | P022-022280-Online | |||
| 16 | Stopper, Rope | P022-037670 | P022-037670-Online | |||
| 16 | Case, Starter | P022-043970 | P022-043970-Online | |||
| 16 | Head,Blow | P100-001820 | P100-001820-Online | |||
| 30 | Cleaner Cover Asy | P100-009480 | P100-009480-Online | |||
| 8 | Gasket,Intake | V103-001520 | V103-001520-Online | |||
| 8 | Gasket,Intake | V103-001530 | V103-001530-Online | |||
| 8 | Gasket,Intake | V103-001540 | V103-001540-Online | |||
| 8 | Gasket,Exhaust | V104-002320 | V104-002320-Online | |||
| 14 | Gasket,Fuel Cap | V107-000190 | V107-000190-Online | |||
| 12 | Plate,Eye | V150-004300 | V150-004300-Online | |||
| 30 | Plug | V162-000720 | V162-000720-Online | |||
| 18 | Washer,Circular 12 | V309-000170 | V309-000170-Online | |||
| 30 | Cushion,6 | V402-000100 | V402-000100-Online | |||
| 22 | Cable,Bowden | V430-001330 | V430-001330-Online | |||
| 24 | Pipe | V471-000550 | V471-000550-Online | |||
| 12 | Pipe | V471-000771 | V471-000771-Online | |||
| 12 | Pipe | V471-005050 | V471-005050-Online | |||
| 30 | Pipe | V471-005130 | V471-005130-Online | |||
| 30 | Clip | V490-001230 | V490-001230-Online | |||
| 12 | Clip | V490-001410 | V490-001410-Online | |||
| 30 | Clip | V490-001540 | V490-001540-Online | |||
| 30 | Clip | V490-001550 | V490-001550-Online | |||
| 30 | Band | V495-000310 | V495-000310-Online | |||
| 30 | Band | V495-001171 | V495-001171-Online | |||
| 26 | Band | V495-001201 | V495-001201-Online | |||
| 26 | Ring,End | V580-000010 | V580-000010-Online | |||
| 2 | Pin,Straight 7 | V625-000010 | V625-000010-Online | |||
| 18 | Label,Echo | X502-000440 | X502-000440-Online | |||
| 20 | Label,Echo | X502-000780 | X502-000780-Online | |||
| 16 | Label,Model | X503-013870 | X503-013870-Online | |||
| 20 | Label,Caution | X505-002310 | X505-002310-Online | |||
| 18 | Tool,Wrench | X602-000020 | X602-000020-Online | 28 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-2 |
Source PDF: 20200226-688_DM-6120_LA_26_26000001_24FEB2020.pdf. Generated 2026-06-25 14:39.
