Echo DM-9 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.

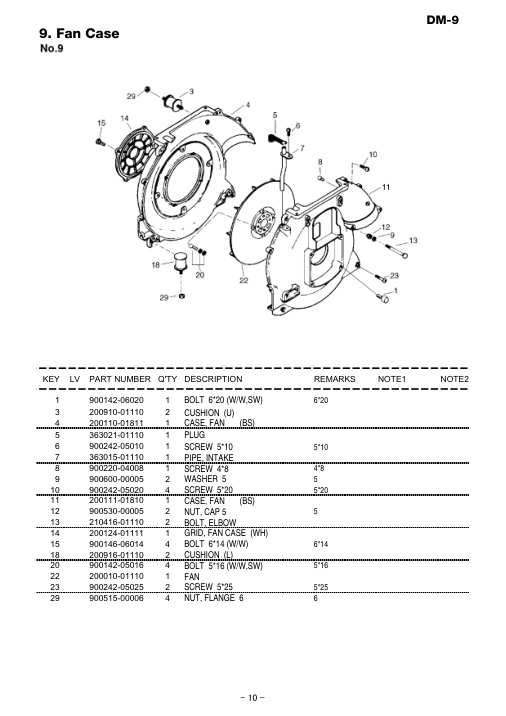

Page 11
Tap or click the page image to enlarge it.

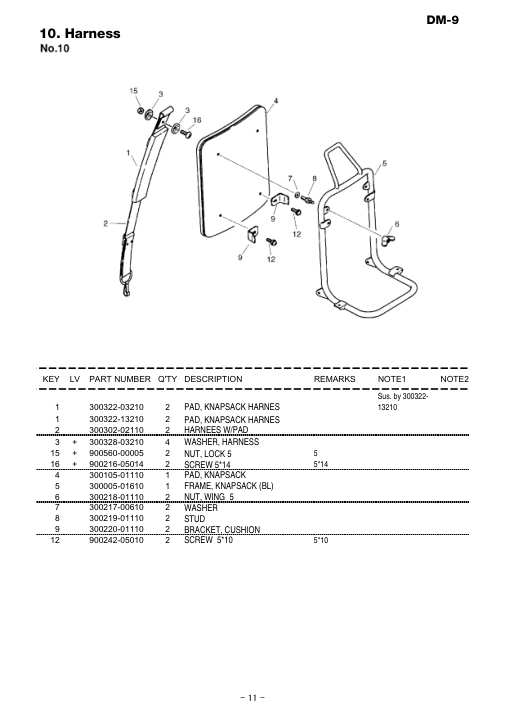

Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.

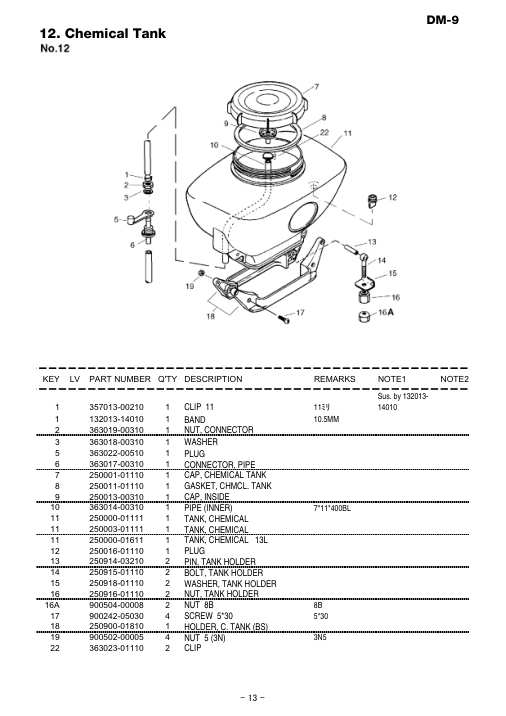

Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.

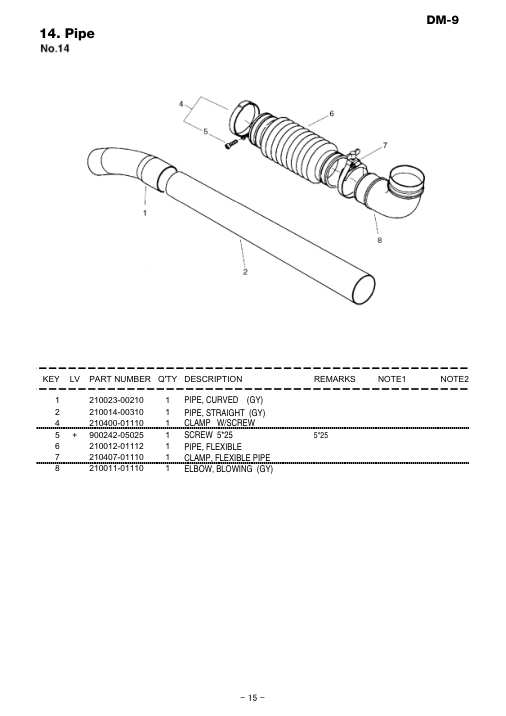

Page 16
Tap or click the page image to enlarge it.

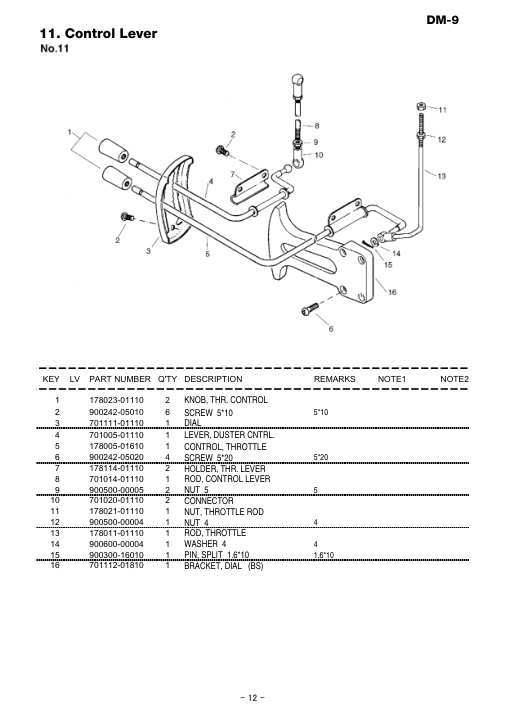

Page 17
Tap or click the page image to enlarge it.

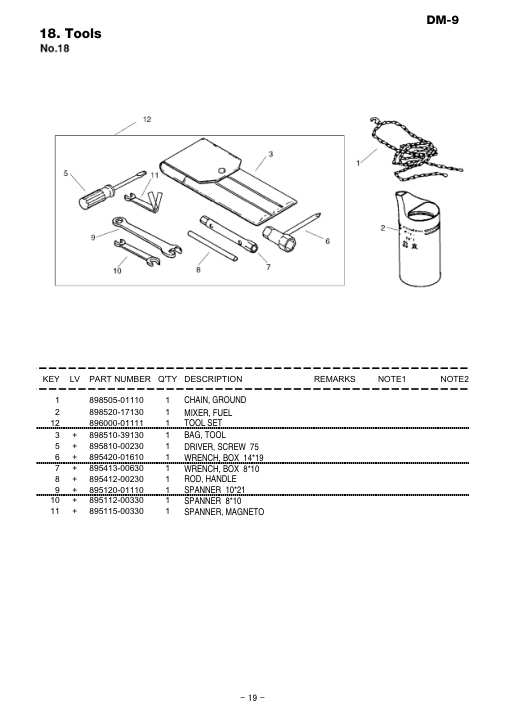

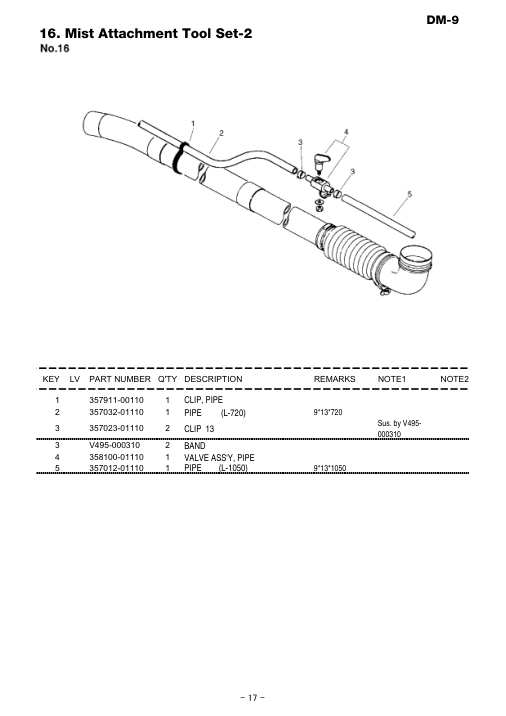

Page 18
Tap or click the page image to enlarge it.

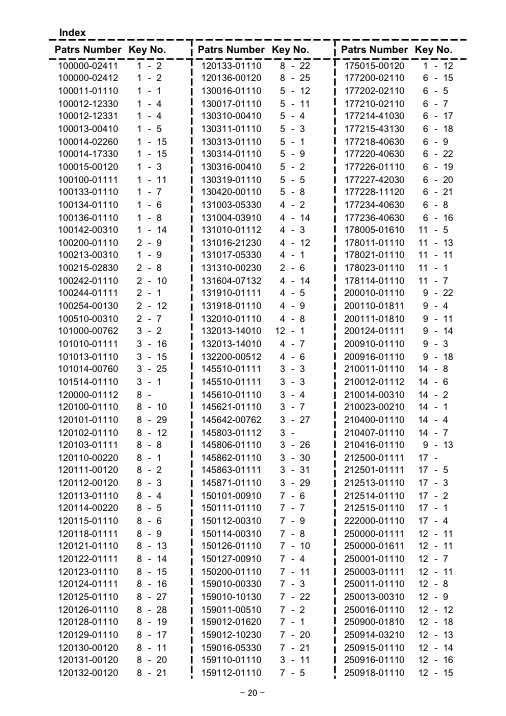

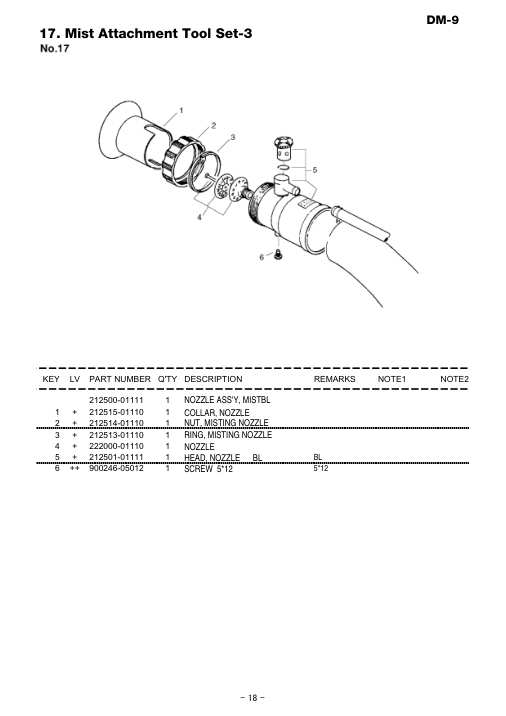

Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.

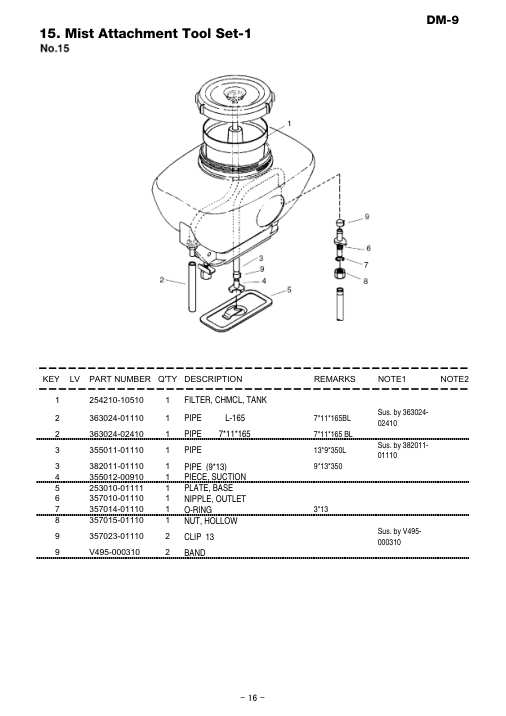

Page 21
Tap or click the page image to enlarge it.

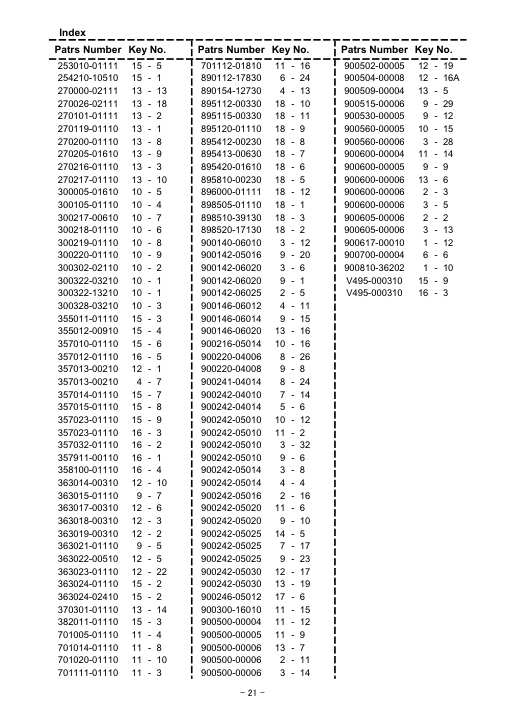

Page 22
Tap or click the page image to enlarge it.
Page 23
Tap or click the page image to enlarge it.

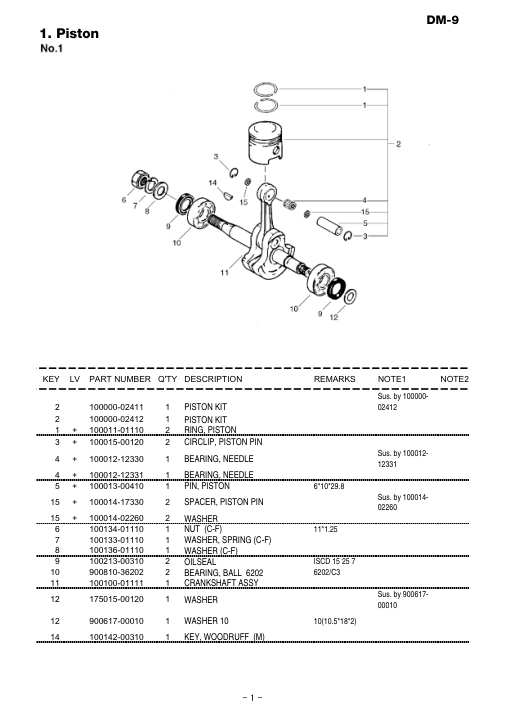

Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Piston Kit | 100000-02411 | 100000-02411-Online | Sus. by 100000- | 02412 | |
| 2 | 1 | Piston Kit | 100000-02412 | 100000-02412-Online | ||
| 1 | + | 2 | Ring, Piston | 100011-01110 | 100011-01110-Online | |
| 3 | + | 2 | Circlip, Piston Pin | 100015-00120 | 100015-00120-Online | |
| 4 | + | 1 | Bearing, Needle | 100012-12330 | 100012-12330-Online | Sus. by 100012- | 12331 |
| 4 | + | 1 | Bearing, Needle | 100012-12331 | 100012-12331-Online | |
| 5 | + | 1 | Pin, Piston | 100013-00410 | 100013-00410-Online | 6*10*29.8 |
| 15 | + | 2 | Spacer, Piston Pin | 100014-17330 | 100014-17330-Online | Sus. by 100014- | 02260 |
| 15 | + | 2 | Washer | 100014-02260 | 100014-02260-Online | |
| 6 | 1 | Nut (C-F) | 100134-01110 | 100134-01110-Online | 11*1.25 | |
| 7 | 1 | Washer, Spring (C-F) | 100133-01110 | 100133-01110-Online | ||
| 8 | 1 | Washer (C-F) | 100136-01110 | 100136-01110-Online | ||
| 9 | 2 | Oilseal | 100213-00310 | 100213-00310-Online | ISCD 15 25 7 | |
| 10 | 2 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | 6202/C3 | |
| 11 | 1 | Crankshaft Assy | 100100-01111 | 100100-01111-Online | ||
| 12 | 1 | Washer | 175015-00120 | 175015-00120-Online | Sus. by 900617- | 00010 | |
| 12 | 1 | Washer 10 | 900617-00010 | 900617-00010-Online | 10(10.5*18*2) | |
| 14 | 1 | Key, Woodruff (M) | 100142-00310 | 100142-00310-Online |

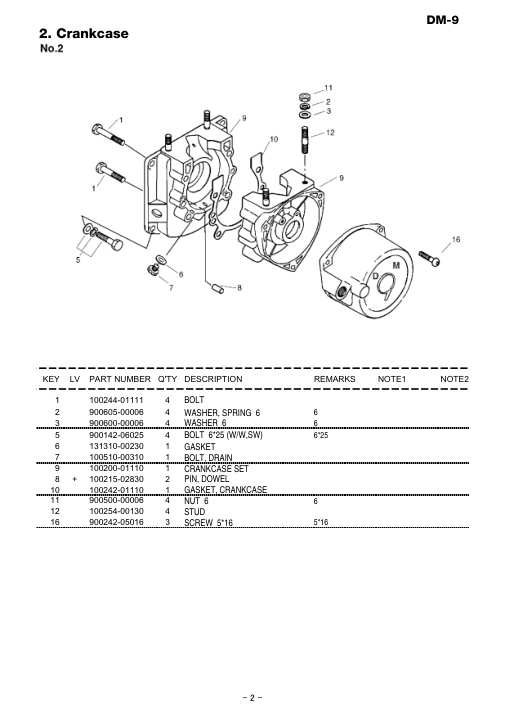

Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 4 | Bolt | 100244-01111 | 100244-01111-Online | ||
| 2 | 4 | Washer, Spring 6 | 900605-00006 | 900605-00006-Online | ||
| 3 | 4 | Washer 6 | 900600-00006 | 900600-00006-Online | ||
| 5 | 4 | Bolt 6*25 (W/W,Sw) | 900142-06025 | 900142-06025-Online | 6*25 | |
| 6 | 1 | Gasket | 131310-00230 | 131310-00230-Online | ||
| 7 | 1 | Bolt, Drain | 100510-00310 | 100510-00310-Online | ||
| 9 | 1 | Crankcase Set | 100200-01110 | 100200-01110-Online | ||
| 8 | + | 2 | Pin, Dowel | 100215-02830 | 100215-02830-Online | |
| 10 | 1 | Gasket, Crankcase | 100242-01110 | 100242-01110-Online | ||
| 11 | 4 | Nut 6 | 900500-00006 | 900500-00006-Online | ||
| 12 | 4 | Stud | 100254-00130 | 100254-00130-Online | ||
| 16 | 3 | Screw 5*16 | 900242-05016 | 900242-05016-Online | 5*16 |

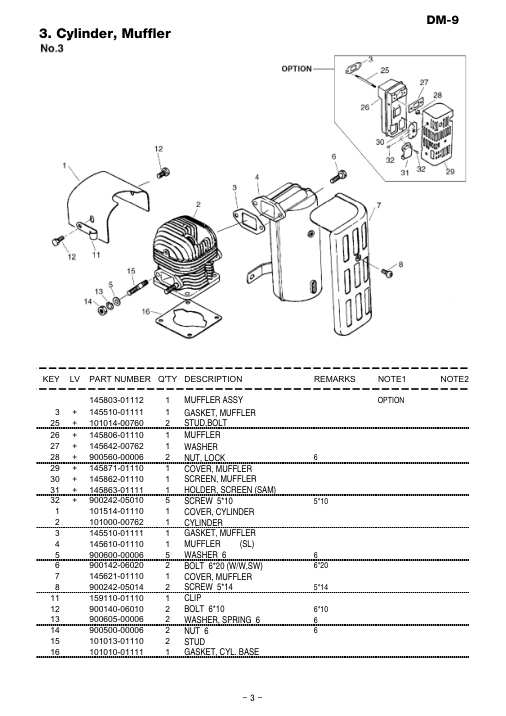

Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 3 | + | 1 | Gasket, Muffler | 145510-01111 | 145510-01111-Online | |
| 25 | + | 2 | Stud,Bolt | 101014-00760 | 101014-00760-Online | |
| 26 | + | 1 | Muffler | 145806-01110 | 145806-01110-Online | |
| 27 | + | 1 | Washer | 145642-00762 | 145642-00762-Online | |
| 28 | + | 2 | Nut, Lock | 900560-00006 | 900560-00006-Online | |
| 29 | + | 1 | Cover, Muffler | 145871-01110 | 145871-01110-Online | |
| 30 | + | 1 | Screen, Muffler | 145862-01110 | 145862-01110-Online | |
| 31 | + | 1 | Holder, Screen (Sam) | 145863-01111 | 145863-01111-Online | |
| 32 | + | 5 | Screw 5*10 | 900242-05010 | 900242-05010-Online | 5*10 |
| 1 | 1 | Cover, Cylinder | 101514-01110 | 101514-01110-Online | ||
| 2 | 1 | Cylinder | 101000-00762 | 101000-00762-Online | ||
| 4 | 1 | Muffler (Sl) | 145610-01110 | 145610-01110-Online | ||
| 5 | 5 | Washer 6 | 900600-00006 | 900600-00006-Online | ||
| 6 | 2 | Bolt 6*20 (W/W,Sw) | 900142-06020 | 900142-06020-Online | 6*20 | |
| 7 | 1 | Cover, Muffler | 145621-01110 | 145621-01110-Online | ||
| 8 | 2 | Screw 5*14 | 900242-05014 | 900242-05014-Online | 5*14 | |
| 11 | 1 | Clip | 159110-01110 | 159110-01110-Online | ||
| 12 | 2 | Bolt 6*10 | 900140-06010 | 900140-06010-Online | 6*10 | |
| 13 | 2 | Washer, Spring 6 | 900605-00006 | 900605-00006-Online | ||
| 14 | 2 | Nut 6 | 900500-00006 | 900500-00006-Online | ||
| 15 | 2 | Stud | 101013-01110 | 101013-01110-Online | ||
| 16 | 1 | Gasket, Cyl. Base | 101010-01111 | 101010-01111-Online |

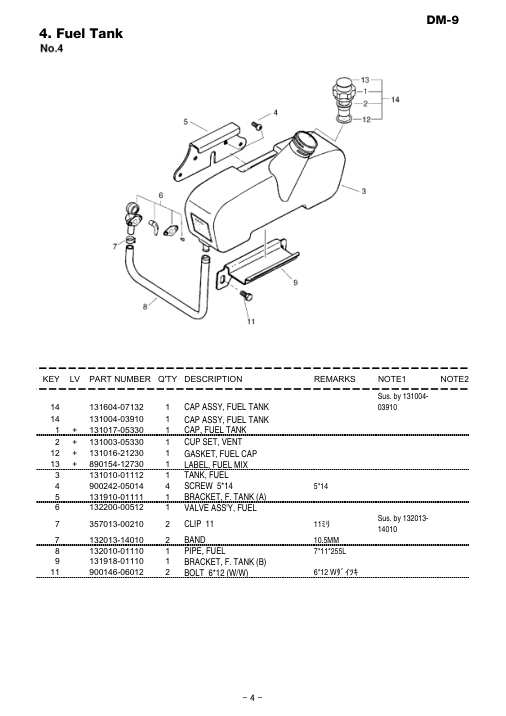

Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 14 | 1 | Cap Assy, Fuel Tank | 131604-07132 | 131604-07132-Online | Sus. by 131004- | 03910 | |
| 14 | 1 | Cap Assy, Fuel Tank | 131004-03910 | 131004-03910-Online | ||
| 1 | + | 1 | Cap, Fuel Tank | 131017-05330 | 131017-05330-Online | |
| 2 | + | 1 | Cup Set, Vent | 131003-05330 | 131003-05330-Online | |
| 12 | + | 1 | Gasket, Fuel Cap | 131016-21230 | 131016-21230-Online | |
| 13 | + | 1 | Label, Fuel Mix | 890154-12730 | 890154-12730-Online | |
| 3 | 1 | Tank, Fuel | 131010-01112 | 131010-01112-Online | ||
| 4 | 4 | Screw 5*14 | 900242-05014 | 900242-05014-Online | 5*14 | |
| 5 | 1 | Bracket, F. Tank (A) | 131910-01111 | 131910-01111-Online | ||
| 6 | 1 | Valve Ass'Y, Fuel | 132200-00512 | 132200-00512-Online | ||
| 7 | 2 | Clip 11 | 357013-00210 | 357013-00210-Online | 11㺮㺶 | Sus. by 132013- | 14010 | |
| 7 | 2 | Band | 132013-14010 | 132013-14010-Online | 10.5MM | |
| 8 | 1 | Pipe, Fuel | 132010-01110 | 132010-01110-Online | 7*11*255L | |
| 9 | 1 | Bracket, F. Tank (B) | 131918-01110 | 131918-01110-Online | ||
| 11 | 2 | Bolt 6*12 (W/W) | 900146-06012 | 900146-06012-Online | 6*12 W㺞㺼㺐㺠㺕 |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cover, Air Cleaner | 130313-01110 | 130313-01110-Online | ||
| 2 | 1 | Spring, Air Cleaner | 130316-00410 | 130316-00410-Online | ||
| 3 | 1 | Grid, Air Cleaner L | 130311-01110 | 130311-01110-Online | ||
| 4 | 2 | Filter, Air | 130310-00410 | 130310-00410-Online | ||
| 5 | 1 | Grid, Air Cleaner (S | 130319-01110 | 130319-01110-Online | ||
| 6 | 2 | Screw 4*14 | 900242-04014 | 900242-04014-Online | 4*14 | |
| 8 | 1 | Bracket, Air Cleaner | 130420-00110 | 130420-00110-Online | ||
| 9 | 1 | Case, Air Cleaner | 130314-01110 | 130314-01110-Online | ||
| 11 | 1 | Insulator | 130017-01110 | 130017-01110-Online | ||
| 12 | 2 | Gasket, Carburetor | 130016-01110 | 130016-01110-Online |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Pawl Assy, Starter | 177202-02110 | 177202-02110-Online | ||
| 6 | + | 1 | E-Ring 4 | 900700-00004 | 900700-00004-Online | CE-4 |
| 7 | + | 1 | Catcher Pawl | 177210-02110 | 177210-02110-Online | |
| 8 | + | 1 | Spring, Return | 177234-40630 | 177234-40630-Online | |
| 9 | + | 1 | Pawl, Starter | 177218-40630 | 177218-40630-Online | WHITE |
| 15 | 1 | Starter Assy | 177200-02110 | 177200-02110-Online | ||
| 16 | + | 1 | Screw | 177236-40630 | 177236-40630-Online | |
| 17 | + | 1 | Washer | 177214-41030 | 177214-41030-Online | |
| 18 | + | 1 | Drum, Starter | 177215-43130 | 177215-43130-Online | |
| 19 | + | 1 | Rope, Starter | 177226-01110 | 177226-01110-Online | 4.0*880 |
| 20 | + | 1 | Guide, Rope | 177227-42030 | 177227-42030-Online | |
| 21 | + | 1 | Grip, Starter | 177228-11120 | 177228-11120-Online | |
| 22 | + | 1 | Spring, Rewind | 177220-40630 | 177220-40630-Online | |
| 24 | 1 | Label, Echo | 890112-17830 | 890112-17830-Online |

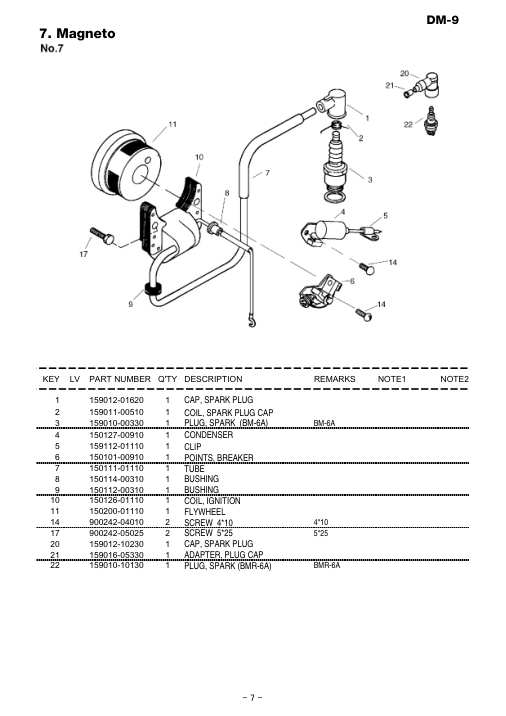

Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cap, Spark Plug | 159012-01620 | 159012-01620-Online | ||
| 2 | 1 | Coil, Spark Plug Cap | 159011-00510 | 159011-00510-Online | ||
| 3 | 1 | Plug, Spark (Bm-6A) | 159010-00330 | 159010-00330-Online | BM-6A | |
| 4 | 1 | Condenser | 150127-00910 | 150127-00910-Online | ||
| 5 | 1 | Clip | 159112-01110 | 159112-01110-Online | ||
| 6 | 1 | Points, Breaker | 150101-00910 | 150101-00910-Online | ||
| 7 | 1 | Tube | 150111-01110 | 150111-01110-Online | ||
| 8 | 1 | Bushing | 150114-00310 | 150114-00310-Online | ||
| 9 | 1 | Bushing | 150112-00310 | 150112-00310-Online | ||
| 10 | 1 | Coil, Ignition | 150126-01110 | 150126-01110-Online | ||
| 11 | 1 | Flywheel | 150200-01110 | 150200-01110-Online | ||
| 14 | 2 | Screw 4*10 | 900242-04010 | 900242-04010-Online | 4*10 | |
| 17 | 2 | Screw 5*25 | 900242-05025 | 900242-05025-Online | 5*25 | |
| 20 | 1 | Cap, Spark Plug | 159012-10230 | 159012-10230-Online | ||
| 21 | 1 | Adapter, Plug Cap | 159016-05330 | 159016-05330-Online | ||
| 22 | 1 | Plug, Spark (Bmr-6A) | 159010-10130 | 159010-10130-Online | BMR-6A |

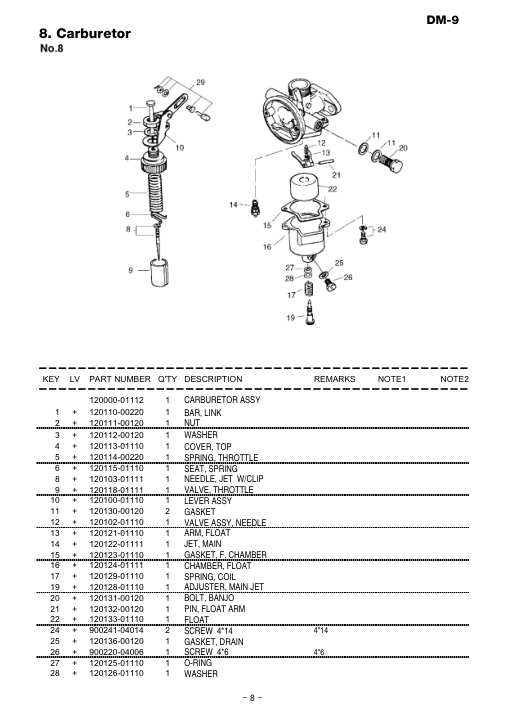

Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 1 | Bar, Link | 120110-00220 | 120110-00220-Online | |
| 2 | + | 1 | Part | 120111-00120 | 120111-00120-Online | |
| 3 | + | 1 | Washer | 120112-00120 | 120112-00120-Online | |
| 4 | + | 1 | Cover, Top | 120113-01110 | 120113-01110-Online | |
| 5 | + | 1 | Spring, Throttle | 120114-00220 | 120114-00220-Online | |
| 6 | + | 1 | Seat, Spring | 120115-01110 | 120115-01110-Online | |
| 8 | + | 1 | Needle, Jet W/Clip | 120103-01111 | 120103-01111-Online | |
| 9 | + | 1 | Valve, Throttle | 120118-01111 | 120118-01111-Online | |
| 10 | + | 1 | Lever Assy | 120100-01110 | 120100-01110-Online | |
| 11 | + | 2 | Gasket | 120130-00120 | 120130-00120-Online | |
| 12 | + | 1 | Valve Assy, Needle | 120102-01110 | 120102-01110-Online | |
| 13 | + | 1 | Arm, Float | 120121-01110 | 120121-01110-Online | |
| 14 | + | 1 | Jet, Main | 120122-01111 | 120122-01111-Online | |
| 15 | + | 1 | Gasket, F. Chamber | 120123-01110 | 120123-01110-Online | |
| 16 | + | 1 | Chamber, Float | 120124-01111 | 120124-01111-Online | |
| 17 | + | 1 | Spring, Coil | 120129-01110 | 120129-01110-Online | |
| 19 | + | 1 | Adjuster, Main Jet | 120128-01110 | 120128-01110-Online | |
| 20 | + | 1 | Bolt, Banjo | 120131-00120 | 120131-00120-Online | |
| 21 | + | 1 | Pin, Float Arm | 120132-00120 | 120132-00120-Online | |
| 22 | + | 1 | Float | 120133-01110 | 120133-01110-Online | |
| 24 | + | 2 | Screw 4*14 | 900241-04014 | 900241-04014-Online | 4*14 |
| 25 | + | 1 | Gasket, Drain | 120136-00120 | 120136-00120-Online | |
| 26 | + | 1 | Screw 4*6 | 900220-04006 | 900220-04006-Online | 4*6 |
| 27 | + | 1 | O-Ring | 120125-01110 | 120125-01110-Online | |
| 28 | + | 1 | Washer | 120126-01110 | 120126-01110-Online |

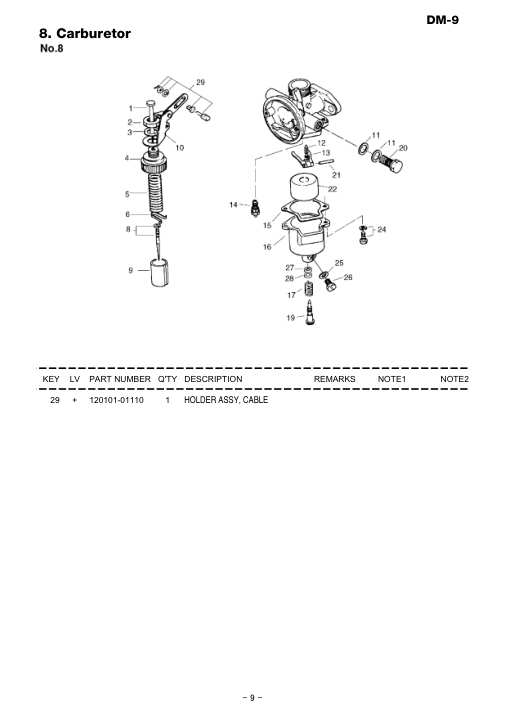

Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 29 | + | 1 | Holder Assy, Cable | 120101-01110 | 120101-01110-Online |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Bolt 6*20 (W/W,Sw) | 900142-06020 | 900142-06020-Online | 6*20 | |
| 3 | 2 | Cushion (U) | 200910-01110 | 200910-01110-Online | ||
| 4 | 1 | Case, Fan (Bs) | 200110-01811 | 200110-01811-Online | ||
| 5 | 1 | Plug | 363021-01110 | 363021-01110-Online | ||
| 6 | 1 | Screw 5*10 | 900242-05010 | 900242-05010-Online | 5*10 | |
| 7 | 1 | Pipe, Intake | 363015-01110 | 363015-01110-Online | ||
| 8 | 1 | Screw 4*8 | 900220-04008 | 900220-04008-Online | 4*8 | |
| 9 | 2 | Washer 5 | 900600-00005 | 900600-00005-Online | ||
| 10 | 4 | Screw 5*20 | 900242-05020 | 900242-05020-Online | 5*20 | |
| 11 | 1 | Case, Fan (Bs) | 200111-01810 | 200111-01810-Online | ||
| 12 | 2 | Nut, Cap 5 | 900530-00005 | 900530-00005-Online | ||
| 13 | 2 | Bolt, Elbow | 210416-01110 | 210416-01110-Online | ||
| 14 | 1 | Grid, Fan Case (Wh) | 200124-01111 | 200124-01111-Online | ||
| 15 | 4 | Bolt 6*14 (W/W) | 900146-06014 | 900146-06014-Online | 6*14 | |
| 18 | 2 | Cushion (L) | 200916-01110 | 200916-01110-Online | ||
| 20 | 4 | Bolt 5*16 (W/W,Sw) | 900142-05016 | 900142-05016-Online | 5*16 | |
| 22 | 1 | Part | 200010-01110 | 200010-01110-Online | ||
| 23 | 2 | Screw 5*25 | 900242-05025 | 900242-05025-Online | 5*25 | |
| 29 | 4 | Nut, Flange 6 | 900515-00006 | 900515-00006-Online |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 2 | Pad, Knapsack Harnes | 300322-03210 | 300322-03210-Online | Sus. by 300322- | 13210 | |
| 1 | 2 | Pad, Knapsack Harnes | 300322-13210 | 300322-13210-Online | ||
| 2 | 2 | Harnees W/Pad | 300302-02110 | 300302-02110-Online | ||
| 3 | + | 4 | Washer, Harness | 300328-03210 | 300328-03210-Online | |
| 15 | + | 2 | Nut, Lock 5 | 900560-00005 | 900560-00005-Online | |
| 16 | + | 2 | Screw 5*14 | 900216-05014 | 900216-05014-Online | 5*14 |
| 4 | 1 | Pad, Knapsack | 300105-01110 | 300105-01110-Online | ||
| 5 | 1 | Frame, Knapsack (Bl) | 300005-01610 | 300005-01610-Online | ||
| 6 | 2 | Nut, Wing 5 | 300218-01110 | 300218-01110-Online | ||
| 7 | 2 | Washer | 300217-00610 | 300217-00610-Online | ||
| 8 | 2 | Stud | 300219-01110 | 300219-01110-Online | ||
| 9 | 2 | Bracket, Cushion | 300220-01110 | 300220-01110-Online | ||
| 12 | 2 | Screw 5*10 | 900242-05010 | 900242-05010-Online | 5*10 |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 2 | Knob, Thr. Control | 178023-01110 | 178023-01110-Online | ||
| 2 | 6 | Screw 5*10 | 900242-05010 | 900242-05010-Online | 5*10 | |
| 3 | 1 | Dial | 701111-01110 | 701111-01110-Online | ||
| 4 | 1 | Lever, Duster Cntrl. | 701005-01110 | 701005-01110-Online | ||
| 5 | 1 | Control, Throttle | 178005-01610 | 178005-01610-Online | ||
| 6 | 4 | Screw 5*20 | 900242-05020 | 900242-05020-Online | 5*20 | |
| 7 | 2 | Holder, Thr. Lever | 178114-01110 | 178114-01110-Online | ||
| 8 | 1 | Rod, Control Lever | 701014-01110 | 701014-01110-Online | ||
| 9 | 2 | Nut 5 | 900500-00005 | 900500-00005-Online | ||
| 10 | 2 | Connector | 701020-01110 | 701020-01110-Online | ||
| 11 | 1 | Nut, Throttle Rod | 178021-01110 | 178021-01110-Online | ||
| 12 | 1 | Nut 4 | 900500-00004 | 900500-00004-Online | ||
| 13 | 1 | Rod, Throttle | 178011-01110 | 178011-01110-Online | ||
| 14 | 1 | Washer 4 | 900600-00004 | 900600-00004-Online | ||
| 15 | 1 | Pin, Split 1.6*10 | 900300-16010 | 900300-16010-Online | 1.6*10 | |
| 16 | 1 | Bracket, Dial (Bs) | 701112-01810 | 701112-01810-Online |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Clip 11 | 357013-00210 | 357013-00210-Online | 11㺮㺶 | Sus. by 132013- | 14010 | |
| 1 | 1 | Band | 132013-14010 | 132013-14010-Online | 10.5MM | |
| 2 | 1 | Nut, Connector | 363019-00310 | 363019-00310-Online | ||
| 3 | 1 | Washer | 363018-00310 | 363018-00310-Online | ||
| 5 | 1 | Plug | 363022-00510 | 363022-00510-Online | ||
| 6 | 1 | Connector, Pipe | 363017-00310 | 363017-00310-Online | ||
| 7 | 1 | Cap, Chemical Tank | 250001-01110 | 250001-01110-Online | ||
| 8 | 1 | Gasket, Chmcl. Tank | 250011-01110 | 250011-01110-Online | ||
| 9 | 1 | Cap, Inside | 250013-00310 | 250013-00310-Online | ||
| 10 | 1 | Pipe (Inner) | 363014-00310 | 363014-00310-Online | 7*11*400BL | |
| 11 | 1 | Tank, Chemical | 250000-01111 | 250000-01111-Online | ||
| 11 | 1 | Tank, Chemical | 250003-01111 | 250003-01111-Online | ||
| 11 | 1 | Tank, Chemical 13L | 250000-01611 | 250000-01611-Online | ||
| 12 | 1 | Plug | 250016-01110 | 250016-01110-Online | ||
| 13 | 2 | Pin, Tank Holder | 250914-03210 | 250914-03210-Online | ||
| 14 | 2 | Bolt, Tank Holder | 250915-01110 | 250915-01110-Online | ||
| 15 | 2 | Washer, Tank Holder | 250918-01110 | 250918-01110-Online | ||
| 16 | 2 | Nut, Tank Holder | 250916-01110 | 250916-01110-Online | ||
| 16A | 2 | Nut 8B | 900504-00008 | 900504-00008-Online | ||
| 17 | 4 | Screw 5*30 | 900242-05030 | 900242-05030-Online | 5*30 | |
| 18 | 1 | Holder, C. Tank (Bs) | 250900-01810 | 250900-01810-Online | ||
| 19 | 4 | Nut 5 (3N) | 900502-00005 | 900502-00005-Online | 3N5 | |
| 22 | 2 | Clip | 363023-01110 | 363023-01110-Online |
Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Gasket, Shutter | 270119-01110 | 270119-01110-Online | ||
| 2 | 1 | Shutter Assy | 270101-01111 | 270101-01111-Online | ||
| 3 | 2 | Joint | 270216-01110 | 270216-01110-Online | ||
| 5 | 2 | Nut 4 Sus | 900509-00004 | 900509-00004-Online | 4 SUS | |
| 6 | 5 | Washer 6 | 900600-00006 | 900600-00006-Online | ||
| 7 | 1 | Nut 6 | 900500-00006 | 900500-00006-Online | ||
| 8 | 1 | Arm, Shutter | 270200-01110 | 270200-01110-Online | ||
| 9 | 1 | Shaft, Shutter | 270205-01610 | 270205-01610-Online | ||
| 10 | 2 | O-Ring | 270217-01110 | 270217-01110-Online | ||
| 13 | 1 | Tank, Lower (Lg) | 270000-02111 | 270000-02111-Online | ||
| 14 | 1 | Pipe, Dust Outlet | 370301-01110 | 370301-01110-Online | ||
| 16 | 4 | Bolt 6*20 (W/W) | 900146-06020 | 900146-06020-Online | 6*20 W㺞㺼㺐㺠㺕 | |
| 18 | 1 | Tank, Lower | 270026-02111 | 270026-02111-Online | ||
| 19 | 2 | Screw 5*30 | 900242-05030 | 900242-05030-Online | 5*30 |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Pipe, Curved (Gy) | 210023-00210 | 210023-00210-Online | ||
| 2 | 1 | Pipe, Straight (Gy) | 210014-00310 | 210014-00310-Online | ||
| 4 | 1 | Clamp W/Screw | 210400-01110 | 210400-01110-Online | ||
| 5 | + | 1 | Screw 5*25 | 900242-05025 | 900242-05025-Online | 5*25 |
| 6 | 1 | Pipe, Flexible | 210012-01112 | 210012-01112-Online | ||
| 7 | 1 | Clamp, Flexible Pipe | 210407-01110 | 210407-01110-Online | ||
| 8 | 1 | Elbow, Blowing (Gy) | 210011-01110 | 210011-01110-Online |
Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Filter, Chmcl, Tank | 254210-10510 | 254210-10510-Online | ||
| 2 | 1 | Pipe L-165 | 363024-01110 | 363024-01110-Online | 7*11*165BL | Sus. by 363024- | 02410 | |
| 2 | 1 | Pipe 7*11*165 | 363024-02410 | 363024-02410-Online | 7*11*165 BL | |
| 3 | 1 | Pipe | 355011-01110 | 355011-01110-Online | 13*9*350L | Sus. by 382011- | 01110 | |
| 3 | 1 | Pipe (9*13) | 382011-01110 | 382011-01110-Online | 9*13*350 | |
| 4 | 1 | Piece, Suction | 355012-00910 | 355012-00910-Online | ||
| 5 | 1 | Plate, Base | 253010-01111 | 253010-01111-Online | ||
| 6 | 1 | Nipple, Outlet | 357010-01110 | 357010-01110-Online | ||
| 7 | 1 | O-Ring | 357014-01110 | 357014-01110-Online | 3*13 | |
| 8 | 1 | Nut, Hollow | 357015-01110 | 357015-01110-Online | ||
| 9 | 2 | Clip 13 | 357023-01110 | 357023-01110-Online | Sus. by V495- | 000310 | |
| 9 | 2 | Band | V495-000310 | V495-000310-Online |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Clip, Pipe | 357911-00110 | 357911-00110-Online | ||
| 2 | 1 | Pipe (L-720) | 357032-01110 | 357032-01110-Online | 9*13*720 | |
| 3 | 2 | Clip 13 | 357023-01110 | 357023-01110-Online | Sus. by V495- | 000310 | |
| 3 | 2 | Band | V495-000310 | V495-000310-Online | ||
| 4 | 1 | Valve Ass'Y, Pipe | 358100-01110 | 358100-01110-Online | ||
| 5 | 1 | Pipe (L-1050) | 357012-01110 | 357012-01110-Online | 9*13*1050 |
Page 19 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 1 | Collar, Nozzle | 212515-01110 | 212515-01110-Online | |
| 2 | + | 1 | Nut, Misting Nozzle | 212514-01110 | 212514-01110-Online | |
| 3 | + | 1 | Ring, Misting Nozzle | 212513-01110 | 212513-01110-Online | |
| 4 | + | 1 | Nozzle | 222000-01110 | 222000-01110-Online | |
| 5 | + | 1 | Head, Nozzle Bl | 212501-01111 | 212501-01111-Online | BL | 6 | ++ |
| 6 | 1 | Screw 5*12 | 900246-05012 | 900246-05012-Online | 5*12 |
Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Chain, Ground | 898505-01110 | 898505-01110-Online | ||
| 2 | 1 | Mixer, Fuel | 898520-17130 | 898520-17130-Online | ||
| 12 | 1 | Tool Set | 896000-01111 | 896000-01111-Online | ||
| 3 | + | 1 | Bag, Tool | 898510-39130 | 898510-39130-Online | |
| 5 | + | 1 | Driver, Screw 75 | 895810-00230 | 895810-00230-Online | |
| 6 | + | 1 | Wrench, Box 14*19 | 895420-01610 | 895420-01610-Online | |
| 7 | + | 1 | Wrench, Box 8*10 | 895413-00630 | 895413-00630-Online | |
| 8 | + | 1 | Rod, Handle | 895412-00230 | 895412-00230-Online | |
| 9 | + | 1 | Spanner 10*21 | 895120-01110 | 895120-01110-Online | |
| 10 | + | 1 | Spanner 8*10 | 895112-00330 | 895112-00330-Online | |
| 11 | + | 1 | Spanner, Magneto | 895115-00330 | 895115-00330-Online |
Source PDF: 20130718-885_DM-9_DM-9_EN.pdf. Generated 2026-06-25 14:39.
