Echo SRM-420ES IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: SRM-420ES-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.

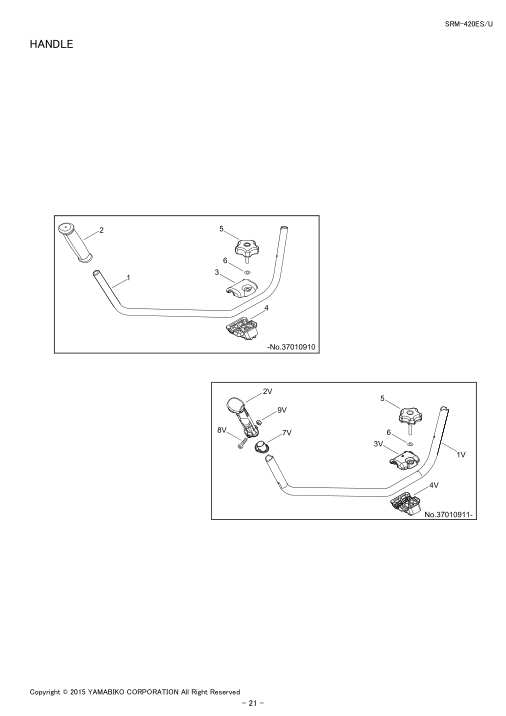

Page 23
Tap or click the page image to enlarge it.

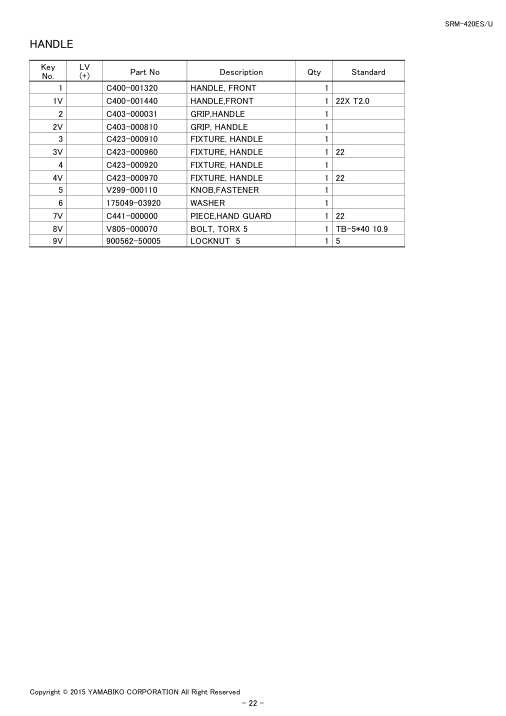

Page 24
Tap or click the page image to enlarge it.
Page 25
Tap or click the page image to enlarge it.

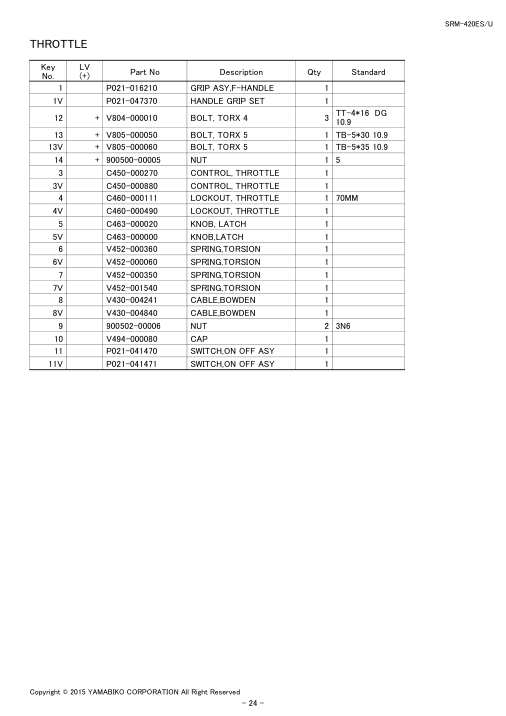

Page 26
Tap or click the page image to enlarge it.
Page 27
Tap or click the page image to enlarge it.
Page 28
Tap or click the page image to enlarge it.
Page 29
Tap or click the page image to enlarge it.

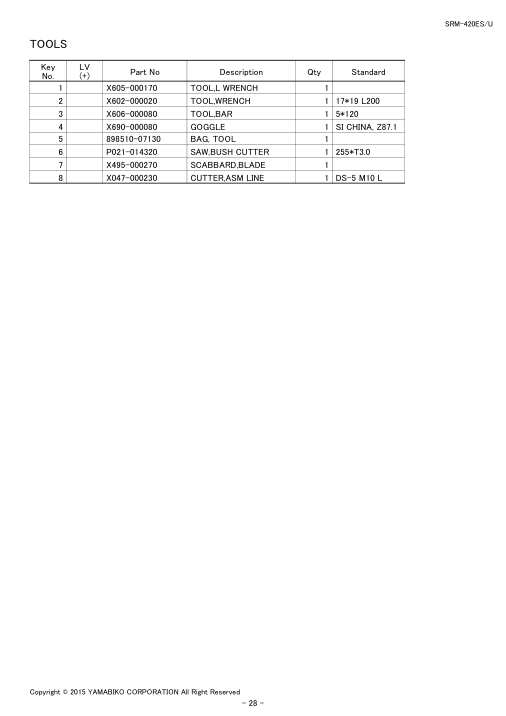

Page 30
Tap or click the page image to enlarge it.
Page 31
Tap or click the page image to enlarge it.
Page 32
Tap or click the page image to enlarge it.
Page 33
Tap or click the page image to enlarge it.

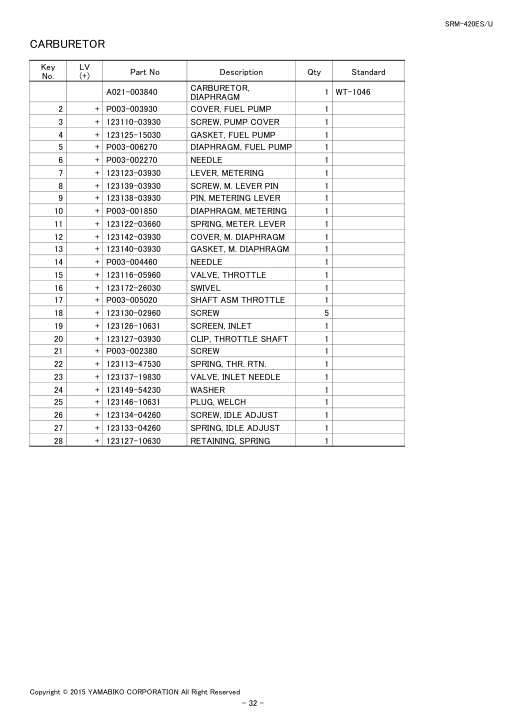

Page 34
Tap or click the page image to enlarge it.

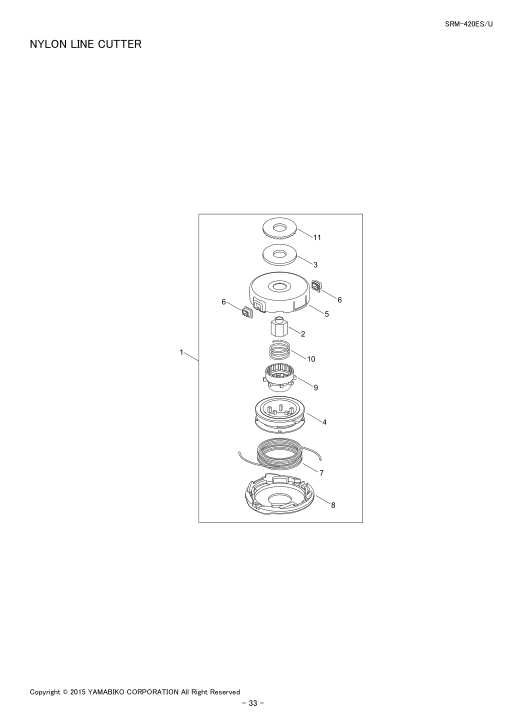

Page 35
Tap or click the page image to enlarge it.
Page 36
Tap or click the page image to enlarge it.

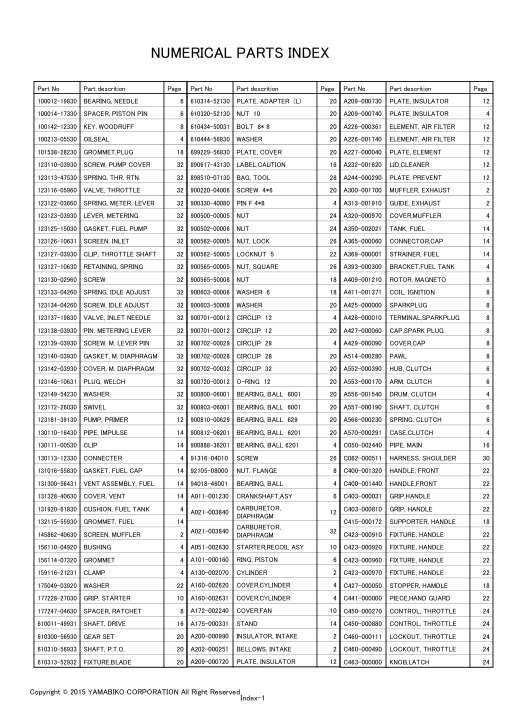

Page 37
Tap or click the page image to enlarge it.
Page 38
Tap or click the page image to enlarge it.

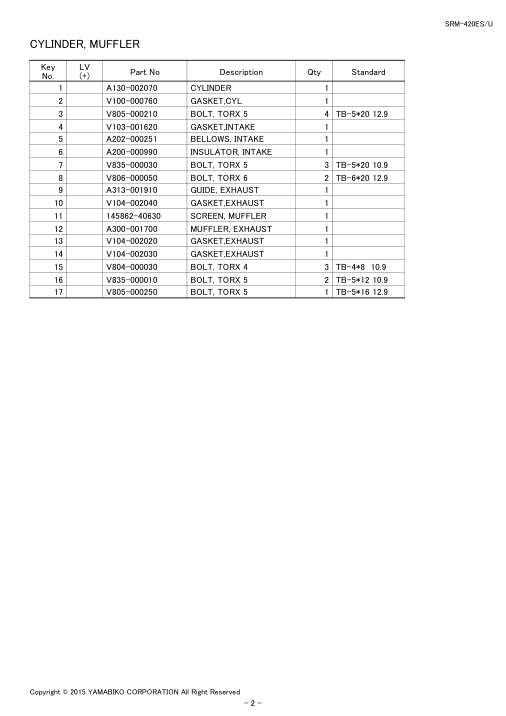

Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Cylinder | A130-002070 | A130-002070-Online | |||
| 2 | Gasket,Cyl | V100-000760 | V100-000760-Online | |||
| 3 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | 4 TB-5*20 12.9 | ||
| 4 | Gasket,Intake | V103-001620 | V103-001620-Online | |||
| 5 | Bellows, Intake | A202-000251 | A202-000251-Online | |||
| 6 | Insulator, Intake | A200-000990 | A200-000990-Online | |||
| 7 | Bolt, Torx 5 | V835-000030 | V835-000030-Online | 3 TB-5*20 10.9 | ||
| 8 | Bolt, Torx 6 | V806-000050 | V806-000050-Online | 2 TB-6*20 12.9 | ||
| 9 | Guide, Exhaust | A313-001910 | A313-001910-Online | |||
| 10 | Gasket,Exhaust | V104-002040 | V104-002040-Online | |||
| 11 | Screen, Muffler | 145862-40630 | 145862-40630-Online | |||
| 12 | Muffler, Exhaust | A300-001700 | A300-001700-Online | |||
| 13 | Gasket,Exhaust | V104-002020 | V104-002020-Online | |||
| 14 | Gasket,Exhaust | V104-002030 | V104-002030-Online | |||
| 15 | Bolt, Torx 4 | V804-000030 | V804-000030-Online | 3 TB-4*8 10.9 | ||
| 16 | Bolt, Torx 5 | V835-000010 | V835-000010-Online | 2 TB-5*12 10.9 | ||
| 17 | Bolt, Torx 5 | V805-000250 | V805-000250-Online | 1 TB-5*16 12.9 | CYLINDER, MUFFLER | SRM-420ES/U | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

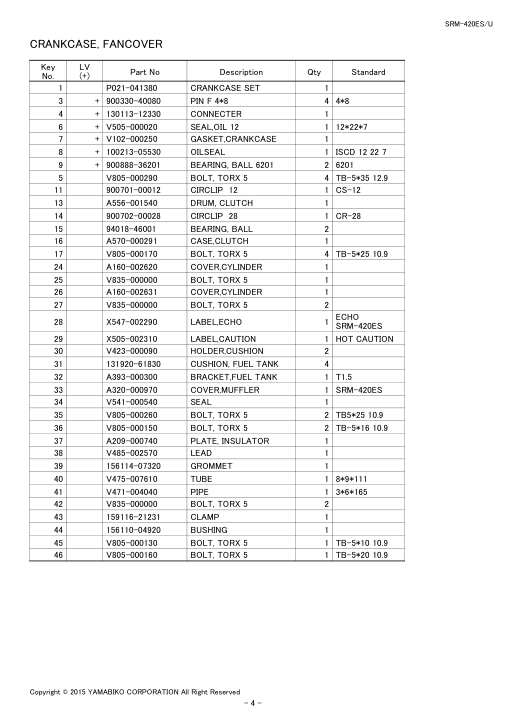

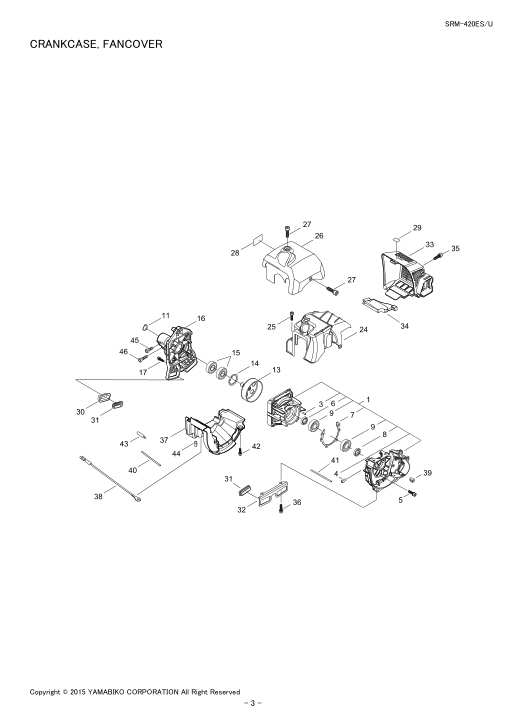

Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Crankcase Set | P021-041380 | P021-041380-Online | 1 | 3 | + 900330-40080 | PIN F 4*8 | ||
| 5 | Bolt, Torx 5 | V805-000290 | V805-000290-Online | 4 TB-5*35 12.9 | ||
| 11 | Circlip 12 | 900701-00012 | 900701-00012-Online | 1 CS-12 | ||
| 13 | Drum, Clutch | A556-001540 | A556-001540-Online | |||
| 14 | Circlip 28 | 900702-00028 | 900702-00028-Online | 1 CR-28 | ||
| 15 | Bearing, Ball | 94018-46001 | 94018-46001-Online | |||
| 16 | Case,Clutch | A570-000291 | A570-000291-Online | |||
| 17 | Bolt, Torx 5 | V805-000170 | V805-000170-Online | 4 TB-5*25 10.9 | ||
| 24 | Cover,Cylinder | A160-002620 | A160-002620-Online | |||
| 25 | Bolt, Torx 5 | V835-000000 | V835-000000-Online | |||
| 26 | Cover,Cylinder | A160-002631 | A160-002631-Online | |||
| 27 | Bolt, Torx 5 | V835-000000 | V835-000000-Online | |||
| 28 | Label,Echo | X547-002290 | X547-002290-Online | 1 ECHO | SRM-420ES | ||
| 29 | Label,Caution | X505-002310 | X505-002310-Online | 1 HOT CAUTION | ||
| 30 | Holder,Cushion | V423-000090 | V423-000090-Online | |||
| 31 | Cushion, Fuel Tank | 131920-61830 | 131920-61830-Online | |||
| 32 | Bracket,Fuel Tank | A393-000300 | A393-000300-Online | 1 T1.5 | ||
| 33 | Cover,Muffler | A320-000970 | A320-000970-Online | 1 SRM-420ES | ||
| 34 | Seal | V541-000540 | V541-000540-Online | |||
| 35 | Bolt, Torx 5 | V805-000260 | V805-000260-Online | 2 TB5*25 10.9 | ||
| 36 | Bolt, Torx 5 | V805-000150 | V805-000150-Online | 2 TB-5*16 10.9 | ||
| 37 | Plate, Insulator | A209-000740 | A209-000740-Online | |||
| 38 | Lead | V485-002570 | V485-002570-Online | |||
| 39 | Grommet | 156114-07320 | 156114-07320-Online | |||
| 40 | Tube | V475-007610 | V475-007610-Online | 1 8*9*111 | ||
| 41 | Pipe | V471-004040 | V471-004040-Online | 1 3*6*165 | ||
| 42 | Bolt, Torx 5 | V835-000000 | V835-000000-Online | |||
| 43 | Clamp | 159116-21231 | 159116-21231-Online | |||
| 44 | Bushing | 156110-04920 | 156110-04920-Online | |||
| 45 | Bolt, Torx 5 | V805-000130 | V805-000130-Online | 1 TB-5*10 10.9 | ||
| 46 | Bolt, Torx 5 | V805-000160 | V805-000160-Online | 1 TB-5*20 10.9 | CRANKCASE, FANCOVER | SRM-420ES/U | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Piston Kit | P021-041390 | P021-041390-Online | 1 | 2 | + A101-000160 | RING, PISTON | ||
| 7 | Crankshaft,Asy | A011-001230 | A011-001230-Online | |||
| 15 | Clutch Asy | P021-041140 | P021-041140-Online | 1 | 8 | + P021-041130 | CLUTCH SHOE SET |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Rotor, Magneto | A409-001210 | A409-001210-Online | |||
| 2 | Pawl | A514-000280 | A514-000280-Online | |||
| 3 | Spring,Torsion | V452-001471 | V452-001471-Online | |||
| 4 | Spacer, Ratchet | 177247-04630 | 177247-04630-Online | 2 5.2*8*2.1 | ||
| 5 | Bolt, Torx 5 | V805-000140 | V805-000140-Online | 2 TB-5*12 10.9 | ||
| 6 | Nut, Flange | 92105-08000 | 92105-08000-Online | 1 M8*1.25 L | ||
| 7 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 8 | Coil, Ignition | A411-001371 | A411-001371-Online | |||
| 9 | Sparkplug | A425-000000 | A425-000000-Online | 1 BPMR8Y | ||
| 10 | Cap,Spark Plug | A427-000060 | A427-000060-Online | |||
| 11 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | |||
| 12 | Bolt, Torx 5 | V805-000150 | V805-000150-Online | 2 TB-5*16 10.9 | ||
| 13 | Collar,5 | V353-000630 | V353-000630-Online | |||
| 14 | Tube | V475-007540 | V475-007540-Online | |||
| 15 | Tube | V475-007550 | V475-007550-Online | |||
| 16 | Lead | V485-002331 | V485-002331-Online | |||
| 18 | Cover,Cap | A429-000090 | A429-000090-Online | 1 | MAGNETO | SRM-420ES/U | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

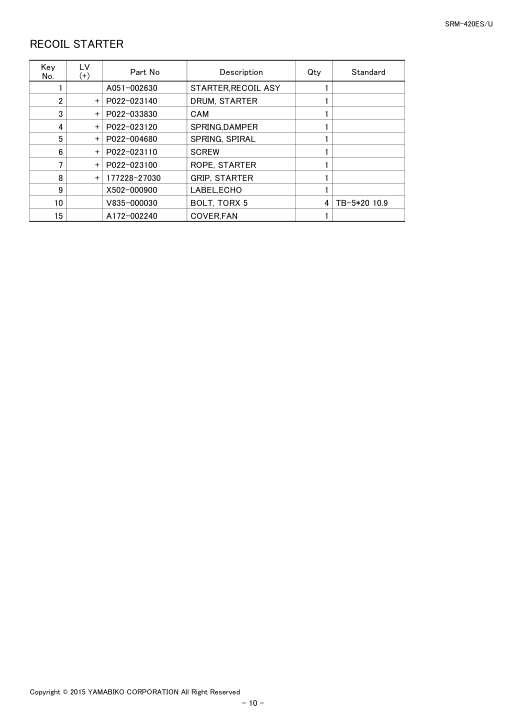

Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Starter,Recoil Asy | A051-002630 | A051-002630-Online | 1 | 2 | + P022-023140 | DRUM, STARTER | ||
| 9 | Label,Echo | X502-000900 | X502-000900-Online | |||
| 10 | Bolt, Torx 5 | V835-000030 | V835-000030-Online | 4 TB-5*20 10.9 | ||
| 15 | Cover,Fan | A172-002240 | A172-002240-Online | 1 | RECOIL STARTER | SRM-420ES/U | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

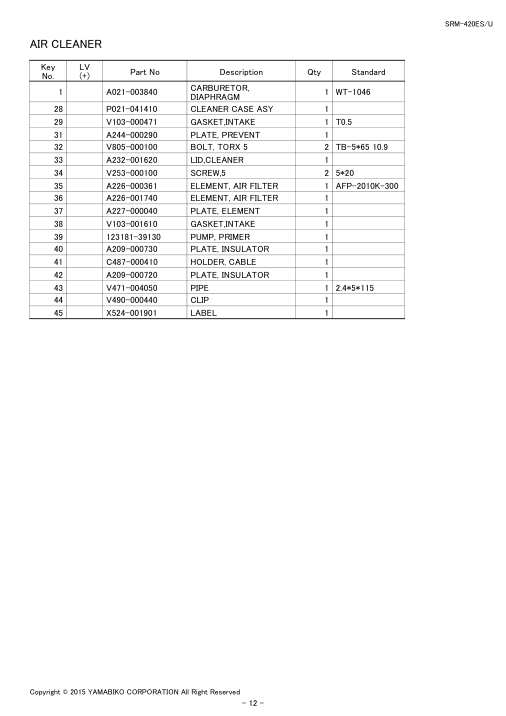

Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Carburetor, | A021-003840 | A021-003840-Online | DIAPHRAGM | 1 WT-1046 | ||
| 28 | Cleaner Case Asy | P021-041410 | P021-041410-Online | |||
| 29 | Gasket,Intake | V103-000471 | V103-000471-Online | 1 T0.5 | ||
| 31 | Plate, Prevent | A244-000290 | A244-000290-Online | |||
| 32 | Bolt, Torx 5 | V805-000100 | V805-000100-Online | 2 TB-5*65 10.9 | ||
| 33 | Lid,Cleaner | A232-001620 | A232-001620-Online | |||
| 34 | Screw,5 | V253-000100 | V253-000100-Online | 2 5*20 | ||
| 35 | Element, Air Filter | A226-000361 | A226-000361-Online | 1 AFP-2010K-300 | ||
| 36 | Element, Air Filter | A226-001740 | A226-001740-Online | |||
| 37 | Plate, Element | A227-000040 | A227-000040-Online | |||
| 38 | Gasket,Intake | V103-001610 | V103-001610-Online | |||
| 39 | Pump, Primer | 123181-39130 | 123181-39130-Online | |||
| 40 | Plate, Insulator | A209-000730 | A209-000730-Online | |||
| 41 | Holder, Cable | C487-000410 | C487-000410-Online | |||
| 42 | Plate, Insulator | A209-000720 | A209-000720-Online | |||
| 43 | Pipe | V471-004050 | V471-004050-Online | 1 2.4*5*115 | ||
| 44 | Clip | V490-000440 | V490-000440-Online | |||
| 45 | Label | X524-001901 | X524-001901-Online | 1 | AIR CLEANER | SRM-420ES/U | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

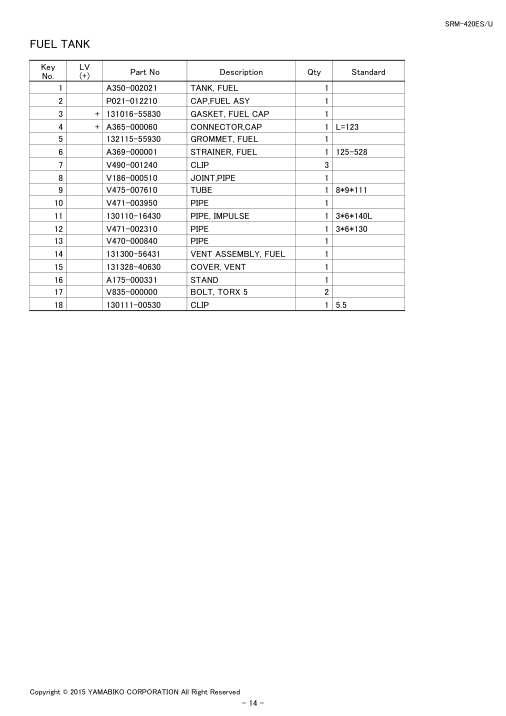

Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Tank, Fuel | A350-002021 | A350-002021-Online | |||
| 2 | Cap,Fuel Asy | P021-012210 | P021-012210-Online | 1 | 3 | + 131016-55830 | GASKET, FUEL CAP | ||
| 5 | Grommet, Fuel | 132115-55930 | 132115-55930-Online | |||
| 6 | Strainer, Fuel | A369-000001 | A369-000001-Online | 1 125-528 | ||
| 7 | Clip | V490-001240 | V490-001240-Online | |||
| 8 | Joint,Pipe | V186-000510 | V186-000510-Online | |||
| 9 | Tube | V475-007610 | V475-007610-Online | 1 8*9*111 | ||
| 10 | Pipe | V471-003950 | V471-003950-Online | |||
| 11 | Pipe, Impulse | 130110-16430 | 130110-16430-Online | 1 3*6*140L | ||
| 12 | Pipe | V471-002310 | V471-002310-Online | 1 3*6*130 | ||
| 13 | Pipe | V470-000840 | V470-000840-Online | |||
| 14 | Vent Assembly, Fuel | 131300-56431 | 131300-56431-Online | |||
| 15 | Cover, Vent | 131328-40630 | 131328-40630-Online | |||
| 16 | Stand | A175-000331 | A175-000331-Online | |||
| 17 | Bolt, Torx 5 | V835-000000 | V835-000000-Online | |||
| 18 | Clip | 130111-00530 | 130111-00530-Online | 1 5.5 | FUEL TANK | SRM-420ES/U | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Pipe, Main | C050-002440 | C050-002440-Online | |||
| 2 | Shaft, Drive | 610011-49931 | 610011-49931-Online | |||
| 5 | Label,Caution | 890617-43130 | 890617-43130-Online | 1 | MAIN PIPE | SRM-420ES/U | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

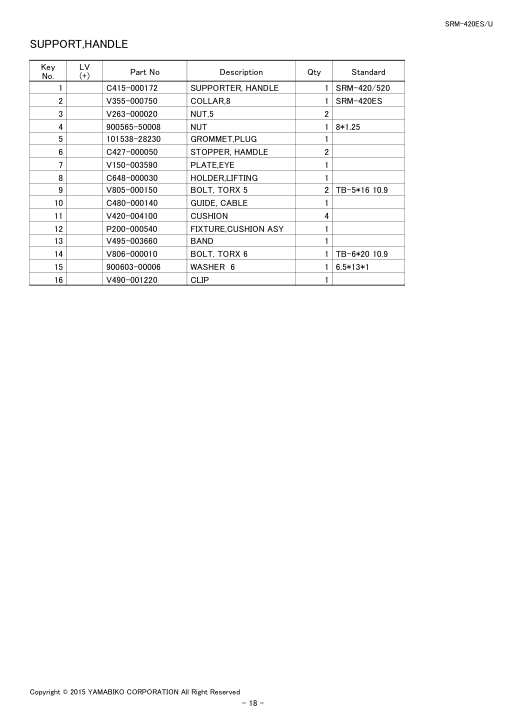

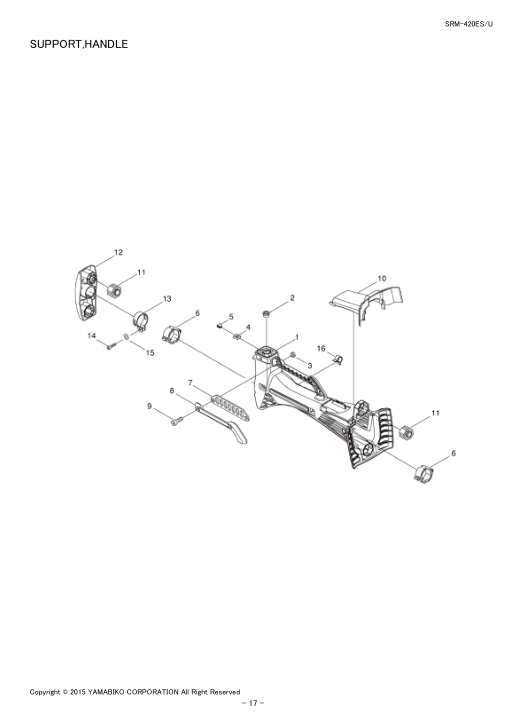

Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Supporter, Handle | C415-000172 | C415-000172-Online | 1 SRM-420/520 | ||
| 2 | Collar,8 | V355-000750 | V355-000750-Online | 1 SRM-420ES | ||
| 3 | Nut,5 | V263-000020 | V263-000020-Online | |||
| 4 | Nut | 900565-50008 | 900565-50008-Online | 1 8*1.25 | ||
| 5 | Grommet,Plug | 101538-28230 | 101538-28230-Online | |||
| 6 | Stopper, Hamdle | C427-000050 | C427-000050-Online | |||
| 7 | Plate,Eye | V150-003590 | V150-003590-Online | |||
| 8 | Holder,Lifting | C648-000030 | C648-000030-Online | |||
| 9 | Bolt, Torx 5 | V805-000150 | V805-000150-Online | 2 TB-5*16 10.9 | ||
| 10 | Guide, Cable | C480-000140 | C480-000140-Online | |||
| 11 | Cushion | V420-004100 | V420-004100-Online | |||
| 12 | Fixture,Cushion Asy | P200-000540 | P200-000540-Online | |||
| 13 | Band | V495-003660 | V495-003660-Online | |||
| 14 | Bolt, Torx 6 | V806-000010 | V806-000010-Online | 1 TB-6*20 10.9 | ||
| 15 | Washer 6 | 900603-00006 | 900603-00006-Online | 1 6.5*13*1 | ||
| 16 | Clip | V490-001220 | V490-001220-Online | 1 | SUPPORT,HANDLE | SRM-420ES/U | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

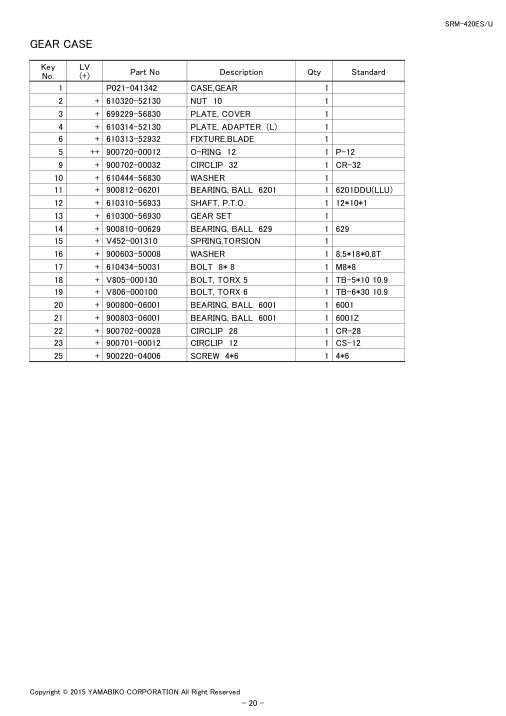

Page 22 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Case,Gear | P021-041342 | P021-041342-Online | 1 | 2 | + 610320-52130 | NUT 10 |
Page 24 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Handle, Front | C400-001320 | C400-001320-Online | |||
| 1V | Handle,Front | C400-001440 | C400-001440-Online | 1 22X T2.0 | ||
| 2 | Grip,Handle | C403-000031 | C403-000031-Online | |||
| 2V | Grip, Handle | C403-000810 | C403-000810-Online | |||
| 3 | Fixture, Handle | C423-000910 | C423-000910-Online | |||
| 3V | Fixture, Handle | C423-000960 | C423-000960-Online | 1 22 | ||
| 4 | Fixture, Handle | C423-000920 | C423-000920-Online | |||
| 4V | Fixture, Handle | C423-000970 | C423-000970-Online | 1 22 | ||
| 5 | Knob,Fastener | V299-000110 | V299-000110-Online | |||
| 6 | Washer | 175049-03920 | 175049-03920-Online | |||
| 7V | Piece,Hand Guard | C441-000000 | C441-000000-Online | 1 22 | ||
| 8V | Bolt, Torx 5 | V805-000070 | V805-000070-Online | 1 TB-5*40 10.9 | ||
| 9V | Locknut 5 | 900562-50005 | 900562-50005-Online | 1 5 | HANDLE | SRM-420ES/U | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 26 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Grip Asy,F-Handle | P021-016210 | P021-016210-Online | |||
| 1V | Handle Grip Set | P021-047370 | P021-047370-Online | 1 | 12 | + V804-000010 | BOLT, TORX 4 | ||
| 3 | Control, Throttle | C450-000270 | C450-000270-Online | |||
| 3V | Control, Throttle | C450-000880 | C450-000880-Online | |||
| 4 | Lockout, Throttle | C460-000111 | C460-000111-Online | 1 70MM | ||
| 4V | Lockout, Throttle | C460-000490 | C460-000490-Online | |||
| 5 | Knob, Latch | C463-000020 | C463-000020-Online | |||
| 5V | Knob,Latch | C463-000000 | C463-000000-Online | |||
| 6 | Spring,Torsion | V452-000360 | V452-000360-Online | |||
| 6V | Spring,Torsion | V452-000060 | V452-000060-Online | |||
| 7 | Spring,Torsion | V452-000350 | V452-000350-Online | |||
| 7V | Spring,Torsion | V452-001540 | V452-001540-Online | |||
| 8 | Cable,Bowden | V430-004241 | V430-004241-Online | |||
| 8V | Cable,Bowden | V430-004840 | V430-004840-Online | |||
| 9 | Nut | 900502-00006 | 900502-00006-Online | 2 3N6 | ||
| 11 | Switch,On Off Asy | P021-041470 | P021-041470-Online | |||
| 11V | Switch,On Off Asy | P021-041471 | P021-041471-Online | 1 | THROTTLE | SRM-420ES/U | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

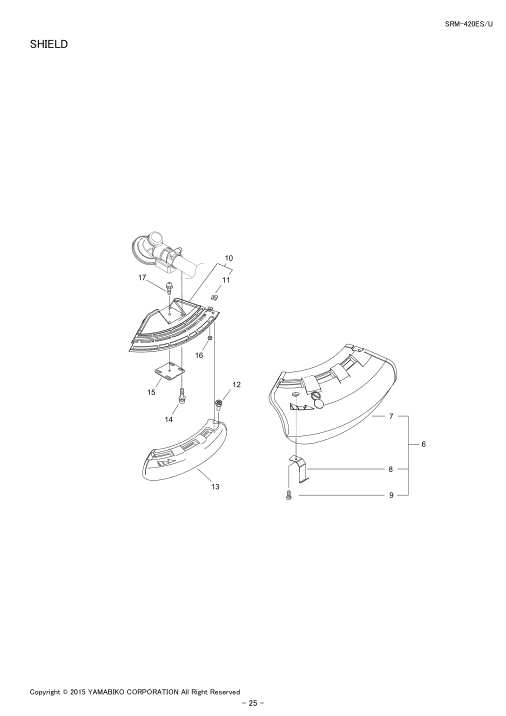

Page 28 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 6 | Shield Asy, Blade | P021-041320 | P021-041320-Online | 1 | 7 | + C550-000570 | SHIELD,BLADE | ||
| 10 | Shield,Blade | C550-000511 | C550-000511-Online | 1 | 11 | + 900565-00005 | NUT, SQUARE | ||
| 12 | Bolt, Torx 5 | V805-000170 | V805-000170-Online | 1 TB-5*25 10.9 | ||
| 13 | Shield,Blade | C550-000551 | C550-000551-Online | |||
| 14 | Bolt, Torx 5 | V805-000260 | V805-000260-Online | 4 TB5*25 10.9 | ||
| 15 | Plate, Shield | C552-000200 | C552-000200-Online | |||
| 16 | Nut, Lock | 900562-00005 | 900562-00005-Online | 1 5 | ||
| 17 | Screw | 91316-04010 | 91316-04010-Online | 1 M4*10 | SHIELD | SRM-420ES/U | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 30 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Tool,L Wrench | X605-000170 | X605-000170-Online | |||
| 2 | Tool,Wrench | X602-000020 | X602-000020-Online | 1 17*19 L200 | ||
| 3 | Tool,Bar | X606-000080 | X606-000080-Online | 1 5*120 | ||
| 4 | Goggle | X690-000080 | X690-000080-Online | 1 SI CHINA, Z87.1 | ||
| 5 | Bag, Tool | 898510-07130 | 898510-07130-Online | |||
| 6 | Saw,Bush Cutter | P021-014320 | P021-014320-Online | 1 255*T3.0 | ||
| 7 | Scabbard,Blade | X495-000270 | X495-000270-Online | |||
| 8 | Cutter,Asm Line | X047-000230 | X047-000230-Online | 1 DS-5 M10 L | TOOLS | SRM-420ES/U | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

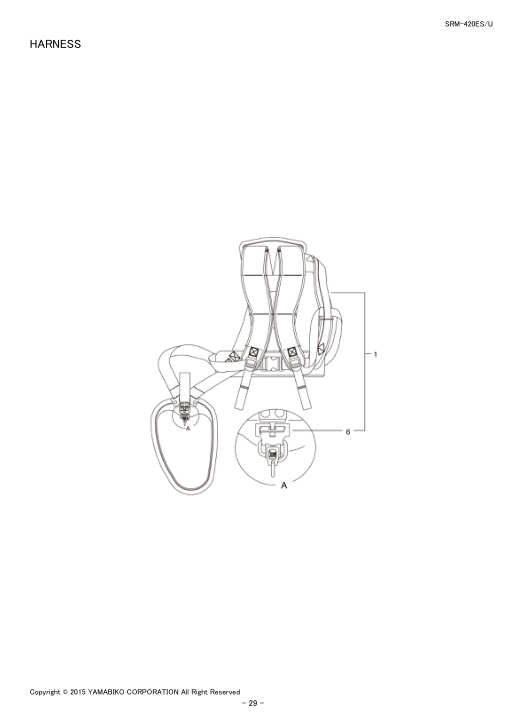

Page 32 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Harness, Shoulder | C062-000511 | C062-000511-Online | 1 | 6 | + P021-042910 | HOOK ASSY |
Page 36 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Cutter,Asm Line | X047-000230 | X047-000230-Online | 1 DS-5 M10 L | 2 | + P022-010390 | NUT |
Page 37 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 6 | Spacer, Piston Pin | 100014-17330 | 100014-17330-Online | |||
| 6 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 8 | Oilseal | 100213-05530 | 100213-05530-Online | |||
| 4 | Grommet,Plug | 101538-28230 | 101538-28230-Online | |||
| 18 | Screw, Pump Cover | 123110-03930 | 123110-03930-Online | |||
| 32 | Spring, Thr. Rtn. | 123113-47530 | 123113-47530-Online | |||
| 32 | Valve, Throttle | 123116-05960 | 123116-05960-Online | |||
| 32 | Spring, Meter. Lever | 123122-03660 | 123122-03660-Online | |||
| 32 | Lever, Metering | 123123-03930 | 123123-03930-Online | |||
| 32 | Gasket, Fuel Pump | 123125-15030 | 123125-15030-Online | |||
| 32 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |||
| 32 | Clip, Throttle Shaft | 123127-03930 | 123127-03930-Online | |||
| 32 | Retaining, Spring | 123127-10630 | 123127-10630-Online | |||
| 32 | Screw | 123130-02960 | 123130-02960-Online | |||
| 32 | Spring, Idle Adjust | 123133-04260 | 123133-04260-Online | |||
| 32 | Screw, Idle Adjust | 123134-04260 | 123134-04260-Online | |||
| 32 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |||
| 32 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |||
| 32 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | |||
| 32 | Gasket, M. Diaphragm | 123140-03930 | 123140-03930-Online | |||
| 32 | Cover, M. Diaphragm | 123142-03930 | 123142-03930-Online | |||
| 32 | Plug, Welch | 123146-10631 | 123146-10631-Online | |||
| 32 | Washer | 123149-54230 | 123149-54230-Online | |||
| 32 | Swivel | 123172-26030 | 123172-26030-Online | |||
| 32 | Pump, Primer | 123181-39130 | 123181-39130-Online | |||
| 12 | Pipe, Impulse | 130110-16430 | 130110-16430-Online | |||
| 14 | Clip | 130111-00530 | 130111-00530-Online | |||
| 14 | Connecter | 130113-12330 | 130113-12330-Online | |||
| 4 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |||
| 14 | Vent Assembly, Fuel | 131300-56431 | 131300-56431-Online | |||
| 14 | Cover, Vent | 131328-40630 | 131328-40630-Online | |||
| 14 | Cushion, Fuel Tank | 131920-61830 | 131920-61830-Online | |||
| 4 | Grommet, Fuel | 132115-55930 | 132115-55930-Online | |||
| 14 | Screen, Muffler | 145862-40630 | 145862-40630-Online | |||
| 2 | Bushing | 156110-04920 | 156110-04920-Online | |||
| 4 | Grommet | 156114-07320 | 156114-07320-Online | |||
| 4 | Clamp | 159116-21231 | 159116-21231-Online | |||
| 4 | Washer | 175049-03920 | 175049-03920-Online | |||
| 22 | Grip, Starter | 177228-27030 | 177228-27030-Online | |||
| 10 | Spacer, Ratchet | 177247-04630 | 177247-04630-Online | |||
| 8 | Shaft, Drive | 610011-49931 | 610011-49931-Online | |||
| 16 | Gear Set | 610300-56930 | 610300-56930-Online | |||
| 20 | Shaft, P.T.O. | 610310-56933 | 610310-56933-Online | |||
| 20 | Fixture,Blade | 610313-52932 | 610313-52932-Online | 20 | Part No | Part descrition | Page | ||
| 20 | Nut 10 | 610320-52130 | 610320-52130-Online | |||
| 20 | Bolt 8* 8 | 610434-50031 | 610434-50031-Online | |||
| 20 | Washer | 610444-56830 | 610444-56830-Online | |||
| 20 | Plate, Cover | 699229-56830 | 699229-56830-Online | |||
| 20 | Label,Caution | 890617-43130 | 890617-43130-Online | |||
| 16 | Bag, Tool | 898510-07130 | 898510-07130-Online | |||
| 28 | Screw 4*6 | 900220-04006 | 900220-04006-Online | |||
| 20 | Pin F 4*8 | 900330-40080 | 900330-40080-Online | |||
| 24 | Nut, Lock | 900562-00005 | 900562-00005-Online | |||
| 26 | Locknut 5 | 900562-50005 | 900562-50005-Online | |||
| 22 | Nut, Square | 900565-00005 | 900565-00005-Online | |||
| 18 | Washer 6 | 900603-00006 | 900603-00006-Online | |||
| 18 | Washer | 900603-50008 | 900603-50008-Online | |||
| 20 | Circlip 12 | 900701-00012 | 900701-00012-Online | |||
| 4 | Circlip 12 | 900701-00012 | 900701-00012-Online | |||
| 20 | Circlip 28 | 900702-00028 | 900702-00028-Online | |||
| 4 | Circlip 28 | 900702-00028 | 900702-00028-Online | |||
| 20 | Circlip 32 | 900702-00032 | 900702-00032-Online | |||
| 20 | O-Ring 12 | 900720-00012 | 900720-00012-Online | |||
| 20 | Bearing, Ball 6001 | 900800-06001 | 900800-06001-Online | |||
| 20 | Bearing, Ball 6001 | 900803-06001 | 900803-06001-Online | |||
| 20 | Bearing, Ball 629 | 900810-00629 | 900810-00629-Online | |||
| 20 | Bearing, Ball 6201 | 900812-06201 | 900812-06201-Online | |||
| 20 | Bearing, Ball 6201 | 900888-36201 | 900888-36201-Online | |||
| 4 | Screw | 91316-04010 | 91316-04010-Online | |||
| 26 | Nut, Flange | 92105-08000 | 92105-08000-Online | |||
| 8 | Bearing, Ball | 94018-46001 | 94018-46001-Online | |||
| 4 | Crankshaft,Asy | A011-001230 | A011-001230-Online | |||
| 6 | Carburetor, | A021-003840 | A021-003840-Online | DIAPHRAGM | ||
| 12 | Carburetor, | A021-003840 | A021-003840-Online | DIAPHRAGM | ||
| 32 | Starter,Recoil Asy | A051-002630 | A051-002630-Online | |||
| 10 | Ring, Piston | A101-000160 | A101-000160-Online | |||
| 6 | Cylinder | A130-002070 | A130-002070-Online | |||
| 2 | Cover,Cylinder | A160-002620 | A160-002620-Online | |||
| 4 | Cover,Cylinder | A160-002631 | A160-002631-Online | |||
| 4 | Cover,Fan | A172-002240 | A172-002240-Online | |||
| 10 | Stand | A175-000331 | A175-000331-Online | |||
| 14 | Insulator, Intake | A200-000990 | A200-000990-Online | |||
| 2 | Bellows, Intake | A202-000251 | A202-000251-Online | |||
| 2 | Plate, Insulator | A209-000720 | A209-000720-Online | 12 | Part No | Part descrition | Page | ||
| 12 | Plate, Insulator | A209-000740 | A209-000740-Online | |||
| 4 | Element, Air Filter | A226-000361 | A226-000361-Online | |||
| 12 | Element, Air Filter | A226-001740 | A226-001740-Online | |||
| 12 | Plate, Element | A227-000040 | A227-000040-Online | |||
| 12 | Lid,Cleaner | A232-001620 | A232-001620-Online | |||
| 12 | Plate, Prevent | A244-000290 | A244-000290-Online | |||
| 12 | Muffler, Exhaust | A300-001700 | A300-001700-Online | |||
| 2 | Guide, Exhaust | A313-001910 | A313-001910-Online | |||
| 2 | Cover,Muffler | A320-000970 | A320-000970-Online | |||
| 4 | Tank, Fuel | A350-002021 | A350-002021-Online | |||
| 14 | Connector,Cap | A365-000060 | A365-000060-Online | |||
| 14 | Strainer, Fuel | A369-000001 | A369-000001-Online | |||
| 14 | Bracket,Fuel Tank | A393-000300 | A393-000300-Online | |||
| 4 | Rotor, Magneto | A409-001210 | A409-001210-Online | |||
| 8 | Coil, Ignition | A411-001371 | A411-001371-Online | |||
| 8 | Sparkplug | A425-000000 | A425-000000-Online | |||
| 8 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | |||
| 8 | Cap,Spark Plug | A427-000060 | A427-000060-Online | |||
| 8 | Cover,Cap | A429-000090 | A429-000090-Online | |||
| 8 | Pawl | A514-000280 | A514-000280-Online | |||
| 8 | Hub, Clutch | A552-000390 | A552-000390-Online | |||
| 6 | Arm, Clutch | A553-000170 | A553-000170-Online | |||
| 6 | Drum, Clutch | A556-001540 | A556-001540-Online | |||
| 4 | Shaft, Clutch | A557-000190 | A557-000190-Online | |||
| 6 | Spring, Clutch | A566-000230 | A566-000230-Online | |||
| 6 | Case,Clutch | A570-000291 | A570-000291-Online | |||
| 4 | Pipe, Main | C050-002440 | C050-002440-Online | |||
| 16 | Harness, Shoulder | C062-000511 | C062-000511-Online | |||
| 30 | Handle, Front | C400-001320 | C400-001320-Online | |||
| 22 | Handle,Front | C400-001440 | C400-001440-Online | |||
| 22 | Grip,Handle | C403-000031 | C403-000031-Online | |||
| 22 | Grip, Handle | C403-000810 | C403-000810-Online | |||
| 22 | Supporter, Handle | C415-000172 | C415-000172-Online | |||
| 18 | Fixture, Handle | C423-000910 | C423-000910-Online | |||
| 22 | Fixture, Handle | C423-000920 | C423-000920-Online | |||
| 22 | Fixture, Handle | C423-000960 | C423-000960-Online | |||
| 22 | Fixture, Handle | C423-000970 | C423-000970-Online | |||
| 22 | Stopper, Hamdle | C427-000050 | C427-000050-Online | |||
| 18 | Piece,Hand Guard | C441-000000 | C441-000000-Online | |||
| 22 | Control, Throttle | C450-000270 | C450-000270-Online | |||
| 24 | Control, Throttle | C450-000880 | C450-000880-Online | |||
| 24 | Lockout, Throttle | C460-000111 | C460-000111-Online | |||
| 24 | Lockout, Throttle | C460-000490 | C460-000490-Online | |||
| 24 | Knob,Latch | C463-000000 | C463-000000-Online | 24 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-1 |
Page 38 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 24 | Guide, Cable | C480-000140 | C480-000140-Online | |||
| 18 | Holder, Cable | C487-000410 | C487-000410-Online | |||
| 12 | Shield,Blade | C550-000511 | C550-000511-Online | |||
| 26 | Shield,Blade | C550-000551 | C550-000551-Online | |||
| 26 | Shield,Blade | C550-000570 | C550-000570-Online | |||
| 26 | Plate, Shield | C552-000200 | C552-000200-Online | |||
| 26 | Knife, Cord | C554-000030 | C554-000030-Online | |||
| 26 | Holder,Lifting | C648-000030 | C648-000030-Online | |||
| 18 | Diaphragm, Metering | P003-001850 | P003-001850-Online | |||
| 32 | Needle | P003-002270 | P003-002270-Online | |||
| 32 | Screw | P003-002380 | P003-002380-Online | |||
| 32 | Cover, Fuel Pump | P003-003930 | P003-003930-Online | |||
| 32 | Needle | P003-004460 | P003-004460-Online | |||
| 32 | Shaft Asm Throttle | P003-005020 | P003-005020-Online | |||
| 32 | Diaphragm, Fuel Pump | P003-006270 | P003-006270-Online | |||
| 32 | Cap,Fuel Asy | P021-012210 | P021-012210-Online | |||
| 14 | Saw,Bush Cutter | P021-014320 | P021-014320-Online | |||
| 28 | Grip Asy,F-Handle | P021-016210 | P021-016210-Online | |||
| 24 | Clutch Shoe Set | P021-041130 | P021-041130-Online | |||
| 6 | Clutch Asy | P021-041140 | P021-041140-Online | |||
| 6 | Shield Asy, Blade | P021-041320 | P021-041320-Online | |||
| 26 | Case,Gear | P021-041342 | P021-041342-Online | |||
| 20 | Crankcase Set | P021-041380 | P021-041380-Online | |||
| 4 | Piston Kit | P021-041390 | P021-041390-Online | |||
| 6 | Cleaner Case Asy | P021-041410 | P021-041410-Online | |||
| 12 | Switch,On Off Asy | P021-041470 | P021-041470-Online | |||
| 24 | Switch,On Off Asy | P021-041471 | P021-041471-Online | |||
| 24 | Hook Assy | P021-042910 | P021-042910-Online | |||
| 30 | Handle Grip Set | P021-047370 | P021-047370-Online | |||
| 24 | Eyelet | P022-000710 | P022-000710-Online | |||
| 34 | Bobbin | P022-001180 | P022-001180-Online | |||
| 34 | Spring | P022-001200 | P022-001200-Online | |||
| 34 | Spring, Spiral | P022-004680 | P022-004680-Online | |||
| 10 | Cover | P022-005030 | P022-005030-Online | |||
| 34 | Housing | P022-005040 | P022-005040-Online | |||
| 34 | Nylon Code | P022-006200 | P022-006200-Online | |||
| 34 | Tap Knob | P022-019450 | P022-019450-Online | |||
| 34 | Washer | P022-022050 | P022-022050-Online | |||
| 34 | Rope, Starter | P022-023100 | P022-023100-Online | |||
| 10 | Screw | P022-023110 | P022-023110-Online | |||
| 10 | Spring,Damper | P022-023120 | P022-023120-Online | |||
| 10 | Drum, Starter | P022-023140 | P022-023140-Online | |||
| 10 | Spacer | P022-023160 | P022-023160-Online | 34 | Part No | Part descrition | Page | ||
| 10 | Fixture,Cushion Asy | P200-000540 | P200-000540-Online | |||
| 18 | Gasket,Cyl | V100-000760 | V100-000760-Online | |||
| 2 | Gasket,Crankcase | V102-000250 | V102-000250-Online | |||
| 4 | Gasket,Intake | V103-000471 | V103-000471-Online | |||
| 12 | Gasket,Intake | V103-001610 | V103-001610-Online | |||
| 12 | Gasket,Intake | V103-001620 | V103-001620-Online | |||
| 2 | Gasket,Exhaust | V104-002020 | V104-002020-Online | |||
| 2 | Gasket,Exhaust | V104-002030 | V104-002030-Online | |||
| 2 | Gasket,Exhaust | V104-002040 | V104-002040-Online | |||
| 2 | Plate,Eye | V150-003590 | V150-003590-Online | |||
| 18 | Joint,Pipe | V186-000510 | V186-000510-Online | |||
| 14 | Screw,5 | V253-000100 | V253-000100-Online | |||
| 12 | Nut,5 | V263-000020 | V263-000020-Online | |||
| 18 | Knob,Fastener | V299-000110 | V299-000110-Online | |||
| 22 | Collar,5 | V353-000630 | V353-000630-Online | |||
| 8 | Collar,8 | V355-000750 | V355-000750-Online | |||
| 18 | Spacer | V376-001980 | V376-001980-Online | |||
| 6 | Cushion | V420-004100 | V420-004100-Online | |||
| 18 | Holder,Cushion | V423-000090 | V423-000090-Online | |||
| 4 | Cable,Bowden | V430-004241 | V430-004241-Online | |||
| 24 | Cable,Bowden | V430-004840 | V430-004840-Online | |||
| 24 | Spring,Torsion | V452-000060 | V452-000060-Online | |||
| 24 | Spring,Torsion | V452-000350 | V452-000350-Online | |||
| 24 | Spring,Torsion | V452-000360 | V452-000360-Online | |||
| 24 | Spring,Torsion | V452-001310 | V452-001310-Online | |||
| 20 | Spring,Torsion | V452-001471 | V452-001471-Online | |||
| 8 | Spring,Torsion | V452-001540 | V452-001540-Online | |||
| 24 | Spring,Flat | V453-000230 | V453-000230-Online | |||
| 6 | Pipe | V470-000840 | V470-000840-Online | |||
| 14 | Pipe | V471-002310 | V471-002310-Online | |||
| 14 | Pipe | V471-003950 | V471-003950-Online | |||
| 14 | Pipe | V471-004040 | V471-004040-Online | |||
| 4 | Pipe | V471-004050 | V471-004050-Online | |||
| 12 | Tube | V475-007540 | V475-007540-Online | |||
| 8 | Tube | V475-007550 | V475-007550-Online | |||
| 8 | Tube | V475-007610 | V475-007610-Online | |||
| 4 | Tube | V475-007610 | V475-007610-Online | |||
| 14 | Lead | V485-002331 | V485-002331-Online | |||
| 8 | Lead | V485-002570 | V485-002570-Online | |||
| 4 | Clip | V490-000440 | V490-000440-Online | |||
| 12 | Clip | V490-001220 | V490-001220-Online | |||
| 18 | Clip | V490-001240 | V490-001240-Online | |||
| 24 | Band | V495-003660 | V495-003660-Online | 18 | Part No | Part descrition | Page | ||
| 4 | Seal | V541-000540 | V541-000540-Online | |||
| 4 | Ring,End | V580-000010 | V580-000010-Online | |||
| 6 | Pin,Eng 10 | V608-000000 | V608-000000-Online | |||
| 6 | Bolt, Torx 4 | V804-000010 | V804-000010-Online | |||
| 24 | Bolt, Torx 4 | V804-000030 | V804-000030-Online | |||
| 2 | Bolt, Torx 5 | V805-000050 | V805-000050-Online | |||
| 24 | Bolt, Torx 5 | V805-000060 | V805-000060-Online | |||
| 24 | Bolt, Torx 5 | V805-000070 | V805-000070-Online | |||
| 22 | Bolt, Torx 5 | V805-000100 | V805-000100-Online | |||
| 12 | Bolt, Torx 5 | V805-000130 | V805-000130-Online | |||
| 4 | Bolt, Torx 5 | V805-000130 | V805-000130-Online | |||
| 20 | Bolt, Torx 5 | V805-000140 | V805-000140-Online | |||
| 8 | Bolt, Torx 5 | V805-000150 | V805-000150-Online | |||
| 4 | Bolt, Torx 5 | V805-000150 | V805-000150-Online | |||
| 18 | Bolt, Torx 5 | V805-000150 | V805-000150-Online | |||
| 26 | Bolt, Torx 5 | V805-000160 | V805-000160-Online | |||
| 4 | Bolt, Torx 5 | V805-000170 | V805-000170-Online | |||
| 26 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | |||
| 2 | Bolt, Torx 5 | V805-000250 | V805-000250-Online | |||
| 2 | Bolt, Torx 5 | V805-000260 | V805-000260-Online | |||
| 4 | Bolt, Torx 5 | V805-000260 | V805-000260-Online | |||
| 26 | Bolt, Torx 5 | V805-000290 | V805-000290-Online | |||
| 4 | Bolt, Torx 6 | V806-000010 | V806-000010-Online | |||
| 18 | Bolt, Torx 6 | V806-000050 | V806-000050-Online | |||
| 2 | Bolt, Torx 6 | V806-000100 | V806-000100-Online | |||
| 20 | Bolt, Torx 5 | V835-000000 | V835-000000-Online | |||
| 4 | Bolt, Torx 5 | V835-000000 | V835-000000-Online | |||
| 14 | Bolt, Torx 5 | V835-000010 | V835-000010-Online | |||
| 2 | Bolt, Torx 5 | V835-000030 | V835-000030-Online | |||
| 10 | Cutter,Asm Line | X047-000230 | X047-000230-Online | |||
| 28 | Cutter,Asm Line | X047-000230 | X047-000230-Online | |||
| 34 | Scabbard,Blade | X495-000270 | X495-000270-Online | |||
| 28 | Label,Echo | X502-000900 | X502-000900-Online | |||
| 10 | Label,Caution | X505-002310 | X505-002310-Online | |||
| 4 | Label | X524-001901 | X524-001901-Online | |||
| 12 | Label,Echo | X547-002290 | X547-002290-Online | |||
| 4 | Tool,Wrench | X602-000020 | X602-000020-Online | |||
| 28 | Tool,L Wrench | X605-000170 | X605-000170-Online | |||
| 28 | Tool,Bar | X606-000080 | X606-000080-Online | |||
| 28 | Goggle | X690-000080 | X690-000080-Online | 28 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-2 |
Source PDF: 20200226-822_SRM-420ES_U_37_37009411_24FEB2020.pdf. Generated 2026-06-25 14:40.
