Echo SRM-4300 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: SRM-4300-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.

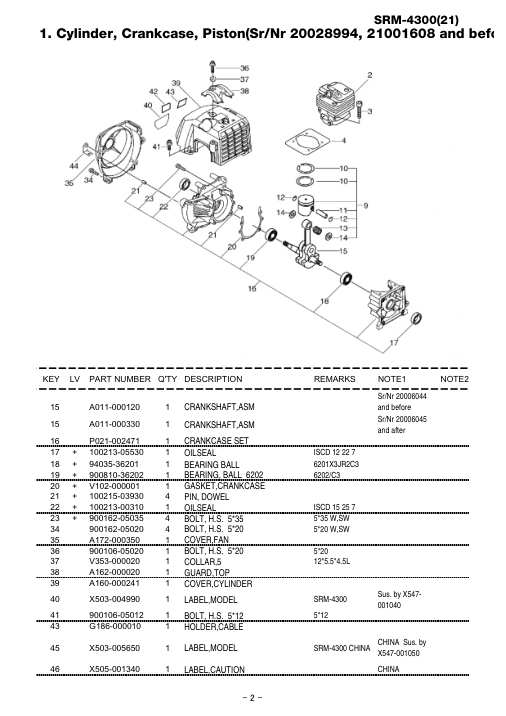

Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.

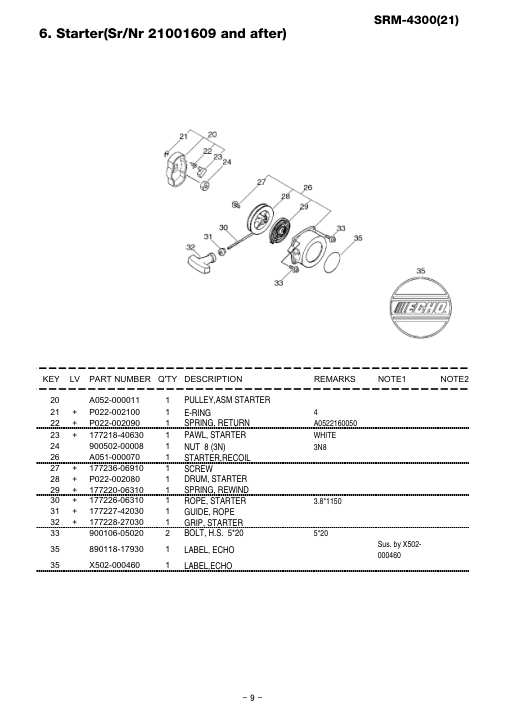

Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.

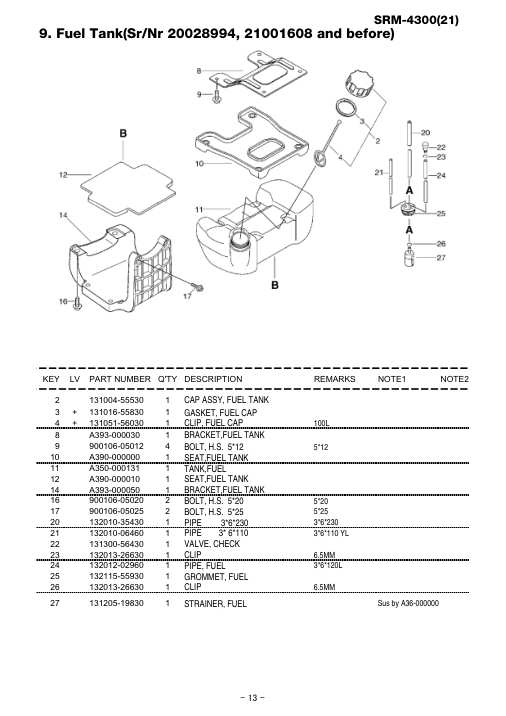

Page 19
Tap or click the page image to enlarge it.

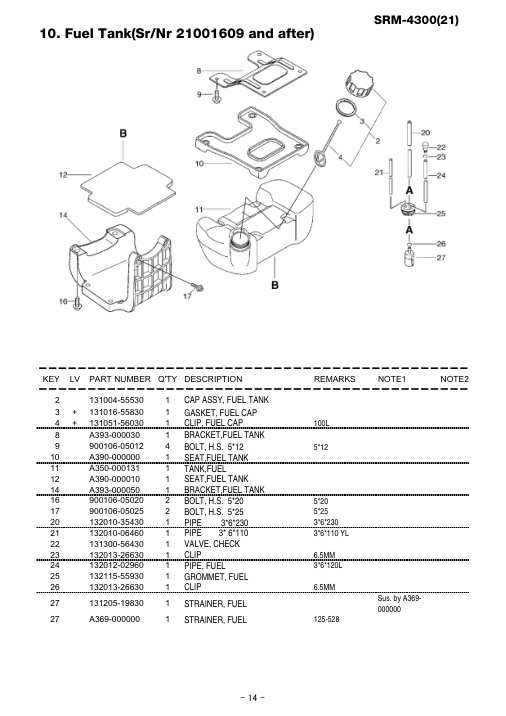

Page 20
Tap or click the page image to enlarge it.

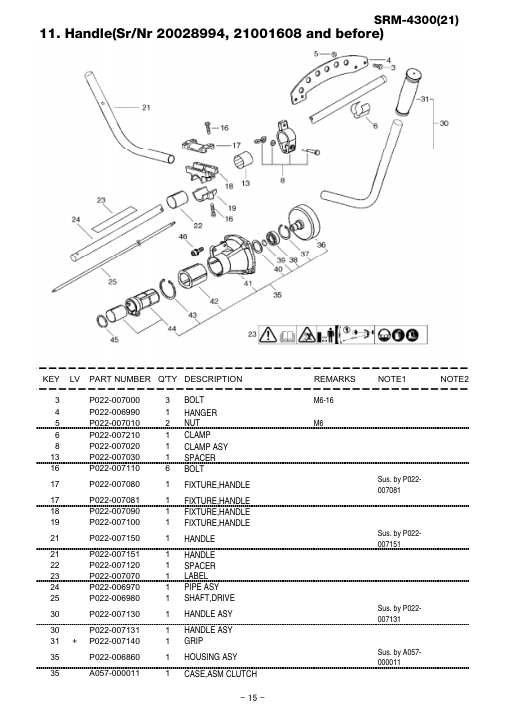

Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.

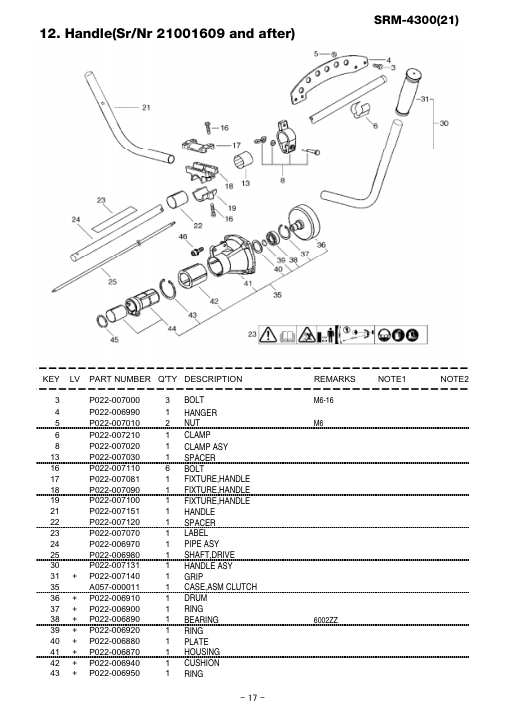

Page 23
Tap or click the page image to enlarge it.
Page 24
Tap or click the page image to enlarge it.
Page 25
Tap or click the page image to enlarge it.
Page 26
Tap or click the page image to enlarge it.

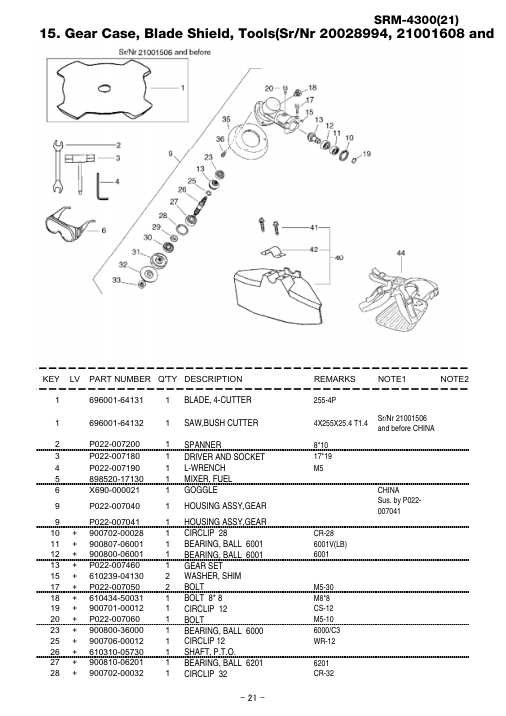

Page 27
Tap or click the page image to enlarge it.
Page 28
Tap or click the page image to enlarge it.

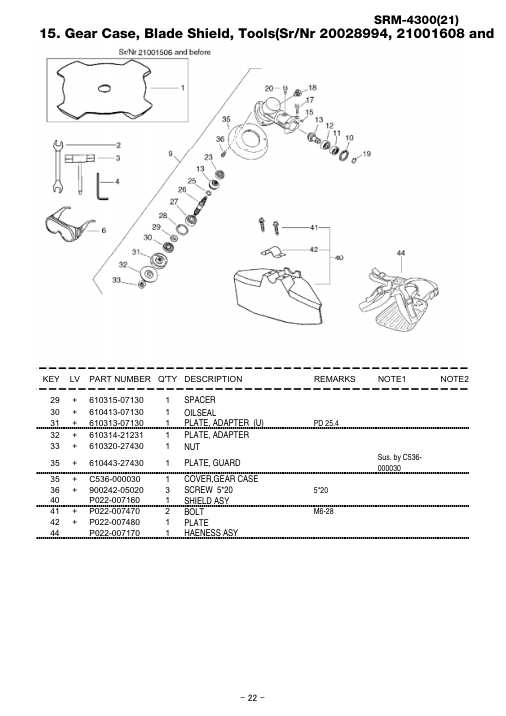

Page 29
Tap or click the page image to enlarge it.
Page 30
Tap or click the page image to enlarge it.

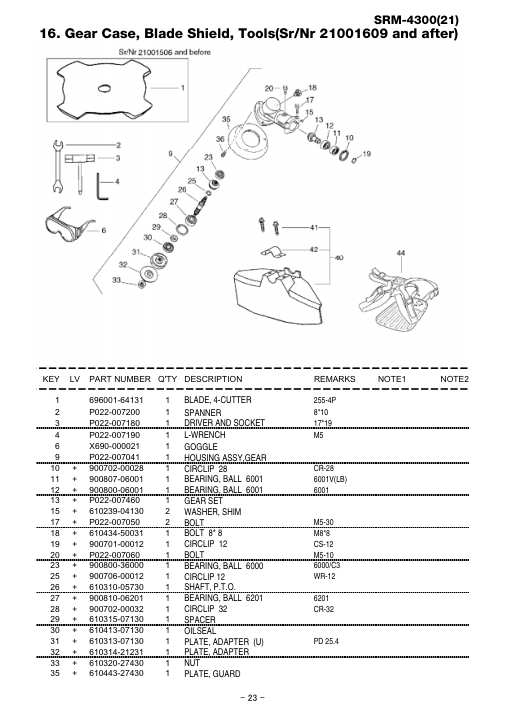

Page 31
Tap or click the page image to enlarge it.
Page 32
Tap or click the page image to enlarge it.
Page 33
Tap or click the page image to enlarge it.
Page 34
Tap or click the page image to enlarge it.

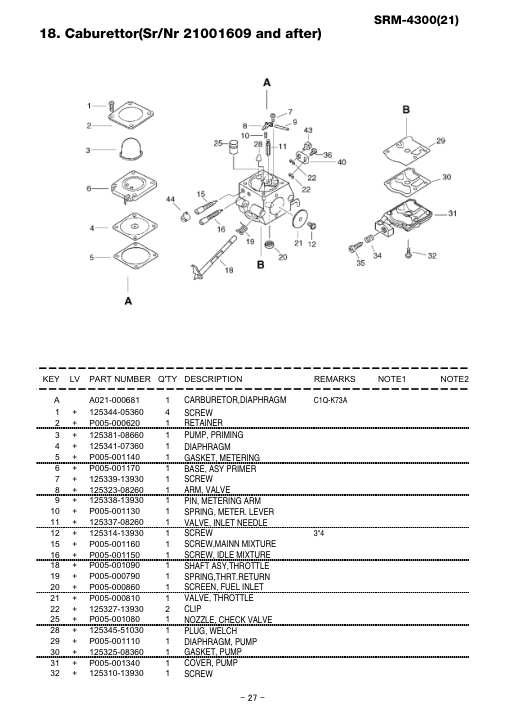

Page 35
Tap or click the page image to enlarge it.
Page 36
Tap or click the page image to enlarge it.
Page 37
Tap or click the page image to enlarge it.
Page 38
Tap or click the page image to enlarge it.
Page 39
Tap or click the page image to enlarge it.
Page 40
Tap or click the page image to enlarge it.
Page 41
Tap or click the page image to enlarge it.
Page 42
Tap or click the page image to enlarge it.
Page 43
Tap or click the page image to enlarge it.
Page 44
Tap or click the page image to enlarge it.
Page 45
Tap or click the page image to enlarge it.
Page 46
Tap or click the page image to enlarge it.

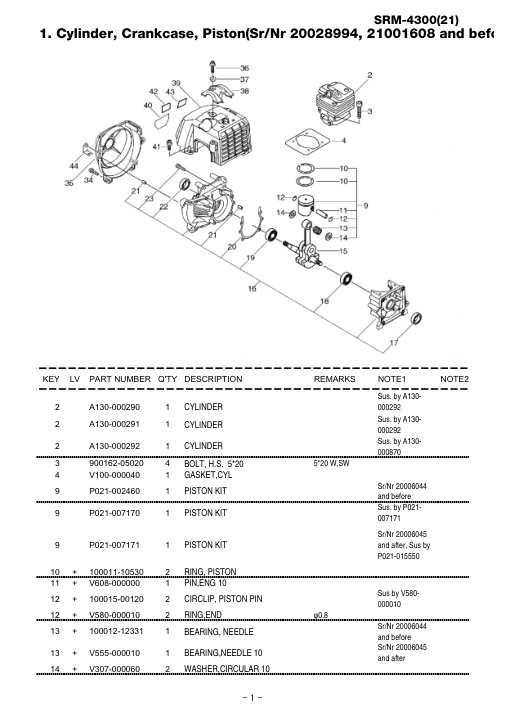

Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Cylinder | A130-000290 | A130-000290-Online | Sus. by A130- | 000292 | |
| 2 | 1 | Cylinder | A130-000291 | A130-000291-Online | Sus. by A130- | 000292 | |
| 2 | 1 | Cylinder | A130-000292 | A130-000292-Online | Sus. by A130- | 000870 | |
| 3 | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 4 | 1 | Gasket,Cyl | V100-000040 | V100-000040-Online | ||
| 9 | 1 | Piston Kit | P021-002460 | P021-002460-Online | Sr/Nr 20006044 | and before | |
| 9 | 1 | Piston Kit | P021-007170 | P021-007170-Online | Sus. by P021- | 007171 | |
| 9 | 1 | Piston Kit | P021-007171 | P021-007171-Online | Sr/Nr 20006045 | and after, Sus by | |
| 10 | + | 2 | Ring, Piston | 100011-10530 | 100011-10530-Online | |
| 11 | + | 1 | Pin,Eng 10 | V608-000000 | V608-000000-Online | |
| 12 | + | 2 | Circlip, Piston Pin | 100015-00120 | 100015-00120-Online | Sus by V580- | 000010 |
| 12 | + | 2 | Ring,End | V580-000010 | V580-000010-Online | ij0.8 |
| 13 | + | 1 | Bearing, Needle | 100012-12331 | 100012-12331-Online | Sr/Nr 20006044 | and before |
| 13 | + | 1 | Bearing,Needle 10 | V555-000010 | V555-000010-Online | Sr/Nr 20006045 | and after |
| 14 | + | 2 | Washer,Circular 10 | V307-000060 | V307-000060-Online |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 15 | 1 | Crankshaft,Asm | A011-000120 | A011-000120-Online | Sr/Nr 20006044 | and before | |
| 15 | 1 | Crankshaft,Asm | A011-000330 | A011-000330-Online | Sr/Nr 20006045 | and after | |
| 16 | 1 | Crankcase Set | P021-002471 | P021-002471-Online | ||
| 17 | + | 1 | Oilseal | 100213-05530 | 100213-05530-Online | ISCD 12 22 7 |
| 18 | + | 1 | Bearing Ball | 94035-36201 | 94035-36201-Online | 6201X3JR2C3 |
| 19 | + | 1 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | 6202/C3 |
| 20 | + | 1 | Gasket,Crankcase | V102-000001 | V102-000001-Online | |
| 21 | + | 4 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 22 | + | 1 | Oilseal | 100213-00310 | 100213-00310-Online | ISCD 15 25 7 |
| 23 | + | 4 | Bolt, H.S. 5*35 | 900162-05035 | 900162-05035-Online | 5*35 W,SW |
| 34 | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 35 | 1 | Cover,Fan | A172-000350 | A172-000350-Online | ||
| 36 | 1 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | 5*20 | |
| 37 | 1 | Collar,5 | V353-000020 | V353-000020-Online | 12*5.5*4.5L | |
| 38 | 1 | Guard,Top | A162-000020 | A162-000020-Online | ||
| 39 | 1 | Cover,Cylinder | A160-000241 | A160-000241-Online | ||
| 40 | 1 | Label,Model | X503-004990 | X503-004990-Online | SRM-4300 | Sus. by X547- | 001040 | |
| 41 | 1 | Bolt, H.S. 5*12 | 900106-05012 | 900106-05012-Online | 5*12 | |
| 43 | 1 | Holder,Cable | G186-000010 | G186-000010-Online | ||
| 45 | 1 | Label,Model | X503-005650 | X503-005650-Online | SRM-4300 CHINA | CHINA Sus. by | |
| 46 | 1 | Label,Caution | X505-001340 | X505-001340-Online | CHINA |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 47 | 1 | Label,Caution | X505-001350 | X505-001350-Online | CHINA |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Cylinder | A130-000292 | A130-000292-Online | Sus. by A130- | 000870 | |
| 2 | 1 | Cylinder | A130-000870 | A130-000870-Online | ||
| 3 | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 4 | 1 | Gasket,Cyl | V100-000040 | V100-000040-Online | ||
| 9 | 1 | Piston Kit | P021-007171 | P021-007171-Online | Sus. by P021- | 015550 | |
| 9 | 1 | Piston Kit | P021-015550 | P021-015550-Online | ||
| 10 | + | 2 | Ring, Piston | 100011-10530 | 100011-10530-Online | |
| 11 | + | 1 | Pin,Eng 10 | V608-000000 | V608-000000-Online | |
| 12 | + | 2 | Circlip, Piston Pin | 100015-00120 | 100015-00120-Online | Sus. by V580- | 000010 |
| 13 | + | 1 | Bearing,Needle 10 | V555-000010 | V555-000010-Online | |
| 14 | + | 2 | Washer,Circular 10 | V307-000060 | V307-000060-Online | |
| 15 | 1 | Crankshaft,Asm | A011-000330 | A011-000330-Online | ||
| 16 | 1 | Crankcase Set | P021-002471 | P021-002471-Online | ||
| 17 | + | 1 | Oilseal | 100213-05530 | 100213-05530-Online | ISCD 12 22 7 |
| 18 | + | 1 | Bearing Ball | 94035-36201 | 94035-36201-Online | 6201X3JR2C3 |
| 19 | + | 1 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | 6202/C3 |
| 20 | + | 1 | Gasket,Crankcase | V102-000001 | V102-000001-Online | |
| 21 | + | 4 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 22 | + | 1 | Oilseal | 100213-00310 | 100213-00310-Online | ISCD 15 25 7 |
| 23 | + | 4 | Bolt, H.S. 5*35 | 900162-05035 | 900162-05035-Online | 5*35 W,SW |
| 34 | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 35 | 1 | Cover,Fan | A172-000350 | A172-000350-Online | ||
| 36 | 1 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | 5*20 |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 37 | 1 | Collar,5 | V353-000020 | V353-000020-Online | 12*5.5*4.5L | |
| 38 | 1 | Guard,Top | A162-000020 | A162-000020-Online | ||
| 39 | 1 | Cover,Cylinder | A160-000241 | A160-000241-Online | ||
| 40 | 1 | Label,Echo | X547-001050 | X547-001050-Online | ECHO+SRM-4300 Sr/Nr 21001609 | and after | |
| 41 | 1 | Bolt, H.S. 5*12 | 900106-05012 | 900106-05012-Online | 5*12 | |
| 42 | 1 | Label,Caution | X505-001340 | X505-001340-Online | ||
| 43 | 1 | Label,Caution | X505-001350 | X505-001350-Online | Sr/Nr 21001609 | and after | |
| 45 | 1 | Label,Caution | X505-002490 | X505-002490-Online | SA19*50 | |
| 44 | 1 | Holder,Cable | G186-000010 | G186-000010-Online |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cap,Spark Plug | A427-000000 | A427-000000-Online | ||
| 2 | 1 | Terminal,Sparkplug | A426-000000 | A426-000000-Online | ||
| 3 | 1 | Plug, Spark (Cj-6Y) | 159017-16431 | 159017-16431-Online | CJ-6Y | Sus. by 159010- | 10630 | |
| 4 | 1 | Grommet,Plug | V141-000020 | V141-000020-Online | ||
| 5 | 1 | Tube | V475-001610 | V475-001610-Online | 7*8.6*55 HST-10 | |
| 6 | 1 | Grommet | 156114-04920 | 156114-04920-Online | ||
| 8 | 1 | Lead, Ground | 162010-55630 | 162010-55630-Online | ||
| 9 | 2 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 10 | 1 | Coil,Ignition | A411-000050 | A411-000050-Online | ||
| 12 | 2 | Bolt, Clutch | 175046-06230 | 175046-06230-Online | ||
| 13 | 1 | Spring, Clutch | 175018-42230 | 175018-42230-Online | ||
| 14 | 2 | Washer | 175048-03920 | 175048-03920-Online | ||
| 15 | 1 | Clutch Shoe Set | P021-006200 | P021-006200-Online | ||
| 16 | 2 | Washer | 175049-03920 | 175049-03920-Online | ||
| 17 | 1 | Nut, Flange 10 | 900519-00010 | 900519-00010-Online | 10*1.25 | |
| 19 | 1 | Rotor,Magneto Kit | P021-005911 | P021-005911-Online | ||
| 20 | + | 1 | Key Woodruff | 900323-03014 | 900323-03014-Online | 3*14 |

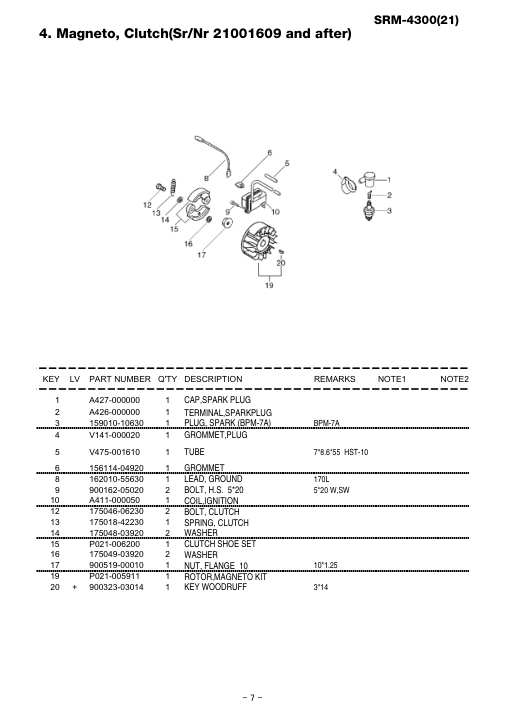

Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cap,Spark Plug | A427-000000 | A427-000000-Online | ||
| 2 | 1 | Terminal,Sparkplug | A426-000000 | A426-000000-Online | ||
| 3 | 1 | Plug, Spark (Bpm-7A) | 159010-10630 | 159010-10630-Online | BPM-7A | |
| 4 | 1 | Grommet,Plug | V141-000020 | V141-000020-Online | ||
| 5 | 1 | Tube | V475-001610 | V475-001610-Online | 7*8.6*55 HST-10 | |
| 6 | 1 | Grommet | 156114-04920 | 156114-04920-Online | ||
| 8 | 1 | Lead, Ground | 162010-55630 | 162010-55630-Online | ||
| 9 | 2 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 10 | 1 | Coil,Ignition | A411-000050 | A411-000050-Online | ||
| 12 | 2 | Bolt, Clutch | 175046-06230 | 175046-06230-Online | ||
| 13 | 1 | Spring, Clutch | 175018-42230 | 175018-42230-Online | ||
| 14 | 2 | Washer | 175048-03920 | 175048-03920-Online | ||
| 15 | 1 | Clutch Shoe Set | P021-006200 | P021-006200-Online | ||
| 16 | 2 | Washer | 175049-03920 | 175049-03920-Online | ||
| 17 | 1 | Nut, Flange 10 | 900519-00010 | 900519-00010-Online | 10*1.25 | |
| 19 | 1 | Rotor,Magneto Kit | P021-005911 | P021-005911-Online | ||
| 20 | + | 1 | Key Woodruff | 900323-03014 | 900323-03014-Online | 3*14 |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 20 | 1 | Pulley,Asm Starter | A052-000010 | A052-000010-Online | Sus. by A052- | 000011 | |
| 20 | 1 | Pulley,Asm Starter | A052-000011 | A052-000011-Online | ||
| 21 | + | 1 | E-Ring | P022-002100 | P022-002100-Online | |
| 22 | + | 1 | Spring, Return | P022-002090 | P022-002090-Online | |
| 1 | 23 | Part | A0522160050 | A0522160050-Online | ||
| 23 | + | 1 | Pawl, Starter | 177218-40630 | 177218-40630-Online | WHITE |
| 24 | 1 | Nut 8 (3N) | 900502-00008 | 900502-00008-Online | 3N8 | |
| 26 | 1 | Starter,Recoil | A051-000070 | A051-000070-Online | ||
| 27 | + | 1 | Screw | 177236-06910 | 177236-06910-Online | |
| 28 | + | 1 | Drum, Starter | P022-002080 | P022-002080-Online | |
| 29 | + | 1 | Spring, Rewind | 177220-06310 | 177220-06310-Online | |
| 30 | + | 1 | Rope, Starter | 177226-06310 | 177226-06310-Online | 3.8*1150 |
| 31 | + | 1 | Guide, Rope | 177227-42030 | 177227-42030-Online | |
| 32 | + | 1 | Grip, Starter | 177228-27030 | 177228-27030-Online | |
| 33 | 2 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | 5*20 | |
| 35 | 1 | Label, Echo | 890118-17930 | 890118-17930-Online | Sus. by X502- | 000460 |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 20 | 1 | Pulley,Asm Starter | A052-000011 | A052-000011-Online | ||
| 21 | + | 1 | E-Ring | P022-002100 | P022-002100-Online | |
| 22 | + | 1 | Spring, Return | P022-002090 | P022-002090-Online | |
| 1 | 23 | Part | A0522160050 | A0522160050-Online | ||
| 23 | + | 1 | Pawl, Starter | 177218-40630 | 177218-40630-Online | WHITE |
| 24 | 1 | Nut 8 (3N) | 900502-00008 | 900502-00008-Online | 3N8 | |
| 26 | 1 | Starter,Recoil | A051-000070 | A051-000070-Online | ||
| 27 | + | 1 | Screw | 177236-06910 | 177236-06910-Online | |
| 28 | + | 1 | Drum, Starter | P022-002080 | P022-002080-Online | |
| 29 | + | 1 | Spring, Rewind | 177220-06310 | 177220-06310-Online | |
| 30 | + | 1 | Rope, Starter | 177226-06310 | 177226-06310-Online | 3.8*1150 |
| 31 | + | 1 | Guide, Rope | 177227-42030 | 177227-42030-Online | |
| 32 | + | 1 | Grip, Starter | 177228-27030 | 177228-27030-Online | |
| 33 | 2 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | 5*20 | |
| 35 | 1 | Label, Echo | 890118-17930 | 890118-17930-Online | Sus. by X502- | 000460 | |
| 35 | 1 | Label,Echo | X502-000460 | X502-000460-Online |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Gasket,Intake | V103-000070 | V103-000070-Online | ||
| 3 | 1 | Insulator,Intake | A200-000140 | A200-000140-Online | ||
| 4 | 2 | Bolt, H.S. 5*25 | 900106-05025 | 900106-05025-Online | 5*25 | |
| 5 | 1 | Gasket, Intake | 130016-06232 | 130016-06232-Online | ||
| 6 | 1 | Carburetor,Diaphragm | A021-000680 | A021-000680-Online | Sus. by A021- | 000681 | |
| 6 | 1 | Carburetor,Diaphragm | A021-000681 | A021-000681-Online | C1Q-K73A | |
| 7 | 1 | Case,Cleaner | P021-006290 | P021-006290-Online | ||
| 8 | 1 | Plate, Prevent | 129011-56330 | 129011-56330-Online | ||
| 9 | 2 | Screw 5*55 (W/W.Sw) | 900242-05055 | 900242-05055-Online | 5*55 | |
| 10 | 1 | Element,Air Filter | A226-000020 | A226-000020-Online | ||
| 12 | 1 | O-Ring (P-4) | 900720-00004 | 900720-00004-Online | P-4 | |
| 13 | 1 | Label, Choke | 890121-21430 | 890121-21430-Online | ||
| 14 | 1 | Lid, Air Cleaner | 130313-57030 | 130313-57030-Online | ||
| 18 | 1 | Screw 5*12 | 900239-05012 | 900239-05012-Online | 5*12 | |
| 19 | 1 | Gasket,Exhaust | V104-000210 | V104-000210-Online | ||
| 20 | 1 | Bolt, H.S. 5*12 | 900162-05012 | 900162-05012-Online | 5*12 W,SW | |
| 21 | 1 | Muffler,Exhaust | A300-000400 | A300-000400-Online | ||
| 22 | 1 | Plate,Eye | V150-000550 | V150-000550-Online | ||
| 23 | 2 | Bolt, H.S. 6*60 | 900105-06060 | 900105-06060-Online | 6*60 | |
| 24 | 1 | Cover,Muffler | A320-000080 | A320-000080-Online | ||
| 25 | 1 | Bolt, H.S. 5*12 | 900106-05012 | 900106-05012-Online | 5*12 | |
| 27 | 1 | Case, Air Cleaner | P003-001250 | P003-001250-Online | CHINA, | Sr/Nr21001608 and | before |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 28 | 2 | Screw 5*50 | 900242-05050 | 900242-05050-Online | 5*50 | CHINA, | Sr/Nr21001608 and | before | |
| 29 | 1 | Plate, Cleaner | P003-001240 | P003-001240-Online | CHINA, | Sr/Nr21001608 and | before | |
| 30 | 2 | Filter, Air | P003-001230 | P003-001230-Online | CHINA, | Sr/Nr21001608 and | before | |
| 31 | 1 | Filter, Air | P003-001220 | P003-001220-Online | CHINA, | Sr/Nr21001608 and | before | |
| 32 | 1 | Cover, Air Clerner | P003-001210 | P003-001210-Online | CHINA, | Sr/Nr21001608 and | before | |
| 33 | 1 | Label,Choke | X506-000040 | X506-000040-Online | CHINA, | Sr/Nr21001608 and | before |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Gasket,Intake | V103-000070 | V103-000070-Online | ||
| 3 | 1 | Insulator,Intake | A200-000140 | A200-000140-Online | ||
| 4 | 2 | Bolt, H.S. 5*25 | 900106-05025 | 900106-05025-Online | 5*25 | |
| 5 | 1 | Gasket, Intake | 130016-06232 | 130016-06232-Online | ||
| 6 | 1 | Carburetor,Diaphragm | A021-000681 | A021-000681-Online | C1Q-K73A | |
| 19 | 1 | Gasket,Exhaust | V104-000210 | V104-000210-Online | ||
| 20 | 1 | Bolt, H.S. 5*12 | 900162-05012 | 900162-05012-Online | 5*12 W,SW | |
| 21 | 1 | Muffler,Exhaust | A300-000400 | A300-000400-Online | ||
| 22 | 1 | Plate,Eye | V150-000550 | V150-000550-Online | ||
| 23 | 2 | Bolt, H.S. 6*60 | 900105-06060 | 900105-06060-Online | 6*60 | |
| 24 | 1 | Cover,Muffler | A320-000080 | A320-000080-Online | ||
| 25 | 1 | Bolt, H.S. 5*12 | 900106-05012 | 900106-05012-Online | 5*12 | |
| 34 | 1 | Case, Air Cleaner | P021-010232 | P021-010232-Online | Sr/Nr 21001609 | and after | |
| 28 | 2 | Screw 5*50 | 900242-05050 | 900242-05050-Online | 5*50 | Sr/Nr 21001609 | and after | |
| 35 | 1 | Grid, Cleaner | A230-000000 | A230-000000-Online | Sr/Nr 21001609 | and after | |
| 36 | 2 | Element, Air Filter | A226-000300 | A226-000300-Online | Sr/Nr 21001609 | and after | |
| 37 | 1 | Element, Air Filter | A226-000310 | A226-000310-Online | Sr/Nr 21001609 | and after | |
| 38 | 1 | Lid,Cleaner | A232-000312 | A232-000312-Online | Sr/Nr 21001609 | and after | |
| 39 | 1 | Label,Choke | X506-000060 | X506-000060-Online | Sr/Nr 21001609 | and after |
Page 19 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | ||
| 3 | + | 1 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |
| 4 | + | 1 | Clip, Fuel Cap | 131051-56030 | 131051-56030-Online | |
| 8 | 1 | Bracket,Fuel Tank | A393-000030 | A393-000030-Online | ||
| 9 | 4 | Bolt, H.S. 5*12 | 900106-05012 | 900106-05012-Online | 5*12 | |
| 10 | 1 | Seat,Fuel Tank | A390-000000 | A390-000000-Online | ||
| 11 | 1 | Tank,Fuel | A350-000131 | A350-000131-Online | ||
| 12 | 1 | Seat,Fuel Tank | A390-000010 | A390-000010-Online | ||
| 14 | 1 | Bracket,Fuel Tank | A393-000050 | A393-000050-Online | ||
| 16 | 2 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | 5*20 | |
| 17 | 2 | Bolt, H.S. 5*25 | 900106-05025 | 900106-05025-Online | 5*25 | |
| 20 | 1 | Pipe 3*6*230 | 132010-35430 | 132010-35430-Online | 3*6*230 | |
| 21 | 1 | Pipe 3* 6*110 | 132010-06460 | 132010-06460-Online | 3*6*110 YL | |
| 22 | 1 | Valve, Check | 131300-56430 | 131300-56430-Online | ||
| 23 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 24 | 1 | Pipe, Fuel | 132012-02960 | 132012-02960-Online | 3*6*120L | |
| 25 | 1 | Grommet, Fuel | 132115-55930 | 132115-55930-Online | ||
| 26 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 27 | 1 | Strainer, Fuel | 131205-19830 | 131205-19830-Online | Sus by A36-000000 |
Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | ||
| 3 | + | 1 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |
| 4 | + | 1 | Clip, Fuel Cap | 131051-56030 | 131051-56030-Online | |
| 8 | 1 | Bracket,Fuel Tank | A393-000030 | A393-000030-Online | ||
| 9 | 4 | Bolt, H.S. 5*12 | 900106-05012 | 900106-05012-Online | 5*12 | |
| 10 | 1 | Seat,Fuel Tank | A390-000000 | A390-000000-Online | ||
| 11 | 1 | Tank,Fuel | A350-000131 | A350-000131-Online | ||
| 12 | 1 | Seat,Fuel Tank | A390-000010 | A390-000010-Online | ||
| 14 | 1 | Bracket,Fuel Tank | A393-000050 | A393-000050-Online | ||
| 16 | 2 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | 5*20 | |
| 17 | 2 | Bolt, H.S. 5*25 | 900106-05025 | 900106-05025-Online | 5*25 | |
| 20 | 1 | Pipe 3*6*230 | 132010-35430 | 132010-35430-Online | 3*6*230 | |
| 21 | 1 | Pipe 3* 6*110 | 132010-06460 | 132010-06460-Online | 3*6*110 YL | |
| 22 | 1 | Valve, Check | 131300-56430 | 131300-56430-Online | ||
| 23 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 24 | 1 | Pipe, Fuel | 132012-02960 | 132012-02960-Online | 3*6*120L | |
| 25 | 1 | Grommet, Fuel | 132115-55930 | 132115-55930-Online | ||
| 26 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 27 | 1 | Strainer, Fuel | 131205-19830 | 131205-19830-Online | Sus. by A369- | 000000 | |
| 27 | 1 | Strainer, Fuel | A369-000000 | A369-000000-Online |
Page 21 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 3 | 3 | Bolt | P022-007000 | P022-007000-Online | M6-16 | |
| 4 | 1 | Hanger | P022-006990 | P022-006990-Online | ||
| 5 | 2 | Nut | P022-007010 | P022-007010-Online | M6 | |
| 6 | 1 | Clamp | P022-007210 | P022-007210-Online | ||
| 8 | 1 | Clamp Asy | P022-007020 | P022-007020-Online | ||
| 13 | 1 | Spacer | P022-007030 | P022-007030-Online | ||
| 16 | 6 | Bolt | P022-007110 | P022-007110-Online | ||
| 17 | 1 | Fixture,Handle | P022-007080 | P022-007080-Online | Sus. by P022- | 007081 | |
| 17 | 1 | Fixture,Handle | P022-007081 | P022-007081-Online | ||
| 18 | 1 | Fixture,Handle | P022-007090 | P022-007090-Online | ||
| 19 | 1 | Fixture,Handle | P022-007100 | P022-007100-Online | ||
| 21 | 1 | Handle | P022-007150 | P022-007150-Online | Sus. by P022- | 007151 | |
| 21 | 1 | Handle | P022-007151 | P022-007151-Online | ||
| 22 | 1 | Spacer | P022-007120 | P022-007120-Online | ||
| 23 | 1 | Label | P022-007070 | P022-007070-Online | ||
| 24 | 1 | Pipe Asy | P022-006970 | P022-006970-Online | ||
| 25 | 1 | Shaft,Drive | P022-006980 | P022-006980-Online | ||
| 30 | 1 | Handle Asy | P022-007130 | P022-007130-Online | Sus. by P022- | 007131 | |
| 30 | 1 | Handle Asy | P022-007131 | P022-007131-Online | ||
| 31 | + | 1 | Grip | P022-007140 | P022-007140-Online | |
| 35 | 1 | Housing Asy | P022-006860 | P022-006860-Online | Sus. by A057- | 000011 | |
| 35 | 1 | Case,Asm Clutch | A057-000011 | A057-000011-Online |
Page 22 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 36 | + | 1 | Drum | P022-006910 | P022-006910-Online | |
| 37 | + | 1 | Ring | P022-006900 | P022-006900-Online | |
| 38 | + | 1 | Bearing | P022-006890 | P022-006890-Online | 6002ZZ |
| 39 | + | 1 | Ring | P022-006920 | P022-006920-Online | |
| 40 | + | 1 | Plate | P022-006880 | P022-006880-Online | |
| 41 | + | 1 | Housing | P022-006870 | P022-006870-Online | |
| 42 | + | 1 | Cushion | P022-006940 | P022-006940-Online | |
| 43 | + | 1 | Ring | P022-006950 | P022-006950-Online | |
| 44 | + | 1 | Joint(Boss) | P022-006930 | P022-006930-Online | Sus. by P050- | 006300 |
| 44 | + | 1 | Joint Set | P050-006300 | P050-006300-Online | |
| 45 | 1 | Ring | P022-006960 | P022-006960-Online | ||
| 46 | 4 | Bolt | P022-007220 | P022-007220-Online |
Page 23 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 3 | 3 | Bolt | P022-007000 | P022-007000-Online | M6-16 | |
| 4 | 1 | Hanger | P022-006990 | P022-006990-Online | ||
| 5 | 2 | Nut | P022-007010 | P022-007010-Online | M6 | |
| 6 | 1 | Clamp | P022-007210 | P022-007210-Online | ||
| 8 | 1 | Clamp Asy | P022-007020 | P022-007020-Online | ||
| 13 | 1 | Spacer | P022-007030 | P022-007030-Online | ||
| 16 | 6 | Bolt | P022-007110 | P022-007110-Online | ||
| 17 | 1 | Fixture,Handle | P022-007081 | P022-007081-Online | ||
| 18 | 1 | Fixture,Handle | P022-007090 | P022-007090-Online | ||
| 19 | 1 | Fixture,Handle | P022-007100 | P022-007100-Online | ||
| 21 | 1 | Handle | P022-007151 | P022-007151-Online | ||
| 22 | 1 | Spacer | P022-007120 | P022-007120-Online | ||
| 23 | 1 | Label | P022-007070 | P022-007070-Online | ||
| 24 | 1 | Pipe Asy | P022-006970 | P022-006970-Online | ||
| 25 | 1 | Shaft,Drive | P022-006980 | P022-006980-Online | ||
| 30 | 1 | Handle Asy | P022-007131 | P022-007131-Online | ||
| 31 | + | 1 | Grip | P022-007140 | P022-007140-Online | |
| 35 | 1 | Case,Asm Clutch | A057-000011 | A057-000011-Online | ||
| 36 | + | 1 | Drum | P022-006910 | P022-006910-Online | |
| 37 | + | 1 | Ring | P022-006900 | P022-006900-Online | |
| 38 | + | 1 | Bearing | P022-006890 | P022-006890-Online | 6002ZZ |
| 39 | + | 1 | Ring | P022-006920 | P022-006920-Online | |
| 40 | + | 1 | Plate | P022-006880 | P022-006880-Online | |
| 41 | + | 1 | Housing | P022-006870 | P022-006870-Online | |
| 42 | + | 1 | Cushion | P022-006940 | P022-006940-Online | |
| 43 | + | 1 | Ring | P022-006950 | P022-006950-Online |
Page 24 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 44 | + | 1 | Joint Set | P050-006300 | P050-006300-Online | |
| 45 | 1 | Ring | P022-006960 | P022-006960-Online | ||
| 46 | 4 | Bolt | P022-007220 | P022-007220-Online |
Page 25 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Grip,Lever Asy | P022-007230 | P022-007230-Online | ||
| 3 | + | 1 | Spring | P022-007350 | P022-007350-Online | |
| 4 | + | 1 | Switch | P022-007280 | P022-007280-Online | |
| 5 | + | 1 | Label | P022-007420 | P022-007420-Online | |
| 6 | + | 1 | Grip L | P022-007250 | P022-007250-Online | |
| 7 | + | 2 | Part | P022-007390 | P022-007390-Online | |
| 8 | + | 1 | Spring | P022-007340 | P022-007340-Online | |
| 9 | + | 1 | Spring | P022-007330 | P022-007330-Online | |
| 10 | + | 1 | Holder | P022-007290 | P022-007290-Online | |
| 11 | + | 1 | Screw | P022-007410 | P022-007410-Online | |
| 12 | + | 1 | Spring | P022-007320 | P022-007320-Online | |
| 13 | + | 1 | Lockout, Throttle | P022-007270 | P022-007270-Online | |
| 14 | + | 1 | Spring | P022-007310 | P022-007310-Online | |
| 15 | + | 1 | Control, Throttle | P022-007260 | P022-007260-Online | |
| 20 | + | 1 | Knob | P022-007300 | P022-007300-Online | |
| 21 | + | 1 | Spring | P022-007360 | P022-007360-Online | |
| 22 | + | 1 | Bolt | P022-007400 | P022-007400-Online | |
| 24 | + | 1 | Grip R | P022-007240 | P022-007240-Online | |
| 25 | + | 5 | Screw | P022-007370 | P022-007370-Online | |
| 26 | + | 1 | Screw | P022-007380 | P022-007380-Online | |
| 30 | 1 | Cord | P022-007440 | P022-007440-Online | ||
| 31 | 1 | Wire, Throttle | P022-007430 | P022-007430-Online | ||
| 32 | 1 | Tube | P022-007450 | P022-007450-Online | ||
| 33 | 1 | Cap | V494-000080 | V494-000080-Online | Sr/Nr 20007557 | and after |
Page 26 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Grip,Lever Asy | P022-007230 | P022-007230-Online | ||
| 3 | + | 1 | Spring | P022-007350 | P022-007350-Online | |
| 4 | + | 1 | Switch | P022-007280 | P022-007280-Online | |
| 5 | + | 1 | Label | P022-007420 | P022-007420-Online | |
| 6 | + | 1 | Grip L | P022-007250 | P022-007250-Online | |
| 7 | + | 2 | Part | P022-007390 | P022-007390-Online | |
| 8 | + | 1 | Spring | P022-007340 | P022-007340-Online | |
| 9 | + | 1 | Spring | P022-007330 | P022-007330-Online | |
| 10 | + | 1 | Holder | P022-007290 | P022-007290-Online | |
| 11 | + | 1 | Screw | P022-007410 | P022-007410-Online | |
| 12 | + | 1 | Spring | P022-007320 | P022-007320-Online | |
| 13 | + | 1 | Lockout, Throttle | P022-007270 | P022-007270-Online | |
| 14 | + | 1 | Spring | P022-007310 | P022-007310-Online | |
| 15 | + | 1 | Control, Throttle | P022-007260 | P022-007260-Online | |
| 20 | + | 1 | Knob | P022-007300 | P022-007300-Online | |
| 21 | + | 1 | Spring | P022-007360 | P022-007360-Online | |
| 22 | + | 1 | Bolt | P022-007400 | P022-007400-Online | |
| 24 | + | 1 | Grip R | P022-007240 | P022-007240-Online | |
| 25 | + | 5 | Screw | P022-007370 | P022-007370-Online | |
| 26 | + | 1 | Screw | P022-007380 | P022-007380-Online | |
| 30 | 1 | Cord | P022-007440 | P022-007440-Online | ||
| 31 | 1 | Wire, Throttle | P022-007430 | P022-007430-Online | ||
| 32 | 1 | Tube | P022-007450 | P022-007450-Online | ||
| 33 | 1 | Part | V494-000080 | V494-000080-Online |
Page 27 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Blade, 4-Cutter | 696001-64131 | 696001-64131-Online | 255-4P | |
| 1 | 1 | Saw,Bush Cutter | 696001-64132 | 696001-64132-Online | 4X255X25.4 T1.4 | Sr/Nr 21001506 | and before CHINA | |
| 2 | 1 | Spanner | P022-007200 | P022-007200-Online | 8*10 | |
| 3 | 1 | Driver And Socket | P022-007180 | P022-007180-Online | 17*19 | |
| 4 | 1 | L-Wrench | P022-007190 | P022-007190-Online | M5 | |
| 5 | 1 | Mixer, Fuel | 898520-17130 | 898520-17130-Online | ||
| 6 | 1 | Goggle | X690-000021 | X690-000021-Online | CHINA | |
| 9 | 1 | Housing Assy,Gear | P022-007040 | P022-007040-Online | Sus. by P022- | 007041 | |
| 9 | 1 | Housing Assy,Gear | P022-007041 | P022-007041-Online | ||
| 10 | + | 1 | Circlip 28 | 900702-00028 | 900702-00028-Online | CR-28 |
| 11 | + | 1 | Bearing, Ball 6001 | 900807-06001 | 900807-06001-Online | 6001V(LB) |
| 12 | + | 1 | Bearing, Ball 6001 | 900800-06001 | 900800-06001-Online | |
| 13 | + | 1 | Gear Set | P022-007460 | P022-007460-Online | |
| 15 | + | 2 | Washer, Shim | 610239-04130 | 610239-04130-Online | |
| 17 | + | 2 | Bolt | P022-007050 | P022-007050-Online | M5-30 |
| 18 | + | 1 | Bolt 8* 8 | 610434-50031 | 610434-50031-Online | M8*8 |
| 19 | + | 1 | Circlip 12 | 900701-00012 | 900701-00012-Online | CS-12 |
| 20 | + | 1 | Bolt | P022-007060 | P022-007060-Online | M5-10 |
| 23 | + | 1 | Bearing, Ball 6000 | 900800-36000 | 900800-36000-Online | 6000/C3 |
| 25 | + | 1 | Circlip 12 | 900706-00012 | 900706-00012-Online | WR-12 |
| 26 | + | 1 | Shaft, P.T.O. | 610310-05730 | 610310-05730-Online | |
| 27 | + | 1 | Bearing, Ball 6201 | 900810-06201 | 900810-06201-Online | |
| 28 | + | 1 | Circlip 32 | 900702-00032 | 900702-00032-Online | CR-32 |
Page 29 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 29 | + | 1 | Spacer | 610315-07130 | 610315-07130-Online | |
| 30 | + | 1 | Oilseal | 610413-07130 | 610413-07130-Online | |
| 31 | + | 1 | Plate, Adapter (U) | 610313-07130 | 610313-07130-Online | PD 25.4 |
| 32 | + | 1 | Plate, Adapter | 610314-21231 | 610314-21231-Online | |
| 33 | + | 1 | Part | 610320-27430 | 610320-27430-Online | |
| 35 | + | 1 | Plate, Guard | 610443-27430 | 610443-27430-Online | Sus. by C536- | 000030 |
| 35 | + | 1 | Cover,Gear Case | C536-000030 | C536-000030-Online | |
| 36 | + | 3 | Screw 5*20 | 900242-05020 | 900242-05020-Online | 5*20 |
| 40 | 1 | Shield Asy | P022-007160 | P022-007160-Online | ||
| 41 | + | 2 | Bolt | P022-007470 | P022-007470-Online | M6-28 |
| 42 | + | 1 | Plate | P022-007480 | P022-007480-Online | |
| 44 | 1 | Haeness Asy | P022-007170 | P022-007170-Online |
Page 31 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Blade, 4-Cutter | 696001-64131 | 696001-64131-Online | 255-4P | |
| 2 | 1 | Spanner | P022-007200 | P022-007200-Online | 8*10 | |
| 3 | 1 | Driver And Socket | P022-007180 | P022-007180-Online | 17*19 | |
| 4 | 1 | L-Wrench | P022-007190 | P022-007190-Online | M5 | |
| 6 | 1 | Goggle | X690-000021 | X690-000021-Online | ||
| 9 | 1 | Housing Assy,Gear | P022-007041 | P022-007041-Online | ||
| 10 | + | 1 | Circlip 28 | 900702-00028 | 900702-00028-Online | CR-28 |
| 11 | + | 1 | Bearing, Ball 6001 | 900807-06001 | 900807-06001-Online | 6001V(LB) |
| 12 | + | 1 | Bearing, Ball 6001 | 900800-06001 | 900800-06001-Online | |
| 13 | + | 1 | Gear Set | P022-007460 | P022-007460-Online | |
| 15 | + | 2 | Washer, Shim | 610239-04130 | 610239-04130-Online | |
| 17 | + | 2 | Bolt | P022-007050 | P022-007050-Online | M5-30 |
| 18 | + | 1 | Bolt 8* 8 | 610434-50031 | 610434-50031-Online | M8*8 |
| 19 | + | 1 | Circlip 12 | 900701-00012 | 900701-00012-Online | CS-12 |
| 20 | + | 1 | Bolt | P022-007060 | P022-007060-Online | M5-10 |
| 23 | + | 1 | Bearing, Ball 6000 | 900800-36000 | 900800-36000-Online | 6000/C3 |
| 25 | + | 1 | Circlip 12 | 900706-00012 | 900706-00012-Online | WR-12 |
| 26 | + | 1 | Shaft, P.T.O. | 610310-05730 | 610310-05730-Online | |
| 27 | + | 1 | Bearing, Ball 6201 | 900810-06201 | 900810-06201-Online | |
| 28 | + | 1 | Circlip 32 | 900702-00032 | 900702-00032-Online | CR-32 |
| 29 | + | 1 | Spacer | 610315-07130 | 610315-07130-Online | |
| 30 | + | 1 | Oilseal | 610413-07130 | 610413-07130-Online | |
| 31 | + | 1 | Plate, Adapter (U) | 610313-07130 | 610313-07130-Online | PD 25.4 |
| 32 | + | 1 | Plate, Adapter | 610314-21231 | 610314-21231-Online | |
| 33 | + | 1 | Part | 610320-27430 | 610320-27430-Online | |
| 35 | + | 1 | Plate, Guard | 610443-27430 | 610443-27430-Online |
Page 32 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 36 | + | 3 | Screw 5*20 | 900242-05020 | 900242-05020-Online | 5*20 |
| 40 | 1 | Shield Asy | P022-007160 | P022-007160-Online | ||
| 41 | + | 2 | Bolt | P022-007470 | P022-007470-Online | M6-28 |
| 42 | + | 1 | Plate | P022-007480 | P022-007480-Online | |
| 44 | 1 | Haeness Asy | P022-007170 | P022-007170-Online |
Page 33 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 4 | Screw | 125344-05360 | 125344-05360-Online | |
| 2 | + | 1 | Retainer | P005-000620 | P005-000620-Online | |
| 3 | + | 1 | Pump, Priming | 125381-08660 | 125381-08660-Online | |
| 4 | + | 1 | Diaphragm | 125341-07360 | 125341-07360-Online | |
| 5 | + | 1 | Gasket, Metering | P005-001140 | P005-001140-Online | |
| 6 | + | 1 | Base, Asy Primer | P005-001170 | P005-001170-Online | |
| 7 | + | 1 | Screw | 125339-13930 | 125339-13930-Online | |
| 8 | + | 1 | Arm, Valve | 125323-08260 | 125323-08260-Online | |
| 9 | + | 1 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |
| 10 | + | 1 | Spring, Meter. Lever | P005-001130 | P005-001130-Online | |
| 11 | + | 1 | Valve, Inlet Needle | 125337-08260 | 125337-08260-Online | |
| 12 | + | 1 | Screw | 125314-13930 | 125314-13930-Online | 3*4 |
| 15 | + | 1 | Screw,Mainn Mixture | P005-001160 | P005-001160-Online | |
| 16 | + | 1 | Screw, Idle Mixture | P005-001150 | P005-001150-Online | |
| 18 | + | 1 | Shaft Asy,Throttle | P005-001090 | P005-001090-Online | |
| 19 | + | 1 | Spring,Thrt.Return | P005-000790 | P005-000790-Online | |
| 20 | + | 1 | Screen, Fuel Inlet | P005-000860 | P005-000860-Online | |
| 21 | + | 1 | Valve, Throttle | P005-000810 | P005-000810-Online | |
| 22 | + | 2 | Clip | 125327-13930 | 125327-13930-Online | |
| 25 | + | 1 | Nozzle, Check Valve | P005-001080 | P005-001080-Online | |
| 28 | + | 1 | Plug, Welch | 125345-51030 | 125345-51030-Online | |
| 29 | + | 1 | Diaphragm, Pump | P005-001110 | P005-001110-Online | |
| 30 | + | 1 | Gasket, Pump | 125325-08360 | 125325-08360-Online |
Page 34 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 31 | + | 1 | Cover, Pump | P005-001120 | P005-001120-Online | Sus. by P005- | 001340 |
| 31 | + | 1 | Cover, Pump | P005-001340 | P005-001340-Online | |
| 32 | + | 1 | Screw | 125310-13930 | 125310-13930-Online | |
| 34 | + | 1 | Spring,Idle Adjuster | 125333-06960 | 125333-06960-Online | |
| 35 | + | 1 | Screw | 125344-08560 | 125344-08560-Online | |
| 36 | + | 1 | Screw | 125348-13930 | 125348-13930-Online | |
| 40 | + | 1 | Lever, Throttle | P005-001100 | P005-001100-Online | |
| 43 | + | 1 | Swivel | 125372-42030 | 125372-42030-Online |
Page 35 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| A | 1 | Carburetor,Diaphragm | A021-000681 | A021-000681-Online | C1Q-K73A | |
| 1 | + | 4 | Screw | 125344-05360 | 125344-05360-Online | |
| 2 | + | 1 | Retainer | P005-000620 | P005-000620-Online | |
| 3 | + | 1 | Pump, Priming | 125381-08660 | 125381-08660-Online | |
| 4 | + | 1 | Diaphragm | 125341-07360 | 125341-07360-Online | |
| 5 | + | 1 | Gasket, Metering | P005-001140 | P005-001140-Online | |
| 6 | + | 1 | Base, Asy Primer | P005-001170 | P005-001170-Online | |
| 7 | + | 1 | Screw | 125339-13930 | 125339-13930-Online | |
| 8 | + | 1 | Arm, Valve | 125323-08260 | 125323-08260-Online | |
| 9 | + | 1 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |
| 10 | + | 1 | Spring, Meter. Lever | P005-001130 | P005-001130-Online | |
| 11 | + | 1 | Valve, Inlet Needle | 125337-08260 | 125337-08260-Online | |
| 12 | + | 1 | Screw | 125314-13930 | 125314-13930-Online | 3*4 |
| 15 | + | 1 | Screw,Mainn Mixture | P005-001160 | P005-001160-Online | |
| 16 | + | 1 | Screw, Idle Mixture | P005-001150 | P005-001150-Online | |
| 18 | + | 1 | Shaft Asy,Throttle | P005-001090 | P005-001090-Online | |
| 19 | + | 1 | Spring,Thrt.Return | P005-000790 | P005-000790-Online | |
| 20 | + | 1 | Screen, Fuel Inlet | P005-000860 | P005-000860-Online | |
| 21 | + | 1 | Valve, Throttle | P005-000810 | P005-000810-Online | |
| 22 | + | 2 | Clip | 125327-13930 | 125327-13930-Online | |
| 25 | + | 1 | Nozzle, Check Valve | P005-001080 | P005-001080-Online | |
| 28 | + | 1 | Plug, Welch | 125345-51030 | 125345-51030-Online | |
| 29 | + | 1 | Diaphragm, Pump | P005-001110 | P005-001110-Online | |
| 30 | + | 1 | Gasket, Pump | 125325-08360 | 125325-08360-Online | |
| 31 | + | 1 | Cover, Pump | P005-001340 | P005-001340-Online | |
| 32 | + | 1 | Screw | 125310-13930 | 125310-13930-Online |
Page 36 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 34 | + | 1 | Spring,Idle Adjuster | 125333-06960 | 125333-06960-Online | |
| 35 | + | 1 | Screw | 125344-08560 | 125344-08560-Online | |
| 36 | + | 1 | Screw | 125348-13930 | 125348-13930-Online | |
| 40 | + | 1 | Lever, Throttle | P005-001100 | P005-001100-Online | |
| 43 | + | 1 | Swivel | 125372-42030 | 125372-42030-Online | |
| 44 | 1 | Cap,Limiter | A259-000040 | A259-000040-Online |
Page 37 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 12 | 1 | Cutter,Asm Line | X047-000390 | X047-000390-Online | DS-5 | Sr/Nr 21001507 | and after CHINA | |
| 13 | + | 1 | Washer,Circular 24 | V332-000000 | V332-000000-Online | Sr/Nr 21001507 | and after CHINA |
| 14 | + | 2 | Eyelet | P022-000710 | P022-000710-Online | T4 | Sr/Nr 21001507 | and after CHINA |
| 15 | + | 1 | Housing | P022-005040 | P022-005040-Online | Sr/Nr 21001507 | and after CHINA |
| 16 | + | 1 | Nut | P022-001160 | P022-001160-Online | Sr/Nr 21001507 | and after CHINA |
| 17 | + | 1 | Spring | P022-001200 | P022-001200-Online | DS-5/10 | Sr/Nr 21001507 | and after CHINA |
| 18 | + | 1 | Tap Knob | P022-001310 | P022-001310-Online | DS-5/10 | Sr/Nr 21001507 | and after CHINA |
| 19 | + | 1 | Bobbin | P022-001180 | P022-001180-Online | DS-5/10 | Sr/Nr 21001507 | and after CHINA |
Page 39 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 20 | + | 1 | Nylon Code | P022-006200 | P022-006200-Online | 3.0*3M | Sr/Nr 21001507 | and after CHINA |
| 21 | + | 1 | Cover | P022-005030 | P022-005030-Online | Sr/Nr 21001507 | and after CHINA |
Page 41 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 12 | 1 | Cutter,Asm Line | X047-000390 | X047-000390-Online | DS-5 | |
| 13 | + | 1 | Washer,Circular 24 | V332-000000 | V332-000000-Online | |
| 14 | + | 2 | Eyelet | P022-000710 | P022-000710-Online | T4 |
| 15 | + | 1 | Housing | P022-005040 | P022-005040-Online | |
| 16 | + | 1 | Part | P022-001160 | P022-001160-Online | |
| 17 | + | 1 | Spring | P022-001200 | P022-001200-Online | DS-5/10 |
| 18 | + | 1 | Tap Knob | P022-001310 | P022-001310-Online | DS-5/10 |
| 19 | + | 1 | Bobbin | P022-001180 | P022-001180-Online | DS-5/10 |
| 20 | + | 1 | Nylon Code | P022-006200 | P022-006200-Online | 3.0*3M |
| 21 | + | 1 | Cover | P022-005030 | P022-005030-Online |
Source PDF: 20130718-804_SRM-4300(21)_SRM-4300(21)_EN.pdf. Generated 2026-06-25 14:39.
