Echo CS-353ES IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: CS-353ES-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.

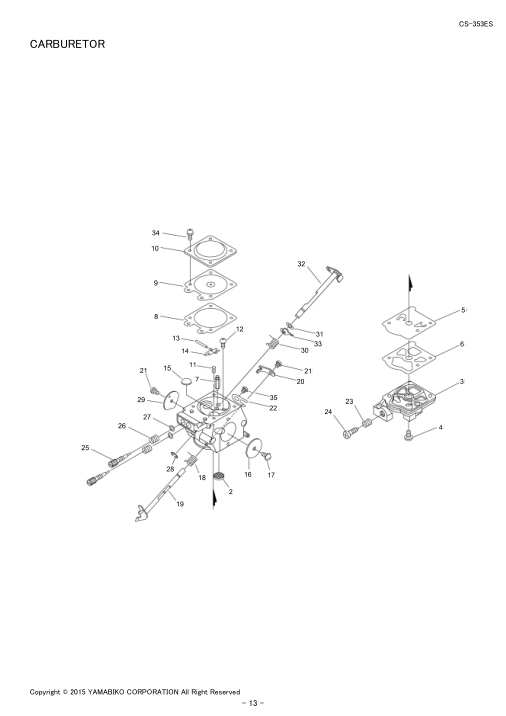

Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.

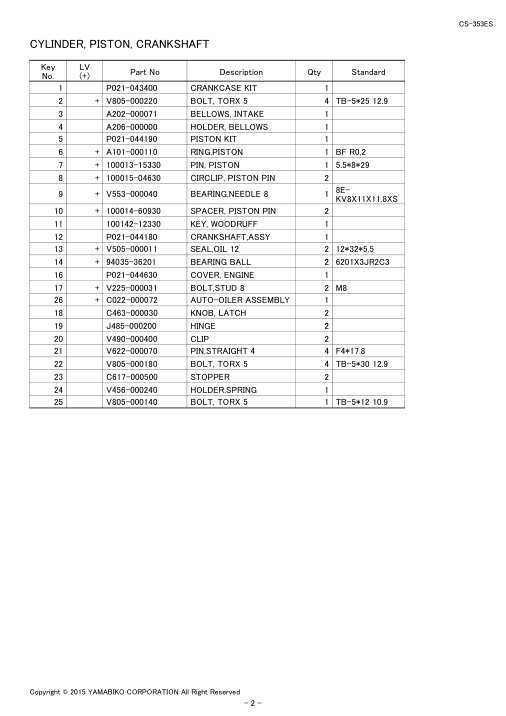

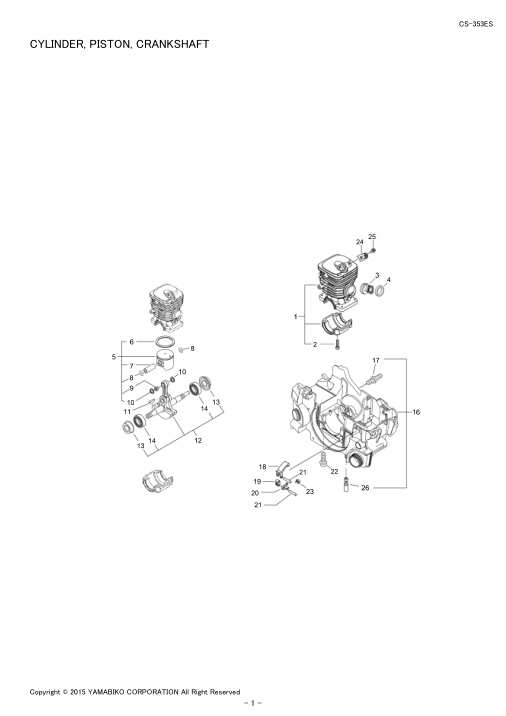

Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Crankcase Kit | P021-043400 | P021-043400-Online | 1 | 2 | + V805-000220 | BOLT, TORX 5 | ||
| 3 | Bellows, Intake | A202-000071 | A202-000071-Online | |||
| 4 | Holder, Bellows | A206-000000 | A206-000000-Online | |||
| 5 | Piston Kit | P021-044190 | P021-044190-Online | 1 | 6 | + A101-000110 | RING,PISTON | ||
| 11 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 12 | Crankshaft,Assy | P021-044180 | P021-044180-Online | 1 | 13 | + V505-000011 | SEAL,OIL 12 | ||
| 16 | Cover, Engine | P021-044630 | P021-044630-Online | 1 | 17 | + V225-000031 | BOLT,STUD 8 | ||
| 18 | Knob, Latch | C463-000030 | C463-000030-Online | |||
| 19 | Hinge | J485-000200 | J485-000200-Online | |||
| 20 | Clip | V490-000400 | V490-000400-Online | |||
| 21 | Pin,Straight 4 | V622-000070 | V622-000070-Online | 4 F4*17.8 | ||
| 22 | Bolt, Torx 5 | V805-000180 | V805-000180-Online | 4 TB-5*30 12.9 | ||
| 23 | Stopper | C617-000500 | C617-000500-Online | |||
| 24 | Holder,Spring | V456-000240 | V456-000240-Online | |||
| 25 | Bolt, Torx 5 | V805-000140 | V805-000140-Online | 1 TB-5*12 10.9 | CYLINDER, PISTON, CRANKSHAFT | CS-353ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Nut, Frange 5 | 900516-00005 | 900516-00005-Online | 2 5 | ||
| 2 | Lid,Muffler | A303-000130 | A303-000130-Online | |||
| 3 | Plate,Muffler | 145614-60930 | 145614-60930-Online | |||
| 4 | Muffler | 145610-60930 | 145610-60930-Online | |||
| 5 | Gasket,Exhaust | V104-000732 | V104-000732-Online | |||
| 6 | Bolt,5 5*60 | 101023-60930 | 101023-60930-Online | 2 5*60 | ||
| 8 | Tool,Case | X698-000050 | X698-000050-Online | 1 140*260*0.06 | ||
| 9 | Tool,Wrench | X602-000080 | X602-000080-Online | 1 13*19 L180 | ||
| 10 | Driver, Screw 50 | 895812-03930 | 895812-03930-Online | |||
| 12 | Tool,L Wrench | X605-000170 | X605-000170-Online | |||
| 13 | Scabbard,Chain | X490-000570 | X490-000570-Online | |||
| 15 | Chain,Saw | X223-000080 | X223-000080-Online | 1 91VXL-53E | ||
| 16 | Bar,Guide 35 | X123-000132 | X123-000132-Online | 1 35RC50M-3/8 | ECHO | MUFFLER, TOOLS | CS-353ES |

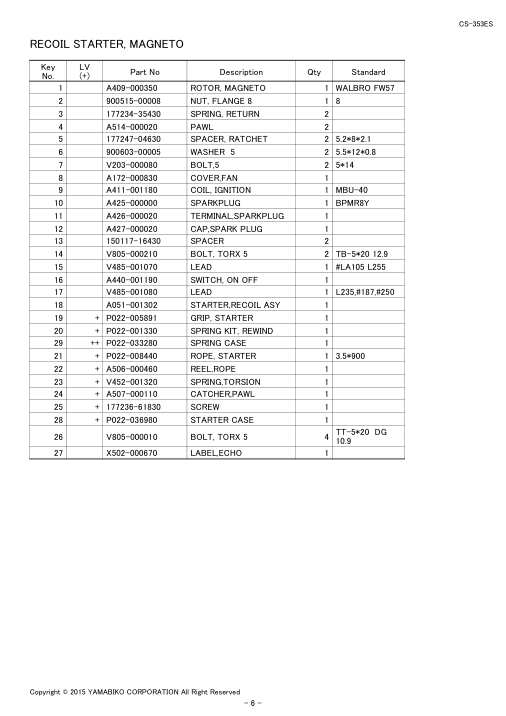

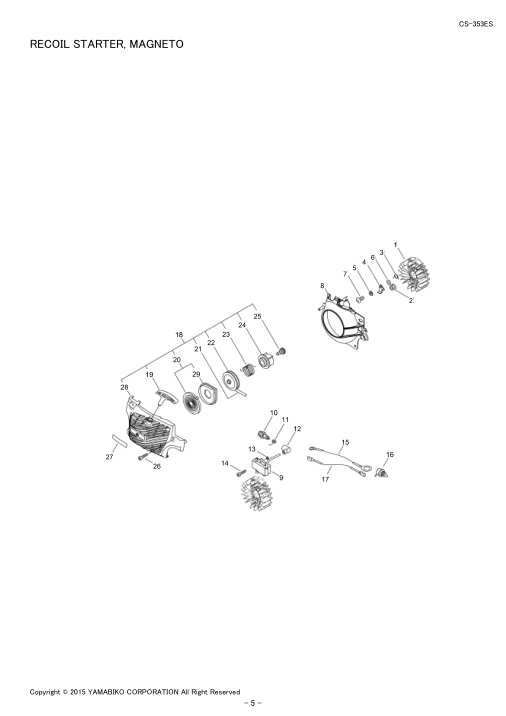

Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Rotor, Magneto | A409-000350 | A409-000350-Online | 1 WALBRO FW57 | ||
| 2 | Nut, Flange 8 | 900515-00008 | 900515-00008-Online | 1 8 | ||
| 3 | Spring, Return | 177234-35430 | 177234-35430-Online | |||
| 4 | Pawl | A514-000020 | A514-000020-Online | |||
| 5 | Spacer, Ratchet | 177247-04630 | 177247-04630-Online | 2 5.2*8*2.1 | ||
| 6 | Washer 5 | 900603-00005 | 900603-00005-Online | 2 5.5*12*0.8 | ||
| 7 | Bolt,5 | V203-000080 | V203-000080-Online | 2 5*14 | ||
| 8 | Cover,Fan | A172-000830 | A172-000830-Online | |||
| 9 | Coil, Ignition | A411-001180 | A411-001180-Online | 1 MBU-40 | ||
| 10 | Sparkplug | A425-000000 | A425-000000-Online | 1 BPMR8Y | ||
| 11 | Terminal,Sparkplug | A426-000020 | A426-000020-Online | |||
| 12 | Cap,Spark Plug | A427-000020 | A427-000020-Online | |||
| 13 | Spacer | 150117-16430 | 150117-16430-Online | |||
| 14 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | 2 TB-5*20 12.9 | ||
| 15 | Lead | V485-001070 | V485-001070-Online | 1 #LA105 L255 | ||
| 16 | Switch, On Off | A440-001190 | A440-001190-Online | |||
| 17 | Lead | V485-001080 | V485-001080-Online | 1 L235,#187,#250 | ||
| 18 | Starter,Recoil Asy | A051-001302 | A051-001302-Online | 1 | 19 | + P022-005891 | GRIP, STARTER | ||
| 26 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | 4 TT-5*20 DG | 10.9 | ||
| 27 | Label,Echo | X502-000670 | X502-000670-Online | 1 | RECOIL STARTER, MAGNETO | CS-353ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

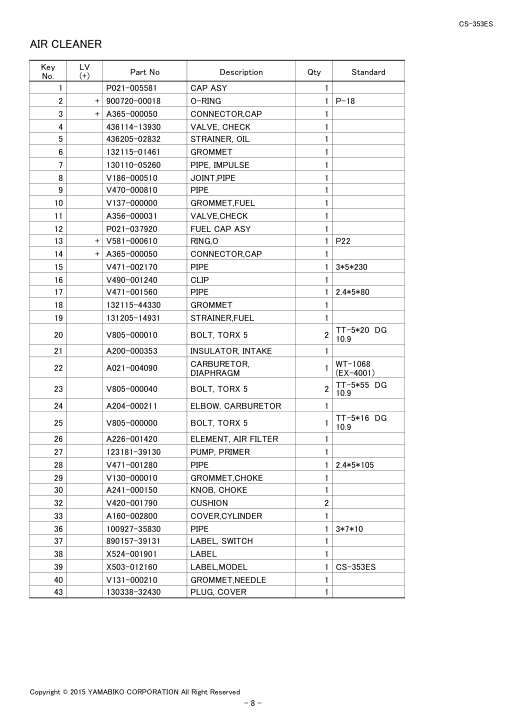

Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Cap Asy | P021-005581 | P021-005581-Online | 1 | 2 | + 900720-00018 | O-RING | ||
| 4 | Valve, Check | 436114-13930 | 436114-13930-Online | |||
| 5 | Strainer, Oil | 436205-02832 | 436205-02832-Online | |||
| 6 | Grommet | 132115-01461 | 132115-01461-Online | |||
| 7 | Pipe, Impulse | 130110-05260 | 130110-05260-Online | |||
| 8 | Joint,Pipe | V186-000510 | V186-000510-Online | |||
| 9 | Pipe | V470-000810 | V470-000810-Online | |||
| 10 | Grommet,Fuel | V137-000000 | V137-000000-Online | |||
| 11 | Valve,Check | A356-000031 | A356-000031-Online | |||
| 12 | Fuel Cap Asy | P021-037920 | P021-037920-Online | 1 | 13 | + V581-000610 | RING,O | ||
| 15 | Pipe | V471-002170 | V471-002170-Online | 1 3*5*230 | ||
| 16 | Clip | V490-001240 | V490-001240-Online | |||
| 17 | Pipe | V471-001560 | V471-001560-Online | 1 2.4*5*80 | ||
| 18 | Grommet | 132115-44330 | 132115-44330-Online | |||
| 19 | Strainer,Fuel | 131205-14931 | 131205-14931-Online | |||
| 20 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | 2 TT-5*20 DG | 10.9 | ||
| 21 | Insulator, Intake | A200-000353 | A200-000353-Online | |||
| 22 | Carburetor, | A021-004090 | A021-004090-Online | DIAPHRAGM | 1 WT-1068 | (EX-4001) | ||
| 23 | Bolt, Torx 5 | V805-000040 | V805-000040-Online | 2 TT-5*55 DG | 10.9 | ||
| 24 | Elbow, Carburetor | A204-000211 | A204-000211-Online | |||
| 25 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | 1 TT-5*16 DG | 10.9 | ||
| 26 | Element, Air Filter | A226-001420 | A226-001420-Online | |||
| 27 | Pump, Primer | 123181-39130 | 123181-39130-Online | |||
| 28 | Pipe | V471-001280 | V471-001280-Online | 1 2.4*5*105 | ||
| 29 | Grommet,Choke | V130-000010 | V130-000010-Online | |||
| 30 | Knob, Choke | A241-000150 | A241-000150-Online | |||
| 32 | Cushion | V420-001790 | V420-001790-Online | |||
| 33 | Cover,Cylinder | A160-002800 | A160-002800-Online | |||
| 36 | Pipe | 100927-35830 | 100927-35830-Online | 1 3*7*10 | ||
| 37 | Label, Switch | 890157-39131 | 890157-39131-Online | |||
| 38 | Label | X524-001901 | X524-001901-Online | |||
| 39 | Label,Model | X503-012160 | X503-012160-Online | 1 CS-353ES | ||
| 40 | Grommet,Needle | V131-000210 | V131-000210-Online | |||
| 43 | Plug, Cover | 130338-32430 | 130338-32430-Online | 1 | AIR CLEANER | CS-353ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Handle, Front | C400-001030 | C400-001030-Online | |||
| 2 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | 3 TT-5*16 DG | 10.9 | ||
| 3 | Spring,Compression | V450-001610 | V450-001610-Online | |||
| 4 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | 3 TT-5*20 DG | 10.9 | ||
| 5 | Spring,Compression | V450-000710 | V450-000710-Online | |||
| 6 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | 2 TT-5*16 DG | 10.9 | ||
| 7 | Lid,Handle | C411-000041 | C411-000041-Online | |||
| 8 | Lockout, Throttle | C460-000072 | C460-000072-Online | |||
| 9 | Rod, Throttle | C454-000160 | C454-000160-Online | |||
| 10 | Control, Throttle | C450-000213 | C450-000213-Online | |||
| 11 | Spring,Torsion | V452-000260 | V452-000260-Online | |||
| 12 | Pin, Spring 4*25Sus | 900345-40025 | 900345-40025-Online | 1 4*25SUS | ||
| 13 | Handle, Rear | C410-000450 | C410-000450-Online | |||
| 14 | Spring,Compression | V450-001620 | V450-001620-Online | |||
| 15 | Label,Caution | 890345-39231 | 890345-39231-Online | 1 | HANDLE | CS-353ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Lever, Brake | C320-000173 | C320-000173-Online | |||
| 2 | Collar,10 | V356-000430 | V356-000430-Online | |||
| 3 | Bolt, Torx 4 | V804-000000 | V804-000000-Online | 1 TT-4*12 DG | 10.9 | ||
| 4 | Washer | 177214-03930 | 177214-03930-Online | |||
| 5 | Bolt, Torx 4 | V804-000020 | V804-000020-Online | 1 TT-4*20 DG | 10.9 | ||
| 6 | Spring,Torsion | V452-000250 | V452-000250-Online | |||
| 7 | Spacer 8 | 433116-35430 | 433116-35430-Online | 1 8*12*9 | ||
| 8 | Cover,Brake | C345-000271 | C345-000271-Online | |||
| 9 | Bolt, Torx 4 | V804-000000 | V804-000000-Online | 3 TT-4*12 DG | 10.9 | ||
| 10 | Connector, Brake | C334-000100 | C334-000100-Online | |||
| 11 | Spacer 8 | 433116-35430 | 433116-35430-Online | 1 8*12*9 | ||
| 12 | Roller | 93050-30098 | 93050-30098-Online | 1 F3*9.8 | ||
| 13 | Band,Brake | C328-000030 | C328-000030-Online | |||
| 14 | Spacer | V376-000450 | V376-000450-Online | |||
| 15 | Spring,Compression | V450-000070 | V450-000070-Online | |||
| 16 | Plate, Clutch | A551-000080 | A551-000080-Online | |||
| 17 | Plate, Clutch | A551-000140 | A551-000140-Online | |||
| 18 | Clutch Asy | A056-000210 | A056-000210-Online | 1 | 19 | + V451-000470 | SPRING,TENSION | ||
| 22 | Bearing, Needle | 175012-03930 | 175012-03930-Online | |||
| 23 | Drum, Clutch | A556-000543 | A556-000543-Online | |||
| 24 | Washer | 100143-19830 | 100143-19830-Online | 1 8.2*31*0.8 | ||
| 25 | Ring | V583-000120 | V583-000120-Online | |||
| 27 | Guard, Sprocket | C300-000402 | C300-000402-Online | |||
| 28 | Bolt,5 | V203-000110 | V203-000110-Online | |||
| 29 | Tensioner,Chain | C309-000030 | C309-000030-Online | |||
| 30 | Gear,Bevel | V651-000011 | V651-000011-Online | |||
| 31 | Gear,Bevel | V651-000001 | V651-000001-Online | |||
| 32 | Collar,8 | V355-000140 | V355-000140-Online | |||
| 34 | Nut | V265-000200 | V265-000200-Online | 2 M-8 | ||
| 35 | Gear,Worm | V652-000040 | V652-000040-Online | |||
| 36 | Label,Echo | X502-000340 | X502-000340-Online | 1 ECHO(WHITE) | CLUTCH, SPROCKET, CHAIN BRAKE | CS-353ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | Spacer, Piston Pin | 100014-60930 | 100014-60930-Online | |||
| 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |||
| 2 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 2 | Washer | 100143-19830 | 100143-19830-Online | |||
| 12 | Pipe | 100927-35830 | 100927-35830-Online | |||
| 8 | Bolt,5 5*60 | 101023-60930 | 101023-60930-Online | |||
| 4 | Screw, Pump Cover | 123110-03930 | 123110-03930-Online | |||
| 14 | Diaphragm, Fuel Pump | 123112-15030 | 123112-15030-Online | |||
| 14 | Spring, Throttle Rtn | 123113-37530 | 123113-37530-Online | |||
| 14 | Screw | 123114-38830 | 123114-38830-Online | |||
| 14 | Valve, Throttle | 123116-23230 | 123116-23230-Online | |||
| 14 | Spring, Needle | 123121-22130 | 123121-22130-Online | |||
| 14 | Spring, Meter. Lever | 123122-03660 | 123122-03660-Online | |||
| 14 | Lever, Metering | 123123-03930 | 123123-03930-Online | |||
| 14 | Cover, Fuel Pump | 123124-09520 | 123124-09520-Online | |||
| 14 | Gasket, Fuel Pump | 123125-15030 | 123125-15030-Online | |||
| 14 | Clip, Throttle Shaft | 123127-03930 | 123127-03930-Online | |||
| 14 | Ring | 123127-15030 | 123127-15030-Online | |||
| 14 | Screw | 123130-02960 | 123130-02960-Online | |||
| 14 | Spring, Idle Adjust | 123133-04260 | 123133-04260-Online | |||
| 14 | Screw, Idle Adjust | 123134-04260 | 123134-04260-Online | |||
| 14 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |||
| 14 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |||
| 14 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | |||
| 14 | Gasket, M. Diaphragm | 123140-03930 | 123140-03930-Online | |||
| 14 | Cover, M. Diaphragm | 123142-03930 | 123142-03930-Online | |||
| 14 | Plug, Welch | 123146-10631 | 123146-10631-Online | |||
| 14 | Washer | 123149-26030 | 123149-26030-Online | |||
| 14 | Washer | 123149-39130 | 123149-39130-Online | |||
| 14 | Pump, Primer | 123181-39130 | 123181-39130-Online | |||
| 8 | Pipe, Impulse | 130110-05260 | 130110-05260-Online | |||
| 8 | Plug, Cover | 130338-32430 | 130338-32430-Online | |||
| 8 | Strainer,Fuel | 131205-14931 | 131205-14931-Online | |||
| 8 | Grommet | 132115-01461 | 132115-01461-Online | |||
| 8 | Grommet | 132115-44330 | 132115-44330-Online | |||
| 8 | Muffler | 145610-60930 | 145610-60930-Online | |||
| 4 | Plate,Muffler | 145614-60930 | 145614-60930-Online | |||
| 4 | Spacer | 150117-16430 | 150117-16430-Online | |||
| 6 | Bearing, Needle | 175012-03930 | 175012-03930-Online | |||
| 12 | Washer | 177214-03930 | 177214-03930-Online | |||
| 12 | Spring, Return | 177234-35430 | 177234-35430-Online | |||
| 6 | Screw | 177236-61830 | 177236-61830-Online | |||
| 6 | Spacer, Ratchet | 177247-04630 | 177247-04630-Online | |||
| 6 | Spacer 8 | 433116-35430 | 433116-35430-Online | 12 | Part No | Part descrition | Page | ||
| 8 | Strainer, Oil | 436205-02832 | 436205-02832-Online | |||
| 8 | Label, Switch | 890157-39131 | 890157-39131-Online | |||
| 8 | Label,Caution | 890345-39231 | 890345-39231-Online | |||
| 10 | Driver, Screw 50 | 895812-03930 | 895812-03930-Online | |||
| 4 | Pin, Spring 4*25Sus | 900345-40025 | 900345-40025-Online | |||
| 10 | Nut, Flange 8 | 900515-00008 | 900515-00008-Online | |||
| 6 | Nut, Frange 5 | 900516-00005 | 900516-00005-Online | |||
| 4 | Washer 5 | 900603-00005 | 900603-00005-Online | |||
| 6 | O-Ring | 900720-00018 | 900720-00018-Online | |||
| 8 | Roller | 93050-30098 | 93050-30098-Online | |||
| 12 | Bearing Ball | 94035-36201 | 94035-36201-Online | |||
| 2 | Carburetor, | A021-004090 | A021-004090-Online | DIAPHRAGM | ||
| 8 | Carburetor, | A021-004090 | A021-004090-Online | DIAPHRAGM | ||
| 14 | Starter,Recoil Asy | A051-001302 | A051-001302-Online | |||
| 6 | Clutch Asy | A056-000210 | A056-000210-Online | |||
| 12 | Ring,Piston | A101-000110 | A101-000110-Online | |||
| 2 | Cover,Cylinder | A160-002800 | A160-002800-Online | |||
| 8 | Cover,Fan | A172-000830 | A172-000830-Online | |||
| 6 | Insulator, Intake | A200-000353 | A200-000353-Online | |||
| 8 | Bellows, Intake | A202-000071 | A202-000071-Online | |||
| 2 | Elbow, Carburetor | A204-000211 | A204-000211-Online | |||
| 8 | Holder, Bellows | A206-000000 | A206-000000-Online | |||
| 2 | Element, Air Filter | A226-001420 | A226-001420-Online | |||
| 8 | Knob, Choke | A241-000150 | A241-000150-Online | |||
| 8 | Lid,Muffler | A303-000130 | A303-000130-Online | |||
| 4 | Valve,Check | A356-000031 | A356-000031-Online | |||
| 8 | Connector,Cap | A365-000050 | A365-000050-Online | |||
| 8 | Rotor, Magneto | A409-000350 | A409-000350-Online | |||
| 6 | Coil, Ignition | A411-001180 | A411-001180-Online | |||
| 6 | Sparkplug | A425-000000 | A425-000000-Online | |||
| 6 | Terminal,Sparkplug | A426-000020 | A426-000020-Online | |||
| 6 | Cap,Spark Plug | A427-000020 | A427-000020-Online | |||
| 6 | Switch, On Off | A440-001190 | A440-001190-Online | |||
| 6 | Reel,Rope | A506-000460 | A506-000460-Online | |||
| 6 | Catcher,Pawl | A507-000110 | A507-000110-Online | |||
| 6 | Pawl | A514-000020 | A514-000020-Online | |||
| 6 | Plate, Clutch | A551-000080 | A551-000080-Online | |||
| 12 | Plate, Clutch | A551-000140 | A551-000140-Online | |||
| 12 | Hub, Clutch | A552-000100 | A552-000100-Online | |||
| 12 | Drum, Clutch | A556-000543 | A556-000543-Online | |||
| 12 | Auto-Oiler Assembly | C022-000072 | C022-000072-Online | |||
| 2 | Guard, Sprocket | C300-000402 | C300-000402-Online | |||
| 12 | Tensioner,Chain | C309-000030 | C309-000030-Online | 12 | Part No | Part descrition | Page | ||
| 12 | Band,Brake | C328-000030 | C328-000030-Online | |||
| 12 | Connector, Brake | C334-000100 | C334-000100-Online | |||
| 12 | Cover,Brake | C345-000271 | C345-000271-Online | |||
| 12 | Handle, Front | C400-001030 | C400-001030-Online | |||
| 10 | Handle, Rear | C410-000450 | C410-000450-Online | |||
| 10 | Lid,Handle | C411-000041 | C411-000041-Online | |||
| 10 | Control, Throttle | C450-000213 | C450-000213-Online | |||
| 10 | Rod, Throttle | C454-000160 | C454-000160-Online | |||
| 10 | Lockout, Throttle | C460-000072 | C460-000072-Online | |||
| 10 | Knob, Latch | C463-000030 | C463-000030-Online | |||
| 2 | Stopper | C617-000500 | C617-000500-Online | |||
| 2 | Hinge | J485-000200 | J485-000200-Online | |||
| 2 | Choke, Shaft | P003-000150 | P003-000150-Online | |||
| 14 | Lever Throttle | P003-001040 | P003-001040-Online | |||
| 14 | Lever-Fast Idle | P003-001510 | P003-001510-Online | |||
| 14 | Diaphragm, Metering | P003-001850 | P003-001850-Online | |||
| 14 | Valve, Choke | P003-002250 | P003-002250-Online | |||
| 14 | Spring | P003-002260 | P003-002260-Online | |||
| 14 | Screw | P003-002380 | P003-002380-Online | |||
| 14 | Shaft Assy, Throttle | P003-004200 | P003-004200-Online | |||
| 14 | Screen,Inlet | P003-005040 | P003-005040-Online | |||
| 14 | Screw | P003-005120 | P003-005120-Online | |||
| 14 | Needle | P003-005220 | P003-005220-Online | |||
| 14 | Cap Asy | P021-005581 | P021-005581-Online | |||
| 8 | Clutch Shoe Set | P021-005810 | P021-005810-Online | |||
| 12 | Fuel Cap Asy | P021-037920 | P021-037920-Online | |||
| 8 | Crankcase Kit | P021-043400 | P021-043400-Online | |||
| 2 | Crankshaft,Assy | P021-044180 | P021-044180-Online | |||
| 2 | Piston Kit | P021-044190 | P021-044190-Online | |||
| 2 | Cover, Engine | P021-044630 | P021-044630-Online | |||
| 2 | Spring Kit, Rewind | P022-001330 | P022-001330-Online | |||
| 6 | Grip, Starter | P022-005891 | P022-005891-Online | |||
| 6 | Rope, Starter | P022-008440 | P022-008440-Online | |||
| 6 | Spring Case | P022-033280 | P022-033280-Online | |||
| 6 | Starter Case | P022-036980 | P022-036980-Online | |||
| 6 | Gasket,Exhaust | V104-000732 | V104-000732-Online | |||
| 4 | Grommet,Choke | V130-000010 | V130-000010-Online | |||
| 8 | Grommet,Needle | V131-000210 | V131-000210-Online | |||
| 8 | Grommet,Fuel | V137-000000 | V137-000000-Online | |||
| 8 | Joint,Pipe | V186-000510 | V186-000510-Online | |||
| 8 | Bolt,5 | V203-000080 | V203-000080-Online | |||
| 6 | Bolt,5 | V203-000110 | V203-000110-Online | |||
| 12 | Bolt,Stud 8 | V225-000031 | V225-000031-Online | |||
| 2 | Nut | V265-000200 | V265-000200-Online | 12 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-1 |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 12 | Collar,10 | V356-000430 | V356-000430-Online | |||
| 12 | Spacer | V376-000450 | V376-000450-Online | |||
| 12 | Cushion | V420-001790 | V420-001790-Online | |||
| 8 | Spring,Compression | V450-000070 | V450-000070-Online | |||
| 12 | Spring,Compression | V450-000710 | V450-000710-Online | |||
| 10 | Spring,Compression | V450-001610 | V450-001610-Online | |||
| 10 | Spring,Compression | V450-001620 | V450-001620-Online | |||
| 10 | Spring,Tension | V451-000470 | V451-000470-Online | |||
| 12 | Spring,Torsion | V452-000250 | V452-000250-Online | |||
| 12 | Spring,Torsion | V452-000260 | V452-000260-Online | |||
| 10 | Spring,Torsion | V452-001320 | V452-001320-Online | |||
| 6 | Holder,Spring | V456-000240 | V456-000240-Online | |||
| 2 | Pipe | V470-000810 | V470-000810-Online | |||
| 8 | Pipe | V471-001280 | V471-001280-Online | |||
| 8 | Pipe | V471-001560 | V471-001560-Online | |||
| 8 | Pipe | V471-002170 | V471-002170-Online | |||
| 8 | Lead | V485-001070 | V485-001070-Online | |||
| 6 | Lead | V485-001080 | V485-001080-Online | |||
| 6 | Clip | V490-000400 | V490-000400-Online | |||
| 2 | Clip | V490-001240 | V490-001240-Online | |||
| 8 | Seal,Oil 12 | V505-000011 | V505-000011-Online | |||
| 2 | Bearing,Needle 8 | V553-000040 | V553-000040-Online | |||
| 2 | Ring,O | V581-000610 | V581-000610-Online | |||
| 8 | Ring | V583-000120 | V583-000120-Online | |||
| 12 | Pin,Straight 4 | V622-000070 | V622-000070-Online | |||
| 2 | Gear,Bevel | V651-000001 | V651-000001-Online | |||
| 12 | Gear,Bevel | V651-000011 | V651-000011-Online | |||
| 12 | Gear,Worm | V652-000040 | V652-000040-Online | |||
| 12 | Bolt, Torx 4 | V804-000000 | V804-000000-Online | |||
| 12 | Bolt, Torx 4 | V804-000020 | V804-000020-Online | |||
| 12 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | |||
| 8 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | |||
| 10 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | |||
| 6 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | |||
| 8 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | |||
| 10 | Bolt, Torx 5 | V805-000040 | V805-000040-Online | |||
| 8 | Bolt, Torx 5 | V805-000140 | V805-000140-Online | |||
| 2 | Bolt, Torx 5 | V805-000180 | V805-000180-Online | |||
| 2 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | |||
| 6 | Bolt, Torx 5 | V805-000220 | V805-000220-Online | |||
| 2 | Bar,Guide 35 | X123-000132 | X123-000132-Online | |||
| 4 | Chain,Saw | X223-000080 | X223-000080-Online | |||
| 4 | Scabbard,Chain | X490-000570 | X490-000570-Online | |||
| 4 | Label,Echo | X502-000340 | X502-000340-Online | 12 | Part No | Part descrition | Page | ||
| 6 | Label,Model | X503-012160 | X503-012160-Online | |||
| 8 | Label | X524-001901 | X524-001901-Online | |||
| 8 | Tool,Wrench | X602-000080 | X602-000080-Online | |||
| 4 | Tool,L Wrench | X605-000170 | X605-000170-Online | |||
| 4 | Tool,Case | X698-000050 | X698-000050-Online | 4 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-2 |
Source PDF: 20200226-953_CS-353ES_25_25000001_24FEB2020.pdf. Generated 2026-06-25 14:40.
