Echo CS-353ES IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: CS-353ES-Online
Source Pages

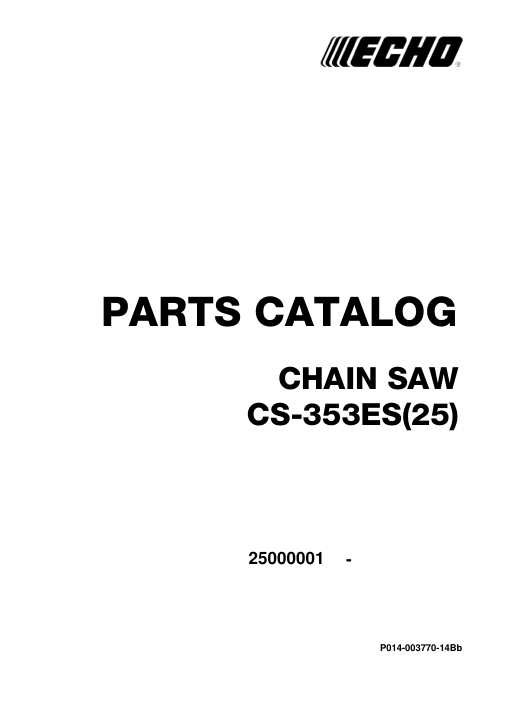

Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.

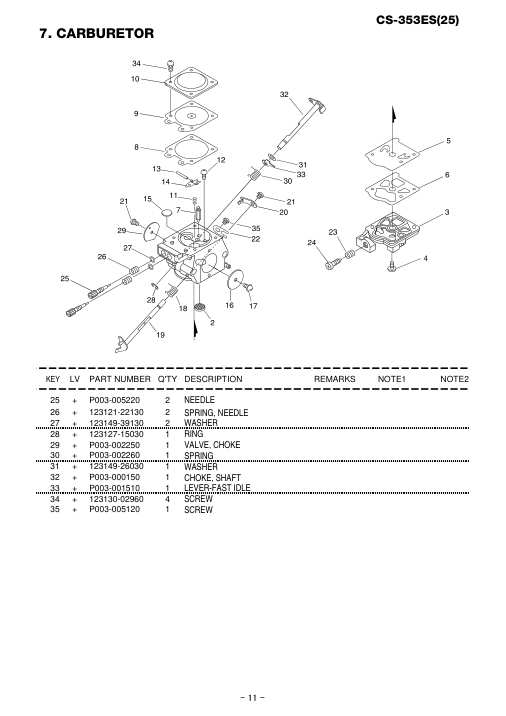

Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.

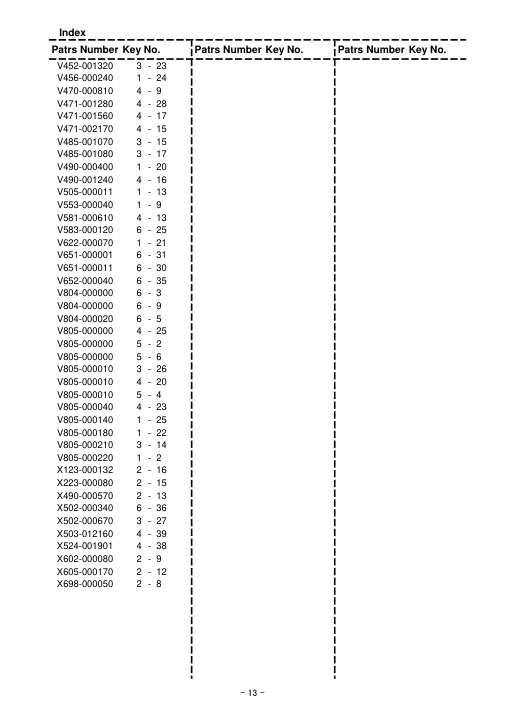

Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Crankcase Kit | P021-043400 | P021-043400-Online | ||
| 2 | + | 4 | Bolt, Torx 5 | V805-000220 | V805-000220-Online | TB-5*25 12.9 |
| 3 | 1 | Bellows, Intake | A202-000071 | A202-000071-Online | ||
| 4 | 1 | Holder, Bellows | A206-000000 | A206-000000-Online | ||
| 5 | 1 | Piston Kit | P021-044190 | P021-044190-Online | ||
| 6 | + | 1 | Ring,Piston | A101-000110 | A101-000110-Online | BF R0.2 |
| 7 | + | 1 | Pin, Piston | 100013-15330 | 100013-15330-Online | 5.5*8*29 |
| 8 | + | 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |
| 9 | + | 1 | Bearing,Needle 8 | V553-000040 | V553-000040-Online | 8E- |
| 10 | + | 2 | Spacer, Piston Pin | 100014-60930 | 100014-60930-Online | |
| 11 | 1 | Key, Woodruff | 100142-12330 | 100142-12330-Online | ||
| 12 | 1 | Crankshaft,Assy | P021-044180 | P021-044180-Online | ||
| 13 | + | 2 | Seal,Oil 12 | V505-000011 | V505-000011-Online | 12*32*5.5 |
| 14 | + | 2 | Bearing Ball | 94035-36201 | 94035-36201-Online | 6201X3JR2C3 |
| 16 | 1 | Cover, Engine | P021-044630 | P021-044630-Online | ||
| 17 | + | 2 | Bolt,Stud 8 | V225-000031 | V225-000031-Online | M8 |
| 26 | + | 1 | Auto-Oiler Assembly | C022-000072 | C022-000072-Online | |
| 18 | 2 | Knob, Latch | C463-000030 | C463-000030-Online | ||
| 19 | 2 | Hinge | J485-000200 | J485-000200-Online | ||
| 20 | 2 | Clip | V490-000400 | V490-000400-Online | ||
| 21 | 4 | Pin,Straight 4 | V622-000070 | V622-000070-Online | F4*17.8 | |
| 22 | 4 | Bolt, Torx 5 | V805-000180 | V805-000180-Online | TB-5*30 12.9 | |
| 23 | 2 | Stopper | C617-000500 | C617-000500-Online | ||
| 24 | 1 | Holder,Spring | V456-000240 | V456-000240-Online | ||
| 25 | 1 | Bolt, Torx 5 | V805-000140 | V805-000140-Online | TB-5*12 10.9 |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 2 | Nut, Frange 5 | 900516-00005 | 900516-00005-Online | ||
| 2 | 1 | Lid,Muffler | A303-000130 | A303-000130-Online | ||
| 3 | 1 | Plate,Muffler | 145614-60930 | 145614-60930-Online | ||
| 4 | 1 | Muffler | 145610-60930 | 145610-60930-Online | ||
| 5 | 1 | Gasket,Exhaust | V104-000732 | V104-000732-Online | ||
| 6 | 2 | Bolt,5 5*60 | 101023-60930 | 101023-60930-Online | 5*60 | |
| 8 | 1 | Tool,Case | X698-000050 | X698-000050-Online | 140*260*0.06 | |
| 9 | 1 | Tool,Wrench | X602-000080 | X602-000080-Online | 13*19 L180 | |
| 10 | 1 | Driver, Screw 50 | 895812-03930 | 895812-03930-Online | ||
| 12 | 1 | Tool,L Wrench | X605-000170 | X605-000170-Online | ||
| 13 | 1 | Scabbard,Chain | X490-000570 | X490-000570-Online | ||
| 15 | 1 | Chain,Saw | X223-000080 | X223-000080-Online | 91VXL-53E | |
| 16 | 1 | Bar,Guide 35 | X123-000132 | X123-000132-Online | 35RC50M-3/8 |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Rotor, Magneto | A409-000350 | A409-000350-Online | WALBRO FW57 | |
| 2 | 1 | Nut, Flange 8 | 900515-00008 | 900515-00008-Online | ||
| 3 | 2 | Spring, Return | 177234-35430 | 177234-35430-Online | ||
| 4 | 2 | Pawl | A514-000020 | A514-000020-Online | ||
| 5 | 2 | Spacer, Ratchet | 177247-04630 | 177247-04630-Online | 5.2*8*2.1 | |
| 6 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 7 | 2 | Bolt,5 | V203-000080 | V203-000080-Online | 5*14 | |
| 8 | 1 | Cover,Fan | A172-000830 | A172-000830-Online | ||
| 9 | 1 | Coil, Ignition | A411-001180 | A411-001180-Online | MBU-40 | |
| 10 | 1 | Sparkplug | A425-000000 | A425-000000-Online | BPMR8Y | |
| 11 | 1 | Terminal,Sparkplug | A426-000020 | A426-000020-Online | ||
| 12 | 1 | Cap,Spark Plug | A427-000020 | A427-000020-Online | ||
| 13 | 2 | Spacer | 150117-16430 | 150117-16430-Online | ||
| 14 | 2 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | TB-5*20 12.9 | |
| 15 | 1 | Lead | V485-001070 | V485-001070-Online | #LA105 L255 | |
| 16 | 1 | Switch, On Off | A440-001190 | A440-001190-Online | ||
| 17 | 1 | Lead | V485-001080 | V485-001080-Online | L235,#187,#250 | |
| 18 | 1 | Starter,Recoil Asy | A051-001302 | A051-001302-Online | ||
| 19 | + | 1 | Grip, Starter | P022-005891 | P022-005891-Online | |
| 20 | + | 1 | Spring Kit, Rewind | P022-001330 | P022-001330-Online | 29 | ++ |
| 29 | 1 | Spring Case | P022-033280 | P022-033280-Online | ||
| 21 | + | 1 | Rope, Starter | P022-008440 | P022-008440-Online | 3.5*900 |
| 22 | + | 1 | Reel,Rope | A506-000460 | A506-000460-Online | |
| 23 | + | 1 | Spring,Torsion | V452-001320 | V452-001320-Online |

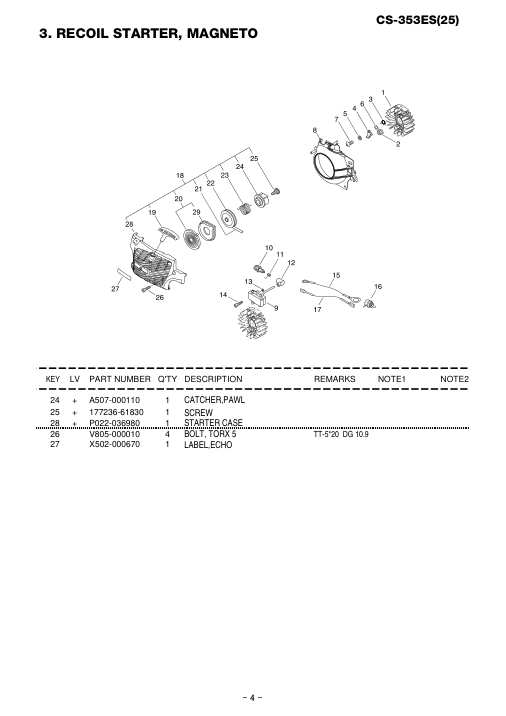

Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 24 | + | 1 | Catcher,Pawl | A507-000110 | A507-000110-Online | |
| 25 | + | 1 | Screw | 177236-61830 | 177236-61830-Online | |
| 28 | + | 1 | Starter Case | P022-036980 | P022-036980-Online | |
| 26 | 4 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | TT-5*20 DG 10.9 | |
| 27 | 1 | Label,Echo | X502-000670 | X502-000670-Online |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Oil Cap Asy | P021-005581 | P021-005581-Online | ||
| 2 | + | 1 | O-Ring 18 | 900720-00018 | 900720-00018-Online | P-18 |
| 3 | + | 1 | Connector,Cap | A365-000050 | A365-000050-Online | |
| 4 | 1 | Valve, Check | 436114-13930 | 436114-13930-Online | ||
| 5 | 1 | Strainer, Oil | 436205-02832 | 436205-02832-Online | ||
| 6 | 1 | Grommet | 132115-01461 | 132115-01461-Online | ||
| 7 | 1 | Pipe, Impulse | 130110-05260 | 130110-05260-Online | ||
| 8 | 1 | Joint,Pipe | V186-000510 | V186-000510-Online | ||
| 9 | 1 | Pipe | V470-000810 | V470-000810-Online | ||
| 10 | 1 | Grommet,Fuel | V137-000000 | V137-000000-Online | ||
| 11 | 1 | Valve,Check | A356-000031 | A356-000031-Online | ||
| 12 | 1 | Fuel Cap Asy | P021-037920 | P021-037920-Online | ||
| 13 | + | 1 | Ring,O | V581-000610 | V581-000610-Online | P22 |
| 14 | + | 1 | Connector,Cap | A365-000050 | A365-000050-Online | |
| 15 | 1 | Pipe | V471-002170 | V471-002170-Online | 3*5*230 | |
| 16 | 1 | Clip | V490-001240 | V490-001240-Online | ||
| 17 | 1 | Pipe | V471-001560 | V471-001560-Online | 2.4*5*80 | |
| 18 | 1 | Grommet | 132115-44330 | 132115-44330-Online | ||
| 19 | 1 | Strainer,Fuel | 131205-14931 | 131205-14931-Online | ||
| 20 | 2 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | TT-5*20 DG 10.9 | |
| 21 | 1 | Insulator, Intake | A200-000353 | A200-000353-Online | ||
| 22 | 1 | Carburetor,Diaphragm | A021-004090 | A021-004090-Online | WT-1068(EX-4001) |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 23 | 2 | Bolt, Torx 5 | V805-000040 | V805-000040-Online | TT-5*55 DG 10.9 | |
| 24 | 1 | Elbow, Carburetor | A204-000211 | A204-000211-Online | ||
| 25 | 1 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | TT-5*16 DG 10.9 | |
| 26 | 1 | Element, Air Filter | A226-001420 | A226-001420-Online | ||
| 27 | 1 | Pump, Primer | 123181-39130 | 123181-39130-Online | ||
| 28 | 1 | Pipe | V471-001280 | V471-001280-Online | 2.4*5*105 | |
| 29 | 1 | Grommet,Choke | V130-000010 | V130-000010-Online | ||
| 30 | 1 | Knob, Choke | A241-000150 | A241-000150-Online | ||
| 32 | 2 | Cushion | V420-001790 | V420-001790-Online | ||
| 33 | 1 | Cover,Cylinder | A160-002800 | A160-002800-Online | ||
| 36 | 1 | Pipe | 100927-35830 | 100927-35830-Online | 3*7*10 | |
| 37 | 1 | Label, Switch | 890157-39131 | 890157-39131-Online | ||
| 38 | 1 | Label | X524-001901 | X524-001901-Online | ||
| 39 | 1 | Label,Model | X503-012160 | X503-012160-Online | CS-353ES | |
| 40 | 1 | Grommet,Needle | V131-000210 | V131-000210-Online | ||
| 43 | 1 | Plug, Cover | 130338-32430 | 130338-32430-Online |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Handle, Front | C400-001030 | C400-001030-Online | ||
| 2 | 3 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | TT-5*16 DG 10.9 | |
| 3 | 1 | Spring,Compression | V450-001610 | V450-001610-Online | ||
| 4 | 3 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | TT-5*20 DG 10.9 | |
| 5 | 1 | Spring,Compression | V450-000710 | V450-000710-Online | ||
| 6 | 2 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | TT-5*16 DG 10.9 | |
| 7 | 1 | Lid,Handle | C411-000041 | C411-000041-Online | ||
| 8 | 1 | Lockout, Throttle | C460-000072 | C460-000072-Online | ||
| 9 | 1 | Rod, Throttle | C454-000160 | C454-000160-Online | ||
| 10 | 1 | Control, Throttle | C450-000213 | C450-000213-Online | ||
| 11 | 1 | Spring,Torsion | V452-000260 | V452-000260-Online | ||
| 12 | 1 | Pin, Spring 4*25Sus | 900345-40025 | 900345-40025-Online | 4*25SUS | |
| 13 | 1 | Handle, Rear | C410-000450 | C410-000450-Online | ||
| 14 | 1 | Spring,Compression | V450-001620 | V450-001620-Online | ||
| 15 | 1 | Label,Caution | 890345-39231 | 890345-39231-Online |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Lever, Brake | C320-000173 | C320-000173-Online | ||
| 2 | 1 | Collar,10 | V356-000430 | V356-000430-Online | ||
| 3 | 1 | Bolt, Torx 4 | V804-000000 | V804-000000-Online | TT-4*12 DG 10.9 | |
| 4 | 1 | Washer | 177214-03930 | 177214-03930-Online | ||
| 5 | 1 | Bolt, Torx 4 | V804-000020 | V804-000020-Online | TT-4*20 DG 10.9 | |
| 6 | 1 | Spring,Torsion | V452-000250 | V452-000250-Online | ||
| 7 | 1 | Spacer 8 | 433116-35430 | 433116-35430-Online | 8*12*9 | |
| 8 | 1 | Cover,Brake | C345-000271 | C345-000271-Online | ||
| 9 | 3 | Bolt, Torx 4 | V804-000000 | V804-000000-Online | TT-4*12 DG 10.9 | |
| 10 | 1 | Connector, Brake | C334-000100 | C334-000100-Online | ||
| 11 | 1 | Spacer 8 | 433116-35430 | 433116-35430-Online | 8*12*9 | |
| 12 | 1 | Roller | 93050-30098 | 93050-30098-Online | F3*9.8 | |
| 13 | 1 | Band,Brake | C328-000030 | C328-000030-Online | ||
| 14 | 1 | Spacer | V376-000450 | V376-000450-Online | ||
| 15 | 1 | Spring,Compression | V450-000070 | V450-000070-Online | ||
| 16 | 1 | Plate, Clutch | A551-000080 | A551-000080-Online | ||
| 17 | 1 | Plate, Clutch | A551-000140 | A551-000140-Online | ||
| 18 | 1 | Clutch Asy | A056-000210 | A056-000210-Online | ||
| 19 | + | 3 | Spring,Tension | V451-000470 | V451-000470-Online | |
| 20 | + | 1 | Clutch Shoe Set | P021-005810 | P021-005810-Online | |
| 21 | + | 1 | Hub, Clutch | A552-000100 | A552-000100-Online | |
| 22 | 1 | Bearing, Needle | 175012-03930 | 175012-03930-Online |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 23 | 1 | Drum, Clutch | A556-000543 | A556-000543-Online | ||
| 24 | 1 | Washer | 100143-19830 | 100143-19830-Online | 8.2*31*0.8 | |
| 25 | 1 | Ring | V583-000120 | V583-000120-Online | ||
| 27 | 1 | Guard, Sprocket | C300-000402 | C300-000402-Online | ||
| 28 | 1 | Bolt,5 | V203-000110 | V203-000110-Online | ||
| 29 | 1 | Tensioner,Chain | C309-000030 | C309-000030-Online | ||
| 30 | 1 | Gear,Bevel | V651-000011 | V651-000011-Online | ||
| 31 | 1 | Gear,Bevel | V651-000001 | V651-000001-Online | ||
| 32 | 1 | Collar,8 | V355-000140 | V355-000140-Online | ||
| 34 | 2 | Part | V265-000200 | V265-000200-Online | ||
| 35 | 1 | Gear,Worm | V652-000040 | V652-000040-Online | ||
| 36 | 1 | Label,Echo | X502-000340 | X502-000340-Online | ECHO(WHITE) |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | + | 1 | Screen,Inlet | P003-005040 | P003-005040-Online | |
| 3 | + | 1 | Cover, Fuel Pump | 123124-09520 | 123124-09520-Online | |
| 4 | + | 1 | Screw, Pump Cover | 123110-03930 | 123110-03930-Online | |
| 5 | + | 1 | Gasket, Fuel Pump | 123125-15030 | 123125-15030-Online | |
| 6 | + | 1 | Diaphragm, Fuel Pump | 123112-15030 | 123112-15030-Online | |
| 7 | + | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |
| 8 | + | 1 | Gasket, M. Diaphragm | 123140-03930 | 123140-03930-Online | |
| 9 | + | 1 | Diaphragm, Metering | P003-001850 | P003-001850-Online | |
| 10 | + | 1 | Cover, M. Diaphragm | 123142-03930 | 123142-03930-Online | |
| 11 | + | 1 | Spring, Meter. Lever | 123122-03660 | 123122-03660-Online | |
| 12 | + | 1 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | |
| 13 | + | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |
| 14 | + | 1 | Lever, Metering | 123123-03930 | 123123-03930-Online | |
| 15 | + | 1 | Plug, Welch | 123146-10631 | 123146-10631-Online | |
| 16 | + | 1 | Valve, Throttle | 123116-23230 | 123116-23230-Online | |
| 17 | + | 1 | Screw | P003-002380 | P003-002380-Online | |
| 18 | + | 1 | Spring, Throttle Rtn | 123113-37530 | 123113-37530-Online | |
| 19 | + | 1 | Shaft Assy, Throttle | P003-004200 | P003-004200-Online | |
| 20 | + | 1 | Lever Throttle | P003-001040 | P003-001040-Online | |
| 21 | + | 2 | Screw | 123114-38830 | 123114-38830-Online | |
| 22 | + | 1 | Clip, Throttle Shaft | 123127-03930 | 123127-03930-Online | |
| 23 | + | 1 | Spring, Idle Adjust | 123133-04260 | 123133-04260-Online | |
| 24 | + | 1 | Screw, Idle Adjust | 123134-04260 | 123134-04260-Online |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 25 | + | 2 | Needle | P003-005220 | P003-005220-Online | |
| 26 | + | 2 | Spring, Needle | 123121-22130 | 123121-22130-Online | |
| 27 | + | 2 | Washer | 123149-39130 | 123149-39130-Online | |
| 28 | + | 1 | Ring | 123127-15030 | 123127-15030-Online | |
| 29 | + | 1 | Valve, Choke | P003-002250 | P003-002250-Online | |
| 30 | + | 1 | Spring | P003-002260 | P003-002260-Online | |
| 31 | + | 1 | Washer | 123149-26030 | 123149-26030-Online | |
| 32 | + | 1 | Choke, Shaft | P003-000150 | P003-000150-Online | |
| 33 | + | 1 | Lever-Fast Idle | P003-001510 | P003-001510-Online | |
| 34 | + | 4 | Screw | 123130-02960 | 123130-02960-Online | |
| 35 | + | 1 | Screw | P003-005120 | P003-005120-Online |
Source PDF: 20141009-610_CS-353ES(25).pdf. Generated 2026-06-25 14:39.
