Echo SRM-4605 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: SRM-4605-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.

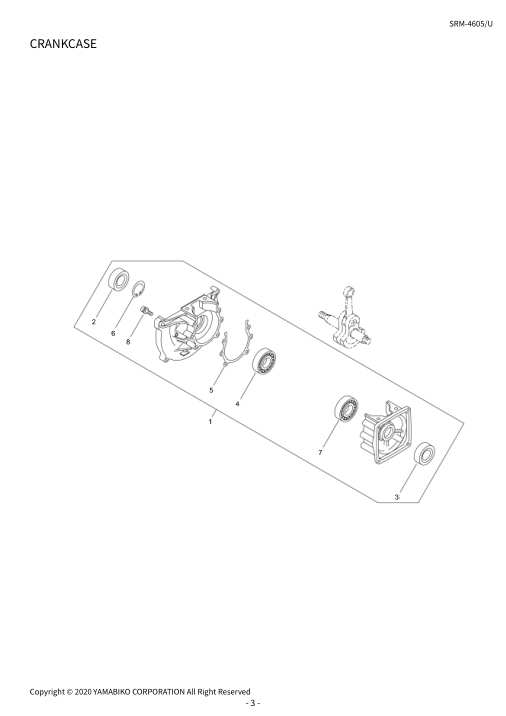

Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.

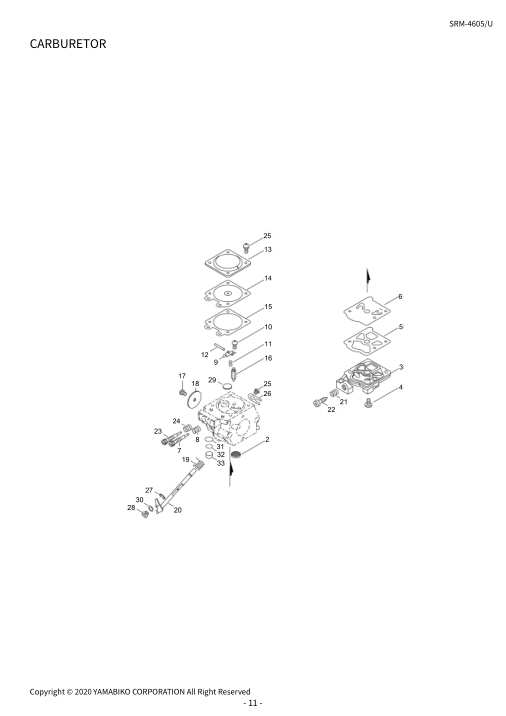

Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.
Page 23
Tap or click the page image to enlarge it.
Page 24
Tap or click the page image to enlarge it.
Page 25
Tap or click the page image to enlarge it.
Page 26
Tap or click the page image to enlarge it.

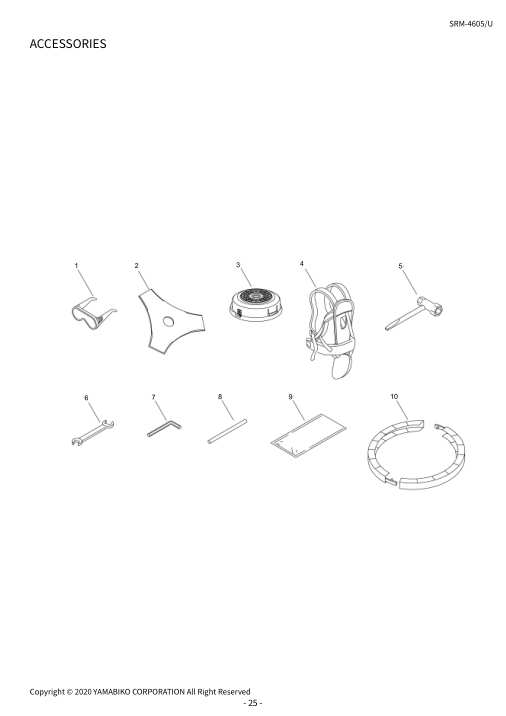

Page 27
Tap or click the page image to enlarge it.
Page 28
Tap or click the page image to enlarge it.
Page 29
Tap or click the page image to enlarge it.
Page 30
Tap or click the page image to enlarge it.
Page 31
Tap or click the page image to enlarge it.
Page 32
Tap or click the page image to enlarge it.
Page 33
Tap or click the page image to enlarge it.
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Crankshaft Assy | A011-001330 | A011-001330-Online | |||
| 2 | Cylinder | 101011-47530 | 101011-47530-Online | |||
| 3 | Gasket, Cyl. Base | 101010-42231 | 101010-42231-Online | |||
| 4 | Piston Kit | P021-015771 | P021-015771-Online | |||
| 5 | + | Washer,Circular 10 | V307-000050 | V307-000050-Online | ||
| 6 | + | Ring, Piston | 100011-43230 | 100011-43230-Online | ||
| 7 | + | Pin, Piston | 100013-00410 | 100013-00410-Online | 1 6*10*29.8 | |
| 8 | + | Ring,End | V580-000010 | V580-000010-Online | 2 10 | |
| 9 | + | Bearing, Needle | 100012-12331 | 100012-12331-Online | ||
| 10 | Cover, Cylinder (Bs) | 101514-42230 | 101514-42230-Online | |||
| 11 | Screw 5*10 | 900238-05010 | 900238-05010-Online | 1 5*10 | ||
| 12 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 4 5*20 W,SW | ||
| 13 | Guard, Top | 159905-43130 | 159905-43130-Online | |||
| 14 | Screw 5*14 | 900238-05014 | 900238-05014-Online | 3 5*14 | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed | CYLINDER, PISTON, CRANKSHAFT |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Crankcase Kit | 100204-42230 | 100204-42230-Online | |||
| 2 | + | Oilseal | 100213-02830 | 100213-02830-Online | 1 ISMX15,35,6 | |
| 3 | + | Oilseal | 100212-27930 | 100212-27930-Online | 1 ISD 12 25 7 | |
| 4 | + | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | 1 6202/C3 | |
| 5 | + | Gasket, Crankcase | 100242-42230 | 100242-42230-Online | ||
| 6 | + | Circlip 35 | 900702-00035 | 900702-00035-Online | 1 CRｰ35 | |
| 7 | + | Bearing Ball | 94035-36201 | 94035-36201-Online | 1 6201X3JR2C3 | |
| 8 | + | Bolt, H.S. 5*30 | 900162-05030 | 900162-05030-Online | 4 5*30 W,SW | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed | CRANKCASE |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Flywheel | 156801-42230 | 156801-42230-Online | |||
| 2 | Coil,Ignition | 156601-12921 | 156601-12921-Online | |||
| 3 | Nut 10 (3N *1.25) | 900503-00010 | 900503-00010-Online | 1 3N10*P1.25 | ||
| 4 | Washer 10 | 900600-00010 | 900600-00010-Online | 1 10 | ||
| 5 | Washer, Spring 10 | 900605-00010 | 900605-00010-Online | 1 10 | ||
| 6 | Screw 5*20 | 900238-05020 | 900238-05020-Online | 2 5*20 | ||
| 7 | Washer 6 | 900600-00006 | 900600-00006-Online | 2 6 | ||
| 8 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 9 | Plug, Spark (Bpm-7A) | 159010-10630 | 159010-10630-Online | 1 BPM-7A | ||
| 10 | Cap, Spark Plug | 159012-01620 | 159012-01620-Online | |||
| 11 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | |||
| 12 | Lead | 162021-42230 | 162021-42230-Online | |||
| 13 | Lead, Ground | 156635-43130 | 156635-43130-Online | |||
| 14 | Screw 5*10 | 900238-05010 | 900238-05010-Online | 1 5*10 | ||
| 15 | Arm,Clutch | A553-000040 | A553-000040-Online | |||
| 16 | Shaft,Clutch | A557-000000 | A557-000000-Online | |||
| 17 | Spring, Clutch | A566-000250 | A566-000250-Online | 1 3.2 356N | ||
| 18 | Spring,Flat | V453-000100 | V453-000100-Online | 1 10.2 | ||
| 19 | Washer | 175049-03920 | 175049-03920-Online | 2 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Cover,Fan | A172-002550 | A172-002550-Online | |||
| 2 | Label,Echo | X547-001110 | X547-001110-Online | 1 ECHO+SRM-4605 | ||
| 3 | Grommet | 156112-40630 | 156112-40630-Online | |||
| 4 | Bolt | 91118-05025 | 91118-05025-Online | 4 CM-5*25 | ||
| 5 | Plate, Guide | 101534-42231 | 101534-42231-Online | |||
| 6 | Screw 4*10 | 900238-04010 | 900238-04010-Online | 4 4*10 | ||
| 7 | Drum,Clutch | A556-000181 | A556-000181-Online | |||
| 8 | Bearing, Ball 6001 | 900807-06001 | 900807-06001-Online | 2 6001V(LB) | ||
| 9 | Circlip 28 | 900702-00028 | 900702-00028-Online | 1 CR-28 | ||
| 10 | Circlip 12 | 900701-00012 | 900701-00012-Online | 1 CS-12 | ||
| 11 | Cushion | V420-000980 | V420-000980-Online | |||
| 12 | Bolt | 91118-05028 | 91118-05028-Online | 1 CM-5*28 | ||
| 13 | Bolt | 91118-05012 | 91118-05012-Online | 1 CM-5*12 | ||
| 14 | Ring, Retaining(In) | 900702-00045 | 900702-00045-Online | 1 CR-45 | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed | FAN COVER |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Carburetor | 123000-47533 | 123000-47533-Online | 1 WT-120C | ||
| 2 | Clip | V490-000440 | V490-000440-Online | |||
| 3 | Gasket | 130016-06231 | 130016-06231-Online | |||
| 4 | Insulator | 130017-43130 | 130017-43130-Online | |||
| 5 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 2 5*25 W,SW | ||
| 6 | Gasket, Intake | 130016-42231 | 130016-42231-Online | |||
| 7 | Nut 5 | 900500-00005 | 900500-00005-Online | 2 5 | ||
| 8 | Plate | 129006-43130 | 129006-43130-Online | |||
| 9 | Shutter, Choke | 178515-43130 | 178515-43130-Online | |||
| 10 | Spacer | 178516-00830 | 178516-00830-Online | 2 5.2*8*0.8T | ||
| 11 | Screw 5*57 | 900242-05057 | 900242-05057-Online | 2 5*57 | ||
| 12 | Case, Air Cleaner | 130301-43130 | 130301-43130-Online | |||
| 13 | + | Grommet | 178810-05230 | 178810-05230-Online | ||
| 14 | Rod, Choke | 178510-47530 | 178510-47530-Online | |||
| 15 | Cover Assy, Air Cln. | 130302-43132 | 130302-43132-Online | |||
| 16 | + | Screw | 130415-40630 | 130415-40630-Online | ||
| 17 | + | O Ring | 900720-00004 | 900720-00004-Online | 1 P-4 | |
| 18 | Filter, Air | 130310-43130 | 130310-43130-Online | |||
| 19 | Label, Choke | 890121-47530 | 890121-47530-Online | |||
| 20 | Gasket,Intake | V103-001460 | V103-001460-Online | 1 | A | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | + | Screen, Inlet | 123126-10631 | 123126-10631-Online | ||
| 3 | + | Cover, Fuel Pump | 123124-24430 | 123124-24430-Online | ||
| 4 | + | Screw, Pump Cover | 123110-03930 | 123110-03930-Online | ||
| 5 | + | Gasket, Fuel Pump | 123125-15030 | 123125-15030-Online | ||
| 6 | + | Diaphragm, Fuel Pump | 123112-15030 | 123112-15030-Online | ||
| 7 | + | Needle, Idle | 123118-40430 | 123118-40430-Online | ||
| 8 | + | Spring, Needle | 123121-22130 | 123121-22130-Online | ||
| 9 | + | Lever, Metering | 123123-03930 | 123123-03930-Online | ||
| 10 | + | Screw | P003-005400 | P003-005400-Online | ||
| 11 | + | Spring, Meter. Lever | 123122-03660 | 123122-03660-Online | ||
| 12 | + | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | ||
| 13 | + | Cover, M. Diaphragm | 123142-03930 | 123142-03930-Online | ||
| 14 | + | Diaphragm, Metering | P003-001850 | P003-001850-Online | ||
| 15 | + | Gasket, M. Diaphragm | 123140-03930 | 123140-03930-Online | ||
| 16 | + | Valve, Inlet Needle | 123137-04260 | 123137-04260-Online | ||
| 17 | + | Screw | 123114-38830 | 123114-38830-Online | ||
| 18 | + | Valve, Throttle | 123116-10530 | 123116-10530-Online | ||
| 19 | + | Spring, Thr. Rtn. | 123113-47530 | 123113-47530-Online | ||
| 20 | + | Shaft Assy, Throttle | P003-005410 | P003-005410-Online | ||
| 21 | + | Spring, Idle Adjust | 123133-06320 | 123133-06320-Online | ||
| 22 | + | Screw, Idle Adjust | 123134-04260 | 123134-04260-Online | ||
| 23 | + | Needle, High Speed | 123120-47530 | 123120-47530-Online | ||
| 24 | + | Spring, Needle | 123119-22130 | 123119-22130-Online | ||
| 25 | + | Screw | 123130-02960 | 123130-02960-Online | ||
| 26 | + | Clip, Throttle Shaft | 123127-03930 | 123127-03930-Online | ||
| 27 | + | Clip | 123173-07930 | 123173-07930-Online | ||
| 28 | + | Swivel | 123172-26030 | 123172-26030-Online | ||
| 29 | + | Plug, Welch | 123146-10631 | 123146-10631-Online | ||
| 30 | + | Washer | 123149-26030 | 123149-26030-Online | ||
| 31 | + | Screen | 123168-10631 | 123168-10631-Online | ||
| 32 | + | Ring, Retaining | 123169-10630 | 123169-10630-Online | ||
| 33 | + | Plug, Cup | 123146-17330 | 123146-17330-Online | 1 | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed | CARBURETOR |
Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Tank, Fuel | 131010-46931 | 131010-46931-Online | |||
| 2 | Cushion | 131924-43130 | 131924-43130-Online | |||
| 3 | Bracket,Fueltank(Bl) | 131910-43130 | 131910-43130-Online | |||
| 4 | Screw | 900238-05014 | 900238-05014-Online | 2 5*14 | ||
| 5 | Cushion | 131923-11120 | 131923-11120-Online | |||
| 6 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | |||
| 7 | + | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | ||
| 8 | + | Clip, Fuel Cap | 131051-56030 | 131051-56030-Online | 1 100L | |
| 9 | Grommet | 132115-44330 | 132115-44330-Online | |||
| 10 | Pipe | V471-000760 | V471-000760-Online | |||
| 11 | Pipe | V471-002130 | V471-002130-Online | 1 3*5*220 | ||
| 12 | Vent Assembly, Fuel | 131300-56431 | 131300-56431-Online | |||
| 13 | Clip | V490-001230 | V490-001230-Online | |||
| 14 | Cover, Vent | 131328-40630 | 131328-40630-Online | |||
| 15 | Strainer, Fuel | A369-000450 | A369-000450-Online | |||
| 16 | Clip | V490-001240 | V490-001240-Online | 1 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 19 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Muffler | 145610-47530 | 145610-47530-Online | |||
| 2 | Gasket, Muffler | 145510-42231 | 145510-42231-Online | |||
| 3 | Screw 5*14 | 900238-05014 | 900238-05014-Online | 1 5*14 | ||
| 4 | Lid, Muffler | 145867-47530 | 145867-47530-Online | |||
| 5 | Gasket, Muffler Lid | 145866-43131 | 145866-43131-Online | |||
| 6 | Screw 4*10 | 900238-04010 | 900238-04010-Online | 4 4*10 | ||
| 7 | Cover,Muffler | A320-000890 | A320-000890-Online | |||
| 8 | Screw 4*10 | 900238-04010 | 900238-04010-Online | 3 4*10 | ||
| 9 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 2 5*20 W,SW | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed | MUFFLER |
Page 21 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Starter,Recoil | A051-000170 | A051-000170-Online | |||
| 2 | + | Case, Starter | P022-037520 | P022-037520-Online | ||
| 4 | + | Drum, Starter | 177215-43130 | 177215-43130-Online | ||
| 5 | + | Spring, Rewind | 177220-40630 | 177220-40630-Online | ||
| 6 | + | Screw | 177236-40630 | 177236-40630-Online | ||
| 7 | + | Washer | 177214-41030 | 177214-41030-Online | ||
| 8 | + | Rope, Starter | 177226-01110 | 177226-01110-Online | 1 4.0*880 | |
| 9 | + | Grip, Starter | 177228-11120 | 177228-11120-Online | 1 3ﾃﾝｾﾂﾄ | |
| 10 | + | Clip, Starter Rope | 177246-11120 | 177246-11120-Online | ||
| 11 | Starter Pully Assy | A052-000370 | A052-000370-Online | |||
| 12 | + | Ratchet | A514-000080 | A514-000080-Online | ||
| 13 | + | Return Spring | V452-000520 | V452-000520-Online | ||
| 14 | + | Ring | V583-000140 | V583-000140-Online | ||
| 15 | Bolt Hsh | 91118-04020 | 91118-04020-Online | 4 4*20 | ||
| 16 | Label,Echo | X502-000780 | X502-000780-Online | |||
| 17 | Nut | 900502-00008 | 900502-00008-Online | 1 8 | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed | RECOIL STARTER, PULLY |
Page 23 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Case,Gear | P021-012593 | P021-012593-Online | |||
| 2 | + | Screw 4*6 | 900220-04006 | 900220-04006-Online | 1 4*6 | |
| 3 | + | Gear Set | 610300-56930 | 610300-56930-Online | ||
| 4 | + | Shaft, P.T.O. | 610310-56933 | 610310-56933-Online | 1 12*10*1 | |
| 5 | + | Bearing, Ball 629 | 900810-00629 | 900810-00629-Online | 1 629 | |
| 6 | + | Bearing, Ball 6201 | 900812-06201 | 900812-06201-Online | 1 6201DDU(LLU) | |
| 7 | + | Bearing, Ball 6001 | 900800-06001 | 900800-06001-Online | 1 6001 | |
| 8 | + | Bearing, Ball 6001 | 900803-06001 | 900803-06001-Online | 1 6001Z | |
| 9 | + | Circlip 32 | 900702-00032 | 900702-00032-Online | 1 CR-32 | |
| 10 | + | Washer | 610444-56830 | 610444-56830-Online | ||
| 11 | + | Circlip 28 | 900702-00028 | 900702-00028-Online | 1 CR-28 | |
| 12 | + | Circlip 12 | 900701-00012 | 900701-00012-Online | 1 CS-12 | |
| 13 | + | Bolt | 91118-06030 | 91118-06030-Online | 1 CM-6*30 | |
| 14 | + | Spring,Torsion | V452-001310 | V452-001310-Online | ||
| 15 | + | Bolt 8* 8 | 610434-50031 | 610434-50031-Online | 1 M8*8 | |
| 16 | + | Washer | 900603-50008 | 900603-50008-Online | 1 8.5*18*0.8T | |
| 17 | + | Screw 5*10 | 900242-05010 | 900242-05010-Online | 1 5*10 | |
| 18 | + | Fixture,Blade | 610313-52932 | 610313-52932-Online | 1 | B | 19 | ++ | |
| 19 | Fixture,Blade | 610313-52132 | 610313-52132-Online | 1 | C | 20 | ++ | ||
| 20 | Plate, Cup | 610352-56830 | 610352-56830-Online | 1 | B | 21 | ++ | ||
| 21 | O-Ring 12 | 900720-00012 | 900720-00012-Online | 1 P-12 | ||
| 22 | + | Plate, Adapter (L) | 610314-52130 | 610314-52130-Online | ||
| 23 | + | Plate, Cover | 699229-56830 | 699229-56830-Online | ||
| 24 | + | Nut 10 | 610320-52130 | 610320-52130-Online | ||
| 25 | Shield,Blade | C550-000102 | C550-000102-Online | |||
| 26 | + | Nut | 900565-00005 | 900565-00005-Online | 1 5 | |
| 27 | Shield Kit | P021-045120 | P021-045120-Online | |||
| 28 | + | Shield,Blade | C550-000082 | C550-000082-Online | ||
| 29 | + | Knife,Cord | C554-000001 | C554-000001-Online | ||
| 30 | + | Screw 5*12 | 900252-05012 | 900252-05012-Online | 1 5*12 | |
| 31 | Shield,Blade | C550-000092 | C550-000092-Online | |||
| 32 | Bolt | 91118-05022 | 91118-05022-Online | 1 CM-5*22 | ||
| 33 | Plate, Shield | C552-000200 | C552-000200-Online | |||
| 34 | Bolt,5 | V203-001980 | V203-001980-Online | 4 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 25 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Pipe,Main | P021-046650 | P021-046650-Online | |||
| 2 | + | Label,Caution | 890617-43130 | 890617-43130-Online | ||
| 3 | Label, Caution | 890152-04930 | 890152-04930-Online | |||
| 4 | Shaft, Drive | 610011-06230 | 610011-06230-Online | |||
| 5 | Hook | 301207-07531 | 301207-07531-Online | |||
| 6 | Collar,5 | V353-000090 | V353-000090-Online | |||
| 7 | Bolt | 91118-05022 | 91118-05022-Online | 2 CM-5*22 | ||
| 8 | Hanger,Harness | C624-000030 | C624-000030-Online | |||
| 9 | Handle,Front | C400-000000 | C400-000000-Online | |||
| 10 | Grip,Handle | C403-000031 | C403-000031-Online | |||
| 11 | Clip | 224924-52930 | 224924-52930-Online | 2 28MM | ||
| 12 | Bracket Asy, Handle | P021-012742 | P021-012742-Online | |||
| 13 | + | Nut | 900565-50008 | 900565-50008-Online | 1 8*1.25 | |
| 14 | + | Bolt | 91118-05030 | 91118-05030-Online | ||
| 15 | + | Knob,Fastener | V299-000110 | V299-000110-Online | ||
| 16 | + | Washer | 605014-54230 | 605014-54230-Online | 1 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 27 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Grip Asy,F-Handle | P021-014090 | P021-014090-Online | |||
| 2 | + | Screw 4*16 | 900256-04016 | 900256-04016-Online | 3 4*16 | |
| 3 | + | Bolt | 91119-05030 | 91119-05030-Online | ||
| 4 | + | Nut 5 | 900500-00005 | 900500-00005-Online | 1 5 | |
| 5 | Control, Throttle | C450-000270 | C450-000270-Online | |||
| 6 | Lockout, Throttle | C460-000111 | C460-000111-Online | 1 70MM | ||
| 7 | Knob, Latch | C463-000020 | C463-000020-Online | |||
| 8 | Spring,Torsion | V452-000360 | V452-000360-Online | |||
| 9 | Spring,Torsion | V452-000350 | V452-000350-Online | |||
| 10 | Cable,Bowden | V430-002350 | V430-002350-Online | 1 860+104 | ||
| 11 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 2 3N6 | ||
| 12 | Switch, Ignition | 163400-48030 | 163400-48030-Online | |||
| 13 | Tube | V475-007500 | V475-007500-Online | |||
| 14 | Clip | 159112-09961 | 159112-09961-Online | 1 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 29 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Goggle | X690-000080 | X690-000080-Online | 1 SI CHINA, Z87.1 | ||
| 2 | Saw,Bush Cutter | X405-000001 | X405-000001-Online | 1 3*255*25.4*T2.0 | ||
| 3 | Cutter,Asm Line | X047-001070 | X047-001070-Online | 1 B6 M10L | ||
| 4 | Harness, Shoulder | C062-000511 | C062-000511-Online | |||
| 5 | Tool,Wrench | X602-000020 | X602-000020-Online | 1 17*19 L200 | ||
| 6 | Spanner 8*10 | 895112-00330 | 895112-00330-Online | |||
| 7 | Tool,L Wrench | X605-000100 | X605-000100-Online | 1 4MM M5 | ||
| 8 | Tool,Bar | X606-000080 | X606-000080-Online | 1 5*120 | ||
| 9 | Bag, Tool | 898510-07130 | 898510-07130-Online | |||
| 10 | Blade Cover | P021-034750 | P021-034750-Online | 1 | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 31 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | Case | P022-024670 | P022-024670-Online | ||
| 2 | + | Line Holder | P022-024660 | P022-024660-Online | ||
| 3 | + | Eyelet | P022-000710 | P022-000710-Online | 2 T4 | 4 | + | REFER | |
| 5 | + | Cover | P022-024640 | P022-024640-Online | ||
| 6 | + | Spring | P022-035500 | P022-035500-Online | ||
| 7 | + | Knob | P022-024620 | P022-024620-Online | ||
| 9 | + | Nut | P022-023180 | P022-023180-Online | 1 | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed | NYLON LINE CUTTER |
Page 32 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | Bearing, Needle | 100012-12331 | 100012-12331-Online | |||
| 2 | Pin, Piston | 100013-00410 | 100013-00410-Online | |||
| 2 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 6 | Crankcase Kit | 100204-42230 | 100204-42230-Online | |||
| 4 | Oilseal | 100212-27930 | 100212-27930-Online | |||
| 4 | Oilseal | 100213-02830 | 100213-02830-Online | |||
| 4 | Gasket, Crankcase | 100242-42230 | 100242-42230-Online | |||
| 4 | Gasket, Cyl. Base | 101010-42231 | 101010-42231-Online | |||
| 2 | Cylinder | 101011-47530 | 101011-47530-Online | |||
| 2 | Cover, Cylinder (Bs) | 101514-42230 | 101514-42230-Online | |||
| 2 | Plate, Guide | 101534-42231 | 101534-42231-Online | |||
| 8 | Carburetor | 123000-47533 | 123000-47533-Online | |||
| 10 | Carburetor | 123000-47533 | 123000-47533-Online | |||
| 12 | Screw, Pump Cover | 123110-03930 | 123110-03930-Online | |||
| 12 | Diaphragm, Fuel | 123112-15030 | 123112-15030-Online | PUMP | ||
| 12 | Spring, Thr. Rtn. | 123113-47530 | 123113-47530-Online | |||
| 12 | Screw | 123114-38830 | 123114-38830-Online | |||
| 12 | Valve, Throttle | 123116-10530 | 123116-10530-Online | |||
| 12 | Needle, Idle | 123118-40430 | 123118-40430-Online | |||
| 12 | Spring, Needle | 123119-22130 | 123119-22130-Online | |||
| 12 | Needle, High Speed | 123120-47530 | 123120-47530-Online | |||
| 12 | Spring, Needle | 123121-22130 | 123121-22130-Online | |||
| 12 | Spring, Meter. Lever | 123122-03660 | 123122-03660-Online | |||
| 12 | Lever, Metering | 123123-03930 | 123123-03930-Online | |||
| 12 | Cover, Fuel Pump | 123124-24430 | 123124-24430-Online | |||
| 12 | Gasket, Fuel Pump | 123125-15030 | 123125-15030-Online | |||
| 12 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |||
| 12 | Clip, Throttle Shaft | 123127-03930 | 123127-03930-Online | |||
| 12 | Screw | 123130-02960 | 123130-02960-Online | |||
| 12 | Spring, Idle Adjust | 123133-06320 | 123133-06320-Online | |||
| 12 | Screw, Idle Adjust | 123134-04260 | 123134-04260-Online | |||
| 12 | Valve, Inlet Needle | 123137-04260 | 123137-04260-Online | |||
| 12 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |||
| 12 | Gasket, M. Diaphragm | 123140-03930 | 123140-03930-Online | |||
| 12 | Cover, M. Diaphragm | 123142-03930 | 123142-03930-Online | |||
| 12 | Plug, Welch | 123146-10631 | 123146-10631-Online | |||
| 12 | Plug, Cup | 123146-17330 | 123146-17330-Online | |||
| 12 | Washer | 123149-26030 | 123149-26030-Online | |||
| 12 | Screen | 123168-10631 | 123168-10631-Online | |||
| 12 | Ring, Retaining | 123169-10630 | 123169-10630-Online | |||
| 12 | Swivel | 123172-26030 | 123172-26030-Online | |||
| 12 | Clip | 123173-07930 | 123173-07930-Online | |||
| 12 | Plate | 129006-43130 | 129006-43130-Online | 10 | Part No | Part descrition | Page | ||
| 10 | Gasket, Intake | 130016-42231 | 130016-42231-Online | |||
| 10 | Insulator | 130017-43130 | 130017-43130-Online | |||
| 10 | Case, Air Cleaner | 130301-43130 | 130301-43130-Online | |||
| 10 | Cover Assy, Air Cln. | 130302-43132 | 130302-43132-Online | |||
| 10 | Filter, Air | 130310-43130 | 130310-43130-Online | |||
| 10 | Screw | 130415-40630 | 130415-40630-Online | |||
| 10 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | |||
| 14 | Tank, Fuel | 131010-46931 | 131010-46931-Online | |||
| 14 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |||
| 14 | Clip, Fuel Cap | 131051-56030 | 131051-56030-Online | |||
| 14 | Vent Assembly, Fuel | 131300-56431 | 131300-56431-Online | |||
| 14 | Cover, Vent | 131328-40630 | 131328-40630-Online | |||
| 14 | Bracket,Fueltank(Bl) | 131910-43130 | 131910-43130-Online | |||
| 14 | Cushion | 131923-11120 | 131923-11120-Online | |||
| 14 | Cushion | 131924-43130 | 131924-43130-Online | |||
| 14 | Grommet | 132115-44330 | 132115-44330-Online | |||
| 14 | Gasket, Muffler | 145510-42231 | 145510-42231-Online | |||
| 16 | Muffler | 145610-47530 | 145610-47530-Online | |||
| 16 | Gasket, Muffler Lid | 145866-43131 | 145866-43131-Online | |||
| 16 | Lid, Muffler | 145867-47530 | 145867-47530-Online | |||
| 16 | Grommet | 156112-40630 | 156112-40630-Online | |||
| 8 | Coil,Ignition | 156601-12921 | 156601-12921-Online | |||
| 6 | Lead, Ground | 156635-43130 | 156635-43130-Online | |||
| 6 | Flywheel | 156801-42230 | 156801-42230-Online | |||
| 6 | Plug, Spark (Bpm-7A) | 159010-10630 | 159010-10630-Online | |||
| 6 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | |||
| 6 | Cap, Spark Plug | 159012-01620 | 159012-01620-Online | |||
| 6 | Clip | 159112-09961 | 159112-09961-Online | |||
| 24 | Guard, Top | 159905-43130 | 159905-43130-Online | |||
| 2 | Lead | 162021-42230 | 162021-42230-Online | |||
| 6 | Switch, Ignition | 163400-48030 | 163400-48030-Online | |||
| 24 | Washer | 175049-03920 | 175049-03920-Online | |||
| 6 | Washer | 177214-41030 | 177214-41030-Online | |||
| 18 | Drum, Starter | 177215-43130 | 177215-43130-Online | |||
| 18 | Spring, Rewind | 177220-40630 | 177220-40630-Online | |||
| 18 | Rope, Starter | 177226-01110 | 177226-01110-Online | |||
| 18 | Grip, Starter | 177228-11120 | 177228-11120-Online | |||
| 18 | Screw | 177236-40630 | 177236-40630-Online | |||
| 18 | Clip, Starter Rope | 177246-11120 | 177246-11120-Online | |||
| 18 | Rod, Choke | 178510-47530 | 178510-47530-Online | |||
| 10 | Shutter, Choke | 178515-43130 | 178515-43130-Online | |||
| 10 | Spacer | 178516-00830 | 178516-00830-Online | |||
| 10 | Grommet | 178810-05230 | 178810-05230-Online | |||
| 10 | Clip | 224924-52930 | 224924-52930-Online | 22 | Part No | Part descrition | Page | ||
| 22 | Washer | 605014-54230 | 605014-54230-Online | |||
| 22 | Shaft, Drive | 610011-06230 | 610011-06230-Online | |||
| 22 | Gear Set | 610300-56930 | 610300-56930-Online | |||
| 20 | Shaft, P.T.O. | 610310-56933 | 610310-56933-Online | |||
| 20 | Fixture,Blade | 610313-52132 | 610313-52132-Online | |||
| 20 | Fixture,Blade | 610313-52932 | 610313-52932-Online | |||
| 20 | Plate, Adapter (L) | 610314-52130 | 610314-52130-Online | |||
| 20 | Nut 10 | 610320-52130 | 610320-52130-Online | |||
| 20 | Plate, Cup | 610352-56830 | 610352-56830-Online | |||
| 20 | Bolt 8* 8 | 610434-50031 | 610434-50031-Online | |||
| 20 | Washer | 610444-56830 | 610444-56830-Online | |||
| 20 | Plate, Cover | 699229-56830 | 699229-56830-Online | |||
| 20 | Label, Choke | 890121-47530 | 890121-47530-Online | |||
| 10 | Label, Caution | 890152-04930 | 890152-04930-Online | |||
| 22 | Label,Caution | 890617-43130 | 890617-43130-Online | |||
| 22 | Spanner 8*10 | 895112-00330 | 895112-00330-Online | |||
| 26 | Bag, Tool | 898510-07130 | 898510-07130-Online | |||
| 26 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | |||
| 2 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | |||
| 16 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | |||
| 10 | Bolt, H.S. 5*30 | 900162-05030 | 900162-05030-Online | |||
| 4 | Screw 4*6 | 900220-04006 | 900220-04006-Online | |||
| 20 | Screw 4*10 | 900238-04010 | 900238-04010-Online | |||
| 8 | Screw 4*10 | 900238-04010 | 900238-04010-Online | |||
| 16 | Screw 5*10 | 900238-05010 | 900238-05010-Online | |||
| 2 | Screw 5*10 | 900238-05010 | 900238-05010-Online | |||
| 6 | Screw 5*14 | 900238-05014 | 900238-05014-Online | |||
| 2 | Screw | 900238-05014 | 900238-05014-Online | |||
| 14 | Screw 5*14 | 900238-05014 | 900238-05014-Online | |||
| 16 | Screw 5*20 | 900238-05020 | 900238-05020-Online | |||
| 6 | Screw 5*10 | 900242-05010 | 900242-05010-Online | |||
| 20 | Screw 5*57 | 900242-05057 | 900242-05057-Online | |||
| 10 | Screw 5*12 | 900252-05012 | 900252-05012-Online | |||
| 20 | Screw 4*16 | 900256-04016 | 900256-04016-Online | |||
| 24 | Nut 5 | 900500-00005 | 900500-00005-Online | |||
| 10 | Nut 5 | 900500-00005 | 900500-00005-Online | |||
| 24 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | |||
| 18 | Nut 10 (3N *1.25) | 900503-00010 | 900503-00010-Online | |||
| 22 | Washer 6 | 900600-00006 | 900600-00006-Online | |||
| 6 | Washer 10 | 900600-00010 | 900600-00010-Online | |||
| 6 | Washer | 900603-50008 | 900603-50008-Online | 20 | SRM-4605/U | Copyright © 2020 YAMABIKO CORPORATION All Right Reserved | Index-1 |
Page 33 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 6 | Circlip 12 | 900701-00012 | 900701-00012-Online | |||
| 8 | Circlip 12 | 900701-00012 | 900701-00012-Online | |||
| 20 | Circlip 28 | 900702-00028 | 900702-00028-Online | |||
| 8 | Circlip 28 | 900702-00028 | 900702-00028-Online | |||
| 20 | Circlip 32 | 900702-00032 | 900702-00032-Online | |||
| 20 | Circlip 35 | 900702-00035 | 900702-00035-Online | |||
| 4 | Ring, Retaining(In) | 900702-00045 | 900702-00045-Online | |||
| 8 | O Ring | 900720-00004 | 900720-00004-Online | |||
| 10 | O-Ring 12 | 900720-00012 | 900720-00012-Online | |||
| 20 | Bearing, Ball 6001 | 900800-06001 | 900800-06001-Online | |||
| 20 | Bearing, Ball 6001 | 900803-06001 | 900803-06001-Online | |||
| 20 | Bearing, Ball 6001 | 900807-06001 | 900807-06001-Online | |||
| 8 | Bearing, Ball 629 | 900810-00629 | 900810-00629-Online | |||
| 20 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | |||
| 4 | Bearing, Ball 6201 | 900812-06201 | 900812-06201-Online | |||
| 20 | Bolt Hsh | 91118-04020 | 91118-04020-Online | |||
| 18 | Bolt | 91118-05012 | 91118-05012-Online | |||
| 8 | Bolt | 91118-05022 | 91118-05022-Online | |||
| 20 | Bolt | 91118-05022 | 91118-05022-Online | |||
| 22 | Bolt | 91118-05025 | 91118-05025-Online | |||
| 8 | Bolt | 91118-05028 | 91118-05028-Online | |||
| 8 | Bolt | 91118-05030 | 91118-05030-Online | |||
| 22 | Bolt | 91118-06030 | 91118-06030-Online | |||
| 20 | Bolt | 91119-05030 | 91119-05030-Online | |||
| 24 | Bearing Ball | 94035-36201 | 94035-36201-Online | |||
| 4 | Crankshaft Assy | A011-001330 | A011-001330-Online | |||
| 2 | Starter,Recoil | A051-000170 | A051-000170-Online | |||
| 18 | Starter Pully Assy | A052-000370 | A052-000370-Online | |||
| 18 | Cover,Fan | A172-002550 | A172-002550-Online | |||
| 8 | Cover,Muffler | A320-000890 | A320-000890-Online | |||
| 16 | Strainer, Fuel | A369-000450 | A369-000450-Online | |||
| 14 | Ratchet | A514-000080 | A514-000080-Online | |||
| 18 | Arm,Clutch | A553-000040 | A553-000040-Online | |||
| 6 | Drum,Clutch | A556-000181 | A556-000181-Online | |||
| 8 | Shaft,Clutch | A557-000000 | A557-000000-Online | |||
| 6 | Spring, Clutch | A566-000250 | A566-000250-Online | |||
| 6 | Harness, Shoulder | C062-000511 | C062-000511-Online | |||
| 26 | Handle,Front | C400-000000 | C400-000000-Online | |||
| 22 | Grip,Handle | C403-000031 | C403-000031-Online | |||
| 22 | Control, Throttle | C450-000270 | C450-000270-Online | |||
| 24 | Lockout, Throttle | C460-000111 | C460-000111-Online | |||
| 24 | Knob, Latch | C463-000020 | C463-000020-Online | |||
| 24 | Shield,Blade | C550-000082 | C550-000082-Online | |||
| 20 | Shield,Blade | C550-000092 | C550-000092-Online | 20 | Part No | Part descrition | Page | ||
| 20 | Plate, Shield | C552-000200 | C552-000200-Online | |||
| 20 | Knife,Cord | C554-000001 | C554-000001-Online | |||
| 20 | Hanger,Harness | C624-000030 | C624-000030-Online | |||
| 22 | Diaphragm, Metering | P003-001850 | P003-001850-Online | |||
| 12 | Screw | P003-005400 | P003-005400-Online | |||
| 12 | Shaft Assy, Throttle | P003-005410 | P003-005410-Online | |||
| 12 | Case,Gear | P021-012593 | P021-012593-Online | |||
| 20 | Bracket Asy, Handle | P021-012742 | P021-012742-Online | |||
| 22 | Grip Asy,F-Handle | P021-014090 | P021-014090-Online | |||
| 24 | Piston Kit | P021-015771 | P021-015771-Online | |||
| 2 | Blade Cover | P021-034750 | P021-034750-Online | |||
| 26 | Shield Kit | P021-045120 | P021-045120-Online | |||
| 20 | Pipe,Main | P021-046650 | P021-046650-Online | |||
| 22 | Eyelet | P022-000710 | P022-000710-Online | |||
| 28 | Knob | P022-024620 | P022-024620-Online | |||
| 28 | Cover | P022-024640 | P022-024640-Online | |||
| 28 | Line Holder | P022-024660 | P022-024660-Online | |||
| 28 | Case | P022-024670 | P022-024670-Online | |||
| 28 | Spring | P022-035500 | P022-035500-Online | |||
| 28 | Case, Starter | P022-037520 | P022-037520-Online | 18 | REFER | PRODUCT CATALOGUE | ||
| 28 | Gasket,Intake | V103-001460 | V103-001460-Online | |||
| 10 | Bolt,5 | V203-001980 | V203-001980-Online | |||
| 20 | Knob,Fastener | V299-000110 | V299-000110-Online | |||
| 22 | Washer,Circular 10 | V307-000050 | V307-000050-Online | |||
| 2 | Collar,5 | V353-000090 | V353-000090-Online | |||
| 22 | Cushion | V420-000980 | V420-000980-Online | |||
| 8 | Cable,Bowden | V430-002350 | V430-002350-Online | |||
| 24 | Spring,Torsion | V452-000350 | V452-000350-Online | |||
| 24 | Spring,Torsion | V452-000360 | V452-000360-Online | |||
| 24 | Return Spring | V452-000520 | V452-000520-Online | |||
| 18 | Spring,Torsion | V452-001310 | V452-001310-Online | |||
| 20 | Spring,Flat | V453-000100 | V453-000100-Online | |||
| 6 | Pipe | V471-000760 | V471-000760-Online | |||
| 14 | Pipe | V471-002130 | V471-002130-Online | |||
| 14 | Tube | V475-007500 | V475-007500-Online | |||
| 24 | Clip | V490-000440 | V490-000440-Online | |||
| 10 | Clip | V490-001230 | V490-001230-Online | |||
| 14 | Clip | V490-001240 | V490-001240-Online | |||
| 14 | Ring,End | V580-000010 | V580-000010-Online | |||
| 2 | Ring | V583-000140 | V583-000140-Online | |||
| 18 | Cutter,Asm Line | X047-001070 | X047-001070-Online | |||
| 26 | Cutter,Asm Line | X047-001070 | X047-001070-Online | 28 | Part No | Part descrition | Page | ||
| 26 | Label,Echo | X502-000780 | X502-000780-Online | |||
| 18 | Label,Echo | X547-001110 | X547-001110-Online | |||
| 8 | Tool,Wrench | X602-000020 | X602-000020-Online | |||
| 26 | Tool,L Wrench | X605-000100 | X605-000100-Online | |||
| 26 | Tool,Bar | X606-000080 | X606-000080-Online | |||
| 26 | Goggle | X690-000080 | X690-000080-Online | 26 | SRM-4605/U | Copyright © 2020 YAMABIKO CORPORATION All Right Reserved | Index-2 |
Source PDF: 20240226-670-SRM-4605_U_20_spec.pdf. Generated 2026-06-25 14:41.
