Echo SRM-4605 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: SRM-4605-Online
Source Pages

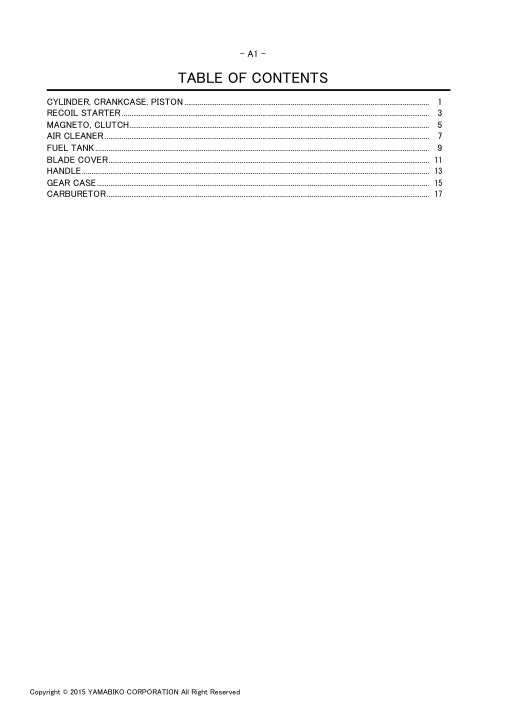

Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.

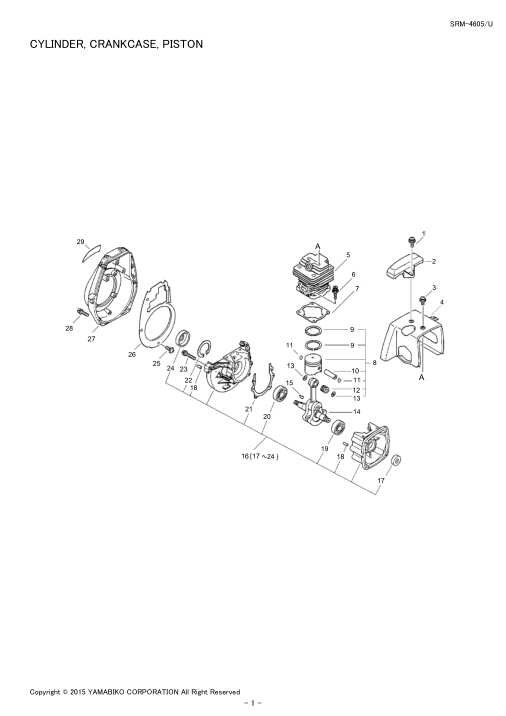

Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Screw 5*14 | 900238-05014 | 900238-05014-Online | 3 5*14 | ||
| 2 | Guard, Top | 159905-43130 | 159905-43130-Online | |||
| 3 | Screw 5*10 | 900238-05010 | 900238-05010-Online | 1 5*10 | ||
| 4 | Cover, Cylinder (Bs) | 101514-42230 | 101514-42230-Online | |||
| 5 | Cylinder | 101011-47530 | 101011-47530-Online | |||
| 6 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 4 5*20 W,SW | ||
| 7 | Gasket, Cyl. Base | 101010-42231 | 101010-42231-Online | |||
| 8 | Piston Kit | P021-015770 | P021-015770-Online | 1 | 9 | + 100011-43230 | RING, PISTON | ||
| 14 | Crankshaft Assy | 100100-43130 | 100100-43130-Online | |||
| 15 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 16 | Crankcase Kit | 100204-42230 | 100204-42230-Online | 1 | 17 | + 100212-27930 | OILSEAL | ||
| 25 | Screw 4*10 | 900238-04010 | 900238-04010-Online | 4 4*10 | ||
| 26 | Plate, Guide | 101534-42230 | 101534-42230-Online | |||
| 27 | Cover, Fan (Bs) | 101511-42230 | 101511-42230-Online | |||
| 28 | Bolt | 91118-05025 | 91118-05025-Online | 4 CM-5*25 | ||
| 29 | Label,Echo | X547-001110 | X547-001110-Online | 1 ECHO+ | SRM-4605 | CYLINDER, CRANKCASE, PISTON | SRM-4605/U |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | Starter Pully Assy | A052-000370 | A052-000370-Online | 1 | 6 | + 900700-00004 | E-RING 4 | ||
| 10 | Nut 8 (3N) | 900502-00008 | 900502-00008-Online | 1 3N8 | ||
| 11 | Starter,Recoil | A051-000170 | A051-000170-Online | 1 | 12 | + 177236-40630 | SCREW | ||
| 20 | Bolt | 91118-04020 | 91118-04020-Online | 4 CM-4*20 | ||
| 21 | Label,Echo | X502-000450 | X502-000450-Online | 1 | RECOIL STARTER | SRM-4605/U | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Plug, Spark (Bpm-7A) | 159010-10630 | 159010-10630-Online | 1 BPM-7A | ||
| 2 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | |||
| 3 | Cap, Spark Plug | 159012-01620 | 159012-01620-Online | |||
| 4 | Grommet | 156112-40630 | 156112-40630-Online | |||
| 5 | Lead | 162021-42230 | 162021-42230-Online | |||
| 6 | Lead, Ground | 156635-43130 | 156635-43130-Online | |||
| 7 | Screw 5*10 | 900238-05010 | 900238-05010-Online | 1 5*10 | ||
| 8 | Coil,Ignition | 156601-12920 | 156601-12920-Online | |||
| 9 | Screw 5*20 | 900238-05020 | 900238-05020-Online | 2 5*20 | ||
| 10 | Flywheel | 156801-42230 | 156801-42230-Online | |||
| 11 | Washer 10 | 900600-00010 | 900600-00010-Online | 1 10 | ||
| 12 | Washer, Spring 10 | 900605-00010 | 900605-00010-Online | 1 10 | ||
| 13 | Nut 10 (3N *1.25) | 900503-00010 | 900503-00010-Online | 1 3N10*P1.25 | ||
| 14 | Washer | 175049-03920 | 175049-03920-Online | |||
| 15 | Shoe, Clutch | 175009-42231 | 175009-42231-Online | |||
| 16 | Spring, Clutch | 175018-42230 | 175018-42230-Online | |||
| 17 | Washer | 175048-03920 | 175048-03920-Online | |||
| 18 | Bolt, Clutch | 175046-06230 | 175046-06230-Online | |||
| 19 | Drum, Clutch | 175005-43130 | 175005-43130-Online | |||
| 20 | Circlip 28 | 900702-00028 | 900702-00028-Online | 1 CR-28 | ||
| 21 | Bearing, Ball 6001 | 900807-06001 | 900807-06001-Online | 2 6001V(LB) | ||
| 22 | Circlip 12 | 900701-00012 | 900701-00012-Online | 1 CS-12 | ||
| 23 | Bolt | 91118-05020 | 91118-05020-Online | 4 CM-5*20 | ||
| 24 | Case,Clutch Asy | P021-012920 | P021-012920-Online | 1 SRM-4605 | 25 | + 610205-43131 | CASE, CLUTCH DRUM | ||
| 31 | Washer 6 | 900600-00006 | 900600-00006-Online | 2 6 | MAGNETO, CLUTCH | SRM-4605/U | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 4 | Nut 5 | 900500-00005 | 900500-00005-Online | 2 5 | ||
| 5 | Gasket, Intake | 130016-42231 | 130016-42231-Online | |||
| 6 | Insulator | 130017-43130 | 130017-43130-Online | |||
| 7 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 2 5*25 W,SW | ||
| 8 | Gasket | 130016-06231 | 130016-06231-Online | |||
| 9 | Carburetor Assy | 123000-47532 | 123000-47532-Online | 1 WT-120B | ||
| 10 | Rod, Choke | 178510-47530 | 178510-47530-Online | |||
| 11 | Case, Air Cleaner | 130301-43130 | 130301-43130-Online | 1 | 12 | + 178810-05230 | GROMMET | ||
| 13 | Shutter, Choke | 178515-43130 | 178515-43130-Online | |||
| 14 | Spacer | 178516-00830 | 178516-00830-Online | 2 5.2*8*0.8T | ||
| 15 | Plate | 129006-43130 | 129006-43130-Online | |||
| 16 | Screw 5*57 | 900242-05057 | 900242-05057-Online | 2 5*57 | ||
| 17 | Filter, Air | 130310-43130 | 130310-43130-Online | |||
| 18 | Cover Assy, Air Cln. | 130302-43132 | 130302-43132-Online | 1 | 19 | + 900720-00004 | O RING | ||
| 21 | Label, Choke | 890121-47530 | 890121-47530-Online | 1 | AIR CLEANER | SRM-4605/U | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 4 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | 1 | 5 | + 131016-55830 | GASKET, FUEL CAP | ||
| 7 | Cushion | 131923-11120 | 131923-11120-Online | |||
| 8 | Tank, Fuel | 131010-46931 | 131010-46931-Online | |||
| 9 | Cushion | 131924-43130 | 131924-43130-Online | |||
| 10 | Bracket,Fueltank(Bl) | 131910-43130 | 131910-43130-Online | |||
| 11 | Screw 5*14 | 900238-05014 | 900238-05014-Online | 2 5*14 | ||
| 12 | Cover, Vent | 131328-40630 | 131328-40630-Online | |||
| 13 | Vent Assembly, Fuel | 131300-56431 | 131300-56431-Online | |||
| 14 | Clip | 132013-26630 | 132013-26630-Online | 1 6.5MM | ||
| 15 | Pipe, Fuel (Inner) | 132010-43130 | 132010-43130-Online | 1 NBR | ||
| 17 | Strainer, Fuel | 131205-19831 | 131205-19831-Online | |||
| 20 | Gasket, Muffler | 145510-42231 | 145510-42231-Online | |||
| 22 | Muffler | 145610-47530 | 145610-47530-Online | |||
| 23 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 2 5*20 W,SW | ||
| 25 | Gasket, Muffler Lid | 145866-43131 | 145866-43131-Online | |||
| 26 | Lid, Muffler | 145867-47530 | 145867-47530-Online | |||
| 27 | Screw 4*10 | 900238-04010 | 900238-04010-Online | 7 4*10 | ||
| 28 | Cover,Muffler | A320-000890 | A320-000890-Online | |||
| 29 | Screw 5*14 | 900238-05014 | 900238-05014-Online | 1 5*14 | FUEL TANK | SRM-4605/U | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Tool,L Wrench | X605-000100 | X605-000100-Online | 1 4MM M5 | ||
| 2 | Spanner 8*10 | 895112-00330 | 895112-00330-Online | |||
| 3 | Tool,Wrench | X602-000020 | X602-000020-Online | 1 17*19 L200 | ||
| 4 | Tool,Bar | X606-000080 | X606-000080-Online | 1 5*120 | ||
| 5 | Goggle | X690-000050 | X690-000050-Online | 1 GOGGLE + | ||
| 6 | Bag, Tool | 898510-07130 | 898510-07130-Online | |||
| 7 | Scabbard,Blade | P021-007470 | P021-007470-Online | |||
| 25 | Shield Asy | P021-012621 | P021-012621-Online | 1 | 26 | + 699013-52130 | PLATE, SHIELD |

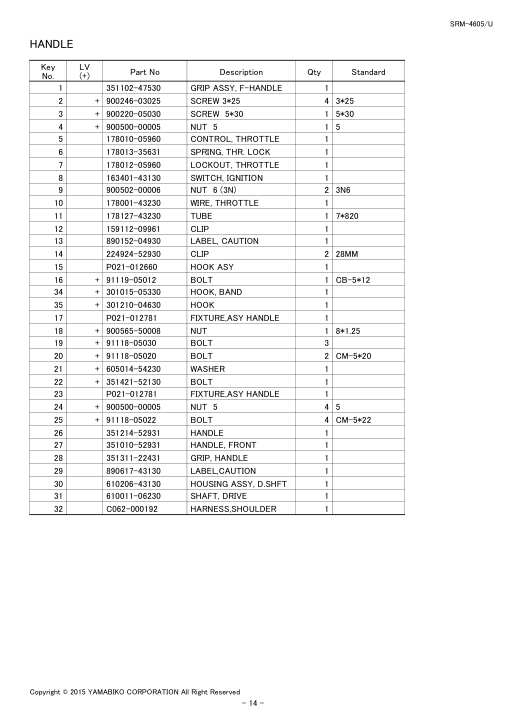

Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|

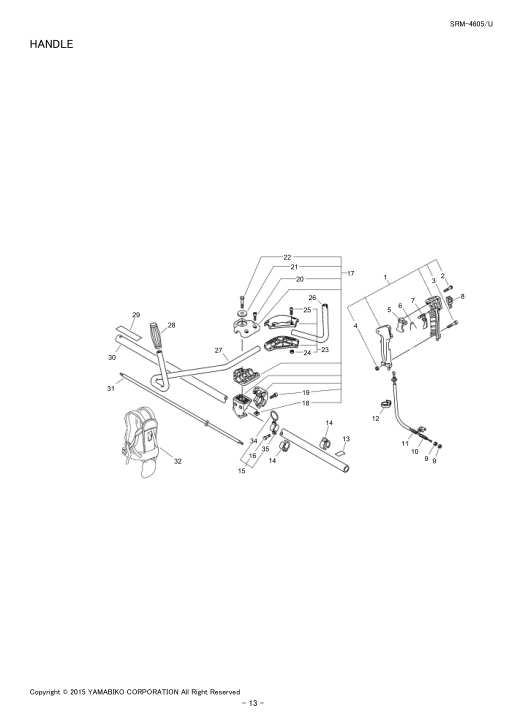

| 1 | Grip Assy, F-Handle | 351102-47530 | 351102-47530-Online | 1 | 2 | + 900246-03025 | SCREW 3*25 | ||
| 5 | Control, Throttle | 178010-05960 | 178010-05960-Online | |||
| 6 | Spring, Thr. Lock | 178013-35631 | 178013-35631-Online | |||
| 7 | Lockout, Throttle | 178012-05960 | 178012-05960-Online | |||
| 8 | Switch, Ignition | 163401-43130 | 163401-43130-Online | |||
| 9 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 2 3N6 | ||
| 10 | Wire, Throttle | 178001-43230 | 178001-43230-Online | |||
| 11 | Tube | 178127-43230 | 178127-43230-Online | 1 7*820 | ||
| 12 | Clip | 159112-09961 | 159112-09961-Online | |||
| 13 | Label, Caution | 890152-04930 | 890152-04930-Online | |||
| 14 | Clip | 224924-52930 | 224924-52930-Online | 2 28MM | ||
| 15 | Hook Asy | P021-012660 | P021-012660-Online | 1 | 16 | + 91119-05012 | BOLT | ||
| 17 | Fixture,Asy Handle | P021-012781 | P021-012781-Online | 1 | 18 | + 900565-50008 | NUT | ||
| 23 | Fixture,Asy Handle | P021-012781 | P021-012781-Online | 1 | 24 | + 900500-00005 | NUT 5 | ||
| 26 | Handle | 351214-52931 | 351214-52931-Online | |||
| 27 | Handle, Front | 351010-52931 | 351010-52931-Online | |||
| 28 | Grip, Handle | 351311-22431 | 351311-22431-Online | |||
| 29 | Label,Caution | 890617-43130 | 890617-43130-Online | |||
| 30 | Housing Assy, D.Shft | 610206-43130 | 610206-43130-Online | |||
| 31 | Shaft, Drive | 610011-06230 | 610011-06230-Online | |||
| 32 | Harness,Shoulder | C062-000192 | C062-000192-Online | 1 | HANDLE | SRM-4605/U | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Case,Gear | P021-012591 | P021-012591-Online | 1 | 2 | + 610320-52130 | NUT 10 |
Page 21 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | Bearing, Needle | 100012-12331 | 100012-12331-Online | |||
| 2 | Pin, Piston | 100013-00410 | 100013-00410-Online | |||
| 2 | Crankshaft Assy | 100100-43130 | 100100-43130-Online | |||
| 2 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 2 | Crankcase Kit | 100204-42230 | 100204-42230-Online | |||
| 2 | Oilseal | 100212-27930 | 100212-27930-Online | |||
| 2 | Oilseal | 100213-02830 | 100213-02830-Online | |||
| 2 | Pin, Dowel | 100215-02830 | 100215-02830-Online | |||
| 2 | Gasket, Crankcase | 100242-42230 | 100242-42230-Online | |||
| 2 | Gasket, Cyl. Base | 101010-42231 | 101010-42231-Online | |||
| 2 | Cylinder | 101011-47530 | 101011-47530-Online | |||
| 2 | Cover, Fan (Bs) | 101511-42230 | 101511-42230-Online | |||
| 2 | Cover, Cylinder (Bs) | 101514-42230 | 101514-42230-Online | |||
| 2 | Plate, Guide | 101534-42230 | 101534-42230-Online | |||
| 2 | Carburetor Assy | 123000-47532 | 123000-47532-Online | |||
| 8 | Carburetor Assy | 123000-47532 | 123000-47532-Online | |||
| 18 | Screw, Pump Cover | 123110-03930 | 123110-03930-Online | |||
| 18 | Diaphragm, Fuel Pump | 123112-15030 | 123112-15030-Online | |||
| 18 | Spring, Thr. Rtn. | 123113-47530 | 123113-47530-Online | |||
| 18 | Screw | 123114-38830 | 123114-38830-Online | |||
| 18 | Valve, Throttle | 123116-10530 | 123116-10530-Online | |||
| 18 | Shaft, Throttle | 123117-05020 | 123117-05020-Online | |||
| 18 | Needle, Idle | 123118-40430 | 123118-40430-Online | |||
| 18 | Spring, Needle | 123119-22130 | 123119-22130-Online | |||
| 18 | Needle, High Speed | 123120-47530 | 123120-47530-Online | |||
| 18 | Spring, Needle | 123121-22130 | 123121-22130-Online | |||
| 18 | Spring, Meter. Lever | 123122-47530 | 123122-47530-Online | |||
| 18 | Lever, Metering | 123123-03930 | 123123-03930-Online | |||
| 18 | Cover, Fuel Pump | 123124-24430 | 123124-24430-Online | |||
| 18 | Gasket, Fuel Pump | 123125-15030 | 123125-15030-Online | |||
| 18 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |||
| 18 | Clip, Throttle Shaft | 123127-03930 | 123127-03930-Online | |||
| 18 | Screw | 123130-02960 | 123130-02960-Online | |||
| 18 | Spring, Idle Adjust | 123133-06320 | 123133-06320-Online | |||
| 18 | Screw, Idle Adjust | 123134-04260 | 123134-04260-Online | |||
| 18 | Valve, Inlet Needle | 123137-04260 | 123137-04260-Online | |||
| 18 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |||
| 18 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | |||
| 18 | Gasket, M. Diaphragm | 123140-03930 | 123140-03930-Online | |||
| 18 | Diaphragm, Metering | 123141-03930 | 123141-03930-Online | |||
| 18 | Cover, M. Diaphragm | 123142-03930 | 123142-03930-Online | |||
| 18 | Plug, Welch | 123146-10631 | 123146-10631-Online | |||
| 18 | Washer | 123149-26030 | 123149-26030-Online | |||
| 18 | Swivel | 123172-26030 | 123172-26030-Online | 18 | Part No | Part descrition | Page | ||
| 18 | Plate | 129006-43130 | 129006-43130-Online | |||
| 8 | Gasket | 130016-06231 | 130016-06231-Online | |||
| 8 | Gasket, Intake | 130016-42231 | 130016-42231-Online | |||
| 8 | Insulator | 130017-43130 | 130017-43130-Online | |||
| 8 | Case, Air Cleaner | 130301-43130 | 130301-43130-Online | |||
| 8 | Cover Assy, Air Cln. | 130302-43132 | 130302-43132-Online | |||
| 8 | Filter, Air | 130310-43130 | 130310-43130-Online | |||
| 8 | Screw | 130415-40630 | 130415-40630-Online | |||
| 8 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | |||
| 10 | Tank, Fuel | 131010-46931 | 131010-46931-Online | |||
| 10 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |||
| 10 | Clip, Fuel Cap | 131051-56030 | 131051-56030-Online | |||
| 10 | Strainer, Fuel | 131205-19831 | 131205-19831-Online | |||
| 10 | Vent Assembly, Fuel | 131300-56431 | 131300-56431-Online | |||
| 10 | Cover, Vent | 131328-40630 | 131328-40630-Online | |||
| 10 | Bracket,Fueltank(Bl) | 131910-43130 | 131910-43130-Online | |||
| 10 | Cushion | 131923-11120 | 131923-11120-Online | |||
| 10 | Cushion | 131924-43130 | 131924-43130-Online | |||
| 10 | Pipe, Fuel (Inner) | 132010-43130 | 132010-43130-Online | |||
| 10 | Clip | 132013-26630 | 132013-26630-Online | |||
| 10 | Gasket, Muffler | 145510-42231 | 145510-42231-Online | |||
| 10 | Muffler | 145610-47530 | 145610-47530-Online | |||
| 10 | Gasket, Muffler Lid | 145866-43131 | 145866-43131-Online | |||
| 10 | Lid, Muffler | 145867-47530 | 145867-47530-Online | |||
| 10 | Grommet | 156112-40630 | 156112-40630-Online | |||
| 6 | Coil,Ignition | 156601-12920 | 156601-12920-Online | |||
| 6 | Lead, Ground | 156635-43130 | 156635-43130-Online | |||
| 6 | Flywheel | 156801-42230 | 156801-42230-Online | |||
| 6 | Plug, Spark (Bpm-7A) | 159010-10630 | 159010-10630-Online | |||
| 6 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | |||
| 6 | Cap, Spark Plug | 159012-01620 | 159012-01620-Online | |||
| 6 | Clip | 159112-09961 | 159112-09961-Online | |||
| 14 | Guard, Top | 159905-43130 | 159905-43130-Online | |||
| 2 | Lead | 162021-42230 | 162021-42230-Online | |||
| 6 | Switch, Ignition | 163401-43130 | 163401-43130-Online | |||
| 14 | Drum, Clutch | 175005-43130 | 175005-43130-Online | |||
| 6 | Shoe, Clutch | 175009-42231 | 175009-42231-Online | |||
| 6 | Spring, Clutch | 175018-42230 | 175018-42230-Online | |||
| 6 | Bolt, Clutch | 175046-06230 | 175046-06230-Online | |||
| 6 | Washer | 175048-03920 | 175048-03920-Online | |||
| 6 | Washer | 175049-03920 | 175049-03920-Online | |||
| 6 | Washer | 177214-41030 | 177214-41030-Online | |||
| 4 | Drum, Starter | 177215-43130 | 177215-43130-Online | |||
| 4 | Pawl, Starter | 177218-40630 | 177218-40630-Online | 4 | Part No | Part descrition | Page | ||
| 4 | Rope, Starter | 177226-01110 | 177226-01110-Online | |||
| 4 | Guide, Rope | 177227-05530 | 177227-05530-Online | |||
| 4 | Grip, Starter | 177228-11120 | 177228-11120-Online | |||
| 4 | Spring, Return | 177234-40630 | 177234-40630-Online | |||
| 4 | Screw | 177236-40630 | 177236-40630-Online | |||
| 4 | Clip, Starter Rope | 177246-11120 | 177246-11120-Online | |||
| 4 | Wire, Throttle | 178001-43230 | 178001-43230-Online | |||
| 14 | Control, Throttle | 178010-05960 | 178010-05960-Online | |||
| 14 | Lockout, Throttle | 178012-05960 | 178012-05960-Online | |||
| 14 | Spring, Thr. Lock | 178013-35631 | 178013-35631-Online | |||
| 14 | Tube | 178127-43230 | 178127-43230-Online | |||
| 14 | Rod, Choke | 178510-47530 | 178510-47530-Online | |||
| 8 | Shutter, Choke | 178515-43130 | 178515-43130-Online | |||
| 8 | Spacer | 178516-00830 | 178516-00830-Online | |||
| 8 | Grommet | 178810-05230 | 178810-05230-Online | |||
| 8 | Clip | 224924-52930 | 224924-52930-Online | |||
| 14 | Hook, Band | 301015-05330 | 301015-05330-Online | |||
| 14 | Hook | 301210-04630 | 301210-04630-Online | |||
| 14 | Handle, Front | 351010-52931 | 351010-52931-Online | |||
| 14 | Grip Assy, F-Handle | 351102-47530 | 351102-47530-Online | |||
| 14 | Handle | 351214-52931 | 351214-52931-Online | |||
| 14 | Grip, Handle | 351311-22431 | 351311-22431-Online | |||
| 14 | Bolt | 351421-52130 | 351421-52130-Online | |||
| 14 | Washer | 605014-54230 | 605014-54230-Online | |||
| 14 | Shaft, Drive | 610011-06230 | 610011-06230-Online | |||
| 14 | Case, Clutch Drum | 610205-43131 | 610205-43131-Online | |||
| 6 | Housing Assy, D.Shft | 610206-43130 | 610206-43130-Online | |||
| 14 | Gear Set | 610300-56930 | 610300-56930-Online | |||
| 16 | Shaft, P.T.O. | 610310-56931 | 610310-56931-Online | |||
| 16 | Fixture,Blade | 610313-52132 | 610313-52132-Online | |||
| 16 | Plate, Adapter (L) | 610314-52130 | 610314-52130-Online | |||
| 16 | Nut 10 | 610320-52130 | 610320-52130-Online | |||
| 16 | Plate, Cup | 610352-56830 | 610352-56830-Online | |||
| 16 | Bolt 8* 8 | 610434-50031 | 610434-50031-Online | |||
| 16 | Washer | 610444-56830 | 610444-56830-Online | |||
| 16 | Cushion | 610910-51830 | 610910-51830-Online | |||
| 6 | Holder, Main Pipe | 610922-43130 | 610922-43130-Online | |||
| 6 | Holder, Pipe | 610922-55630 | 610922-55630-Online | |||
| 6 | Shield,Blade | 699010-52931 | 699010-52931-Online | |||
| 12 | Plate, Shield | 699013-52130 | 699013-52130-Online | |||
| 12 | Knife | 699016-54530 | 699016-54530-Online | |||
| 12 | Plate, Cover | 699229-56830 | 699229-56830-Online | |||
| 16 | Label, Choke | 890121-47530 | 890121-47530-Online | |||
| 8 | Label, Caution | 890152-04930 | 890152-04930-Online | 14 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-1 |
Page 22 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 14 | Spanner 8*10 | 895112-00330 | 895112-00330-Online | |||
| 12 | Bag, Tool | 898510-07130 | 898510-07130-Online | |||
| 12 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | |||
| 2 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | |||
| 10 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | |||
| 8 | Bolt, H.S. 5*30 | 900162-05030 | 900162-05030-Online | |||
| 2 | Screw 5*30 | 900220-05030 | 900220-05030-Online | |||
| 14 | Screw 4*10 | 900238-04010 | 900238-04010-Online | |||
| 2 | Screw 4*10 | 900238-04010 | 900238-04010-Online | |||
| 10 | Screw 5*10 | 900238-05010 | 900238-05010-Online | |||
| 2 | Screw 5*10 | 900238-05010 | 900238-05010-Online | |||
| 6 | Screw 5*14 | 900238-05014 | 900238-05014-Online | |||
| 2 | Screw 5*14 | 900238-05014 | 900238-05014-Online | |||
| 10 | Screw 5*20 | 900238-05020 | 900238-05020-Online | |||
| 6 | Screw 5*10 | 900242-05010 | 900242-05010-Online | |||
| 16 | Screw 5*57 | 900242-05057 | 900242-05057-Online | |||
| 8 | Screw 3*25 | 900246-03025 | 900246-03025-Online | |||
| 14 | Nut 5 | 900500-00005 | 900500-00005-Online | |||
| 8 | Nut 5 | 900500-00005 | 900500-00005-Online | |||
| 12 | Nut 5 | 900500-00005 | 900500-00005-Online | |||
| 14 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | |||
| 14 | Nut 8 (3N) | 900502-00008 | 900502-00008-Online | |||
| 4 | Nut 10 (3N *1.25) | 900503-00010 | 900503-00010-Online | |||
| 14 | Washer 6 | 900600-00006 | 900600-00006-Online | |||
| 6 | Washer 10 | 900600-00010 | 900600-00010-Online | |||
| 6 | Washer 5 | 900603-00005 | 900603-00005-Online | |||
| 12 | Washer | 900603-50008 | 900603-50008-Online | |||
| 16 | Washer, Spring 10 | 900605-00010 | 900605-00010-Online | |||
| 6 | E-Ring 4 | 900700-00004 | 900700-00004-Online | |||
| 4 | Circlip 12 | 900701-00012 | 900701-00012-Online | |||
| 6 | Circlip 12 | 900701-00012 | 900701-00012-Online | |||
| 16 | Circlip 28 | 900702-00028 | 900702-00028-Online | |||
| 6 | Circlip 28 | 900702-00028 | 900702-00028-Online | |||
| 16 | Circlip 32 | 900702-00032 | 900702-00032-Online | |||
| 16 | Circlip 35 | 900702-00035 | 900702-00035-Online | |||
| 2 | O Ring | 900720-00004 | 900720-00004-Online | |||
| 8 | O-Ring 12 | 900720-00012 | 900720-00012-Online | |||
| 16 | Bearing | 900800-06001 | 900800-06001-Online | |||
| 16 | Bearing, Ball 6001 | 900803-06001 | 900803-06001-Online | |||
| 16 | Bearing, Ball 6001 | 900807-06001 | 900807-06001-Online | |||
| 6 | Bearing, Ball 629 | 900810-00629 | 900810-00629-Online | |||
| 16 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | |||
| 2 | Bearing | 900812-06201 | 900812-06201-Online | 16 | Part No | Part descrition | Page | ||
| 4 | Bolt | 91118-05014 | 91118-05014-Online | |||
| 12 | Bolt | 91118-05018 | 91118-05018-Online | |||
| 12 | Bolt | 91118-05020 | 91118-05020-Online | |||
| 6 | Bolt | 91118-05020 | 91118-05020-Online | |||
| 14 | Bolt | 91118-05022 | 91118-05022-Online | |||
| 14 | Bolt | 91118-05025 | 91118-05025-Online | |||
| 2 | Bolt | 91118-05025 | 91118-05025-Online | |||
| 6 | Bolt | 91118-05030 | 91118-05030-Online | |||
| 14 | Bolt | 91118-06030 | 91118-06030-Online | |||
| 16 | Bolt | 91119-05012 | 91119-05012-Online | |||
| 14 | Bearing Ball | 94035-36201 | 94035-36201-Online | |||
| 2 | Starter,Recoil | A051-000170 | A051-000170-Online | |||
| 4 | Starter Pully Assy | A052-000370 | A052-000370-Online | |||
| 4 | Cover,Muffler | A320-000890 | A320-000890-Online | |||
| 10 | Harness,Shoulder | C062-000192 | C062-000192-Online | |||
| 14 | Fixture,Blade | C535-000001 | C535-000001-Online | |||
| 16 | Plate, Shield | C552-000200 | C552-000200-Online | |||
| 12 | Scabbard,Blade | P021-007470 | P021-007470-Online | |||
| 12 | Case,Gear | P021-012591 | P021-012591-Online | |||
| 16 | Shield Asy | P021-012621 | P021-012621-Online | |||
| 12 | Hook Asy | P021-012660 | P021-012660-Online | |||
| 14 | Fixture,Asy Handle | P021-012781 | P021-012781-Online | |||
| 14 | Holder Kit | P021-012810 | P021-012810-Online | |||
| 6 | Case,Clutch Asy | P021-012920 | P021-012920-Online | |||
| 6 | Piston Kit | P021-015770 | P021-015770-Online | |||
| 2 | Bolt,5 | V203-001980 | V203-001980-Online | |||
| 12 | Washer,Circular 10 | V307-000050 | V307-000050-Online | |||
| 2 | Spring,Torsion | V452-001310 | V452-001310-Online | |||
| 16 | Clip | V490-000440 | V490-000440-Online | |||
| 18 | Ring,End | V580-000010 | V580-000010-Online | |||
| 2 | Label,Echo | X502-000450 | X502-000450-Online | |||
| 4 | Label,Echo | X547-001110 | X547-001110-Online | |||
| 2 | Tool,Wrench | X602-000020 | X602-000020-Online | |||
| 12 | Tool,L Wrench | X605-000100 | X605-000100-Online | |||
| 12 | Tool,Bar | X606-000080 | X606-000080-Online | |||
| 12 | Goggle | X690-000050 | X690-000050-Online | 12 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-2 |
Source PDF: 20200226-72_SRM-4605_U_20_20001001_24FEB2020.pdf. Generated 2026-06-25 14:39.
