Echo CS-680S IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: CS-680S-Online
Source Pages

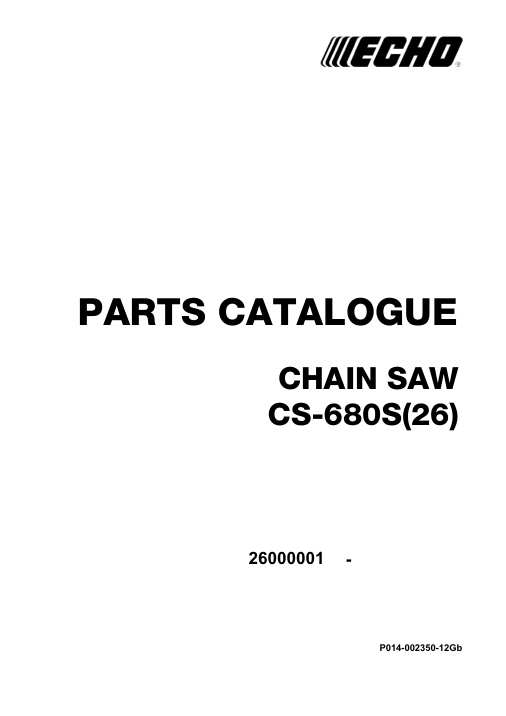

Page 1
Tap or click the page image to enlarge it.

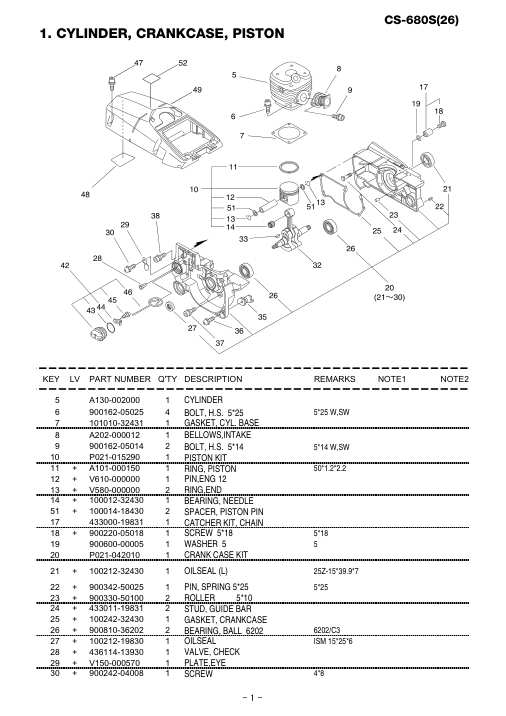

Page 2
Tap or click the page image to enlarge it.

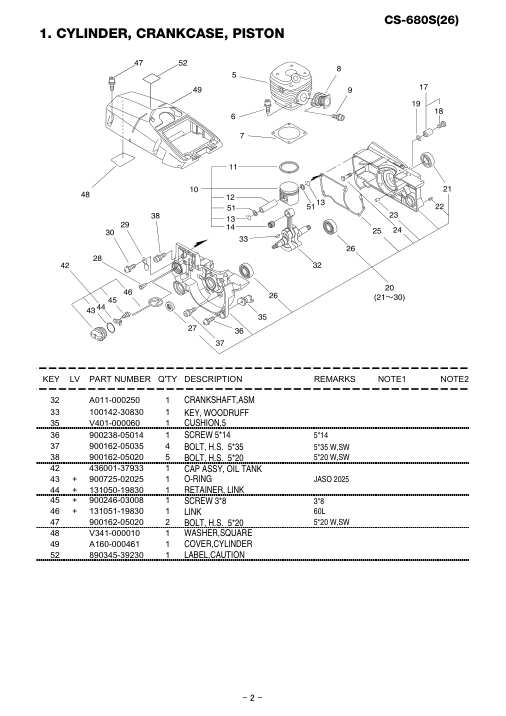

Page 3
Tap or click the page image to enlarge it.

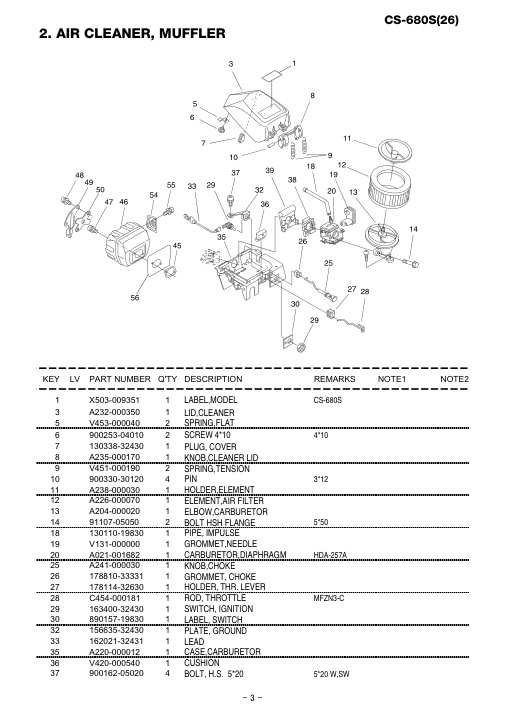

Page 4
Tap or click the page image to enlarge it.

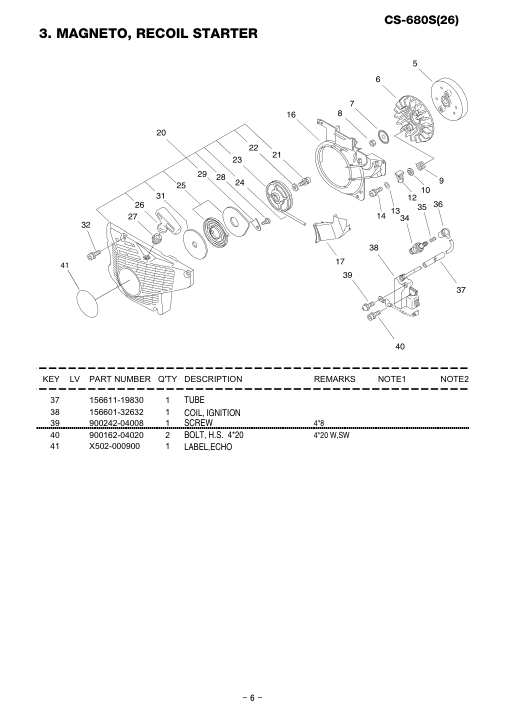

Page 5
Tap or click the page image to enlarge it.

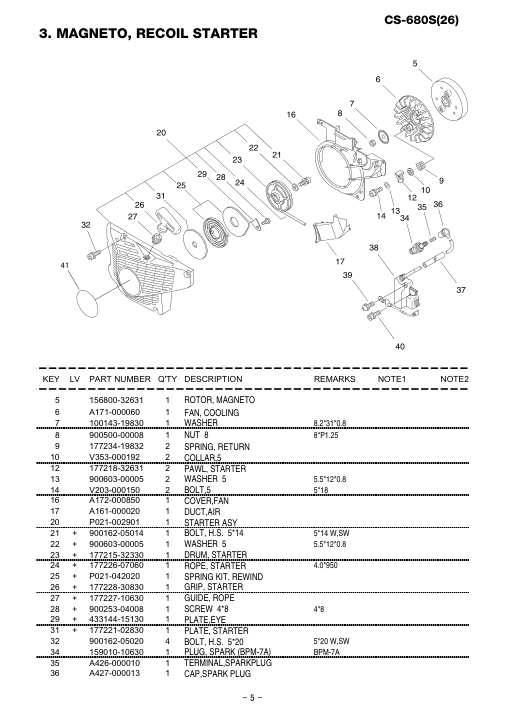

Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.

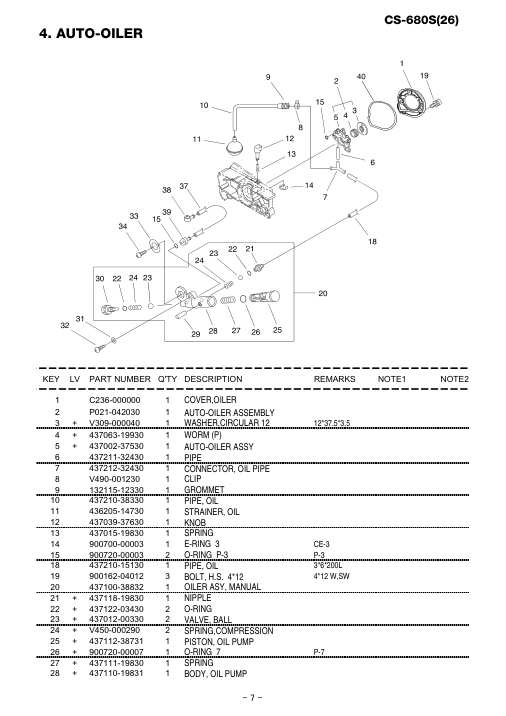

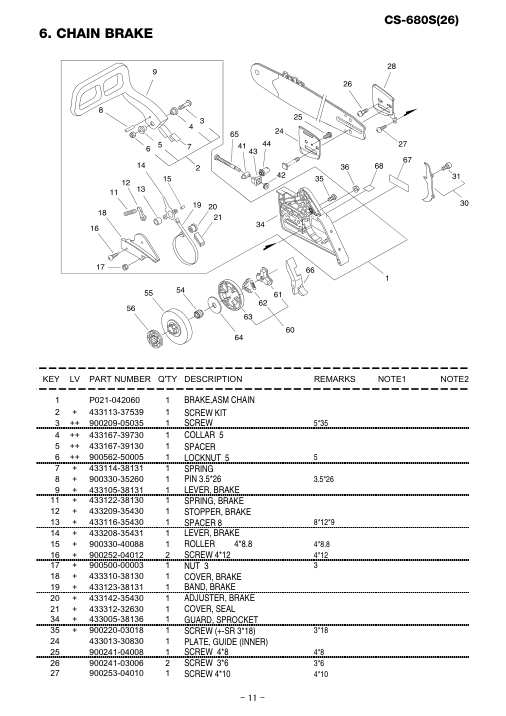

Page 8
Tap or click the page image to enlarge it.

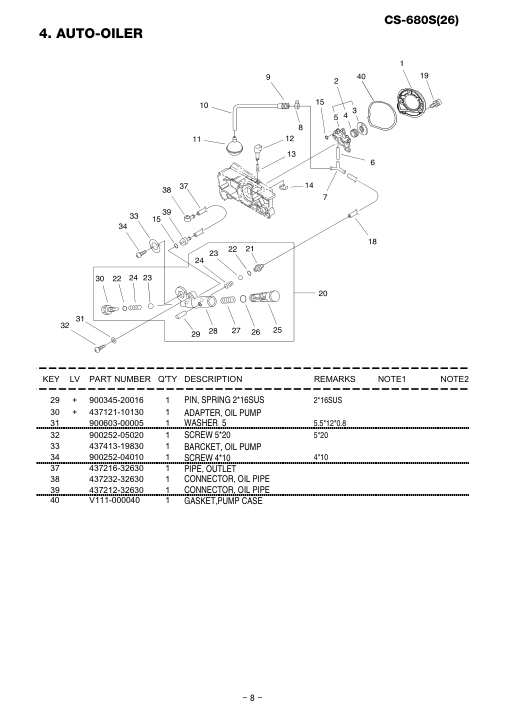

Page 9
Tap or click the page image to enlarge it.

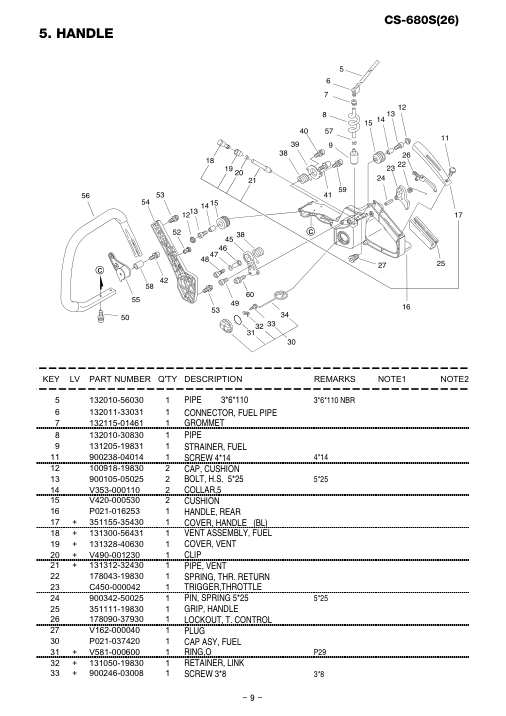

Page 10
Tap or click the page image to enlarge it.

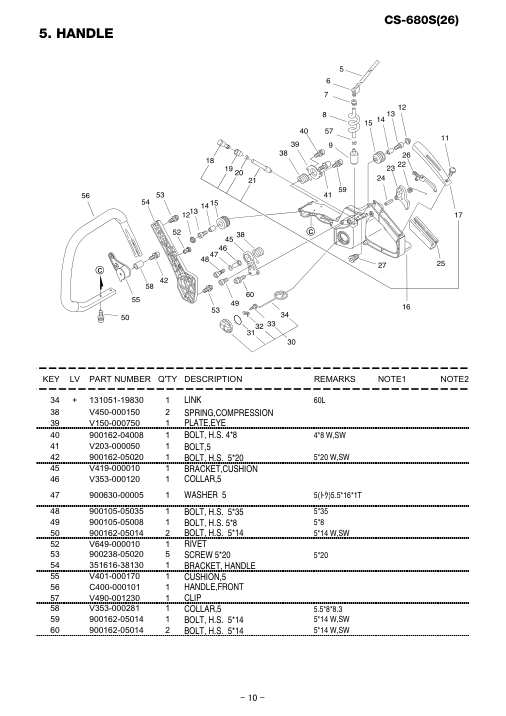

Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.

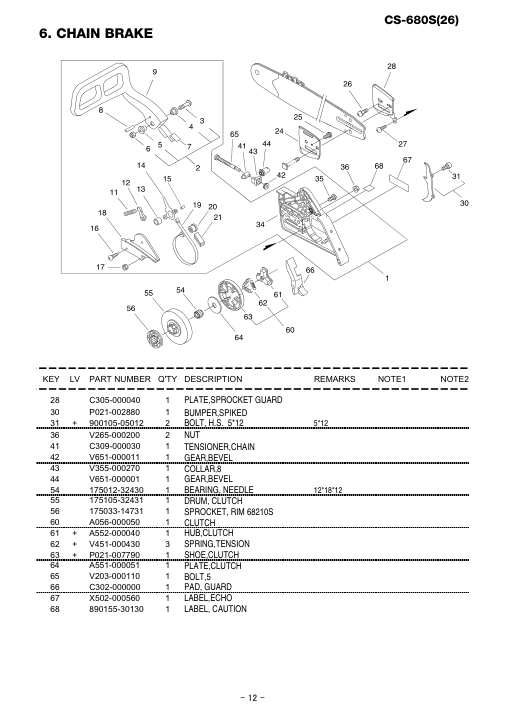

Page 13
Tap or click the page image to enlarge it.

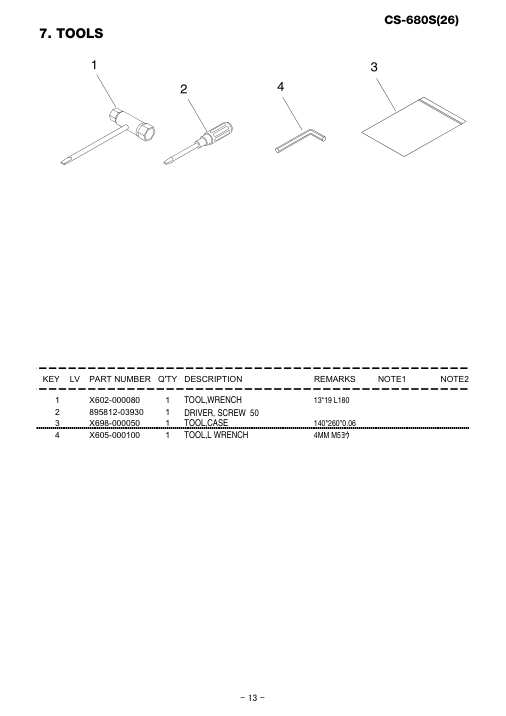

Page 14
Tap or click the page image to enlarge it.

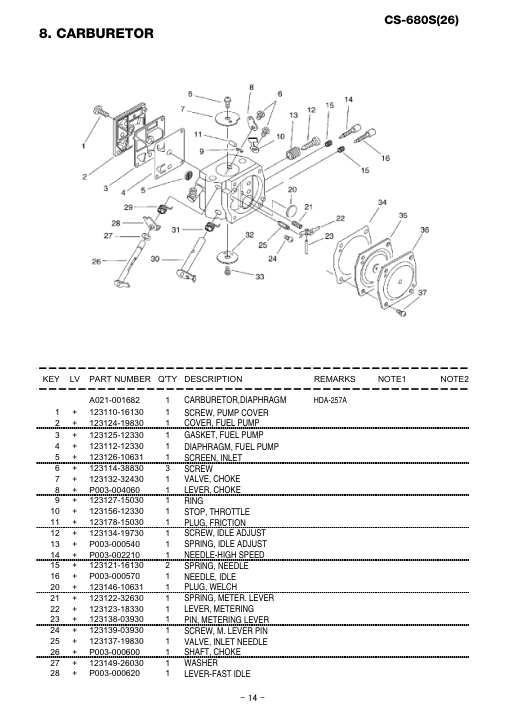

Page 15
Tap or click the page image to enlarge it.

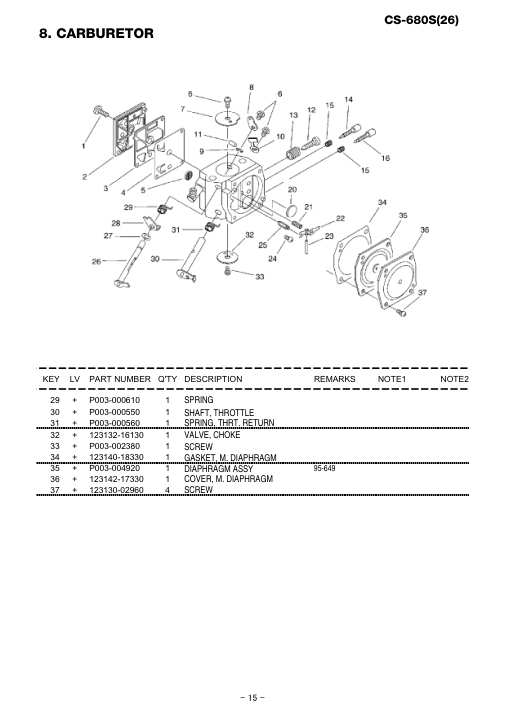

Page 16
Tap or click the page image to enlarge it.

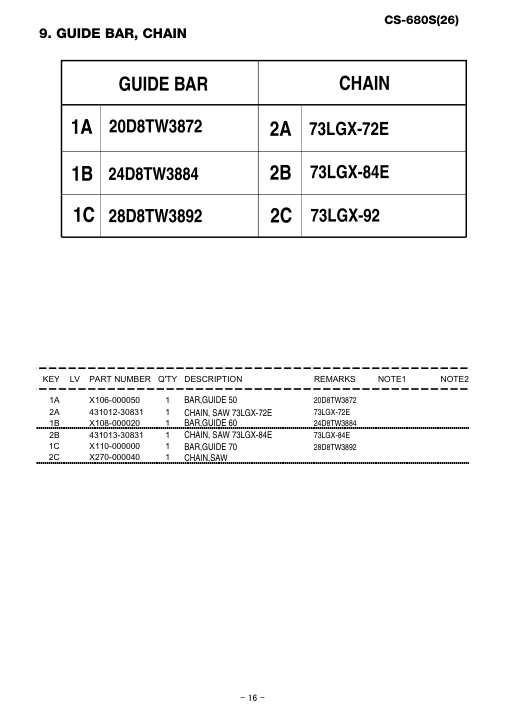

Page 17
Tap or click the page image to enlarge it.

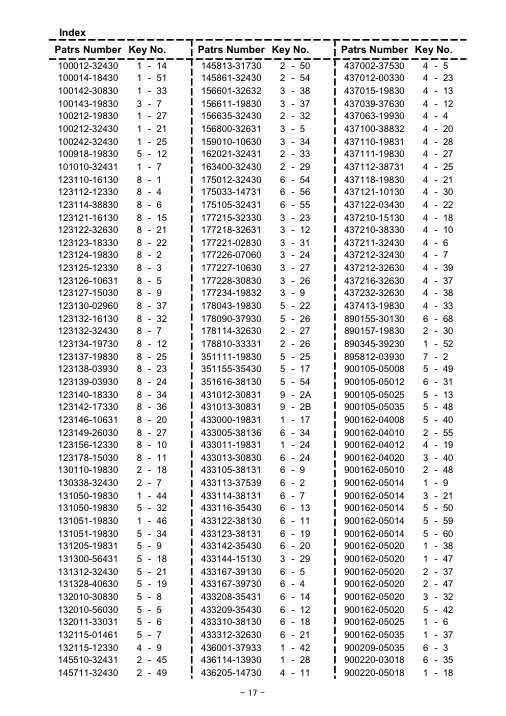

Page 18
Tap or click the page image to enlarge it.

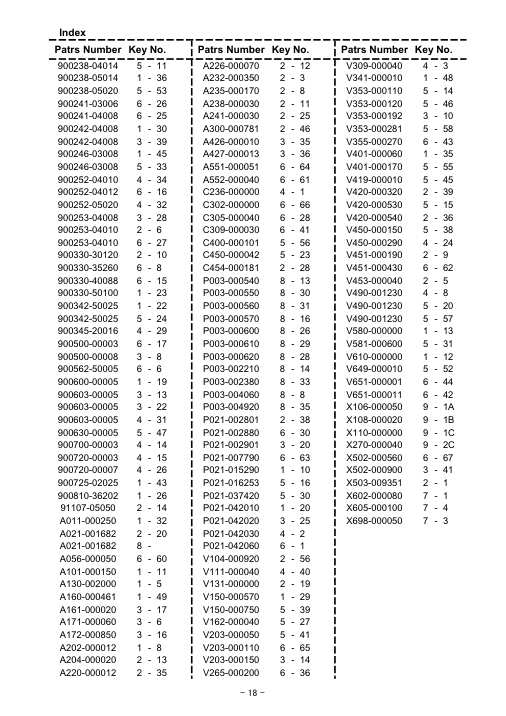

Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Cylinder | A130-002000 | A130-002000-Online | ||
| 6 | 4 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW | |
| 7 | 1 | Gasket, Cyl. Base | 101010-32431 | 101010-32431-Online | ||
| 8 | 1 | Bellows,Intake | A202-000012 | A202-000012-Online | ||
| 9 | 2 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | |
| 10 | 1 | Piston Kit | P021-015290 | P021-015290-Online | ||
| 11 | + | 1 | Ring, Piston | A101-000150 | A101-000150-Online | 50*1.2*2.2 |
| 12 | + | 1 | Pin,Eng 12 | V610-000000 | V610-000000-Online | |
| 13 | + | 2 | Ring,End | V580-000000 | V580-000000-Online | |
| 14 | + | 1 | Bearing, Needle | 100012-32430 | 100012-32430-Online | |
| 51 | + | 2 | Spacer, Piston Pin | 100014-18430 | 100014-18430-Online | |
| 17 | 1 | Catcher Kit, Chain | 433000-19831 | 433000-19831-Online | ||
| 18 | + | 1 | Screw 5*18 | 900220-05018 | 900220-05018-Online | 5*18 |
| 19 | 1 | Washer 5 | 900600-00005 | 900600-00005-Online | ||
| 20 | 1 | Crank Case Kit | P021-042010 | P021-042010-Online | ||
| 21 | + | 1 | Oilseal (L) | 100212-32430 | 100212-32430-Online | 25Z-15*39.9*7 |
| 22 | + | 1 | Pin, Spring 5*25 | 900342-50025 | 900342-50025-Online | 5*25 |
| 23 | + | 2 | Roller 5*10 | 900330-50100 | 900330-50100-Online | |
| 24 | + | 2 | Stud, Guide Bar | 433011-19831 | 433011-19831-Online | |
| 25 | + | 1 | Gasket, Crankcase | 100242-32430 | 100242-32430-Online | |
| 26 | + | 2 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | 6202/C3 |
| 27 | + | 1 | Oilseal | 100212-19830 | 100212-19830-Online | ISM 15*25*6 |
| 28 | + | 1 | Valve, Check | 436114-13930 | 436114-13930-Online | |
| 29 | + | 1 | Plate,Eye | V150-000570 | V150-000570-Online | |
| 30 | + | 1 | Screw | 900242-04008 | 900242-04008-Online | 4*8 |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 32 | 1 | Crankshaft,Asm | A011-000250 | A011-000250-Online | ||
| 33 | 1 | Key, Woodruff | 100142-30830 | 100142-30830-Online | ||
| 35 | 1 | Cushion,5 | V401-000060 | V401-000060-Online | ||
| 36 | 1 | Screw 5*14 | 900238-05014 | 900238-05014-Online | 5*14 | |
| 37 | 4 | Bolt, H.S. 5*35 | 900162-05035 | 900162-05035-Online | 5*35 W,SW | |
| 38 | 5 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 42 | 1 | Cap Assy, Oil Tank | 436001-37933 | 436001-37933-Online | ||
| 43 | + | 1 | O-Ring | 900725-02025 | 900725-02025-Online | JASO 2025 |
| 44 | + | 1 | Retainer, Link | 131050-19830 | 131050-19830-Online | |
| 45 | + | 1 | Screw 3*8 | 900246-03008 | 900246-03008-Online | 3*8 |
| 46 | + | 1 | Link | 131051-19830 | 131051-19830-Online | |
| 47 | 2 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 48 | 1 | Washer,Square | V341-000010 | V341-000010-Online | ||
| 49 | 1 | Cover,Cylinder | A160-000461 | A160-000461-Online | ||
| 52 | 1 | Label,Caution | 890345-39230 | 890345-39230-Online |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Label,Model | X503-009351 | X503-009351-Online | CS-680S | |
| 3 | 1 | Lid,Cleaner | A232-000350 | A232-000350-Online | ||
| 5 | 2 | Spring,Flat | V453-000040 | V453-000040-Online | ||
| 6 | 2 | Screw 4*10 | 900253-04010 | 900253-04010-Online | 4*10 | |
| 7 | 1 | Plug, Cover | 130338-32430 | 130338-32430-Online | ||
| 8 | 1 | Knob,Cleaner Lid | A235-000170 | A235-000170-Online | ||
| 9 | 2 | Spring,Tension | V451-000190 | V451-000190-Online | ||
| 10 | 4 | Pin | 900330-30120 | 900330-30120-Online | 3*12 | |
| 11 | 1 | Holder,Element | A238-000030 | A238-000030-Online | ||
| 12 | 1 | Element,Air Filter | A226-000070 | A226-000070-Online | ||
| 13 | 1 | Elbow,Carburetor | A204-000020 | A204-000020-Online | ||
| 14 | 2 | Bolt Hsh Flange | 91107-05050 | 91107-05050-Online | 5*50 | |
| 18 | 1 | Pipe, Impulse | 130110-19830 | 130110-19830-Online | ||
| 19 | 1 | Grommet,Needle | V131-000000 | V131-000000-Online | ||
| 20 | 1 | Carburetor,Diaphragm | A021-001682 | A021-001682-Online | HDA-257A | |
| 25 | 1 | Knob,Choke | A241-000030 | A241-000030-Online | ||
| 26 | 1 | Grommet, Choke | 178810-33331 | 178810-33331-Online | ||
| 27 | 1 | Holder, Thr. Lever | 178114-32630 | 178114-32630-Online | ||
| 28 | 1 | Rod, Throttle | C454-000181 | C454-000181-Online | MFZN3-C | |
| 29 | 1 | Switch, Ignition | 163400-32430 | 163400-32430-Online | ||
| 30 | 1 | Label, Switch | 890157-19830 | 890157-19830-Online | ||
| 32 | 1 | Plate, Ground | 156635-32430 | 156635-32430-Online | ||
| 33 | 1 | Lead | 162021-32431 | 162021-32431-Online | ||
| 35 | 1 | Case,Carburetor | A220-000012 | A220-000012-Online | ||
| 36 | 1 | Cushion | V420-000540 | V420-000540-Online | ||
| 37 | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 38 | 1 | Insulator,Intake | P021-002801 | P021-002801-Online | ||
| 39 | 1 | Cushion | V420-000320 | V420-000320-Online | ||
| 45 | 1 | Gasket, Muffler | 145510-32431 | 145510-32431-Online | ||
| 46 | 1 | Muffler, Exhaust | A300-000781 | A300-000781-Online | ||
| 47 | 2 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 48 | 2 | Bolt, H.S. 5*10 | 900162-05010 | 900162-05010-Online | 5*10 W,SW | |
| 49 | 1 | Bracket, Muffler | 145711-32430 | 145711-32430-Online | ||
| 50 | 1 | Cover, Muffler | 145813-31730 | 145813-31730-Online | ||
| 54 | 1 | Lid, Muffler | 145861-32430 | 145861-32430-Online | ||
| 55 | 2 | Bolt, H.S. 4*10 | 900162-04010 | 900162-04010-Online | 4*10 W,SW | |
| 56 | 1 | Gasket,Exhaust | V104-000920 | V104-000920-Online | NP-7002 |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Rotor, Magneto | 156800-32631 | 156800-32631-Online | ||
| 6 | 1 | Fan, Cooling | A171-000060 | A171-000060-Online | ||
| 7 | 1 | Washer | 100143-19830 | 100143-19830-Online | 8.2*31*0.8 | |
| 8 | 1 | Nut 8 | 900500-00008 | 900500-00008-Online | 8*P1.25 | |
| 9 | 2 | Spring, Return | 177234-19832 | 177234-19832-Online | ||
| 10 | 2 | Collar,5 | V353-000192 | V353-000192-Online | ||
| 12 | 2 | Pawl, Starter | 177218-32631 | 177218-32631-Online | ||
| 13 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 14 | 2 | Bolt,5 | V203-000150 | V203-000150-Online | 5*18 | |
| 16 | 1 | Cover,Fan | A172-000850 | A172-000850-Online | ||
| 17 | 1 | Duct,Air | A161-000020 | A161-000020-Online | ||
| 20 | 1 | Starter Asy | P021-002901 | P021-002901-Online | ||
| 21 | + | 1 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW |
| 22 | + | 1 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 |
| 23 | + | 1 | Drum, Starter | 177215-32330 | 177215-32330-Online | |
| 24 | + | 1 | Rope, Starter | 177226-07060 | 177226-07060-Online | 4.0*950 |
| 25 | + | 1 | Spring Kit, Rewind | P021-042020 | P021-042020-Online | |
| 26 | + | 1 | Grip, Starter | 177228-30830 | 177228-30830-Online | |
| 27 | + | 1 | Guide, Rope | 177227-10630 | 177227-10630-Online | |
| 28 | + | 1 | Screw 4*8 | 900253-04008 | 900253-04008-Online | 4*8 |
| 29 | + | 1 | Plate,Eye | 433144-15130 | 433144-15130-Online | |
| 31 | + | 1 | Plate, Starter | 177221-02830 | 177221-02830-Online | |
| 32 | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 34 | 1 | Plug, Spark (Bpm-7A) | 159010-10630 | 159010-10630-Online | BPM-7A | |
| 35 | 1 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | ||
| 36 | 1 | Cap,Spark Plug | A427-000013 | A427-000013-Online |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 37 | 1 | Tube | 156611-19830 | 156611-19830-Online | ||
| 38 | 1 | Coil, Ignition | 156601-32632 | 156601-32632-Online | ||
| 39 | 1 | Screw | 900242-04008 | 900242-04008-Online | 4*8 | |
| 40 | 2 | Bolt, H.S. 4*20 | 900162-04020 | 900162-04020-Online | 4*20 W,SW | |
| 41 | 1 | Label,Echo | X502-000900 | X502-000900-Online |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cover,Oiler | C236-000000 | C236-000000-Online | ||
| 2 | 1 | Auto-Oiler Assembly | P021-042030 | P021-042030-Online | ||
| 3 | + | 1 | Washer,Circular 12 | V309-000040 | V309-000040-Online | 12*37.5*3.5 |
| 4 | + | 1 | Worm (P) | 437063-19930 | 437063-19930-Online | |
| 5 | + | 1 | Auto-Oiler Assy | 437002-37530 | 437002-37530-Online | |
| 6 | 1 | Pipe | 437211-32430 | 437211-32430-Online | ||
| 7 | 1 | Connector, Oil Pipe | 437212-32430 | 437212-32430-Online | ||
| 8 | 1 | Clip | V490-001230 | V490-001230-Online | ||
| 9 | 1 | Grommet | 132115-12330 | 132115-12330-Online | ||
| 10 | 1 | Pipe, Oil | 437210-38330 | 437210-38330-Online | ||
| 11 | 1 | Strainer, Oil | 436205-14730 | 436205-14730-Online | ||
| 12 | 1 | Knob | 437039-37630 | 437039-37630-Online | ||
| 13 | 1 | Spring | 437015-19830 | 437015-19830-Online | ||
| 14 | 1 | E-Ring 3 | 900700-00003 | 900700-00003-Online | CE-3 | |
| 15 | 2 | O-Ring P-3 | 900720-00003 | 900720-00003-Online | P-3 | |
| 18 | 1 | Pipe, Oil | 437210-15130 | 437210-15130-Online | 3*6*200L | |
| 19 | 3 | Bolt, H.S. 4*12 | 900162-04012 | 900162-04012-Online | 4*12 W,SW | |
| 20 | 1 | Oiler Asy, Manual | 437100-38832 | 437100-38832-Online | ||
| 21 | + | 1 | Nipple | 437118-19830 | 437118-19830-Online | |
| 22 | + | 2 | O-Ring | 437122-03430 | 437122-03430-Online | |
| 23 | + | 2 | Valve, Ball | 437012-00330 | 437012-00330-Online | |
| 24 | + | 2 | Spring,Compression | V450-000290 | V450-000290-Online | |
| 25 | + | 1 | Piston, Oil Pump | 437112-38731 | 437112-38731-Online | |
| 26 | + | 1 | O-Ring 7 | 900720-00007 | 900720-00007-Online | P-7 |
| 27 | + | 1 | Spring | 437111-19830 | 437111-19830-Online | |
| 28 | + | 1 | Body, Oil Pump | 437110-19831 | 437110-19831-Online |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 29 | + | 1 | Pin, Spring 2*16Sus | 900345-20016 | 900345-20016-Online | 2*16SUS |
| 30 | + | 1 | Adapter, Oil Pump | 437121-10130 | 437121-10130-Online | |
| 31 | 1 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 32 | 1 | Screw 5*20 | 900252-05020 | 900252-05020-Online | 5*20 | |
| 33 | 1 | Barcket, Oil Pump | 437413-19830 | 437413-19830-Online | ||
| 34 | 1 | Screw 4*10 | 900252-04010 | 900252-04010-Online | 4*10 | |
| 37 | 1 | Pipe, Outlet | 437216-32630 | 437216-32630-Online | ||
| 38 | 1 | Connector, Oil Pipe | 437232-32630 | 437232-32630-Online | ||
| 39 | 1 | Connector, Oil Pipe | 437212-32630 | 437212-32630-Online | ||
| 40 | 1 | Gasket,Pump Case | V111-000040 | V111-000040-Online |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Pipe 3*6*110 | 132010-56030 | 132010-56030-Online | 3*6*110 NBR | |
| 6 | 1 | Connector, Fuel Pipe | 132011-33031 | 132011-33031-Online | ||
| 7 | 1 | Grommet | 132115-01461 | 132115-01461-Online | ||
| 8 | 1 | Pipe | 132010-30830 | 132010-30830-Online | ||
| 9 | 1 | Strainer, Fuel | 131205-19831 | 131205-19831-Online | ||
| 11 | 1 | Screw 4*14 | 900238-04014 | 900238-04014-Online | 4*14 | |
| 12 | 2 | Cap, Cushion | 100918-19830 | 100918-19830-Online | ||
| 13 | 2 | Bolt, H.S. 5*25 | 900105-05025 | 900105-05025-Online | 5*25 | |
| 14 | 2 | Collar,5 | V353-000110 | V353-000110-Online | ||
| 15 | 2 | Cushion | V420-000530 | V420-000530-Online | ||
| 16 | 1 | Handle, Rear | P021-016253 | P021-016253-Online | ||
| 17 | + | 1 | Cover, Handle (Bl) | 351155-35430 | 351155-35430-Online | |
| 18 | + | 1 | Vent Assembly, Fuel | 131300-56431 | 131300-56431-Online | |
| 19 | + | 1 | Cover, Vent | 131328-40630 | 131328-40630-Online | |
| 20 | + | 1 | Clip | V490-001230 | V490-001230-Online | |
| 21 | + | 1 | Pipe, Vent | 131312-32430 | 131312-32430-Online | |
| 22 | 1 | Spring, Thr. Return | 178043-19830 | 178043-19830-Online | ||
| 23 | 1 | Trigger,Throttle | C450-000042 | C450-000042-Online | ||
| 24 | 1 | Pin, Spring 5*25 | 900342-50025 | 900342-50025-Online | 5*25 | |
| 25 | 1 | Grip, Handle | 351111-19830 | 351111-19830-Online | ||
| 26 | 1 | Lockout, T. Control | 178090-37930 | 178090-37930-Online | ||
| 27 | 1 | Plug | V162-000040 | V162-000040-Online | ||
| 30 | 1 | Cap Asy, Fuel | P021-037420 | P021-037420-Online | ||
| 31 | + | 1 | Ring,O | V581-000600 | V581-000600-Online | P29 |
| 32 | + | 1 | Retainer, Link | 131050-19830 | 131050-19830-Online | |
| 33 | + | 1 | Screw 3*8 | 900246-03008 | 900246-03008-Online | 3*8 |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 34 | + | 1 | Link | 131051-19830 | 131051-19830-Online | |
| 38 | 2 | Spring,Compression | V450-000150 | V450-000150-Online | ||
| 39 | 1 | Plate,Eye | V150-000750 | V150-000750-Online | ||
| 40 | 1 | Bolt, H.S. 4*8 | 900162-04008 | 900162-04008-Online | 4*8 W,SW | |
| 41 | 1 | Bolt,5 | V203-000050 | V203-000050-Online | ||
| 42 | 1 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 45 | 1 | Bracket,Cushion | V419-000010 | V419-000010-Online | ||
| 46 | 1 | Collar,5 | V353-000120 | V353-000120-Online | ||
| 47 | 1 | Washer 5 | 900630-00005 | 900630-00005-Online | 5(㺢㺖)5.5*16*1T | |
| 48 | 1 | Bolt, H.S. 5*35 | 900105-05035 | 900105-05035-Online | 5*35 | |
| 49 | 1 | Bolt, H.S. 5*8 | 900105-05008 | 900105-05008-Online | 5*8 | |
| 50 | 2 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | |
| 52 | 1 | Rivet | V649-000010 | V649-000010-Online | ||
| 53 | 5 | Screw 5*20 | 900238-05020 | 900238-05020-Online | 5*20 | |
| 54 | 1 | Bracket, Handle | 351616-38130 | 351616-38130-Online | ||
| 55 | 1 | Cushion,5 | V401-000170 | V401-000170-Online | ||
| 56 | 1 | Handle,Front | C400-000101 | C400-000101-Online | ||
| 57 | 1 | Clip | V490-001230 | V490-001230-Online | ||
| 58 | 1 | Collar,5 | V353-000281 | V353-000281-Online | 5.5*8*8.3 | |
| 59 | 1 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | |
| 60 | 2 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Brake,Asm Chain | P021-042060 | P021-042060-Online | ||
| 2 | + | 1 | Screw Kit | 433113-37539 | 433113-37539-Online | 3 | ++ |
| 3 | 1 | Screw | 900209-05035 | 900209-05035-Online | 5*35 | 4 | ++ | |
| 4 | 1 | Collar 5 | 433167-39730 | 433167-39730-Online | 5 | ++ | |
| 5 | 1 | Spacer | 433167-39130 | 433167-39130-Online | 6 | ++ | |
| 6 | 1 | Locknut 5 | 900562-50005 | 900562-50005-Online | ||
| 7 | + | 1 | Spring | 433114-38131 | 433114-38131-Online | |
| 8 | + | 1 | Pin 3.5*26 | 900330-35260 | 900330-35260-Online | 3.5*26 |
| 9 | + | 1 | Lever, Brake | 433105-38131 | 433105-38131-Online | |
| 11 | + | 1 | Spring, Brake | 433122-38130 | 433122-38130-Online | |
| 12 | + | 1 | Stopper, Brake | 433209-35430 | 433209-35430-Online | |
| 13 | + | 1 | Spacer 8 | 433116-35430 | 433116-35430-Online | 8*12*9 |
| 14 | + | 1 | Lever, Brake | 433208-35431 | 433208-35431-Online | |
| 15 | + | 1 | Roller 4*8.8 | 900330-40088 | 900330-40088-Online | 4*8.8 |
| 16 | + | 2 | Screw 4*12 | 900252-04012 | 900252-04012-Online | 4*12 |
| 17 | + | 1 | Nut 3 | 900500-00003 | 900500-00003-Online | |
| 18 | + | 1 | Cover, Brake | 433310-38130 | 433310-38130-Online | |
| 19 | + | 1 | Band, Brake | 433123-38131 | 433123-38131-Online | |
| 20 | + | 1 | Adjuster, Brake | 433142-35430 | 433142-35430-Online | |
| 21 | + | 1 | Cover, Seal | 433312-32630 | 433312-32630-Online | |
| 34 | + | 1 | Guard, Sprocket | 433005-38136 | 433005-38136-Online | |
| 35 | + | 1 | Screw (+-Sr 3*18) | 900220-03018 | 900220-03018-Online | 3*18 |
| 24 | 1 | Plate, Guide (Inner) | 433013-30830 | 433013-30830-Online | ||
| 25 | 1 | Screw 4*8 | 900241-04008 | 900241-04008-Online | 4*8 | |
| 26 | 2 | Screw 3*6 | 900241-03006 | 900241-03006-Online | 3*6 | |
| 27 | 1 | Screw 4*10 | 900253-04010 | 900253-04010-Online | 4*10 |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 28 | 1 | Plate,Sprocket Guard | C305-000040 | C305-000040-Online | ||
| 30 | 1 | Bumper,Spiked | P021-002880 | P021-002880-Online | ||
| 31 | + | 2 | Bolt, H.S. 5*12 | 900105-05012 | 900105-05012-Online | 5*12 |
| 36 | 2 | Part | V265-000200 | V265-000200-Online | ||
| 41 | 1 | Tensioner,Chain | C309-000030 | C309-000030-Online | ||
| 42 | 1 | Gear,Bevel | V651-000011 | V651-000011-Online | ||
| 43 | 1 | Collar,8 | V355-000270 | V355-000270-Online | ||
| 44 | 1 | Gear,Bevel | V651-000001 | V651-000001-Online | ||
| 54 | 1 | Bearing, Needle | 175012-32430 | 175012-32430-Online | 12*18*12 | |
| 55 | 1 | Drum, Clutch | 175105-32431 | 175105-32431-Online | ||
| 56 | 1 | Sprocket, Rim 68210S | 175033-14731 | 175033-14731-Online | ||
| 60 | 1 | Clutch | A056-000050 | A056-000050-Online | ||
| 61 | + | 1 | Hub,Clutch | A552-000040 | A552-000040-Online | |
| 62 | + | 3 | Spring,Tension | V451-000430 | V451-000430-Online | |
| 63 | + | 1 | Shoe,Clutch | P021-007790 | P021-007790-Online | |
| 64 | 1 | Plate,Clutch | A551-000051 | A551-000051-Online | ||
| 65 | 1 | Bolt,5 | V203-000110 | V203-000110-Online | ||
| 66 | 1 | Pad, Guard | C302-000000 | C302-000000-Online | ||
| 67 | 1 | Label,Echo | X502-000560 | X502-000560-Online | ||
| 68 | 1 | Label, Caution | 890155-30130 | 890155-30130-Online |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Tool,Wrench | X602-000080 | X602-000080-Online | 13*19 L180 | |
| 2 | 1 | Driver, Screw 50 | 895812-03930 | 895812-03930-Online | ||
| 3 | 1 | Tool,Case | X698-000050 | X698-000050-Online | 140*260*0.06 | |
| 4 | 1 | Tool,L Wrench | X605-000100 | X605-000100-Online | 4MM M5㺴㺑 |
Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 1 | Screw, Pump Cover | 123110-16130 | 123110-16130-Online | |
| 2 | + | 1 | Cover, Fuel Pump | 123124-19830 | 123124-19830-Online | |
| 3 | + | 1 | Gasket, Fuel Pump | 123125-12330 | 123125-12330-Online | |
| 4 | + | 1 | Diaphragm, Fuel Pump | 123112-12330 | 123112-12330-Online | |
| 5 | + | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |
| 6 | + | 3 | Screw | 123114-38830 | 123114-38830-Online | |
| 7 | + | 1 | Valve, Choke | 123132-32430 | 123132-32430-Online | |
| 8 | + | 1 | Lever, Choke | P003-004060 | P003-004060-Online | |
| 9 | + | 1 | Ring | 123127-15030 | 123127-15030-Online | |
| 10 | + | 1 | Stop, Throttle | 123156-12330 | 123156-12330-Online | |
| 11 | + | 1 | Plug, Friction | 123178-15030 | 123178-15030-Online | |
| 12 | + | 1 | Screw, Idle Adjust | 123134-19730 | 123134-19730-Online | |
| 13 | + | 1 | Spring, Idle Adjust | P003-000540 | P003-000540-Online | |
| 14 | + | 1 | Needle-High Speed | P003-002210 | P003-002210-Online | |
| 15 | + | 2 | Spring, Needle | 123121-16130 | 123121-16130-Online | |
| 16 | + | 1 | Needle, Idle | P003-000570 | P003-000570-Online | |
| 20 | + | 1 | Plug, Welch | 123146-10631 | 123146-10631-Online | |
| 21 | + | 1 | Spring, Meter. Lever | 123122-32630 | 123122-32630-Online | |
| 22 | + | 1 | Lever, Metering | 123123-18330 | 123123-18330-Online | |
| 23 | + | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |
| 24 | + | 1 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | |
| 25 | + | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |
| 26 | + | 1 | Shaft, Choke | P003-000600 | P003-000600-Online | |
| 27 | + | 1 | Washer | 123149-26030 | 123149-26030-Online | |
| 28 | + | 1 | Lever-Fast Idle | P003-000620 | P003-000620-Online |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 29 | + | 1 | Spring | P003-000610 | P003-000610-Online | |
| 30 | + | 1 | Shaft, Throttle | P003-000550 | P003-000550-Online | |
| 31 | + | 1 | Spring, Thrt. Return | P003-000560 | P003-000560-Online | |
| 32 | + | 1 | Valve, Choke | 123132-16130 | 123132-16130-Online | |
| 33 | + | 1 | Screw | P003-002380 | P003-002380-Online | |
| 34 | + | 1 | Gasket, M. Diaphragm | 123140-18330 | 123140-18330-Online | |
| 35 | + | 1 | Diaphragm Assy | P003-004920 | P003-004920-Online | 95-649 |
| 36 | + | 1 | Cover, M. Diaphragm | 123142-17330 | 123142-17330-Online | |
| 37 | + | 4 | Screw | 123130-02960 | 123130-02960-Online |
Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1A | 1 | Bar,Guide 50 | X106-000050 | X106-000050-Online | 20D8TW3872 | |
| 2A | 1 | Chain, Saw 73Lgx-72E | 431012-30831 | 431012-30831-Online | 73LGX-72E | |
| 1B | 1 | Bar,Guide 60 | X108-000020 | X108-000020-Online | 24D8TW3884 | |
| 2B | 1 | Chain, Saw 73Lgx-84E | 431013-30831 | 431013-30831-Online | 73LGX-84E | |
| 1C | 1 | Bar,Guide 70 | X110-000000 | X110-000000-Online | 28D8TW3892 | |
| 2C | 1 | Chain,Saw | X270-000040 | X270-000040-Online |
Source PDF: 20130718-122_CS-680S(26)_P014-002350-12Gb_EN.pdf. Generated 2026-06-25 14:37.
