Echo CS-7310SX-38spec IPL / Parts List

Echo CS-7310SX-38spec IPL / Parts List

Echo CS-7310SX-38spec IPL / Parts List

Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.

Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.

View machine SKU: CS-7310SX-38spec-Online

Source Pages

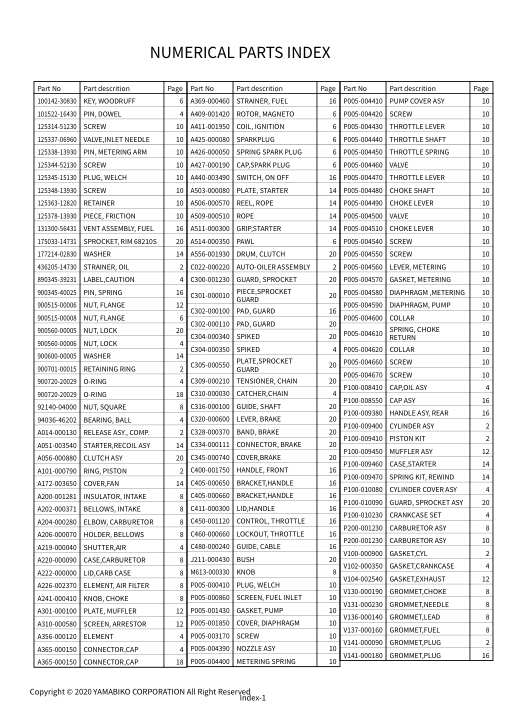

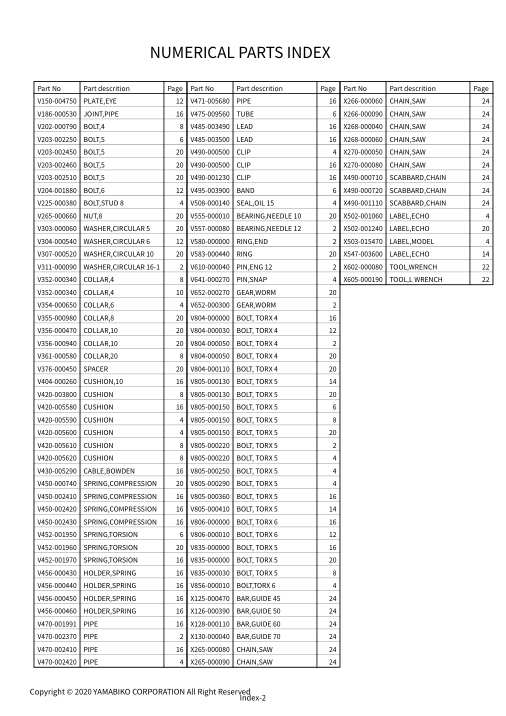

Page 1

Echo CS-7310SX-38spec IPL / Parts List source page 1

Tap or click the page image to enlarge it.

Page 2

Echo CS-7310SX-38spec IPL / Parts List source page 2

Tap or click the page image to enlarge it.

Page 3

Echo CS-7310SX-38spec IPL / Parts List source page 3

Tap or click the page image to enlarge it.

Page 4

Echo CS-7310SX-38spec IPL / Parts List source page 4

Tap or click the page image to enlarge it.

Page 5

Echo CS-7310SX-38spec IPL / Parts List source page 5

Tap or click the page image to enlarge it.

Page 6

Echo CS-7310SX-38spec IPL / Parts List source page 6

Tap or click the page image to enlarge it.

Page 7

Echo CS-7310SX-38spec IPL / Parts List source page 7

Tap or click the page image to enlarge it.

Page 8

Echo CS-7310SX-38spec IPL / Parts List source page 8

Tap or click the page image to enlarge it.

Page 9

Echo CS-7310SX-38spec IPL / Parts List source page 9

Tap or click the page image to enlarge it.

Page 10

Echo CS-7310SX-38spec IPL / Parts List source page 10

Tap or click the page image to enlarge it.

Page 11

Echo CS-7310SX-38spec IPL / Parts List source page 11

Tap or click the page image to enlarge it.

Page 12

Echo CS-7310SX-38spec IPL / Parts List source page 12

Tap or click the page image to enlarge it.

Page 13

Echo CS-7310SX-38spec IPL / Parts List source page 13

Tap or click the page image to enlarge it.

Page 14

Echo CS-7310SX-38spec IPL / Parts List source page 14

Tap or click the page image to enlarge it.

Page 15

Echo CS-7310SX-38spec IPL / Parts List source page 15

Tap or click the page image to enlarge it.

Page 16

Echo CS-7310SX-38spec IPL / Parts List source page 16

Tap or click the page image to enlarge it.

Page 17

Echo CS-7310SX-38spec IPL / Parts List source page 17

Tap or click the page image to enlarge it.

Page 18

Echo CS-7310SX-38spec IPL / Parts List source page 18

Tap or click the page image to enlarge it.

Page 19

Echo CS-7310SX-38spec IPL / Parts List source page 19

Tap or click the page image to enlarge it.

Page 20

Echo CS-7310SX-38spec IPL / Parts List source page 20

Tap or click the page image to enlarge it.

Page 21

Echo CS-7310SX-38spec IPL / Parts List source page 21

Tap or click the page image to enlarge it.

Page 22

Echo CS-7310SX-38spec IPL / Parts List source page 22

Tap or click the page image to enlarge it.

Page 23

Echo CS-7310SX-38spec IPL / Parts List source page 23

Tap or click the page image to enlarge it.

Page 24

Echo CS-7310SX-38spec IPL / Parts List source page 24

Tap or click the page image to enlarge it.

Page 25

Echo CS-7310SX-38spec IPL / Parts List source page 25

Tap or click the page image to enlarge it.

Page 26

Echo CS-7310SX-38spec IPL / Parts List source page 26

Tap or click the page image to enlarge it.

Page 27

Echo CS-7310SX-38spec IPL / Parts List source page 27

Tap or click the page image to enlarge it.

Page 28

Echo CS-7310SX-38spec IPL / Parts List source page 28

Tap or click the page image to enlarge it.

Page 4 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
1Cylinder AsyP100-009400P100-009400-Online
2Gasket,CylV100-000900V100-000900-Online1 T:0.5
3Bolt, Torx 5V805-000220V805-000220-Online4 TB-5*25 12.9
4Release Asy., Comp.A014-000130A014-000130-Online
5Grommet,PlugV141-000090V141-000090-Online
6Piston KitP100-009410P100-009410-Online
7+Ring, PistonA101-000790A101-000790-Online2 51*1.2*2.1
8+Pin,Eng 12V610-000040V610-000040-Online1 12*9*39.8
9+Bearing,Needle 12V557-000080V557-000080-Online1 12*15*14.8/15
10+Ring,EndV580-000000V580-000000-Online
11Auto-Oiler AssemblyC022-000220C022-000220-Online1 ZP05
12Bolt, Torx 4V804-000050V804-000050-Online2 TB-4*12 10.9
13Gear,WormV652-000300V652-000300-Online
14Washer,Circular 16-1V311-000090V311-000090-Online1 15.5*22.5*0.5
15Retaining Ring900701-00015900701-00015-Online1 CS-15
16Strainer, Oil436205-14730436205-14730-Online
17PipeV470-002370V470-002370-Online1 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

Page 6 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
1Crankcase SetP100-010230P100-010230-Online
2+Bearing, Ball94036-4620294036-46202-Online2 6202
3+Seal,Oil 15V508-000140V508-000140-Online1 15*26*4.4
4+Bolt,Stud 8V225-000380V225-000380-Online
5+ElementA356-000120A356-000120-Online
6+Seal,Oil 15V508-000140V508-000140-Online1 15*26*4.4
7+Pin, Dowel101522-16430101522-16430-Online
8+Gasket,CrankcaseV102-000350V102-000350-Online
9+Bolt, Torx 5V805-000220V805-000220-Online2 TB-5*25 12.9
10+Bolt, Torx 5V805-000290V805-000290-Online4 TB-5*35 12.9
11CushionV420-005590V420-005590-Online
12PipeV470-002420V470-002420-Online1 3*6(8)*130
13ClipV490-000500V490-000500-Online
14CushionV420-005600V420-005600-Online
15Cylinder Cover AsyP100-010080P100-010080-Online
16+Label,EchoX502-001060X502-001060-Online
17+Shutter,AirA219-000040A219-000040-Online
18+Label,Caution890345-39231890345-39231-Online
19Pin,SnapV641-000270V641-000270-Online
20SpikedC304-000350C304-000350-Online
21Bolt, Torx 5V805-000250V805-000250-Online2 TB-5*16 12.9
22Catcher,ChainC310-000030C310-000030-Online
23Collar,6V354-000650V354-000650-Online
24Bolt,Torx 6V856-000010V856-000010-Online1 12.9
25Nut, Lock900560-00006900560-00006-Online1 6
26Cap,Oil AsyP100-008410P100-008410-Online
27+O-Ring900720-20029900720-20029-Online1 P-29
28+Connector,CapA365-000150A365-000150-Online
29Label,ModelX503-015470X503-015470-Online1 CS-7310SX COVER | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

Page 8 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
1Rotor, MagnetoA409-001420A409-001420-Online1 AG12
2Coil, IgnitionA411-001950A411-001950-Online
3Bolt, Torx 5V805-000150V805-000150-Online2 TB-5*16 10.9
4PawlA514-000350A514-000350-Online
5Bolt,5V203-002250V203-002250-Online
6Spring,TorsionV452-001950V452-001950-Online
7Nut, Flange900515-00008900515-00008-Online1 8
8TubeV475-009560V475-009560-Online1 SSG-1 6*7.2*290
9Key, Woodruff100142-30830100142-30830-Online
10SparkplugA425-000080A425-000080-Online1 BPMR8Y-5
11Spring Spark PlugA426-000050A426-000050-Online
12BandV495-003900V495-003900-Online1 560700
13Cap,Spark PlugA427-000190A427-000190-Online1 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

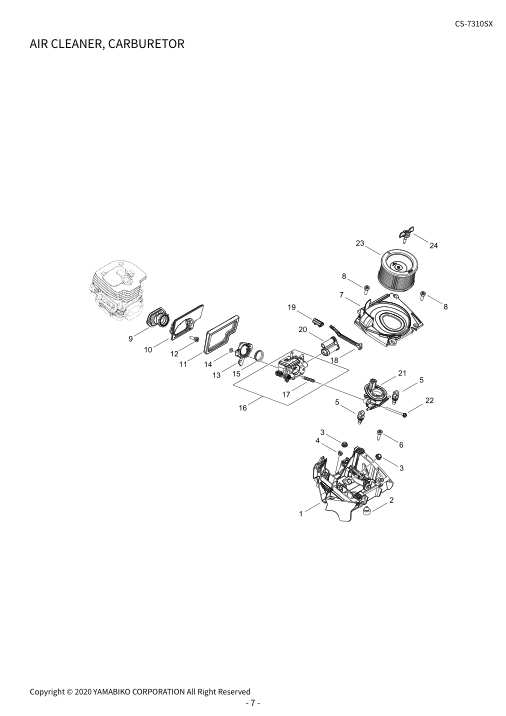

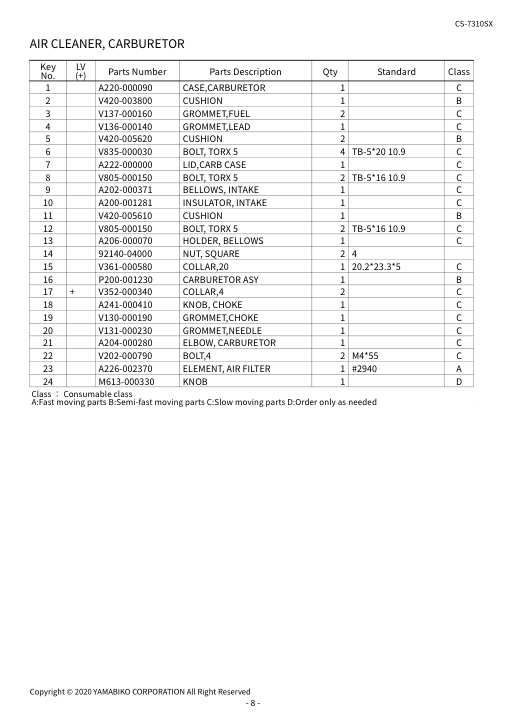

Page 10 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
1Case,CarburetorA220-000090A220-000090-Online
2CushionV420-003800V420-003800-Online
3Grommet,FuelV137-000160V137-000160-Online
4Grommet,LeadV136-000140V136-000140-Online
5CushionV420-005620V420-005620-Online
6Bolt, Torx 5V835-000030V835-000030-Online4 TB-5*20 10.9
7Lid,Carb CaseA222-000000A222-000000-Online
8Bolt, Torx 5V805-000150V805-000150-Online2 TB-5*16 10.9
9Bellows, IntakeA202-000371A202-000371-Online
10Insulator, IntakeA200-001281A200-001281-Online
11CushionV420-005610V420-005610-Online
12Bolt, Torx 5V805-000150V805-000150-Online2 TB-5*16 10.9
13Holder, BellowsA206-000070A206-000070-Online
14Nut, Square92140-0400092140-04000-Online2 4
15Collar,20V361-000580V361-000580-Online1 20.2*23.3*5
16Carburetor AsyP200-001230P200-001230-Online
17+Collar,4V352-000340V352-000340-Online
18Knob, ChokeA241-000410A241-000410-Online
19Grommet,ChokeV130-000190V130-000190-Online
20Grommet,NeedleV131-000230V131-000230-Online
21Elbow, CarburetorA204-000280A204-000280-Online
22Bolt,4V202-000790V202-000790-Online2 M4*55
23Element, Air FilterA226-002370A226-002370-Online1 #2940
24KnobM613-000330M613-000330-Online1 | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

Page 12 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
1Carburetor AsyP200-001230P200-001230-Online
2+Nozzle AsyP005-004390P005-004390-Online
3+Screen, Fuel InletP005-000860P005-000860-Online
4+Metering SpringP005-004400P005-004400-Online
5+Pin, Metering Arm125338-13930125338-13930-Online
6+Lever, MeteringP005-004560P005-004560-Online
7+Valve,Inlet Needle125337-06960125337-06960-Online
8+ScrewP005-004550P005-004550-Online
9+Gasket, MeteringP005-004570P005-004570-Online
10+Diaphragm ,MeteringP005-004580P005-004580-Online
11+Cover, DiaphragmP005-001850P005-001850-Online
12+Screw125344-52130125344-52130-Online
13+Diaphragm, PumpP005-004590P005-004590-Online
14+Gasket, PumpP005-001430P005-001430-Online
15+Pump Cover AsyP005-004410P005-004410-Online
16+ScrewP005-004420P005-004420-Online
17+Throttle LeverP005-004430P005-004430-Online
18+Throttle ShaftP005-004440P005-004440-Online
19+Throttle SpringP005-004450P005-004450-Online
20+ValveP005-004460P005-004460-Online
21+ScrewP005-003170P005-003170-Online
22+CollarP005-004600P005-004600-Online
23+Throttle LeverP005-004470P005-004470-Online
24+Screw125348-13930125348-13930-Online
25+Choke ShaftP005-004480P005-004480-Online
26+Choke LeverP005-004490P005-004490-Online
27+Spring, Choke ReturnP005-004610P005-004610-Online
28+ValveP005-004500P005-004500-Online
29+Screw125314-51230125314-51230-Online1 3*4.5
30+Choke LeverP005-004510P005-004510-Online
31+CollarP005-004620P005-004620-Online
32+ScrewP005-004660P005-004660-Online
33+Retainer125363-12820125363-12820-Online
34+ScrewP005-004670P005-004670-Online
35+Piece, Friction125378-13930125378-13930-Online
36+ScrewP005-004540P005-004540-Online
37+Plug, Welch125345-15130125345-15130-Online
38+Plug, WelchP005-000410P005-000410-Online
39+Collar,4V352-000340V352-000340-Online2 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

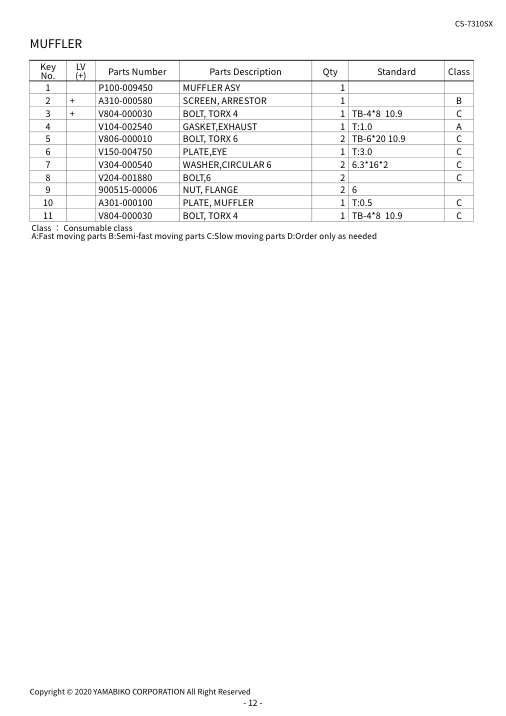

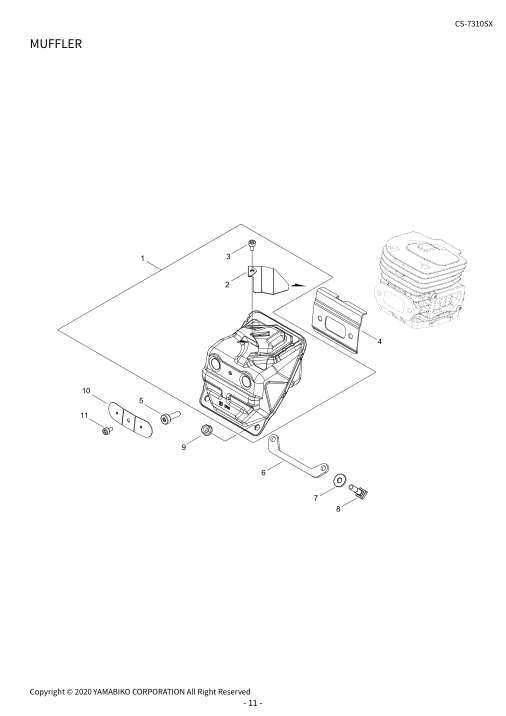

Page 14 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
1Muffler AsyP100-009450P100-009450-Online
2+Screen, ArrestorA310-000580A310-000580-Online
3+Bolt, Torx 4V804-000030V804-000030-Online1 TB-4*8 10.9
4Gasket,ExhaustV104-002540V104-002540-Online1 T:1.0
5Bolt, Torx 6V806-000010V806-000010-Online2 TB-6*20 10.9
6Plate,EyeV150-004750V150-004750-Online1 T:3.0
7Washer,Circular 6V304-000540V304-000540-Online2 6.3*16*2
8Bolt,6V204-001880V204-001880-Online
9Nut, Flange900515-00006900515-00006-Online2 6
10Plate, MufflerA301-000100A301-000100-Online1 T:0.5
11Bolt, Torx 4V804-000030V804-000030-Online1 TB-4*8 10.9 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

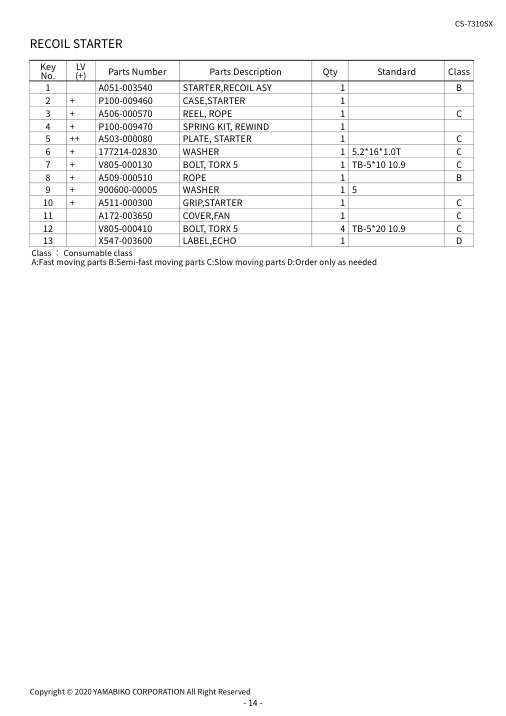

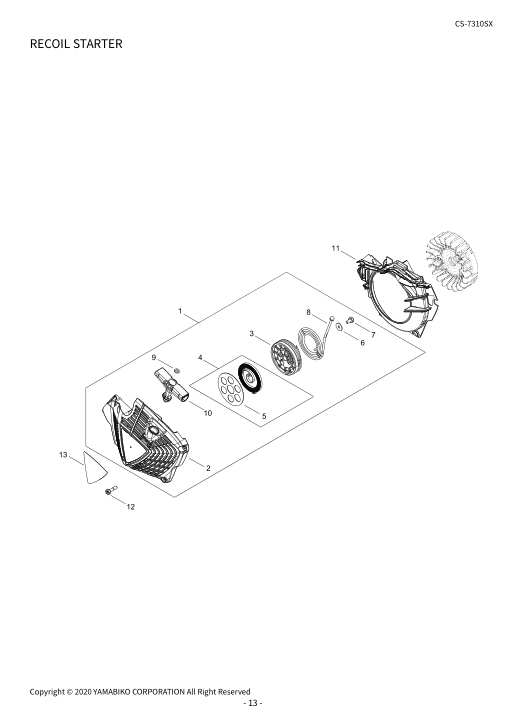

Page 16 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
1Starter,Recoil AsyA051-003540A051-003540-Online
2+Case,StarterP100-009460P100-009460-Online
3+Reel, RopeA506-000570A506-000570-Online
4+Spring Kit, RewindP100-009470P100-009470-Online1 | 5 | ++
5Plate, StarterA503-000080A503-000080-Online
6+Washer177214-02830177214-02830-Online1 5.2*16*1.0T
7+Bolt, Torx 5V805-000130V805-000130-Online1 TB-5*10 10.9
8+RopeA509-000510A509-000510-Online
9+Washer900600-00005900600-00005-Online1 5
10+Grip,StarterA511-000300A511-000300-Online
11Cover,FanA172-003650A172-003650-Online
12Bolt, Torx 5V805-000410V805-000410-Online4 TB-5*20 10.9
13Label,EchoX547-003600X547-003600-Online1 | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

Page 18 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
1Cable,BowdenV430-005290V430-005290-Online
2Switch, On OffA440-003490A440-003490-Online
3LeadV485-003490V485-003490-Online1 L90
4LeadV485-003500V485-003500-Online1 L312
5Handle, FrontC400-001750C400-001750-Online
6Bracket,HandleC405-000650C405-000650-Online
7Bracket,HandleC405-000660C405-000660-Online
8Bolt, Torx 5V835-000000V835-000000-Online
9Bolt, Torx 5V805-000360V805-000360-Online1 TB-5*30 ALL10.9
10Holder,SpringV456-000460V456-000460-Online
11Spring,CompressionV450-002410V450-002410-Online
12Bolt, Torx 5V835-000000V835-000000-Online
13Bolt, Torx 6V806-000000V806-000000-Online1 TT-6*20 DG 10.9
14Handle Asy, RearP100-009380P100-009380-Online
15+PipeV470-001991V470-001991-Online1 1.8*4*105
16+PipeV471-005680V471-005680-Online1 3.5*6*75
17+Joint,PipeV186-000530V186-000530-Online
18+Strainer, FuelA369-000460A369-000460-Online
19+ClipV490-000500V490-000500-Online
20+PipeV470-002410V470-002410-Online
21+ClipV490-001230V490-001230-Online
22+Vent Assembly, Fuel131300-56431131300-56431-Online
23Control, ThrottleC450-001120C450-001120-Online
24Pin, Spring900345-40025900345-40025-Online1 4*25
25Spring,TorsionV452-001970V452-001970-Online
26Lockout, ThrottleC460-000660C460-000660-Online
27Lid,HandleC411-000300C411-000300-Online
28CushionV420-005580V420-005580-Online
29Bolt, Torx 4V804-000000V804-000000-Online1 TT-4*12 DG 10.9
30Guide, CableC480-000240C480-000240-Online
31Bolt, Torx 4V804-000000V804-000000-Online1 TT-4*12 DG 10.9
32Pad, GuardC302-000100C302-000100-Online
33Bolt, Torx 4V804-000000V804-000000-Online1 TT-4*12 DG 10.9
34Holder,SpringV456-000450V456-000450-Online
35Bolt, Torx 5V835-000000V835-000000-Online
36Spring,CompressionV450-002420V450-002420-Online
37Bolt, Torx 5V835-000000V835-000000-Online
38Holder,SpringV456-000430V456-000430-Online1 M SIDE 奥
39Holder,SpringV456-000440V456-000440-Online
40Bolt, Torx 6V806-000000V806-000000-Online1 TT-6*20 DG 10.9
41Spring,CompressionV450-002430V450-002430-Online
42Cushion,10V404-000260V404-000260-Online1 NOK U704
43Grommet,PlugV141-000180V141-000180-Online
44Cap AsyP100-008550P100-008550-Online1 | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed | HANDLE

Page 20 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
45+O-Ring900720-20029900720-20029-Online1 P-29
46+Connector,CapA365-000150A365-000150-Online1 | B | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

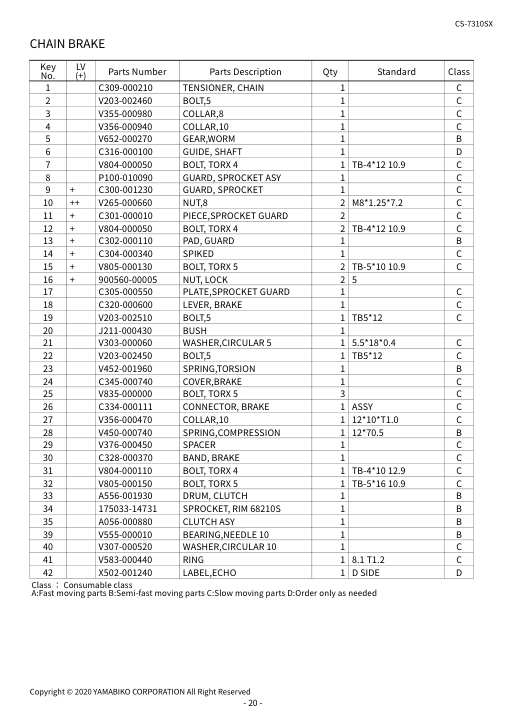

Page 22 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
1Tensioner, ChainC309-000210C309-000210-Online
2Bolt,5V203-002460V203-002460-Online
3Collar,8V355-000980V355-000980-Online
4Collar,10V356-000940V356-000940-Online
5Gear,WormV652-000270V652-000270-Online
6Guide, ShaftC316-000100C316-000100-Online
7Bolt, Torx 4V804-000050V804-000050-Online1 TB-4*12 10.9
8Guard, Sprocket AsyP100-010090P100-010090-Online
9+Guard, SprocketC300-001230C300-001230-Online1 | C | 10 | ++
10Nut,8V265-000660V265-000660-Online2 M8*1.25*7.2
11+Piece,Sprocket GuardC301-000010C301-000010-Online
12+Bolt, Torx 4V804-000050V804-000050-Online2 TB-4*12 10.9
13+Pad, GuardC302-000110C302-000110-Online
14+SpikedC304-000340C304-000340-Online
15+Bolt, Torx 5V805-000130V805-000130-Online2 TB-5*10 10.9
16+Nut, Lock900560-00005900560-00005-Online2 5
17Plate,Sprocket GuardC305-000550C305-000550-Online
18Lever, BrakeC320-000600C320-000600-Online
19Bolt,5V203-002510V203-002510-Online1 TB5*12
20BushJ211-000430J211-000430-Online
21Washer,Circular 5V303-000060V303-000060-Online1 5.5*18*0.4
22Bolt,5V203-002450V203-002450-Online1 TB5*12
23Spring,TorsionV452-001960V452-001960-Online
24Cover,BrakeC345-000740C345-000740-Online
25Bolt, Torx 5V835-000000V835-000000-Online
26Connector, BrakeC334-000111C334-000111-Online1 ASSY
27Collar,10V356-000470V356-000470-Online1 12*10*T1.0
28Spring,CompressionV450-000740V450-000740-Online1 12*70.5
29SpacerV376-000450V376-000450-Online
30Band, BrakeC328-000370C328-000370-Online
31Bolt, Torx 4V804-000110V804-000110-Online1 TB-4*10 12.9
32Bolt, Torx 5V805-000150V805-000150-Online1 TB-5*16 10.9
33Drum, ClutchA556-001930A556-001930-Online
34Sprocket, Rim 68210S175033-14731175033-14731-Online
35Clutch AsyA056-000880A056-000880-Online
39Bearing,Needle 10V555-000010V555-000010-Online
40Washer,Circular 10V307-000520V307-000520-Online
41RingV583-000440V583-000440-Online1 8.1 T1.2
42Label,EchoX502-001240X502-001240-Online1 D SIDE | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

Page 24 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
1Tool,WrenchX602-000080X602-000080-Online1 13*19 L180
2Tool,L WrenchX605-000190X605-000190-Online1 T27 120*80 | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

Page 26 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
AChain,SawX266-000090X266-000090-Online1 73EXL-72 | A | A3
AScabbard,ChainX490-000720X490-000720-Online1 | D | B1
DBar,Guide 60X128-000110X128-000110-Online1 U60R73-84AA- ED | A | B2
AChain,SawX268-000060X268-000060-Online1 73EXL-84 | A | B3
AScabbard,ChainX490-000710X490-000710-Online1 | D | C1
DBar,Guide 70X130-000040X130-000040-Online1 U70R73-92AA- ED | A | C2
AChain,SawX270-000080X270-000080-Online1 73EXL-92E | A | C3
AScabbard,ChainX490-001110X490-001110-Online1 | D | D1
DBar,Guide 45X125-000470X125-000470-Online1 U45R73-68AA- ED | A | D2
AChain,SawX265-000090X265-000090-Online1 73EXL068E | A | D3
AChain,SawX265-000080X265-000080-Online1 73LPX068E | A | E3
DBar,Guide 50X126-000390X126-000390-Online1 U50R73-72AA- ED | A | F2
AChain,SawX266-000060X266-000060-Online1 73LPX-72 | A | F3
AChain,SawX268-000040X268-000040-Online1 73LPX-84 | A | G3
AChain,SawX270-000050X270-000050-Online1 73LPX-92 | A | H3

Page 27 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
6Pin, Dowel101522-16430101522-16430-Online
4Screw125314-51230125314-51230-Online
10Valve,Inlet Needle125337-06960125337-06960-Online
10Pin, Metering Arm125338-13930125338-13930-Online
10Screw125344-52130125344-52130-Online
10Plug, Welch125345-15130125345-15130-Online
10Screw125348-13930125348-13930-Online
10Retainer125363-12820125363-12820-Online
10Piece, Friction125378-13930125378-13930-Online
10Vent Assembly, Fuel131300-56431131300-56431-Online
16Sprocket, Rim 68210S175033-14731175033-14731-Online
20Washer177214-02830177214-02830-Online
14Strainer, Oil436205-14730436205-14730-Online
2Label,Caution890345-39231890345-39231-Online
4Pin, Spring900345-40025900345-40025-Online
16Nut, Flange900515-00006900515-00006-Online
12Nut, Flange900515-00008900515-00008-Online
6Nut, Lock900560-00005900560-00005-Online
20Nut, Lock900560-00006900560-00006-Online
4Washer900600-00005900600-00005-Online
14Retaining Ring900701-00015900701-00015-Online
2O-Ring900720-20029900720-20029-Online
4O-Ring900720-20029900720-20029-Online
18Nut, Square92140-0400092140-04000-Online
8Bearing, Ball94036-4620294036-46202-Online
4Release Asy., Comp.A014-000130A014-000130-Online
2Starter,Recoil AsyA051-003540A051-003540-Online
14Clutch AsyA056-000880A056-000880-Online
20Ring, PistonA101-000790A101-000790-Online
2Cover,FanA172-003650A172-003650-Online
14Insulator, IntakeA200-001281A200-001281-Online
8Bellows, IntakeA202-000371A202-000371-Online
8Elbow, CarburetorA204-000280A204-000280-Online
8Holder, BellowsA206-000070A206-000070-Online
8Shutter,AirA219-000040A219-000040-Online
4Case,CarburetorA220-000090A220-000090-Online
8Lid,Carb CaseA222-000000A222-000000-Online
8Element, Air FilterA226-002370A226-002370-Online
8Knob, ChokeA241-000410A241-000410-Online
8Plate, MufflerA301-000100A301-000100-Online
12Screen, ArrestorA310-000580A310-000580-Online
12ElementA356-000120A356-000120-Online
4Connector,CapA365-000150A365-000150-Online
16Rotor, MagnetoA409-001420A409-001420-Online
6Coil, IgnitionA411-001950A411-001950-Online
6SparkplugA425-000080A425-000080-Online
6Spring Spark PlugA426-000050A426-000050-Online
6Cap,Spark PlugA427-000190A427-000190-Online
6Switch, On OffA440-003490A440-003490-Online
16Plate, StarterA503-000080A503-000080-Online
14Reel, RopeA506-000570A506-000570-Online
14RopeA509-000510A509-000510-Online
14Grip,StarterA511-000300A511-000300-Online
14PawlA514-000350A514-000350-Online
6Drum, ClutchA556-001930A556-001930-Online
20Auto-Oiler AssemblyC022-000220C022-000220-Online
2Guard, SprocketC300-001230C300-001230-Online
20Piece,SprocketC301-000010C301-000010-OnlineGUARD
20Pad, GuardC302-000100C302-000100-Online
16Pad, GuardC302-000110C302-000110-Online
20SpikedC304-000340C304-000340-Online
20SpikedC304-000350C304-000350-Online
4Plate,SprocketC305-000550C305-000550-OnlineGUARD
20Tensioner, ChainC309-000210C309-000210-Online
20Catcher,ChainC310-000030C310-000030-Online
4Guide, ShaftC316-000100C316-000100-Online
20Lever, BrakeC320-000600C320-000600-Online
20Band, BrakeC328-000370C328-000370-Online
20Connector, BrakeC334-000111C334-000111-Online
20Cover,BrakeC345-000740C345-000740-Online
20Handle, FrontC400-001750C400-001750-Online
16Bracket,HandleC405-000650C405-000650-Online
16Bracket,HandleC405-000660C405-000660-Online
16Lid,HandleC411-000300C411-000300-Online
16Control, ThrottleC450-001120C450-001120-Online
16Lockout, ThrottleC460-000660C460-000660-Online
16Guide, CableC480-000240C480-000240-Online
16BushJ211-000430J211-000430-Online
20KnobM613-000330M613-000330-Online
8Plug, WelchP005-000410P005-000410-Online
10Screen, Fuel InletP005-000860P005-000860-Online
10Gasket, PumpP005-001430P005-001430-Online
10Cover, DiaphragmP005-001850P005-001850-Online
10ScrewP005-003170P005-003170-Online
10Nozzle AsyP005-004390P005-004390-Online
10Metering SpringP005-004400P005-004400-Online10 | Part No | Part descrition | Page
10ScrewP005-004420P005-004420-Online
10Throttle LeverP005-004430P005-004430-Online
10Throttle ShaftP005-004440P005-004440-Online
10Throttle SpringP005-004450P005-004450-Online
10ValveP005-004460P005-004460-Online
10Throttle LeverP005-004470P005-004470-Online
10Choke ShaftP005-004480P005-004480-Online
10Choke LeverP005-004490P005-004490-Online
10ValveP005-004500P005-004500-Online
10Choke LeverP005-004510P005-004510-Online
10ScrewP005-004540P005-004540-Online
10ScrewP005-004550P005-004550-Online
10Lever, MeteringP005-004560P005-004560-Online
10Gasket, MeteringP005-004570P005-004570-Online
10Diaphragm ,MeteringP005-004580P005-004580-Online
10Diaphragm, PumpP005-004590P005-004590-Online
10CollarP005-004600P005-004600-Online
10Spring, ChokeP005-004610P005-004610-OnlineRETURN
10CollarP005-004620P005-004620-Online
10ScrewP005-004660P005-004660-Online
10ScrewP005-004670P005-004670-Online
10Cap,Oil AsyP100-008410P100-008410-Online
4Cap AsyP100-008550P100-008550-Online
16Handle Asy, RearP100-009380P100-009380-Online
16Cylinder AsyP100-009400P100-009400-Online
2Piston KitP100-009410P100-009410-Online
2Muffler AsyP100-009450P100-009450-Online
12Case,StarterP100-009460P100-009460-Online
14Spring Kit, RewindP100-009470P100-009470-Online
14Cylinder Cover AsyP100-010080P100-010080-Online
4Guard, Sprocket AsyP100-010090P100-010090-Online
20Crankcase SetP100-010230P100-010230-Online
4Carburetor AsyP200-001230P200-001230-Online
8Carburetor AsyP200-001230P200-001230-Online
10Gasket,CylV100-000900V100-000900-Online
2Gasket,CrankcaseV102-000350V102-000350-Online
4Gasket,ExhaustV104-002540V104-002540-Online
12Grommet,ChokeV130-000190V130-000190-Online
8Grommet,NeedleV131-000230V131-000230-Online
8Grommet,LeadV136-000140V136-000140-Online
8Grommet,FuelV137-000160V137-000160-Online
8Grommet,PlugV141-000090V141-000090-Online
2Grommet,PlugV141-000180V141-000180-Online16 | Copyright © 2020 YAMABIKO CORPORATION All Right Reserved | Index-1

Page 28 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
12Joint,PipeV186-000530V186-000530-Online
16Bolt,4V202-000790V202-000790-Online
8Bolt,5V203-002250V203-002250-Online
6Bolt,5V203-002450V203-002450-Online
20Bolt,5V203-002460V203-002460-Online
20Bolt,5V203-002510V203-002510-Online
20Bolt,6V204-001880V204-001880-Online
12Bolt,Stud 8V225-000380V225-000380-Online
4Nut,8V265-000660V265-000660-Online
20Washer,Circular 5V303-000060V303-000060-Online
20Washer,Circular 6V304-000540V304-000540-Online
12Washer,Circular 10V307-000520V307-000520-Online
20Washer,Circular 16-1V311-000090V311-000090-Online
2Collar,4V352-000340V352-000340-Online
8Collar,4V352-000340V352-000340-Online
10Collar,6V354-000650V354-000650-Online
4Collar,8V355-000980V355-000980-Online
20Collar,10V356-000470V356-000470-Online
20Collar,10V356-000940V356-000940-Online
20Collar,20V361-000580V361-000580-Online
8SpacerV376-000450V376-000450-Online
20Cushion,10V404-000260V404-000260-Online
16CushionV420-003800V420-003800-Online
8CushionV420-005580V420-005580-Online
16CushionV420-005590V420-005590-Online
4CushionV420-005600V420-005600-Online
4CushionV420-005610V420-005610-Online
8CushionV420-005620V420-005620-Online
8Cable,BowdenV430-005290V430-005290-Online
16Spring,CompressionV450-000740V450-000740-Online
20Spring,CompressionV450-002410V450-002410-Online
16Spring,CompressionV450-002420V450-002420-Online
16Spring,CompressionV450-002430V450-002430-Online
16Spring,TorsionV452-001950V452-001950-Online
6Spring,TorsionV452-001960V452-001960-Online
20Spring,TorsionV452-001970V452-001970-Online
16Holder,SpringV456-000430V456-000430-Online
16Holder,SpringV456-000440V456-000440-Online
16Holder,SpringV456-000450V456-000450-Online
16Holder,SpringV456-000460V456-000460-Online
16PipeV470-001991V470-001991-Online
16PipeV470-002370V470-002370-Online
2PipeV470-002410V470-002410-Online
16PipeV470-002420V470-002420-Online4 | Part No | Part descrition | Page
16TubeV475-009560V475-009560-Online
6LeadV485-003490V485-003490-Online
16LeadV485-003500V485-003500-Online
16ClipV490-000500V490-000500-Online
4ClipV490-000500V490-000500-Online
16ClipV490-001230V490-001230-Online
16BandV495-003900V495-003900-Online
6Seal,Oil 15V508-000140V508-000140-Online
4Bearing,Needle 10V555-000010V555-000010-Online
20Bearing,Needle 12V557-000080V557-000080-Online
2Ring,EndV580-000000V580-000000-Online
2RingV583-000440V583-000440-Online
20Pin,Eng 12V610-000040V610-000040-Online
2Pin,SnapV641-000270V641-000270-Online
4Gear,WormV652-000270V652-000270-Online
20Gear,WormV652-000300V652-000300-Online
2Bolt, Torx 4V804-000000V804-000000-Online
16Bolt, Torx 4V804-000030V804-000030-Online
12Bolt, Torx 4V804-000050V804-000050-Online
2Bolt, Torx 4V804-000050V804-000050-Online
20Bolt, Torx 4V804-000110V804-000110-Online
20Bolt, Torx 5V805-000130V805-000130-Online
14Bolt, Torx 5V805-000130V805-000130-Online
20Bolt, Torx 5V805-000150V805-000150-Online
6Bolt, Torx 5V805-000150V805-000150-Online
8Bolt, Torx 5V805-000150V805-000150-Online
20Bolt, Torx 5V805-000220V805-000220-Online
2Bolt, Torx 5V805-000220V805-000220-Online
4Bolt, Torx 5V805-000250V805-000250-Online
4Bolt, Torx 5V805-000290V805-000290-Online
4Bolt, Torx 5V805-000360V805-000360-Online
16Bolt, Torx 5V805-000410V805-000410-Online
14Bolt, Torx 6V806-000000V806-000000-Online
16Bolt, Torx 6V806-000010V806-000010-Online
12Bolt, Torx 5V835-000000V835-000000-Online
16Bolt, Torx 5V835-000000V835-000000-Online
20Bolt, Torx 5V835-000030V835-000030-Online
8Bolt,Torx 6V856-000010V856-000010-Online
4Bar,Guide 45X125-000470X125-000470-Online
24Bar,Guide 50X126-000390X126-000390-Online
24Bar,Guide 60X128-000110X128-000110-Online
24Bar,Guide 70X130-000040X130-000040-Online
24Chain,SawX265-000080X265-000080-Online
24Chain,SawX265-000090X265-000090-Online24 | Part No | Part descrition | Page
24Chain,SawX266-000090X266-000090-Online
24Chain,SawX268-000040X268-000040-Online
24Chain,SawX268-000060X268-000060-Online
24Chain,SawX270-000050X270-000050-Online
24Chain,SawX270-000080X270-000080-Online
24Scabbard,ChainX490-000710X490-000710-Online
24Scabbard,ChainX490-000720X490-000720-Online
24Scabbard,ChainX490-001110X490-001110-Online
24Label,EchoX502-001060X502-001060-Online
4Label,EchoX502-001240X502-001240-Online
20Label,ModelX503-015470X503-015470-Online
4Label,EchoX547-003600X547-003600-Online
14Tool,WrenchX602-000080X602-000080-Online
22Tool,L WrenchX605-000190X605-000190-Online22 | Copyright © 2020 YAMABIKO CORPORATION All Right Reserved | Index-2

Source PDF: 20220323-54-CS-7310SX--38spec.pdf. Generated 2026-06-25 14:40.

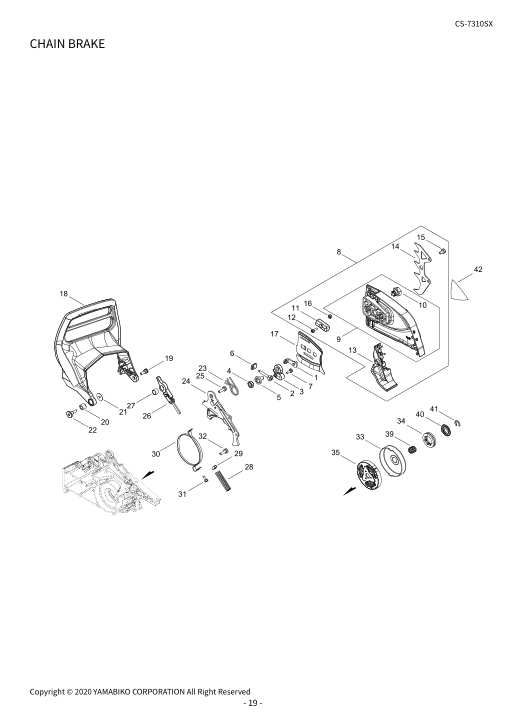

×Enlarged Echo CS-7310SX-38spec IPL / Parts List source page 1
Echo CS-7310SX-38spec IPL / Parts List - source page 1

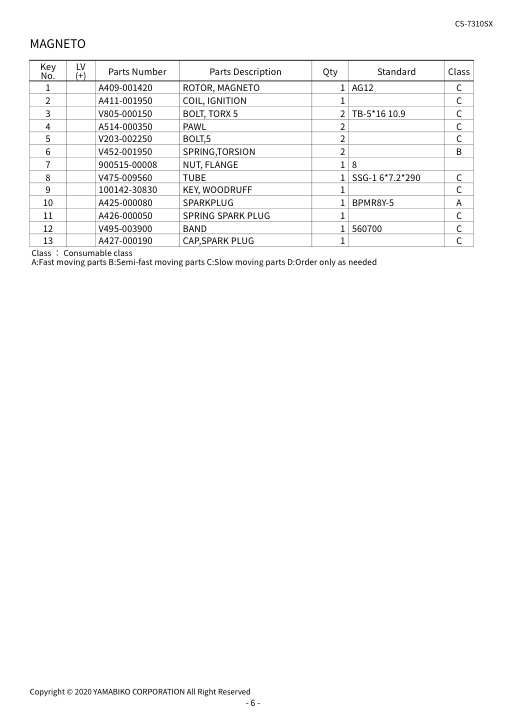

×Enlarged Echo CS-7310SX-38spec IPL / Parts List source page 2
Echo CS-7310SX-38spec IPL / Parts List - source page 2
×Enlarged Echo CS-7310SX-38spec IPL / Parts List source page 3
Echo CS-7310SX-38spec IPL / Parts List - source page 3
×Enlarged Echo CS-7310SX-38spec IPL / Parts List source page 4
Echo CS-7310SX-38spec IPL / Parts List - source page 4
×Enlarged Echo CS-7310SX-38spec IPL / Parts List source page 5
Echo CS-7310SX-38spec IPL / Parts List - source page 5
×Enlarged Echo CS-7310SX-38spec IPL / Parts List source page 6
Echo CS-7310SX-38spec IPL / Parts List - source page 6
×Enlarged Echo CS-7310SX-38spec IPL / Parts List source page 7
Echo CS-7310SX-38spec IPL / Parts List - source page 7
×Enlarged Echo CS-7310SX-38spec IPL / Parts List source page 8
Echo CS-7310SX-38spec IPL / Parts List - source page 8
×Enlarged Echo CS-7310SX-38spec IPL / Parts List source page 9
Echo CS-7310SX-38spec IPL / Parts List - source page 9
×Enlarged Echo CS-7310SX-38spec IPL / Parts List source page 10
Echo CS-7310SX-38spec IPL / Parts List - source page 10
×Enlarged Echo CS-7310SX-38spec IPL / Parts List source page 11
Echo CS-7310SX-38spec IPL / Parts List - source page 11
×Enlarged Echo CS-7310SX-38spec IPL / Parts List source page 12
Echo CS-7310SX-38spec IPL / Parts List - source page 12
×Enlarged Echo CS-7310SX-38spec IPL / Parts List source page 13
Echo CS-7310SX-38spec IPL / Parts List - source page 13
×Enlarged Echo CS-7310SX-38spec IPL / Parts List source page 14
Echo CS-7310SX-38spec IPL / Parts List - source page 14
×Enlarged Echo CS-7310SX-38spec IPL / Parts List source page 15
Echo CS-7310SX-38spec IPL / Parts List - source page 15
×Enlarged Echo CS-7310SX-38spec IPL / Parts List source page 16
Echo CS-7310SX-38spec IPL / Parts List - source page 16
×Enlarged Echo CS-7310SX-38spec IPL / Parts List source page 17
Echo CS-7310SX-38spec IPL / Parts List - source page 17
×Enlarged Echo CS-7310SX-38spec IPL / Parts List source page 18
Echo CS-7310SX-38spec IPL / Parts List - source page 18
×Enlarged Echo CS-7310SX-38spec IPL / Parts List source page 19
Echo CS-7310SX-38spec IPL / Parts List - source page 19
×Enlarged Echo CS-7310SX-38spec IPL / Parts List source page 20
Echo CS-7310SX-38spec IPL / Parts List - source page 20
×Enlarged Echo CS-7310SX-38spec IPL / Parts List source page 21
Echo CS-7310SX-38spec IPL / Parts List - source page 21
×Enlarged Echo CS-7310SX-38spec IPL / Parts List source page 22
Echo CS-7310SX-38spec IPL / Parts List - source page 22
×Enlarged Echo CS-7310SX-38spec IPL / Parts List source page 23
Echo CS-7310SX-38spec IPL / Parts List - source page 23
×Enlarged Echo CS-7310SX-38spec IPL / Parts List source page 24
Echo CS-7310SX-38spec IPL / Parts List - source page 24
×Enlarged Echo CS-7310SX-38spec IPL / Parts List source page 25
Echo CS-7310SX-38spec IPL / Parts List - source page 25
×Enlarged Echo CS-7310SX-38spec IPL / Parts List source page 26
Echo CS-7310SX-38spec IPL / Parts List - source page 26
×Enlarged Echo CS-7310SX-38spec IPL / Parts List source page 27
Echo CS-7310SX-38spec IPL / Parts List - source page 27
×Enlarged Echo CS-7310SX-38spec IPL / Parts List source page 28
Echo CS-7310SX-38spec IPL / Parts List - source page 28
\n
\n
