Echo CS-60S IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: CS-60S-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.

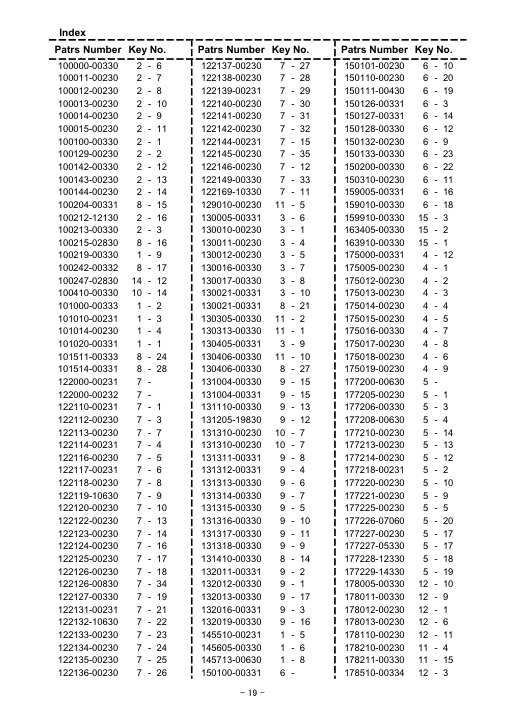

Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Stud, Cyl. Cover(Iso | 101020-00331 | 101020-00331-Online | ||
| 2 | 1 | Cylinder | 101000-00333 | 101000-00333-Online | ||
| 3 | 1 | Gasket, Cyl. Base | 101010-00231 | 101010-00231-Online | ||
| 4 | 2 | Stud, Muffler | 101014-00230 | 101014-00230-Online | ||
| 5 | 1 | Gasket, Muffler | 145510-00231 | 145510-00231-Online | ||
| 6 | 1 | Muffler (Sl) | 145605-00330 | 145605-00330-Online | ||
| 8 | 2 | Locknut 6 | 145713-00630 | 145713-00630-Online | ||
| 9 | 4 | Bolt | 100219-00330 | 100219-00330-Online | 6*25 |
Page 3 - Parts

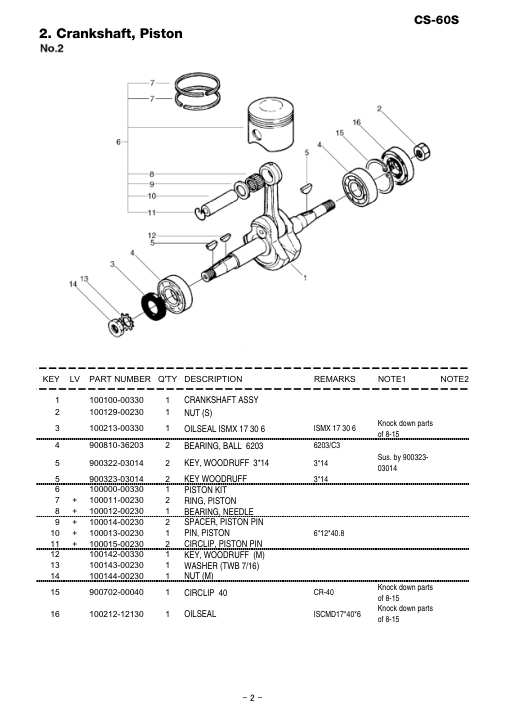

| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Crankshaft Assy | 100100-00330 | 100100-00330-Online | ||
| 2 | 1 | Nut (S) | 100129-00230 | 100129-00230-Online | ||
| 3 | 1 | Oilseal Ismx 17 30 6 | 100213-00330 | 100213-00330-Online | ISMX 17 30 6 | Knock down parts | of 8-15 | |
| 4 | 2 | Bearing, Ball 6203 | 900810-36203 | 900810-36203-Online | 6203/C3 | |
| 5 | 2 | Key, Woodruff 3*14 | 900322-03014 | 900322-03014-Online | 3*14 | Sus. by 900323- | 03014 | |
| 5 | 2 | Key Woodruff | 900323-03014 | 900323-03014-Online | 3*14 | |
| 6 | 1 | Piston Kit | 100000-00330 | 100000-00330-Online | ||
| 7 | + | 2 | Ring, Piston | 100011-00230 | 100011-00230-Online | |
| 8 | + | 1 | Bearing, Needle | 100012-00230 | 100012-00230-Online | |
| 9 | + | 2 | Spacer, Piston Pin | 100014-00230 | 100014-00230-Online | |
| 10 | + | 1 | Pin, Piston | 100013-00230 | 100013-00230-Online | 6*12*40.8 |
| 11 | + | 2 | Circlip, Piston Pin | 100015-00230 | 100015-00230-Online | |
| 12 | 1 | Key, Woodruff (M) | 100142-00330 | 100142-00330-Online | ||
| 13 | 1 | Washer (Twb 7/16) | 100143-00230 | 100143-00230-Online | ||
| 14 | 1 | Nut (M) | 100144-00230 | 100144-00230-Online | ||
| 15 | 1 | Circlip 40 | 900702-00040 | 900702-00040-Online | CR-40 | Knock down parts | of 8-15 | |
| 16 | 1 | Oilseal | 100212-12130 | 100212-12130-Online | ISCMD17*40*6 | Knock down parts | of 8-15 |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 2 | Gasket, Carburetor | 130010-00230 | 130010-00230-Online | ||
| 2 | 2 | Washer | 433015-00230 | 433015-00230-Online | ||
| 3 | 2 | Bolt, H.S. 6*28 | 900105-06028 | 900105-06028-Online | 6*28 | |
| 4 | 1 | Plate, Wind Proof | 130011-00230 | 130011-00230-Online | ||
| 5 | 1 | Seal, Dust | 130012-00230 | 130012-00230-Online | ||
| 6 | 1 | Bed, Carburetor | 130005-00331 | 130005-00331-Online | ||
| 7 | 2 | Gasket, Carburetor | 130016-00330 | 130016-00330-Online | ||
| 8 | 1 | Insulator | 130017-00330 | 130017-00330-Online | ||
| 9 | 1 | Bracket, Air Cleaner | 130405-00331 | 130405-00331-Online | ||
| 10 | 2 | Bolt (Iso) | 130021-00331 | 130021-00331-Online | ||
| 11 | 2 | Washer, Spring 5 | 900605-00005 | 900605-00005-Online |
Page 5 - Parts

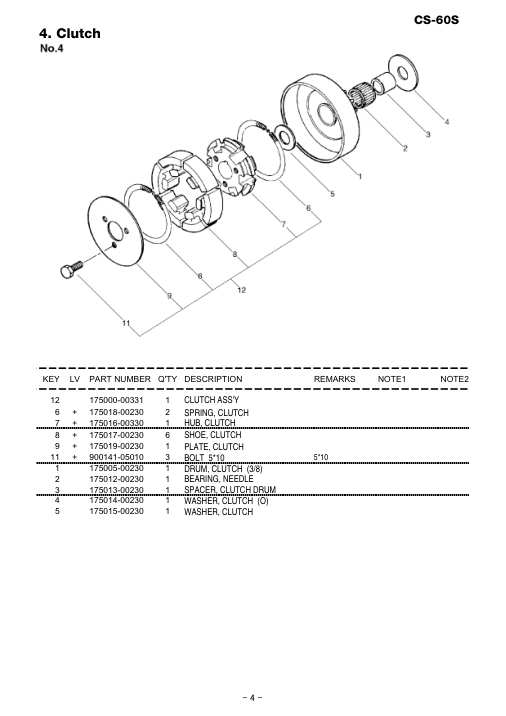

| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 12 | 1 | Clutch Ass'Y | 175000-00331 | 175000-00331-Online | ||
| 6 | + | 2 | Spring, Clutch | 175018-00230 | 175018-00230-Online | |
| 7 | + | 1 | Hub, Clutch | 175016-00330 | 175016-00330-Online | |
| 8 | + | 6 | Shoe, Clutch | 175017-00230 | 175017-00230-Online | |
| 9 | + | 1 | Plate, Clutch | 175019-00230 | 175019-00230-Online | |
| 11 | + | 3 | Bolt 5*10 | 900141-05010 | 900141-05010-Online | 5*10 |
| 1 | 1 | Drum, Clutch (3/8) | 175005-00230 | 175005-00230-Online | ||
| 2 | 1 | Bearing, Needle | 175012-00230 | 175012-00230-Online | ||
| 3 | 1 | Spacer, Clutch Drum | 175013-00230 | 175013-00230-Online | ||
| 4 | 1 | Washer, Clutch (O) | 175014-00230 | 175014-00230-Online | ||
| 5 | 1 | Washer, Clutch | 175015-00230 | 175015-00230-Online |
Page 6 - Parts

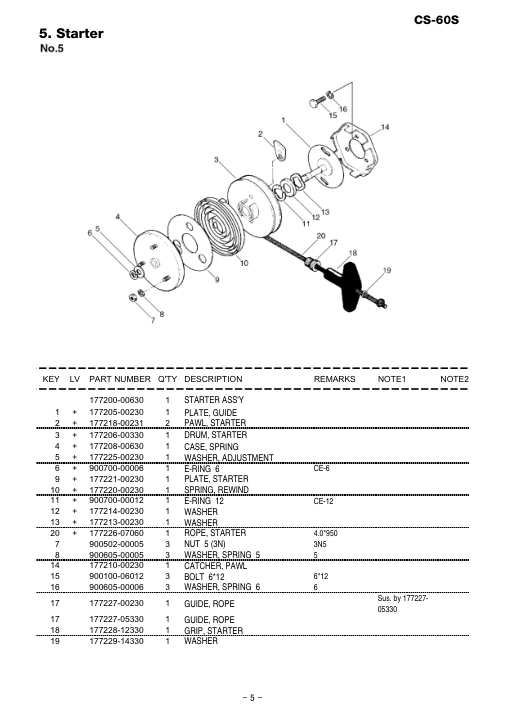

| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 1 | Plate, Guide | 177205-00230 | 177205-00230-Online | |
| 2 | + | 2 | Pawl, Starter | 177218-00231 | 177218-00231-Online | |
| 3 | + | 1 | Drum, Starter | 177206-00330 | 177206-00330-Online | |
| 4 | + | 1 | Case, Spring | 177208-00630 | 177208-00630-Online | |
| 5 | + | 1 | Washer, Adjustment | 177225-00230 | 177225-00230-Online | |
| 6 | + | 1 | E-Ring 6 | 900700-00006 | 900700-00006-Online | CE-6 |
| 9 | + | 1 | Plate, Starter | 177221-00230 | 177221-00230-Online | |
| 10 | + | 1 | Spring, Rewind | 177220-00230 | 177220-00230-Online | |
| 11 | + | 1 | E-Ring 12 | 900700-00012 | 900700-00012-Online | CE-12 |
| 12 | + | 1 | Washer | 177214-00230 | 177214-00230-Online | |
| 13 | + | 1 | Washer | 177213-00230 | 177213-00230-Online | |
| 20 | + | 1 | Rope, Starter | 177226-07060 | 177226-07060-Online | 4.0*950 |
| 7 | 3 | Nut 5 (3N) | 900502-00005 | 900502-00005-Online | 3N5 | |
| 8 | 3 | Washer, Spring 5 | 900605-00005 | 900605-00005-Online | ||
| 14 | 1 | Catcher, Pawl | 177210-00230 | 177210-00230-Online | ||
| 15 | 3 | Bolt 6*12 | 900100-06012 | 900100-06012-Online | 6*12 | |
| 16 | 3 | Washer, Spring 6 | 900605-00006 | 900605-00006-Online | ||
| 17 | 1 | Guide, Rope | 177227-00230 | 177227-00230-Online | Sus. by 177227- | 05330 | |
| 17 | 1 | Guide, Rope | 177227-05330 | 177227-05330-Online | ||
| 18 | 1 | Grip, Starter | 177228-12330 | 177228-12330-Online | ||
| 19 | 1 | Washer | 177229-14330 | 177229-14330-Online |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 2 | Screw 4*22 | 900220-04022 | 900220-04022-Online | 4*22 |
| 2 | + | 5 | Washer, Spring 4 | 900605-00004 | 900605-00004-Online | |
| 3 | + | 1 | Coil, Ignition | 150126-00331 | 150126-00331-Online | |
| 4 | + | 1 | Screw | 900242-04008 | 900242-04008-Online | 4*8 |
| 9 | + | 1 | Plate, Stator | 150132-00230 | 150132-00230-Online | |
| 10 | + | 1 | Points, Breaker | 150101-00230 | 150101-00230-Online | |
| 11 | + | 1 | Part | 150310-00230 | 150310-00230-Online | |
| 12 | + | 1 | Cover, Breaker | 150128-00330 | 150128-00330-Online | |
| 13 | + | 2 | Screw 4*12 | 900220-04012 | 900220-04012-Online | 4*12 |
| 14 | + | 1 | Condenser | 150127-00331 | 150127-00331-Online | |
| 15 | + | 1 | Screw 4*8 | 900220-04008 | 900220-04008-Online | 4*8 |
| 8 | 2 | Screw 5*15 | 900242-05015 | 900242-05015-Online | 5*15 | |
| 16 | 1 | Cap, Spark Plug | 159005-00331 | 159005-00331-Online | ||
| 18 | 1 | Plug, Spark (Bm-6A) | 159010-00330 | 159010-00330-Online | BM-6A | |
| 19 | 1 | Tube | 150111-00430 | 150111-00430-Online | 8*9*200 | |
| 20 | 1 | Bushing | 150110-00230 | 150110-00230-Online | ||
| 22 | 1 | Flywheel | 150200-00330 | 150200-00330-Online | ||
| 23 | 1 | Lead | 150133-00330 | 150133-00330-Online |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 4 | Screw | 122110-00231 | 122110-00231-Online | |
| 3 | + | 1 | Diaphragm, Pump | 122112-00230 | 122112-00230-Online | |
| 4 | + | 2 | Screw | 122114-00231 | 122114-00231-Online | |
| 5 | + | 1 | Butterfly, Throttle | 122116-00230 | 122116-00230-Online | |
| 6 | + | 1 | Shaft, Throttle | 122117-00231 | 122117-00231-Online | |
| 7 | + | 1 | Spring, Return | 122113-00230 | 122113-00230-Online | |
| 8 | + | 1 | Needle, Idle | 122118-00230 | 122118-00230-Online | |
| 9 | + | 2 | Spring, Needle | 122119-10630 | 122119-10630-Online | |
| 10 | + | 1 | Needle, High Speed | 122120-00230 | 122120-00230-Online | |
| 11 | + | 1 | Ring, Retaining | 122169-10330 | 122169-10330-Online | |
| 12 | + | 1 | Plug, Welch (S) | 122146-00230 | 122146-00230-Online | |
| 13 | + | 1 | Spring, Tension | 122122-00230 | 122122-00230-Online | |
| 14 | + | 1 | Lever, Inlet Control | 122123-00230 | 122123-00230-Online | |
| 15 | + | 4 | Screw & Lockwasher | 122144-00231 | 122144-00231-Online | |
| 16 | + | 1 | Cover, Fuel Pump | 122124-00230 | 122124-00230-Online | |
| 17 | + | 1 | Gasket, Pump | 122125-00230 | 122125-00230-Online | |
| 18 | + | 1 | Screen, Fuel | 122126-00230 | 122126-00230-Online | |
| 19 | + | 1 | Clip, Throttle Shaft | 122127-00330 | 122127-00330-Online | |
| 21 | + | 1 | Shaft, Choke | 122131-00231 | 122131-00231-Online | |
| 22 | + | 1 | Butterfly, Choke | 122132-10630 | 122132-10630-Online | |
| 23 | + | 1 | Spring | 122133-00230 | 122133-00230-Online | |
| 24 | + | 1 | Screw, Idle Adjust | 122134-00230 | 122134-00230-Online | |
| 25 | + | 1 | Spring, Choke Set | 122135-00230 | 122135-00230-Online |
Page 9 - Parts

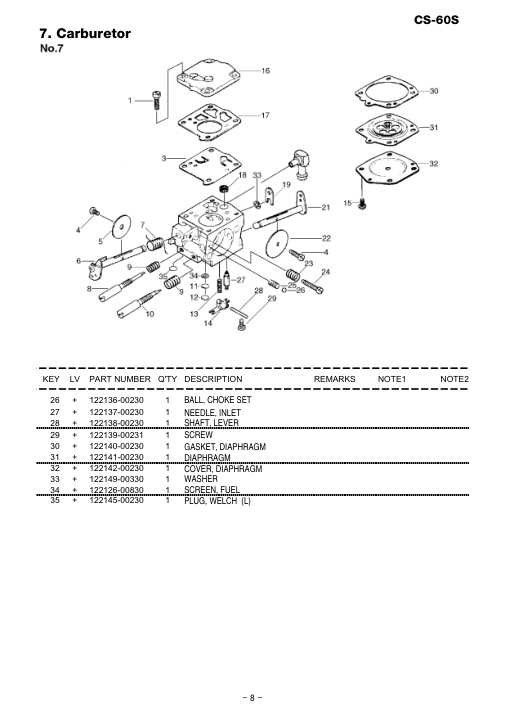

| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 26 | + | 1 | Ball, Choke Set | 122136-00230 | 122136-00230-Online | |
| 27 | + | 1 | Needle, Inlet | 122137-00230 | 122137-00230-Online | |
| 28 | + | 1 | Shaft, Lever | 122138-00230 | 122138-00230-Online | |
| 29 | + | 1 | Screw | 122139-00231 | 122139-00231-Online | |
| 30 | + | 1 | Gasket, Diaphragm | 122140-00230 | 122140-00230-Online | |
| 31 | + | 1 | Diaphragm | 122141-00230 | 122141-00230-Online | |
| 32 | + | 1 | Cover, Diaphragm | 122142-00230 | 122142-00230-Online | |
| 33 | + | 1 | Washer | 122149-00330 | 122149-00330-Online | |
| 34 | + | 1 | Screen, Fuel | 122126-00830 | 122126-00830-Online | |
| 35 | + | 1 | Plug, Welch (L) | 122145-00230 | 122145-00230-Online |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 2 | Bolt, H.S. 6*25 | 900105-06025 | 900105-06025-Online | 6*25 | |
| 2 | 2 | Washer, Spring 6 | 900605-00006 | 900605-00006-Online | ||
| 3 | 2 | Washer 6 | 900600-00006 | 900600-00006-Online | ||
| 7 | 6 | Bolt, H.S. 5*35 | 900162-05035 | 900162-05035-Online | 5*35 W,SW | |
| 8 | 3 | Washer, Spring 5 | 900605-00005 | 900605-00005-Online | ||
| 9 | 3 | Washer 5 | 900600-00005 | 900600-00005-Online | ||
| 12 | 1 | Pin, Split 2*15 | 900300-20015 | 900300-20015-Online | P-2*15 | |
| 13 | 1 | Washer 2 | 900600-00002 | 900600-00002-Online | ||
| 14 | 1 | Packing, Felt | 131410-00330 | 131410-00330-Online | ||
| 15 | 1 | Crankcase Kit (Bs) | 100204-00331 | 100204-00331-Online | ||
| 16 | + | 2 | Pin, Dowel | 100215-02830 | 100215-02830-Online | |
| 17 | + | 1 | Gasket, Crankcase | 100242-00332 | 100242-00332-Online | |
| 20 | 6 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 21 | 3 | Bolt (Iso) | 130021-00331 | 130021-00331-Online | ||
| 22 | 3 | Screw 3*6 | 900220-03006 | 900220-03006-Online | 3*6 | |
| 23 | 1 | Label, Model | 890112-00331 | 890112-00331-Online | ||
| 24 | 1 | Cover, Fan (Bs) | 101511-00333 | 101511-00333-Online | ||
| 25 | 1 | Circlip 11 | 900701-00011 | 900701-00011-Online | CS-11 | |
| 26 | 1 | O-Ring 14 | 900720-00014 | 900720-00014-Online | P-14 | |
| 27 | 1 | Nut, Thumb | 130406-00330 | 130406-00330-Online | ||
| 28 | 1 | Cover, Cylinder | 101514-00331 | 101514-00331-Online | ||
| 29 | 1 | Supporter, F. Handle | 351217-00331 | 351217-00331-Online |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Pipe, Fuel (Outer) | 132012-00330 | 132012-00330-Online | ||
| 2 | 1 | Connector, Fuel Pipe | 132011-00331 | 132011-00331-Online | ||
| 3 | 1 | Pipe, Fuel (Inner) | 132016-00331 | 132016-00331-Online | ||
| 4 | 1 | Pipe, Vent (Outer) | 131312-00331 | 131312-00331-Online | ||
| 5 | 1 | Filter | 131315-00330 | 131315-00330-Online | ||
| 6 | 1 | Holder, Check Valve | 131313-00330 | 131313-00330-Online | ||
| 7 | 1 | Valve, Check | 131314-00330 | 131314-00330-Online | ||
| 8 | 2 | Connector | 131311-00331 | 131311-00331-Online | ||
| 9 | 4 | Gasket | 131318-00330 | 131318-00330-Online | ||
| 10 | 1 | Connector | 131316-00330 | 131316-00330-Online | ||
| 11 | 1 | Pipe, Connecting | 131317-00330 | 131317-00330-Online | ||
| 12 | 1 | Strainer, Fuel | 131205-19830 | 131205-19830-Online | ||
| 13 | 1 | Strainer, Inlet Fuel | 131110-00330 | 131110-00330-Online | ||
| 15 | 1 | Cap Ass'Y, Fuel | 131004-00330 | 131004-00330-Online | Sus. by 131004- | 00331 | |
| 15 | 1 | Cap Assy, Fuel Bl | 131004-00331 | 131004-00331-Online | ||
| 14 | + | 1 | O-Ring 29 | 900720-00029 | 900720-00029-Online | P-29 |
| 16 | 1 | Washer, Seal | 132019-00330 | 132019-00330-Online | ||
| 17 | 1 | Clip, Pipe | 132013-00330 | 132013-00330-Online | ||
| 18 | 1 | Clip (S) | 437221-00330 | 437221-00330-Online |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|

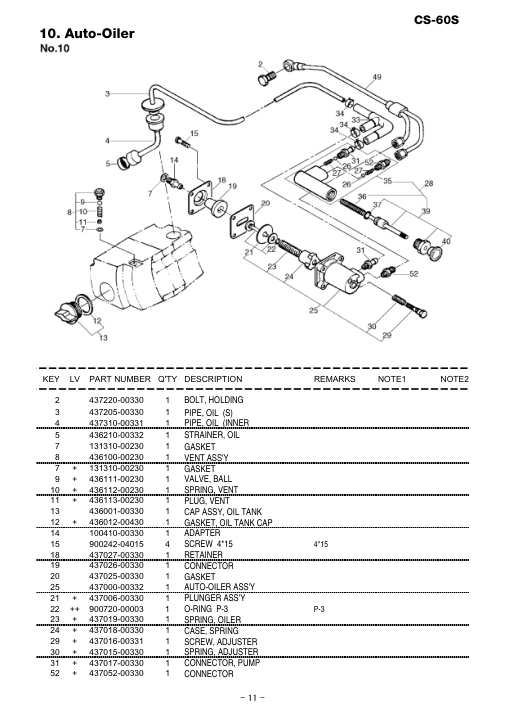

| 2 | 1 | Bolt, Holding | 437220-00330 | 437220-00330-Online | ||
| 3 | 1 | Pipe, Oil (S) | 437205-00330 | 437205-00330-Online | ||
| 4 | 1 | Pipe, Oil (Inner | 437310-00331 | 437310-00331-Online | ||
| 5 | 1 | Strainer, Oil | 436210-00332 | 436210-00332-Online | ||
| 7 | 1 | Gasket | 131310-00230 | 131310-00230-Online | ||
| 8 | 1 | Vent Ass'Y | 436100-00230 | 436100-00230-Online | ||
| 9 | + | 1 | Valve, Ball | 436111-00230 | 436111-00230-Online | |
| 10 | + | 1 | Spring, Vent | 436112-00230 | 436112-00230-Online | |
| 11 | + | 1 | Plug, Vent | 436113-00230 | 436113-00230-Online | |
| 13 | 1 | Cap Assy, Oil Tank | 436001-00330 | 436001-00330-Online | ||
| 12 | + | 1 | Gasket, Oil Tank Cap | 436012-00430 | 436012-00430-Online | |
| 14 | 1 | Adapter | 100410-00330 | 100410-00330-Online | ||
| 15 | 4 | Screw 4*15 | 900242-04015 | 900242-04015-Online | 4*15 | |
| 18 | 1 | Retainer | 437027-00330 | 437027-00330-Online | ||
| 19 | 1 | Connector | 437026-00330 | 437026-00330-Online | ||
| 20 | 1 | Gasket | 437025-00330 | 437025-00330-Online | ||
| 25 | 1 | Auto-Oiler Ass'Y | 437000-00332 | 437000-00332-Online | ||
| 21 | + | 1 | Plunger Ass'Y | 437006-00330 | 437006-00330-Online | 22 | ++ |
| 22 | 1 | O-Ring P-3 | 900720-00003 | 900720-00003-Online | P-3 | |
| 23 | + | 1 | Spring, Oiler | 437019-00330 | 437019-00330-Online | |
| 24 | + | 1 | Case, Spring | 437018-00330 | 437018-00330-Online | |
| 29 | + | 1 | Screw, Adjuster | 437016-00331 | 437016-00331-Online | |
| 30 | + | 1 | Spring, Adjuster | 437015-00330 | 437015-00330-Online | |
| 31 | + | 1 | Connector, Pump | 437017-00330 | 437017-00330-Online | |
| 52 | + | 1 | Connector | 437052-00330 | 437052-00330-Online |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 28 | 1 | Pump Ass'Y, Oil | 437100-00332 | 437100-00332-Online | ||
| 35 | + | 1 | Body Ass'Y, Oil Pump | 437102-00330 | 437102-00330-Online | 26 | ++ |
| 26 | 2 | Valve, Ball | 437012-00330 | 437012-00330-Online | 27 | ++ | |
| 27 | 2 | Spring, Valve | 437013-00330 | 437013-00330-Online | 31 | ++ | |
| 31 | 1 | Connector, Pump | 437017-00330 | 437017-00330-Online | 52 | ++ | |
| 52 | 1 | Connector | 437052-00330 | 437052-00330-Online | ||
| 36 | + | 1 | Spring, Oil Pump | 437111-00231 | 437111-00231-Online | |
| 39 | + | 1 | Piston, Pump (W/Cap) | 437101-00330 | 437101-00330-Online | 37 | ++ |
| 37 | 1 | O-Ring 6 | 900720-00006 | 900720-00006-Online | P-6 | 40 | ++ | |
| 40 | 1 | Button, Push | 178512-00430 | 178512-00430-Online | ||
| 33 | 1 | Pipe, Oil | 437215-00330 | 437215-00330-Online | ||
| 34 | 3 | Clip (S) | 437221-00330 | 437221-00330-Online | ||
| 49 | 1 | Pipe, Oil | 437207-00331 | 437207-00331-Online |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cover, A. Cleaner Bl | 130313-00330 | 130313-00330-Online | ||
| 2 | 1 | Filter, Air | 130305-00330 | 130305-00330-Online | ||
| 3 | 1 | Grommet | 437410-00330 | 437410-00330-Online | ||
| 4 | 1 | Grommet | 178210-00230 | 178210-00230-Online | ||
| 5 | 1 | Grommet | 129010-00230 | 129010-00230-Online | ||
| 6 | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 9 | 1 | Label, Model | 890151-00330 | 890151-00330-Online | ||
| 10 | 1 | Nut, Thumb | 130406-00330 | 130406-00330-Online | ||
| 11 | 1 | O-Ring 14 | 900720-00014 | 900720-00014-Online | P-14 | |
| 12 | 1 | Circlip 11 | 900701-00011 | 900701-00011-Online | CS-11 | |
| 13 | 1 | Grommet | 178810-02830 | 178810-02830-Online | ||
| 14 | 1 | Handle, Rear(Iso)(Bs | 351025-00331 | 351025-00331-Online | ||
| 15 | 1 | Grommet | 178211-00330 | 178211-00330-Online |
Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Lockout, Throttle | 178012-00230 | 178012-00230-Online | ||
| 2 | 1 | E-Ring 6 | 900700-00006 | 900700-00006-Online | CE-6 | |
| 3 | 1 | Rod, Choke | 178510-00334 | 178510-00334-Online | ||
| 5 | 1 | Screw 5*10 | 900212-05010 | 900212-05010-Online | +SF5*10 | |
| 6 | 1 | Spring, Thr. Lock | 178013-00230 | 178013-00230-Online | ||
| 7 | 1 | Grip, Rear Handle | 351012-00131 | 351012-00131-Online | ||
| 8 | 1 | Bolt, H.S. 5*25 | 900105-05025 | 900105-05025-Online | 5*25 | |
| 9 | 1 | Rod, Throttle | 178011-00330 | 178011-00330-Online | ||
| 10 | 1 | Control, Throttle | 178005-00330 | 178005-00330-Online | ||
| 11 | 1 | Shaft, Trigger | 178110-00230 | 178110-00230-Online | Sus. by 900345- | 50032 | |
| 11 | 1 | Pin, Spring 5*32 | 900345-50032 | 900345-50032-Online | 5*32 SUS | |
| 16 | 1 | Locknut 5 | 433022-02830 | 433022-02830-Online | Sus. by 900562- | 00005 | |
| 16 | 1 | Nut, Lock | 900562-00005 | 900562-00005-Online | ||
| 17 | 1 | Washer 5 | 900600-00005 | 900600-00005-Online | ||
| 18 | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | ||
| 19 | 1 | Supporter, F. Handle | 351011-00330 | 351011-00330-Online | ||
| 20 | 1 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 3 | Bolt, H.S. 6*32 | 900105-06032 | 900105-06032-Online | 6*32 | |
| 2 | 2 | Washer, Spring 6 | 900605-00006 | 900605-00006-Online | ||
| 3 | 3 | Washer 6 | 900600-00006 | 900600-00006-Online | ||
| 4 | 2 | Bolt, H.S. 5*18 | 900105-05018 | 900105-05018-Online | 5*18 | |
| 7 | 1 | Bumper, Spiked | 880210-00230 | 880210-00230-Online | ||
| 8 | 1 | Handle, Front | 351406-00330 | 351406-00330-Online | ||
| 11 | 2 | Locknut 5 | 433022-02830 | 433022-02830-Online | Sus. by 900562- | 00005 | |
| 11 | 2 | Nut, Lock | 900562-00005 | 900562-00005-Online |
Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 2 | Nut, Flange 8 | 433019-12330 | 433019-12330-Online | M-8 | |
| 7 | 1 | Plate, Guide (Outer) | 433012-12332 | 433012-12332-Online | ||
| 8 | 1 | Guard, Sprocket | 433021-00330 | 433021-00330-Online | ||
| 9 | 2 | Stud, Guide Bar | 433011-12330 | 433011-12330-Online | Knock down parts | of 8-15 | |
| 10 | 1 | Plate, Guide (Inner) | 433013-12332 | 433013-12332-Online | ||
| 11 | 1 | Screw, Tensioner | 433016-02830 | 433016-02830-Online | ||
| 12 | 1 | Washer | 100247-02830 | 100247-02830-Online | ||
| 13 | 1 | Tensioner | 433014-00330 | 433014-00330-Online | ||
| 14 | 1 | Locknut 5 | 433022-02830 | 433022-02830-Online | Sus. by 900562- | 00005 | |
| 14 | 1 | Nut, Lock | 900562-00005 | 900562-00005-Online | ||
| 15 | 1 | Bar, Guide 16K50 | 430211-00232 | 430211-00232-Online | 16K50 | |
| 16 | 1 | Chain, Saw 72Dp-59E | 431011-10730 | 431011-10730-Online | 72DP-59E 16 | |
| 17 | 1 | Label, Echo | 890021-02832 | 890021-02832-Online |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|

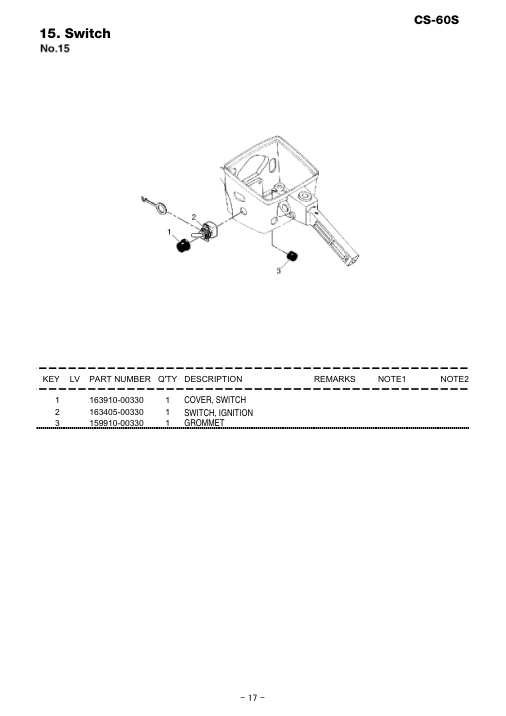

| 1 | 1 | Cover, Switch | 163910-00330 | 163910-00330-Online | ||
| 2 | 1 | Switch, Ignition | 163405-00330 | 163405-00330-Online | ||
| 3 | 1 | Grommet | 159910-00330 | 159910-00330-Online |
Page 19 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|

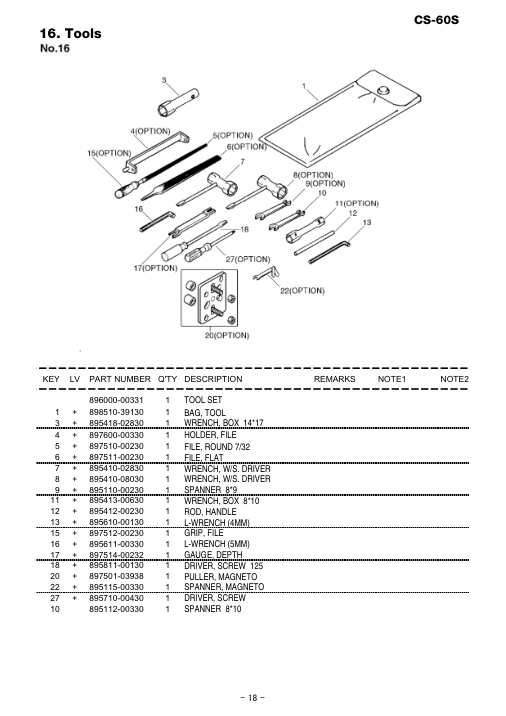

| 1 | + | 1 | Bag, Tool | 898510-39130 | 898510-39130-Online | |
| 3 | + | 1 | Wrench, Box 14*17 | 895418-02830 | 895418-02830-Online | |
| 4 | + | 1 | Holder, File | 897600-00330 | 897600-00330-Online | |
| 5 | + | 1 | File, Round 7/32 | 897510-00230 | 897510-00230-Online | |
| 6 | + | 1 | File, Flat | 897511-00230 | 897511-00230-Online | |
| 7 | + | 1 | Wrench, W/S. Driver | 895410-02830 | 895410-02830-Online | |
| 8 | + | 1 | Wrench, W/S. Driver | 895410-08030 | 895410-08030-Online | |
| 9 | + | 1 | Spanner 8*9 | 895110-00230 | 895110-00230-Online | |
| 11 | + | 1 | Wrench, Box 8*10 | 895413-00630 | 895413-00630-Online | |
| 12 | + | 1 | Rod, Handle | 895412-00230 | 895412-00230-Online | |
| 13 | + | 1 | L-Wrench (4Mm) | 895610-00130 | 895610-00130-Online | |
| 15 | + | 1 | Grip, File | 897512-00230 | 897512-00230-Online | |
| 16 | + | 1 | L-Wrench (5Mm) | 895611-00330 | 895611-00330-Online | |
| 17 | + | 1 | Gauge, Depth | 897514-00232 | 897514-00232-Online | |
| 18 | + | 1 | Driver, Screw 125 | 895811-00130 | 895811-00130-Online | |
| 20 | + | 1 | Puller, Magneto | 897501-03938 | 897501-03938-Online | |
| 22 | + | 1 | Spanner, Magneto | 895115-00330 | 895115-00330-Online | |
| 27 | + | 1 | Driver, Screw | 895710-00430 | 895710-00430-Online | |
| 10 | 1 | Spanner 8*10 | 895112-00330 | 895112-00330-Online |
Source PDF: 20130718-287_CS-60S_CS-60S_EN.pdf. Generated 2026-06-25 14:38.
