Echo CS-620SX IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: CS-620SX-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.

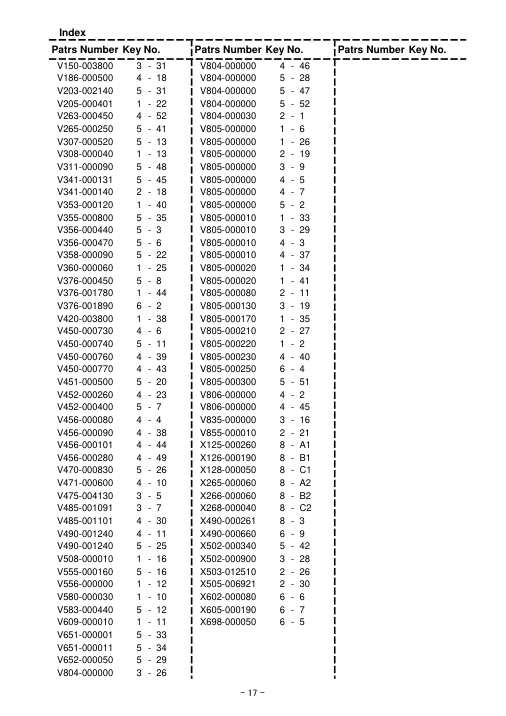

Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.

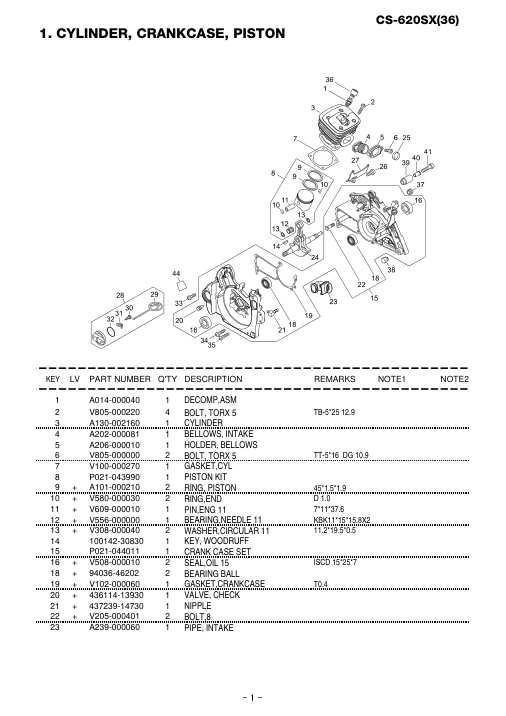

Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Decomp,Asm | A014-000040 | A014-000040-Online | ||
| 2 | 4 | Bolt, Torx 5 | V805-000220 | V805-000220-Online | TB-5*25 12.9 | |
| 3 | 1 | Cylinder | A130-002160 | A130-002160-Online | ||
| 4 | 1 | Bellows, Intake | A202-000081 | A202-000081-Online | ||
| 5 | 1 | Holder, Bellows | A206-000010 | A206-000010-Online | ||
| 6 | 2 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | TT-5*16 DG 10.9 | |
| 7 | 1 | Gasket,Cyl | V100-000270 | V100-000270-Online | ||
| 8 | 1 | Piston Kit | P021-043990 | P021-043990-Online | ||
| 9 | + | 2 | Ring, Piston | A101-000210 | A101-000210-Online | 45*1.5*1.9 |
| 10 | + | 2 | Ring,End | V580-000030 | V580-000030-Online | D 1.0 |
| 11 | + | 1 | Pin,Eng 11 | V609-000010 | V609-000010-Online | 7*11*37.6 |
| 12 | + | 1 | Bearing,Needle 11 | V556-000000 | V556-000000-Online | KBK11*15*15.8X2 |
| 13 | + | 2 | Washer,Circular 11 | V308-000040 | V308-000040-Online | 11.2*19.5*0.5 |
| 14 | 1 | Key, Woodruff | 100142-30830 | 100142-30830-Online | ||
| 15 | 1 | Crank Case Set | P021-044011 | P021-044011-Online | ||
| 16 | + | 2 | Seal,Oil 15 | V508-000010 | V508-000010-Online | ISCD 15*25*7 |
| 18 | + | 2 | Bearing Ball | 94036-46202 | 94036-46202-Online | |
| 19 | + | 1 | Gasket,Crankcase | V102-000060 | V102-000060-Online | T0.4 |
| 20 | + | 1 | Valve, Check | 436114-13930 | 436114-13930-Online | |
| 21 | + | 1 | Nipple | 437239-14730 | 437239-14730-Online | |
| 22 | + | 2 | Bolt,8 | V205-000401 | V205-000401-Online | |
| 23 | 1 | Pipe, Intake | A239-000060 | A239-000060-Online |

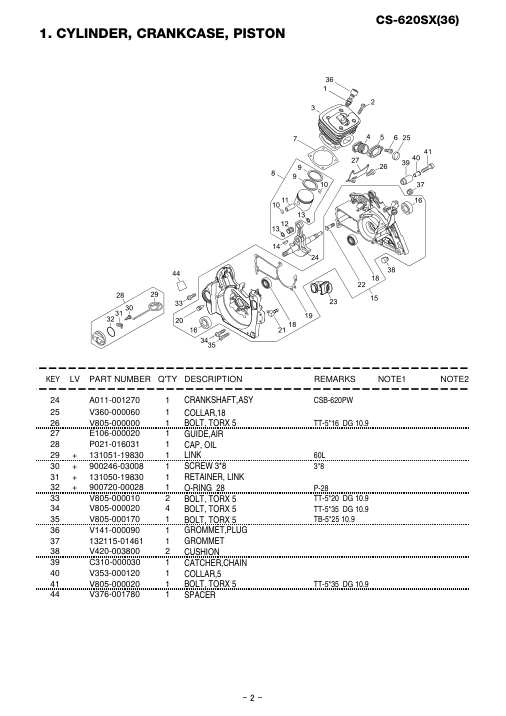

Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 24 | 1 | Crankshaft,Asy | A011-001270 | A011-001270-Online | CSB-620PW | |
| 25 | 1 | Collar,18 | V360-000060 | V360-000060-Online | ||
| 26 | 1 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | TT-5*16 DG 10.9 | |
| 27 | 1 | Guide,Air | E106-000020 | E106-000020-Online | ||
| 28 | 1 | Cap, Oil | P021-016031 | P021-016031-Online | ||
| 29 | + | 1 | Link | 131051-19830 | 131051-19830-Online | |
| 30 | + | 1 | Screw 3*8 | 900246-03008 | 900246-03008-Online | 3*8 |
| 31 | + | 1 | Retainer, Link | 131050-19830 | 131050-19830-Online | |
| 32 | + | 1 | O-Ring 28 | 900720-00028 | 900720-00028-Online | P-28 |
| 33 | 2 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | TT-5*20 DG 10.9 | |
| 34 | 4 | Bolt, Torx 5 | V805-000020 | V805-000020-Online | TT-5*35 DG 10.9 | |
| 35 | 1 | Bolt, Torx 5 | V805-000170 | V805-000170-Online | TB-5*25 10.9 | |
| 36 | 1 | Grommet,Plug | V141-000090 | V141-000090-Online | ||
| 37 | 1 | Grommet | 132115-01461 | 132115-01461-Online | ||
| 38 | 2 | Cushion | V420-003800 | V420-003800-Online | ||
| 39 | 1 | Catcher,Chain | C310-000030 | C310-000030-Online | ||
| 40 | 1 | Collar,5 | V353-000120 | V353-000120-Online | ||
| 41 | 1 | Bolt, Torx 5 | V805-000020 | V805-000020-Online | TT-5*35 DG 10.9 | |
| 44 | 1 | Spacer | V376-001780 | V376-001780-Online |

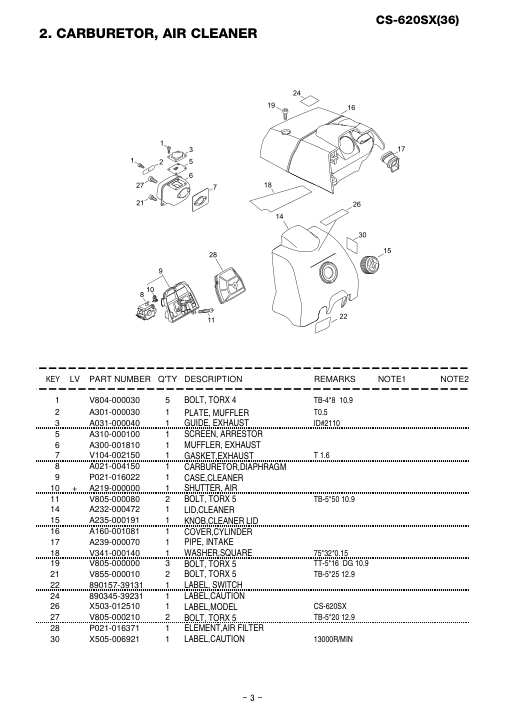

Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 5 | Bolt, Torx 4 | V804-000030 | V804-000030-Online | TB-4*8 10.9 | |
| 2 | 1 | Plate, Muffler | A301-000030 | A301-000030-Online | T0.5 | |
| 3 | 1 | Guide, Exhaust | A031-000040 | A031-000040-Online | ID#2110 | |
| 5 | 1 | Screen, Arrestor | A310-000100 | A310-000100-Online | ||
| 6 | 1 | Muffler, Exhaust | A300-001810 | A300-001810-Online | ||
| 7 | 1 | Gasket,Exhaust | V104-002150 | V104-002150-Online | T 1.6 | |
| 8 | 1 | Carburetor,Diaphragm | A021-004150 | A021-004150-Online | ||
| 9 | 1 | Case,Cleaner | P021-016022 | P021-016022-Online | ||
| 10 | + | 1 | Shutter, Air | A219-000000 | A219-000000-Online | |
| 11 | 2 | Bolt, Torx 5 | V805-000080 | V805-000080-Online | TB-5*50 10.9 | |
| 14 | 1 | Lid,Cleaner | A232-000472 | A232-000472-Online | ||
| 15 | 1 | Knob,Cleaner Lid | A235-000191 | A235-000191-Online | ||
| 16 | 1 | Cover,Cylinder | A160-001081 | A160-001081-Online | ||
| 17 | 1 | Pipe, Intake | A239-000070 | A239-000070-Online | ||
| 18 | 1 | Washer,Square | V341-000140 | V341-000140-Online | 75*32*0.15 | |
| 19 | 3 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | TT-5*16 DG 10.9 | |
| 21 | 2 | Bolt, Torx 5 | V855-000010 | V855-000010-Online | TB-5*25 12.9 | |
| 22 | 1 | Label, Switch | 890157-39131 | 890157-39131-Online | ||
| 24 | 1 | Label,Caution | 890345-39231 | 890345-39231-Online | ||
| 26 | 1 | Label,Model | X503-012510 | X503-012510-Online | CS-620SX | |
| 27 | 2 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | TB-5*20 12.9 | |
| 28 | 1 | Element,Air Filter | P021-016371 | P021-016371-Online | ||
| 30 | 1 | Label,Caution | X505-006921 | X505-006921-Online | 13000R/MIN |

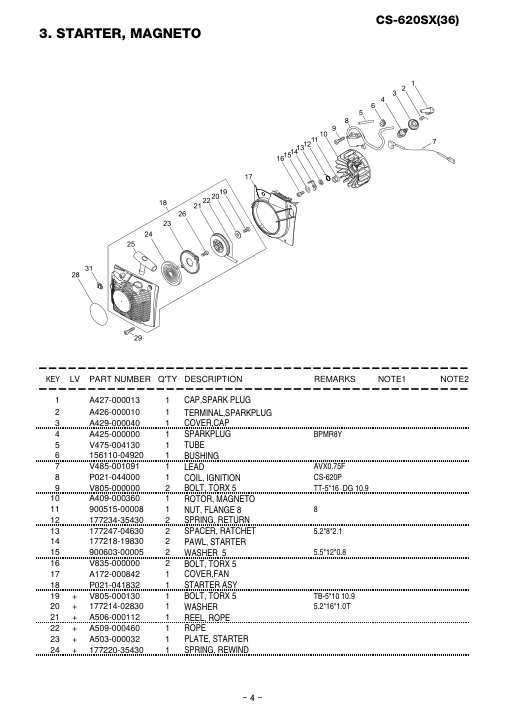

Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cap,Spark Plug | A427-000013 | A427-000013-Online | ||
| 2 | 1 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | ||
| 3 | 1 | Cover,Cap | A429-000040 | A429-000040-Online | ||
| 4 | 1 | Sparkplug | A425-000000 | A425-000000-Online | BPMR8Y | |
| 5 | 1 | Tube | V475-004130 | V475-004130-Online | ||
| 6 | 1 | Bushing | 156110-04920 | 156110-04920-Online | ||
| 7 | 1 | Lead | V485-001091 | V485-001091-Online | AVX0.75F | |
| 8 | 1 | Coil, Ignition | P021-044000 | P021-044000-Online | CS-620P | |
| 9 | 2 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | TT-5*16 DG 10.9 | |
| 10 | 1 | Rotor, Magneto | A409-000360 | A409-000360-Online | ||
| 11 | 1 | Nut, Flange 8 | 900515-00008 | 900515-00008-Online | ||
| 12 | 2 | Spring, Return | 177234-35430 | 177234-35430-Online | ||
| 13 | 2 | Spacer, Ratchet | 177247-04630 | 177247-04630-Online | 5.2*8*2.1 | |
| 14 | 2 | Pawl, Starter | 177218-19830 | 177218-19830-Online | ||
| 15 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 16 | 2 | Bolt, Torx 5 | V835-000000 | V835-000000-Online | ||
| 17 | 1 | Cover,Fan | A172-000842 | A172-000842-Online | ||
| 18 | 1 | Starter Asy | P021-041832 | P021-041832-Online | ||
| 19 | + | 1 | Bolt, Torx 5 | V805-000130 | V805-000130-Online | TB-5*10 10.9 |
| 20 | + | 1 | Washer | 177214-02830 | 177214-02830-Online | 5.2*16*1.0T |
| 21 | + | 1 | Reel, Rope | A506-000112 | A506-000112-Online | |
| 22 | + | 1 | Rope | A509-000460 | A509-000460-Online | |
| 23 | + | 1 | Plate, Starter | A503-000032 | A503-000032-Online | |
| 24 | + | 1 | Spring, Rewind | 177220-35430 | 177220-35430-Online |

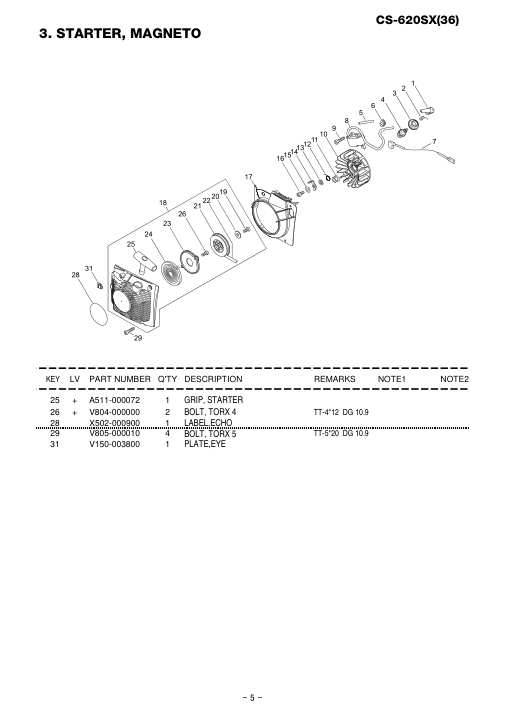

Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 25 | + | 1 | Grip, Starter | A511-000072 | A511-000072-Online | |
| 26 | + | 2 | Bolt, Torx 4 | V804-000000 | V804-000000-Online | TT-4*12 DG 10.9 |
| 28 | 1 | Label,Echo | X502-000900 | X502-000900-Online | ||
| 29 | 4 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | TT-5*20 DG 10.9 | |
| 31 | 1 | Plate,Eye | V150-003800 | V150-003800-Online |

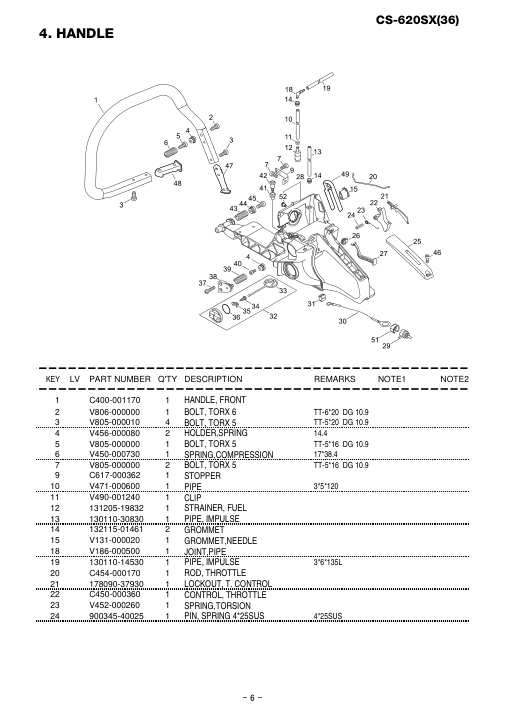

Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Handle, Front | C400-001170 | C400-001170-Online | ||
| 2 | 1 | Bolt, Torx 6 | V806-000000 | V806-000000-Online | TT-6*20 DG 10.9 | |
| 3 | 4 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | TT-5*20 DG 10.9 | |
| 4 | 2 | Holder,Spring | V456-000080 | V456-000080-Online | 14.4 | |
| 5 | 1 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | TT-5*16 DG 10.9 | |
| 6 | 1 | Spring,Compression | V450-000730 | V450-000730-Online | 17*38.4 | |
| 7 | 2 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | TT-5*16 DG 10.9 | |
| 9 | 1 | Stopper | C617-000362 | C617-000362-Online | ||
| 10 | 1 | Pipe | V471-000600 | V471-000600-Online | 3*5*120 | |
| 11 | 1 | Clip | V490-001240 | V490-001240-Online | ||
| 12 | 1 | Strainer, Fuel | 131205-19832 | 131205-19832-Online | ||
| 13 | 1 | Pipe, Impulse | 130110-30830 | 130110-30830-Online | ||
| 14 | 2 | Grommet | 132115-01461 | 132115-01461-Online | ||
| 15 | 1 | Grommet,Needle | V131-000020 | V131-000020-Online | ||
| 18 | 1 | Joint,Pipe | V186-000500 | V186-000500-Online | ||
| 19 | 1 | Pipe, Impulse | 130110-14530 | 130110-14530-Online | 3*6*135L | |
| 20 | 1 | Rod, Throttle | C454-000170 | C454-000170-Online | ||
| 21 | 1 | Lockout, T. Control | 178090-37930 | 178090-37930-Online | ||
| 22 | 1 | Control, Throttle | C450-000360 | C450-000360-Online | ||
| 23 | 1 | Spring,Torsion | V452-000260 | V452-000260-Online | ||
| 24 | 1 | Pin, Spring 4*25Sus | 900345-40025 | 900345-40025-Online | 4*25SUS |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 25 | 1 | Lid,Handle | C411-000001 | C411-000001-Online | ||
| 26 | 1 | Grommet,Choke | V130-000030 | V130-000030-Online | ||
| 27 | 1 | Knob, Choke | A241-000171 | A241-000171-Online | ||
| 28 | 1 | Handle, Rear | C410-001252 | C410-001252-Online | ||
| 52 | + | 2 | Nut,5 | V263-000450 | V263-000450-Online | |
| 29 | 1 | Switch, On Off | A440-001190 | A440-001190-Online | ||
| 30 | 1 | Lead | V485-001101 | V485-001101-Online | L:170/LA105 | |
| 31 | 1 | Bushing | 150114-04920 | 150114-04920-Online | ||
| 32 | 1 | Cap,Fuer Assy | P021-016041 | P021-016041-Online | ||
| 33 | + | 1 | Link | 131051-19830 | 131051-19830-Online | |
| 34 | + | 1 | Screw 3*8 | 900246-03008 | 900246-03008-Online | 3*8 |
| 35 | + | 1 | Retainer, Link | 131050-19830 | 131050-19830-Online | |
| 36 | + | 1 | O-Ring 29 | 900720-20029 | 900720-20029-Online | P-29 |
| 37 | 2 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | TT-5*20 DG 10.9 | |
| 38 | 1 | Holder,Spring | V456-000090 | V456-000090-Online | ||
| 39 | 1 | Spring,Compression | V450-000760 | V450-000760-Online | 17*36.7*2.6 | |
| 40 | 1 | Bolt, Torx 5 | V805-000230 | V805-000230-Online | TT-5*25 DG 10.9 | |
| 41 | 1 | Cover,Vent | A359-000000 | A359-000000-Online | 22.5*D18*D8.5 | |
| 42 | 1 | Vent Assembly, Fuel | 131300-56431 | 131300-56431-Online | ||
| 43 | 1 | Spring,Compression | V450-000770 | V450-000770-Online | 20*40*3.3 | |
| 44 | 1 | Holder,Spring | V456-000101 | V456-000101-Online |

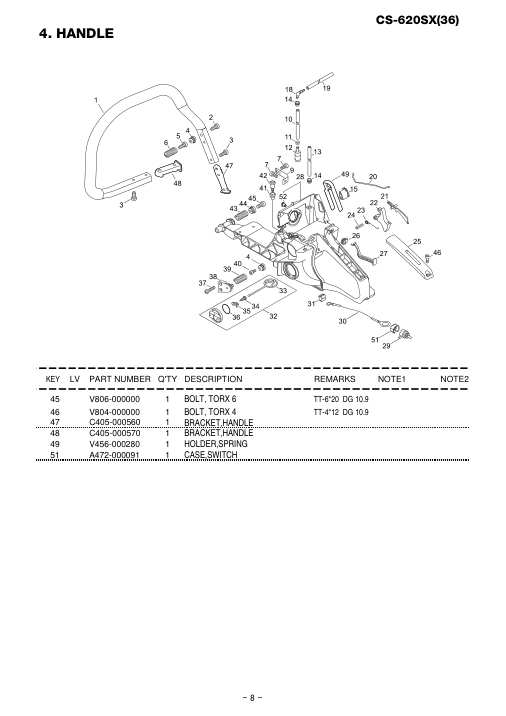

Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 45 | 1 | Bolt, Torx 6 | V806-000000 | V806-000000-Online | TT-6*20 DG 10.9 | |
| 46 | 1 | Bolt, Torx 4 | V804-000000 | V804-000000-Online | TT-4*12 DG 10.9 | |
| 47 | 1 | Bracket,Handle | C405-000560 | C405-000560-Online | ||
| 48 | 1 | Bracket,Handle | C405-000570 | C405-000570-Online | ||
| 49 | 1 | Holder,Spring | V456-000280 | V456-000280-Online | ||
| 51 | 1 | Case,Switch | A472-000091 | A472-000091-Online |

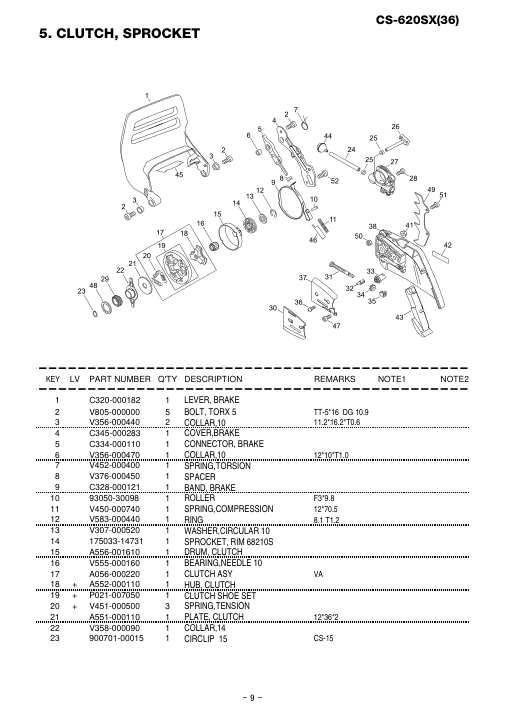

Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Lever, Brake | C320-000182 | C320-000182-Online | ||
| 2 | 5 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | TT-5*16 DG 10.9 | |
| 3 | 2 | Collar,10 | V356-000440 | V356-000440-Online | 11.2*16.2*T0.6 | |
| 4 | 1 | Cover,Brake | C345-000283 | C345-000283-Online | ||
| 5 | 1 | Connector, Brake | C334-000110 | C334-000110-Online | ||
| 6 | 1 | Collar,10 | V356-000470 | V356-000470-Online | 12*10*T1.0 | |
| 7 | 1 | Spring,Torsion | V452-000400 | V452-000400-Online | ||
| 8 | 1 | Spacer | V376-000450 | V376-000450-Online | ||
| 9 | 1 | Band, Brake | C328-000121 | C328-000121-Online | ||
| 10 | 1 | Roller | 93050-30098 | 93050-30098-Online | F3*9.8 | |
| 11 | 1 | Spring,Compression | V450-000740 | V450-000740-Online | 12*70.5 | |
| 12 | 1 | Ring | V583-000440 | V583-000440-Online | 8.1 T1.2 | |
| 13 | 1 | Washer,Circular 10 | V307-000520 | V307-000520-Online | ||
| 14 | 1 | Sprocket, Rim 68210S | 175033-14731 | 175033-14731-Online | ||
| 15 | 1 | Drum, Clutch | A556-001610 | A556-001610-Online | ||
| 16 | 1 | Bearing,Needle 10 | V555-000160 | V555-000160-Online | ||
| 17 | 1 | Clutch Asy | A056-000220 | A056-000220-Online | ||
| 18 | + | 1 | Hub, Clutch | A552-000110 | A552-000110-Online | |
| 19 | + | 1 | Clutch Shoe Set | P021-007050 | P021-007050-Online | |
| 20 | + | 3 | Spring,Tension | V451-000500 | V451-000500-Online | |
| 21 | 1 | Plate, Clutch | A551-000110 | A551-000110-Online | 12*36*2 | |
| 22 | 1 | Collar,14 | V358-000090 | V358-000090-Online | ||
| 23 | 1 | Circlip 15 | 900701-00015 | 900701-00015-Online | CS-15 |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 24 | 1 | Pipe, Oil | 437210-30830 | 437210-30830-Online | NBR 3*6*210L | |
| 25 | 2 | Clip | V490-001240 | V490-001240-Online | ||
| 26 | 1 | Pipe | V470-000830 | V470-000830-Online | ||
| 27 | 1 | Auto-Oiler Assembly | C022-000052 | C022-000052-Online | ||
| 28 | 2 | Bolt, Torx 4 | V804-000000 | V804-000000-Online | TT-4*12 DG 10.9 | |
| 29 | 1 | Gear,Worm | V652-000050 | V652-000050-Online | ||
| 30 | 1 | Plate,Sprocket Guard | C305-000111 | C305-000111-Online | ||
| 31 | 1 | Bolt,5 | V203-002140 | V203-002140-Online | ||
| 32 | 1 | Tensioner, Chain | C309-000160 | C309-000160-Online | ||
| 33 | 1 | Gear,Bevel | V651-000001 | V651-000001-Online | ||
| 34 | 1 | Gear,Bevel | V651-000011 | V651-000011-Online | ||
| 35 | 1 | Collar,8 | V355-000800 | V355-000800-Online | ||
| 36 | 1 | Screw | 91325-03005 | 91325-03005-Online | ||
| 37 | 1 | Plate,Sprocket Guard | C305-000101 | C305-000101-Online | ||
| 38 | 1 | Guard, Sprocket | C300-000991 | C300-000991-Online | ||
| 41 | 2 | Part | V265-000250 | V265-000250-Online | ||
| 42 | 1 | Label,Echo | X502-000340 | X502-000340-Online | ECHO(WHITE) | |
| 43 | 1 | Pad, Guard | C302-000011 | C302-000011-Online | ||
| 44 | 1 | Strainer, Oil | 436205-14730 | 436205-14730-Online | ||
| 45 | 1 | Washer,Square | V341-000131 | V341-000131-Online | 75*27*0.15 | |
| 46 | 1 | Plate, Side | C603-000220 | C603-000220-Online | T0.3 | |
| 47 | 1 | Bolt, Torx 4 | V804-000000 | V804-000000-Online | TT-4*12 DG 10.9 |

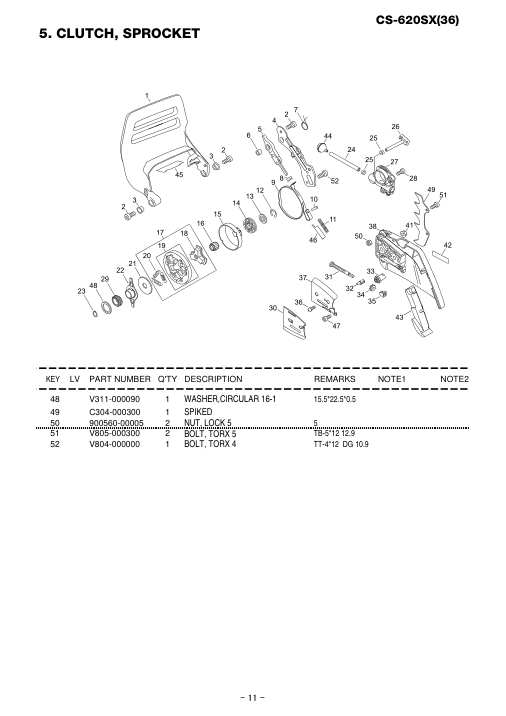

Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 48 | 1 | Washer,Circular 16-1 | V311-000090 | V311-000090-Online | 15.5*22.5*0.5 | |
| 49 | 1 | Spiked | C304-000300 | C304-000300-Online | ||
| 50 | 2 | Nut, Lock 5 | 900560-00005 | 900560-00005-Online | ||
| 51 | 2 | Bolt, Torx 5 | V805-000300 | V805-000300-Online | TB-5*12 12.9 | |
| 52 | 1 | Bolt, Torx 4 | V804-000000 | V804-000000-Online | TT-4*12 DG 10.9 |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Spiked | C304-000290 | C304-000290-Online | ||
| 2 | 1 | Spacer | V376-001890 | V376-001890-Online | ||
| 3 | 1 | Nut, Lock 5 | 900560-00005 | 900560-00005-Online | ||
| 4 | 2 | Bolt, Torx 5 | V805-000250 | V805-000250-Online | TB-5*16 12.9 | |
| 5 | 1 | Tool,Case | X698-000050 | X698-000050-Online | 140*260*0.06 | |
| 6 | 1 | Tool,Wrench | X602-000080 | X602-000080-Online | 13*19 L180 | |
| 7 | 1 | Tool,L Wrench | X605-000190 | X605-000190-Online | T27 120*80 | |
| 8 | 1 | Driver, Screw 50 | 895812-03930 | 895812-03930-Online | ||
| 9 | 1 | Scabbard,Chain | X490-000660 | X490-000660-Online | L500 W110 |

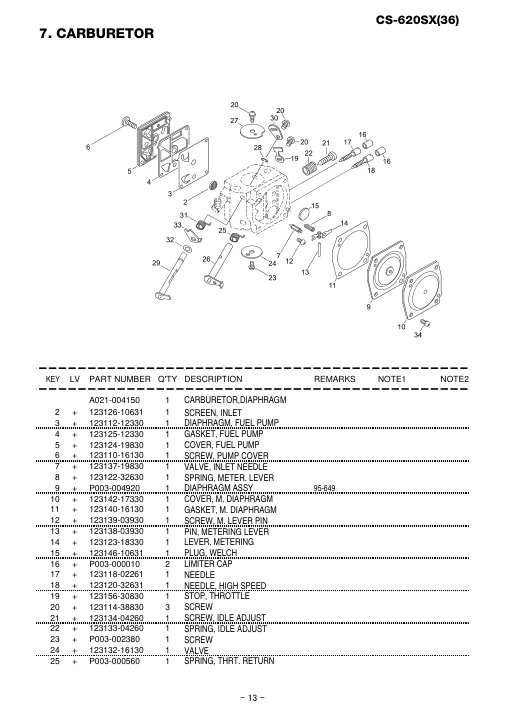

Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | + | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |
| 3 | + | 1 | Diaphragm, Fuel Pump | 123112-12330 | 123112-12330-Online | |
| 4 | + | 1 | Gasket, Fuel Pump | 123125-12330 | 123125-12330-Online | |
| 5 | + | 1 | Cover, Fuel Pump | 123124-19830 | 123124-19830-Online | |
| 6 | + | 1 | Screw, Pump Cover | 123110-16130 | 123110-16130-Online | |
| 7 | + | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |
| 8 | + | 1 | Spring, Meter. Lever | 123122-32630 | 123122-32630-Online | |
| 9 | + | 1 | Diaphragm Assy | P003-004920 | P003-004920-Online | 95-649 |
| 10 | + | 1 | Cover, M. Diaphragm | 123142-17330 | 123142-17330-Online | |
| 11 | + | 1 | Gasket, M. Diaphragm | 123140-16130 | 123140-16130-Online | |
| 12 | + | 1 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | |
| 13 | + | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |
| 14 | + | 1 | Lever, Metering | 123123-18330 | 123123-18330-Online | |
| 15 | + | 1 | Plug, Welch | 123146-10631 | 123146-10631-Online | |
| 16 | + | 2 | Limiter Cap | P003-000010 | P003-000010-Online | |
| 17 | + | 1 | Needle | 123118-02261 | 123118-02261-Online | |
| 18 | + | 1 | Needle, High Speed | 123120-32631 | 123120-32631-Online | |
| 19 | + | 1 | Stop, Throttle | 123156-30830 | 123156-30830-Online | |
| 20 | + | 3 | Screw | 123114-38830 | 123114-38830-Online | |
| 21 | + | 1 | Screw, Idle Adjust | 123134-04260 | 123134-04260-Online | |
| 22 | + | 1 | Spring, Idle Adjust | 123133-04260 | 123133-04260-Online | |
| 23 | + | 1 | Screw | P003-002380 | P003-002380-Online | |
| 24 | + | 1 | Valve | 123132-16130 | 123132-16130-Online | |
| 25 | + | 1 | Spring, Thrt. Return | P003-000560 | P003-000560-Online |

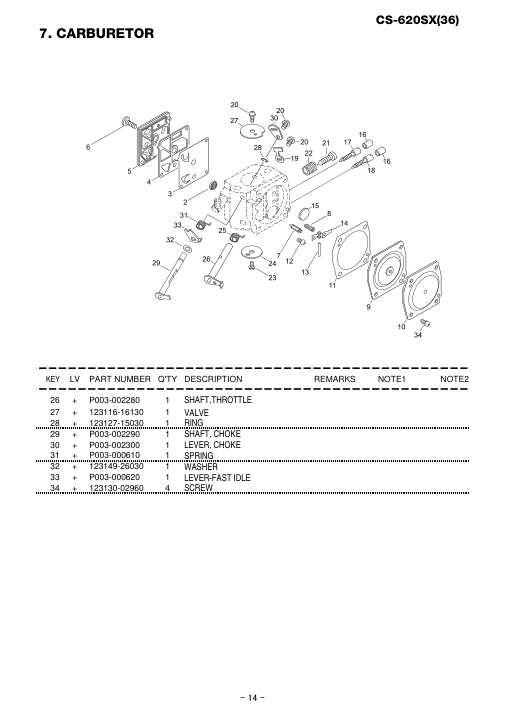

Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 26 | + | 1 | Shaft,Throttle | P003-002280 | P003-002280-Online | |
| 27 | + | 1 | Valve | 123116-16130 | 123116-16130-Online | |
| 28 | + | 1 | Ring | 123127-15030 | 123127-15030-Online | |
| 29 | + | 1 | Shaft, Choke | P003-002290 | P003-002290-Online | |
| 30 | + | 1 | Lever, Choke | P003-002300 | P003-002300-Online | |
| 31 | + | 1 | Spring | P003-000610 | P003-000610-Online | |
| 32 | + | 1 | Washer | 123149-26030 | 123149-26030-Online | |
| 33 | + | 1 | Lever-Fast Idle | P003-000620 | P003-000620-Online | |
| 34 | + | 4 | Screw | 123130-02960 | 123130-02960-Online |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 3 | 1 | Scabbard,Chain | X490-000261 | X490-000261-Online |
Source PDF: 20141009-291_CS-620SX(36) (1).pdf. Generated 2026-06-25 14:39.
