Echo CS-350T IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: CS-350T-Online
Source Pages

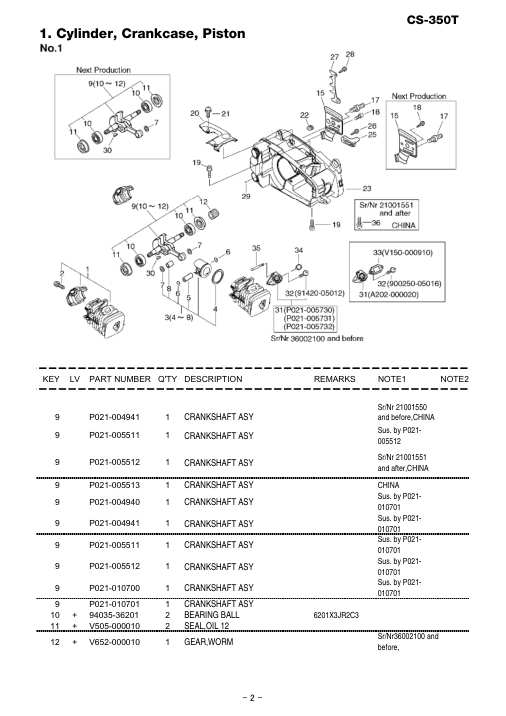

Page 1
Tap or click the page image to enlarge it.

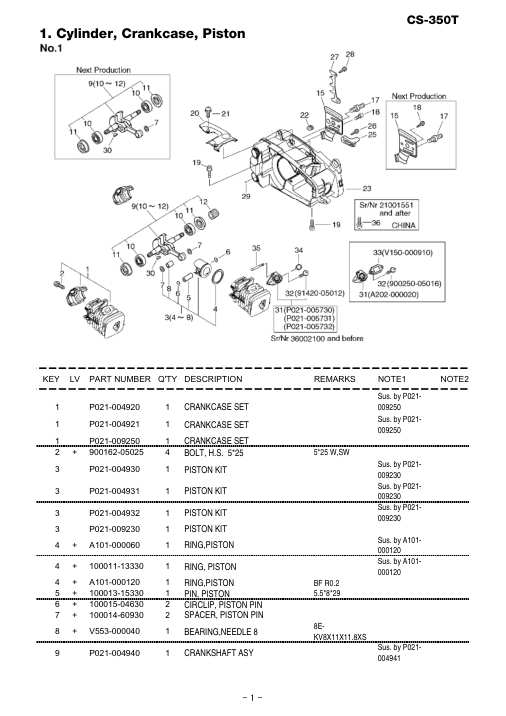

Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.

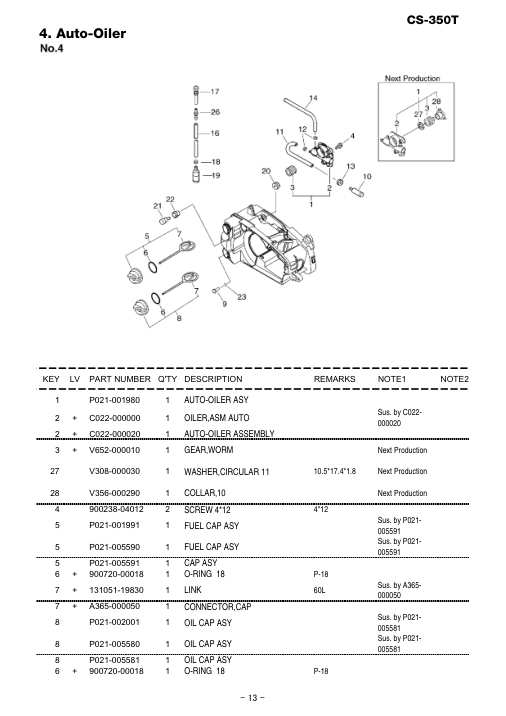

Page 5
Tap or click the page image to enlarge it.

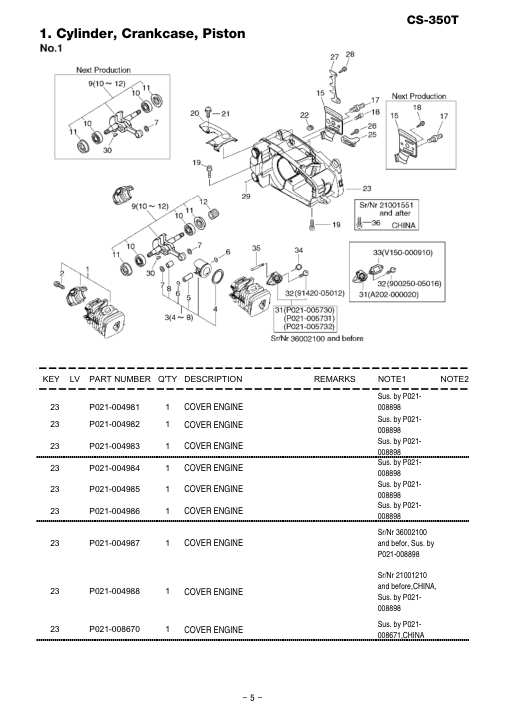

Page 6
Tap or click the page image to enlarge it.

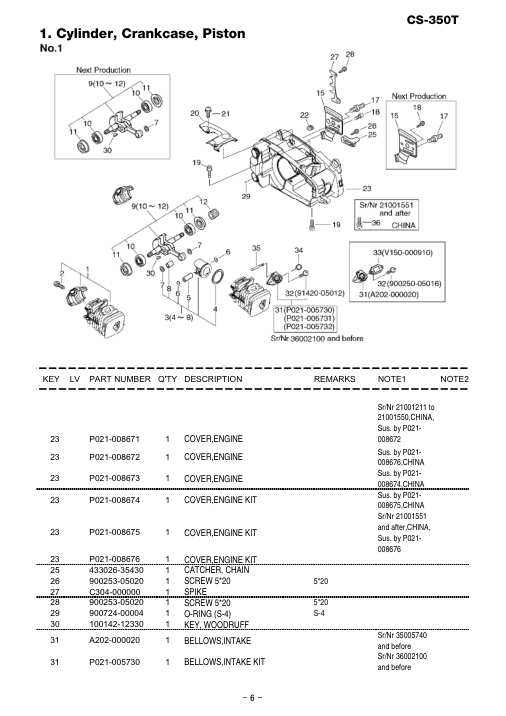

Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.

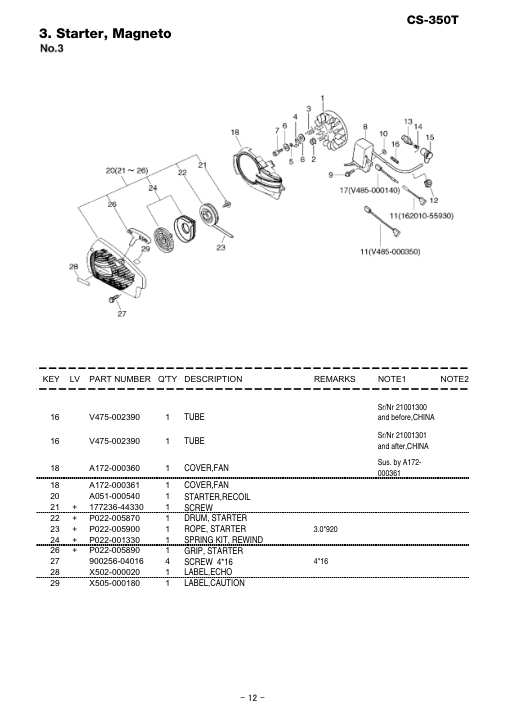

Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.

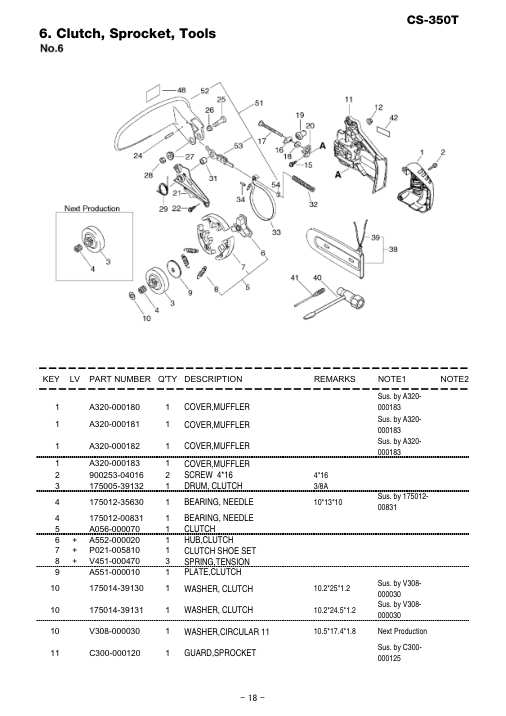

Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.
Page 23
Tap or click the page image to enlarge it.
Page 24
Tap or click the page image to enlarge it.
Page 25
Tap or click the page image to enlarge it.

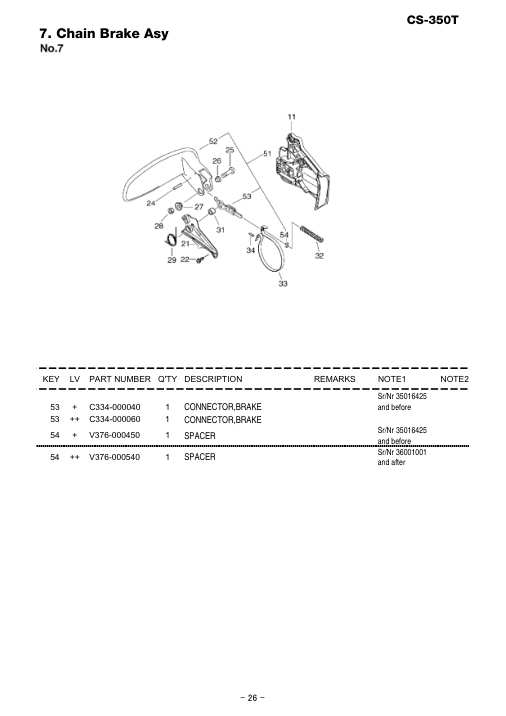

Page 26
Tap or click the page image to enlarge it.
Page 27
Tap or click the page image to enlarge it.
Page 28
Tap or click the page image to enlarge it.

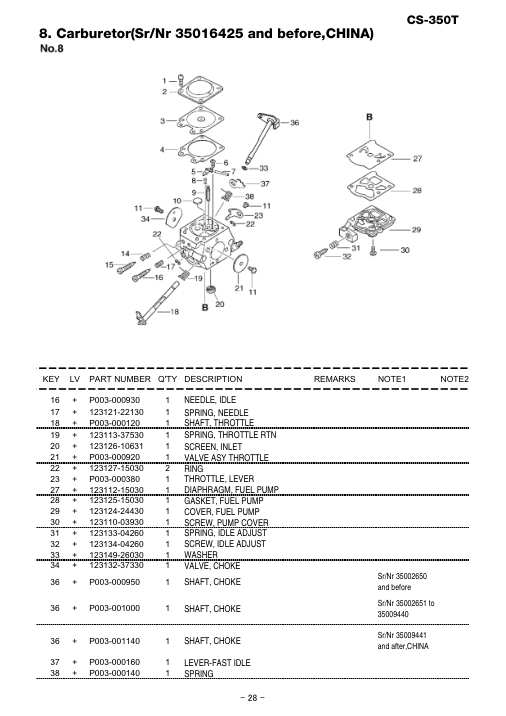

Page 29
Tap or click the page image to enlarge it.
Page 30
Tap or click the page image to enlarge it.
Page 31
Tap or click the page image to enlarge it.
Page 32
Tap or click the page image to enlarge it.

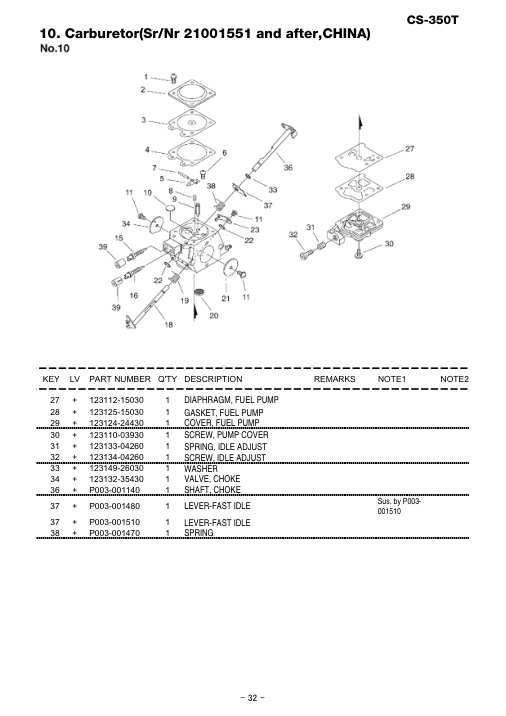

Page 33
Tap or click the page image to enlarge it.
Page 34
Tap or click the page image to enlarge it.

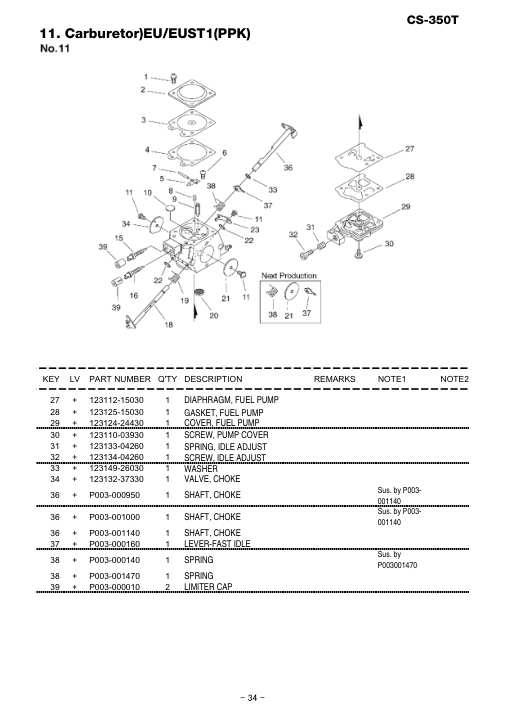

Page 35
Tap or click the page image to enlarge it.
Page 36
Tap or click the page image to enlarge it.
Page 37
Tap or click the page image to enlarge it.

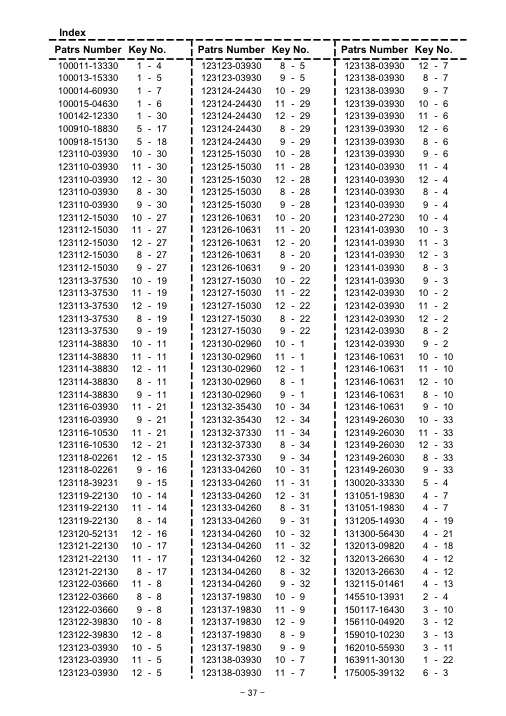

Page 38
Tap or click the page image to enlarge it.
Page 39
Tap or click the page image to enlarge it.
Page 40
Tap or click the page image to enlarge it.

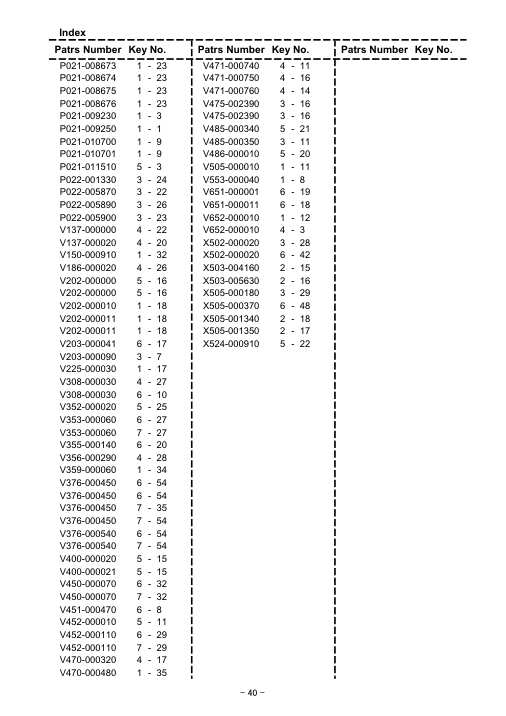

Page 41
Tap or click the page image to enlarge it.
Page 42
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Crankcase Set | P021-004920 | P021-004920-Online | Sus. by P021- | 009250 | |
| 1 | 1 | Crankcase Set | P021-004921 | P021-004921-Online | Sus. by P021- | 009250 | |
| 1 | 1 | Crankcase Set | P021-009250 | P021-009250-Online | ||
| 2 | + | 4 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW |
| 3 | 1 | Piston Kit | P021-004930 | P021-004930-Online | Sus. by P021- | 009230 | |
| 3 | 1 | Piston Kit | P021-004931 | P021-004931-Online | Sus. by P021- | 009230 | |
| 3 | 1 | Piston Kit | P021-004932 | P021-004932-Online | Sus. by P021- | 009230 | |
| 3 | 1 | Piston Kit | P021-009230 | P021-009230-Online | ||
| 4 | + | 1 | Ring,Piston | A101-000060 | A101-000060-Online | Sus. by A101- | 000120 |
| 4 | + | 1 | Ring, Piston | 100011-13330 | 100011-13330-Online | Sus. by A101- | 000120 |
| 4 | + | 1 | Ring,Piston | A101-000120 | A101-000120-Online | BF R0.2 |
| 5 | + | 1 | Pin, Piston | 100013-15330 | 100013-15330-Online | 5.5*8*29 |
| 6 | + | 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |
| 7 | + | 2 | Spacer, Piston Pin | 100014-60930 | 100014-60930-Online | |
| 8 | + | 1 | Bearing,Needle 8 | V553-000040 | V553-000040-Online | 8E- | KV8X11X11.8XS |
| 9 | 1 | Crankshaft Asy | P021-004940 | P021-004940-Online | Sus. by P021- | 004941 |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 9 | 1 | Crankshaft Asy | P021-004941 | P021-004941-Online | Sr/Nr 21001550 | and before,CHINA | |
| 9 | 1 | Crankshaft Asy | P021-005511 | P021-005511-Online | Sus. by P021- | 005512 | |
| 9 | 1 | Crankshaft Asy | P021-005512 | P021-005512-Online | Sr/Nr 21001551 | and after,CHINA | |
| 9 | 1 | Crankshaft Asy | P021-005513 | P021-005513-Online | CHINA | |
| 9 | 1 | Crankshaft Asy | P021-004940 | P021-004940-Online | Sus. by P021- | 010701 | |
| 9 | 1 | Crankshaft Asy | P021-010700 | P021-010700-Online | Sus. by P021- | 010701 | |
| 9 | 1 | Crankshaft Asy | P021-010701 | P021-010701-Online | ||
| 10 | + | 2 | Bearing Ball | 94035-36201 | 94035-36201-Online | 6201X3JR2C3 |
| 11 | + | 2 | Seal,Oil 12 | V505-000010 | V505-000010-Online | |
| 12 | + | 1 | Gear,Worm | V652-000010 | V652-000010-Online | Sr/Nr36002100 and | before, |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 15 | 1 | Plate,Sprocket Guard | C305-000061 | C305-000061-Online | Sr/Nr 21001210 | and before,CHINA, | Sr/Nr 36002100 | and befor | |
| 15 | 1 | Plate,Sprocket Guard | C305-000070 | C305-000070-Online | Sr/Nr 21001211 | and after,CHINA, | Sr/Nr 36002101 | and after, Sus. by | |
| 15 | 1 | Plate,Sprocket Guard | C305-000080 | C305-000080-Online | T0.3 | |
| 17 | 1 | Bolt,Stud 8 | V225-000030 | V225-000030-Online | Sr/Nr 21001210 | and before,CHINA, | Sr/Nr 36002100 | and befor | |
| 17 | 1 | Stud, Guide Bar | 433011-03931 | 433011-03931-Online | Sr/Nr 21001211 | and after,CHINA, | Sr/Nr 36002101 | and after | |
| 17 | 2 | Stud, Guide Bar | 433011-03931 | 433011-03931-Online | Next Production |

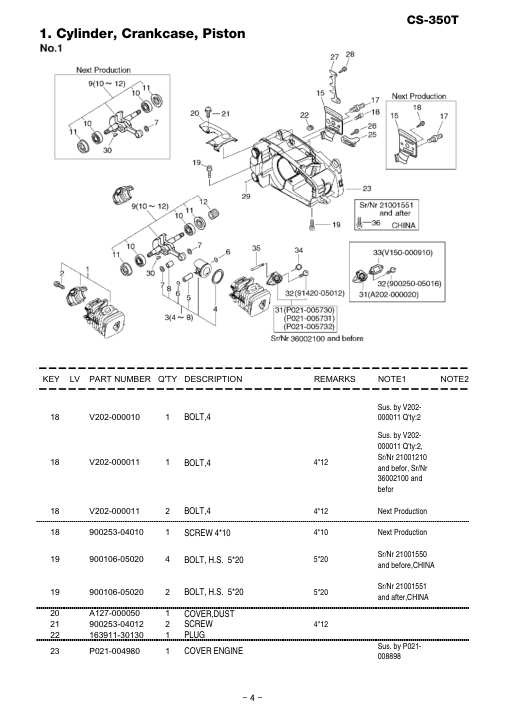

Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 18 | 1 | Bolt,4 | V202-000010 | V202-000010-Online | Sus. by V202- | 000011 Q'ty:2 | |
| 18 | 1 | Bolt,4 | V202-000011 | V202-000011-Online | 4*12 | Sus. by V202- | 000011 Q'ty:2, | Sr/Nr 21001210 | |
| 18 | 2 | Bolt,4 | V202-000011 | V202-000011-Online | 4*12 | Next Production | |
| 18 | 1 | Screw 4*10 | 900253-04010 | 900253-04010-Online | 4*10 | Next Production | |
| 19 | 4 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | 5*20 | Sr/Nr 21001550 | and before,CHINA | |
| 19 | 2 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | 5*20 | Sr/Nr 21001551 | and after,CHINA | |
| 20 | 1 | Cover,Dust | A127-000050 | A127-000050-Online | ||
| 21 | 2 | Screw | 900253-04012 | 900253-04012-Online | 4*12 | |
| 22 | 1 | Plug | 163911-30130 | 163911-30130-Online | ||
| 23 | 1 | Cover Engine | P021-004980 | P021-004980-Online | Sus. by P021- | 008898 |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 23 | 1 | Cover Engine | P021-004981 | P021-004981-Online | Sus. by P021- | 008898 | |
| 23 | 1 | Cover Engine | P021-004982 | P021-004982-Online | Sus. by P021- | 008898 | |
| 23 | 1 | Cover Engine | P021-004983 | P021-004983-Online | Sus. by P021- | 008898 | |
| 23 | 1 | Cover Engine | P021-004984 | P021-004984-Online | Sus. by P021- | 008898 | |
| 23 | 1 | Cover Engine | P021-004985 | P021-004985-Online | Sus. by P021- | 008898 | |
| 23 | 1 | Cover Engine | P021-004986 | P021-004986-Online | Sus. by P021- | 008898 | |
| 23 | 1 | Cover Engine | P021-004987 | P021-004987-Online | Sr/Nr 36002100 | and befor, Sus. by | |
| 23 | 1 | Cover Engine | P021-004988 | P021-004988-Online | Sr/Nr 21001210 | and before,CHINA, | Sus. by P021- | 008898 | |
| 23 | 1 | Cover Engine | P021-008670 | P021-008670-Online | Sus. by P021- | 008671,CHINA |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 23 | 1 | Cover,Engine | P021-008671 | P021-008671-Online | Sr/Nr 21001211 to | 21001550,CHINA, | Sus. by P021- | 008672 | |
| 23 | 1 | Cover,Engine | P021-008672 | P021-008672-Online | Sus. by P021- | 008676,CHINA | |
| 23 | 1 | Cover,Engine | P021-008673 | P021-008673-Online | Sus. by P021- | 008674,CHINA | |
| 23 | 1 | Cover,Engine Kit | P021-008674 | P021-008674-Online | Sus. by P021- | 008675,CHINA | |
| 23 | 1 | Cover,Engine Kit | P021-008675 | P021-008675-Online | Sr/Nr 21001551 | and after,CHINA, | Sus. by P021- | 008676 | |
| 23 | 1 | Cover,Engine Kit | P021-008676 | P021-008676-Online | ||
| 25 | 1 | Catcher, Chain | 433026-35430 | 433026-35430-Online | ||
| 26 | 1 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 5*20 | |
| 27 | 1 | Spike | C304-000000 | C304-000000-Online | ||
| 28 | 1 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 5*20 | |
| 29 | 1 | O-Ring (S-4) | 900724-00004 | 900724-00004-Online | S-4 | |
| 30 | 1 | Key, Woodruff | 100142-12330 | 100142-12330-Online | ||
| 31 | 1 | Bellows,Intake | A202-000020 | A202-000020-Online | Sr/Nr 35005740 | and before | |
| 31 | 1 | Bellows,Intake Kit | P021-005730 | P021-005730-Online | Sr/Nr 36002100 | and before |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 31 | 1 | Bellows,Intake Kit | P021-005731 | P021-005731-Online | Sr/Nr 36002100 | and before | |
| 31 | 1 | Bellows,Intake Kit | P021-005732 | P021-005732-Online | Sr/Nr 36002100 | and before | |
| 32 | + | 1 | Screw | 91420-05012 | 91420-05012-Online | 5*12 | Can be used on the | P021- | 005730,5731,5732 |
| 32 | 1 | Plate,Eye | V150-000910 | V150-000910-Online | Can be used on the | A202-000020 only | |
| 32 | 2 | Screw 5*16 | 900250-05016 | 900250-05016-Online | 5*16 | Can be used on the | A202-000020 only | |
| 34 | 1 | Collar,16 | V359-000060 | V359-000060-Online | ||
| 35 | 1 | Pipe | V470-000480 | V470-000480-Online | ||
| 36 | 2 | Bolt, H.S.H. 5*30 | 900106-05030 | 900106-05030-Online | 5*30 | Sr/Nr 21001551 | and after,CHINA |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Muffler Asy | P021-004950 | P021-004950-Online | Sus. by P021- | 004951 | |
| 1 | 1 | Muffler Asy | P021-004951 | P021-004951-Online | ||
| 2 | + | 1 | Muffler,Exhaust | A300-000370 | A300-000370-Online | |
| 3 | + | 1 | Lid,Muffler | A303-000040 | A303-000040-Online | Sus. by A303- | 000090 |
| 3 | + | 1 | Lid,Muffler | A303-000041 | A303-000041-Online | Sus. by A303- | 000090 |
| 3 | + | 1 | Lid,Muffler | A303-000090 | A303-000090-Online | |
| 4 | + | 1 | Gasket, Muffler | 145510-13931 | 145510-13931-Online | |
| 5 | + | 1 | Plate,Muffler | A301-000000 | A301-000000-Online | |
| 6 | + | 2 | Bolt Hsh Flange | 91107-05040 | 91107-05040-Online | 5*40 |
| 7 | + | 1 | Screw 4*8 | 900250-04008 | 900250-04008-Online | 4*8 |
| 8 | 1 | Carburetor,Diaphragm | A021-000580 | A021-000580-Online | WT-622 | Sr/Nr 35002650 | and before | |
| 8 | 1 | Carburetor,Diaphragm | A021-000581 | A021-000581-Online | WT-622A | CHOKE3.3 | Sr/Nr 35002651 to | |
| 8 | 1 | Carburetor,Diaphragm | A021-000582 | A021-000582-Online | WT-622 | Sr/Nr 35009441 to | |
| 8 | 1 | Carburetor,Diaphragm | A021-000850 | A021-000850-Online | WT-699 | Sr/Nr 36001001 | and after |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 8 | 1 | Carburetor,Diaphragm | A021-000583 | A021-000583-Online | Sus. by A021- | 001181,CHINA | |
| 8 | 1 | Carburetor,Diaphragm | A021-001180 | A021-001180-Online | Sus. by A021- | 001181,CHINA | |
| 8 | 1 | Carburetor,Diaphragm | A021-000850 | A021-000850-Online | WT-699 | Sus. by A021- | 000851 | |
| 8 | 1 | Carburetor,Diaphragm | A021-000851 | A021-000851-Online | WT-699A | Sus. by A021- | 000861 | |
| 8 | 1 | Carburetor,Diaphragm | A021-000861 | A021-000861-Online | WT-698A | Sus. by A021- | 000862 | |
| 8 | 1 | Carburetor,Diaphragm | A021-000862 | A021-000862-Online | WT-698A | |
| 8 | 1 | Carburetor,Diaphragm | A021-001181 | A021-001181-Online | WT-782A | CHINA | |
| 9 | 1 | Elbow,Carburetor | A204-000040 | A204-000040-Online | Sus. by A204- | 000041 | |
| 9 | 1 | Elbow,Carburetor | A204-000041 | A204-000041-Online | ||
| 10 | 2 | Screw 5*50 | 900238-05050 | 900238-05050-Online | 5*50 | |
| 11 | 1 | Screw 4*6 | 900220-04006 | 900220-04006-Online | 4*6 | |
| 12 | 1 | Element,Air Filter | A226-000180 | A226-000180-Online | ||
| 12 | 1 | Element,Air Filter | A226-000290 | A226-000290-Online | Sus. by A226- | 000291 | |
| 12 | 1 | Element,Air Filter | A226-000291 | A226-000291-Online | CHINA | |
| 13 | 1 | Lid,Cleaner | A232-000160 | A232-000160-Online | ||
| 14 | 1 | Knob,Cleaner Lid | A235-000040 | A235-000040-Online | ||
| 15 | 1 | Label,Model | X503-004160 | X503-004160-Online | ||
| 16 | 1 | Label,Model | X503-005630 | X503-005630-Online | CS-350T CHINA | CHINA |

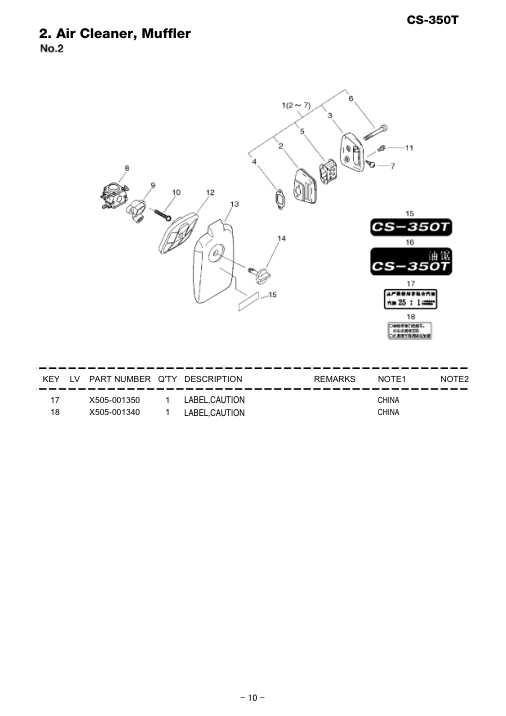

Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 17 | 1 | Label,Caution | X505-001350 | X505-001350-Online | CHINA | |
| 18 | 1 | Label,Caution | X505-001340 | X505-001340-Online | CHINA |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Rotor,Magneto | A409-000170 | A409-000170-Online | ||
| 2 | 1 | Nut, Flange 8 | 900515-00008 | 900515-00008-Online | ||
| 3 | 2 | Spring, Return | 177234-35430 | 177234-35430-Online | ||
| 4 | 2 | Pawl | A514-000000 | A514-000000-Online | ||
| 5 | 2 | Spacer, Ratchet | 177247-04630 | 177247-04630-Online | 5.2*8*2.1 | |
| 6 | 4 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 7 | 2 | Bolt, H.S. 5*14 | 900105-05014 | 900105-05014-Online | 5*14 | Sus. by V203- | 000090 | |
| 7 | 2 | Bolt,5 | V203-000090 | V203-000090-Online | M5*14 | |
| 8 | 1 | Coil,Ignition | A411-000150 | A411-000150-Online | ||
| 9 | 2 | Screw 5*22 | 900238-05022 | 900238-05022-Online | 5*22 | |
| 10 | 2 | Spacer | 150117-16430 | 150117-16430-Online | ||
| 11 | 1 | Lead | V485-000350 | V485-000350-Online | Sr/Nr 35005740 | and before | |
| 11 | 1 | Leard, Ground | 162010-55930 | 162010-55930-Online | 235L | Sr/Nr 35005741 | and after | |
| 12 | 1 | Bushing | 156110-04920 | 156110-04920-Online | ||
| 13 | 1 | Plug, Spark (Bpmr-7A | 159010-10230 | 159010-10230-Online | BPMR-7A | |
| 14 | 1 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | ||
| 15 | 1 | Cap,Spark Plug | A427-000010 | A427-000010-Online | Sus. by A427- | 000012 | |
| 15 | 1 | Cap,Spark Plug | A427-000011 | A427-000011-Online | Sus. by A427- | 000012 | |
| 15 | 1 | Cap,Spark Plug | A427-000012 | A427-000012-Online |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 16 | 1 | Tube | V475-002390 | V475-002390-Online | Sr/Nr 21001300 | and before,CHINA | |
| 18 | 1 | Cover,Fan | A172-000360 | A172-000360-Online | Sus. by A172- | 000361 | |
| 18 | 1 | Cover,Fan | A172-000361 | A172-000361-Online | ||
| 20 | 1 | Starter,Recoil | A051-000540 | A051-000540-Online | ||
| 21 | + | 1 | Screw | 177236-44330 | 177236-44330-Online | |
| 22 | + | 1 | Drum, Starter | P022-005870 | P022-005870-Online | |
| 23 | + | 1 | Rope, Starter | P022-005900 | P022-005900-Online | 3.0*920 |
| 24 | + | 1 | Spring Kit, Rewind | P022-001330 | P022-001330-Online | |
| 26 | + | 1 | Grip, Starter | P022-005890 | P022-005890-Online | |
| 27 | 4 | Screw 4*16 | 900256-04016 | 900256-04016-Online | 4*16 | |
| 28 | 1 | Label,Echo | X502-000020 | X502-000020-Online | ||
| 29 | 1 | Label,Caution | X505-000180 | X505-000180-Online |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Auto-Oiler Asy | P021-001980 | P021-001980-Online | ||
| 2 | + | 1 | Oiler,Asm Auto | C022-000000 | C022-000000-Online | Sus. by C022- | 000020 |
| 2 | + | 1 | Auto-Oiler Assembly | C022-000020 | C022-000020-Online | |
| 3 | + | 1 | Gear,Worm | V652-000010 | V652-000010-Online | Next Production |
| 27 | 1 | Washer,Circular 11 | V308-000030 | V308-000030-Online | 10.5*17.4*1.8 | Next Production | |
| 28 | 1 | Collar,10 | V356-000290 | V356-000290-Online | Next Production | |
| 4 | 2 | Screw 4*12 | 900238-04012 | 900238-04012-Online | 4*12 | |
| 5 | 1 | Fuel Cap Asy | P021-001991 | P021-001991-Online | Sus. by P021- | 005591 | |
| 5 | 1 | Fuel Cap Asy | P021-005590 | P021-005590-Online | Sus. by P021- | 005591 | |
| 5 | 1 | Cap Asy | P021-005591 | P021-005591-Online | ||
| 6 | + | 1 | O-Ring 18 | 900720-00018 | 900720-00018-Online | P-18 |
| 7 | + | 1 | Link | 131051-19830 | 131051-19830-Online | 60L | Sus. by A365- | 000050 |
| 7 | + | 1 | Connector,Cap | A365-000050 | A365-000050-Online | |
| 8 | 1 | Oil Cap Asy | P021-002001 | P021-002001-Online | Sus. by P021- | 005581 | |
| 8 | 1 | Oil Cap Asy | P021-005580 | P021-005580-Online | Sus. by P021- | 005581 | |
| 8 | 1 | Oil Cap Asy | P021-005581 | P021-005581-Online |
Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 7 | + | 1 | Link | 131051-19830 | 131051-19830-Online | 60L | Sus. by A365- | 000050 |
| 7 | + | 1 | Connector,Cap | A365-000050 | A365-000050-Online | |
| 9 | 1 | Valve, Check | 436114-13930 | 436114-13930-Online | ||
| 10 | 1 | Strainer, Oil | 436205-02832 | 436205-02832-Online | ||
| 11 | 1 | Pipe | V471-000740 | V471-000740-Online | ||
| 12 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | Sus. by 132013- | 26630 Q'ty:2 | |
| 12 | 2 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 13 | 1 | Grommet | 132115-01461 | 132115-01461-Online | ||
| 14 | 1 | Pipe | V471-000760 | V471-000760-Online | ||
| 16 | 1 | Pipe | V471-000750 | V471-000750-Online | ||
| 17 | 1 | Pipe | V470-000320 | V470-000320-Online | ||
| 18 | 1 | Clip | 132013-09820 | 132013-09820-Online | 6MM | |
| 19 | 1 | Strainer,Fuel | 131205-14930 | 131205-14930-Online | ||
| 20 | 1 | Grommet,Fuel | V137-000020 | V137-000020-Online | ||
| 21 | 1 | Valve, Check | 131300-56430 | 131300-56430-Online | ||
| 22 | 1 | Grommet,Fuel | V137-000000 | V137-000000-Online | ||
| 23 | 1 | O-Ring (S-4) | 900724-00004 | 900724-00004-Online | S-4 | Sr/Nr 21001551 | and after,CHINA | |
| 26 | 1 | Joint,Pipe | V186-000020 | V186-000020-Online |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Lever,Control | A253-000040 | A253-000040-Online | Sus. by A253- | 000043 | |
| 1 | 1 | Lever,Control | A253-000041 | A253-000041-Online | Sus. by A253- | 000043 | |
| 1 | 1 | Lever,Control | A253-000042 | A253-000042-Online | Sus. by A253- | 000043 | |
| 1 | 1 | Lever,Control | A253-000043 | A253-000043-Online | ||
| 2 | 1 | Pipe,Intake | A239-000000 | A239-000000-Online | ||
| 3 | 1 | Handle Set, Rear | P021-004960 | P021-004960-Online | Sr/Nr 36002100 | and before | |
| 3 | 1 | Handle Set, Rear | P021-004961 | P021-004961-Online | Sr/Nr 36002100 | and before | |
| 3 | 1 | Handle Set, Rear | P021-004962 | P021-004962-Online | Sr/Nr 36002100 | and before | |
| 3 | 1 | Handle Set, Rear | P021-004963 | P021-004963-Online | Sr/Nr 36002100 | and before | |
| 3 | 1 | Handle Set, Rear | P021-004964 | P021-004964-Online | Sr/Nr 36002100 | and before | |
| 3 | 1 | Handle Set, Rear | P021-004965 | P021-004965-Online | Sr/Nr 36002100 | and before | |
| 3 | 1 | Handle Set, Rear | P021-004966 | P021-004966-Online | Sr/Nr 36002100 | and before | |
| 3 | 1 | Handle Set, Rear | P021-004967 | P021-004967-Online | Sr/Nr 36002100 | and before | |
| 3 | 1 | Handle Set, Rear | P021-004968 | P021-004968-Online | Sr/Nr 36002100 | and before |
Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 3 | 1 | Handle Set, Rear | P021-004969 | P021-004969-Online | Sr/Nr 36002100 | and before | |
| 3 | 1 | Handle, Rear | P021-011510 | P021-011510-Online | Sr/Nr 36002101 | and after | |
| 27 | 1 | Bellows,Intake | A202-000032 | A202-000032-Online | Sr/Nr 36002101 | and after | |
| 4 | + | 2 | Part | 130020-33330 | 130020-33330-Online | |
| 5 | + | 4 | Screw 4*16 | 900256-04016 | 900256-04016-Online | 4*16 |
| 6 | 2 | Screw 4*16 | 900256-04016 | 900256-04016-Online | 4*16 | |
| 7 | 1 | Handle,Front | C400-000160 | C400-000160-Online | ||
| 8 | 1 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 5*20 | |
| 9 | 1 | Trigger,Throttle | C450-000010 | C450-000010-Online | ||
| 10 | 1 | Rod,Throttle | C454-000070 | C454-000070-Online | ||
| 11 | 1 | Spring,Torsion | V452-000010 | V452-000010-Online | ||
| 12 | 1 | Lockout,Throttle | C460-000000 | C460-000000-Online | Sus. by C460- | 000002 | |
| 12 | 1 | Lockout,Throttle | C460-000001 | C460-000001-Online | ||
| 13 | 1 | Rod,Choke | A240-000000 | A240-000000-Online | Sus. by A240- | 000010 | |
| 13 | 1 | Rod,Choke | A240-000001 | A240-000001-Online | Sus. by A240- | 000010 | |
| 13 | 1 | Rod,Choke | A240-000010 | A240-000010-Online | ||
| 15 | 2 | Cushion,4 | V400-000020 | V400-000020-Online | Sus. by V400- | 000021 | |
| 15 | 2 | Cushion,4 | V400-000021 | V400-000021-Online |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 16 | 3 | Bolt,4 | V202-000000 | V202-000000-Online | Sr/Nr 35010240 | and before | |
| 16 | 2 | Bolt,4 | V202-000000 | V202-000000-Online | Sr/Nr 35010241 | and after | |
| 17 | 1 | Cushion | 100910-18830 | 100910-18830-Online | ||
| 18 | 3 | Part | 100918-15130 | 100918-15130-Online | ||
| 20 | 1 | Terminal,Lead | V486-000010 | V486-000010-Online | ||
| 21 | 1 | Lead | V485-000340 | V485-000340-Online | ||
| 22 | 1 | Label | X524-000910 | X524-000910-Online | ||
| 25 | 1 | Collar,4 | V352-000020 | V352-000020-Online | Sr/Nr 35010241 | and after | |
| 26 | 1 | Screw Tapping | 91481-04035 | 91481-04035-Online | Sr/Nr 35010241 | and after |
Page 19 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cover,Muffler | A320-000180 | A320-000180-Online | Sus. by A320- | 000183 | |
| 1 | 1 | Cover,Muffler | A320-000181 | A320-000181-Online | Sus. by A320- | 000183 | |
| 1 | 1 | Cover,Muffler | A320-000182 | A320-000182-Online | Sus. by A320- | 000183 | |
| 1 | 1 | Cover,Muffler | A320-000183 | A320-000183-Online | ||
| 2 | 2 | Screw 4*16 | 900253-04016 | 900253-04016-Online | 4*16 | |
| 3 | 1 | Drum, Clutch | 175005-39132 | 175005-39132-Online | 3/8A | |
| 4 | 1 | Bearing, Needle | 175012-35630 | 175012-35630-Online | 10*13*10 | Sus. by 175012- | 00831 | |
| 4 | 1 | Bearing, Needle | 175012-00831 | 175012-00831-Online | ||
| 5 | 1 | Clutch | A056-000070 | A056-000070-Online | ||
| 6 | + | 1 | Hub,Clutch | A552-000020 | A552-000020-Online | |
| 7 | + | 1 | Clutch Shoe Set | P021-005810 | P021-005810-Online | |
| 8 | + | 3 | Spring,Tension | V451-000470 | V451-000470-Online | |
| 9 | 1 | Plate,Clutch | A551-000010 | A551-000010-Online | ||
| 10 | 1 | Washer, Clutch | 175014-39130 | 175014-39130-Online | 10.2*25*1.2 | Sus. by V308- | 000030 | |
| 10 | 1 | Washer, Clutch | 175014-39131 | 175014-39131-Online | 10.2*24.5*1.2 | Sus. by V308- | 000030 | |
| 10 | 1 | Washer,Circular 11 | V308-000030 | V308-000030-Online | 10.5*17.4*1.8 | Next Production | |
| 11 | 1 | Guard,Sprocket | C300-000120 | C300-000120-Online | Sus. by C300- | 000125 |
Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 11 | 1 | Guard,Sprocket | C300-000122 | C300-000122-Online | Sus. by C300- | 000125 | |
| 11 | 1 | Guard,Sprocket | C300-000124 | C300-000124-Online | Sus. by C300- | 000125 | |
| 11 | 1 | Guard,Sprocket | C300-000125 | C300-000125-Online | Sr/Nr 21001210 | and before,CHINA, | Sr/Nr 36002100 | and befor | |
| 11 | 1 | Guard,Sprocket | C300-000241 | C300-000241-Online | Sr/Nr 36002101 | and after | |
| 12 | 1 | Nut, Flange 8 | 433019-12330 | 433019-12330-Online | M-8 | Sr/Nr 21001211 | and after | |
| 12 | 1 | Nut, Flange 6 | 433019-03933 | 433019-03933-Online | 6 | Sr/Nr 21001211 | and after,CHINA | |
| 15 | 1 | Screw | 900253-04012 | 900253-04012-Online | 4*12 | |
| 16 | 1 | Tensioner,Chain | C309-000030 | C309-000030-Online | ||
| 17 | 1 | Bolt,5 | V203-000041 | V203-000041-Online | ||
| 18 | 1 | Gear,Bevel | V651-000011 | V651-000011-Online | ||
| 19 | 1 | Gear,Bevel | V651-000001 | V651-000001-Online | ||
| 20 | 1 | Collar,8 | V355-000140 | V355-000140-Online | ||
| 21 | 1 | Cover,Brake | C345-000080 | C345-000080-Online | Sus. by C345- | 000084 |

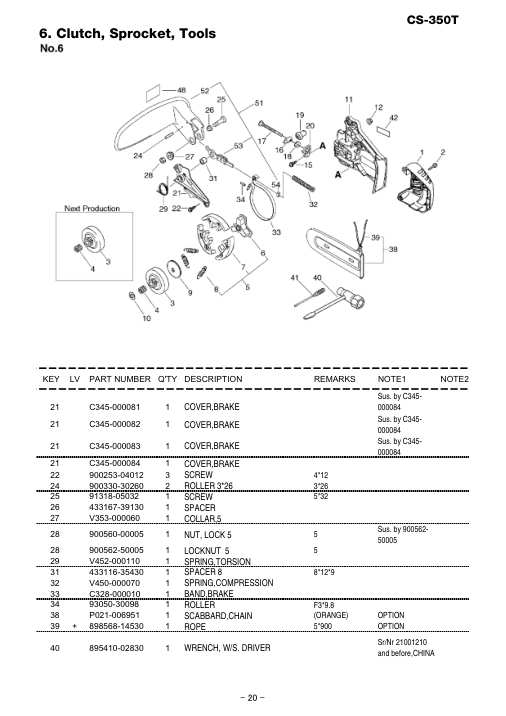

Page 21 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 21 | 1 | Cover,Brake | C345-000081 | C345-000081-Online | Sus. by C345- | 000084 | |
| 21 | 1 | Cover,Brake | C345-000082 | C345-000082-Online | Sus. by C345- | 000084 | |
| 21 | 1 | Cover,Brake | C345-000083 | C345-000083-Online | Sus. by C345- | 000084 | |
| 21 | 1 | Cover,Brake | C345-000084 | C345-000084-Online | ||
| 22 | 3 | Screw | 900253-04012 | 900253-04012-Online | 4*12 | |
| 24 | 2 | Roller 3*26 | 900330-30260 | 900330-30260-Online | 3*26 | |
| 25 | 1 | Screw | 91318-05032 | 91318-05032-Online | 5*32 | |
| 26 | 1 | Spacer | 433167-39130 | 433167-39130-Online | ||
| 27 | 1 | Collar,5 | V353-000060 | V353-000060-Online | ||
| 28 | 1 | Nut, Lock 5 | 900560-00005 | 900560-00005-Online | 5 | Sus. by 900562- | 50005 | |
| 28 | 1 | Locknut 5 | 900562-50005 | 900562-50005-Online | ||
| 29 | 1 | Spring,Torsion | V452-000110 | V452-000110-Online | ||
| 31 | 1 | Spacer 8 | 433116-35430 | 433116-35430-Online | 8*12*9 | |
| 32 | 1 | Spring,Compression | V450-000070 | V450-000070-Online | ||
| 33 | 1 | Band,Brake | C328-000010 | C328-000010-Online | ||
| 34 | 1 | Roller | 93050-30098 | 93050-30098-Online | F3*9.8 | |
| 38 | 1 | Scabbard,Chain | P021-006951 | P021-006951-Online | (ORANGE) | OPTION | |
| 39 | + | 1 | Rope | 898568-14530 | 898568-14530-Online | 5*900 | OPTION |
| 40 | 1 | Wrench, W/S. Driver | 895410-02830 | 895410-02830-Online | Sr/Nr 21001210 | and before,CHINA |
Page 22 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 40 | 1 | Wrench, W/S. Driver | 895410-03930 | 895410-03930-Online | Sr/Nr 21001211 | and after,CHINA | |
| 41 | 1 | Driver, Screw 50 | 895812-03930 | 895812-03930-Online | ||
| 42 | 1 | Label,Echo | X502-000020 | X502-000020-Online | ||
| 48 | 1 | Label,Caution | X505-000370 | X505-000370-Online | ||
| 51 | 1 | Brake Lever Kit | P021-007980 | P021-007980-Online | Sus. by P021- | 007982 | |
| 51 | 1 | Brake Lever Kit | P021-007981 | P021-007981-Online | Sus. by P021- | 007982, Sr/Nr | 21001210 and | before, Sr/Nr | |
| 51 | 1 | Brake Lever Kit | P021-007982 | P021-007982-Online | Sus. by P021- | 007983, Sr/Nr | 21001211 and | after, Sr/Nr | |
| 52 | 1 | Lever,Brake | C320-000030 | C320-000030-Online | Sus. by P021- | 007983, Sr/Nr | 21001211 and | after, Sr/Nr |
Page 23 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|

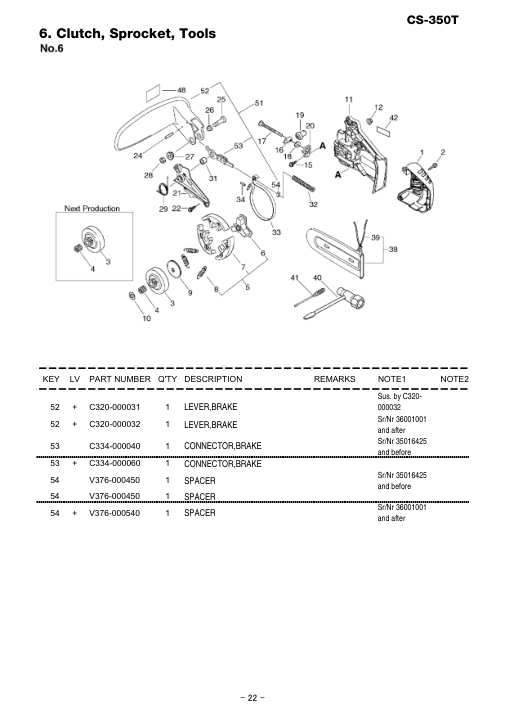

| 52 | + | 1 | Lever,Brake | C320-000031 | C320-000031-Online | Sus. by C320- | 000032 |
| 52 | + | 1 | Lever,Brake | C320-000032 | C320-000032-Online | Sr/Nr 36001001 | and after |
| 53 | 1 | Connector,Brake | C334-000040 | C334-000040-Online | Sr/Nr 35016425 | and before | |
| 53 | + | 1 | Connector,Brake | C334-000060 | C334-000060-Online | |
| 54 | 1 | Spacer | V376-000450 | V376-000450-Online | Sr/Nr 35016425 | and before | |
| 54 | + | 1 | Spacer | V376-000540 | V376-000540-Online | Sr/Nr 36001001 | and after |
Page 24 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 11 | + | 1 | Guard,Sprocket | C300-000120 | C300-000120-Online | Sus. by C300- | 000125 |
Page 25 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 11 | + | 1 | Guard,Sprocket | C300-000122 | C300-000122-Online | Sus. by C300- | 000125 |
| 11 | + | 1 | Guard,Sprocket | C300-000123 | C300-000123-Online | Sus. by C300- | 000125 |
| 11 | + | 1 | Guard,Sprocket | C300-000124 | C300-000124-Online | Sus. by C300- | 000125 |
| 11 | + | 1 | Guard,Sprocket | C300-000125 | C300-000125-Online | Sr/Nr 21001210 | and before,CHINA |
| 11 | + | 1 | Guard,Sprocket | C300-000240 | C300-000240-Online | Sus. by C300- | 000241 |
| 11 | + | 1 | Guard,Sprocket | C300-000241 | C300-000241-Online | Sr/Nr 21001211 | and after,CHINA |
| 21 | + | 1 | Cover,Brake | C345-000080 | C345-000080-Online | Sus. by C345- | 000084 |
| 21 | + | 1 | Cover,Brake | C345-000081 | C345-000081-Online | Sus. by C345- | 000084 |
| 21 | + | 1 | Cover,Brake | C345-000082 | C345-000082-Online | Sus. by C345- | 000084 |
| 21 | + | 1 | Cover,Brake | C345-000083 | C345-000083-Online | Sus. by C345- | 000084 |
| 21 | + | 1 | Cover,Brake | C345-000084 | C345-000084-Online | |
| 22 | + | 3 | Screw | 900253-04012 | 900253-04012-Online | 4*12 |
| 23 | + | 1 | Lever,Brake | C320-000030 | C320-000030-Online |
Page 26 - Parts

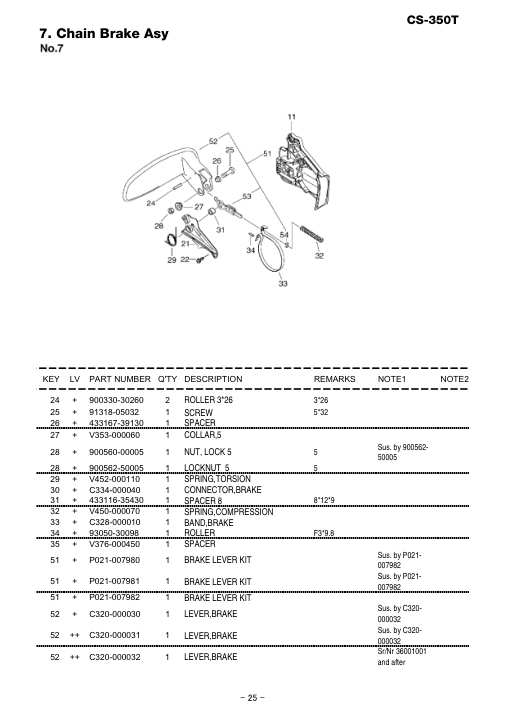

| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 24 | + | 2 | Roller 3*26 | 900330-30260 | 900330-30260-Online | 3*26 |
| 25 | + | 1 | Screw | 91318-05032 | 91318-05032-Online | 5*32 |
| 26 | + | 1 | Spacer | 433167-39130 | 433167-39130-Online | |
| 27 | + | 1 | Collar,5 | V353-000060 | V353-000060-Online | |
| 28 | + | 1 | Nut, Lock 5 | 900560-00005 | 900560-00005-Online | 5 | Sus. by 900562- | 50005 |
| 28 | + | 1 | Locknut 5 | 900562-50005 | 900562-50005-Online | |
| 29 | + | 1 | Spring,Torsion | V452-000110 | V452-000110-Online | |
| 30 | + | 1 | Connector,Brake | C334-000040 | C334-000040-Online | |
| 31 | + | 1 | Spacer 8 | 433116-35430 | 433116-35430-Online | 8*12*9 |
| 32 | + | 1 | Spring,Compression | V450-000070 | V450-000070-Online | |
| 33 | + | 1 | Band,Brake | C328-000010 | C328-000010-Online | |
| 34 | + | 1 | Roller | 93050-30098 | 93050-30098-Online | F3*9.8 |
| 35 | + | 1 | Spacer | V376-000450 | V376-000450-Online | |
| 51 | + | 1 | Brake Lever Kit | P021-007980 | P021-007980-Online | Sus. by P021- | 007982 |
| 51 | + | 1 | Brake Lever Kit | P021-007981 | P021-007981-Online | Sus. by P021- | 007982 |
| 51 | + | 1 | Brake Lever Kit | P021-007982 | P021-007982-Online | |
| 52 | + | 1 | Lever,Brake | C320-000030 | C320-000030-Online | Sus. by C320- | 000032 | 52 | ++ |
| 52 | 1 | Lever,Brake | C320-000031 | C320-000031-Online | Sus. by C320- | 000032 | 52 | ++ | |
| 52 | 1 | Lever,Brake | C320-000032 | C320-000032-Online | Sr/Nr 36001001 | and after |
Page 27 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 53 | + | 1 | Connector,Brake | C334-000040 | C334-000040-Online | Sr/Nr 35016425 | and before | 53 | ++ |
| 53 | 1 | Connector,Brake | C334-000060 | C334-000060-Online | ||
| 54 | + | 1 | Spacer | V376-000450 | V376-000450-Online | Sr/Nr 35016425 | and before | 54 | ++ |
| 54 | 1 | Spacer | V376-000540 | V376-000540-Online | Sr/Nr 36001001 | and after |
Page 28 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|

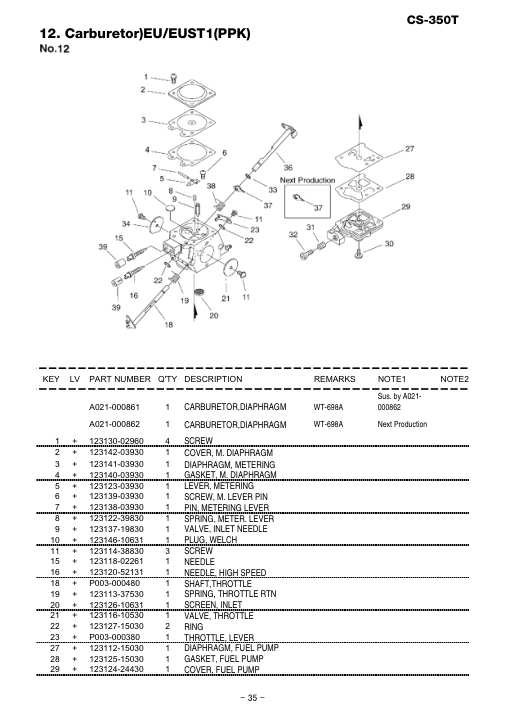

| 1 | 35016425 | 35016425-Online | CARBURETOR,DIAPHRAGM | Sr/Nr 21001550 | and before,CHINA | |||
| 1 | + | 4 | Screw | 123130-02960 | 123130-02960-Online | |
| 2 | + | 1 | Cover, M. Diaphragm | 123142-03930 | 123142-03930-Online | |
| 3 | + | 1 | Diaphragm, Metering | 123141-03930 | 123141-03930-Online | |
| 4 | + | 1 | Gasket, M. Diaphragm | 123140-03930 | 123140-03930-Online | |
| 5 | + | 1 | Lever, Metering | 123123-03930 | 123123-03930-Online | |
| 6 | + | 1 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | |
| 7 | + | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |
| 8 | + | 1 | Spring, Meter. Lever | 123122-03660 | 123122-03660-Online | |
| 9 | + | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |
| 10 | + | 1 | Plug, Welch | 123146-10631 | 123146-10631-Online | |
| 11 | + | 3 | Screw | 123114-38830 | 123114-38830-Online | |
| 14 | + | 1 | Spring, Needle | 123119-22130 | 123119-22130-Online | |
| 15 | + | 1 | Needle, High Speed | P003-000940 | P003-000940-Online |
Page 29 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 16 | + | 1 | Needle, Idle | P003-000930 | P003-000930-Online | |
| 17 | + | 1 | Spring, Needle | 123121-22130 | 123121-22130-Online | |
| 18 | + | 1 | Shaft, Throttle | P003-000120 | P003-000120-Online | |
| 19 | + | 1 | Spring, Throttle Rtn | 123113-37530 | 123113-37530-Online | |
| 20 | + | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |
| 21 | + | 1 | Valve Asy Throttle | P003-000920 | P003-000920-Online | |
| 22 | + | 2 | Ring | 123127-15030 | 123127-15030-Online | |
| 23 | + | 1 | Throttle, Lever | P003-000380 | P003-000380-Online | |
| 27 | + | 1 | Diaphragm, Fuel Pump | 123112-15030 | 123112-15030-Online | |
| 28 | + | 1 | Gasket, Fuel Pump | 123125-15030 | 123125-15030-Online | |
| 29 | + | 1 | Cover, Fuel Pump | 123124-24430 | 123124-24430-Online | |
| 30 | + | 1 | Screw, Pump Cover | 123110-03930 | 123110-03930-Online | |
| 31 | + | 1 | Spring, Idle Adjust | 123133-04260 | 123133-04260-Online | |
| 32 | + | 1 | Screw, Idle Adjust | 123134-04260 | 123134-04260-Online | |
| 33 | + | 1 | Washer | 123149-26030 | 123149-26030-Online | |
| 34 | + | 1 | Valve, Choke | 123132-37330 | 123132-37330-Online | |
| 36 | + | 1 | Shaft, Choke | P003-000950 | P003-000950-Online | Sr/Nr 35002650 | and before |
| 36 | + | 1 | Shaft, Choke | P003-001000 | P003-001000-Online | Sr/Nr 35002651 to |
| 36 | Part | 35009440 | 35009440-Online | |||
| 36 | + | 1 | Shaft, Choke | P003-001140 | P003-001140-Online | Sr/Nr 35009441 | and after,CHINA |
| 37 | + | 1 | Lever-Fast Idle | P003-000160 | P003-000160-Online | |
| 38 | + | 1 | Spring | P003-000140 | P003-000140-Online |
Page 30 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 4 | Screw | 123130-02960 | 123130-02960-Online | |
| 2 | + | 1 | Cover, M. Diaphragm | 123142-03930 | 123142-03930-Online | |
| 3 | + | 1 | Diaphragm, Metering | 123141-03930 | 123141-03930-Online | |
| 4 | + | 1 | Gasket, M. Diaphragm | 123140-03930 | 123140-03930-Online | |
| 5 | + | 1 | Lever, Metering | 123123-03930 | 123123-03930-Online | |
| 6 | + | 1 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | |
| 7 | + | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |
| 8 | + | 1 | Spring, Meter. Lever | 123122-03660 | 123122-03660-Online | |
| 9 | + | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |
| 10 | + | 1 | Plug, Welch | 123146-10631 | 123146-10631-Online | |
| 11 | + | 3 | Screw | 123114-38830 | 123114-38830-Online | |
| 15 | + | 1 | Needle, Idle | 123118-39231 | 123118-39231-Online | |
| 16 | + | 1 | Needle | 123118-02261 | 123118-02261-Online | |
| 18 | + | 1 | Shaft,Throttle | P003-000480 | P003-000480-Online | |
| 19 | + | 1 | Spring, Throttle Rtn | 123113-37530 | 123113-37530-Online | |
| 20 | + | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |
| 21 | + | 1 | Valve, Throttle | 123116-03930 | 123116-03930-Online | |
| 22 | + | 2 | Ring | 123127-15030 | 123127-15030-Online | |
| 23 | + | 1 | Throttle, Lever | P003-000380 | P003-000380-Online | |
| 27 | + | 1 | Diaphragm, Fuel Pump | 123112-15030 | 123112-15030-Online | |
| 28 | + | 1 | Gasket, Fuel Pump | 123125-15030 | 123125-15030-Online | |
| 29 | + | 1 | Cover, Fuel Pump | 123124-24430 | 123124-24430-Online | |
| 30 | + | 1 | Screw, Pump Cover | 123110-03930 | 123110-03930-Online | |
| 31 | + | 1 | Spring, Idle Adjust | 123133-04260 | 123133-04260-Online | |
| 32 | + | 1 | Screw, Idle Adjust | 123134-04260 | 123134-04260-Online |
Page 31 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 33 | + | 1 | Washer | 123149-26030 | 123149-26030-Online | |
| 34 | + | 1 | Valve, Choke | 123132-37330 | 123132-37330-Online | |
| 36 | + | 1 | Shaft, Choke | P003-001140 | P003-001140-Online | |
| 37 | + | 1 | Lever-Fast Idle | P003-000160 | P003-000160-Online | |
| 38 | + | 1 | Spring | P003-000140 | P003-000140-Online | |
| 39 | + | 2 | Limiter Cap | P003-000010 | P003-000010-Online |
Page 32 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 4 | Screw | 123130-02960 | 123130-02960-Online | |
| 2 | + | 1 | Cover, M. Diaphragm | 123142-03930 | 123142-03930-Online | |
| 3 | + | 1 | Diaphragm, Metering | 123141-03930 | 123141-03930-Online | |
| 4 | + | 1 | Gasket,M. Diaphragm | 123140-27230 | 123140-27230-Online | |
| 5 | + | 1 | Lever, Metering | 123123-03930 | 123123-03930-Online | |
| 6 | + | 1 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | |
| 7 | + | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |
| 8 | + | 1 | Spring, Meter. Lever | 123122-39830 | 123122-39830-Online | |
| 9 | + | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |
| 10 | + | 1 | Plug, Welch | 123146-10631 | 123146-10631-Online | |
| 11 | + | 3 | Screw | 123114-38830 | 123114-38830-Online | |
| 14 | + | 1 | Spring, Needle | 123119-22130 | 123119-22130-Online | |
| 15 | + | 1 | Needle Power | P003-001340 | P003-001340-Online | |
| 16 | + | 1 | Needle Idle | P003-001330 | P003-001330-Online | |
| 17 | + | 1 | Spring, Needle | 123121-22130 | 123121-22130-Online | |
| 18 | + | 1 | Shaft,Throttle | P003-000480 | P003-000480-Online | |
| 19 | + | 1 | Spring, Throttle Rtn | 123113-37530 | 123113-37530-Online | |
| 20 | + | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |
| 21 | + | 1 | Valve Asy Throttle | P003-000920 | P003-000920-Online | |
| 22 | + | 2 | Ring | 123127-15030 | 123127-15030-Online | |
| 23 | + | 1 | Throttle, Lever | P003-000380 | P003-000380-Online |
Page 33 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 27 | + | 1 | Diaphragm, Fuel Pump | 123112-15030 | 123112-15030-Online | |
| 28 | + | 1 | Gasket, Fuel Pump | 123125-15030 | 123125-15030-Online | |
| 29 | + | 1 | Cover, Fuel Pump | 123124-24430 | 123124-24430-Online | |
| 30 | + | 1 | Screw, Pump Cover | 123110-03930 | 123110-03930-Online | |
| 31 | + | 1 | Spring, Idle Adjust | 123133-04260 | 123133-04260-Online | |
| 32 | + | 1 | Screw, Idle Adjust | 123134-04260 | 123134-04260-Online | |
| 33 | + | 1 | Washer | 123149-26030 | 123149-26030-Online | |
| 34 | + | 1 | Valve, Choke | 123132-35430 | 123132-35430-Online | |
| 36 | + | 1 | Shaft, Choke | P003-001140 | P003-001140-Online | |
| 37 | + | 1 | Lever-Fast Idle | P003-001480 | P003-001480-Online | Sus. by P003- | 001510 |
| 37 | + | 1 | Lever-Fast Idle | P003-001510 | P003-001510-Online | |
| 38 | + | 1 | Spring | P003-001470 | P003-001470-Online |
Page 34 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Carburetor,Diaphragm | A021-000581 | A021-000581-Online | WT-622A | CHOKE3.3 | ||
| 1 | + | 4 | Screw | 123130-02960 | 123130-02960-Online | |
| 2 | + | 1 | Cover, M. Diaphragm | 123142-03930 | 123142-03930-Online | |
| 3 | + | 1 | Diaphragm, Metering | 123141-03930 | 123141-03930-Online | |
| 4 | + | 1 | Gasket, M. Diaphragm | 123140-03930 | 123140-03930-Online | |
| 5 | + | 1 | Lever, Metering | 123123-03930 | 123123-03930-Online | |
| 6 | + | 1 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | |
| 7 | + | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |
| 8 | + | 1 | Spring, Meter. Lever | 123122-03660 | 123122-03660-Online | |
| 9 | + | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |
| 10 | + | 1 | Plug, Welch | 123146-10631 | 123146-10631-Online | |
| 11 | + | 3 | Screw | 123114-38830 | 123114-38830-Online | |
| 14 | + | 1 | Spring, Needle | 123119-22130 | 123119-22130-Online | |
| 15 | + | 1 | Needle, High Speed | P003-000940 | P003-000940-Online | |
| 16 | + | 1 | Needle, Idle | P003-000930 | P003-000930-Online | |
| 17 | + | 1 | Spring, Needle | 123121-22130 | 123121-22130-Online | |
| 18 | + | 1 | Shaft, Throttle | P003-000120 | P003-000120-Online | |
| 19 | + | 1 | Spring, Throttle Rtn | 123113-37530 | 123113-37530-Online | |
| 20 | + | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |
| 21 | + | 1 | Valve, Throttle | 123116-03930 | 123116-03930-Online | Sus. by 123116- | 10530 |
| 21 | + | 1 | Valve, Throttle | 123116-10530 | 123116-10530-Online | |
| 22 | + | 2 | Ring | 123127-15030 | 123127-15030-Online | |
| 23 | + | 1 | Throttle, Lever | P003-000380 | P003-000380-Online |
Page 35 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 27 | + | 1 | Diaphragm, Fuel Pump | 123112-15030 | 123112-15030-Online | |
| 28 | + | 1 | Gasket, Fuel Pump | 123125-15030 | 123125-15030-Online | |
| 29 | + | 1 | Cover, Fuel Pump | 123124-24430 | 123124-24430-Online | |
| 30 | + | 1 | Screw, Pump Cover | 123110-03930 | 123110-03930-Online | |
| 31 | + | 1 | Spring, Idle Adjust | 123133-04260 | 123133-04260-Online | |
| 32 | + | 1 | Screw, Idle Adjust | 123134-04260 | 123134-04260-Online | |
| 33 | + | 1 | Washer | 123149-26030 | 123149-26030-Online | |
| 34 | + | 1 | Valve, Choke | 123132-37330 | 123132-37330-Online | |
| 36 | + | 1 | Shaft, Choke | P003-000950 | P003-000950-Online | Sus. by P003- | 001140 |
| 36 | + | 1 | Shaft, Choke | P003-001000 | P003-001000-Online | Sus. by P003- | 001140 |
| 36 | + | 1 | Shaft, Choke | P003-001140 | P003-001140-Online | |
| 37 | + | 1 | Lever-Fast Idle | P003-000160 | P003-000160-Online | |
| 38 | + | 1 | Spring | P003-000140 | P003-000140-Online | Sus. by |
| 38 | Part | P003001470 | P003001470-Online | |||
| 38 | + | 1 | Spring | P003-001470 | P003-001470-Online | |
| 39 | + | 2 | Limiter Cap | P003-000010 | P003-000010-Online |
Page 36 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 4 | Screw | 123130-02960 | 123130-02960-Online | |
| 2 | + | 1 | Cover, M. Diaphragm | 123142-03930 | 123142-03930-Online | |
| 3 | + | 1 | Diaphragm, Metering | 123141-03930 | 123141-03930-Online | |
| 4 | + | 1 | Gasket, M. Diaphragm | 123140-03930 | 123140-03930-Online | |
| 5 | + | 1 | Lever, Metering | 123123-03930 | 123123-03930-Online | |
| 6 | + | 1 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | |
| 7 | + | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |
| 8 | + | 1 | Spring, Meter. Lever | 123122-39830 | 123122-39830-Online | |
| 9 | + | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |
| 10 | + | 1 | Plug, Welch | 123146-10631 | 123146-10631-Online | |
| 11 | + | 3 | Screw | 123114-38830 | 123114-38830-Online | |
| 15 | + | 1 | Needle | 123118-02261 | 123118-02261-Online | |
| 16 | + | 1 | Needle, High Speed | 123120-52131 | 123120-52131-Online | |
| 18 | + | 1 | Shaft,Throttle | P003-000480 | P003-000480-Online | |
| 19 | + | 1 | Spring, Throttle Rtn | 123113-37530 | 123113-37530-Online | |
| 20 | + | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |
| 21 | + | 1 | Valve, Throttle | 123116-10530 | 123116-10530-Online | |
| 22 | + | 2 | Ring | 123127-15030 | 123127-15030-Online | |
| 23 | + | 1 | Throttle, Lever | P003-000380 | P003-000380-Online | |
| 27 | + | 1 | Diaphragm, Fuel Pump | 123112-15030 | 123112-15030-Online | |
| 28 | + | 1 | Gasket, Fuel Pump | 123125-15030 | 123125-15030-Online | |
| 29 | + | 1 | Cover, Fuel Pump | 123124-24430 | 123124-24430-Online |
Page 37 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 30 | + | 1 | Screw, Pump Cover | 123110-03930 | 123110-03930-Online | |
| 31 | + | 1 | Spring, Idle Adjust | 123133-04260 | 123133-04260-Online | |
| 32 | + | 1 | Screw, Idle Adjust | 123134-04260 | 123134-04260-Online | |
| 33 | + | 1 | Washer | 123149-26030 | 123149-26030-Online | |
| 34 | + | 1 | Valve, Choke | 123132-35430 | 123132-35430-Online | |
| 36 | + | 1 | Shaft, Choke | P003-001140 | P003-001140-Online | |
| 37 | + | 1 | Lever-Fast Idle | P003-001480 | P003-001480-Online | Sus. By P003- | 001510 |
| 37 | + | 1 | Lever-Fast Idle | P003-001510 | P003-001510-Online | |
| 38 | + | 1 | Spring | P003-001470 | P003-001470-Online | |
| 39 | + | 2 | Limiter Cap | P003-000010 | P003-000010-Online |
Source PDF: 20130718-352_CS-350T_CS-350T_EN.pdf. Generated 2026-06-25 14:38.
