Echo CS-350TES IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: CS-350TES-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.

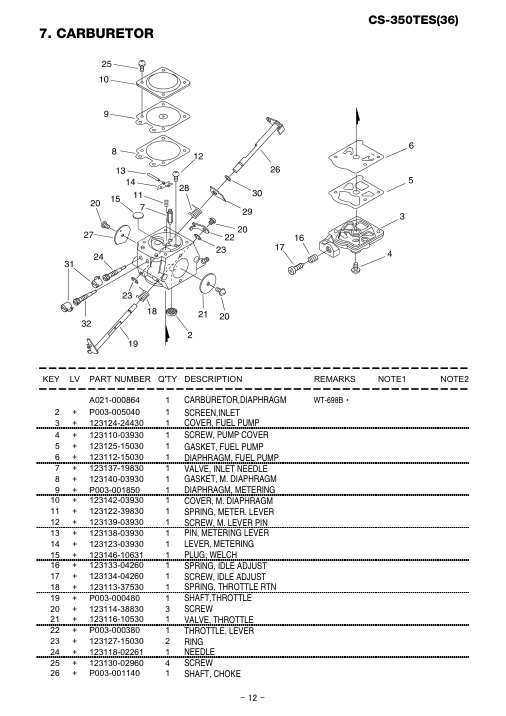

Page 13
Tap or click the page image to enlarge it.

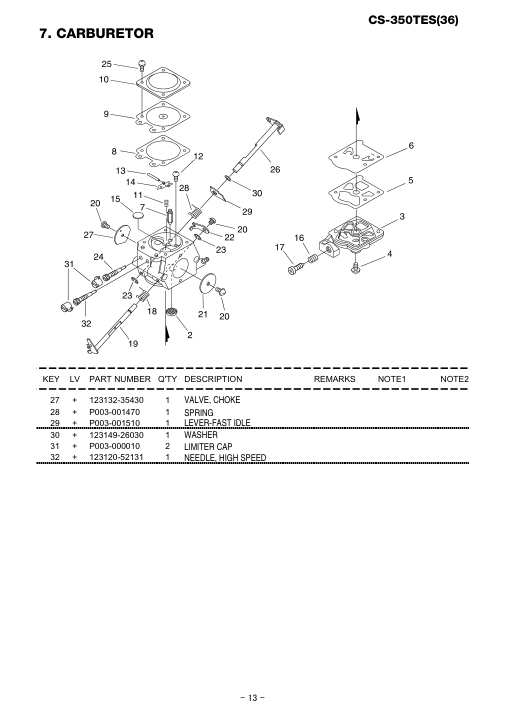

Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Crankcase Set | P021-009250 | P021-009250-Online | ||
| 2 | + | 4 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW |
| 3 | 1 | Piston Kit | P021-009230 | P021-009230-Online | ||
| 4 | + | 1 | Ring,Piston | A101-000120 | A101-000120-Online | BF R0.2 |
| 5 | + | 1 | Pin, Piston | 100013-15330 | 100013-15330-Online | 5.5*8*29 |
| 6 | + | 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |
| 7 | + | 2 | Spacer, Piston Pin | 100014-60930 | 100014-60930-Online | |
| 8 | + | 1 | Bearing,Needle 8 | V553-000040 | V553-000040-Online | 8E- | KV8X11X11.8XS |
| 9 | 1 | Crankshaft Asy | P021-010703 | P021-010703-Online | ||
| 10 | + | 2 | Bearing Ball | 94035-36201 | 94035-36201-Online | 6201X3JR2C3 |
| 11 | + | 2 | Seal,Oil 12 | V505-000011 | V505-000011-Online | 12*32*5.5 |
| 15 | 1 | Plate,Sprocket Guard | C305-000080 | C305-000080-Online | T0.3 | |
| 17 | 2 | Bolt,Stud 6 | V224-000031 | V224-000031-Online | ||
| 18 | 1 | Screw 4*10 | 900253-04010 | 900253-04010-Online | 4*10 | |
| 19 | 2 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | 5*20 | |
| 20 | 1 | Cover,Dust | A127-000050 | A127-000050-Online | ||
| 21 | 2 | Screw | 900253-04012 | 900253-04012-Online | 4*12 | |
| 22 | 1 | Plug | 163911-30130 | 163911-30130-Online | ||
| 23 | 1 | Cover,Engine Kit | P021-008678 | P021-008678-Online | ||
| 24 | + | 2 | Bolt, H.S.H. 5*30 | 900106-05030 | 900106-05030-Online | 5*30 |
| 25 | + | 1 | O-Ring (S-4) | 900724-00004 | 900724-00004-Online | S-4 |
| 26 | 1 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 5*20 | |
| 27 | 1 | Spike | C304-000000 | C304-000000-Online | ||
| 28 | 1 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 5*20 | |
| 30 | 1 | Key, Woodruff | 100142-12330 | 100142-12330-Online |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 32 | 1 | Collar,16 | V359-000060 | V359-000060-Online | ||
| 34 | 2 | Screw | 91420-05012 | 91420-05012-Online | 5*12 | |
| 35 | 1 | Pipe | V470-000482 | V470-000482-Online | ||
| 36 | 1 | Catcher, Chain | 433026-35430 | 433026-35430-Online |

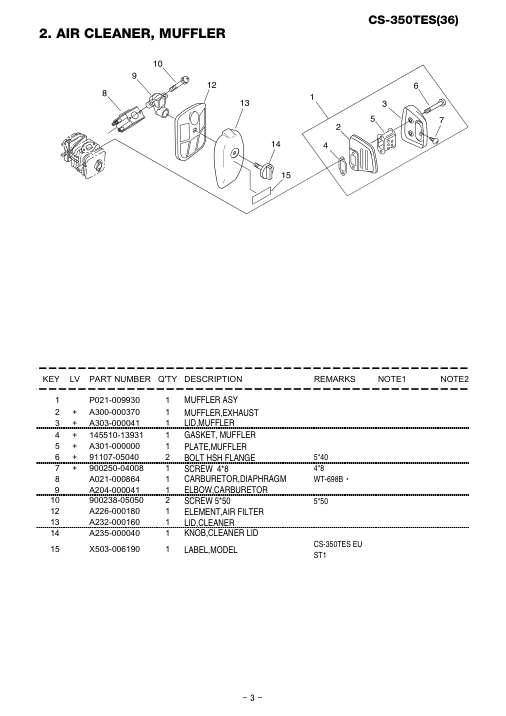

Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Muffler Asy | P021-009930 | P021-009930-Online | ||
| 2 | + | 1 | Muffler,Exhaust | A300-000370 | A300-000370-Online | |
| 3 | + | 1 | Lid,Muffler | A303-000041 | A303-000041-Online | |
| 4 | + | 1 | Gasket, Muffler | 145510-13931 | 145510-13931-Online | |
| 5 | + | 1 | Plate,Muffler | A301-000000 | A301-000000-Online | |
| 6 | + | 2 | Bolt Hsh Flange | 91107-05040 | 91107-05040-Online | 5*40 |
| 7 | + | 1 | Screw 4*8 | 900250-04008 | 900250-04008-Online | 4*8 |
| 8 | 1 | Carburetor,Diaphragm | A021-000864 | A021-000864-Online | WT-698B࣭ | |
| 9 | 1 | Elbow,Carburetor | A204-000041 | A204-000041-Online | ||
| 10 | 2 | Screw 5*50 | 900238-05050 | 900238-05050-Online | 5*50 | |
| 12 | 1 | Element,Air Filter | A226-000180 | A226-000180-Online | ||
| 13 | 1 | Lid,Cleaner | A232-000160 | A232-000160-Online | ||
| 14 | 1 | Knob,Cleaner Lid | A235-000040 | A235-000040-Online | ||
| 15 | 1 | Label,Model | X503-006190 | X503-006190-Online | CS-350TES EU | ST1 |

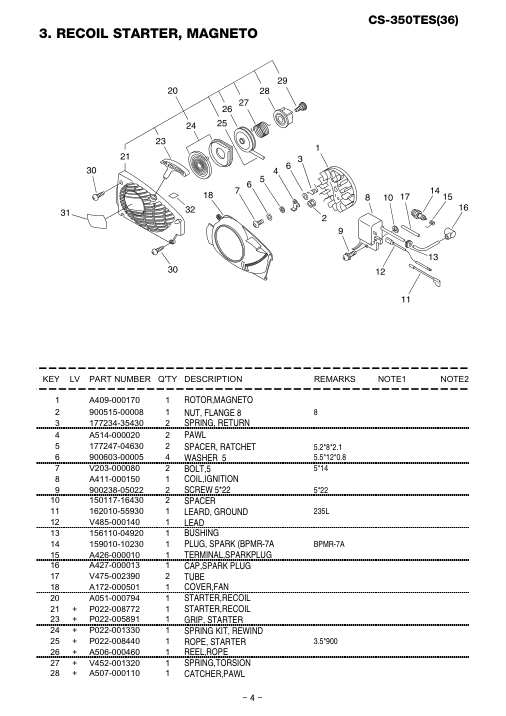

Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Rotor,Magneto | A409-000170 | A409-000170-Online | ||
| 2 | 1 | Nut, Flange 8 | 900515-00008 | 900515-00008-Online | ||
| 3 | 2 | Spring, Return | 177234-35430 | 177234-35430-Online | ||
| 4 | 2 | Pawl | A514-000020 | A514-000020-Online | ||
| 5 | 2 | Spacer, Ratchet | 177247-04630 | 177247-04630-Online | 5.2*8*2.1 | |
| 6 | 4 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 7 | 2 | Bolt,5 | V203-000080 | V203-000080-Online | 5*14 | |
| 8 | 1 | Coil,Ignition | A411-000150 | A411-000150-Online | ||
| 9 | 2 | Screw 5*22 | 900238-05022 | 900238-05022-Online | 5*22 | |
| 10 | 2 | Spacer | 150117-16430 | 150117-16430-Online | ||
| 11 | 1 | Leard, Ground | 162010-55930 | 162010-55930-Online | ||
| 12 | 1 | Lead | V485-000140 | V485-000140-Online | ||
| 13 | 1 | Bushing | 156110-04920 | 156110-04920-Online | ||
| 14 | 1 | Plug, Spark (Bpmr-7A | 159010-10230 | 159010-10230-Online | BPMR-7A | |
| 15 | 1 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | ||
| 16 | 1 | Cap,Spark Plug | A427-000013 | A427-000013-Online | ||
| 17 | 2 | Tube | V475-002390 | V475-002390-Online | ||
| 18 | 1 | Cover,Fan | A172-000501 | A172-000501-Online | ||
| 20 | 1 | Starter,Recoil | A051-000794 | A051-000794-Online | ||
| 21 | + | 1 | Starter,Recoil | P022-008772 | P022-008772-Online | |
| 23 | + | 1 | Grip, Starter | P022-005891 | P022-005891-Online | |
| 24 | + | 1 | Spring Kit, Rewind | P022-001330 | P022-001330-Online | |
| 25 | + | 1 | Rope, Starter | P022-008440 | P022-008440-Online | 3.5*900 |
| 26 | + | 1 | Reel,Rope | A506-000460 | A506-000460-Online | |
| 27 | + | 1 | Spring,Torsion | V452-001320 | V452-001320-Online | |
| 28 | + | 1 | Catcher,Pawl | A507-000110 | A507-000110-Online |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 29 | + | 1 | Screw | 177236-61830 | 177236-61830-Online | |
| 30 | 4 | Screw 4*16 | 900256-04016 | 900256-04016-Online | ||
| 31 | 1 | Label,Echo | X502-000102 | X502-000102-Online | ||
| 32 | 1 | Label,Caution | X505-000180 | X505-000180-Online |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 4 | 2 | Screw 4*12 | 900238-04012 | 900238-04012-Online | 4*12 | |
| 5 | 1 | Cap Asy | P021-005591 | P021-005591-Online | ||
| 6 | + | 1 | O-Ring 18 | 900720-00018 | 900720-00018-Online | P-18 |
| 7 | + | 1 | Connector,Cap | A365-000050 | A365-000050-Online | |
| 8 | 1 | Oil Cap Asy | P021-005581 | P021-005581-Online | ||
| 9 | 1 | Valve, Check | 436114-13930 | 436114-13930-Online | ||
| 10 | 1 | Strainer, Oil | 436205-02832 | 436205-02832-Online | ||
| 11 | 1 | Pipe | V471-000740 | V471-000740-Online | ||
| 12 | 2 | Clip | V490-001230 | V490-001230-Online | ||
| 13 | 1 | Grommet | 132115-01461 | 132115-01461-Online | ||
| 14 | 1 | Pipe | V471-000760 | V471-000760-Online | ||
| 16 | 1 | Pipe | V471-000750 | V471-000750-Online | ||
| 17 | 1 | Pipe | V470-000321 | V470-000321-Online | 10*6*L32 | |
| 18 | 1 | Clip | V490-001240 | V490-001240-Online | ||
| 19 | 1 | Strainer,Fuel | 131205-14930 | 131205-14930-Online | ||
| 20 | 1 | Grommet,Fuel | V137-000020 | V137-000020-Online | ||
| 21 | 1 | Vent Assembly, Fuel | 131300-56431 | 131300-56431-Online | ||
| 22 | 1 | Grommet,Fuel | V137-000000 | V137-000000-Online | ||
| 26 | 1 | Joint,Pipe | V186-000510 | V186-000510-Online | ||
| 29 | 1 | Auto-Oiler Asy | P021-010890 | P021-010890-Online | ||
| 27 | + | 1 | Washer,Circular 11 | V308-000030 | V308-000030-Online | 10.5*17.4*1.8 |
| 28 | + | 1 | Collar,10 | V356-000290 | V356-000290-Online | |
| 30 | + | 1 | Auto-Oiler Assembly | C022-000020 | C022-000020-Online |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 32 | 1 | Spring | 437019-38330 | 437019-38330-Online | 33 | ++ | |
| 33 | 1 | Plunger | 437024-37330 | 437024-37330-Online | ||
| 31 | + | 1 | Gear,Worm | V652-000030 | V652-000030-Online |

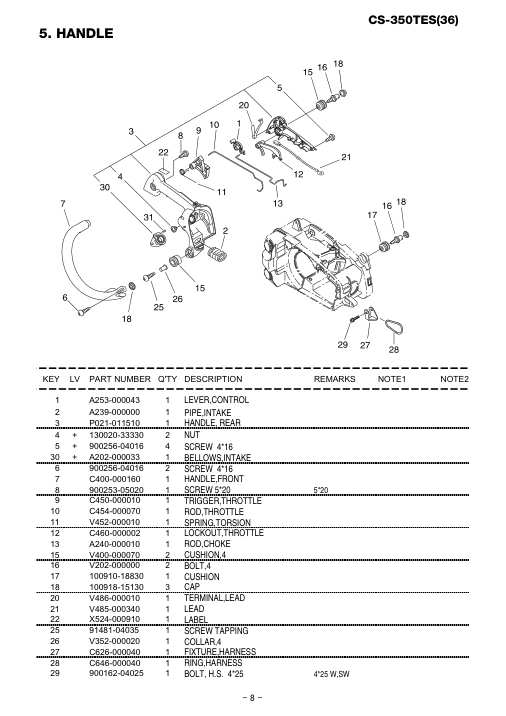

Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Lever,Control | A253-000043 | A253-000043-Online | ||
| 2 | 1 | Pipe,Intake | A239-000000 | A239-000000-Online | ||
| 3 | 1 | Handle, Rear | P021-011510 | P021-011510-Online | ||
| 4 | + | 2 | Part | 130020-33330 | 130020-33330-Online | |
| 5 | + | 4 | Screw 4*16 | 900256-04016 | 900256-04016-Online | |
| 30 | + | 1 | Bellows,Intake | A202-000033 | A202-000033-Online | |
| 6 | 2 | Screw 4*16 | 900256-04016 | 900256-04016-Online | ||
| 7 | 1 | Handle,Front | C400-000160 | C400-000160-Online | ||
| 8 | 1 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 5*20 | |
| 9 | 1 | Trigger,Throttle | C450-000010 | C450-000010-Online | ||
| 10 | 1 | Rod,Throttle | C454-000070 | C454-000070-Online | ||
| 11 | 1 | Spring,Torsion | V452-000010 | V452-000010-Online | ||
| 12 | 1 | Lockout,Throttle | C460-000002 | C460-000002-Online | ||
| 13 | 1 | Rod,Choke | A240-000010 | A240-000010-Online | ||
| 15 | 2 | Cushion,4 | V400-000070 | V400-000070-Online | ||
| 16 | 2 | Bolt,4 | V202-000000 | V202-000000-Online | ||
| 17 | 1 | Cushion | 100910-18830 | 100910-18830-Online | ||
| 18 | 3 | Part | 100918-15130 | 100918-15130-Online | ||
| 20 | 1 | Terminal,Lead | V486-000010 | V486-000010-Online | ||
| 21 | 1 | Lead | V485-000340 | V485-000340-Online | ||
| 22 | 1 | Label | X524-000910 | X524-000910-Online | ||
| 25 | 1 | Screw Tapping | 91481-04035 | 91481-04035-Online | ||
| 26 | 1 | Collar,4 | V352-000020 | V352-000020-Online | ||
| 27 | 1 | Fixture,Harness | C626-000040 | C626-000040-Online | ||
| 28 | 1 | Ring,Harness | C646-000040 | C646-000040-Online | ||
| 29 | 1 | Bolt, H.S. 4*25 | 900162-04025 | 900162-04025-Online | 4*25 W,SW |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 31 | 1 | Collar,3 | V351-000000 | V351-000000-Online | 3.2*6.5 |

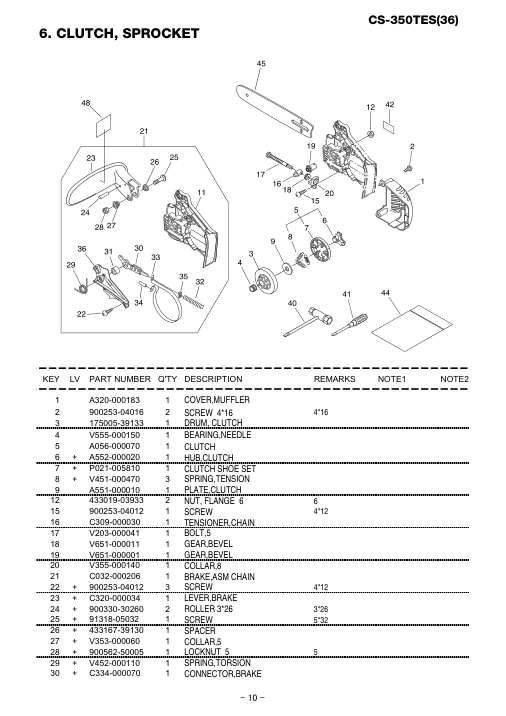

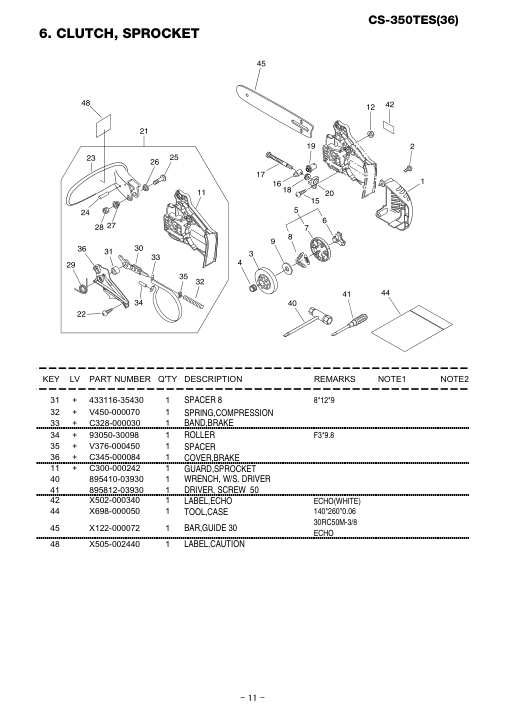

Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cover,Muffler | A320-000183 | A320-000183-Online | ||
| 2 | 2 | Screw 4*16 | 900253-04016 | 900253-04016-Online | 4*16 | |
| 3 | 1 | Drum, Clutch | 175005-39133 | 175005-39133-Online | ||
| 4 | 1 | Bearing,Needle | V555-000150 | V555-000150-Online | ||
| 5 | 1 | Clutch | A056-000070 | A056-000070-Online | ||
| 6 | + | 1 | Hub,Clutch | A552-000020 | A552-000020-Online | |
| 7 | + | 1 | Clutch Shoe Set | P021-005810 | P021-005810-Online | |
| 8 | + | 3 | Spring,Tension | V451-000470 | V451-000470-Online | |
| 9 | 1 | Plate,Clutch | A551-000010 | A551-000010-Online | ||
| 12 | 2 | Nut, Flange 6 | 433019-03933 | 433019-03933-Online | ||
| 15 | 1 | Screw | 900253-04012 | 900253-04012-Online | 4*12 | |
| 16 | 1 | Tensioner,Chain | C309-000030 | C309-000030-Online | ||
| 17 | 1 | Bolt,5 | V203-000041 | V203-000041-Online | ||
| 18 | 1 | Gear,Bevel | V651-000011 | V651-000011-Online | ||
| 19 | 1 | Gear,Bevel | V651-000001 | V651-000001-Online | ||
| 20 | 1 | Collar,8 | V355-000140 | V355-000140-Online | ||
| 21 | 1 | Brake,Asm Chain | C032-000206 | C032-000206-Online | ||
| 22 | + | 3 | Screw | 900253-04012 | 900253-04012-Online | 4*12 |
| 23 | + | 1 | Lever,Brake | C320-000034 | C320-000034-Online | |
| 24 | + | 2 | Roller 3*26 | 900330-30260 | 900330-30260-Online | 3*26 |
| 25 | + | 1 | Screw | 91318-05032 | 91318-05032-Online | 5*32 |
| 26 | + | 1 | Spacer | 433167-39130 | 433167-39130-Online | |
| 27 | + | 1 | Collar,5 | V353-000060 | V353-000060-Online | |
| 28 | + | 1 | Locknut 5 | 900562-50005 | 900562-50005-Online | |
| 29 | + | 1 | Spring,Torsion | V452-000110 | V452-000110-Online | |
| 30 | + | 1 | Connector,Brake | C334-000070 | C334-000070-Online |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 31 | + | 1 | Spacer 8 | 433116-35430 | 433116-35430-Online | 8*12*9 |
| 32 | + | 1 | Spring,Compression | V450-000070 | V450-000070-Online | |
| 33 | + | 1 | Band,Brake | C328-000030 | C328-000030-Online | |
| 34 | + | 1 | Roller | 93050-30098 | 93050-30098-Online | F3*9.8 |
| 35 | + | 1 | Spacer | V376-000450 | V376-000450-Online | |
| 36 | + | 1 | Cover,Brake | C345-000084 | C345-000084-Online | |
| 11 | + | 1 | Guard,Sprocket | C300-000242 | C300-000242-Online | |
| 40 | 1 | Wrench, W/S. Driver | 895410-03930 | 895410-03930-Online | ||
| 41 | 1 | Driver, Screw 50 | 895812-03930 | 895812-03930-Online | ||
| 42 | 1 | Label,Echo | X502-000340 | X502-000340-Online | ECHO(WHITE) | |
| 44 | 1 | Tool,Case | X698-000050 | X698-000050-Online | 140*260*0.06 | |
| 45 | 1 | Bar,Guide 30 | X122-000072 | X122-000072-Online | 30RC50M-3/8 | ECHO | |
| 48 | 1 | Label,Caution | X505-002440 | X505-002440-Online |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | + | 1 | Screen,Inlet | P003-005040 | P003-005040-Online | |
| 3 | + | 1 | Cover, Fuel Pump | 123124-24430 | 123124-24430-Online | |
| 4 | + | 1 | Screw, Pump Cover | 123110-03930 | 123110-03930-Online | |
| 5 | + | 1 | Gasket, Fuel Pump | 123125-15030 | 123125-15030-Online | |
| 6 | + | 1 | Diaphragm, Fuel Pump | 123112-15030 | 123112-15030-Online | |
| 7 | + | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |
| 8 | + | 1 | Gasket, M. Diaphragm | 123140-03930 | 123140-03930-Online | |
| 9 | + | 1 | Diaphragm, Metering | P003-001850 | P003-001850-Online | |
| 10 | + | 1 | Cover, M. Diaphragm | 123142-03930 | 123142-03930-Online | |
| 11 | + | 1 | Spring, Meter. Lever | 123122-39830 | 123122-39830-Online | |
| 12 | + | 1 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | |
| 13 | + | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |
| 14 | + | 1 | Lever, Metering | 123123-03930 | 123123-03930-Online | |
| 15 | + | 1 | Plug, Welch | 123146-10631 | 123146-10631-Online | |
| 16 | + | 1 | Spring, Idle Adjust | 123133-04260 | 123133-04260-Online | |
| 17 | + | 1 | Screw, Idle Adjust | 123134-04260 | 123134-04260-Online | |
| 18 | + | 1 | Spring, Throttle Rtn | 123113-37530 | 123113-37530-Online | |
| 19 | + | 1 | Shaft,Throttle | P003-000480 | P003-000480-Online | |
| 20 | + | 3 | Screw | 123114-38830 | 123114-38830-Online | |
| 21 | + | 1 | Valve, Throttle | 123116-10530 | 123116-10530-Online | |
| 22 | + | 1 | Throttle, Lever | P003-000380 | P003-000380-Online | |
| 23 | + | 2 | Ring | 123127-15030 | 123127-15030-Online | |
| 24 | + | 1 | Needle | 123118-02261 | 123118-02261-Online | |
| 25 | + | 4 | Screw | 123130-02960 | 123130-02960-Online | |
| 26 | + | 1 | Shaft, Choke | P003-001140 | P003-001140-Online |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 27 | + | 1 | Valve, Choke | 123132-35430 | 123132-35430-Online | |
| 28 | + | 1 | Spring | P003-001470 | P003-001470-Online | |
| 29 | + | 1 | Lever-Fast Idle | P003-001510 | P003-001510-Online | |
| 30 | + | 1 | Washer | 123149-26030 | 123149-26030-Online | |
| 31 | + | 2 | Limiter Cap | P003-000010 | P003-000010-Online | |
| 32 | + | 1 | Needle, High Speed | 123120-52131 | 123120-52131-Online |
Source PDF: 20130718-403_CS-350TES(36)_P014-002690-12Ib_EN.pdf. Generated 2026-06-25 14:38.
