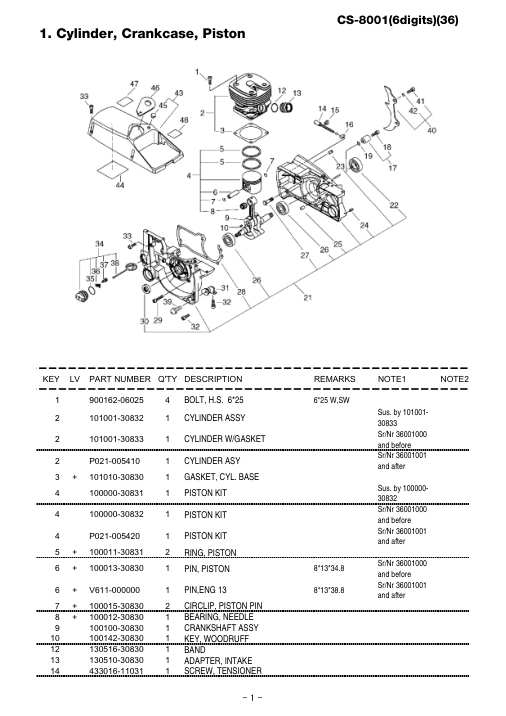

Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 4 | Bolt, H.S. 6*25 | 900162-06025 | 900162-06025-Online | 6*25 W,SW | |
| 2 | 1 | Cylinder Assy | 101001-30832 | 101001-30832-Online | Sus. by 101001- | 30833 | |
| 2 | 1 | Cylinder W/Gasket | 101001-30833 | 101001-30833-Online | Sr/Nr 36001000 | and before | |
| 2 | 1 | Cylinder Asy | P021-005410 | P021-005410-Online | Sr/Nr 36001001 | and after | |
| 3 | + | 1 | Gasket, Cyl. Base | 101010-30830 | 101010-30830-Online | |
| 4 | 1 | Piston Kit | 100000-30831 | 100000-30831-Online | Sus. by 100000- | 30832 | |
| 4 | 1 | Piston Kit | 100000-30832 | 100000-30832-Online | Sr/Nr 36001000 | and before | |
| 4 | 1 | Piston Kit | P021-005420 | P021-005420-Online | Sr/Nr 36001001 | and after | |
| 5 | + | 2 | Ring, Piston | 100011-30831 | 100011-30831-Online | |
| 6 | + | 1 | Pin, Piston | 100013-30830 | 100013-30830-Online | 8*13*34.8 | Sr/Nr 36001000 | and before |
| 6 | + | 1 | Pin,Eng 13 | V611-000000 | V611-000000-Online | 8*13*38.8 | Sr/Nr 36001001 | and after |
| 7 | + | 2 | Circlip, Piston Pin | 100015-30830 | 100015-30830-Online | |
| 8 | + | 1 | Bearing, Needle | 100012-30830 | 100012-30830-Online | |
| 9 | 1 | Crankshaft Assy | 100100-30830 | 100100-30830-Online | ||
| 10 | 1 | Key, Woodruff | 100142-30830 | 100142-30830-Online | ||
| 12 | 1 | Band | 130516-30830 | 130516-30830-Online | ||
| 13 | 1 | Adapter, Intake | 130510-30830 | 130510-30830-Online | ||
| 14 | 1 | Screw, Tensioner | 433016-11031 | 433016-11031-Online |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 15 | 1 | Clip | 433028-11030 | 433028-11030-Online | ||
| 16 | 1 | Tensioner | 433014-02830 | 433014-02830-Online | ||
| 17 | 1 | Catcher Kit, Chain | 433000-19831 | 433000-19831-Online | ||
| 18 | + | 1 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW |
| 19 | 1 | Washer 5 | 900600-00005 | 900600-00005-Online | ||
| 21 | 1 | Crankcase Kit | 100204-30832 | 100204-30832-Online | ||
| 22 | + | 1 | Oilseal | 100213-30830 | 100213-30830-Online | 25Z-16 39.9 7 |
| 23 | + | 1 | Valve, Check | 436114-13930 | 436114-13930-Online | |
| 24 | + | 1 | Pin, Spring 5*10Sus | 900345-50010 | 900345-50010-Online | 5*10SUS |
| 25 | + | 2 | Pin, Dowel | 100215-02830 | 100215-02830-Online | |
| 26 | + | 2 | Bearing, Ball 6203 | 900810-36203 | 900810-36203-Online | 6203/C3 |
| 27 | + | 2 | Stud, Guide Bar | 433011-19830 | 433011-19830-Online | |
| 28 | + | 1 | Gasket, Crankcase | 100242-30830 | 100242-30830-Online | |
| 30 | + | 1 | Oilseal | 100212-19830 | 100212-19830-Online | ISM 15*25*6 |
| 29 | 4 | Bolt, H.S. 5*35 | 900162-05035 | 900162-05035-Online | 5*35 W,SW | |
| 31 | 1 | Cushion | 100921-30830 | 100921-30830-Online | ||
| 32 | 2 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | Sr/Nr 36001185 | and before | |
| 32 | 1 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | Sr/Nr 36001186 | and after | |
| 33 | 5 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 34 | 1 | Cap Assy, Oil Tank | 436001-31730 | 436001-31730-Online | ||
| 35 | + | 1 | O-Ring 25 | 900721-00025 | 900721-00025-Online | G-25 |
| 36 | + | 1 | Retainer, Link | 131050-19830 | 131050-19830-Online | |
| 37 | + | 1 | Screw 3*8 | 900246-03008 | 900246-03008-Online | 3*8 |

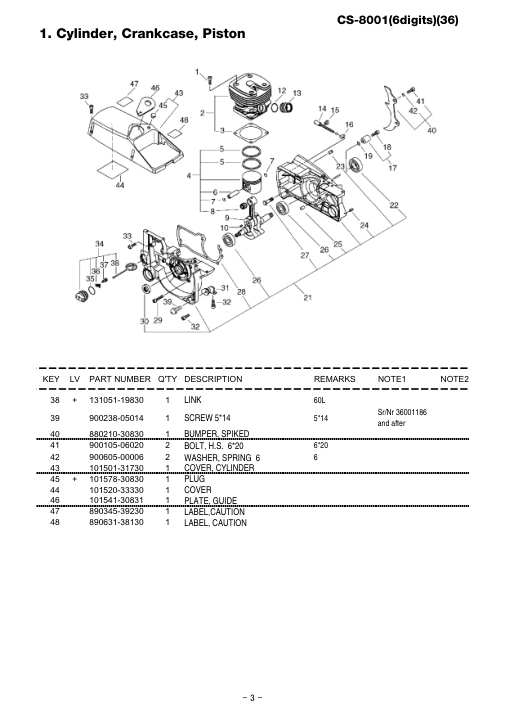

Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 38 | + | 1 | Link | 131051-19830 | 131051-19830-Online | |
| 39 | 1 | Screw 5*14 | 900238-05014 | 900238-05014-Online | 5*14 | Sr/Nr 36001186 | and after | |
| 40 | 1 | Bumper, Spiked | 880210-30830 | 880210-30830-Online | ||
| 41 | 2 | Bolt, H.S. 6*20 | 900105-06020 | 900105-06020-Online | 6*20 | |
| 42 | 2 | Washer, Spring 6 | 900605-00006 | 900605-00006-Online | ||
| 43 | 1 | Cover, Cylinder | 101501-31730 | 101501-31730-Online | ||
| 45 | + | 1 | Plug | 101578-30830 | 101578-30830-Online | |
| 44 | 1 | Cover | 101520-33330 | 101520-33330-Online | ||
| 46 | 1 | Plate, Guide | 101541-30831 | 101541-30831-Online | ||
| 47 | 1 | Label,Caution | 890345-39230 | 890345-39230-Online | ||
| 48 | 1 | Label, Caution | 890631-38130 | 890631-38130-Online |

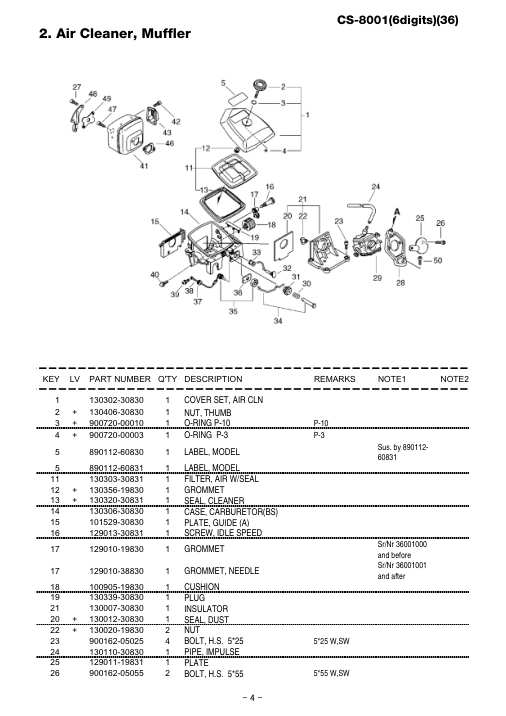

Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cover Set, Air Cln | 130302-30830 | 130302-30830-Online | ||
| 2 | + | 1 | Nut, Thumb | 130406-30830 | 130406-30830-Online | |
| 3 | + | 1 | O-Ring P-10 | 900720-00010 | 900720-00010-Online | P-10 |
| 4 | + | 1 | O-Ring P-3 | 900720-00003 | 900720-00003-Online | P-3 |
| 5 | 1 | Label, Model | 890112-60830 | 890112-60830-Online | Sus. by 890112- | 60831 | |
| 5 | 1 | Label, Model | 890112-60831 | 890112-60831-Online | ||
| 11 | 1 | Filter, Air W/Seal | 130303-30831 | 130303-30831-Online | ||
| 12 | + | 1 | Grommet | 130356-19830 | 130356-19830-Online | |
| 13 | + | 1 | Seal, Cleaner | 130320-30831 | 130320-30831-Online | |
| 14 | 1 | Case, Carburetor(Bs) | 130306-30830 | 130306-30830-Online | ||
| 15 | 1 | Plate, Guide (A) | 101529-30830 | 101529-30830-Online | ||
| 16 | 1 | Screw, Idle Speed | 129013-30831 | 129013-30831-Online | ||
| 17 | 1 | Grommet | 129010-19830 | 129010-19830-Online | Sr/Nr 36001000 | and before | |
| 17 | 1 | Grommet, Needle | 129010-38830 | 129010-38830-Online | Sr/Nr 36001001 | and after | |
| 18 | 1 | Cushion | 100905-19830 | 100905-19830-Online | ||
| 19 | 1 | Plug | 130339-30830 | 130339-30830-Online | ||
| 21 | 1 | Insulator | 130007-30830 | 130007-30830-Online | ||
| 20 | + | 1 | Seal, Dust | 130012-30830 | 130012-30830-Online | |
| 22 | + | 2 | Part | 130020-19830 | 130020-19830-Online | |
| 23 | 4 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW | |
| 24 | 1 | Pipe, Impulse | 130110-30830 | 130110-30830-Online | ||
| 25 | 1 | Plate | 129011-19831 | 129011-19831-Online | ||
| 26 | 2 | Bolt, H.S. 5*55 | 900162-05055 | 900162-05055-Online | 5*55 W,SW |

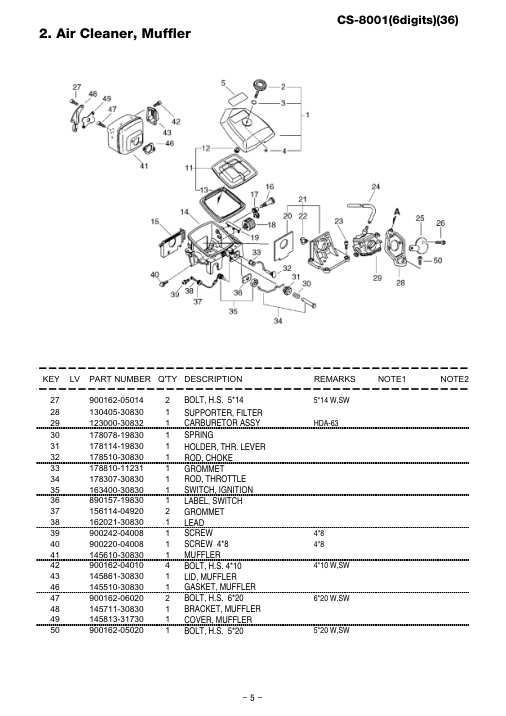

Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 27 | 2 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | |
| 28 | 1 | Supporter, Filter | 130405-30830 | 130405-30830-Online | ||
| 29 | 1 | Carburetor Assy | 123000-30832 | 123000-30832-Online | HDA-63 | |
| 30 | 1 | Spring | 178078-19830 | 178078-19830-Online | ||
| 31 | 1 | Holder, Thr. Lever | 178114-19830 | 178114-19830-Online | ||
| 32 | 1 | Rod, Choke | 178510-30830 | 178510-30830-Online | ||
| 33 | 1 | Grommet | 178810-11231 | 178810-11231-Online | ||
| 34 | 1 | Rod, Throttle | 178307-30830 | 178307-30830-Online | ||
| 35 | 1 | Switch, Ignition | 163400-30830 | 163400-30830-Online | ||
| 36 | 1 | Label, Switch | 890157-19830 | 890157-19830-Online | ||
| 37 | 2 | Grommet | 156114-04920 | 156114-04920-Online | ||
| 38 | 1 | Lead | 162021-30830 | 162021-30830-Online | ||
| 39 | 1 | Screw | 900242-04008 | 900242-04008-Online | 4*8 | |
| 40 | 1 | Screw 4*8 | 900220-04008 | 900220-04008-Online | 4*8 | |
| 41 | 1 | Muffler | 145610-30830 | 145610-30830-Online | ||
| 42 | 4 | Bolt, H.S. 4*10 | 900162-04010 | 900162-04010-Online | 4*10 W,SW | |
| 43 | 1 | Lid, Muffler | 145861-30830 | 145861-30830-Online | ||
| 46 | 1 | Gasket, Muffler | 145510-30830 | 145510-30830-Online | ||
| 47 | 2 | Bolt, H.S. 6*20 | 900162-06020 | 900162-06020-Online | 6*20 W.SW | |
| 48 | 1 | Bracket, Muffler | 145711-30830 | 145711-30830-Online | ||
| 49 | 1 | Cover, Muffler | 145813-31730 | 145813-31730-Online | ||
| 50 | 1 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Plate, Guide | 101534-30830 | 101534-30830-Online | ||
| 2 | 2 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 3 | 1 | Rotor, Magneto | 156800-32631 | 156800-32631-Online | ||
| 4 | 1 | Fan, Cooling | 101521-30831 | 101521-30831-Online | Sus. by 101521- | 30832 | |
| 4 | 1 | Fan, Cooling | 101521-30832 | 101521-30832-Online | ||
| 5 | 1 | Washer | 100143-19830 | 100143-19830-Online | 8.2*31*0.8 | |
| 6 | 1 | Nut, Flange 8 | 433019-12330 | 433019-12330-Online | M-8 | |
| 7 | 1 | Cap, Spark Plug | 159012-03433 | 159012-03433-Online | ||
| 8 | 1 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | ||
| 9 | 1 | Plug, Spark Rcj-6Y | 159017-31730 | 159017-31730-Online | RCJ-6Y | |
| 10 | 1 | Bushing | 152112-05730 | 152112-05730-Online | ||
| 11 | 1 | Coil, Ignition | 156601-30831 | 156601-30831-Online | ||
| 12 | 2 | Bolt, H.S. 4*20 | 900162-04020 | 900162-04020-Online | 4*20 W,SW | |
| 13 | 1 | Tube | 150611-30830 | 150611-30830-Online | 7*8.6*45 | |
| 20 | 2 | Spring, Return | 177234-30830 | 177234-30830-Online | ||
| 21 | 2 | Spacer, Ratchet | 177247-12331 | 177247-12331-Online | ||
| 22 | 2 | Pawl, Starter | 177218-30830 | 177218-30830-Online | ||
| 23 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 24 | 2 | Bolt, H.S. 5*30 | 900162-05030 | 900162-05030-Online | 5*30 W,SW | Sus. by V203- | 000140 | |
| 24 | 2 | Bolt,5 | V203-000140 | V203-000140-Online | 5*30 | |
| 25 | 1 | Cover, Fan | 101535-30830 | 101535-30830-Online | ||
| 26 | 1 | Starter Assy | 177200-30831 | 177200-30831-Online | ||
| 27 | + | 1 | Screw 5*14 | 900238-05014 | 900238-05014-Online | 5*14 | Sus. by 900162- | 05014 |

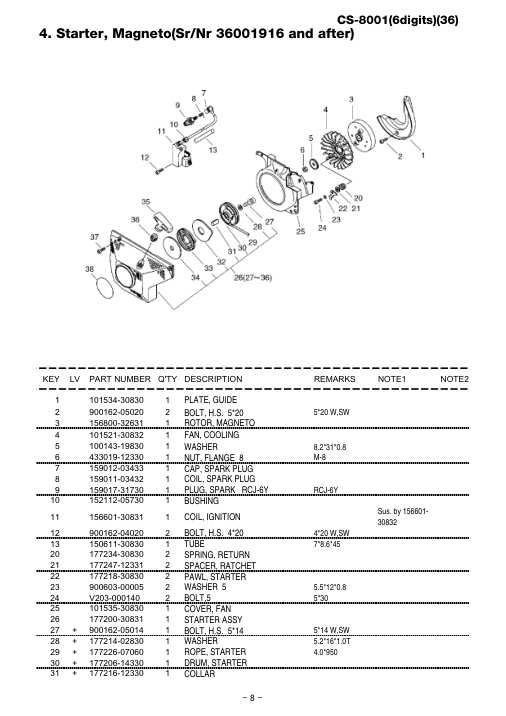

Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 27 | + | 1 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW |
| 28 | + | 1 | Washer | 177214-02830 | 177214-02830-Online | 5.2*16*1.0T |
| 29 | + | 1 | Rope, Starter | 177226-07060 | 177226-07060-Online | 4.0*950 |
| 30 | + | 1 | Drum, Starter | 177206-14330 | 177206-14330-Online | |
| 31 | + | 1 | Collar | 177216-12330 | 177216-12330-Online | |
| 32 | + | 1 | Plate, Starter | 177242-30830 | 177242-30830-Online | |
| 33 | + | 1 | Spring, Rewind | 177220-02834 | 177220-02834-Online | |
| 34 | + | 1 | Plate, Starter | 177221-02830 | 177221-02830-Online | |
| 35 | + | 1 | Grip, Starter | 177228-30830 | 177228-30830-Online | |
| 36 | + | 1 | Guide, Rope | 177227-07060 | 177227-07060-Online | |
| 37 | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 38 | 1 | Label, Echo | 890118-17930 | 890118-17930-Online | Sus. by X502- | 000460 |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Plate, Guide | 101534-30830 | 101534-30830-Online | ||
| 2 | 2 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 3 | 1 | Rotor, Magneto | 156800-32631 | 156800-32631-Online | ||
| 4 | 1 | Fan, Cooling | 101521-30832 | 101521-30832-Online | ||
| 5 | 1 | Washer | 100143-19830 | 100143-19830-Online | 8.2*31*0.8 | |
| 6 | 1 | Nut, Flange 8 | 433019-12330 | 433019-12330-Online | M-8 | |
| 7 | 1 | Cap, Spark Plug | 159012-03433 | 159012-03433-Online | ||
| 8 | 1 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | ||
| 9 | 1 | Plug, Spark Rcj-6Y | 159017-31730 | 159017-31730-Online | RCJ-6Y | |
| 10 | 1 | Bushing | 152112-05730 | 152112-05730-Online | ||
| 11 | 1 | Coil, Ignition | 156601-30831 | 156601-30831-Online | Sus. by 156601- | 30832 | |
| 12 | 2 | Bolt, H.S. 4*20 | 900162-04020 | 900162-04020-Online | 4*20 W,SW | |
| 13 | 1 | Tube | 150611-30830 | 150611-30830-Online | 7*8.6*45 | |
| 20 | 2 | Spring, Return | 177234-30830 | 177234-30830-Online | ||
| 21 | 2 | Spacer, Ratchet | 177247-12331 | 177247-12331-Online | ||
| 22 | 2 | Pawl, Starter | 177218-30830 | 177218-30830-Online | ||
| 23 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 24 | 2 | Bolt,5 | V203-000140 | V203-000140-Online | 5*30 | |
| 25 | 1 | Cover, Fan | 101535-30830 | 101535-30830-Online | ||
| 26 | 1 | Starter Assy | 177200-30831 | 177200-30831-Online | ||
| 27 | + | 1 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW |
| 28 | + | 1 | Washer | 177214-02830 | 177214-02830-Online | 5.2*16*1.0T |
| 29 | + | 1 | Rope, Starter | 177226-07060 | 177226-07060-Online | 4.0*950 |
| 30 | + | 1 | Drum, Starter | 177206-14330 | 177206-14330-Online | |
| 31 | + | 1 | Collar | 177216-12330 | 177216-12330-Online |

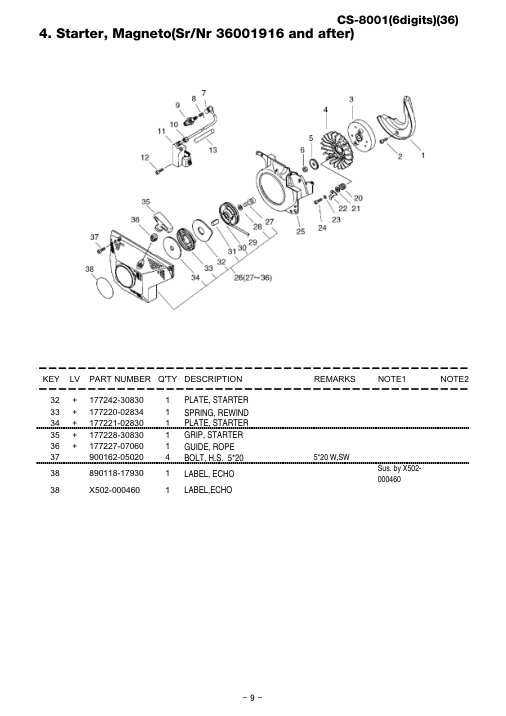

Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 32 | + | 1 | Plate, Starter | 177242-30830 | 177242-30830-Online | |
| 33 | + | 1 | Spring, Rewind | 177220-02834 | 177220-02834-Online | |
| 34 | + | 1 | Plate, Starter | 177221-02830 | 177221-02830-Online | |
| 35 | + | 1 | Grip, Starter | 177228-30830 | 177228-30830-Online | |
| 36 | + | 1 | Guide, Rope | 177227-07060 | 177227-07060-Online | |
| 37 | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 38 | 1 | Label, Echo | 890118-17930 | 890118-17930-Online | Sus. by X502- | 000460 | |
| 38 | 1 | Label,Echo | X502-000460 | X502-000460-Online |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|

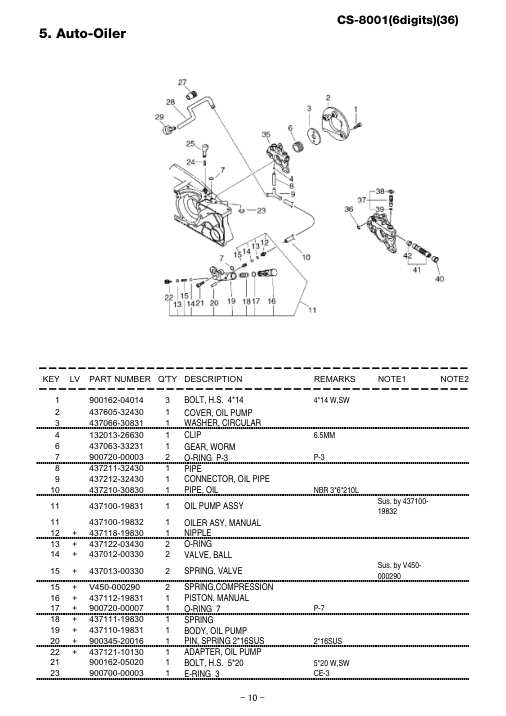

| 1 | 3 | Bolt, H.S. 4*14 | 900162-04014 | 900162-04014-Online | 4*14 W,SW | |
| 2 | 1 | Cover, Oil Pump | 437605-32430 | 437605-32430-Online | ||
| 3 | 1 | Washer, Circular | 437066-30831 | 437066-30831-Online | ||
| 4 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 6 | 1 | Gear, Worm | 437063-33231 | 437063-33231-Online | ||
| 7 | 2 | O-Ring P-3 | 900720-00003 | 900720-00003-Online | P-3 | |
| 8 | 1 | Pipe | 437211-32430 | 437211-32430-Online | ||
| 9 | 1 | Connector, Oil Pipe | 437212-32430 | 437212-32430-Online | ||
| 10 | 1 | Pipe, Oil | 437210-30830 | 437210-30830-Online | NBR 3*6*210L | |
| 11 | 1 | Oil Pump Assy | 437100-19831 | 437100-19831-Online | Sus. by 437100- | 19832 | |
| 11 | 1 | Oiler Asy, Manual | 437100-19832 | 437100-19832-Online | ||
| 12 | + | 1 | Nipple | 437118-19830 | 437118-19830-Online | |
| 13 | + | 2 | O-Ring | 437122-03430 | 437122-03430-Online | |
| 14 | + | 2 | Valve, Ball | 437012-00330 | 437012-00330-Online | |
| 15 | + | 2 | Spring, Valve | 437013-00330 | 437013-00330-Online | Sus. by V450- | 000290 |
| 15 | + | 2 | Spring,Compression | V450-000290 | V450-000290-Online | |
| 16 | + | 1 | Piston, Manual | 437112-19831 | 437112-19831-Online | |
| 17 | + | 1 | O-Ring 7 | 900720-00007 | 900720-00007-Online | P-7 |
| 18 | + | 1 | Spring | 437111-19830 | 437111-19830-Online | |
| 19 | + | 1 | Body, Oil Pump | 437110-19831 | 437110-19831-Online | |
| 20 | + | 1 | Pin, Spring 2*16Sus | 900345-20016 | 900345-20016-Online | 2*16SUS |
| 22 | + | 1 | Adapter, Oil Pump | 437121-10130 | 437121-10130-Online | |
| 21 | 1 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 23 | 1 | E-Ring 3 | 900700-00003 | 900700-00003-Online | CE-3 |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 24 | 1 | Spring | 437015-19830 | 437015-19830-Online | ||
| 25 | 1 | Knob | 437039-30830 | 437039-30830-Online | ||
| 27 | 1 | Grommet | 132115-12330 | 132115-12330-Online | ||
| 28 | 1 | Pipe, Oil (Inner) | 437210-32430 | 437210-32430-Online | Sus. by 437210- | 38330 | |
| 28 | 1 | Pipe, Oil | 437210-38330 | 437210-38330-Online | ||
| 29 | 1 | Strainer, Oil | 436205-14730 | 436205-14730-Online | ||
| 35 | 1 | Auto-Oiler Assy | 437002-37530 | 437002-37530-Online | ||
| 36 | + | 1 | O-Ring P-3 | 900720-00003 | 900720-00003-Online | P-3 |
| 37 | + | 1 | Pin, Control | 437009-35430 | 437009-35430-Online | 38 | ++ |
| 38 | 1 | Clip | 437065-19830 | 437065-19830-Online | 39 | ++ | |
| 39 | 1 | O-Ring | 437030-19830 | 437030-19830-Online | ||
| 40 | + | 1 | Cap, Plunger | 437062-19830 | 437062-19830-Online | |
| 41 | + | 1 | Plunger Kit | 437006-32330 | 437006-32330-Online | 42 | ++ |
| 42 | 1 | V-Ring | 437020-32430 | 437020-32430-Online |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|

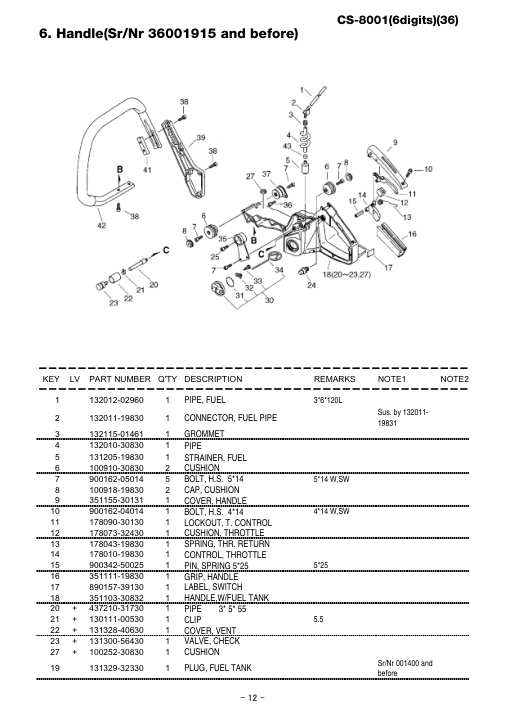

| 1 | 1 | Pipe, Fuel | 132012-02960 | 132012-02960-Online | 3*6*120L | |
| 2 | 1 | Connector, Fuel Pipe | 132011-19830 | 132011-19830-Online | Sus. by 132011- | 19831 | |
| 3 | 1 | Grommet | 132115-01461 | 132115-01461-Online | ||
| 4 | 1 | Pipe | 132010-30830 | 132010-30830-Online | ||
| 5 | 1 | Strainer, Fuel | 131205-19830 | 131205-19830-Online | ||
| 6 | 2 | Cushion | 100910-30830 | 100910-30830-Online | ||
| 7 | 5 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | |
| 8 | 2 | Cap, Cushion | 100918-19830 | 100918-19830-Online | ||
| 9 | 1 | Cover, Handle | 351155-30131 | 351155-30131-Online | ||
| 10 | 1 | Bolt, H.S. 4*14 | 900162-04014 | 900162-04014-Online | 4*14 W,SW | |
| 11 | 1 | Lockout, T. Control | 178090-30130 | 178090-30130-Online | ||
| 12 | 1 | Cushion, Throttle | 178073-32430 | 178073-32430-Online | ||
| 13 | 1 | Spring, Thr. Return | 178043-19830 | 178043-19830-Online | ||
| 14 | 1 | Control, Throttle | 178010-19830 | 178010-19830-Online | ||
| 15 | 1 | Pin, Spring 5*25 | 900342-50025 | 900342-50025-Online | 5*25 | |
| 16 | 1 | Grip, Handle | 351111-19830 | 351111-19830-Online | ||
| 17 | 1 | Label, Switch | 890157-39130 | 890157-39130-Online | ||
| 18 | 1 | Handle,W/Fuel Tank | 351103-30832 | 351103-30832-Online | ||
| 20 | + | 1 | Pipe 3* 5* 55 | 437210-31730 | 437210-31730-Online | |
| 21 | + | 1 | Clip | 130111-00530 | 130111-00530-Online | 5.5 |
| 22 | + | 1 | Cover, Vent | 131328-40630 | 131328-40630-Online | |
| 23 | + | 1 | Valve, Check | 131300-56430 | 131300-56430-Online | |
| 27 | + | 1 | Cushion | 100252-30830 | 100252-30830-Online | |
| 19 | 1 | Plug, Fuel Tank | 131329-32330 | 131329-32330-Online | Sr/Nr 001400 and | before |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|

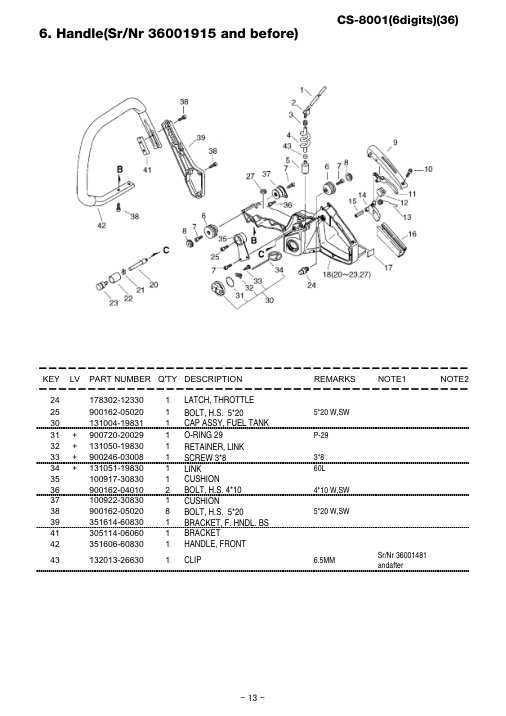

| 24 | 1 | Latch, Throttle | 178302-12330 | 178302-12330-Online | ||
| 25 | 1 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 30 | 1 | Cap Assy, Fuel Tank | 131004-19831 | 131004-19831-Online | ||
| 31 | + | 1 | O-Ring 29 | 900720-20029 | 900720-20029-Online | P-29 |
| 32 | + | 1 | Retainer, Link | 131050-19830 | 131050-19830-Online | |
| 33 | + | 1 | Screw 3*8 | 900246-03008 | 900246-03008-Online | 3*8 |
| 34 | + | 1 | Link | 131051-19830 | 131051-19830-Online | |
| 35 | 1 | Cushion | 100917-30830 | 100917-30830-Online | ||
| 36 | 2 | Bolt, H.S. 4*10 | 900162-04010 | 900162-04010-Online | 4*10 W,SW | |
| 37 | 1 | Cushion | 100922-30830 | 100922-30830-Online | ||
| 38 | 8 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 39 | 1 | Bracket, F. Hndl. Bs | 351614-60830 | 351614-60830-Online | ||
| 41 | 1 | Bracket | 305114-06060 | 305114-06060-Online | ||
| 42 | 1 | Handle, Front | 351606-60830 | 351606-60830-Online | ||
| 43 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | Sr/Nr 36001481 | andafter |

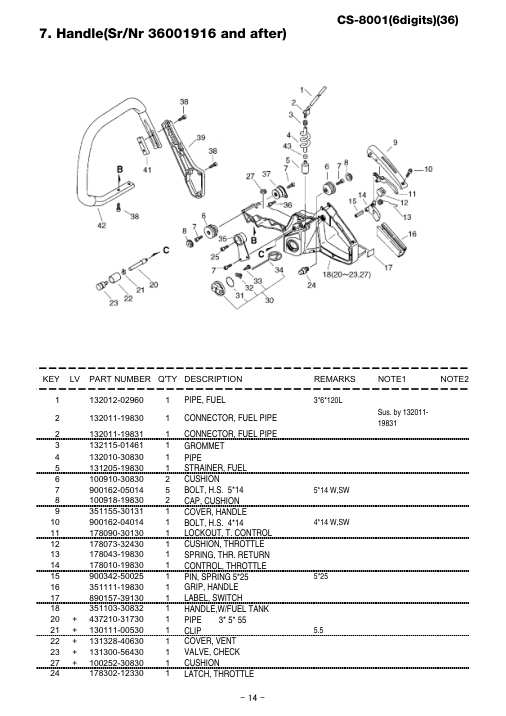

Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Pipe, Fuel | 132012-02960 | 132012-02960-Online | 3*6*120L | |
| 2 | 1 | Connector, Fuel Pipe | 132011-19830 | 132011-19830-Online | Sus. by 132011- | 19831 | |
| 2 | 1 | Connector, Fuel Pipe | 132011-19831 | 132011-19831-Online | ||
| 3 | 1 | Grommet | 132115-01461 | 132115-01461-Online | ||
| 4 | 1 | Pipe | 132010-30830 | 132010-30830-Online | ||
| 5 | 1 | Strainer, Fuel | 131205-19830 | 131205-19830-Online | ||
| 6 | 2 | Cushion | 100910-30830 | 100910-30830-Online | ||
| 7 | 5 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | |
| 8 | 2 | Cap, Cushion | 100918-19830 | 100918-19830-Online | ||
| 9 | 1 | Cover, Handle | 351155-30131 | 351155-30131-Online | ||
| 10 | 1 | Bolt, H.S. 4*14 | 900162-04014 | 900162-04014-Online | 4*14 W,SW | |
| 11 | 1 | Lockout, T. Control | 178090-30130 | 178090-30130-Online | ||
| 12 | 1 | Cushion, Throttle | 178073-32430 | 178073-32430-Online | ||
| 13 | 1 | Spring, Thr. Return | 178043-19830 | 178043-19830-Online | ||
| 14 | 1 | Control, Throttle | 178010-19830 | 178010-19830-Online | ||
| 15 | 1 | Pin, Spring 5*25 | 900342-50025 | 900342-50025-Online | 5*25 | |
| 16 | 1 | Grip, Handle | 351111-19830 | 351111-19830-Online | ||
| 17 | 1 | Label, Switch | 890157-39130 | 890157-39130-Online | ||
| 18 | 1 | Handle,W/Fuel Tank | 351103-30832 | 351103-30832-Online | ||
| 20 | + | 1 | Pipe 3* 5* 55 | 437210-31730 | 437210-31730-Online | |
| 21 | + | 1 | Clip | 130111-00530 | 130111-00530-Online | 5.5 |
| 22 | + | 1 | Cover, Vent | 131328-40630 | 131328-40630-Online | |
| 23 | + | 1 | Valve, Check | 131300-56430 | 131300-56430-Online | |
| 27 | + | 1 | Cushion | 100252-30830 | 100252-30830-Online | |
| 24 | 1 | Latch, Throttle | 178302-12330 | 178302-12330-Online |

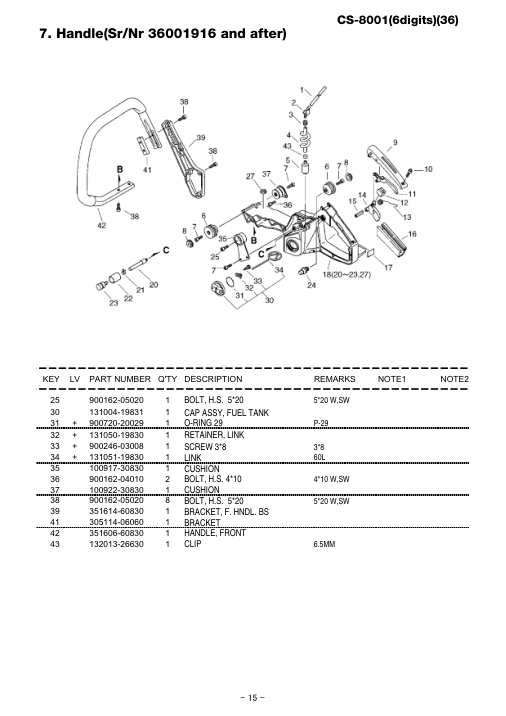

Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 25 | 1 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 30 | 1 | Cap Assy, Fuel Tank | 131004-19831 | 131004-19831-Online | ||
| 31 | + | 1 | O-Ring 29 | 900720-20029 | 900720-20029-Online | P-29 |
| 32 | + | 1 | Retainer, Link | 131050-19830 | 131050-19830-Online | |
| 33 | + | 1 | Screw 3*8 | 900246-03008 | 900246-03008-Online | 3*8 |
| 34 | + | 1 | Link | 131051-19830 | 131051-19830-Online | |
| 35 | 1 | Cushion | 100917-30830 | 100917-30830-Online | ||
| 36 | 2 | Bolt, H.S. 4*10 | 900162-04010 | 900162-04010-Online | 4*10 W,SW | |
| 37 | 1 | Cushion | 100922-30830 | 100922-30830-Online | ||
| 38 | 8 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 39 | 1 | Bracket, F. Hndl. Bs | 351614-60830 | 351614-60830-Online | ||
| 41 | 1 | Bracket | 305114-06060 | 305114-06060-Online | ||
| 42 | 1 | Handle, Front | 351606-60830 | 351606-60830-Online | ||
| 43 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM |
Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|

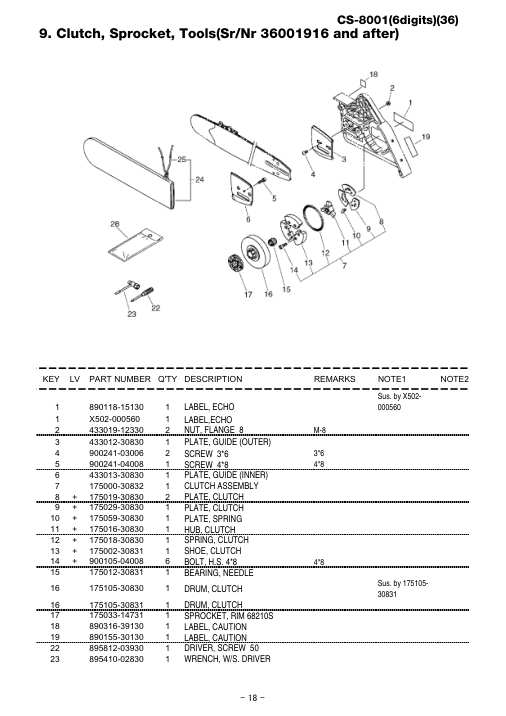

| 1 | 1 | Label, Echo | 890118-15130 | 890118-15130-Online | Sus. by X502- | 000560 | |
| 2 | 2 | Nut, Flange 8 | 433019-12330 | 433019-12330-Online | M-8 | |
| 3 | 1 | Plate, Guide (Outer) | 433012-30830 | 433012-30830-Online | ||
| 4 | 2 | Screw 3*6 | 900241-03006 | 900241-03006-Online | 3*6 | |
| 5 | 1 | Screw 4*8 | 900241-04008 | 900241-04008-Online | 4*8 | |
| 6 | 1 | Plate, Guide (Inner) | 433013-30830 | 433013-30830-Online | ||
| 7 | 1 | Clutch Assy | 175000-30831 | 175000-30831-Online | Sus. by 175000- | 30832 | |

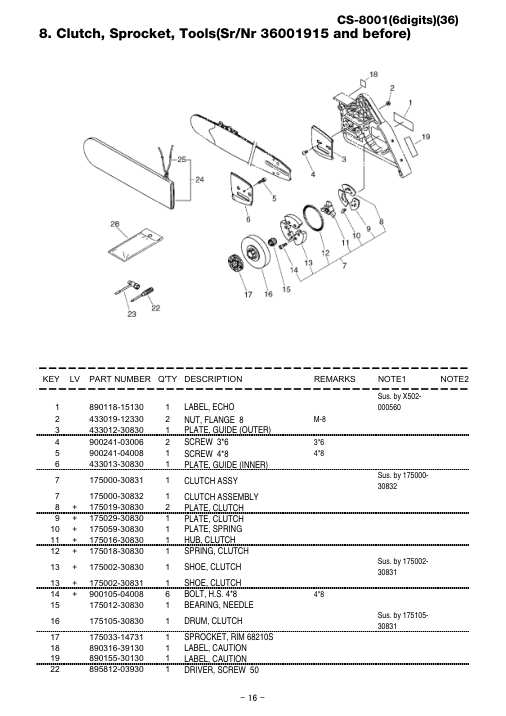

| 7 | 1 | Clutch Assembly | 175000-30832 | 175000-30832-Online | ||
| 8 | + | 2 | Plate, Clutch | 175019-30830 | 175019-30830-Online | |
| 9 | + | 1 | Plate, Clutch | 175029-30830 | 175029-30830-Online | |
| 10 | + | 1 | Plate, Spring | 175059-30830 | 175059-30830-Online | |
| 11 | + | 1 | Hub, Clutch | 175016-30830 | 175016-30830-Online | |
| 12 | + | 1 | Spring, Clutch | 175018-30830 | 175018-30830-Online | |
| 13 | + | 1 | Shoe, Clutch | 175002-30830 | 175002-30830-Online | Sus. by 175002- | 30831 |
| 13 | + | 1 | Shoe, Clutch | 175002-30831 | 175002-30831-Online | |
| 14 | + | 6 | Bolt, H.S. 4*8 | 900105-04008 | 900105-04008-Online | 4*8 |
| 15 | 1 | Bearing, Needle | 175012-30830 | 175012-30830-Online | ||
| 16 | 1 | Drum, Clutch | 175105-30830 | 175105-30830-Online | Sus. by 175105- | 30831 | |
| 17 | 1 | Sprocket, Rim 68210S | 175033-14731 | 175033-14731-Online | ||
| 18 | 1 | Label, Caution | 890316-39130 | 890316-39130-Online | ||
| 19 | 1 | Label, Caution | 890155-30130 | 890155-30130-Online | ||
| 22 | 1 | Driver, Screw 50 | 895812-03930 | 895812-03930-Online |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 23 | 1 | Wrench, W/S. Driver | 895410-02830 | 895410-02830-Online | ||
| 24 | 1 | Scabbard, Guide Bar | 898513-31731 | 898513-31731-Online | ||
| 25 | + | 1 | Rope | 898568-14530 | 898568-14530-Online | 5*900 |
Page 19 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Label, Echo | 890118-15130 | 890118-15130-Online | Sus. by X502- | 000560 | |
| 1 | 1 | Label,Echo | X502-000560 | X502-000560-Online | ||
| 2 | 2 | Nut, Flange 8 | 433019-12330 | 433019-12330-Online | M-8 | |
| 3 | 1 | Plate, Guide (Outer) | 433012-30830 | 433012-30830-Online | ||
| 4 | 2 | Screw 3*6 | 900241-03006 | 900241-03006-Online | 3*6 | |
| 5 | 1 | Screw 4*8 | 900241-04008 | 900241-04008-Online | 4*8 | |
| 6 | 1 | Plate, Guide (Inner) | 433013-30830 | 433013-30830-Online | ||
| 7 | 1 | Clutch Assembly | 175000-30832 | 175000-30832-Online | ||
| 8 | + | 2 | Plate, Clutch | 175019-30830 | 175019-30830-Online | |
| 9 | + | 1 | Plate, Clutch | 175029-30830 | 175029-30830-Online | |
| 10 | + | 1 | Plate, Spring | 175059-30830 | 175059-30830-Online | |
| 11 | + | 1 | Hub, Clutch | 175016-30830 | 175016-30830-Online | |
| 12 | + | 1 | Spring, Clutch | 175018-30830 | 175018-30830-Online | |
| 13 | + | 1 | Shoe, Clutch | 175002-30831 | 175002-30831-Online | |
| 14 | + | 6 | Bolt, H.S. 4*8 | 900105-04008 | 900105-04008-Online | 4*8 |
| 15 | 1 | Bearing, Needle | 175012-30831 | 175012-30831-Online | ||
| 16 | 1 | Drum, Clutch | 175105-30830 | 175105-30830-Online | Sus. by 175105- | 30831 | |
| 16 | 1 | Drum, Clutch | 175105-30831 | 175105-30831-Online | ||
| 17 | 1 | Sprocket, Rim 68210S | 175033-14731 | 175033-14731-Online | ||
| 18 | 1 | Label, Caution | 890316-39130 | 890316-39130-Online | ||
| 19 | 1 | Label, Caution | 890155-30130 | 890155-30130-Online | ||
| 22 | 1 | Driver, Screw 50 | 895812-03930 | 895812-03930-Online | ||
| 23 | 1 | Wrench, W/S. Driver | 895410-02830 | 895410-02830-Online |
Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|

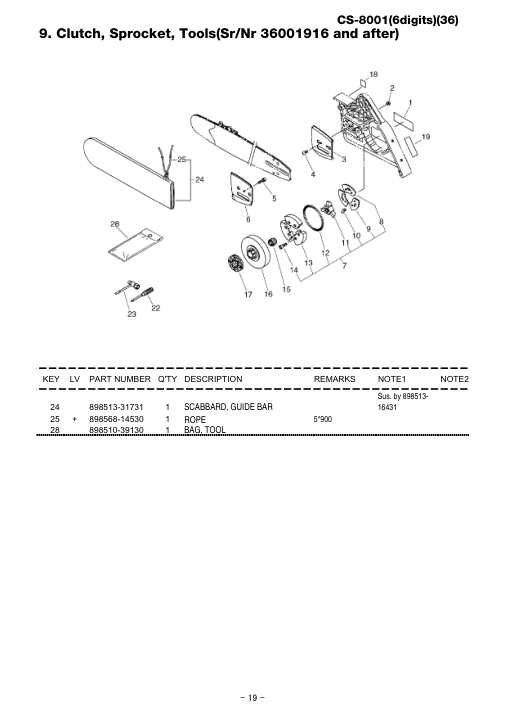

| 24 | 1 | Scabbard, Guide Bar | 898513-31731 | 898513-31731-Online | Sus. by 898513- | 16431 | |
| 25 | + | 1 | Rope | 898568-14530 | 898568-14530-Online | 5*900 |
| 28 | 1 | Bag, Tool | 898510-39130 | 898510-39130-Online |

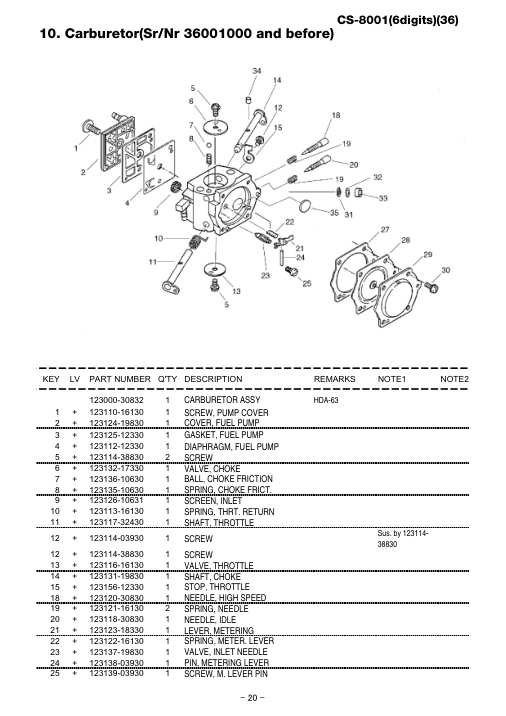

Page 21 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 1 | Screw, Pump Cover | 123110-16130 | 123110-16130-Online | |
| 2 | + | 1 | Cover, Fuel Pump | 123124-19830 | 123124-19830-Online | |
| 3 | + | 1 | Gasket, Fuel Pump | 123125-12330 | 123125-12330-Online | |
| 4 | + | 1 | Diaphragm, Fuel Pump | 123112-12330 | 123112-12330-Online | |
| 5 | + | 2 | Screw | 123114-38830 | 123114-38830-Online | |
| 6 | + | 1 | Valve, Choke | 123132-17330 | 123132-17330-Online | |
| 7 | + | 1 | Ball, Choke Friction | 123136-10630 | 123136-10630-Online | |
| 8 | + | 1 | Spring, Choke Frict. | 123135-10630 | 123135-10630-Online | |
| 9 | + | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |
| 10 | + | 1 | Spring, Thrt. Return | 123113-16130 | 123113-16130-Online | |
| 11 | + | 1 | Shaft, Throttle | 123117-32430 | 123117-32430-Online | |
| 12 | + | 1 | Screw | 123114-03930 | 123114-03930-Online | Sus. by 123114- | 38830 |
| 12 | + | 1 | Screw | 123114-38830 | 123114-38830-Online | |
| 13 | + | 1 | Valve, Throttle | 123116-16130 | 123116-16130-Online | |
| 14 | + | 1 | Shaft, Choke | 123131-19830 | 123131-19830-Online | |
| 15 | + | 1 | Stop, Throttle | 123156-12330 | 123156-12330-Online | |
| 18 | + | 1 | Needle, High Speed | 123120-30830 | 123120-30830-Online | |
| 19 | + | 2 | Spring, Needle | 123121-16130 | 123121-16130-Online | |
| 20 | + | 1 | Needle, Idle | 123118-30830 | 123118-30830-Online | |
| 21 | + | 1 | Lever, Metering | 123123-18330 | 123123-18330-Online | |
| 22 | + | 1 | Spring, Meter. Lever | 123122-16130 | 123122-16130-Online | |
| 23 | + | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |
| 24 | + | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |
| 25 | + | 1 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online |
Page 22 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|

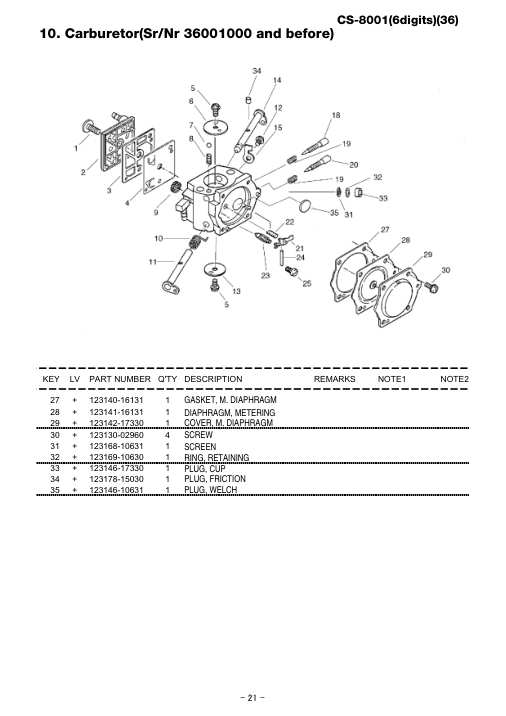

| 27 | + | 1 | Gasket, M. Diaphragm | 123140-16131 | 123140-16131-Online | |
| 28 | + | 1 | Diaphragm, Metering | 123141-16131 | 123141-16131-Online | |
| 29 | + | 1 | Cover, M. Diaphragm | 123142-17330 | 123142-17330-Online | |
| 30 | + | 4 | Screw | 123130-02960 | 123130-02960-Online | |
| 31 | + | 1 | Screen | 123168-10631 | 123168-10631-Online | |
| 32 | + | 1 | Ring, Retaining | 123169-10630 | 123169-10630-Online | |
| 33 | + | 1 | Plug, Cup | 123146-17330 | 123146-17330-Online | |
| 34 | + | 1 | Plug, Friction | 123178-15030 | 123178-15030-Online | |
| 35 | + | 1 | Plug, Welch | 123146-10631 | 123146-10631-Online |

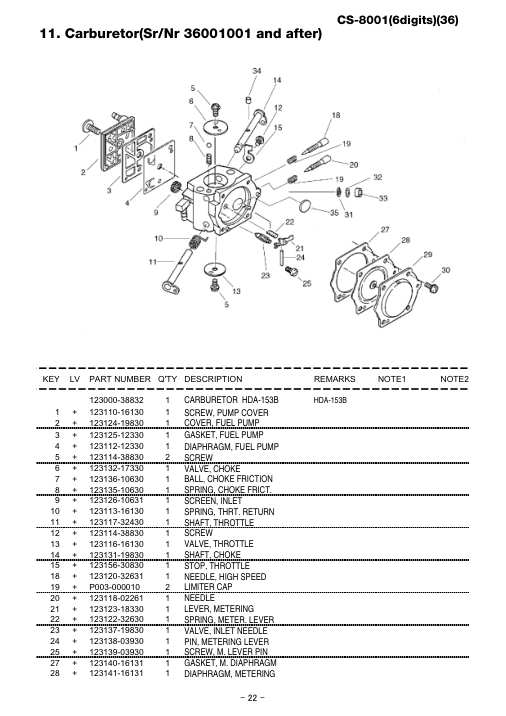

Page 23 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 1 | Screw, Pump Cover | 123110-16130 | 123110-16130-Online | |
| 2 | + | 1 | Cover, Fuel Pump | 123124-19830 | 123124-19830-Online | |
| 3 | + | 1 | Gasket, Fuel Pump | 123125-12330 | 123125-12330-Online | |
| 4 | + | 1 | Diaphragm, Fuel Pump | 123112-12330 | 123112-12330-Online | |
| 5 | + | 2 | Screw | 123114-38830 | 123114-38830-Online | |
| 6 | + | 1 | Valve, Choke | 123132-17330 | 123132-17330-Online | |
| 7 | + | 1 | Ball, Choke Friction | 123136-10630 | 123136-10630-Online | |
| 8 | + | 1 | Spring, Choke Frict. | 123135-10630 | 123135-10630-Online | |
| 9 | + | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |
| 10 | + | 1 | Spring, Thrt. Return | 123113-16130 | 123113-16130-Online | |
| 11 | + | 1 | Shaft, Throttle | 123117-32430 | 123117-32430-Online | |
| 12 | + | 1 | Screw | 123114-38830 | 123114-38830-Online | |
| 13 | + | 1 | Valve, Throttle | 123116-16130 | 123116-16130-Online | |
| 14 | + | 1 | Shaft, Choke | 123131-19830 | 123131-19830-Online | |
| 15 | + | 1 | Stop, Throttle | 123156-30830 | 123156-30830-Online | |
| 18 | + | 1 | Needle, High Speed | 123120-32631 | 123120-32631-Online | |
| 19 | + | 2 | Limiter Cap | P003-000010 | P003-000010-Online | |
| 20 | + | 1 | Needle | 123118-02261 | 123118-02261-Online | |
| 21 | + | 1 | Lever, Metering | 123123-18330 | 123123-18330-Online | |
| 22 | + | 1 | Spring, Meter. Lever | 123122-32630 | 123122-32630-Online | |
| 23 | + | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |
| 24 | + | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |
| 25 | + | 1 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | |
| 27 | + | 1 | Gasket, M. Diaphragm | 123140-16131 | 123140-16131-Online | |
| 28 | + | 1 | Diaphragm, Metering | 123141-16131 | 123141-16131-Online |

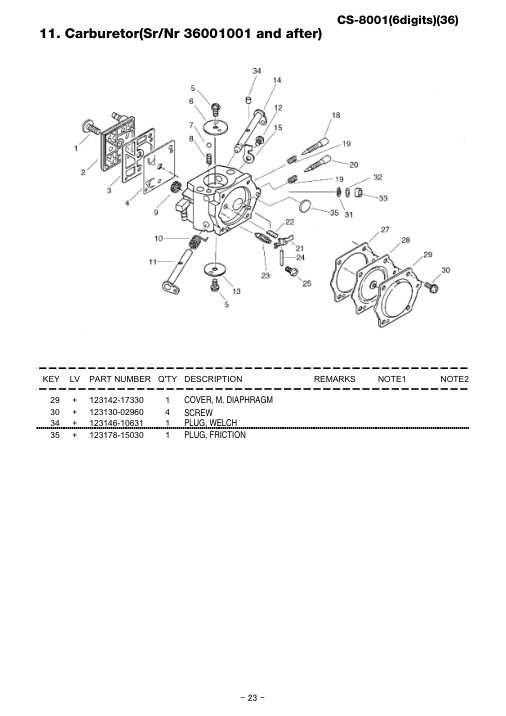

Page 24 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 29 | + | 1 | Cover, M. Diaphragm | 123142-17330 | 123142-17330-Online | |
| 30 | + | 4 | Screw | 123130-02960 | 123130-02960-Online | |
| 34 | + | 1 | Plug, Welch | 123146-10631 | 123146-10631-Online | |
| 35 | + | 1 | Plug, Friction | 123178-15030 | 123178-15030-Online |

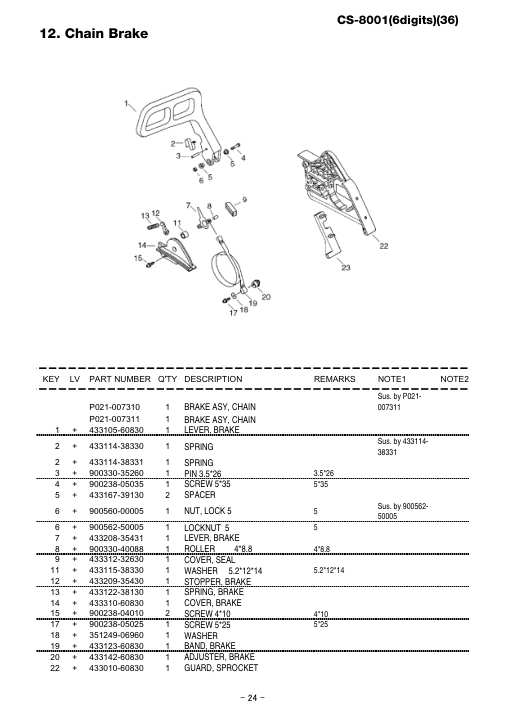

Page 25 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 1 | Lever, Brake | 433105-60830 | 433105-60830-Online | |
| 2 | + | 1 | Spring | 433114-38330 | 433114-38330-Online | Sus. by 433114- | 38331 |
| 2 | + | 1 | Spring | 433114-38331 | 433114-38331-Online | |
| 3 | + | 1 | Pin 3.5*26 | 900330-35260 | 900330-35260-Online | 3.5*26 |
| 4 | + | 1 | Screw 5*35 | 900238-05035 | 900238-05035-Online | 5*35 |
| 5 | + | 2 | Spacer | 433167-39130 | 433167-39130-Online | |
| 6 | + | 1 | Nut, Lock 5 | 900560-00005 | 900560-00005-Online | 5 | Sus. by 900562- | 50005 |
| 6 | + | 1 | Locknut 5 | 900562-50005 | 900562-50005-Online | |
| 7 | + | 1 | Lever, Brake | 433208-35431 | 433208-35431-Online | |
| 8 | + | 1 | Roller 4*8.8 | 900330-40088 | 900330-40088-Online | 4*8.8 |
| 9 | + | 1 | Cover, Seal | 433312-32630 | 433312-32630-Online | |
| 11 | + | 1 | Washer 5.2*12*14 | 433115-38330 | 433115-38330-Online | 5.2*12*14 |
| 12 | + | 1 | Stopper, Brake | 433209-35430 | 433209-35430-Online | |
| 13 | + | 1 | Spring, Brake | 433122-38130 | 433122-38130-Online | |
| 14 | + | 1 | Cover, Brake | 433310-60830 | 433310-60830-Online | |
| 15 | + | 2 | Screw 4*10 | 900238-04010 | 900238-04010-Online | 4*10 |
| 17 | + | 1 | Screw 5*25 | 900238-05025 | 900238-05025-Online | 5*25 |
| 18 | + | 1 | Washer | 351249-06960 | 351249-06960-Online | |
| 19 | + | 1 | Band, Brake | 433123-60830 | 433123-60830-Online | |
| 20 | + | 1 | Adjuster, Brake | 433142-60830 | 433142-60830-Online | |
| 22 | + | 1 | Guard, Sprocket | 433010-60830 | 433010-60830-Online |
Page 26 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 23 | + | 1 | Pad, Guard | 433025-60830 | 433025-60830-Online |
Source PDF: 20130718-4_CS-8001(6digits)(36)_CS-8001(6digits)(36)_EN.pdf. Generated 2026-06-25 14:38.
