Echo SRM-410ES IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: SRM-410ES-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.

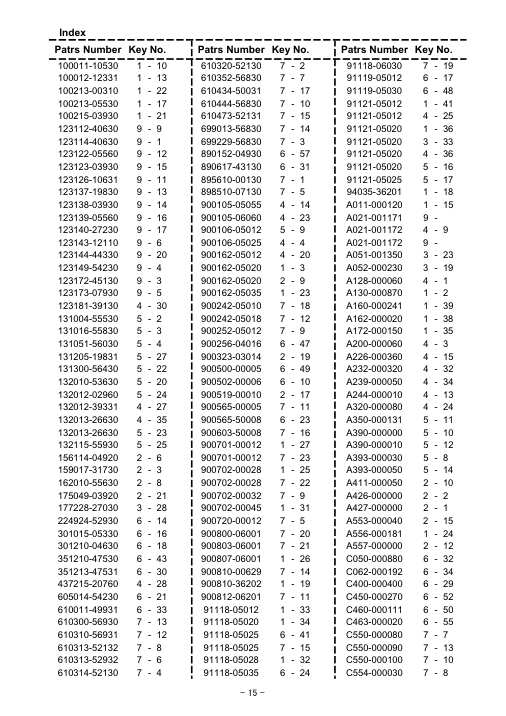

Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Cylinder | A130-000870 | A130-000870-Online | ||
| 3 | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 4 | 1 | Gasket,Cyl | V100-000040 | V100-000040-Online | ||
| 9 | 1 | Piston Kit | P021-014260 | P021-014260-Online | ||
| 10 | + | 1 | Ring, Piston | 100011-10530 | 100011-10530-Online | |
| 11 | + | 1 | Pin,Eng 10 | V608-000000 | V608-000000-Online | |
| 12 | + | 2 | Ring,End | V580-000010 | V580-000010-Online | ij0.8 |
| 13 | + | 1 | Bearing, Needle | 100012-12331 | 100012-12331-Online | |
| 14 | + | 2 | Washer,Circular 10 | V307-000060 | V307-000060-Online | |
| 15 | 1 | Crankshaft,Asm | A011-000120 | A011-000120-Online | ||
| 16 | 1 | Crankcase Set | P021-002471 | P021-002471-Online | ||
| 17 | + | 1 | Oilseal | 100213-05530 | 100213-05530-Online | ISCD 12 22 7 |
| 18 | + | 1 | Bearing Ball | 94035-36201 | 94035-36201-Online | 6201X3JR2C3 |
| 19 | + | 1 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | 6202/C3 |
| 20 | + | 1 | Gasket,Crankcase | V102-000001 | V102-000001-Online | |
| 21 | + | 4 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 22 | + | 1 | Oilseal | 100213-00310 | 100213-00310-Online | ISCD 15 25 7 |
| 23 | + | 4 | Bolt, H.S. 5*35 | 900162-05035 | 900162-05035-Online | 5*35 W,SW |
| 24 | 1 | Drum,Clutch | A556-000181 | A556-000181-Online | ||
| 25 | 1 | Circlip 28 | 900702-00028 | 900702-00028-Online | CR-28 | |
| 26 | 2 | Bearing, Ball 6001 | 900807-06001 | 900807-06001-Online | 6001V(LB) | |
| 27 | 1 | Circlip 12 | 900701-00012 | 900701-00012-Online | CS-12 | |
| 30 | 1 | Cushion | V420-000980 | V420-000980-Online | ||
| 31 | 1 | Ring, Retaining(In) | 900702-00045 | 900702-00045-Online | CR-45 | |
| 32 | 1 | Bolt | 91118-05028 | 91118-05028-Online | CM-5*28 | |
| 33 | 1 | Bolt | 91118-05012 | 91118-05012-Online | CM-5*12 |
Page 3 - Parts

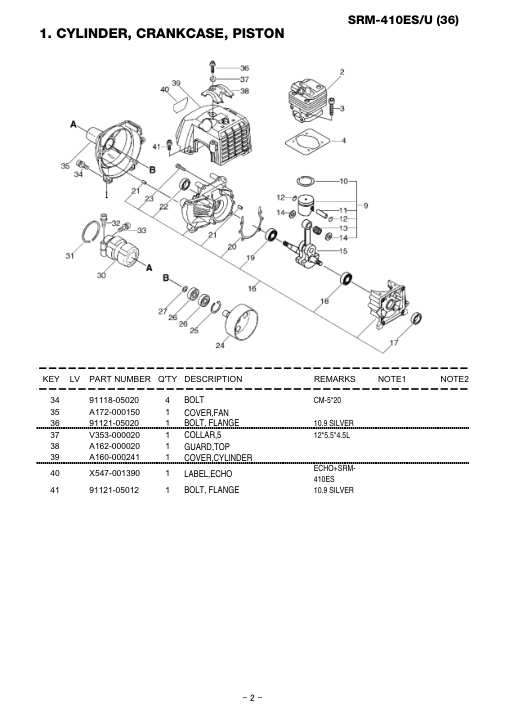

| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 34 | 4 | Bolt | 91118-05020 | 91118-05020-Online | CM-5*20 | |
| 35 | 1 | Cover,Fan | A172-000150 | A172-000150-Online | ||
| 36 | 1 | Bolt, Flange | 91121-05020 | 91121-05020-Online | 10.9 SILVER | |
| 37 | 1 | Collar,5 | V353-000020 | V353-000020-Online | 12*5.5*4.5L | |
| 38 | 1 | Guard,Top | A162-000020 | A162-000020-Online | ||
| 39 | 1 | Cover,Cylinder | A160-000241 | A160-000241-Online | ||
| 40 | 1 | Label,Echo | X547-001390 | X547-001390-Online | ECHO+SRM- | 410ES | |
| 41 | 1 | Bolt, Flange | 91121-05012 | 91121-05012-Online | 10.9 SILVER |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|

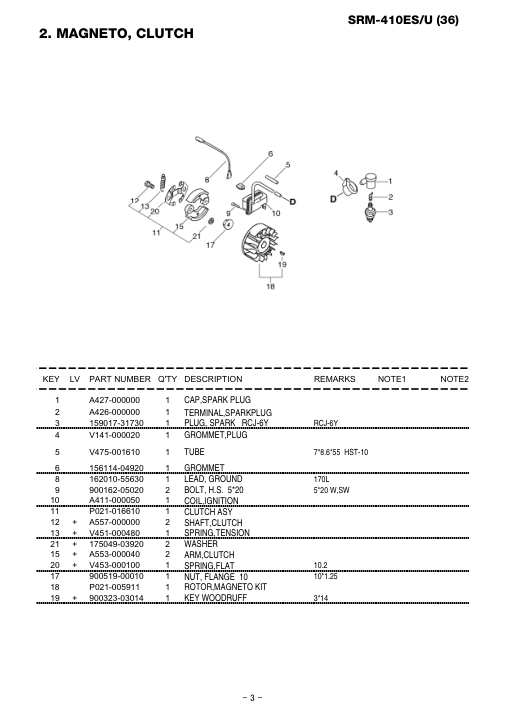

| 1 | 1 | Cap,Spark Plug | A427-000000 | A427-000000-Online | ||
| 2 | 1 | Terminal,Sparkplug | A426-000000 | A426-000000-Online | ||
| 3 | 1 | Plug, Spark Rcj-6Y | 159017-31730 | 159017-31730-Online | RCJ-6Y | |
| 4 | 1 | Grommet,Plug | V141-000020 | V141-000020-Online | ||
| 5 | 1 | Tube | V475-001610 | V475-001610-Online | 7*8.6*55 HST-10 | |
| 6 | 1 | Grommet | 156114-04920 | 156114-04920-Online | ||
| 8 | 1 | Lead, Ground | 162010-55630 | 162010-55630-Online | ||
| 9 | 2 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 10 | 1 | Coil,Ignition | A411-000050 | A411-000050-Online | ||
| 11 | 1 | Clutch Asy | P021-016610 | P021-016610-Online | ||
| 12 | + | 2 | Shaft,Clutch | A557-000000 | A557-000000-Online | |
| 13 | + | 1 | Spring,Tension | V451-000480 | V451-000480-Online | |
| 21 | + | 2 | Washer | 175049-03920 | 175049-03920-Online | |
| 15 | + | 2 | Arm,Clutch | A553-000040 | A553-000040-Online | |
| 20 | + | 1 | Spring,Flat | V453-000100 | V453-000100-Online | 10.2 |
| 17 | 1 | Nut, Flange 10 | 900519-00010 | 900519-00010-Online | 10*1.25 | |
| 18 | 1 | Rotor,Magneto Kit | P021-005911 | P021-005911-Online | ||
| 19 | + | 1 | Key Woodruff | 900323-03014 | 900323-03014-Online | 3*14 |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 19 | 1 | Pulley,Asm Starter | A052-000230 | A052-000230-Online | ||
| 20 | + | 2 | E-Ring | P022-002100 | P022-002100-Online | |
| 21 | + | 2 | Spring, Return | P022-003130 | P022-003130-Online | |
| 22 | + | 2 | Pawl, Starter | P022-023090 | P022-023090-Online | |
| 23 | 1 | Starter,Recoil Asy | A051-001350 | A051-001350-Online | ||
| 24 | + | 1 | Screw | P022-023110 | P022-023110-Online | |
| 25 | + | 1 | Plate, Cam | P022-023130 | P022-023130-Online | |
| 26 | + | 1 | Spring,Damper | P022-023120 | P022-023120-Online | |
| 28 | + | 1 | Grip, Starter | 177228-27030 | 177228-27030-Online | |
| 29 | + | 1 | Rope, Starter | P022-023100 | P022-023100-Online | |
| 30 | + | 1 | Drum, Starter | P022-023140 | P022-023140-Online | |
| 31 | + | 1 | Spring, Spiral | P022-004680 | P022-004680-Online | |
| 33 | 1 | Bolt, Flange | 91121-05020 | 91121-05020-Online | 10.9 SILVER | |
| 35 | 1 | Label,Echo | X502-000460 | X502-000460-Online |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Plate,Dust | A128-000060 | A128-000060-Online | ||
| 2 | 1 | Gasket,Intake | V103-000070 | V103-000070-Online | ||
| 3 | 1 | Insulator,Intake | A200-000060 | A200-000060-Online | ||
| 4 | 2 | Bolt, H.S. 5*25 | 900106-05025 | 900106-05025-Online | 5*25 | |
| 5 | 1 | Gasket,Intake | V103-000080 | V103-000080-Online | ||
| 9 | 1 | Carburetor,Diaphragm | A021-001172 | A021-001172-Online | WYK-226A | |
| 12 | 1 | Case, Air Cleaner | P021-009590 | P021-009590-Online | ||
| 13 | 1 | Plate,Prevent | A244-000010 | A244-000010-Online | ||
| 14 | 2 | Bolt, H.S. 5*55 | 900105-05055 | 900105-05055-Online | 5*55 | |
| 15 | 1 | Element, Air Filter | A226-000360 | A226-000360-Online | AFP-2010K-300 | |
| 18 | 1 | Lid,Cleaner Asy | P021-009600 | P021-009600-Online | ||
| 31 | + | 2 | Screw,5 | V253-000100 | V253-000100-Online | 5*20 |
| 32 | + | 1 | Lid,Cleaner | A232-000320 | A232-000320-Online | |
| 19 | 1 | Gasket,Exhaust | V104-000210 | V104-000210-Online | ||
| 20 | 1 | Bolt, H.S. 5*12 | 900162-05012 | 900162-05012-Online | 5*12 W,SW | |
| 21 | 1 | Muffler Asy | P021-008900 | P021-008900-Online | ||
| 22 | 1 | Plate,Eye | V150-000550 | V150-000550-Online | ||
| 23 | 2 | Bolt, H.S. 6*60 | 900105-06060 | 900105-06060-Online | 6*60 | |
| 24 | 1 | Cover,Muffler | A320-000080 | A320-000080-Online | ||
| 25 | 1 | Bolt, Flange | 91121-05012 | 91121-05012-Online | 10.9 SILVER | |
| 27 | 1 | Pipe | 132012-39331 | 132012-39331-Online | 3*6*105 | |
| 28 | 1 | Pipe 3*6*60 | 437215-20760 | 437215-20760-Online | 3*6*60 YL | |
| 29 | 1 | Joint,Pipe | V186-000080 | V186-000080-Online | ||
| 30 | 1 | Pump, Primer | 123181-39130 | 123181-39130-Online | ||
| 33 | 1 | Pipe | V471-001560 | V471-001560-Online | 2.4*5*80 |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|

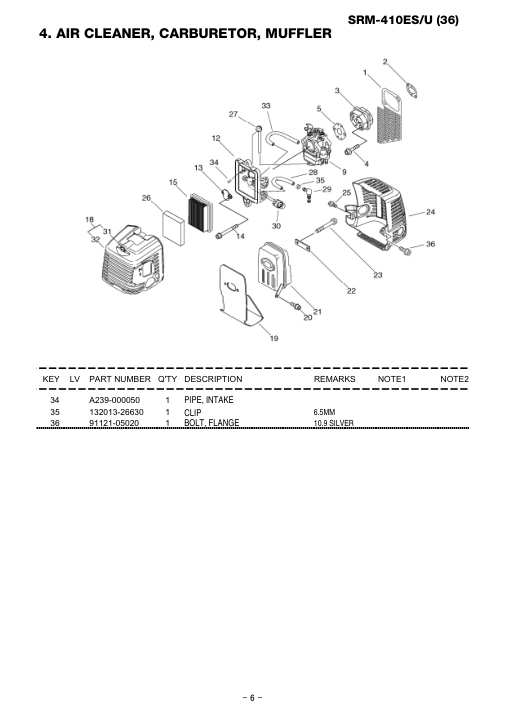

| 34 | 1 | Pipe, Intake | A239-000050 | A239-000050-Online | ||
| 35 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 36 | 1 | Bolt, Flange | 91121-05020 | 91121-05020-Online | 10.9 SILVER |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | ||
| 3 | + | 1 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |
| 4 | + | 1 | Clip, Fuel Cap | 131051-56030 | 131051-56030-Online | |
| 8 | 1 | Bracket,Fuel Tank | A393-000030 | A393-000030-Online | ||
| 9 | 4 | Bolt, H.S. 5*12 | 900106-05012 | 900106-05012-Online | 5*12 | |
| 10 | 1 | Seat,Fuel Tank | A390-000000 | A390-000000-Online | ||
| 11 | 1 | Tank,Fuel | A350-000131 | A350-000131-Online | ||
| 12 | 1 | Seat,Fuel Tank | A390-000010 | A390-000010-Online | ||
| 14 | 1 | Bracket,Fuel Tank | A393-000050 | A393-000050-Online | ||
| 16 | 2 | Bolt, Flange | 91121-05020 | 91121-05020-Online | 10.9 SILVER | |
| 17 | 2 | Bolt, Flange | 91121-05025 | 91121-05025-Online | 10.9 SILVER | |
| 20 | 1 | Pipe | 132010-53630 | 132010-53630-Online | 3*6*180 NBR | |
| 22 | 1 | Valve, Check | 131300-56430 | 131300-56430-Online | ||
| 23 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 24 | 1 | Pipe, Fuel | 132012-02960 | 132012-02960-Online | 3*6*120L | |
| 25 | 1 | Grommet, Fuel | 132115-55930 | 132115-55930-Online | ||
| 27 | 1 | Strainer, Fuel | 131205-19831 | 131205-19831-Online |
Page 9 - Parts

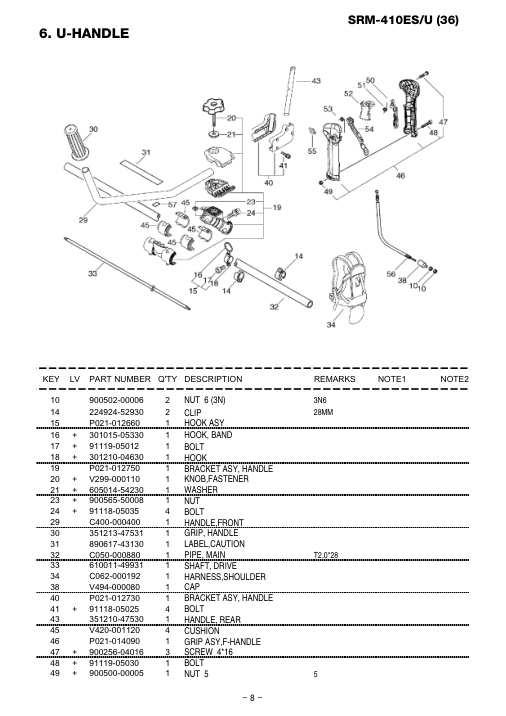

| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 10 | 2 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 | |
| 14 | 2 | Clip | 224924-52930 | 224924-52930-Online | 28MM | |
| 15 | 1 | Hook Asy | P021-012660 | P021-012660-Online | ||
| 16 | + | 1 | Hook, Band | 301015-05330 | 301015-05330-Online | |
| 17 | + | 1 | Bolt | 91119-05012 | 91119-05012-Online | |
| 18 | + | 1 | Hook | 301210-04630 | 301210-04630-Online | |
| 19 | 1 | Bracket Asy, Handle | P021-012750 | P021-012750-Online | ||
| 20 | + | 1 | Knob,Fastener | V299-000110 | V299-000110-Online | |
| 21 | + | 1 | Washer | 605014-54230 | 605014-54230-Online | |
| 23 | + | 1 | Part | 900565-50008 | 900565-50008-Online | |
| 24 | + | 4 | Bolt | 91118-05035 | 91118-05035-Online | |
| 29 | 1 | Handle,Front | C400-000400 | C400-000400-Online | ||
| 30 | 1 | Grip, Handle | 351213-47531 | 351213-47531-Online | ||
| 31 | 1 | Label,Caution | 890617-43130 | 890617-43130-Online | ||
| 32 | 1 | Pipe, Main | C050-000880 | C050-000880-Online | T2.0*28 | |
| 33 | 1 | Shaft, Drive | 610011-49931 | 610011-49931-Online | ||
| 34 | 1 | Harness,Shoulder | C062-000192 | C062-000192-Online | ||
| 38 | 1 | Part | V494-000080 | V494-000080-Online | ||
| 40 | 1 | Bracket Asy, Handle | P021-012730 | P021-012730-Online | ||
| 41 | + | 4 | Bolt | 91118-05025 | 91118-05025-Online | |
| 43 | 1 | Handle, Rear | 351210-47530 | 351210-47530-Online | ||
| 45 | 4 | Cushion | V420-001120 | V420-001120-Online | ||
| 46 | 1 | Grip Asy,F-Handle | P021-014090 | P021-014090-Online | ||
| 47 | + | 3 | Screw 4*16 | 900256-04016 | 900256-04016-Online | |
| 48 | + | 1 | Bolt | 91119-05030 | 91119-05030-Online | |
| 49 | + | 1 | Nut 5 | 900500-00005 | 900500-00005-Online |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 50 | 1 | Lockout, Throttle | C460-000111 | C460-000111-Online | 70MM | |
| 51 | 1 | Spring,Torsion | V452-000360 | V452-000360-Online | ||
| 52 | 1 | Control, Throttle | C450-000270 | C450-000270-Online | ||
| 53 | 1 | Spring,Torsion | V452-000350 | V452-000350-Online | ||
| 54 | 1 | Switch,On Off | P021-014620 | P021-014620-Online | ||
| 55 | 1 | Knob, Latch | C463-000020 | C463-000020-Online | ||
| 56 | 1 | Cable,Bowden | V430-002090 | V430-002090-Online | 968+87.5 | |
| 57 | 1 | Label, Caution | 890152-04930 | 890152-04930-Online |

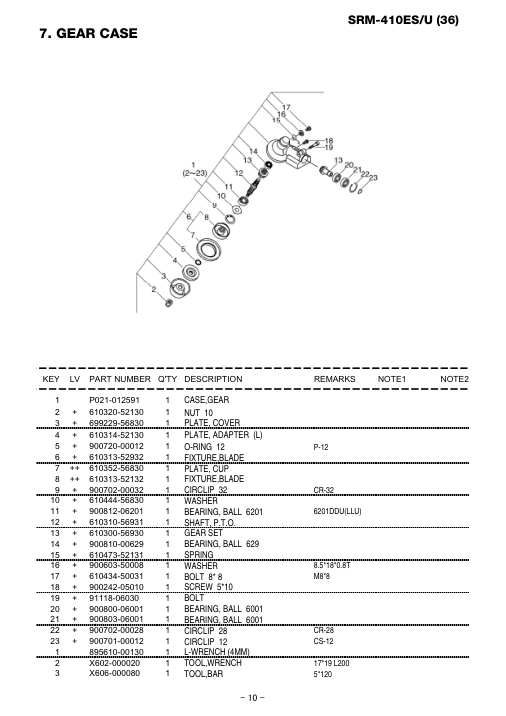

Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Case,Gear | P021-012591 | P021-012591-Online | ||
| 2 | + | 1 | Nut 10 | 610320-52130 | 610320-52130-Online | |
| 3 | + | 1 | Plate, Cover | 699229-56830 | 699229-56830-Online | |
| 4 | + | 1 | Plate, Adapter (L) | 610314-52130 | 610314-52130-Online | |
| 5 | + | 1 | O-Ring 12 | 900720-00012 | 900720-00012-Online | P-12 |
| 6 | + | 1 | Fixture,Blade | 610313-52932 | 610313-52932-Online | 7 | ++ |
| 7 | 1 | Plate, Cup | 610352-56830 | 610352-56830-Online | 8 | ++ | |
| 8 | 1 | Fixture,Blade | 610313-52132 | 610313-52132-Online | ||
| 9 | + | 1 | Circlip 32 | 900702-00032 | 900702-00032-Online | CR-32 |
| 10 | + | 1 | Washer | 610444-56830 | 610444-56830-Online | |
| 11 | + | 1 | Bearing, Ball 6201 | 900812-06201 | 900812-06201-Online | 6201DDU(LLU) |
| 12 | + | 1 | Shaft, P.T.O. | 610310-56931 | 610310-56931-Online | |
| 13 | + | 1 | Gear Set | 610300-56930 | 610300-56930-Online | |
| 14 | + | 1 | Bearing, Ball 629 | 900810-00629 | 900810-00629-Online | |
| 15 | + | 1 | Spring | 610473-52131 | 610473-52131-Online | |
| 16 | + | 1 | Washer | 900603-50008 | 900603-50008-Online | 8.5*18*0.8T |
| 17 | + | 1 | Bolt 8* 8 | 610434-50031 | 610434-50031-Online | M8*8 |
| 18 | + | 1 | Screw 5*10 | 900242-05010 | 900242-05010-Online | |
| 19 | + | 1 | Bolt | 91118-06030 | 91118-06030-Online | |
| 20 | + | 1 | Bearing, Ball 6001 | 900800-06001 | 900800-06001-Online | |
| 21 | + | 1 | Bearing, Ball 6001 | 900803-06001 | 900803-06001-Online | |
| 22 | + | 1 | Circlip 28 | 900702-00028 | 900702-00028-Online | CR-28 |
| 23 | + | 1 | Circlip 12 | 900701-00012 | 900701-00012-Online | CS-12 |
| 1 | 1 | L-Wrench (4Mm) | 895610-00130 | 895610-00130-Online | ||
| 2 | 1 | Tool,Wrench | X602-000020 | X602-000020-Online | 17*19 L200 | |
| 3 | 1 | Tool,Bar | X606-000080 | X606-000080-Online | 5*120 |

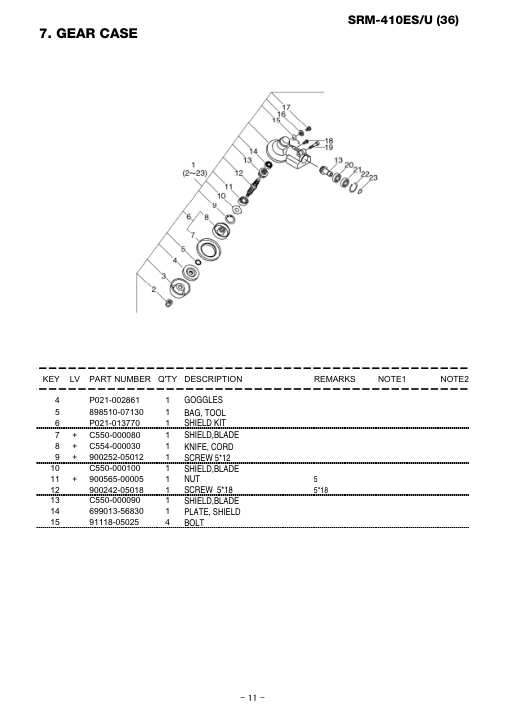

Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 4 | 1 | Goggles | P021-002861 | P021-002861-Online | ||
| 5 | 1 | Bag, Tool | 898510-07130 | 898510-07130-Online | ||
| 6 | 1 | Shield Kit | P021-013770 | P021-013770-Online | ||
| 7 | + | 1 | Shield,Blade | C550-000080 | C550-000080-Online | |
| 8 | + | 1 | Knife, Cord | C554-000030 | C554-000030-Online | |
| 9 | + | 1 | Screw 5*12 | 900252-05012 | 900252-05012-Online | |
| 10 | 1 | Shield,Blade | C550-000100 | C550-000100-Online | ||
| 11 | + | 1 | Part | 900565-00005 | 900565-00005-Online | |
| 12 | 1 | Screw 5*18 | 900242-05018 | 900242-05018-Online | 5*18 | |
| 13 | 1 | Shield,Blade | C550-000090 | C550-000090-Online | ||
| 14 | 1 | Plate, Shield | 699013-56830 | 699013-56830-Online | ||
| 15 | 4 | Bolt | 91118-05025 | 91118-05025-Online |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 15 | 4 | Bolt | 91118-05025 | 91118-05025-Online |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Saw,Bush Cutter | P021-014320 | P021-014320-Online | 255*T3.0 | |
| 2 | 1 | Scabbard,Blade | X495-000280 | X495-000280-Online | 9", 10" 3 CUTTER |
Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Carburetor,Diaphragm | A021-001172 | A021-001172-Online | WYK-226A | ||
| 1 | + | 2 | Screw | 123114-40630 | 123114-40630-Online | |
| 2 | + | 1 | Bracket Cable | P003-000180 | P003-000180-Online | |
| 3 | + | 1 | Swivel | 123172-45130 | 123172-45130-Online | |
| 4 | + | 1 | Washer | 123149-54230 | 123149-54230-Online | |
| 5 | + | 1 | Clip | 123173-07930 | 123173-07930-Online | |
| 6 | + | 1 | Ring, Packing | 123143-12110 | 123143-12110-Online | |
| 7 | + | 1 | Needle, High Speed | P003-001130 | P003-001130-Online | |
| 8 | + | 1 | Gasket, Pump | P003-000100 | P003-000100-Online | |
| 9 | + | 1 | Diaphragm, Pump | 123112-40630 | 123112-40630-Online | |
| 10 | + | 1 | Body Assembly, Pump | P003-001490 | P003-001490-Online | 11 | ++ |
| 11 | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | 12 | ++ | |
| 12 | 1 | Spring, Meter. Lever | 123122-05560 | 123122-05560-Online | 13 | ++ | |
| 13 | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | 14 | ++ | |
| 14 | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | 15 | ++ | |
| 15 | 1 | Lever, Metering | 123123-03930 | 123123-03930-Online | 16 | ++ | |
| 16 | 1 | Screw, M. Lever Pin | 123139-05560 | 123139-05560-Online | ||
| 17 | + | 1 | Gasket,M. Diaphragm | 123140-27230 | 123140-27230-Online | |
| 18 | + | 1 | Metering, Diaphragm | P003-000090 | P003-000090-Online | |
| 18 | + | 1 | Diaphragm, Metering | P003-001850 | P003-001850-Online | |
| 19 | + | 1 | Cover, Primer Pump | P003-001500 | P003-001500-Online | |
| 20 | + | 4 | Screw | 123144-44330 | 123144-44330-Online |
Source PDF: 20130718-634_SRM-410ES_U_(36)_P014-000740-10Hb_EN.pdf. Generated 2026-06-25 14:38.
