Echo SRM-4000 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: SRM-4000-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.

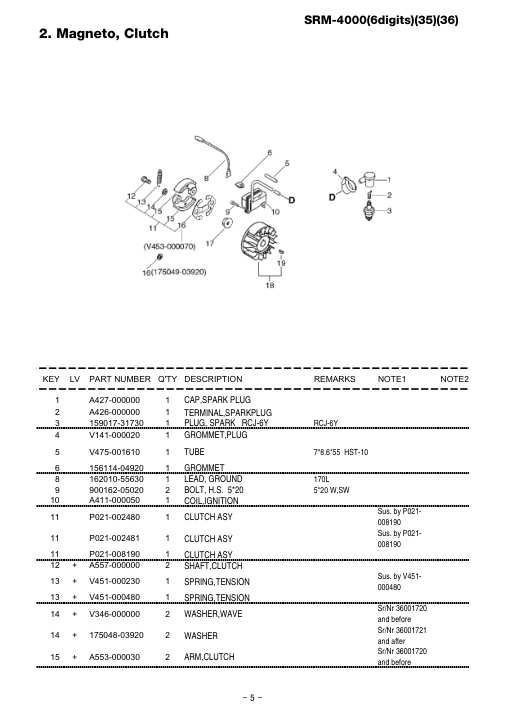

Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.

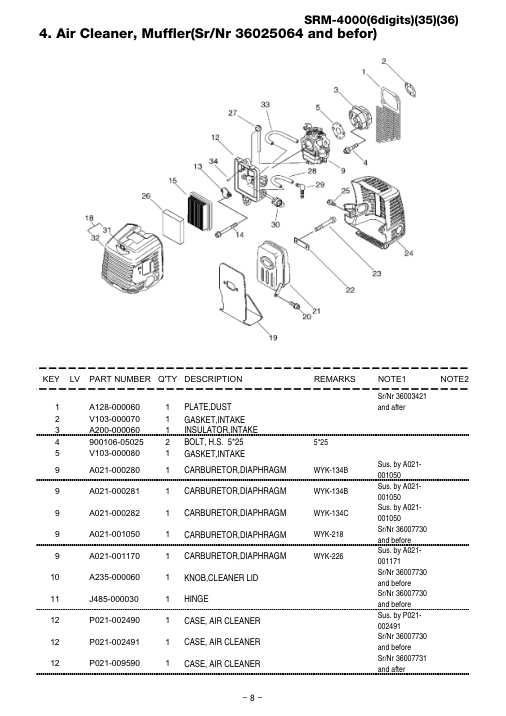

Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.
Page 23
Tap or click the page image to enlarge it.
Page 24
Tap or click the page image to enlarge it.
Page 25
Tap or click the page image to enlarge it.
Page 26
Tap or click the page image to enlarge it.
Page 27
Tap or click the page image to enlarge it.

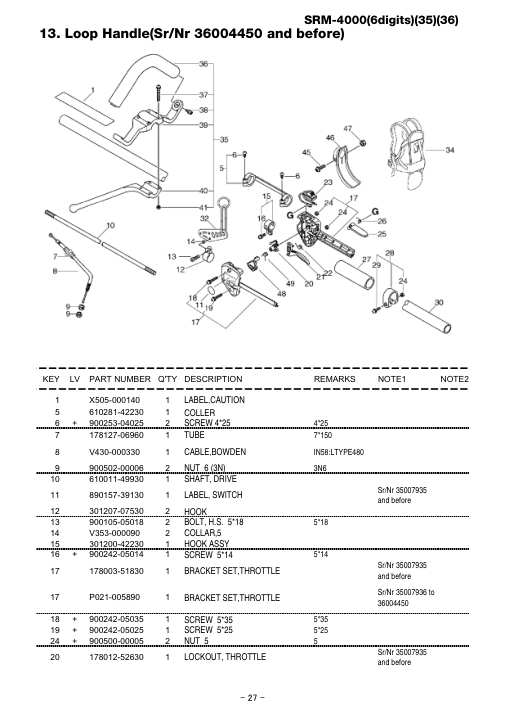

Page 28
Tap or click the page image to enlarge it.
Page 29
Tap or click the page image to enlarge it.
Page 30
Tap or click the page image to enlarge it.
Page 31
Tap or click the page image to enlarge it.
Page 32
Tap or click the page image to enlarge it.
Page 33
Tap or click the page image to enlarge it.
Page 34
Tap or click the page image to enlarge it.
Page 35
Tap or click the page image to enlarge it.
Page 36
Tap or click the page image to enlarge it.
Page 37
Tap or click the page image to enlarge it.
Page 38
Tap or click the page image to enlarge it.
Page 39
Tap or click the page image to enlarge it.
Page 40
Tap or click the page image to enlarge it.
Page 41
Tap or click the page image to enlarge it.
Page 42
Tap or click the page image to enlarge it.

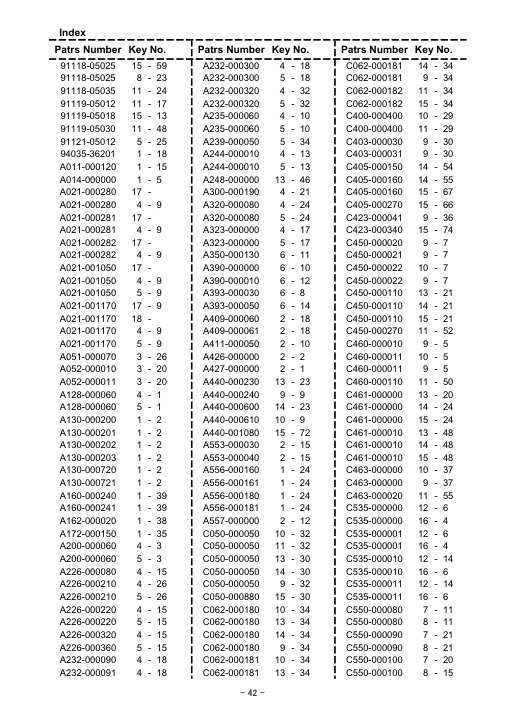

Page 43
Tap or click the page image to enlarge it.
Page 44
Tap or click the page image to enlarge it.
Page 45
Tap or click the page image to enlarge it.
Page 46
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Cylinder | A130-000200 | A130-000200-Online | Sus. by A130- | 000203 | |
| 2 | 1 | Cylinder | A130-000201 | A130-000201-Online | Sus. by A130- | 000203 | |
| 2 | 1 | Cylinder | A130-000202 | A130-000202-Online | Sus. by A130- | 000203 | |
| 2 | 1 | Cylinder | A130-000203 | A130-000203-Online | Sr/Nr 36007730 | and before | |
| 2 | 1 | Cylinder | A130-000720 | A130-000720-Online | Sus. by A130- | 000721 | |
| 2 | 1 | Cylinder | A130-000721 | A130-000721-Online | Sus. by A130- | 000880 | |
| 3 | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 4 | 1 | Gasket,Cyl | V100-000040 | V100-000040-Online | ||
| 5 | 1 | Decomp,Asm | A014-000000 | A014-000000-Online | Sus. by A014- | 000030 | |
| 6 | + | 1 | Spring | 101113-37530 | 101113-37530-Online | |
| 7 | + | 1 | Clip | P022-002110 | P022-002110-Online | |
| 8 | 1 | Gasket | 159025-37530 | 159025-37530-Online | ||
| 9 | 1 | Piston Kit | P021-002460 | P021-002460-Online | Sus. by P021- | 002461 | |
| 9 | 1 | Piston Kit | P021-002461 | P021-002461-Online | Sr/Nr 36007730 | and before | |
| 9 | 1 | Piston Kit | P021-009470 | P021-009470-Online | Sus. by P021- | 011210 |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 9 | 1 | Piston Kit | P021-011210 | P021-011210-Online | Sus. by P021- | 014260 | |
| 10 | + | 2 | Ring, Piston | 100011-10530 | 100011-10530-Online | Can be used on | P021-002460,-1 | only |
| 10 | + | 1 | Ring, Piston | 100011-10530 | 100011-10530-Online | Can be used on | P021-009470 only |
| 11 | + | 1 | Pin,Eng 10 | V608-000000 | V608-000000-Online | |
| 12 | + | 2 | Circlip, Piston Pin | 100015-00120 | 100015-00120-Online | Can be used on | P021-002460,-1 | only |
| 12 | + | 2 | Ring,End | V580-000010 | V580-000010-Online | ij0.8 | Can be used on | P021-009470 only |
| 13 | + | 1 | Bearing, Needle | 100012-12331 | 100012-12331-Online | |
| 14 | + | 2 | Washer,Circular 10 | V307-000060 | V307-000060-Online | |
| 15 | 1 | Crankshaft,Asm | A011-000120 | A011-000120-Online | ||
| 16 | 1 | Crankcase Set | P021-002470 | P021-002470-Online | Sus. by P021- | 002471 | |
| 16 | 1 | Crankcase Set | P021-002471 | P021-002471-Online | ||
| 17 | + | 1 | Oilseal | 100213-05530 | 100213-05530-Online | ISCD 12 22 7 |
| 18 | + | 1 | Bearing Ball | 94035-36201 | 94035-36201-Online | 6201X3JR2C3 |
| 19 | + | 1 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | 6202/C3 |
| 20 | + | 1 | Gasket,Crankcase | V102-000000 | V102-000000-Online | Sus. by V102- | 000001 |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 20 | + | 1 | Gasket,Crankcase | V102-000001 | V102-000001-Online | |
| 21 | + | 4 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 22 | + | 1 | Oilseal | 100213-00310 | 100213-00310-Online | ISCD 15 25 7 |
| 23 | + | 4 | Bolt, H.S. 5*35 | 900162-05035 | 900162-05035-Online | 5*35 W,SW |
| 24 | 1 | Drum,Clutch | A556-000160 | A556-000160-Online | Sus. by A556- | 000181 | |
| 24 | 1 | Drum,Clutch | A556-000161 | A556-000161-Online | Sus. by A556- | 000181 | |
| 24 | 1 | Drum,Clutch | A556-000180 | A556-000180-Online | Sus. by A556- | 000181 | |
| 24 | 1 | Drum,Clutch | A556-000181 | A556-000181-Online | ||
| 25 | 1 | Circlip 28 | 900702-00028 | 900702-00028-Online | CR-28 | |
| 26 | 2 | Bearing, Ball 6001 | 900807-06001 | 900807-06001-Online | 6001V(LB) | |
| 27 | 1 | Circlip 12 | 900701-00012 | 900701-00012-Online | CS-12 | |
| 30 | 1 | Cushion | V420-000420 | V420-000420-Online | Sus. by V420- | 000980 | |
| 30 | 1 | Cushion | V420-000980 | V420-000980-Online | ||
| 31 | 1 | Ring, Retaining(In) | 900702-00045 | 900702-00045-Online | CR-45 | |
| 32 | 1 | Bolt, H.S. 5*28 | 900162-05028 | 900162-05028-Online | 5*28 W,SW | Sus. by 91118- | 05028 | |
| 33 | 1 | Bolt, H.S. 5*12 | 900162-05012 | 900162-05012-Online | 5*12 W,SW | Sus. by 91118- | 05012 | |
| 34 | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | Sus. by 91118- | 05020 | |
| 35 | 1 | Cover,Fan | A172-000150 | A172-000150-Online |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 36 | 1 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | 5*20 | Sus. by 91121- | 05020 | |
| 37 | 1 | Collar,5 | V353-000020 | V353-000020-Online | 12*5.5*4.5L | |
| 38 | 1 | Guard,Top | A162-000020 | A162-000020-Online | ||
| 39 | 1 | Cover,Cylinder | A160-000240 | A160-000240-Online | Sus. by A160- | 000241 | |
| 39 | 1 | Cover,Cylinder | A160-000241 | A160-000241-Online | ||
| 40 | 1 | Label,Model | X503-001970 | X503-001970-Online | SRM-4000 | Sus. by X547- | 001030 | |
| 41 | 1 | Bolt, H.S. 5*12 | 900106-05012 | 900106-05012-Online | 5*12 | Sus. by 91121- | 05012 |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cap,Spark Plug | A427-000000 | A427-000000-Online | ||
| 2 | 1 | Terminal,Sparkplug | A426-000000 | A426-000000-Online | ||
| 3 | 1 | Plug, Spark Rcj-6Y | 159017-31730 | 159017-31730-Online | RCJ-6Y | |
| 4 | 1 | Grommet,Plug | V141-000020 | V141-000020-Online | ||
| 5 | 1 | Tube | V475-001610 | V475-001610-Online | 7*8.6*55 HST-10 | |
| 6 | 1 | Grommet | 156114-04920 | 156114-04920-Online | ||
| 8 | 1 | Lead, Ground | 162010-55630 | 162010-55630-Online | ||
| 9 | 2 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 10 | 1 | Coil,Ignition | A411-000050 | A411-000050-Online | ||
| 11 | 1 | Clutch Asy | P021-002480 | P021-002480-Online | Sus. by P021- | 008190 | |
| 11 | 1 | Clutch Asy | P021-002481 | P021-002481-Online | Sus. by P021- | 008190 | |
| 11 | 1 | Clutch Asy | P021-008190 | P021-008190-Online | ||
| 12 | + | 2 | Shaft,Clutch | A557-000000 | A557-000000-Online | |
| 13 | + | 1 | Spring,Tension | V451-000230 | V451-000230-Online | Sus. by V451- | 000480 |
| 13 | + | 1 | Spring,Tension | V451-000480 | V451-000480-Online | |
| 14 | + | 2 | Washer,Wave | V346-000000 | V346-000000-Online | Sr/Nr 36001720 | and before |
| 14 | + | 2 | Washer | 175048-03920 | 175048-03920-Online | Sr/Nr 36001721 | and after |
| 15 | + | 2 | Arm,Clutch | A553-000030 | A553-000030-Online | Sr/Nr 36001720 | and before |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 15 | + | 2 | Arm,Clutch | A553-000040 | A553-000040-Online | Sr/Nr 36001721 | and after |
| 16 | + | 2 | Washer | 175049-03920 | 175049-03920-Online | Sr/Nr 36001720 | and before |
| 16 | + | 1 | Spring,Flat | V453-000070 | V453-000070-Online | Sr/Nr 36001721 | and after |
| 17 | 1 | Nut, Flange 10 | 900519-00010 | 900519-00010-Online | 10*1.25 | |
| 18 | 1 | Rotor,Magneto | A409-000060 | A409-000060-Online | Sus. by P021- | 005911 | |
| 18 | 1 | Rotor,Magneto | A409-000061 | A409-000061-Online | Sus. by P021- | 005911 | |
| 18 | 1 | Rotor,Magneto Kit | P021-005910 | P021-005910-Online | Sus. by P021- | 005911 | |
| 18 | 1 | Rotor,Magneto Kit | P021-005911 | P021-005911-Online | ||
| 19 | + | 1 | Key Woodruff | 900323-03014 | 900323-03014-Online | 3*14 | Can be used P021- | 005910,005911 |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 20 | 1 | Pulley,Asm Starter | A052-000010 | A052-000010-Online | Sus. by A052- | 000011 | |
| 20 | 1 | Pulley,Asm Starter | A052-000011 | A052-000011-Online | ||
| 21 | + | 1 | E-Ring | P022-002100 | P022-002100-Online | |
| 22 | + | 1 | Spring, Return | P022-002090 | P022-002090-Online | |
| 1 | 23 | Part | A0522160050 | A0522160050-Online | ||
| 23 | + | 1 | Pawl, Starter | 177218-40630 | 177218-40630-Online | WHITE |
| 24 | 1 | Nut 8 (3N) | 900502-00008 | 900502-00008-Online | 3N8 | |
| 26 | 1 | Starter,Recoil | A051-000070 | A051-000070-Online | ||
| 27 | + | 1 | Screw | 177236-06910 | 177236-06910-Online | |
| 28 | + | 1 | Drum, Starter | P022-002080 | P022-002080-Online | |
| 29 | + | 1 | Spring, Rewind | 177220-06310 | 177220-06310-Online | |
| 30 | + | 1 | Rope, Starter | 177226-06310 | 177226-06310-Online | 3.8*1150 |
| 31 | + | 1 | Guide, Rope | 177227-42030 | 177227-42030-Online | |
| 32 | + | 1 | Grip, Starter | 177228-27030 | 177228-27030-Online | |
| 33 | 2 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | 5*20 | Sus. by 91121- | 05020 | |
| 35 | 1 | Label, Echo | 890118-17930 | 890118-17930-Online | Sus. by X502- | 000460 |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Plate,Dust | A128-000060 | A128-000060-Online | Sr/Nr 36003421 | and after | |
| 2 | 1 | Gasket,Intake | V103-000070 | V103-000070-Online | ||
| 3 | 1 | Insulator,Intake | A200-000060 | A200-000060-Online | ||
| 4 | 2 | Bolt, H.S. 5*25 | 900106-05025 | 900106-05025-Online | 5*25 | |
| 5 | 1 | Gasket,Intake | V103-000080 | V103-000080-Online | ||
| 9 | 1 | Carburetor,Diaphragm | A021-000280 | A021-000280-Online | WYK-134B | Sus. by A021- | 001050 | |
| 9 | 1 | Carburetor,Diaphragm | A021-000281 | A021-000281-Online | WYK-134B | Sus. by A021- | 001050 | |
| 9 | 1 | Carburetor,Diaphragm | A021-000282 | A021-000282-Online | WYK-134C | Sus. by A021- | 001050 | |
| 9 | 1 | Carburetor,Diaphragm | A021-001050 | A021-001050-Online | WYK-218 | Sr/Nr 36007730 | and before | |
| 9 | 1 | Carburetor,Diaphragm | A021-001170 | A021-001170-Online | WYK-226 | Sus. by A021- | 001171 | |
| 10 | 1 | Knob,Cleaner Lid | A235-000060 | A235-000060-Online | Sr/Nr 36007730 | and before | |
| 11 | 1 | Hinge | J485-000030 | J485-000030-Online | Sr/Nr 36007730 | and before | |
| 12 | 1 | Case, Air Cleaner | P021-002490 | P021-002490-Online | Sus. by P021- | 002491 | |
| 12 | 1 | Case, Air Cleaner | P021-002491 | P021-002491-Online | Sr/Nr 36007730 | and before | |
| 12 | 1 | Case, Air Cleaner | P021-009590 | P021-009590-Online | Sr/Nr 36007731 | and after |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 13 | 1 | Plate,Prevent | A244-000010 | A244-000010-Online | ||
| 14 | 2 | Bolt, H.S. 5*55 | 900105-05055 | 900105-05055-Online | 5*55 | |
| 15 | 1 | Element,Air Filter | A226-000080 | A226-000080-Online | Sus. by A226- | 000220 | |
| 15 | 1 | Element,Air Filter | A226-000220 | A226-000220-Online | Sr/Nr 36007730 | and before | |
| 15 | 1 | Element, Air Filter | A226-000320 | A226-000320-Online | Sr/Nr 36007731 | and after Sus. by | |
| 16 | 1 | Screw 4*8 | 900253-04008 | 900253-04008-Online | 4*8 | Sr/Nr 36007730 | and before | |
| 17 | 1 | Piece,Cover | A323-000000 | A323-000000-Online | Sr/Nr 36007730 | and before | |
| 18 | 1 | Lid,Cleaner | A232-000090 | A232-000090-Online | Sus. by A232- | 000300 | |
| 18 | 1 | Lid,Cleaner | A232-000091 | A232-000091-Online | Sus. by A232- | 000300 | |
| 18 | 1 | Lid,Cleaner | A232-000300 | A232-000300-Online | Sr/Nr 36007730 | and before | |
| 18 | 1 | Lid,Cleaner Asy | P021-009600 | P021-009600-Online | Sr/Nr 36007731 | and after | |
| 31 | + | 2 | Screw,5 | V253-000100 | V253-000100-Online | 5*20 |
| 32 | + | 1 | Lid,Cleaner | A232-000320 | A232-000320-Online | |
| 19 | 1 | Gasket,Exhaust | V104-000210 | V104-000210-Online | ||
| 20 | 1 | Bolt, H.S. 5*12 | 900162-05012 | 900162-05012-Online | 5*12 W,SW |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 21 | 1 | Muffler,Exhaust | A300-000190 | A300-000190-Online | T0.6 | Sr/Nr 35999999 | and before | |
| 21 | 1 | Muffler Asy | P021-008900 | P021-008900-Online | Sr/Nr 36001001 | and after | |
| 22 | 1 | Plate,Eye | V150-000550 | V150-000550-Online | ||
| 23 | 2 | Bolt, H.S. 6*60 | 900105-06060 | 900105-06060-Online | 6*60 | |
| 24 | 1 | Cover,Muffler | A320-000080 | A320-000080-Online | ||
| 25 | 1 | Bolt, H.S. 5*12 | 900106-05012 | 900106-05012-Online | 5*12 | Sus. by 91121- | 05012 | |
| 26 | 1 | Element,Air Filter | A226-000210 | A226-000210-Online | OPTION | |
| 27 | 1 | Pipe, W/Grommet | 132012-39330 | 132012-39330-Online | L105 NBR | Sr/Nr 36007731 | and after Sus. by | |
| 28 | 1 | Pipe 3*6*60 | 437215-20760 | 437215-20760-Online | 3*6*60 YL | Sr/Nr 36007731 | and after | |
| 29 | 1 | Joint,Pipe | V186-000120 | V186-000120-Online | 5.4 | Sr/Nr 36007731 | and after Sus. by | |
| 30 | 1 | Pump, Primer | 123181-39130 | 123181-39130-Online | Sr/Nr 36007731 | and after | |
| 33 | 1 | Pipe | V471-001560 | V471-001560-Online | 2.4*5*80 | Sr/Nr 36007731 | and after |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Plate,Dust | A128-000060 | A128-000060-Online | ||
| 2 | 1 | Gasket,Intake | V103-000070 | V103-000070-Online | ||
| 3 | 1 | Insulator,Intake | A200-000060 | A200-000060-Online | ||
| 4 | 2 | Bolt, H.S. 5*25 | 900106-05025 | 900106-05025-Online | 5*25 | |
| 5 | 1 | Gasket,Intake | V103-000080 | V103-000080-Online | ||
| 9 | 1 | Carburetor,Diaphragm | A021-001050 | A021-001050-Online | WYK-218 | |
| 9 | 1 | Carburetor,Diaphragm | A021-001170 | A021-001170-Online | WYK-226 | |
| 10 | 1 | Knob,Cleaner Lid | A235-000060 | A235-000060-Online | ||
| 11 | 1 | Hinge | J485-000030 | J485-000030-Online | ||
| 12 | 1 | Case, Air Cleaner | P021-002491 | P021-002491-Online | ||
| 12 | 1 | Case, Air Cleaner | P021-009590 | P021-009590-Online | ||
| 13 | 1 | Plate,Prevent | A244-000010 | A244-000010-Online | ||
| 14 | 2 | Bolt, H.S. 5*55 | 900105-05055 | 900105-05055-Online | 5*55 | |
| 15 | 1 | Element,Air Filter | A226-000220 | A226-000220-Online | ||
| 15 | 1 | Element, Air Filter | A226-000360 | A226-000360-Online | AFP-2010K-300 | |
| 16 | 1 | Screw 4*8 | 900253-04008 | 900253-04008-Online | 4*8 | |
| 17 | 1 | Piece,Cover | A323-000000 | A323-000000-Online | ||
| 18 | 1 | Lid,Cleaner | A232-000300 | A232-000300-Online | ||
| 18 | 1 | Lid,Cleaner Asy | P021-009600 | P021-009600-Online | ||
| 31 | + | 2 | Screw,5 | V253-000100 | V253-000100-Online | 5*20 |
| 32 | + | 1 | Lid,Cleaner | A232-000320 | A232-000320-Online | |
| 19 | 1 | Gasket,Exhaust | V104-000210 | V104-000210-Online | ||
| 20 | 1 | Bolt, H.S. 5*12 | 900162-05012 | 900162-05012-Online | 5*12 W,SW | |
| 21 | 1 | Muffler Asy | P021-008900 | P021-008900-Online | ||
| 22 | 1 | Plate,Eye | V150-000550 | V150-000550-Online |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 23 | 2 | Bolt, H.S. 6*60 | 900105-06060 | 900105-06060-Online | 6*60 | |
| 24 | 1 | Cover,Muffler | A320-000080 | A320-000080-Online | ||
| 25 | 1 | Bolt, Flange | 91121-05012 | 91121-05012-Online | 10.9 SILVER | |
| 26 | 1 | Element,Air Filter | A226-000210 | A226-000210-Online | ||
| 27 | 1 | Pipe | 132012-39331 | 132012-39331-Online | 3*6*105 | |
| 28 | 1 | Pipe 3*6*60 | 437215-20760 | 437215-20760-Online | 3*6*60 YL | |
| 29 | 1 | Joint,Pipe | V186-000080 | V186-000080-Online | ||
| 30 | 1 | Pump, Primer | 123181-39130 | 123181-39130-Online | ||
| 33 | 1 | Pipe | V471-001560 | V471-001560-Online | 2.4*5*80 | |
| 34 | 1 | Pipe, Intake | A239-000050 | A239-000050-Online | Sr/Nr 36025065 | and after |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | ||
| 3 | + | 1 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |
| 4 | + | 1 | Clip, Fuel Cap | 131051-56030 | 131051-56030-Online | |
| 8 | 1 | Bracket,Fuel Tank | A393-000030 | A393-000030-Online | ||
| 9 | 4 | Bolt, H.S. 5*12 | 900106-05012 | 900106-05012-Online | 5*12 | |
| 10 | 1 | Seat,Fuel Tank | A390-000000 | A390-000000-Online | ||
| 11 | 1 | Tank,Fuel | A350-000130 | A350-000130-Online | HB330 | |
| 12 | 1 | Seat,Fuel Tank | A390-000010 | A390-000010-Online | ||
| 14 | 1 | Bracket,Fuel Tank | A393-000050 | A393-000050-Online | ||
| 16 | 2 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | 5*20 | Sus. by 91121- | 05020 | |
| 17 | 2 | Bolt, H.S. 5*25 | 900106-05025 | 900106-05025-Online | 5*25 | Sus. by 91121- | 05025 | |
| 20 | 1 | Pipe | 132010-53630 | 132010-53630-Online | 3*6*180 NBR | |
| 21 | 1 | Pipe 3*6*60 | 437215-20760 | 437215-20760-Online | 3*6*60 YL | Sr/Nr 36007730 | and before | |
| 22 | 1 | Valve, Check | 131300-56430 | 131300-56430-Online | ||
| 23 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 24 | 1 | Pipe, Fuel | 132012-02960 | 132012-02960-Online | 3*6*120L | |
| 25 | 1 | Grommet, Fuel | 132115-55930 | 132115-55930-Online | ||
| 26 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 27 | 1 | Strainer, Fuel | 131205-19830 | 131205-19830-Online | Sus. by 131205- | 19831 |
Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | L-Wrench (4Mm) | 895610-00130 | 895610-00130-Online | ||
| 2 | 1 | Spanner 8*10 | 895112-00330 | 895112-00330-Online | OPTION | |
| 3 | 1 | Wrench, W/S. Driver | 895410-08030 | 895410-08030-Online | Sus. by X602- | 000020 | |
| 3 | 1 | Tool,Wrench | X602-000020 | X602-000020-Online | 17*19 L200 | |
| 4 | 1 | Locking Tool | 897518-01131 | 897518-01131-Online | ||
| 5 | 1 | Safety Glasses | 899580-68730 | 899580-68730-Online | Sus. by X690- | 000030 | |
| 5 | 1 | Goggle | X690-000030 | X690-000030-Online | ||
| 6 | 1 | Bag, Tool | 898510-39130 | 898510-39130-Online | ||
| 10 | 1 | Shield,Blade(W/Knife | P021-002620 | P021-002620-Online | Sr/Nr 36022760 | and before | |
| 11 | + | 1 | Shield,Blade | C550-000080 | C550-000080-Online | |
| 12 | + | 1 | Knife,Cord | C554-000000 | C554-000000-Online | Sr/Nr 36022760 | and before |
| 13 | + | 1 | Screw 5*12 | 900252-05012 | 900252-05012-Online | 5*12 |
| 16 | 1 | Part | 900565-00005 | 900565-00005-Online | ||
| 17 | 1 | Screw 5*18 | 900242-05018 | 900242-05018-Online | 5*18 | |
| 20 | 1 | Shield,Blade | C550-000100 | C550-000100-Online | ||
| 21 | 1 | Shield,Blade | C550-000090 | C550-000090-Online | ||
| 22 | 1 | Plate, Shield | 699013-56830 | 699013-56830-Online | ||
| 23 | 4 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW | Sus. by 91118- | 05025 |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | L-Wrench (4Mm) | 895610-00130 | 895610-00130-Online | ||
| 2 | 1 | Spanner 8*10 | 895112-00330 | 895112-00330-Online | ||
| 3 | 1 | Tool,Wrench | X602-000020 | X602-000020-Online | 17*19 L200 | |
| 4 | 1 | Locking Tool | 897518-01131 | 897518-01131-Online | ||
| 5 | 1 | Goggle | X690-000030 | X690-000030-Online | ||
| 6 | 1 | Bag, Tool | 898510-39130 | 898510-39130-Online | ||
| 10 | 1 | Shield Kit | P021-013770 | P021-013770-Online | Sr/Nr 36022761 | and after | |
| 11 | + | 1 | Shield,Blade | C550-000080 | C550-000080-Online | |
| 12 | + | 1 | Knife, Cord | C554-000030 | C554-000030-Online | 17INCH | Sr/Nr 36022761 | and after |
| 13 | + | 1 | Screw 5*12 | 900252-05012 | 900252-05012-Online | 5*12 |
| 15 | 1 | Shield,Blade | C550-000100 | C550-000100-Online | ||
| 16 | + | 1 | Part | 900565-00005 | 900565-00005-Online | |
| 17 | 1 | Screw 5*18 | 900242-05018 | 900242-05018-Online | 5*18 | |
| 21 | 1 | Shield,Blade | C550-000090 | C550-000090-Online | ||
| 22 | 1 | Plate, Shield | 699013-56830 | 699013-56830-Online | ||
| 23 | 4 | Bolt | 91118-05025 | 91118-05025-Online | CM-5*25 |
Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Grip Asy,F-Handle | P021-002610 | P021-002610-Online | Sus. by P021- | 002612 | |
| 1 | 1 | Grip Asy,F-Handle | P021-002611 | P021-002611-Online | Sus. by P021- | 002612 | |
| 1 | 1 | Grip Asy,F-Handle | P021-002612 | P021-002612-Online | ||
| 2 | + | 3 | Screw 4*16 | 900253-04016 | 900253-04016-Online | 4*16 |
| 3 | + | 1 | Screw 5*30 | 900220-05030 | 900220-05030-Online | 5*30 |
| 4 | + | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 5 | 1 | Lockout,Throttle | C460-000010 | C460-000010-Online | Sus. by C460- | 000011 | |
| 5 | 1 | Lockout,Throttle | C460-000011 | C460-000011-Online | ||
| 6 | 1 | Spring,Torsion | V452-000050 | V452-000050-Online | Sr/Nr 35008035 | and before | |
| 6 | 1 | Spring,Torsion | V452-000130 | V452-000130-Online | Sr/Nr 35008036 to | |
| 7 | Part | 36003580 | 36003580-Online | |||
| 7 | 1 | Trigger,Throttle | C450-000020 | C450-000020-Online | Sus. by C450- | 000022 | |
| 7 | 1 | Trigger,Throttle | C450-000021 | C450-000021-Online | Sus. by C450- | 000022 | |
| 7 | 1 | Trigger,Throttle | C450-000022 | C450-000022-Online | ||
| 8 | 1 | Spring,Torsion | V452-000060 | V452-000060-Online | ||
| 9 | 1 | Switch,On Off | A440-000240 | A440-000240-Online | ||
| 10 | 2 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 | |
| 11 | 1 | Cable,Bowden | V430-000390 | V430-000390-Online | Sus. by V430- | 000960 |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 11 | 1 | Cable,Bowden | V430-000960 | V430-000960-Online | ||
| 12 | 1 | Tube | 178127-43230 | 178127-43230-Online | 7*820 | |
| 13 | 1 | Clip | 159112-09960 | 159112-09960-Online | ||
| 14 | 2 | Clip | 224924-52930 | 224924-52930-Online | 28MM | |
| 15 | 1 | Hook Ass'Y | 301200-05230 | 301200-05230-Online | ||
| 16 | + | 1 | Hook, Band | 301015-05330 | 301015-05330-Online | |
| 17 | + | 1 | Bolt, H.S. 5*12 | 900105-05012 | 900105-05012-Online | 5*12 |
| 18 | + | 1 | Hook | 301210-04630 | 301210-04630-Online | |
| 19 | 1 | Bracket Asy, Handle | P021-002760 | P021-002760-Online | Sus. by P021- | 002761 | |
| 19 | 1 | Bracket Asy, Handle | P021-002761 | P021-002761-Online | ||
| 20 | + | 1 | Knob,Fastener | V299-000110 | V299-000110-Online | |
| 21 | + | 1 | Washer | 605014-54230 | 605014-54230-Online | |
| 23 | + | 3 | Bolt, H.S. 5*30 | 900162-05030 | 900162-05030-Online | 5*30 W,SW |
| 24 | + | 1 | Nut | 900565-50008 | 900565-50008-Online | 8*1.25 |
| 36 | + | 1 | Fixture,Handle | C423-000041 | C423-000041-Online | |
| 25 | 1 | Handle | 351214-52931 | 351214-52931-Online | ||
| 26 | 1 | Bracket Assy, Handle | 351202-51430 | 351202-51430-Online | ||
| 27 | + | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW |
| 28 | + | 4 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 29 | 1 | Handle, Front | 351010-52931 | 351010-52931-Online | ||
| 30 | 1 | Grip,Handle | C403-000030 | C403-000030-Online | Sus. by C403- | 000031 | |
| 30 | 1 | Grip,Handle | C403-000031 | C403-000031-Online | ||
| 31 | 1 | Label,Caution | 890617-43130 | 890617-43130-Online | ||
| 32 | 1 | Pipe,Main | C050-000050 | C050-000050-Online |
Page 19 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 33 | 1 | Shaft, Drive | 610011-49930 | 610011-49930-Online | ||
| 34 | 1 | Harness Asy,Shoulder | 301001-56831 | 301001-56831-Online | Sus. by C062- | 000181 | |
| 34 | 1 | Harness,Shoulder | C062-000180 | C062-000180-Online | ECHO | Sus. by C062- | 000181 | |
| 34 | 1 | Harness,Shoulder | C062-000181 | C062-000181-Online | Sus. by C062- | 000182 | |
| 37 | 1 | Knob,Latch | C463-000000 | C463-000000-Online | Sr/Nr 35008036 to | |
| 38 | Part | 36003580 | 36003580-Online | |||
| 38 | 1 | Cap | V494-000080 | V494-000080-Online | Sr/Nr 35006536 to |
Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Grip Asy,F-Handle | P021-002612 | P021-002612-Online | Sr/Nr 36003581 to | |
| 2 | Part | 36024674 | 36024674-Online | |||
| 2 | + | 3 | Screw 4*16 | 900253-04016 | 900253-04016-Online | 4*16 | Sr/Nr 36003581 to |
| 3 | + | 1 | Screw 5*30 | 900220-05030 | 900220-05030-Online | 5*30 | Sr/Nr 36003581 to |
| 4 | + | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 5 | 1 | Lockout,Throttle | C460-000011 | C460-000011-Online | Sr/Nr 36003581 to | |
| 6 | Part | 36024674 | 36024674-Online | |||
| 6 | 1 | Spring,Torsion | V452-000130 | V452-000130-Online | Sr/Nr 36003581 to | |
| 7 | Part | 36024674 | 36024674-Online | |||
| 7 | 1 | Trigger,Throttle | C450-000022 | C450-000022-Online | Sr/Nr 36003581 to | |
| 8 | Part | 36024674 | 36024674-Online | |||
| 8 | 1 | Spring,Torsion | V452-000060 | V452-000060-Online | Sr/Nr 36003581 to | |
| 9 | Part | 36024674 | 36024674-Online | |||
| 9 | 1 | Switch,On Off | A440-000610 | A440-000610-Online | Sr/Nr 36003581 to | |
| 10 | Part | 36024674 | 36024674-Online | |||
| 10 | 2 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 |
Page 21 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 11 | 1 | Cable,Bowden | V430-001470 | V430-001470-Online | Sr/Nr 36003581 to | |
| 12 | Part | 36024674 | 36024674-Online | |||
| 12 | 1 | Tube | V475-003590 | V475-003590-Online | 7*740 | Sr/Nr 36003581 to | |
| 14 | 2 | Clip | 224924-52930 | 224924-52930-Online | 28MM | |
| 15 | 1 | Hook Ass'Y | 301200-05230 | 301200-05230-Online | Sus. by P021- | 012660 | |
| 16 | + | 1 | Hook, Band | 301015-05330 | 301015-05330-Online | |
| 17 | + | 1 | Bolt, H.S. 5*12 | 900105-05012 | 900105-05012-Online | 5*12 | Sus. by 91119- | 05012 |
| 18 | + | 1 | Hook | 301210-04630 | 301210-04630-Online | |
| 19 | 1 | Bracket Asy, Handle | P021-009220 | P021-009220-Online | Sus. by P021- | 009221 | |
| 19 | 1 | Bracket Asy, Handle | P021-009221 | P021-009221-Online | Sus. by P021- | 012750 | |
| 20 | + | 1 | Knob,Fastener | V299-000110 | V299-000110-Online | |
| 21 | + | 1 | Washer | 605014-54230 | 605014-54230-Online | |
| 23 | + | 1 | Nut | 900565-50008 | 900565-50008-Online | 8*1.25 |
| 24 | + | 4 | Bolt, H.S. 5*35 | 900162-05035 | 900162-05035-Online | 5*35 W,SW | Sus. by 91118- | 05035 |
| 29 | 1 | Handle,Front | C400-000400 | C400-000400-Online | ||
| 30 | 1 | Grip, Handle | 351213-47531 | 351213-47531-Online | ||
| 31 | 1 | Label,Caution | 890617-43130 | 890617-43130-Online |
Page 22 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 32 | 1 | Pipe,Main | C050-000050 | C050-000050-Online | Sus. by C050- | 000880 | |
| 33 | 1 | Shaft, Drive | 610011-49930 | 610011-49930-Online | Sus. by 610011- | 49931 | |
| 34 | 1 | Harness,Shoulder | C062-000180 | C062-000180-Online | ECHO | Sus. by C062- | 000181 | |
| 34 | 1 | Harness,Shoulder | C062-000181 | C062-000181-Online | ||
| 37 | 1 | Knob,Latch | C463-000000 | C463-000000-Online | Sr/Nr 36003581 to | |
| 38 | Part | 36024674 | 36024674-Online | |||
| 38 | 1 | Part | V494-000080 | V494-000080-Online | ||
| 40 | 1 | Bracket, Handle | 351302-47530 | 351302-47530-Online | Sus. by P021- | 012730 | |
| 41 | + | 4 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW | Sus. by 91118- | 05025 |
| 43 | 1 | Handle, Rear | 351210-47530 | 351210-47530-Online | ||
| 45 | 4 | Cushion | V420-001120 | V420-001120-Online |
Page 23 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 10 | 2 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 | |
| 14 | 2 | Clip | 224924-52930 | 224924-52930-Online | 28MM | |
| 15 | 1 | Hook Asy | P021-012660 | P021-012660-Online | ||
| 16 | + | 1 | Hook, Band | 301015-05330 | 301015-05330-Online | |
| 17 | + | 1 | Bolt | 91119-05012 | 91119-05012-Online | CB-5*12 |
| 18 | + | 1 | Hook | 301210-04630 | 301210-04630-Online | |
| 19 | 1 | Bracket Asy, Handle | P021-012750 | P021-012750-Online | ||
| 20 | + | 1 | Knob,Fastener | V299-000110 | V299-000110-Online | |
| 21 | + | 1 | Washer | 605014-54230 | 605014-54230-Online | |
| 23 | + | 1 | Nut | 900565-50008 | 900565-50008-Online | 8*1.25 |
| 24 | + | 4 | Bolt | 91118-05035 | 91118-05035-Online | |
| 29 | 1 | Handle,Front | C400-000400 | C400-000400-Online | ||
| 30 | 1 | Grip, Handle | 351213-47531 | 351213-47531-Online | ||
| 31 | 1 | Label,Caution | 890617-43130 | 890617-43130-Online | ||
| 32 | 1 | Pipe,Main | C050-000050 | C050-000050-Online | ||
| 33 | 1 | Shaft, Drive | 610011-49930 | 610011-49930-Online | ||
| 34 | 1 | Harness,Shoulder | C062-000182 | C062-000182-Online | ||
| 38 | 1 | Part | V494-000080 | V494-000080-Online | ||
| 40 | 1 | Bracket Asy, Handle | P021-012730 | P021-012730-Online | ||
| 41 | + | 4 | Bolt | 91118-05025 | 91118-05025-Online | CM-5*25 |
| 43 | 1 | Handle, Rear | 351210-47530 | 351210-47530-Online | ||
| 45 | 4 | Cushion | V420-001120 | V420-001120-Online | ||
| 46 | 1 | Grip Asy,F-Handle | P021-014090 | P021-014090-Online | Sr/Nr 36024674 | and after | |
| 47 | + | 3 | Screw 4*16 | 900256-04016 | 900256-04016-Online | 4*16 | Sr/Nr 36024674 | and after |
Page 24 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 48 | + | 1 | Bolt | 91119-05030 | 91119-05030-Online | Sr/Nr 36024674 | and after |
| 49 | + | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 50 | 1 | Lockout, Throttle | C460-000110 | C460-000110-Online | Sr/Nr 36024674 | and after | |
| 51 | 1 | Spring,Torsion | V452-000360 | V452-000360-Online | Sr/Nr 36024674 | and after | |
| 52 | 1 | Control, Throttle | C450-000270 | C450-000270-Online | Sr/Nr 36024674 | and after | |
| 53 | 1 | Spring,Torsion | V452-000350 | V452-000350-Online | Sr/Nr 36024674 | and after | |
| 54 | 1 | Switch,On Off | P021-014620 | P021-014620-Online | Sr/Nr 36024674 | and after | |
| 55 | 1 | Knob, Latch | C463-000020 | C463-000020-Online | Sr/Nr 36024674 | and after | |
| 56 | 1 | Cable,Bowden | V430-002090 | V430-002090-Online | 968+87.5 | Sr/Nr 36024674 | and after | |
| 57 | 1 | Label, Caution | 890152-04930 | 890152-04930-Online | Sr/Nr 36024674 | and after |
Page 25 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Case Asy, Gear | 610400-56931 | 610400-56931-Online | Sus. by 610400- | 56932 | |
| 1 | 1 | Case Asy, Gear | 610400-56932 | 610400-56932-Online | Sus. by P021- | 012590 | |
| 1 | 1 | Case,Gear | P021-012590 | P021-012590-Online | Sus. by P021- | 012591 | |
| 2 | + | 1 | Nut 10 | 610320-52130 | 610320-52130-Online | |
| 3 | + | 1 | Plate, Cover | 699229-56830 | 699229-56830-Online | |
| 4 | + | 1 | Plate, Adapter (L) | 610314-52130 | 610314-52130-Online | |
| 5 | + | 1 | O-Ring 12 | 900720-00012 | 900720-00012-Online | P-12 |
| 6 | + | 1 | Fixture,Blade | C535-000000 | C535-000000-Online | Sus. by C535- | 000001 |
| 6 | + | 1 | Fixture,Blade | C535-000001 | C535-000001-Online | 11 | ++ |
| 11 | 1 | Plate, Cup | 610352-56830 | 610352-56830-Online | 14 | ++ | |
| 14 | 1 | Fixture,Blade | C535-000010 | C535-000010-Online | Sus. by C535- | 000011 | 14 | ++ | |
| 14 | 1 | Fixture,Blade | C535-000011 | C535-000011-Online | ||
| 7 | + | 1 | Circlip 32 | 900702-00032 | 900702-00032-Online | CR-32 |
| 8 | + | 1 | Washer | 610444-56830 | 610444-56830-Online | |
| 9 | + | 1 | Bearing, Ball 6201 | 900812-06201 | 900812-06201-Online | 6201DDU(LLU) |
| 10 | + | 1 | Shaft, P.T.O. | 610310-56930 | 610310-56930-Online | Sus. by 610310- | 56931 |
| 12 | + | 1 | Gear Set | 610300-56930 | 610300-56930-Online | |
| 13 | + | 1 | Bearing, Ball 629 | 900810-00629 | 900810-00629-Online | |
| 15 | + | 1 | Spring | 610473-52131 | 610473-52131-Online | |
| 16 | + | 1 | Washer | 900603-50008 | 900603-50008-Online | 8.5*18*0.8T |
Page 26 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 17 | + | 1 | Bolt 8* 6 | 610434-50030 | 610434-50030-Online | Sus. by 610434- | 50031 |
| 17 | + | 1 | Bolt 8* 8 | 610434-50031 | 610434-50031-Online | M8*8 |
| 18 | + | 1 | Screw 5*10 | 900242-05010 | 900242-05010-Online | 5*10 |
| 19 | + | 1 | Bolt, H.S. 6*30 | 900162-06030 | 900162-06030-Online | 6*30W㺂SW | Sus. by 91118- | 06030 |
| 20 | + | 1 | Bearing, Ball 6001 | 900800-06001 | 900800-06001-Online | |
| 21 | + | 1 | Bearing, Ball 6001 | 900803-06001 | 900803-06001-Online | |
| 22 | + | 1 | Circlip 28 | 900702-00028 | 900702-00028-Online | CR-28 |
| 23 | + | 1 | Circlip 12 | 900701-00012 | 900701-00012-Online | CS-12 |
| 30 | 1 | Saw,Bush Cutter | X405-000000 | X405-000000-Online | 3*255*25.4*T2.0 | Sus. by X405- | 000001 | |
| 30 | 1 | Saw,Bush Cutter | X405-000001 | X405-000001-Online | 3*255*25.4*T2.0 | |
| 33 | 1 | Scabbard Kit, Blade | 898503-50030 | 898503-50030-Online | Sus. by P021- | 007470 | |
| 33 | 1 | Scabbard,Blade | P021-007470 | P021-007470-Online | ||
| 34 | + | 1 | Fixture, Scabbard | 898562-43230 | 898562-43230-Online | Can be used on | 898503-50030 only |
| 31 | 1 | Blade, 8-Cutter 10In | 696001-55630 | 696001-55630-Online | Sus. by 696001- | 55631 | |
| 31 | 1 | Blade, 8-Cutter 10In | 696001-55631 | 696001-55631-Online | 255*8T*1.4 PD25 | OPTION | |
| 32 | 1 | Saw,Circular 10*80T | 695001-55630 | 695001-55630-Online | Sus. by 695001- | 55631 |
Page 27 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 32 | 1 | Saw, Circular 10*80T | 695001-55631 | 695001-55631-Online | 255*80T*1.4 PD25 OPTION | |
| 35 | 1 | Cap Assy, Free | 699200-56830 | 699200-56830-Online | OPTION | |
| 36 | + | 1 | Plate, Adapter (U) | 610313-56830 | 610313-56830-Online | OPTION |
| 37 | + | 1 | Holder, Bearing | 699226-05430 | 699226-05430-Online | OPTION |
| 38 | + | 1 | Bearing, Ball 6202 | 900814-06202 | 900814-06202-Online | 6202ZZ | OPTION |
| 39 | + | 1 | Nut | 699227-04630 | 699227-04630-Online | OPTION |
| 40 | + | 1 | Plate, Cover | 699228-08930 | 699228-08930-Online | OPTION |
| 41 | + | 4 | Bolt 5*12 | 900141-05012 | 900141-05012-Online | 5*12 | OPTION |
Page 28 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Label,Caution | X505-000140 | X505-000140-Online | ||
| 5 | 1 | Coller | 610281-42230 | 610281-42230-Online | ||
| 6 | + | 2 | Screw 4*25 | 900253-04025 | 900253-04025-Online | 4*25 |
| 7 | 1 | Tube | 178127-06960 | 178127-06960-Online | 7*150 | |
| 8 | 1 | Cable,Bowden | V430-000330 | V430-000330-Online | IN58:LTYPE480 | |
| 9 | 2 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 | |
| 10 | 1 | Shaft, Drive | 610011-49930 | 610011-49930-Online | ||
| 11 | 1 | Label, Switch | 890157-39130 | 890157-39130-Online | Sr/Nr 35007935 | and before | |
| 12 | 2 | Hook | 301207-07530 | 301207-07530-Online | ||
| 13 | 2 | Bolt, H.S. 5*18 | 900105-05018 | 900105-05018-Online | 5*18 | |
| 14 | 2 | Collar,5 | V353-000090 | V353-000090-Online | ||
| 15 | 1 | Hook Assy | 301200-42230 | 301200-42230-Online | ||
| 16 | + | 1 | Screw 5*14 | 900242-05014 | 900242-05014-Online | 5*14 |
| 17 | 1 | Bracket Set,Throttle | 178003-51830 | 178003-51830-Online | Sr/Nr 35007935 | and before | |
| 17 | 1 | Bracket Set,Throttle | P021-005890 | P021-005890-Online | Sr/Nr 35007936 to | |
| 18 | Part | 36004450 | 36004450-Online | |||
| 18 | + | 1 | Screw 5*35 | 900242-05035 | 900242-05035-Online | 5*35 |
| 19 | + | 1 | Screw 5*25 | 900242-05025 | 900242-05025-Online | 5*25 |
| 24 | + | 2 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 20 | 1 | Lockout, Throttle | 178012-52630 | 178012-52630-Online | Sr/Nr 35007935 | and before |
Page 29 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 20 | 1 | Latch,Throttle | C461-000000 | C461-000000-Online | Sr/Nr 35007936 to | |
| 21 | Part | 36004450 | 36004450-Online | |||
| 21 | 1 | Control, Throttle | 178010-52130 | 178010-52130-Online | Sr/Nr 35007935 | and before | |
| 21 | 1 | Trigger,Throttle | C450-000110 | C450-000110-Online | Sr/Nr 35007936 to | |
| 22 | Part | 36004450 | 36004450-Online | |||
| 22 | 1 | Spring, Thr. Return | 178043-42230 | 178043-42230-Online | ||
| 23 | 1 | Switch,On Off | A440-000230 | A440-000230-Online | ||
| 25 | 1 | Lockout, T. Control | 178090-52630 | 178090-52630-Online | Sus. by 178090- | 52632 | |
| 25 | 1 | Lockout, T. Control | 178090-52631 | 178090-52631-Online | Sus. by 178090- | 52632 | |
| 25 | 1 | Lockout, T. Control | 178090-52632 | 178090-52632-Online | ||
| 26 | 1 | Spring, Thr. Lock | 178013-52630 | 178013-52630-Online | ||
| 27 | 1 | Grip, Front Handle | 351213-51830 | 351213-51830-Online | ||
| 28 | 1 | Band | 610272-51830 | 610272-51830-Online | ||
| 24 | + | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 29 | + | 1 | Screw 5*28 | 900242-05028 | 900242-05028-Online | 5*28 |
| 30 | 1 | Pipe,Main | C050-000050 | C050-000050-Online | ||
| 32 | 1 | Hanger,Harness | C624-000000 | C624-000000-Online | ||
| 34 | 1 | Harness Asy,Shoulder | 301001-56831 | 301001-56831-Online | Sus. by C062- | 000181 | |
| 34 | 1 | Harness,Shoulder | C062-000180 | C062-000180-Online | ECHO | Sus. by C062- | 000181 |
Page 30 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 34 | 1 | Harness,Shoulder | C062-000181 | C062-000181-Online | ||
| 35 | 1 | Handle Assy, Loop | 351201-50430 | 351201-50430-Online | ||
| 36 | + | 1 | Handle | 351205-07130 | 351205-07130-Online | |
| 37 | + | 4 | Screw 5*35 | 900242-05035 | 900242-05035-Online | 5*35 |
| 38 | + | 2 | Screw 5*14 | 900242-05014 | 900242-05014-Online | 5*14 |
| 39 | + | 1 | Bracket, Handle 28 | 351232-07130 | 351232-07130-Online | |
| 40 | + | 1 | Bracket, Handle | 351643-55630 | 351643-55630-Online | |
| 41 | + | 4 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 45 | 1 | Screw 5*25 | 900242-05025 | 900242-05025-Online | 5*25 | |
| 46 | 1 | Guard,Lever | A248-000000 | A248-000000-Online | ||
| 47 | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | ||
| 48 | 1 | Latch,Throttle | C461-000010 | C461-000010-Online | Sr/Nr 35007936 to | |
| 49 | Part | 36004450 | 36004450-Online | |||
| 49 | 1 | Spring,Torsion | V452-000120 | V452-000120-Online | Sr/Nr 35007936 to |
Page 31 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Label,Caution | X505-000140 | X505-000140-Online | ||
| 7 | 1 | Tube | V475-003580 | V475-003580-Online | 7*170 | |
| 8 | 1 | Cable,Bowden | V430-001460 | V430-001460-Online | ||
| 9 | 2 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 | |
| 10 | 1 | Shaft, Drive | 610011-49930 | 610011-49930-Online | ||
| 12 | 2 | Hook | 301207-07530 | 301207-07530-Online | ||
| 13 | 2 | Bolt, H.S. 5*18 | 900105-05018 | 900105-05018-Online | 5*18 | Sus. by 91119- | 05018 | |
| 14 | 2 | Collar,5 | V353-000090 | V353-000090-Online | ||
| 17 | 1 | Bracket Set,Throttle | P021-007990 | P021-007990-Online | Sr/Nr 36004451 to | |
| 18 | Part | 36022353 | 36022353-Online | |||
| 18 | + | 1 | Screw 5*35 | 900242-05035 | 900242-05035-Online | 5*35 | Sr/Nr 36004451 to |
| 19 | + | 3 | Screw 5*25 | 900242-05025 | 900242-05025-Online | 5*25 |
| 20 | + | 4 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 21 | 1 | Trigger,Throttle | C450-000110 | C450-000110-Online | ||
| 22 | 1 | Spring,Torsion | V452-000200 | V452-000200-Online | ||
| 23 | 1 | Switch,On Off | A440-000600 | A440-000600-Online | ||
| 24 | 1 | Latch,Throttle | C461-000000 | C461-000000-Online | ||
| 25 | 1 | Lockout, T. Control | 178090-52631 | 178090-52631-Online | Sus. by 178090- | 52632 | |
| 25 | 1 | Lockout, T. Control | 178090-52632 | 178090-52632-Online | ||
| 26 | 1 | Spring, Thr. Lock | 178013-52630 | 178013-52630-Online |
Page 32 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 30 | 1 | Pipe,Main | C050-000050 | C050-000050-Online | Sus. by C050- | 000880 | |
| 32 | 1 | Hanger,Harness | C624-000020 | C624-000020-Online | Sr/Nr 36004451 to | |
| 34 | Part | 36022353 | 36022353-Online | |||
| 34 | 1 | Harness,Shoulder | C062-000180 | C062-000180-Online | ECHO | Sus. by C062- | 000181 | |
| 34 | 1 | Harness,Shoulder | C062-000181 | C062-000181-Online | Sus. by C062- | 000182 | |
| 48 | 1 | Latch,Throttle | C461-000010 | C461-000010-Online | ||
| 49 | 1 | Spring,Torsion | V452-000120 | V452-000120-Online | ||
| 50 | 1 | Handle Asy, Loop | P021-009200 | P021-009200-Online | Sr/Nr 36004451 to | |
| 51 | Part | 36022353 | 36022353-Online | |||
| 51 | + | 1 | Handle | 351205-07130 | 351205-07130-Online | |
| 52 | + | 4 | Screw 5*35 | 900242-05035 | 900242-05035-Online | 5*35 |
| 53 | + | 2 | Screw 5*14 | 900242-05014 | 900242-05014-Online | 5*14 |
| 54 | + | 1 | Bracket,Handle | C405-000150 | C405-000150-Online | Sr/Nr 36004451 to |
| 55 | Part | 36022353 | 36022353-Online | |||
| 55 | + | 1 | Bracket,Handle | C405-000160 | C405-000160-Online | |
| 56 | + | 4 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 58 | 4 | Fixture,Asy Handle | P021-008000 | P021-008000-Online | Sus. by P021- | 012640 | |
| 59 | + | 8 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW | Sus. by 91118- | 05025 |
Page 33 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 60 | 4 | Cushion | V420-001061 | V420-001061-Online | Qty 4->3 |
Page 34 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Label,Caution | X505-000140 | X505-000140-Online | ||
| 7 | 1 | Tube | V475-003580 | V475-003580-Online | 7*170 | |
| 8 | 1 | Cable,Bowden | V430-001460 | V430-001460-Online | ||
| 9 | 2 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 | |
| 10 | 1 | Shaft, Drive | 610011-49930 | 610011-49930-Online | ||
| 12 | 2 | Hook | 301207-07530 | 301207-07530-Online | ||
| 13 | 2 | Bolt | 91119-05018 | 91119-05018-Online | 10.9 SILVER | |
| 14 | 2 | Collar,5 | V353-000090 | V353-000090-Online | ||
| 21 | 1 | Trigger,Throttle | C450-000110 | C450-000110-Online | ||
| 22 | 1 | Spring,Torsion | V452-000200 | V452-000200-Online | ||
| 24 | 1 | Latch,Throttle | C461-000000 | C461-000000-Online | ||
| 25 | 1 | Lockout, T. Control | 178090-52632 | 178090-52632-Online | ||
| 26 | 1 | Spring, Thr. Lock | 178013-52630 | 178013-52630-Online | ||
| 30 | 1 | Pipe, Main | C050-000880 | C050-000880-Online | T2.0*28 | |
| 34 | 1 | Harness,Shoulder | C062-000182 | C062-000182-Online | ||
| 48 | 1 | Latch,Throttle | C461-000010 | C461-000010-Online | ||
| 49 | 1 | Spring,Torsion | V452-000120 | V452-000120-Online | ||
| 58 | 3 | Bracket Asm., Handle | P021-012640 | P021-012640-Online | ||
| 59 | + | 6 | Bolt | 91118-05025 | 91118-05025-Online | CM-5*25 |
| 60 | 3 | Cushion | V420-001061 | V420-001061-Online | ||
| 61 | 1 | Hanger, Harness | C624-000040 | C624-000040-Online | Sr/Nr 36022354 | and after | |
| 62 | 1 | Handle Asy, Loop | P021-009202 | P021-009202-Online | Sr/Nr 36022354 | and after | |
| 63 | + | 1 | Handle | 351205-07130 | 351205-07130-Online | |
| 64 | + | 4 | Screw 5*35 | 900242-05035 | 900242-05035-Online | 5*35 |
Page 35 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 65 | + | 2 | Screw 5*14 | 900242-05014 | 900242-05014-Online | 5*14 |
| 66 | + | 1 | Bracket,Handle | C405-000270 | C405-000270-Online | Sr/Nr 36022354 | and after |
| 67 | + | 1 | Bracket,Handle | C405-000160 | C405-000160-Online | |
| 68 | + | 4 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 69 | 1 | Bracket Set,Throttle | P021-014170 | P021-014170-Online | Sr/Nr 36022354 | and after | |
| 70 | + | 4 | Screw 5*22 | 900238-05022 | 900238-05022-Online | 5*22 |
| 71 | + | 4 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 72 | 1 | Switch, On Off | A440-001080 | A440-001080-Online | LA105:CA104 | |
| 74 | 1 | Fixture, Handle | C423-000340 | C423-000340-Online | 28 | Sr/Nr 36022354 | and after | |
| 75 | 1 | Cushion | V420-001720 | V420-001720-Online | Sr/Nr 36022354 | and after | |
| 76 | 1 | O-Ring 32 | 900720-00032 | 900720-00032-Online | P-32 | Sr/Nr 36022354 | and after | |
| 77 | 1 | Screw 5*40 | 900238-05040 | 900238-05040-Online | 5*40 | Sr/Nr 36022354 | and after | |
| 78 | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | 5 | Sr/Nr 36022354 | and after |
Page 36 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 3 | 1 | O-Ring 12 | 900720-00012 | 900720-00012-Online | P-12 | |
| 4 | 1 | Fixture,Blade | C535-000000 | C535-000000-Online | Sus. by C535- | 000001 | |
| 4 | 1 | Fixture,Blade | C535-000001 | C535-000001-Online | ||
| 5 | + | 1 | Plate, Cup | 610352-56830 | 610352-56830-Online | |
| 6 | + | 1 | Fixture,Blade | C535-000010 | C535-000010-Online | Sus. by C535- | 000011 |
| 6 | + | 1 | Fixture,Blade | C535-000011 | C535-000011-Online | |
| 7 | 1 | Circlip 32 | 900702-00032 | 900702-00032-Online | CR-32 | |
| 8 | 1 | Washer | 610444-56830 | 610444-56830-Online | ||
| 9 | 1 | Bearing, Ball 6201 | 900812-06201 | 900812-06201-Online | 6201DDU(LLU) | |
| 10 | 1 | Shaft, P.T.O. | 610310-56930 | 610310-56930-Online | Sus. by 610310- | 56931 | |
| 12 | 1 | Gear Set | 610300-56930 | 610300-56930-Online | ||
| 13 | 1 | Bearing, Ball 629 | 900810-00629 | 900810-00629-Online | ||
| 15 | 1 | Spring | 610473-52131 | 610473-52131-Online | ||
| 16 | 1 | Washer | 900603-50008 | 900603-50008-Online | 8.5*18*0.8T | |
| 17 | 1 | Bolt 8* 6 | 610434-50030 | 610434-50030-Online | Sus. by 610434- | 50031 | |
| 17 | 1 | Bolt 8* 8 | 610434-50031 | 610434-50031-Online | M8*8 | |
| 18 | 1 | Screw 5*10 | 900242-05010 | 900242-05010-Online | 5*10 | |
| 19 | 1 | Bolt, H.S. 6*30 | 900162-06030 | 900162-06030-Online | 6*30W㺂SW | Sus. by 91118- | 06030 | |
| 20 | 1 | Bearing, Ball 6001 | 900800-06001 | 900800-06001-Online | ||
| 21 | 1 | Bearing, Ball 6001 | 900803-06001 | 900803-06001-Online | ||
| 22 | 1 | Circlip 28 | 900702-00028 | 900702-00028-Online | CR-28 |
Page 37 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 23 | 1 | Circlip 12 | 900701-00012 | 900701-00012-Online | CS-12 | |
| 40 | 1 | Cutter,Asm Line | X047-000070 | X047-000070-Online | DS-5/10 | Sus. by X047- | 000330 | |
| 40 | 1 | Cutter,Asm Line | X047-000220 | X047-000220-Online | DS-5 M10L | Sus. by X047- | 000330 | |
| 41 | + | 1 | Washer,Circular 24 | V332-000000 | V332-000000-Online | |
| 42 | + | 2 | Eyelet | P022-000710 | P022-000710-Online | T4 |
| 43 | + | 1 | Drum,Reel | X470-000000 | X470-000000-Online | Sus. by P022- | 005040 |
| 43 | + | 1 | Housing | P022-005040 | P022-005040-Online | |
| 44 | + | 1 | Part | P022-001160 | P022-001160-Online | |
| 45 | + | 1 | Spring | P022-001200 | P022-001200-Online | DS-5/10 |
| 46 | + | 1 | Tap Knob | P022-001310 | P022-001310-Online | DS-5/10 | Sus. by P022- | 019450 |
| 46 | + | 1 | Tap Knob | P022-019450 | P022-019450-Online | |
| 47 | + | 1 | Bobbin | P022-001180 | P022-001180-Online | DS-5/10 |
| 48 | + | 1 | Nylon Code | P022-000730 | P022-000730-Online | 2.4*3M B4-K | Sus. by P022- | 006200 |
| 48 | + | 1 | Nylon Code | P022-006200 | P022-006200-Online | 3.0*3M |
| 49 | + | 1 | Cover | P022-001190 | P022-001190-Online | DS-5/10 | Sus. by P022- | 005030 |
| 49 | + | 1 | Cover | P022-005030 | P022-005030-Online |
Page 38 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 9 | 1 | Carburetor,Diaphragm | A021-001170 | A021-001170-Online | WYK-226 | Sus. by A021- | 001171 | |
| 3 | + | 2 | Screw | 123114-40630 | 123114-40630-Online | |
| 4 | + | 1 | Bracket Cable | P003-000180 | P003-000180-Online | |
| 5 | + | 1 | Swivel | 123172-45130 | 123172-45130-Online | |
| 6 | + | 1 | Washer | 123149-54230 | 123149-54230-Online | |
| 7 | + | 1 | Clip | 123173-07930 | 123173-07930-Online | |
| 8 | + | 1 | Ring, Packing | 123143-12110 | 123143-12110-Online | |
| 9 | + | 1 | O-Ring | 123183-40630 | 123183-40630-Online | |
| 10 | + | 1 | Jet | P003-000490 | P003-000490-Online | Sr/Nr 001535 to |
| JET | 10 | Part | 36002230 | 36002230-Online | ||
| 10 | + | 1 | Jet | P003-000530 | P003-000530-Online | Sr/Nr 001536 to |
| JET | 11 | Part | 36002230 | 36002230-Online | ||
| 11 | + | 1 | Gasket, Pump | 123125-40630 | 123125-40630-Online | |
| 12 | + | 1 | Diaphragm, Pump | 123112-40630 | 123112-40630-Online | |
| 13 | + | 1 | Body Assembly, Pump | P003-000510 | P003-000510-Online | 14 | ++ |
| 14 | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | 15 | ++ | |
| 15 | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | 16 | ++ | |
| 16 | 1 | Spring, Meter. Lever | 123122-05560 | 123122-05560-Online |
Page 39 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 17 | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | 18 | ++ | |
| 18 | 1 | Lever, Metering | 123123-03930 | 123123-03930-Online | 19 | ++ | |
| 19 | 1 | Screw, M. Lever Pin | 123139-05560 | 123139-05560-Online | ||
| 20 | + | 1 | Gasket, M. Diaphragm | 123140-05560 | 123140-05560-Online | |
| 21 | + | 1 | Diaphragm, Metering | 123141-03930 | 123141-03930-Online | Sr/Nr 001535 and | before |
| 21 | + | 1 | Metering, Diaphragm | P003-000090 | P003-000090-Online | Sr/Nr 001536 and | after |
| 22 | + | 1 | Body, Air Purge | 123180-05560 | 123180-05560-Online | |
| 23 | + | 1 | Pump, Primer | 123181-40630 | 123181-40630-Online | |
| 24 | + | 1 | Cover, Primer Pump | 123142-05560 | 123142-05560-Online | |
| 25 | + | 4 | Screw, Pump Cover | 123110-05560 | 123110-05560-Online | |
| 26 | + | 1 | Needle, High Speed | P003-001130 | P003-001130-Online | Sr/Nr 36002231 | and after |
Page 40 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 2 | Screw | 123114-40630 | 123114-40630-Online | |
| 2 | + | 1 | Bracket Cable | P003-000180 | P003-000180-Online | |
| 3 | + | 1 | Swivel | 123172-45130 | 123172-45130-Online | |
| 4 | + | 1 | Washer | 123149-54230 | 123149-54230-Online | |
| 5 | + | 1 | Clip | 123173-07930 | 123173-07930-Online | |
| 6 | + | 1 | Ring, Packing | 123143-12110 | 123143-12110-Online | |
| 7 | + | 1 | Needle, High Speed | P003-001130 | P003-001130-Online | |
| 8 | + | 1 | Gasket, Pump | P003-000100 | P003-000100-Online | |
| 9 | + | 1 | Diaphragm, Pump | 123112-40630 | 123112-40630-Online | |
| 10 | + | 1 | Body Assembly, Pump | P003-001490 | P003-001490-Online | 11 | ++ |
| 11 | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | 12 | ++ | |
| 12 | 1 | Spring, Meter. Lever | 123122-05560 | 123122-05560-Online | 13 | ++ | |
| 13 | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | 14 | ++ | |
| 14 | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | 15 | ++ | |
| 15 | 1 | Lever, Metering | 123123-03930 | 123123-03930-Online | 16 | ++ | |
| 16 | 1 | Screw, M. Lever Pin | 123139-05560 | 123139-05560-Online | ||
| 17 | + | 1 | Gasket,M. Diaphragm | 123140-27230 | 123140-27230-Online | |
| 18 | + | 1 | Metering, Diaphragm | P003-000090 | P003-000090-Online | |
| 19 | + | 1 | Cover, Primer Pump | P003-001500 | P003-001500-Online | |
| 20 | + | 4 | Screw | 123144-44330 | 123144-44330-Online |
Source PDF: 20130718-292_SRM-4000(6digits)(35)(36)_SRM-4000(6digits)(35)(36)_EN.pdf. Generated 2026-06-25 14:38.
