Echo SRM-3805 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: SRM-3805-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.

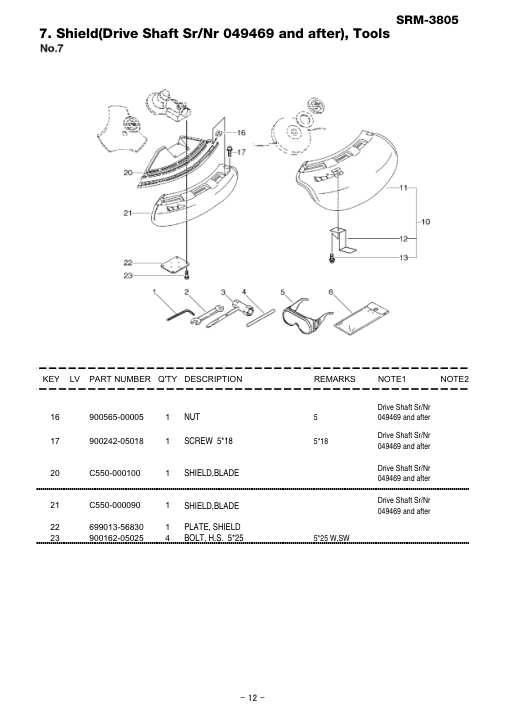

Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.
Page 23
Tap or click the page image to enlarge it.
Page 24
Tap or click the page image to enlarge it.
Page 25
Tap or click the page image to enlarge it.
Page 26
Tap or click the page image to enlarge it.

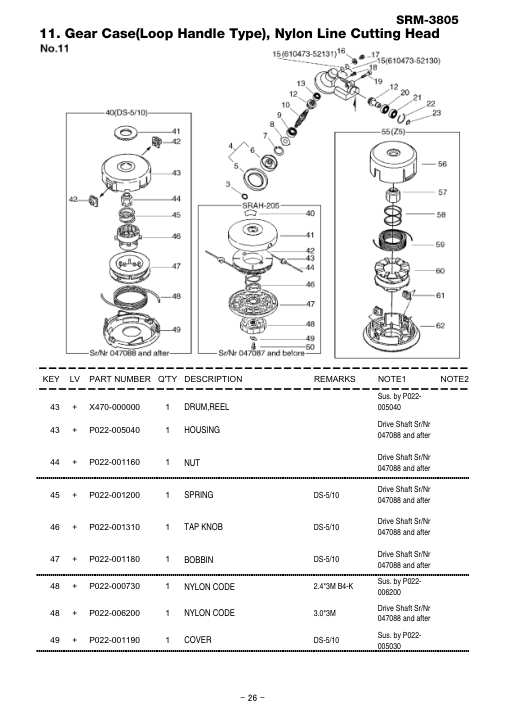

Page 27
Tap or click the page image to enlarge it.
Page 28
Tap or click the page image to enlarge it.
Page 29
Tap or click the page image to enlarge it.
Page 30
Tap or click the page image to enlarge it.
Page 31
Tap or click the page image to enlarge it.
Page 32
Tap or click the page image to enlarge it.

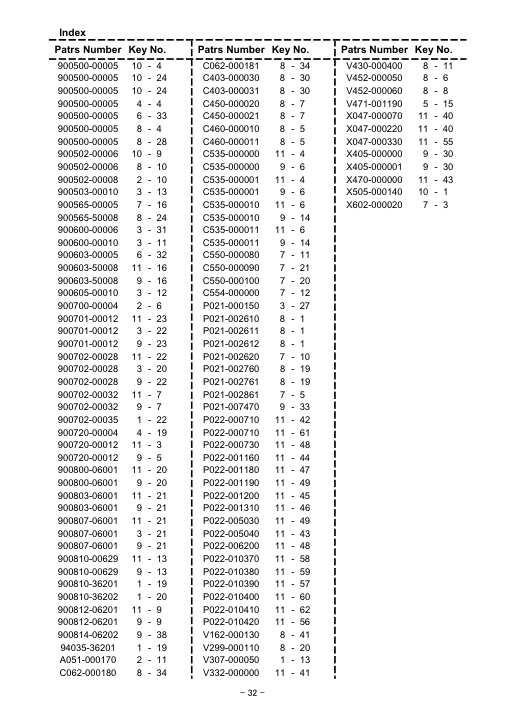

Page 33
Tap or click the page image to enlarge it.
Page 34
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 3 | Screw 5*14 | 900238-05014 | 900238-05014-Online | 5*14 | |
| 2 | 1 | Guard, Top | 159905-43130 | 159905-43130-Online | ||
| 3 | 1 | Screw 5*10 | 900238-05010 | 900238-05010-Online | 5*10 | |
| 4 | 1 | Cover, Cylinder (Bs) | 101514-42230 | 101514-42230-Online | ||
| 5 | 1 | Cylinder | 101011-43130 | 101011-43130-Online | ||
| 6 | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 7 | 1 | Gasket, Cyl. Base | 101010-42231 | 101010-42231-Online | ||
| 8 | 1 | Piston Kit | 100000-43130 | 100000-43130-Online | Sus. by 100000- | 43131 | |
| 8 | 1 | Piston Kit | 100000-43131 | 100000-43131-Online | ||
| 9 | + | 2 | Ring, Piston | 100011-42230 | 100011-42230-Online | |
| 10 | + | 1 | Pin, Piston | 100013-00410 | 100013-00410-Online | 6*10*29.8 |
| 11 | + | 2 | Circlip, Piston Pin | 100015-00120 | 100015-00120-Online | |
| 12 | + | 1 | Bearing, Needle | 100012-27930 | 100012-27930-Online | Sus. by 100012- | 12331 |
| 12 | + | 1 | Bearing, Needle | 100012-12331 | 100012-12331-Online | |
| 13 | + | 2 | Spacer, Piston Pin | 100014-17330 | 100014-17330-Online | Sus. by V307- | 000050 |
| 13 | + | 2 | Washer,Circular 10 | V307-000050 | V307-000050-Online | |
| 14 | 1 | Crankshaft Assy | 100100-43130 | 100100-43130-Online | ||
| 15 | 1 | Key, Woodruff | 100142-12330 | 100142-12330-Online | ||
| 16 | 1 | Crankcase Kit | 100204-42230 | 100204-42230-Online | ||
| 17 | + | 1 | Oilseal | 100212-27930 | 100212-27930-Online | ISD 12 25 7 |
| 18 | + | 4 | Pin, Dowel | 100215-02830 | 100215-02830-Online | |
| 19 | + | 1 | Bearing, Ball 6201 | 900810-36201 | 900810-36201-Online | 6201/C3 | Sus. by 94035- | 36201 |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 19 | + | 1 | Bearing Ball | 94035-36201 | 94035-36201-Online | 6201X3JR2C3 |
| 20 | + | 1 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | 6202/C3 |
| 21 | + | 1 | Gasket, Crankcase | 100242-42230 | 100242-42230-Online | |
| 22 | + | 1 | Circlip 35 | 900702-00035 | 900702-00035-Online | CR㺎35 |
| 23 | + | 4 | Bolt, H.S. 5*30 | 900162-05030 | 900162-05030-Online | 5*30 W,SW |
| 24 | + | 1 | Oilseal | 100213-02830 | 100213-02830-Online | ISMX15,35,6 |
| 25 | 4 | Screw 4*10 | 900238-04010 | 900238-04010-Online | 4*10 | |
| 26 | 1 | Plate, Guide | 101534-42230 | 101534-42230-Online | ||
| 27 | 1 | Cover, Fan (Bs) | 101511-42230 | 101511-42230-Online | ||
| 28 | 4 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW | |
| 29 | 1 | Label, Model | 890611-43030 | 890611-43030-Online |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Pawl Assy, Starter | 177202-41030 | 177202-41030-Online | ||
| 6 | + | 1 | E-Ring 4 | 900700-00004 | 900700-00004-Online | CE-4 |
| 8 | + | 1 | Spring, Return | 177234-40630 | 177234-40630-Online | |
| 9 | + | 1 | Pawl, Starter | 177218-40630 | 177218-40630-Online | WHITE |
| 10 | 1 | Nut 8 (3N) | 900502-00008 | 900502-00008-Online | 3N8 | |
| 11 | 1 | Starter Assy (Bs) | 177200-43130 | 177200-43130-Online | Sus. by A051- | 000170 | |
| 11 | 1 | Starter,Recoil | A051-000170 | A051-000170-Online | ||
| 12 | + | 1 | Screw | 177236-40630 | 177236-40630-Online | |
| 13 | + | 1 | Washer | 177214-41030 | 177214-41030-Online | |
| 14 | + | 1 | Drum, Starter | 177215-43130 | 177215-43130-Online | |
| 15 | + | 1 | Spring, Rewind | 177220-40630 | 177220-40630-Online | |
| 17 | + | 1 | Rope, Starter | 177226-01110 | 177226-01110-Online | 4.0*880 |
| 18 | + | 1 | Guide, Rope | 177227-05530 | 177227-05530-Online | Sus. by 177227- | 42030 |
| 18 | + | 1 | Guide, Rope | 177227-42030 | 177227-42030-Online | |
| 19 | + | 1 | Grip, Starter | 177228-11120 | 177228-11120-Online | |
| 20 | 4 | Bolt, H.S. 4*20 | 900162-04020 | 900162-04020-Online | 4*20 W,SW | |
| 21 | 1 | Label, Echo | 890118-49330 | 890118-49330-Online |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Plug, Spark (Rcj-7Y) | 159017-10230 | 159017-10230-Online | RCJ-7Y | |
| 2 | 1 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | ||
| 3 | 1 | Cap, Spark Plug | 159012-03433 | 159012-03433-Online | ||
| 4 | 1 | Grommet | 156112-40630 | 156112-40630-Online | ||
| 5 | 1 | Lead | 162021-42230 | 162021-42230-Online | ||
| 6 | 1 | Lead, Ground | 156635-43130 | 156635-43130-Online | ||
| 7 | 1 | Screw 5*10 | 900238-05010 | 900238-05010-Online | 5*10 | |
| 8 | 1 | Coil, Ignition | 156626-42230 | 156626-42230-Online | Sus. by set of | 156601-12920 and | |
| 8 | 1 | Coil,Ignition | 156601-12920 | 156601-12920-Online | ||
| 9 | 2 | Screw 5*20 | 900238-05020 | 900238-05020-Online | 5*20 | |
| 10 | 1 | Flywheel | 156801-42230 | 156801-42230-Online | ||
| 11 | 1 | Washer 10 | 900600-00010 | 900600-00010-Online | ||
| 12 | 1 | Washer, Spring 10 | 900605-00010 | 900605-00010-Online | ||
| 13 | 1 | Nut 10 (3N *1.25) | 900503-00010 | 900503-00010-Online | 3N10*P1.25 | |
| 14 | 2 | Washer | 175049-03920 | 175049-03920-Online | ||
| 15 | 2 | Shoe, Clutch | 175009-42231 | 175009-42231-Online | ||
| 16 | 1 | Spring, Clutch | 175018-42230 | 175018-42230-Online | ||
| 17 | 2 | Washer | 175048-03920 | 175048-03920-Online | ||
| 18 | 2 | Bolt, Clutch | 175046-06230 | 175046-06230-Online | ||
| 19 | 1 | Drum, Clutch | 175005-43130 | 175005-43130-Online | ||
| 20 | 1 | Circlip 28 | 900702-00028 | 900702-00028-Online | CR-28 | |
| 21 | 2 | Bearing, Ball 6001 | 900807-06001 | 900807-06001-Online | 6001V(LB) | |
| 22 | 1 | Circlip 12 | 900701-00012 | 900701-00012-Online | CS-12 |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 23 | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 26 | 1 | Cushion | 610910-40430 | 610910-40430-Online | Sr/Nr 004950 and | before | |
| 27 | 1 | Holder Kit | 610903-40430 | 610903-40430-Online | Sr/Nr 004950 and | before | |
| 30 | + | 2 | Bolt 5*25 (W/W,Sw) | 900142-05025 | 900142-05025-Online | 5*25 | Sr/Nr 004950 and | before |
| 25 | 1 | Flange (Bs) | 610205-43130 | 610205-43130-Online | Sus. by 610203- | 43130 | |
| 24 | 1 | Flange, Asy | 610203-43130 | 610203-43130-Online | ||
| 25 | + | 1 | Case, Clutch Drum | 610205-43131 | 610205-43131-Online | Sr/Nr 004951 and | after |
| 26 | + | 1 | Cushion | 610910-55630 | 610910-55630-Online | Sus. by 610910- | 51830 |
| 26 | + | 1 | Cushion | 610910-51830 | 610910-51830-Online | Sr/Nr 004951 and | after |
| 27 | + | 1 | Holder Kit | P021-000150 | P021-000150-Online | Sr/Nr 004951 and | after | 28 | ++ |
| 28 | 1 | Holder, Pipe | 610922-55630 | 610922-55630-Online | Sr/Nr 004951 and | after | 29 | ++ | |
| 29 | 1 | Holder, Main Pipe | 610922-43130 | 610922-43130-Online | Sr/Nr 004951 and | after | 30 | ++ | |
| 30 | 2 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW | Sr/Nr 004951 and | after | |
| 31 | 2 | Washer 6 | 900600-00006 | 900600-00006-Online |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 4 | 2 | Nut 5 | 900500-00005 | 900500-00005-Online | ||
| 5 | 1 | Gasket, Intake | 130016-42231 | 130016-42231-Online | ||
| 6 | 1 | Insulator | 130017-43130 | 130017-43130-Online | ||
| 7 | 2 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW | |
| 8 | 1 | Gasket, Intake | 130016-06232 | 130016-06232-Online | ||
| 9 | 1 | Carburetor Assy | 123000-51430 | 123000-51430-Online | WT-297 | |
| 10 | 1 | Rod, Choke | 178510-47530 | 178510-47530-Online | ||
| 11 | 1 | Case, Air Cleaner | 130301-43130 | 130301-43130-Online | ||
| 12 | + | 1 | Grommet | 178810-05230 | 178810-05230-Online | |
| 13 | 1 | Shutter, Choke | 178515-43130 | 178515-43130-Online | ||
| 14 | 2 | Spacer | 178516-00830 | 178516-00830-Online | 5.2*8*0.8T | |
| 15 | 1 | Plate | 129006-43130 | 129006-43130-Online | ||
| 16 | 2 | Screw 5*57 | 900242-05057 | 900242-05057-Online | 5*57 | |
| 17 | 1 | Filter, Air | 130310-43130 | 130310-43130-Online | ||
| 18 | 1 | Cover Assy, Air Cln. | 130302-43132 | 130302-43132-Online | ||
| 19 | + | 1 | O-Ring (P-4) | 900720-00004 | 900720-00004-Online | P-4 |
| 20 | + | 1 | Screw | 130415-40630 | 130415-40630-Online | |
| 21 | 1 | Label, Choke | 890121-47530 | 890121-47530-Online |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | ||
| 3 | + | 1 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |
| 4 | + | 1 | Clip, Fuel Cap | 131051-56030 | 131051-56030-Online | |
| 5 | 1 | Pipe | 132010-51230 | 132010-51230-Online | 3*5*60 NBR | |
| 6 | 1 | Pipe 3*6*90 | 132010-56330 | 132010-56330-Online | 3*6*90 YL | |
| 7 | 3 | Cushion | 131923-11120 | 131923-11120-Online | ||
| 8 | 1 | Tank, Fuel | 131010-46930 | 131010-46930-Online | Sus. by 131010- | 46931 | |
| 8 | 1 | Tank, Fuel | 131010-46931 | 131010-46931-Online | ||
| 9 | 1 | Cushion | 131924-43130 | 131924-43130-Online | ||
| 10 | 1 | Bracket,Fueltank(Bl) | 131910-43130 | 131910-43130-Online | ||
| 11 | 2 | Screw 5*14 | 900238-05014 | 900238-05014-Online | 5*14 | |
| 12 | 1 | Cover, Vent | 131328-40630 | 131328-40630-Online | ||
| 13 | 1 | Valve, Check | 131300-56430 | 131300-56430-Online | ||
| 14 | 1 | Clip | 130111-00530 | 130111-00530-Online | 5.5 | |
| 15 | 1 | Pipe, Fuel | 132010-13930 | 132010-13930-Online | 3*5*180L NBR | Sus. by V471- | 001190 | |
| 15 | 1 | Pipe | V471-001190 | V471-001190-Online | 3*5*180 NBR | |
| 17 | 1 | Strainer, Fuel | 131205-19830 | 131205-19830-Online | ||
| 18 | 1 | Grommet, Fuel | 132115-46730 | 132115-46730-Online | ||
| 19 | 1 | Clip | 132013-09820 | 132013-09820-Online | 6MM | |
| 20 | 1 | Gasket, Muffler | 145510-42231 | 145510-42231-Online | ||
| 22 | 1 | Muffler (Bl) | 145610-43130 | 145610-43130-Online | ||
| 23 | 2 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 25 | 1 | Gasket, Muffler Lid | 145866-43131 | 145866-43131-Online |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 26 | 1 | Lid, Muffler | 145867-43131 | 145867-43131-Online | ||
| 27 | 7 | Screw 4*10 | 900238-04010 | 900238-04010-Online | 4*10 | |
| 28 | 1 | Cover, Muffler | 145871-43130 | 145871-43130-Online | ||
| 29 | 1 | Screw 5*14 | 900238-05014 | 900238-05014-Online | 5*14 |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 25 | 1 | Shield Assy | 699000-52930 | 699000-52930-Online | Sus. by 699000- | 52931 | |
| 25 | 1 | Shield Asy | 699000-52931 | 699000-52931-Online | Drive Shaft Sr/Nr | 049468 and before | |
| 26 | + | 1 | Plate, Shield | 699013-52130 | 699013-52130-Online | Drive Shaft Sr/Nr | 049468 and before |
| 27 | + | 4 | Bolt, H.S. 5*18 | 900162-05018 | 900162-05018-Online | 5*18 W,SW | Drive Shaft Sr/Nr | 049468 and before |
| 28 | + | 2 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | Drive Shaft Sr/Nr | 049468 and before |
| 29 | + | 4 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW |
| 30 | + | 1 | Plate, Shield | 699013-56830 | 699013-56830-Online | |
| 31 | + | 1 | Knife, Cord | 699016-52130 | 699016-52130-Online | Sus. by 699016- | 54530 |
| 31 | + | 1 | Knife | 699016-54530 | 699016-54530-Online | Drive Shaft Sr/Nr | 049468 and before |
| 32 | + | 4 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | Drive Shaft Sr/Nr | 049468 and before |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 33 | + | 6 | Nut 5 | 900500-00005 | 900500-00005-Online | 5 | Drive Shaft Sr/Nr | 049468 and before |
| 34 | + | 1 | Shield, Blade | 699010-52930 | 699010-52930-Online | Sus. by 699010- | 52931 |
| 34 | + | 1 | Shield,Blade | 699010-52931 | 699010-52931-Online | Drive Shaft Sr/Nr | 049468 and before |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | L-Wrench (4Mm) | 895610-00130 | 895610-00130-Online | ||
| 2 | 1 | Spanner 8*10 | 895112-00330 | 895112-00330-Online | ||
| 3 | 1 | Wrench, W/S. Driver | 895410-08030 | 895410-08030-Online | Sus. by X602- | 000020 | |
| 3 | 1 | Tool,Wrench | X602-000020 | X602-000020-Online | 17*19 L200 | |
| 4 | 1 | Locking Tool | 897518-01131 | 897518-01131-Online | ||
| 5 | 1 | Goggle | 899580-40930 | 899580-40930-Online | Sus. by P021- | 002861 | |
| 5 | 1 | Safety Glasses | 899580-68730 | 899580-68730-Online | Sus. by P021- | 002861 | |
| 5 | 1 | Goggles | P021-002861 | P021-002861-Online | ||
| 6 | 1 | Bag, Tool | 898510-39130 | 898510-39130-Online | ||
| 10 | 1 | Shield,Blade(W/Knife | P021-002620 | P021-002620-Online | Drive Shaft Sr/Nr | 049469 and after | |
| 11 | + | 1 | Shield,Blade | C550-000080 | C550-000080-Online | Drive Shaft Sr/Nr | 049469 and after |
| 12 | + | 1 | Knife,Cord | C554-000000 | C554-000000-Online | Drive Shaft Sr/Nr | 049469 and after |
| 13 | + | 1 | Screw 5*12 | 900252-05012 | 900252-05012-Online | 5*12 | Drive Shaft Sr/Nr | 049469 and after |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 16 | 1 | Nut | 900565-00005 | 900565-00005-Online | 5 | Drive Shaft Sr/Nr | 049469 and after | |
| 17 | 1 | Screw 5*18 | 900242-05018 | 900242-05018-Online | 5*18 | Drive Shaft Sr/Nr | 049469 and after | |
| 20 | 1 | Shield,Blade | C550-000100 | C550-000100-Online | Drive Shaft Sr/Nr | 049469 and after | |
| 21 | 1 | Shield,Blade | C550-000090 | C550-000090-Online | Drive Shaft Sr/Nr | 049469 and after | |
| 22 | 1 | Plate, Shield | 699013-56830 | 699013-56830-Online | ||
| 23 | 4 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Grip Assy, F-Handle | 351102-47530 | 351102-47530-Online | Sr/Nr 015300 and | before | |
| 1 | 1 | Grip Asy,F-Handle | P021-002610 | P021-002610-Online | Sus. by P021- | 002612 | |
| 1 | 1 | Grip Asy,F-Handle | P021-002611 | P021-002611-Online | Sus. by P021- | 002612 | |
| 1 | 1 | Grip Asy,F-Handle | P021-002612 | P021-002612-Online | Sr/Nr 015301 and | after | |
| 2 | + | 4 | Screw 3*25 | 900246-03025 | 900246-03025-Online | 3*25 | Sr/Nr 015300 and | before |
| 2 | + | 3 | Screw 4*16 | 900246-04016 | 900246-04016-Online | 4*16 | Sus. by 900253- | 04016 |
| 2 | + | 3 | Screw 4*16 | 900253-04016 | 900253-04016-Online | 4*16 | Sr/Nr 015301 and | after |
| 3 | + | 1 | Screw 5*30 | 900220-05030 | 900220-05030-Online | 5*30 |
| 4 | + | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 41 | + | 1 | Plug | V162-000130 | V162-000130-Online | Can be used on | P021-002611 only |
| 5 | 1 | Lockout, Throttle | 178012-05960 | 178012-05960-Online | Sr/Nr 015300 and | before | |
| 5 | 1 | Lockout,Throttle | C460-000010 | C460-000010-Online | Sus. by C460- | 000011 | |
| 5 | 1 | Lockout,Throttle | C460-000011 | C460-000011-Online | Sr/Nr 015301 and | after |
Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 6 | 1 | Spring, Thr. Lock | 178013-35631 | 178013-35631-Online | Sr/Nr 015300 and | before | |
| 6 | 1 | Spring,Torsion | V452-000050 | V452-000050-Online | Sr/Nr 015301 and | after | |
| 7 | 1 | Control, Throttle | 178010-05960 | 178010-05960-Online | Sr/Nr 015300 and | before | |
| 7 | 1 | Trigger,Throttle | C450-000020 | C450-000020-Online | Sus. by C450- | 000021 | |
| 7 | 1 | Trigger,Throttle | C450-000021 | C450-000021-Online | Sr/Nr 015301 and | after | |
| 8 | 1 | Spring,Torsion | V452-000060 | V452-000060-Online | Sr/Nr 015301 and | after | |
| 9 | 1 | Switch, Ignition | 163401-43130 | 163401-43130-Online | ||
| 10 | 2 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 | |
| 11 | 1 | Wire, Throttle | 178001-43230 | 178001-43230-Online | Sr/Nr 015300 and | before | |
| 11 | 1 | Cable,Bowden | V430-000400 | V430-000400-Online | Sr/Nr 015301 and | after | |
| 12 | 1 | Tube | 178127-43230 | 178127-43230-Online | 7*820 | |
| 13 | 1 | Clip | 159112-09960 | 159112-09960-Online | Sus. by 159112- | 09961 | |
| 13 | 1 | Clip | 159112-09961 | 159112-09961-Online | ||
| 14 | 2 | Clip | 224924-52930 | 224924-52930-Online | 28MM | |
| 15 | 1 | Hook Ass'Y | 301200-05230 | 301200-05230-Online | ||
| 16 | + | 1 | Hook, Band | 301015-05330 | 301015-05330-Online | |
| 17 | + | 1 | Bolt, H.S. 5*12 | 900105-05012 | 900105-05012-Online | 5*12 |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 18 | + | 1 | Hook | 301210-04630 | 301210-04630-Online | |
| 19 | 1 | Bracket Assy, Handle | 351301-52930 | 351301-52930-Online | Drive Shaft Sr/Nr | 053234 and before | |
| 19 | 1 | Bracket Asy, Handle | P021-002760 | P021-002760-Online | Sus. by P021- | 002761 | |
| 19 | 1 | Bracket Asy, Handle | P021-002761 | P021-002761-Online | Drive Shaft Sr/Nr | 053235 and after | |
| 20 | + | 1 | Bolt | 351421-52130 | 351421-52130-Online | Drive Shaft Sr/Nr | 053234 and before |
| 20 | + | 1 | Knob,Fastener | V299-000110 | V299-000110-Online | Drive Shaft Sr/Nr | 053235 and after |
| 21 | + | 1 | Washer | 605014-54230 | 605014-54230-Online | |
| 22 | + | 2 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | Drive Shaft Sr/Nr | 053234 and before |
| 23 | + | 3 | Bolt, H.S. 5*30 | 900162-05030 | 900162-05030-Online | 5*30 W,SW |
| 24 | + | 1 | Nut | 900565-50008 | 900565-50008-Online | 8*1.25 |
| 25 | 1 | Handle | 351214-52930 | 351214-52930-Online | Sus. by 351214- | 52931 | |
| 25 | 1 | Handle | 351214-52931 | 351214-52931-Online | ||
| 26 | 1 | Bracket Assy, Handle | 351202-51430 | 351202-51430-Online | ||
| 27 | + | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW |
Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 28 | + | 4 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 29 | 1 | Handle, Front | 351010-52930 | 351010-52930-Online | Sus. by 351210- | 52931 | |
| 29 | 1 | Handle, Front | 351010-52931 | 351010-52931-Online | ||
| 30 | 1 | Grip, Handle | 351311-22430 | 351311-22430-Online | Drive Shaft Sr/Nr | 049468 and before | |
| 30 | 1 | Grip,Handle | C403-000030 | C403-000030-Online | Sus. by C403- | 000031 | |
| 30 | 1 | Grip,Handle | C403-000031 | C403-000031-Online | Drive Shaft Sr/Nr | 049469 and after | |
| 31 | 1 | Label, Caution | 890617-46830 | 890617-46830-Online | Sus. by 890617- | 43130 | |
| 31 | 1 | Label,Caution | 890617-43130 | 890617-43130-Online | ||
| 32 | 1 | Housing Assy, D.Shft | 610206-43130 | 610206-43130-Online | ||
| 33 | 1 | Shaft, Drive | 610011-06230 | 610011-06230-Online | ||
| 34 | 1 | Harness, Shoulder | 301001-56830 | 301001-56830-Online | Sus. by C062- | 000181 | |
| 34 | 1 | Harness Asy,Shoulder | 301001-56831 | 301001-56831-Online | Sus. by C062- | 000181 | |
| 34 | 1 | Harness,Shoulder | C062-000180 | C062-000180-Online | ECHO | Sus. by C062- | 000181 | |
| 34 | 1 | Harness,Shoulder | C062-000181 | C062-000181-Online | ||
| 35 | 1 | Label, Switch | 890157-39130 | 890157-39130-Online | Sr/Nr 015300 and | before |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 40 | 1 | Label, Caution | 890152-04930 | 890152-04930-Online |
Page 19 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Housing Assy, Gear | 610400-56930 | 610400-56930-Online | Sus. by 610400- | 56932 | |
| 1 | 1 | Case Asy, Gear | 610400-56931 | 610400-56931-Online | Sus. by 610400- | 56932 | |
| 1 | 1 | Case Asy, Gear | 610400-56932 | 610400-56932-Online | ||
| 2 | + | 1 | Nut 10 | 610320-52130 | 610320-52130-Online | |
| 3 | + | 1 | Plate, Cover | 699229-56830 | 699229-56830-Online | |
| 4 | + | 1 | Plate, Adapter (L) | 610314-52130 | 610314-52130-Online | |
| 5 | + | 1 | O-Ring 12 | 900720-00012 | 900720-00012-Online | P-12 |
| 6 | + | 1 | Plate, Adapter (U) | 610313-52930 | 610313-52930-Online | Sus. by C535- | 000001 |
| 6 | + | 1 | Fixture,Blade | C535-000000 | C535-000000-Online | Sus. by C535- | 000001 |
| 6 | + | 1 | Fixture,Blade | C535-000001 | C535-000001-Online | 11 | ++ |
| 11 | 1 | Plate, Cup | 610352-56830 | 610352-56830-Online | 14 | ++ | |
| 14 | 1 | Fixture,Blade | C535-000010 | C535-000010-Online | Sus. by C535- | 000011 | 14 | ++ | |
| 14 | 1 | Fixture,Blade | C535-000011 | C535-000011-Online | ||
| 7 | + | 1 | Circlip 32 | 900702-00032 | 900702-00032-Online | CR-32 |
| 8 | + | 1 | Washer | 610444-56830 | 610444-56830-Online | |
| 9 | + | 1 | Bearing, Ball 6201 | 900812-06201 | 900812-06201-Online | 6201DDU(LLU) |
| 10 | + | 1 | Shaft, P.T.O. | 610310-56930 | 610310-56930-Online | |
| 12 | + | 1 | Gear Set | 610300-56930 | 610300-56930-Online | |
| 13 | + | 1 | Bearing, Ball 629 | 900810-00629 | 900810-00629-Online |
Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 15 | + | 1 | Spring, Torsion | 610473-52130 | 610473-52130-Online | Drive Shaft Sr/Nr | 024886 and before |
| 15 | + | 1 | Spring | 610473-52131 | 610473-52131-Online | Drive Shaft Sr/Nr | 024887 and after |
| 16 | + | 1 | Washer | 900603-50008 | 900603-50008-Online | 8.5*18*0.8T |
| 17 | + | 1 | Bolt 8* 6 | 610434-50030 | 610434-50030-Online | Sus. by 610434- | 50031 |
| 17 | + | 1 | Bolt 8* 8 | 610434-50031 | 610434-50031-Online | M8*8 |
| 18 | + | 1 | Screw 5*10 | 900242-05010 | 900242-05010-Online | 5*10 |
| 19 | + | 1 | Bolt, H.S. 6*30 | 900162-06030 | 900162-06030-Online | 6*30W㺂SW |
| 20 | + | 1 | Bearing, Ball 6001 | 900800-06001 | 900800-06001-Online | |
| 21 | + | 1 | Bearing, Ball 6001 | 900807-06001 | 900807-06001-Online | 6001V(LB) | Drive Shaft Sr/Nr | 024886 and before |
| 21 | + | 1 | Bearing, Ball 6001 | 900803-06001 | 900803-06001-Online | 6001Z | Drive Shaft Sr/Nr | 024887 and after |
| 22 | + | 1 | Circlip 28 | 900702-00028 | 900702-00028-Online | CR-28 |
| 23 | + | 1 | Circlip 12 | 900701-00012 | 900701-00012-Online | CS-12 |
| 30 | 1 | Saw,Bush Cutter | X405-000000 | X405-000000-Online | 3*255*25.4*T2.0 | Sus. by X405- | 000001 | |
| 30 | 1 | Saw,Bush Cutter | X405-000001 | X405-000001-Online | 3*255*25.4*T2.0 |
Page 21 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 33 | 1 | Scabbard Kit, Blade | 898503-50030 | 898503-50030-Online | Sus. by P021- | 007470 | |
| 33 | 1 | Scabbard,Blade | P021-007470 | P021-007470-Online | ||
| 34 | + | 1 | Fixture, Scabbard | 898562-43230 | 898562-43230-Online | Can be used on | 898503-50030 only |
| 31 | 1 | Blade, 8-Cutter 10In | 696001-55631 | 696001-55631-Online | 255*8T*1.4 PD25 | OPTION | |
| 32 | 1 | Saw, Circular 10*80T | 695001-55631 | 695001-55631-Online | 255*80T*1.4 PD25 OPTION | |
| 35 | 1 | Cap Assy, Free | 699200-56830 | 699200-56830-Online | OPTION | |
| 36 | + | 1 | Plate, Adapter (U) | 610313-56830 | 610313-56830-Online | OPTION |
| 37 | + | 1 | Holder, Bearing | 699226-05430 | 699226-05430-Online | OPTION |
| 38 | + | 1 | Bearing, Ball 6202 | 900814-06202 | 900814-06202-Online | 6202ZZ | OPTION |
| 39 | + | 1 | Nut | 699227-04630 | 699227-04630-Online | OPTION |
| 40 | + | 1 | Plate, Cover | 699228-08930 | 699228-08930-Online | OPTION |
| 41 | + | 4 | Bolt 5*12 | 900141-05012 | 900141-05012-Online | 5*12 | OPTION |
Page 22 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Label, Caution | 890177-46730 | 890177-46730-Online | Sus. by 890617- | 43130 | |
| 1 | 1 | Label,Caution | 890617-63630 | 890617-63630-Online | Sus. by 890617- | 43130 | |
| 1 | 1 | Label,Caution | X505-000140 | X505-000140-Online | Sus. by 890617- | 43130 | |
| 1 | 1 | Label,Caution | 890617-43130 | 890617-43130-Online | ||
| 2 | 1 | Handle Assy, Loop | 351201-55630 | 351201-55630-Online | ||
| 3 | + | 4 | Screw 5*35 | 900242-05035 | 900242-05035-Online | 5*35 |
| 4 | + | 4 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 5 | 1 | Coller | 610281-42230 | 610281-42230-Online | ||
| 6 | + | 2 | Screw 4*25 | 900253-04025 | 900253-04025-Online | 4*25 |
| 7 | 1 | Wire, Throttle | 178001-12620 | 178001-12620-Online | ||
| 8 | 1 | Tube | 178127-43130 | 178127-43130-Online | 7*230 | |
| 9 | 2 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 | |
| 10 | 1 | Shaft, Drive | 610011-06230 | 610011-06230-Online | ||
| 11 | 1 | Label, Switch | 890157-39130 | 890157-39130-Online | ||
| 12 | 1 | Hook | 301207-07530 | 301207-07530-Online | ||
| 13 | 1 | Bolt 5*18 | 900100-05018 | 900100-05018-Online | 5*18 | |
| 14 | 1 | Spacer | 699012-03330 | 699012-03330-Online | ||
| 15 | 1 | Hook Assy | 301200-42230 | 301200-42230-Online | ||
| 16 | + | 1 | Screw 5*14 | 900242-05014 | 900242-05014-Online | 5*14 |
| 17 | 1 | Bracket Set,Throttle | 178003-51830 | 178003-51830-Online | ||
| 18 | + | 1 | Screw 5*35 | 900242-05035 | 900242-05035-Online | 5*35 |
| 19 | + | 1 | Screw 5*25 | 900242-05025 | 900242-05025-Online | 5*25 |
| 24 | + | 2 | Nut 5 | 900500-00005 | 900500-00005-Online |
Page 23 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 20 | 1 | Lockout, Throttle | 178012-52630 | 178012-52630-Online | ||
| 21 | 1 | Control, Throttle | 178010-52130 | 178010-52130-Online | ||
| 22 | 1 | Spring, Thr. Return | 178043-42230 | 178043-42230-Online | ||
| 23 | 1 | Switch, Ignition | 163400-49330 | 163400-49330-Online | ||
| 25 | 1 | Lockout, T. Control | 178090-52630 | 178090-52630-Online | Sus. by 178090- | 52632 | |
| 25 | 1 | Lockout, T. Control | 178090-52631 | 178090-52631-Online | Sus. by 178090- | 52632 | |
| 25 | 1 | Lockout, T. Control | 178090-52632 | 178090-52632-Online | ||
| 26 | 1 | Spring, Thr. Lock | 178013-52630 | 178013-52630-Online | ||
| 27 | 1 | Grip, Front Handle | 351213-51830 | 351213-51830-Online | ||
| 28 | 1 | Band | 610272-51830 | 610272-51830-Online | ||
| 24 | + | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 29 | + | 1 | Screw 5*28 | 900242-05028 | 900242-05028-Online | 5*28 |
| 30 | 1 | Housing Assy, D.Shft | 610206-43130 | 610206-43130-Online | ||
| 31 | 1 | Harness Assy | 301000-55230 | 301000-55230-Online | Sus. by 301000- | 55231 | |
| 31 | 1 | Harness Asy,Shoulder | 301000-55231 | 301000-55231-Online | ||
| 32 | + | 1 | Link | 301305-24330 | 301305-24330-Online | |
| 33 | 1 | Label, Caution | 890152-04930 | 890152-04930-Online |
Page 24 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 3 | 1 | O-Ring 12 | 900720-00012 | 900720-00012-Online | P-12 | |
| 4 | 1 | Plate, Adapter (U) | 610313-52930 | 610313-52930-Online | Sus. by C535- | 000001 | |
| 4 | 1 | Fixture,Blade | C535-000000 | C535-000000-Online | Sus. by C535- | 000001 | |
| 4 | 1 | Fixture,Blade | C535-000001 | C535-000001-Online | ||
| 5 | + | 1 | Plate, Cup | 610352-56830 | 610352-56830-Online | |
| 6 | + | 1 | Fixture,Blade | C535-000010 | C535-000010-Online | Sus. by C535- | 000011 |
| 6 | + | 1 | Fixture,Blade | C535-000011 | C535-000011-Online | |
| 7 | 1 | Circlip 32 | 900702-00032 | 900702-00032-Online | CR-32 | |
| 8 | 1 | Washer | 610444-56830 | 610444-56830-Online | ||
| 9 | 1 | Bearing, Ball 6201 | 900812-06201 | 900812-06201-Online | 6201DDU(LLU) | |
| 10 | 1 | Shaft, P.T.O. | 610310-56930 | 610310-56930-Online | ||
| 12 | 1 | Gear Set | 610300-56930 | 610300-56930-Online | ||
| 13 | 1 | Bearing, Ball 629 | 900810-00629 | 900810-00629-Online | ||
| 15 | 1 | Spring, Torsion | 610473-52130 | 610473-52130-Online | Drive Shaft Sr/Nr | 024886 and before | |
| 15 | 1 | Spring | 610473-52131 | 610473-52131-Online | Drive Shaft Sr/Nr | 024887 and after | |
| 16 | 1 | Washer | 900603-50008 | 900603-50008-Online | 8.5*18*0.8T | |
| 17 | 1 | Bolt 8* 6 | 610434-50030 | 610434-50030-Online | Sus. by 610434- | 50031 | |
| 17 | 1 | Bolt 8* 8 | 610434-50031 | 610434-50031-Online | M8*8 |
Page 25 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 18 | 1 | Screw 5*10 | 900242-05010 | 900242-05010-Online | 5*10 | |
| 19 | 1 | Bolt, H.S. 6*30 | 900162-06030 | 900162-06030-Online | 6*30W㺂SW | |
| 20 | 1 | Bearing, Ball 6001 | 900800-06001 | 900800-06001-Online | ||
| 21 | 1 | Bearing, Ball 6001 | 900807-06001 | 900807-06001-Online | 6001V(LB) | Drive Shaft Sr/Nr | 024886 and before | |
| 21 | 1 | Bearing, Ball 6001 | 900803-06001 | 900803-06001-Online | 6001Z | Drive Shaft Sr/Nr | 024887 and after | |
| 22 | 1 | Circlip 28 | 900702-00028 | 900702-00028-Online | CR-28 | |
| 23 | 1 | Circlip 12 | 900701-00012 | 900701-00012-Online | CS-12 | |
| 40 | 1 | Label, Caution | 890617-46730 | 890617-46730-Online | Drive Shaft Sr/Nr | 047087 and before | |
| 41 | 1 | Drum, Reel | 696210-56930 | 696210-56930-Online | Drive Shaft Sr/Nr | 047087 and before | |
| 42 | 1 | Reel, Cord | 696214-06830 | 696214-06830-Online | Drive Shaft Sr/Nr | 047087 and before | |
| 43 | 2 | Eyelet | 696212-06032 | 696212-06032-Online | Drive Shaft Sr/Nr | 047087 and before | |
| 44 | 2 | Cord, Nylon(2.4*2.5) | 696215-22830 | 696215-22830-Online | Drive Shaft Sr/Nr | 047087 and before |
Page 26 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 46 | 1 | Spring | 696216-06030 | 696216-06030-Online | Drive Shaft Sr/Nr | 047087 and before | |
| 47 | 1 | Cover, Drum (Bl) | 696206-28232 | 696206-28232-Online | Drive Shaft Sr/Nr | 047087 and before | |
| 48 | 1 | Nut (Bl) | 696219-28231 | 696219-28231-Online | Drive Shaft Sr/Nr | 047087 and before | |
| 49 | 1 | Stopper, Nut | 696220-06030 | 696220-06030-Online | Drive Shaft Sr/Nr | 047087 and before | |
| 50 | 1 | Screw 6*10 | 900220-06010 | 900220-06010-Online | 6*10 | Drive Shaft Sr/Nr | 047087 and before | |
| 40 | 1 | Cutter,Asm Line | X047-000070 | X047-000070-Online | DS-5/10 | Sus. by X047- | 000330 | |
| 40 | 1 | Cutter,Asm Line | X047-000220 | X047-000220-Online | DS-5 M10L | Sus. by X047- | 000330 | |
| 41 | + | 1 | Washer,Circular 24 | V332-000000 | V332-000000-Online | Drive Shaft Sr/Nr | 047088 and after |
| 42 | + | 2 | Eyelet | P022-000710 | P022-000710-Online | T4 | Drive Shaft Sr/Nr | 047088 and after |
Page 27 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 43 | + | 1 | Drum,Reel | X470-000000 | X470-000000-Online | Sus. by P022- | 005040 |
| 43 | + | 1 | Housing | P022-005040 | P022-005040-Online | Drive Shaft Sr/Nr | 047088 and after |
| 44 | + | 1 | Nut | P022-001160 | P022-001160-Online | Drive Shaft Sr/Nr | 047088 and after |
| 45 | + | 1 | Spring | P022-001200 | P022-001200-Online | DS-5/10 | Drive Shaft Sr/Nr | 047088 and after |
| 46 | + | 1 | Tap Knob | P022-001310 | P022-001310-Online | DS-5/10 | Drive Shaft Sr/Nr | 047088 and after |
| 47 | + | 1 | Bobbin | P022-001180 | P022-001180-Online | DS-5/10 | Drive Shaft Sr/Nr | 047088 and after |
| 48 | + | 1 | Nylon Code | P022-000730 | P022-000730-Online | 2.4*3M B4-K | Sus. by P022- | 006200 |
| 48 | + | 1 | Nylon Code | P022-006200 | P022-006200-Online | 3.0*3M | Drive Shaft Sr/Nr | 047088 and after |
| 49 | + | 1 | Cover | P022-001190 | P022-001190-Online | DS-5/10 | Sus. by P022- | 005030 |
Page 28 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 49 | + | 1 | Cover | P022-005030 | P022-005030-Online | Drive Shaft Sr/Nr | 047088 and after |
| 55 | 1 | Cutter,Asm Line | X047-000330 | X047-000330-Online | Z-5 M10 L | |
| 56 | + | 1 | Housing | P022-010420 | P022-010420-Online | |
| 57 | + | 1 | Part | P022-010390 | P022-010390-Online | |
| 58 | + | 1 | Spring | P022-010370 | P022-010370-Online | |
| 59 | + | 1 | Nylon Code | P022-010380 | P022-010380-Online | |
| 60 | + | 1 | Bobbin | P022-010400 | P022-010400-Online | |
| 61 | + | 2 | Eyelet | P022-000710 | P022-000710-Online | T4 |
| 62 | + | 1 | Cover | P022-010410 | P022-010410-Online |
Page 29 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 2 | Screw | 123110-43130 | 123110-43130-Online | |
| 2 | + | 1 | Cover, Primer Pump | 123142-09560 | 123142-09560-Online | |
| 3 | + | 1 | Pump, Primer | 123181-09560 | 123181-09560-Online | |
| 4 | + | 1 | Valve, Check | 123171-35630 | 123171-35630-Online | |
| 5 | + | 1 | Cover, Fuel Pump | 123124-43130 | 123124-43130-Online | |
| 6 | + | 1 | Spring, Idle Adjust | 123133-04260 | 123133-04260-Online | |
| 7 | + | 1 | Screw, Idle Adjust | 123134-04260 | 123134-04260-Online | |
| 8 | + | 1 | Gasket, Fuel Pump | 123125-09560 | 123125-09560-Online | |
| 9 | + | 1 | Diaphragm, Fuel Pump | 123112-09560 | 123112-09560-Online | |
| 10 | + | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |
| 11 | + | 1 | Shaft, Throttle | 123117-05020 | 123117-05020-Online | |
| 12 | + | 1 | Spring, Thrt. Return | 123113-15030 | 123113-15030-Online | |
| 13 | + | 1 | Clip, Throttle Shaft | 123127-03930 | 123127-03930-Online | |
| 15 | + | 1 | Screw | 123114-03930 | 123114-03930-Online | Sr/Nr 002319 and | before |
| 15 | + | 1 | Screw | 123114-38830 | 123114-38830-Online | Sr/Nr 002320 and | after |
| 16 | + | 1 | Valve, Throttle | 123116-10530 | 123116-10530-Online | |
| 17 | + | 1 | Valve, Inlet Needle | 123137-04260 | 123137-04260-Online | |
| 18 | + | 1 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | |
| 19 | + | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |
| 20 | + | 1 | Lever, Metering | 123123-03930 | 123123-03930-Online | |
| 21 | + | 1 | Spring, Meter. Lever | 123122-06530 | 123122-06530-Online | |
| 22 | + | 1 | Spring, Needle | 123119-22130 | 123119-22130-Online | |
| 23 | + | 1 | Needle, High Speed | 123120-51430 | 123120-51430-Online |
Page 30 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 24 | + | 1 | Needle, Idle | 123118-37330 | 123118-37330-Online | |
| 25 | + | 1 | Spring, Needle | 123121-22130 | 123121-22130-Online | |
| 26 | + | 1 | Plug, Welch | 123146-10631 | 123146-10631-Online | |
| 27 | + | 1 | Screen | 123168-10631 | 123168-10631-Online | |
| 28 | + | 1 | Ring, Retaining | 123169-10630 | 123169-10630-Online | |
| 29 | + | 1 | Plug, Cup | 123146-17330 | 123146-17330-Online | |
| 30 | + | 1 | Gasket, M. Diaphragm | 123140-03930 | 123140-03930-Online | |
| 31 | + | 1 | Diaphragm, Metering | 123141-03930 | 123141-03930-Online | |
| 32 | + | 1 | Cover, M. Diaphragm | 123142-03930 | 123142-03930-Online | |
| 33 | + | 5 | Screw | 123130-02960 | 123130-02960-Online | |
| 34 | + | 1 | Swivel | 123172-26030 | 123172-26030-Online | |
| 35 | + | 1 | Washer | 123149-26030 | 123149-26030-Online | |
| 36 | + | 1 | Clip | 123173-07930 | 123173-07930-Online | |
| 37 | 1 | Spring, Flat | 101121-56430 | 101121-56430-Online |
Source PDF: 20130718-641_SRM-3805_SRM-3805_EN.pdf. Generated 2026-06-25 14:38.
