Illustrated Parts List
Shindaiwa 41RS Spreader IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: 41RS
Type: Spreader
SKU format: xxxx-Online

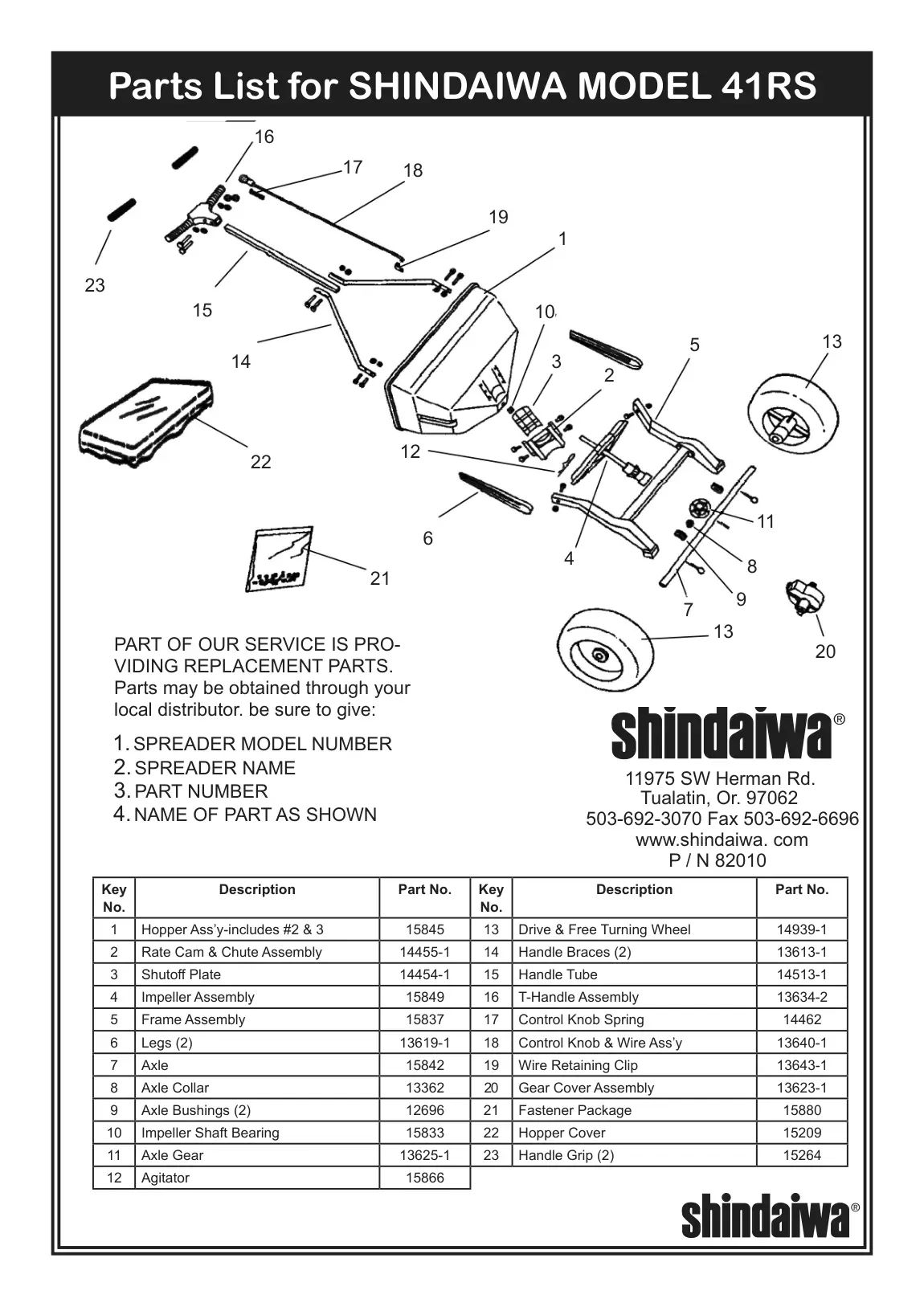

How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|
| 1 | NAME OF PART AS SHOWN | 1 | Drive & Free Turning Wheel | 15845 | 15845-Online |
| 1 | NAME OF PART AS SHOWN | 10 | Hopper Cover | 15833 | 15833-Online |
| 1 | NAME OF PART AS SHOWN | 11 | Handle Grip (2) | 13625 | 13625-Online |
| 1 | NAME OF PART AS SHOWN | 13 | Rate Cam & Chute Assembly | 14939 | 14939-Online |
| 1 | NAME OF PART AS SHOWN | 14 | Shutoff Plate | 13613 | 13613-Online |
| 1 | NAME OF PART AS SHOWN | 15 | Impeller Assembly | 14513 | 14513-Online |
| 1 | NAME OF PART AS SHOWN | 16 | Frame Assembly | 13634 | 13634-Online |
| 1 | NAME OF PART AS SHOWN | 17 | Legs (2) | 14462 | 14462-Online |
| 1 | NAME OF PART AS SHOWN | 19 | Axle Collar | 13643 | 13643-Online |
| 1 | NAME OF PART AS SHOWN | 2 | Handle Braces (2) | 14455 | 14455-Online |
| 1 | NAME OF PART AS SHOWN | 20 | Axle Bushings (2) | 13623 | 13623-Online |
| 1 | NAME OF PART AS SHOWN | 21 | Impeller Shaft Bearing | 15880 | 15880-Online |
| 1 | NAME OF PART AS SHOWN | 22 | Axle Gear | 15209 | 15209-Online |
| 1 | NAME OF PART AS SHOWN | 23 | Agitator | 15264 | 15264-Online |
| 1 | NAME OF PART AS SHOWN | 3 | Handle Tube | 14454 | 14454-Online |
| 1 | NAME OF PART AS SHOWN | 4 | T-Handle Assembly | 15849 | 15849-Online |
| 1 | NAME OF PART AS SHOWN | 5 | Control Knob Spring | 15837 | 15837-Online |
| 1 | NAME OF PART AS SHOWN | 6 | Control Knob & Wire Ass’y | 13619 | 13619-Online |
| 1 | NAME OF PART AS SHOWN | 7 | Wire Retaining Clip | 15842 | 15842-Online |
| 1 | NAME OF PART AS SHOWN | 8 | Gear Cover Assembly | 13362 | 13362-Online |
| 1 | NAME OF PART AS SHOWN | 9 | Fastener Package | 12696 | 12696-Online |
Source file: 20111007-221_41RS.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
