Illustrated Parts List
Shindaiwa 451S Chainsaw IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: 451S
Type: Chainsaw
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

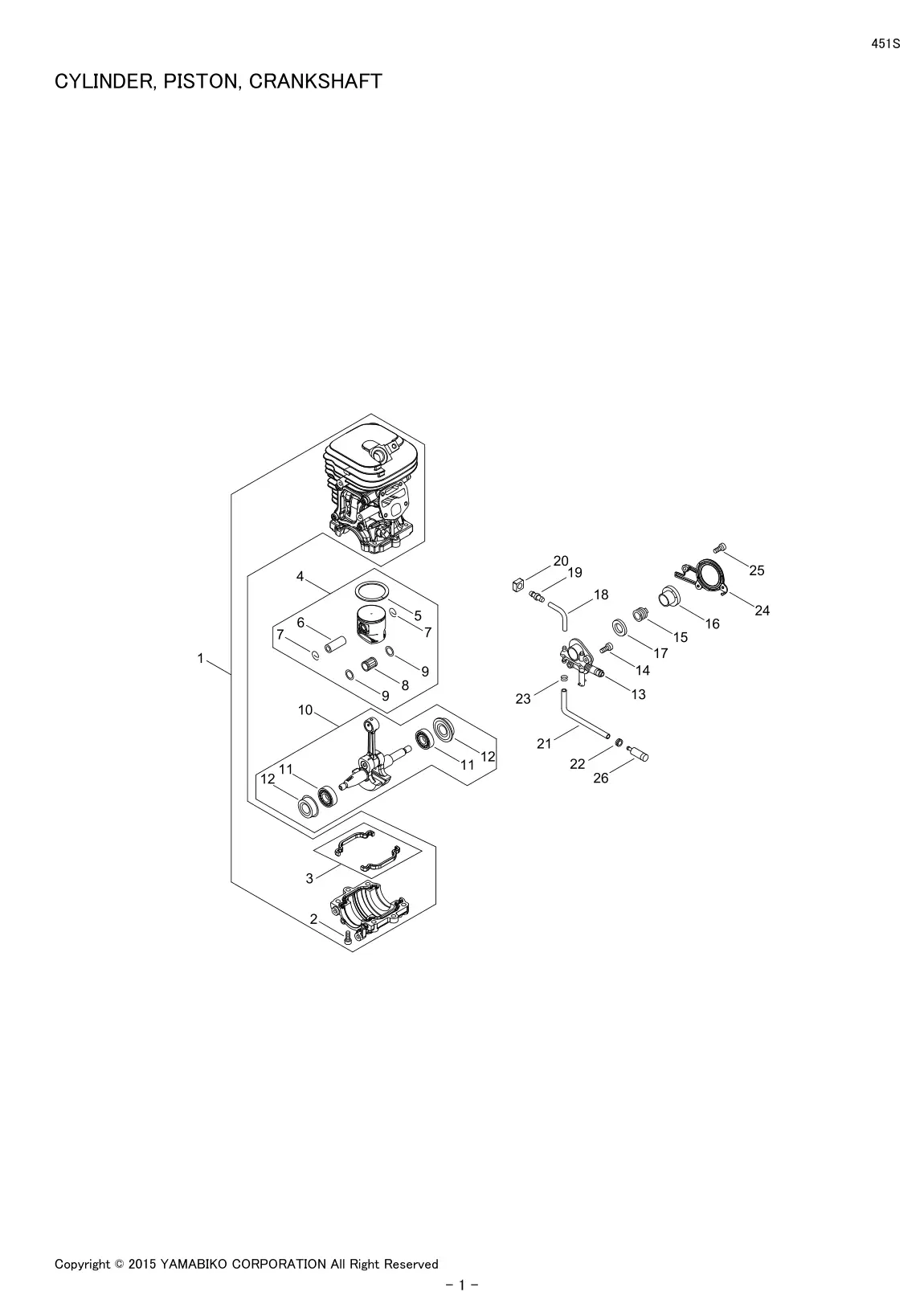

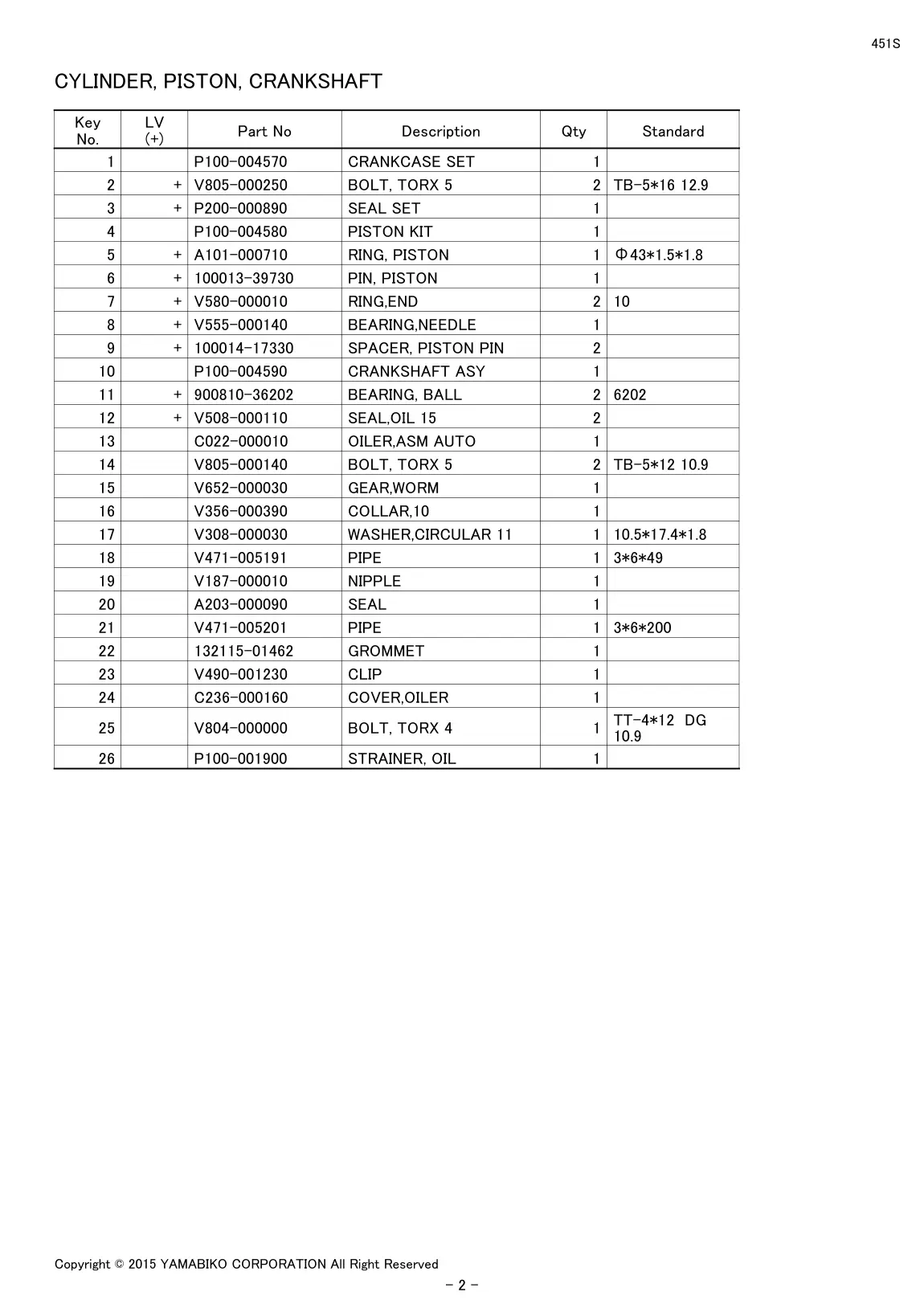

| 4 | CYLINDER, PISTON, CRANKSHAFT | 1 | CRANKCASE SET | P100-004570 | P100-004570-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 10 | CRANKSHAFT ASY | P100-004590 | P100-004590-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 11 | BEARING, BALL | 900810-36202 | 900810-36202-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 12 | SEAL,OIL | V508-000110 | V508-000110-Online |

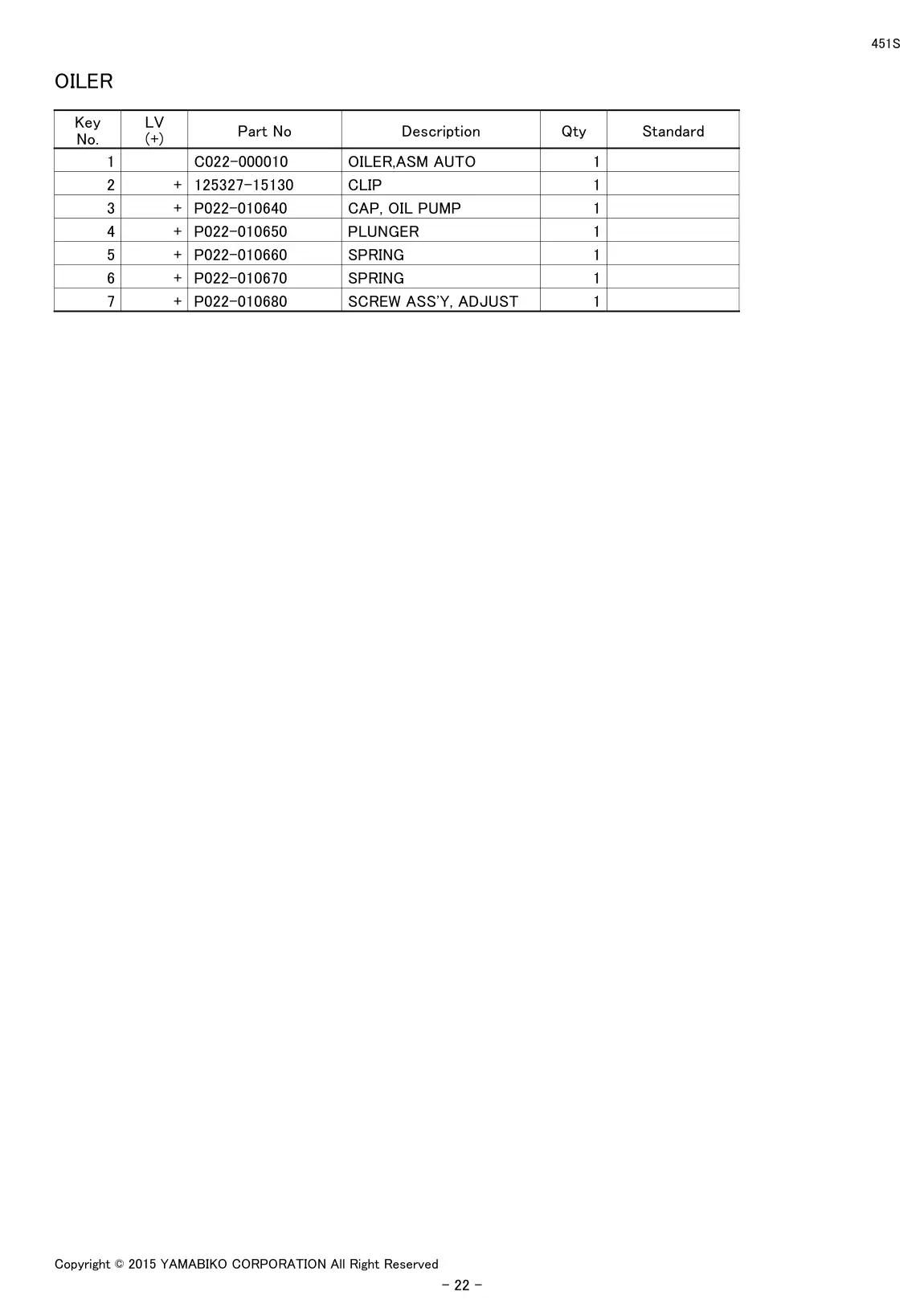

| 4 | CYLINDER, PISTON, CRANKSHAFT | 13 | OILER,ASM AUTO | C022-000010 | C022-000010-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 14 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 15 | GEAR,WORM | V652-000030 | V652-000030-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 16 | COLLAR,10 | V356-000390 | V356-000390-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 17 | WASHER,CIRCULAR | V308-000030 | V308-000030-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 18 | PIPE | V471-005191 | V471-005191-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 19 | NIPPLE | V187-000010 | V187-000010-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 2 | BOLT, TORX | V805-000250 | V805-000250-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 20 | SEAL | A203-000090 | A203-000090-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 21 | PIPE | V471-005201 | V471-005201-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 22 | GROMMET | 132115-01462 | 132115-01462-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 23 | CLIP | V490-001230 | V490-001230-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 24 | COVER,OILER | C236-000160 | C236-000160-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 25 | BOLT, TORX | V804-000000 | V804-000000-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 26 | STRAINER, OIL | P100-001900 | P100-001900-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 3 | SEAL SET | P200-000890 | P200-000890-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 4 | PISTON KIT | P100-004580 | P100-004580-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 5 | RING, PISTON | A101-000710 | A101-000710-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 6 | PIN, PISTON | 100013-39730 | 100013-39730-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 7 | RING,END | V580-000010 | V580-000010-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 8 | BEARING,NEEDLE | V555-000140 | V555-000140-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 9 | SPACER, PISTON PIN | 100014-17330 | 100014-17330-Online |

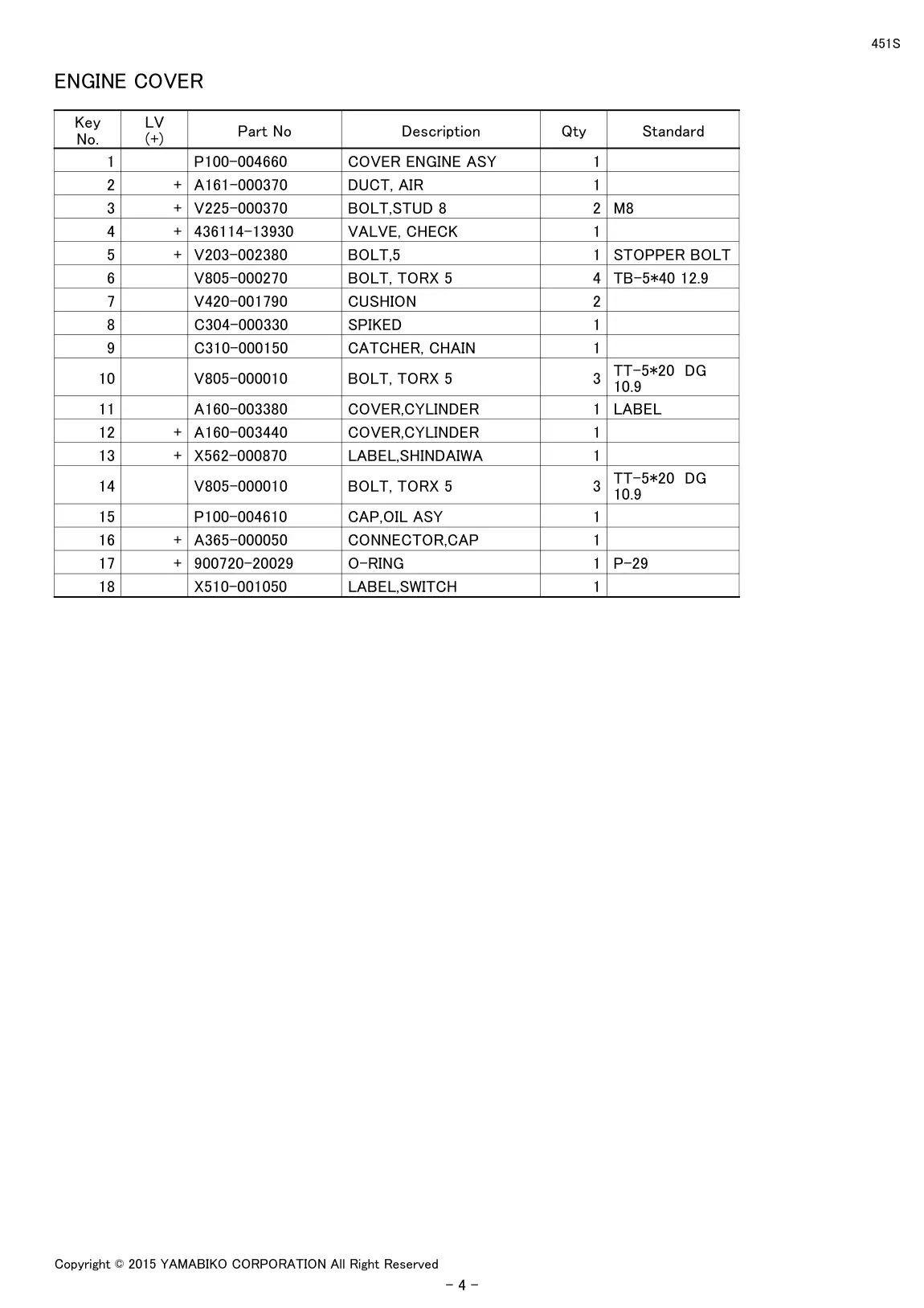

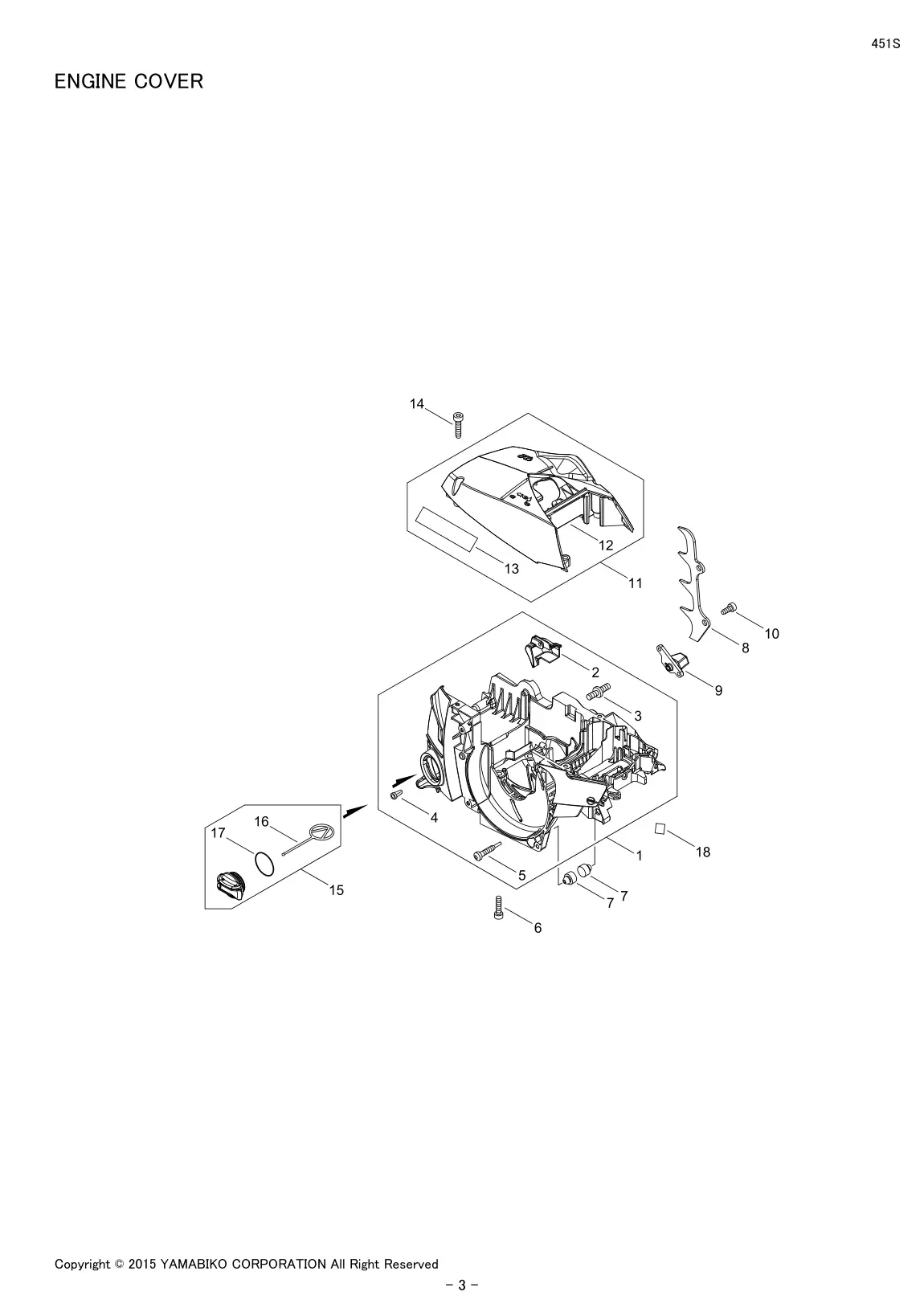

| 6 | ENGINE COVER | 1 | COVER ENGINE ASY | P100-004660 | P100-004660-Online |
| 6 | ENGINE COVER | 10 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 6 | ENGINE COVER | 11 | COVER,CYLINDER | A160-003380 | A160-003380-Online |
| 6 | ENGINE COVER | 12 | COVER,CYLINDER | A160-003440 | A160-003440-Online |
| 6 | ENGINE COVER | 13 | LABEL,SHINDAIWA | X562-000870 | X562-000870-Online |
| 6 | ENGINE COVER | 14 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 6 | ENGINE COVER | 15 | CAP,OIL ASY | P100-004610 | P100-004610-Online |
| 6 | ENGINE COVER | 16 | CONNECTOR,CAP | A365-000050 | A365-000050-Online |
| 6 | ENGINE COVER | 17 | O-RING | 900720-20029 | 900720-20029-Online |
| 6 | ENGINE COVER | 18 | LABEL,SWITCH | X510-001050 | X510-001050-Online |
| 6 | ENGINE COVER | 2 | DUCT, AIR | A161-000370 | A161-000370-Online |
| 6 | ENGINE COVER | 3 | BOLT,STUD | V225-000370 | V225-000370-Online |
| 6 | ENGINE COVER | 4 | VALVE, CHECK | 436114-13930 | 436114-13930-Online |
| 6 | ENGINE COVER | 5 | BOLT,5 | V203-002380 | V203-002380-Online |
| 6 | ENGINE COVER | 6 | BOLT, TORX | V805-000270 | V805-000270-Online |
| 6 | ENGINE COVER | 7 | CUSHION | V420-001790 | V420-001790-Online |
| 6 | ENGINE COVER | 8 | SPIKED | C304-000330 | C304-000330-Online |
| 6 | ENGINE COVER | 9 | CATCHER, CHAIN | C310-000150 | C310-000150-Online |

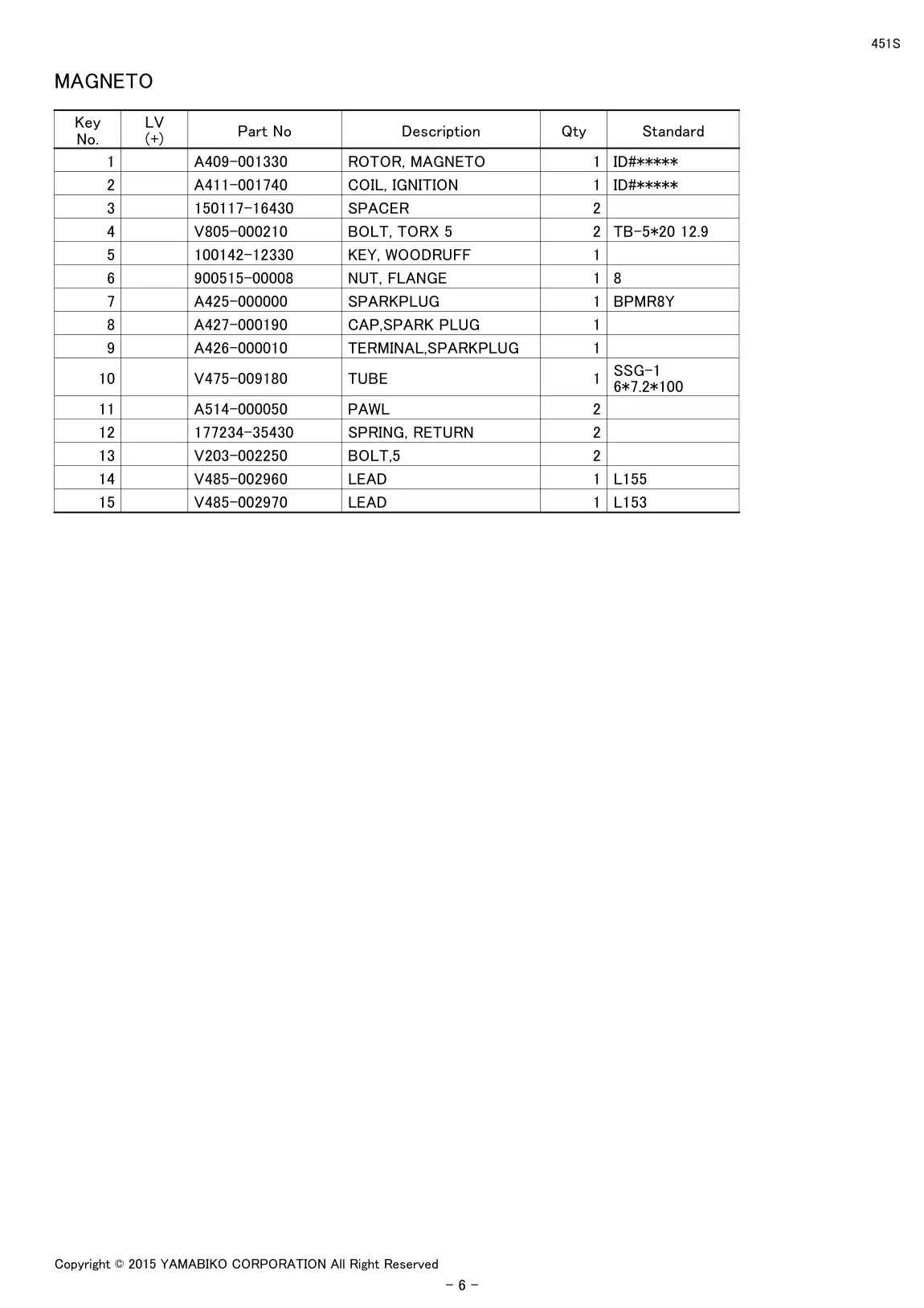

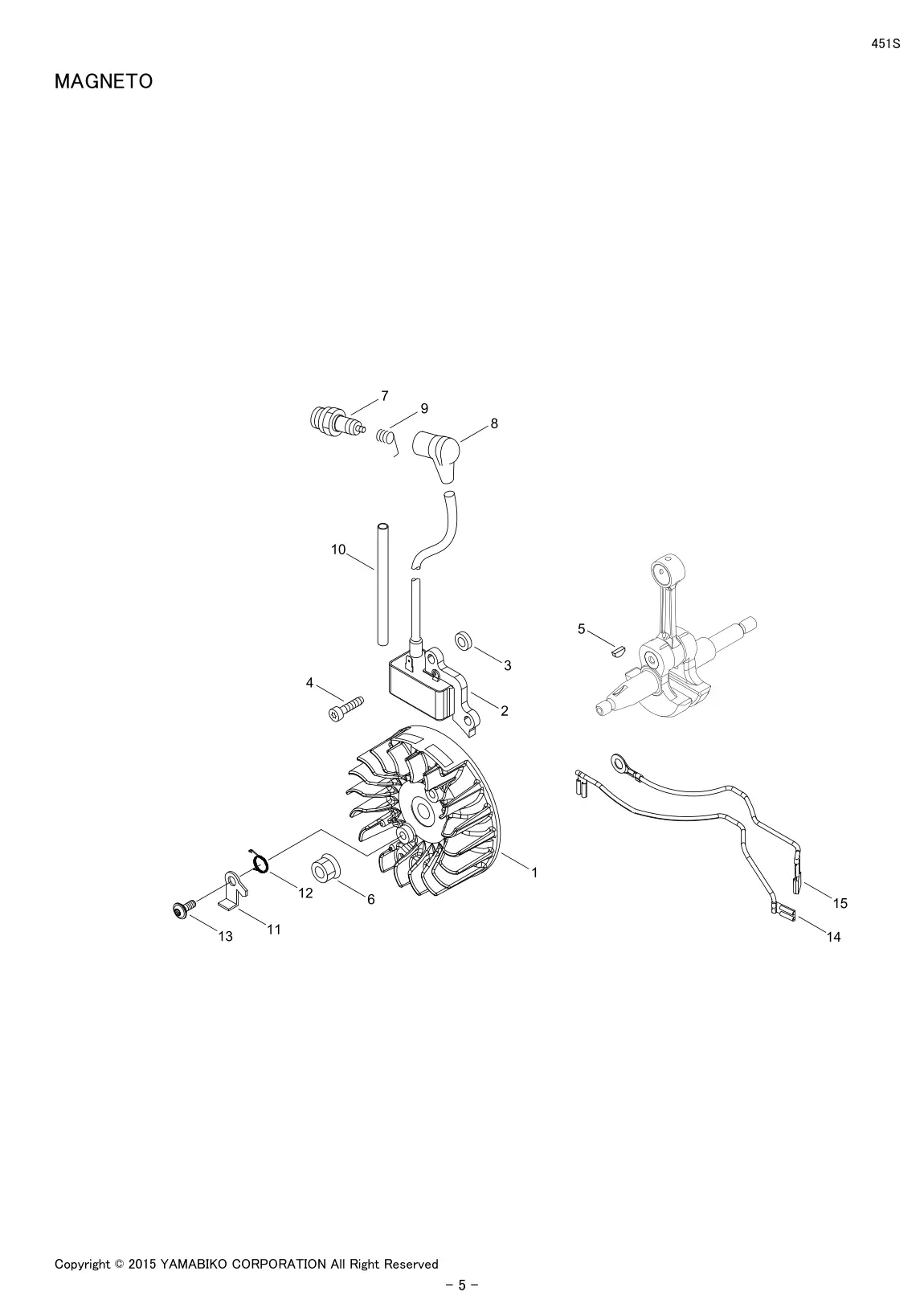

| 8 | MAGNETO | 1 | ROTOR, MAGNETO | A409-001330 | A409-001330-Online |
| 8 | MAGNETO | 10 | TUBE | V475-009180 | V475-009180-Online |
| 8 | MAGNETO | 11 | PAWL | A514-000050 | A514-000050-Online |
| 8 | MAGNETO | 12 | SPRING, RETURN | 177234-35430 | 177234-35430-Online |
| 8 | MAGNETO | 13 | BOLT,5 | V203-002250 | V203-002250-Online |
| 8 | MAGNETO | 14 | LEAD | V485-002960 | V485-002960-Online |
| 8 | MAGNETO | 15 | LEAD | V485-002970 | V485-002970-Online |
| 8 | MAGNETO | 2 | COIL, IGNITION | A411-001740 | A411-001740-Online |
| 8 | MAGNETO | 3 | SPACER | 150117-16430 | 150117-16430-Online |
| 8 | MAGNETO | 4 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 8 | MAGNETO | 5 | KEY, WOODRUFF | 100142-12330 | 100142-12330-Online |
| 8 | MAGNETO | 6 | NUT, FLANGE | 900515-00008 | 900515-00008-Online |
| 8 | MAGNETO | 7 | SPARKPLUG | A425-000000 | A425-000000-Online |
| 8 | MAGNETO | 8 | CAP,SPARK PLUG | A427-000190 | A427-000190-Online |
| 8 | MAGNETO | 9 | TERMINAL,SPARKPLUG | A426-000010 | A426-000010-Online |

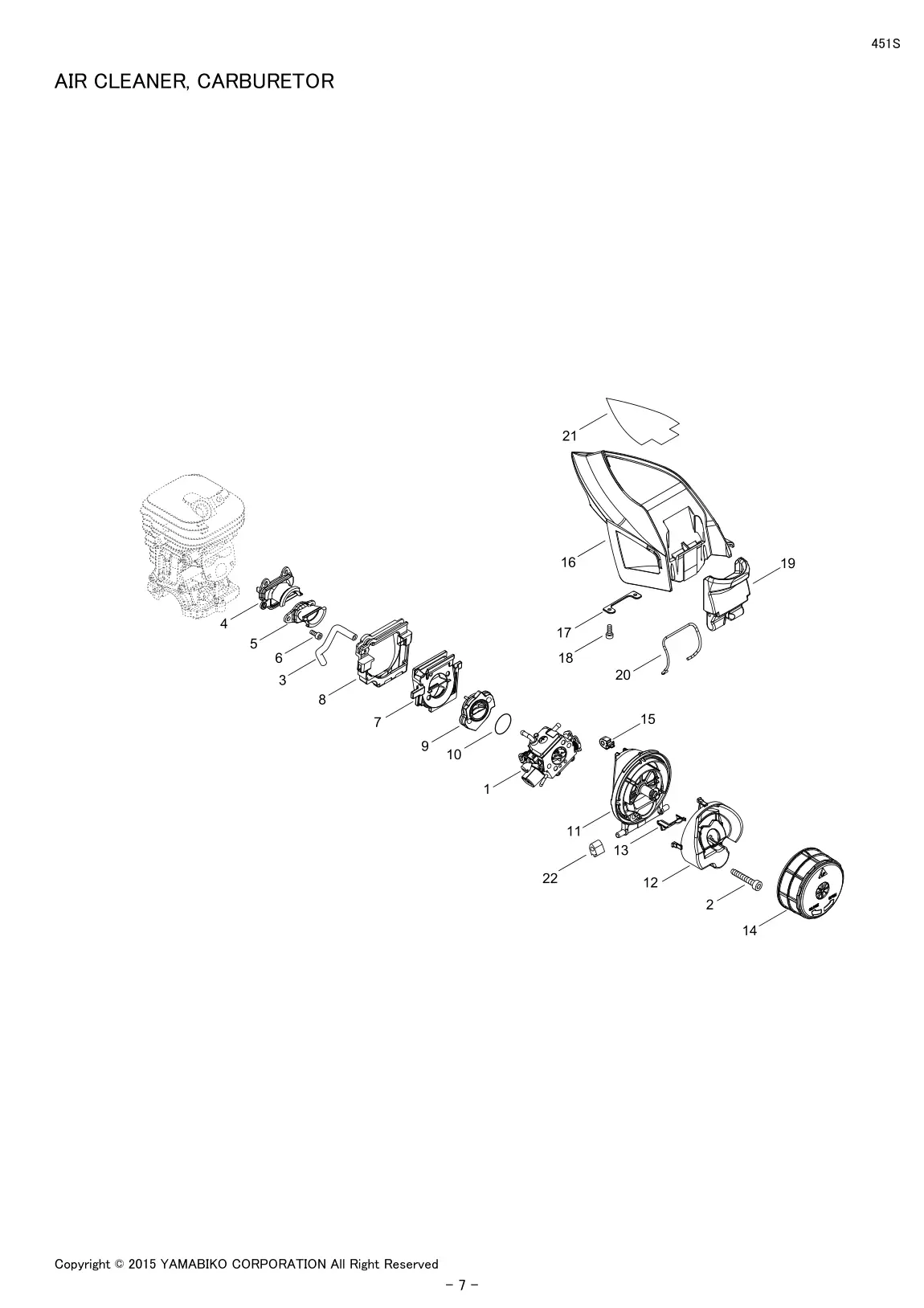

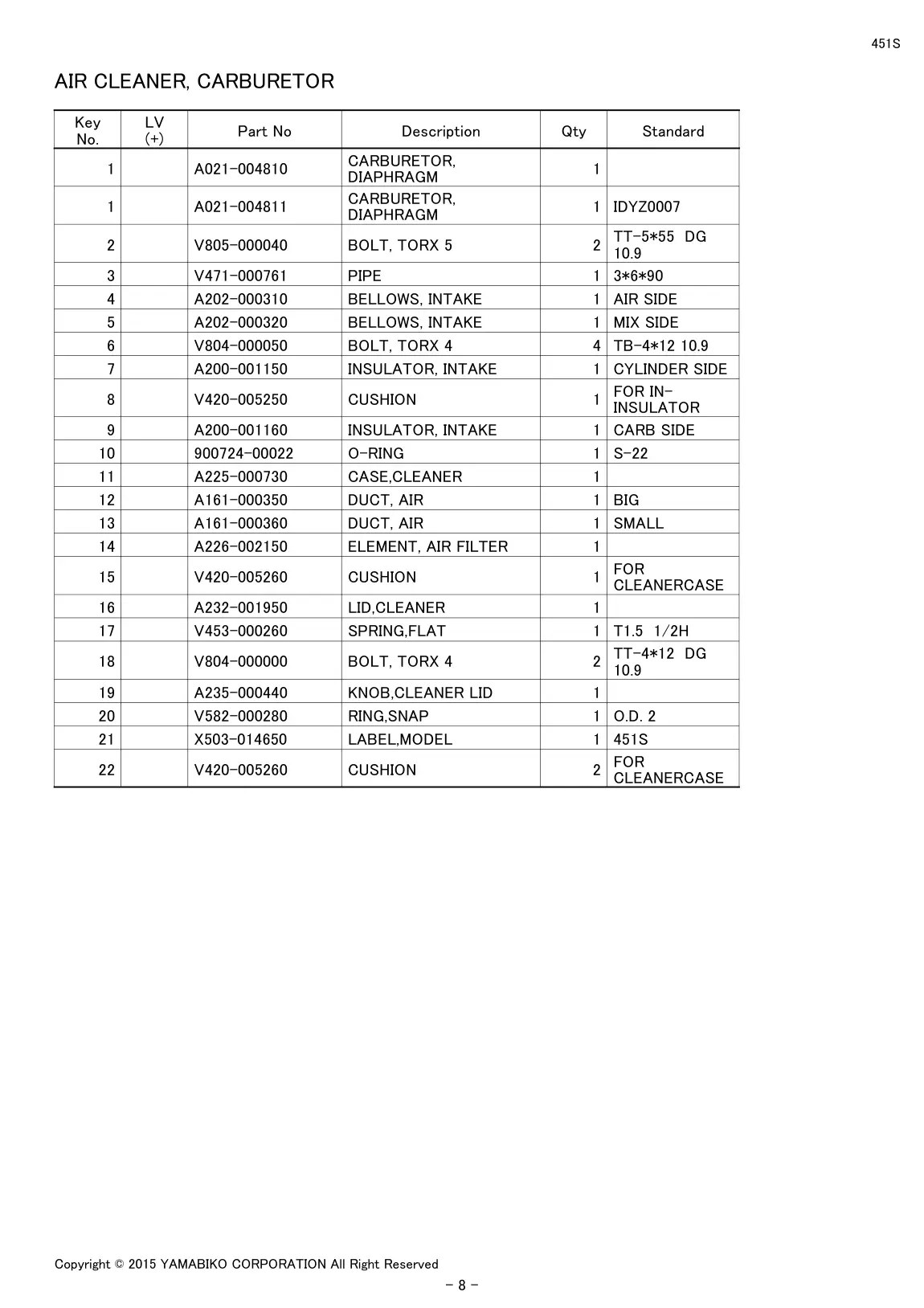

| 10 | AIR CLEANER, CARBURETOR | 1 | CARBURETOR, | A021-004810 | A021-004810-Online |
| 10 | AIR CLEANER, CARBURETOR | 1 | CARBURETOR, | A021-004811 | A021-004811-Online |
| 10 | AIR CLEANER, CARBURETOR | 1 | BOLT, TORX | IDYZ0007 | IDYZ0007-Online |
| 10 | AIR CLEANER, CARBURETOR | 10 | O-RING | 900724-00022 | 900724-00022-Online |
| 10 | AIR CLEANER, CARBURETOR | 11 | CASE,CLEANER | A225-000730 | A225-000730-Online |
| 10 | AIR CLEANER, CARBURETOR | 12 | DUCT, AIR | A161-000350 | A161-000350-Online |
| 10 | AIR CLEANER, CARBURETOR | 13 | DUCT, AIR | A161-000360 | A161-000360-Online |
| 10 | AIR CLEANER, CARBURETOR | 14 | ELEMENT, AIR FILTER | A226-002150 | A226-002150-Online |
| 10 | AIR CLEANER, CARBURETOR | 15 | CUSHION | V420-005260 | V420-005260-Online |
| 10 | AIR CLEANER, CARBURETOR | 16 | LID,CLEANER | A232-001950 | A232-001950-Online |
| 10 | AIR CLEANER, CARBURETOR | 17 | SPRING,FLAT | V453-000260 | V453-000260-Online |
| 10 | AIR CLEANER, CARBURETOR | 18 | BOLT, TORX | V804-000000 | V804-000000-Online |
| 10 | AIR CLEANER, CARBURETOR | 19 | KNOB,CLEANER LID | A235-000440 | A235-000440-Online |
| 10 | AIR CLEANER, CARBURETOR | 2 | BOLT, TORX | V805-000040 | V805-000040-Online |
| 10 | AIR CLEANER, CARBURETOR | 20 | RING,SNAP | V582-000280 | V582-000280-Online |
| 10 | AIR CLEANER, CARBURETOR | 21 | LABEL,MODEL | X503-014650 | X503-014650-Online |
| 10 | AIR CLEANER, CARBURETOR | 22 | CUSHION | V420-005260 | V420-005260-Online |
| 10 | AIR CLEANER, CARBURETOR | 3 | PIPE | V471-000761 | V471-000761-Online |
| 10 | AIR CLEANER, CARBURETOR | 4 | BELLOWS, INTAKE | A202-000310 | A202-000310-Online |
| 10 | AIR CLEANER, CARBURETOR | 5 | BELLOWS, INTAKE | A202-000320 | A202-000320-Online |
| 10 | AIR CLEANER, CARBURETOR | 6 | BOLT, TORX | V804-000050 | V804-000050-Online |
| 10 | AIR CLEANER, CARBURETOR | 7 | INSULATOR, INTAKE | A200-001150 | A200-001150-Online |
| 10 | AIR CLEANER, CARBURETOR | 8 | CUSHION | V420-005250 | V420-005250-Online |
| 10 | AIR CLEANER, CARBURETOR | 9 | INSULATOR, INTAKE | A200-001160 | A200-001160-Online |

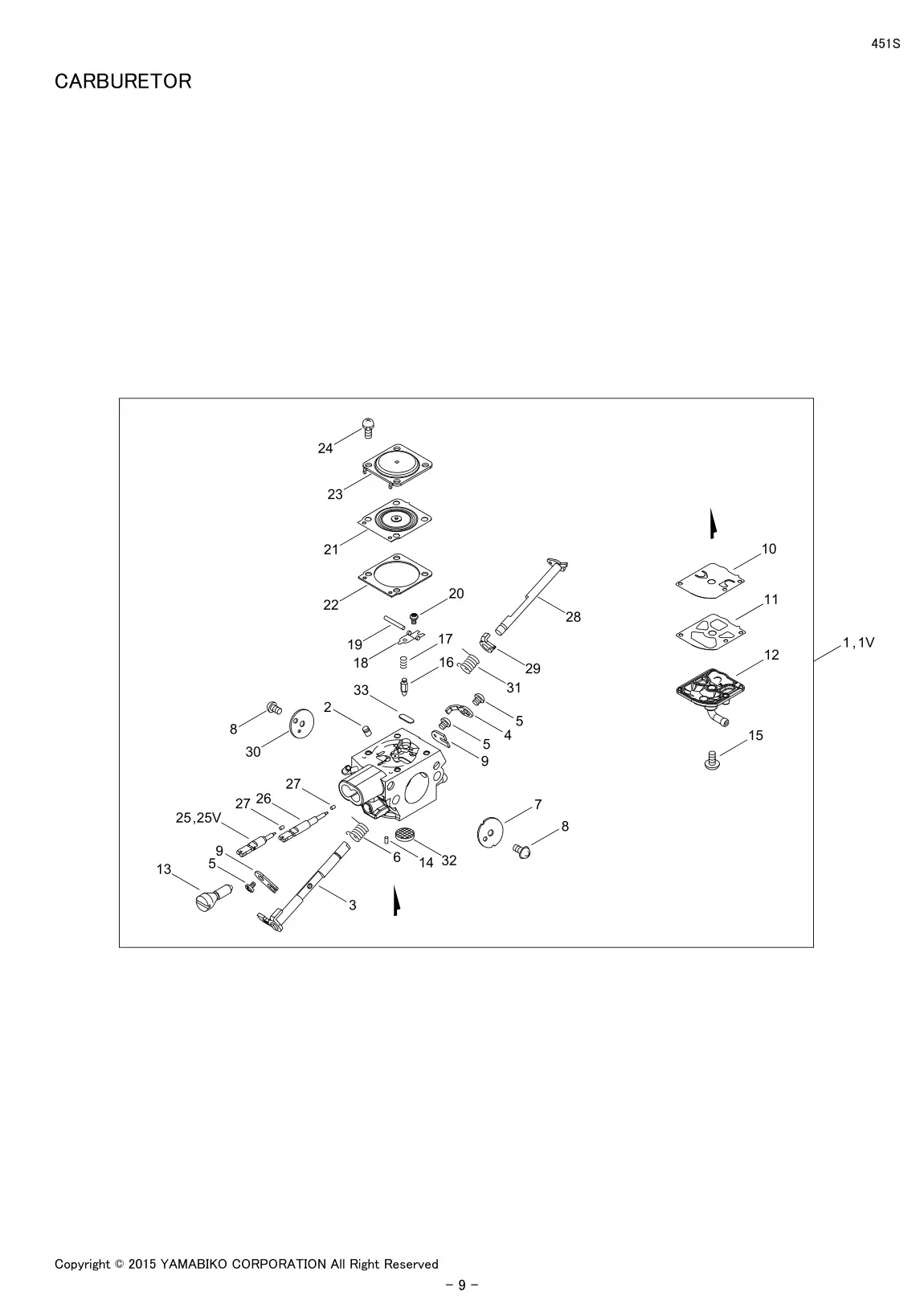

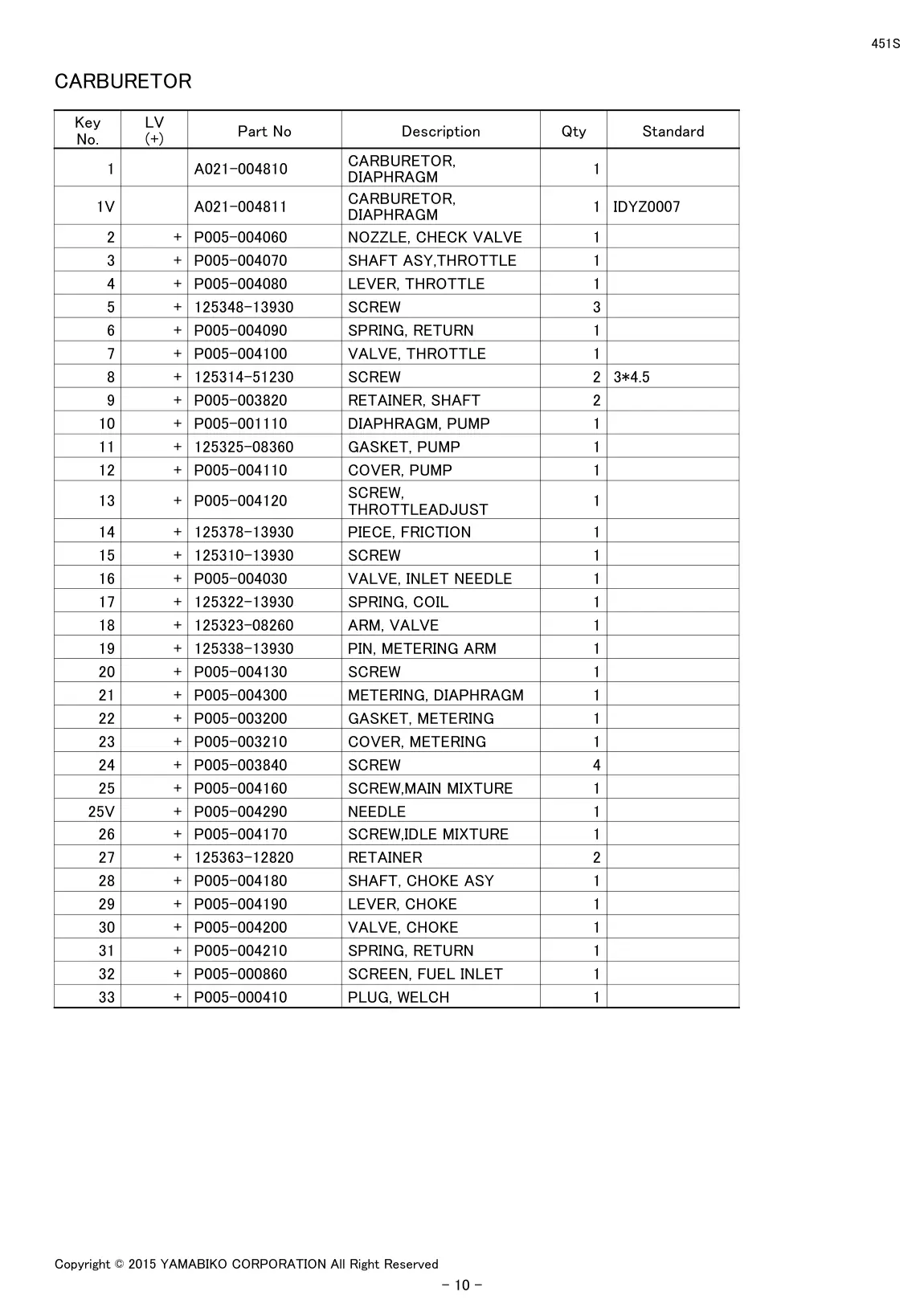

| 12 | CARBURETOR | 1 | CARBURETOR, | A021-004810 | A021-004810-Online |
| 12 | CARBURETOR | 10 | DIAPHRAGM, PUMP | P005-001110 | P005-001110-Online |
| 12 | CARBURETOR | 11 | GASKET, PUMP | 125325-08360 | 125325-08360-Online |
| 12 | CARBURETOR | 12 | COVER, PUMP | P005-004110 | P005-004110-Online |
| 12 | CARBURETOR | 13 | SCREW, | P005-004120 | P005-004120-Online |
| 12 | CARBURETOR | 14 | PIECE, FRICTION | 125378-13930 | 125378-13930-Online |
| 12 | CARBURETOR | 15 | SCREW | 125310-13930 | 125310-13930-Online |
| 12 | CARBURETOR | 16 | VALVE, INLET NEEDLE | P005-004030 | P005-004030-Online |
| 12 | CARBURETOR | 17 | SPRING, COIL | 125322-13930 | 125322-13930-Online |
| 12 | CARBURETOR | 18 | ARM, VALVE | 125323-08260 | 125323-08260-Online |
| 12 | CARBURETOR | 19 | PIN, METERING ARM | 125338-13930 | 125338-13930-Online |
| 12 | CARBURETOR | 1V | CARBURETOR, | A021-004811 | A021-004811-Online |
| 12 | CARBURETOR | 1V | NOZZLE, CHECK VALVE | IDYZ0007 | IDYZ0007-Online |
| 12 | CARBURETOR | 2 | NOZZLE, CHECK VALVE | P005-004060 | P005-004060-Online |
| 12 | CARBURETOR | 20 | SCREW | P005-004130 | P005-004130-Online |
| 12 | CARBURETOR | 21 | METERING, DIAPHRAGM | P005-004300 | P005-004300-Online |
| 12 | CARBURETOR | 22 | GASKET, METERING | P005-003200 | P005-003200-Online |
| 12 | CARBURETOR | 23 | COVER, METERING | P005-003210 | P005-003210-Online |
| 12 | CARBURETOR | 24 | SCREW | P005-003840 | P005-003840-Online |
| 12 | CARBURETOR | 25 | SCREW,MAIN MIXTURE | P005-004160 | P005-004160-Online |
| 12 | CARBURETOR | 25V | NEEDLE | P005-004290 | P005-004290-Online |
| 12 | CARBURETOR | 26 | SCREW,IDLE MIXTURE | P005-004170 | P005-004170-Online |
| 12 | CARBURETOR | 27 | RETAINER | 125363-12820 | 125363-12820-Online |
| 12 | CARBURETOR | 28 | SHAFT, CHOKE ASY | P005-004180 | P005-004180-Online |
| 12 | CARBURETOR | 29 | LEVER, CHOKE | P005-004190 | P005-004190-Online |
| 12 | CARBURETOR | 3 | SHAFT ASY,THROTTLE | P005-004070 | P005-004070-Online |
| 12 | CARBURETOR | 30 | VALVE, CHOKE | P005-004200 | P005-004200-Online |
| 12 | CARBURETOR | 31 | SPRING, RETURN | P005-004210 | P005-004210-Online |
| 12 | CARBURETOR | 32 | SCREEN, FUEL INLET | P005-000860 | P005-000860-Online |
| 12 | CARBURETOR | 33 | PLUG, WELCH | P005-000410 | P005-000410-Online |
| 12 | CARBURETOR | 4 | LEVER, THROTTLE | P005-004080 | P005-004080-Online |
| 12 | CARBURETOR | 5 | SCREW | 125348-13930 | 125348-13930-Online |
| 12 | CARBURETOR | 6 | SPRING, RETURN | P005-004090 | P005-004090-Online |
| 12 | CARBURETOR | 7 | VALVE, THROTTLE | P005-004100 | P005-004100-Online |
| 12 | CARBURETOR | 8 | SCREW | 125314-51230 | 125314-51230-Online |
| 12 | CARBURETOR | 9 | RETAINER, SHAFT | P005-003820 | P005-003820-Online |

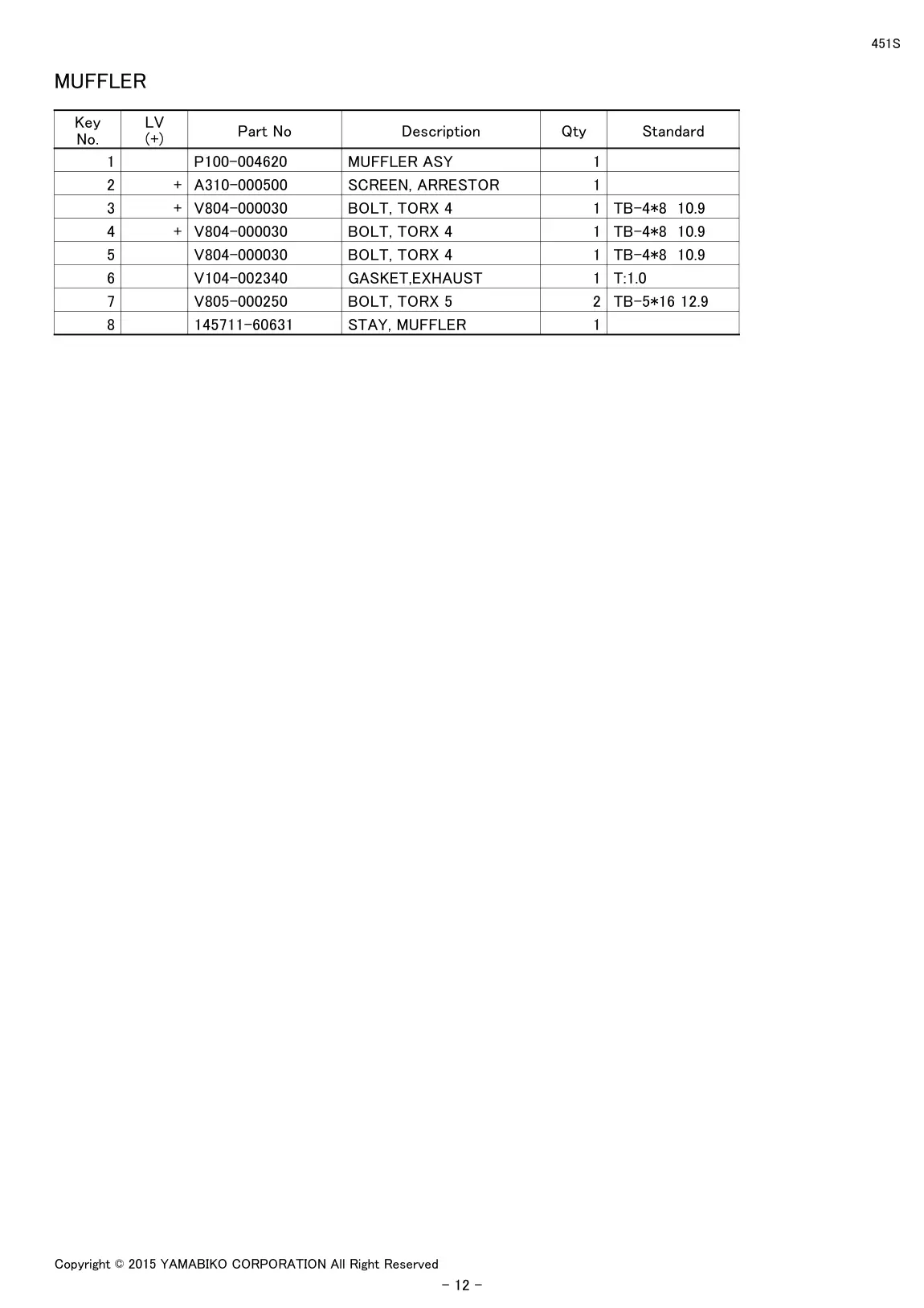

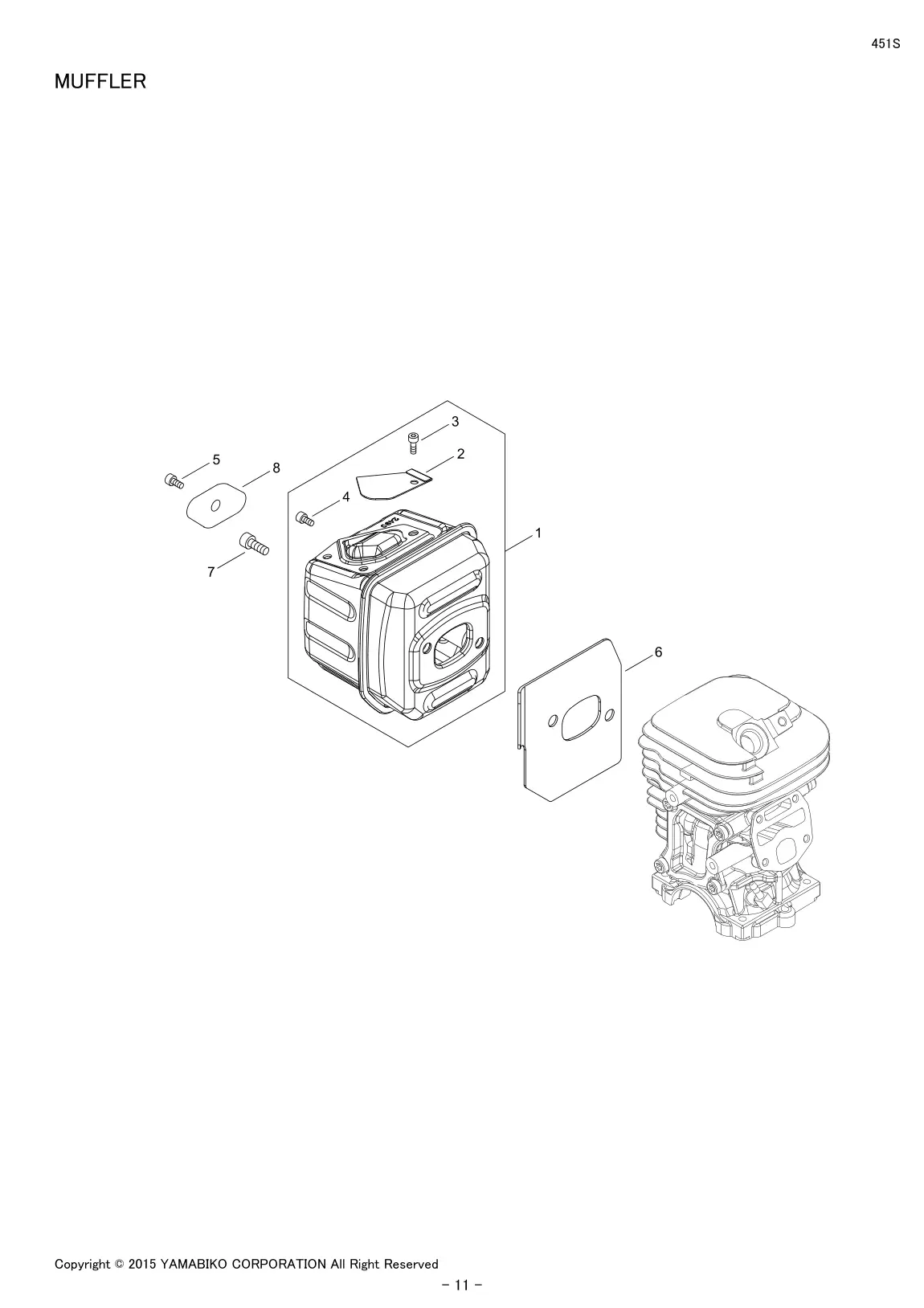

| 14 | MUFFLER | 1 | MUFFLER ASY | P100-004620 | P100-004620-Online |
| 14 | MUFFLER | 2 | SCREEN, ARRESTOR | A310-000500 | A310-000500-Online |
| 14 | MUFFLER | 3 | BOLT, TORX | V804-000030 | V804-000030-Online |
| 14 | MUFFLER | 4 | BOLT, TORX | V804-000030 | V804-000030-Online |
| 14 | MUFFLER | 5 | BOLT, TORX | V804-000030 | V804-000030-Online |
| 14 | MUFFLER | 6 | GASKET,EXHAUST | V104-002340 | V104-002340-Online |
| 14 | MUFFLER | 7 | BOLT, TORX | V805-000250 | V805-000250-Online |
| 14 | MUFFLER | 8 | STAY, MUFFLER | 145711-60631 | 145711-60631-Online |

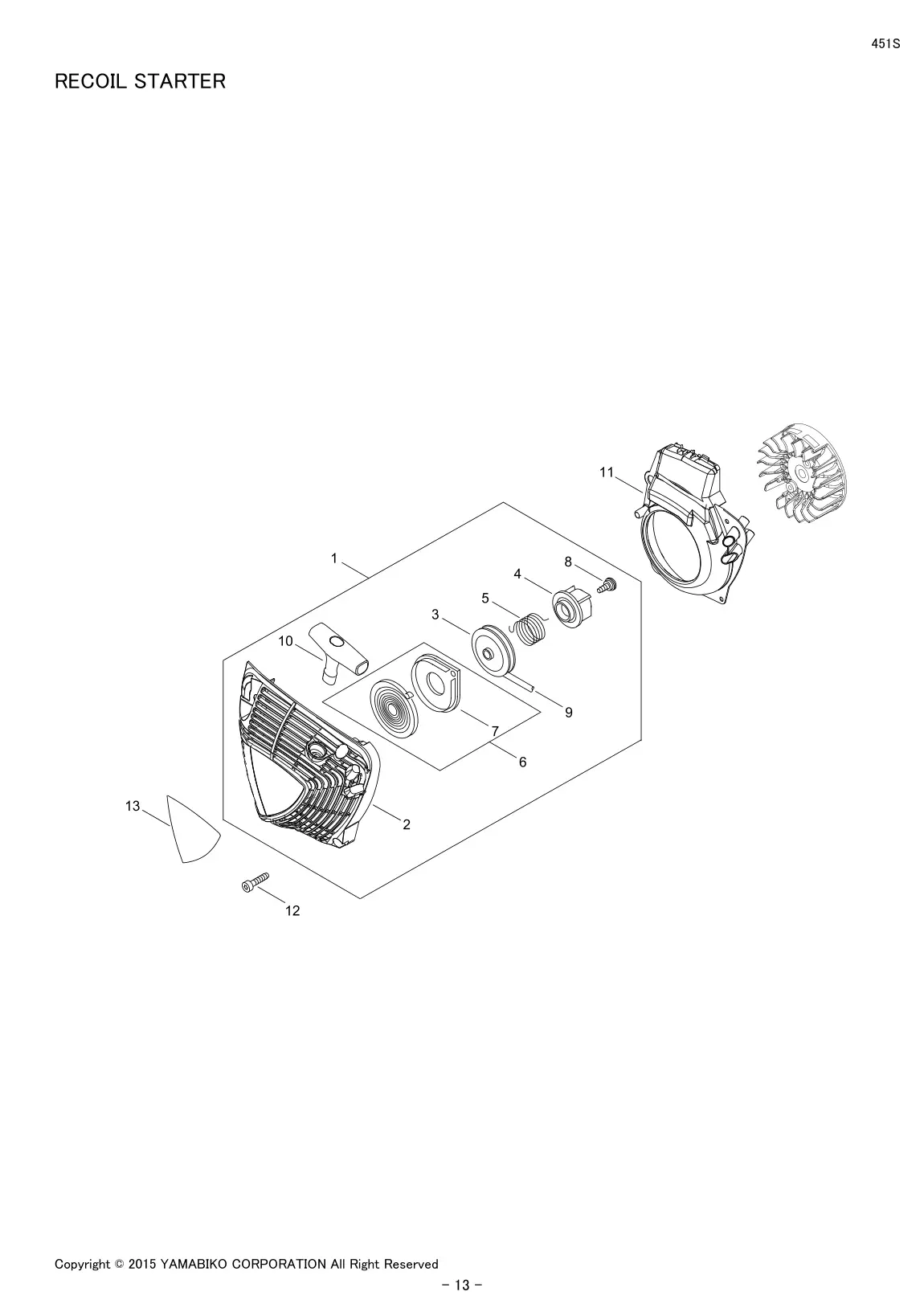

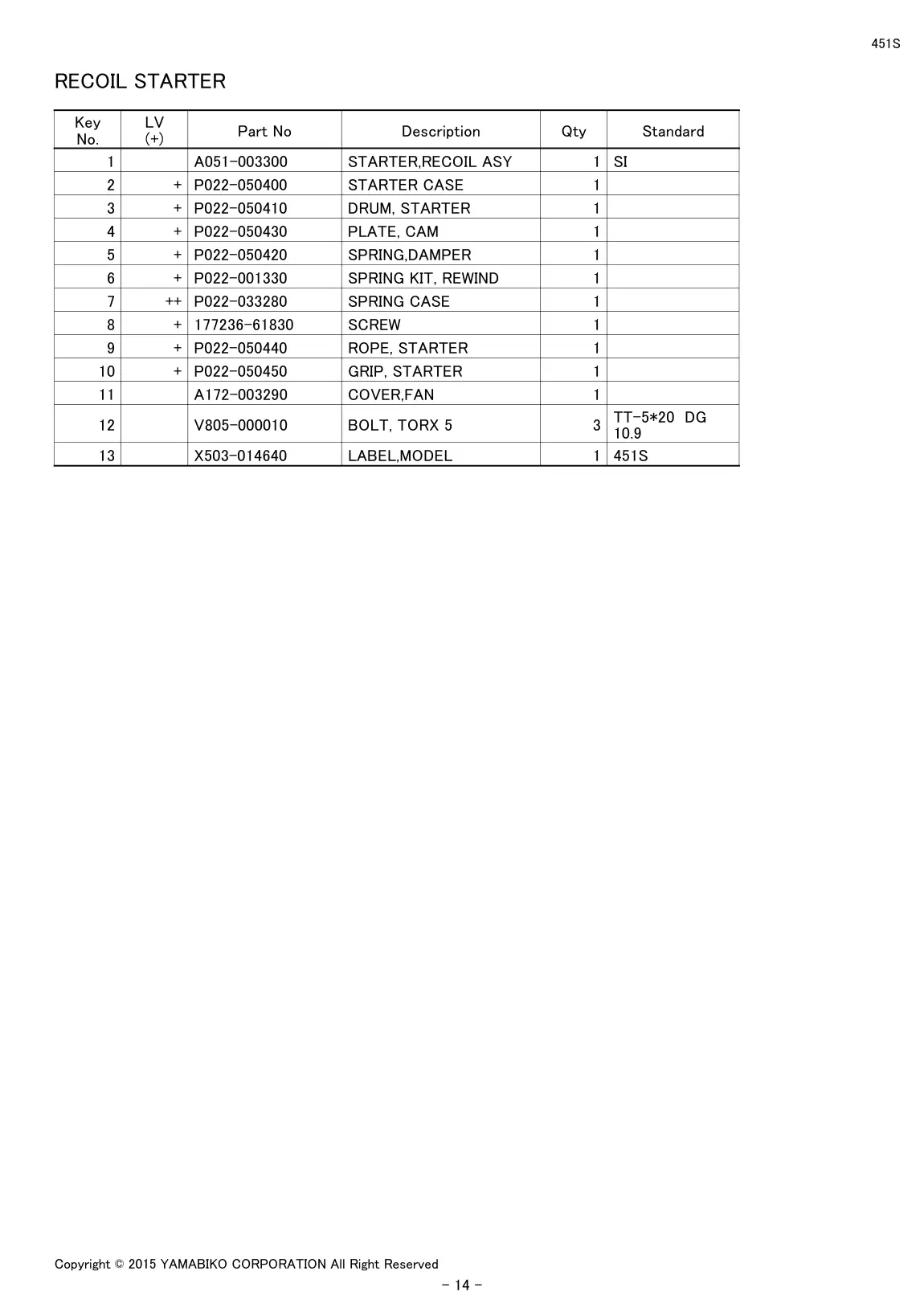

| 16 | RECOIL STARTER | 1 | STARTER,RECOIL ASY | A051-003300 | A051-003300-Online |
| 16 | RECOIL STARTER | 10 | GRIP, STARTER | P022-050450 | P022-050450-Online |
| 16 | RECOIL STARTER | 11 | COVER,FAN | A172-003290 | A172-003290-Online |
| 16 | RECOIL STARTER | 12 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 16 | RECOIL STARTER | 13 | LABEL,MODEL | X503-014640 | X503-014640-Online |
| 16 | RECOIL STARTER | 2 | STARTER CASE | P022-050400 | P022-050400-Online |
| 16 | RECOIL STARTER | 3 | DRUM, STARTER | P022-050410 | P022-050410-Online |
| 16 | RECOIL STARTER | 4 | PLATE, CAM | P022-050430 | P022-050430-Online |
| 16 | RECOIL STARTER | 5 | SPRING,DAMPER | P022-050420 | P022-050420-Online |
| 16 | RECOIL STARTER | 6 | SPRING KIT, REWIND | P022-001330 | P022-001330-Online |
| 16 | RECOIL STARTER | 7 | SPRING CASE | P022-033280 | P022-033280-Online |
| 16 | RECOIL STARTER | 8 | SCREW | 177236-61830 | 177236-61830-Online |
| 16 | RECOIL STARTER | 9 | ROPE, STARTER | P022-050440 | P022-050440-Online |

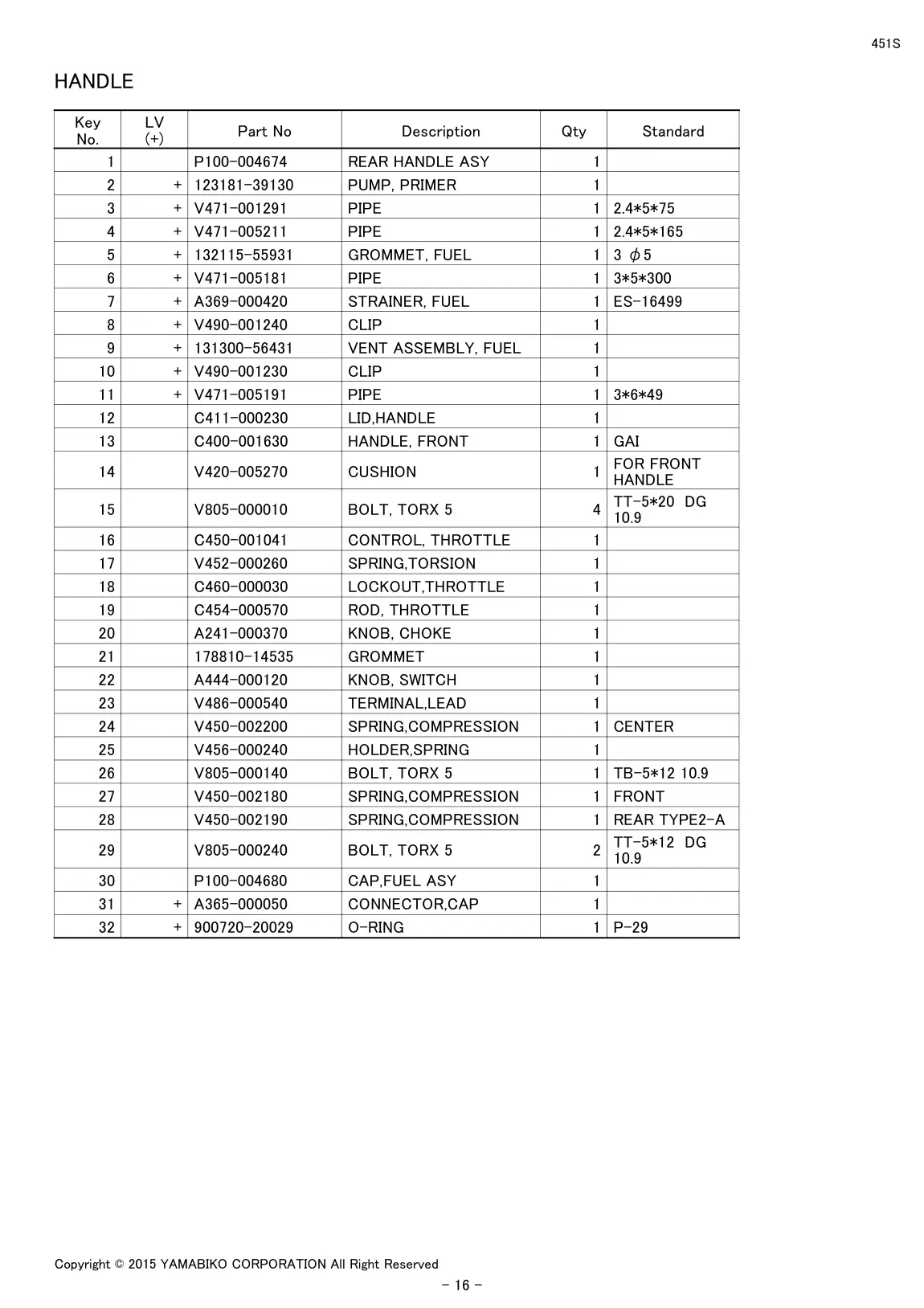

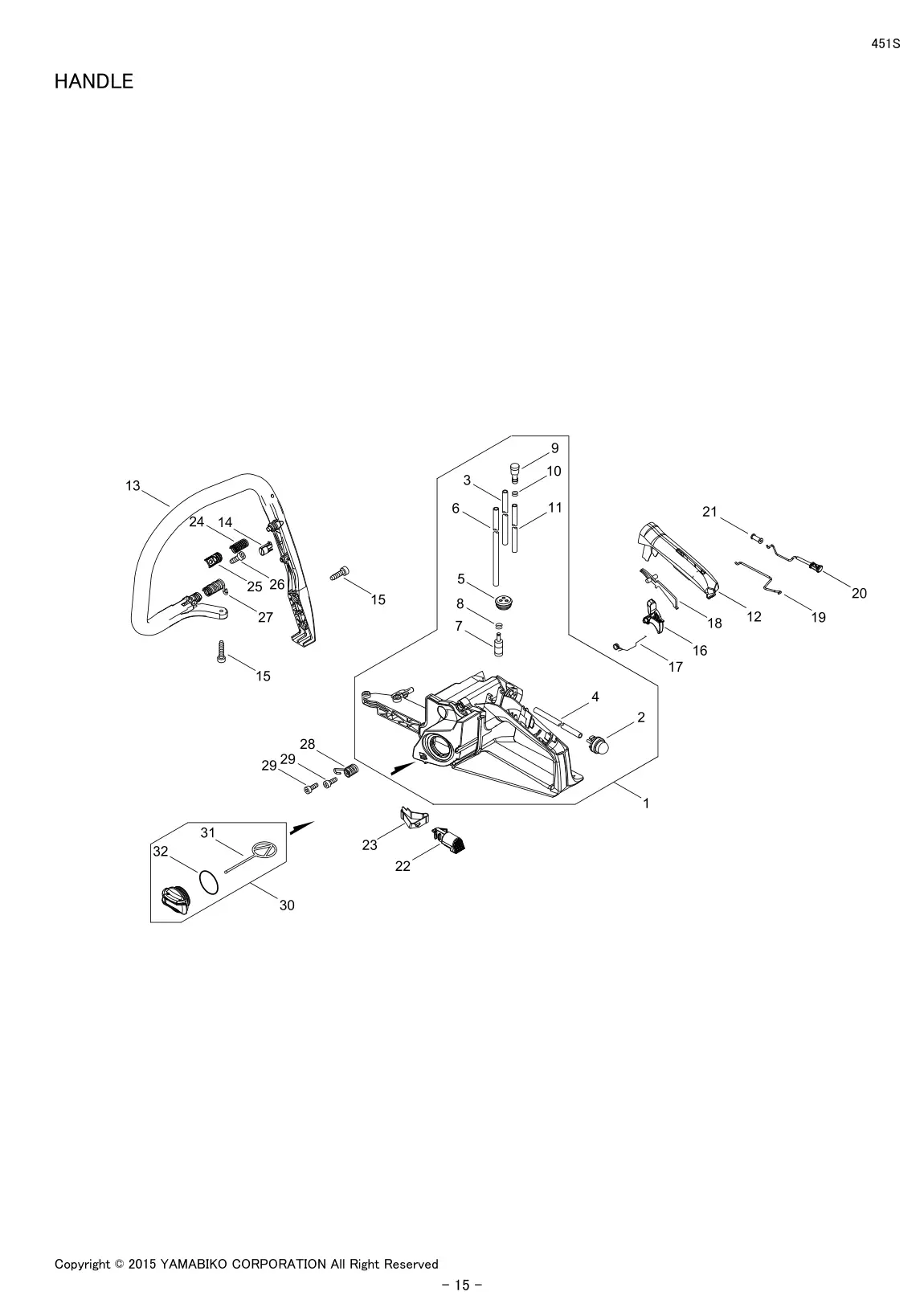

| 18 | HANDLE | 1 | REAR HANDLE ASY | P100-004674 | P100-004674-Online |
| 18 | HANDLE | 10 | CLIP | V490-001230 | V490-001230-Online |
| 18 | HANDLE | 11 | PIPE | V471-005191 | V471-005191-Online |
| 18 | HANDLE | 12 | LID,HANDLE | C411-000230 | C411-000230-Online |
| 18 | HANDLE | 13 | HANDLE, FRONT | C400-001630 | C400-001630-Online |
| 18 | HANDLE | 14 | CUSHION | V420-005270 | V420-005270-Online |
| 18 | HANDLE | 15 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 18 | HANDLE | 16 | CONTROL, THROTTLE | C450-001041 | C450-001041-Online |
| 18 | HANDLE | 17 | SPRING,TORSION | V452-000260 | V452-000260-Online |
| 18 | HANDLE | 18 | LOCKOUT,THROTTLE | C460-000030 | C460-000030-Online |
| 18 | HANDLE | 19 | ROD, THROTTLE | C454-000570 | C454-000570-Online |
| 18 | HANDLE | 2 | PUMP, PRIMER | 123181-39130 | 123181-39130-Online |
| 18 | HANDLE | 20 | KNOB, CHOKE | A241-000370 | A241-000370-Online |
| 18 | HANDLE | 21 | GROMMET | 178810-14535 | 178810-14535-Online |
| 18 | HANDLE | 22 | KNOB, SWITCH | A444-000120 | A444-000120-Online |
| 18 | HANDLE | 23 | TERMINAL,LEAD | V486-000540 | V486-000540-Online |
| 18 | HANDLE | 24 | SPRING,COMPRESSION | V450-002200 | V450-002200-Online |
| 18 | HANDLE | 25 | HOLDER,SPRING | V456-000240 | V456-000240-Online |
| 18 | HANDLE | 26 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 18 | HANDLE | 27 | SPRING,COMPRESSION | V450-002180 | V450-002180-Online |
| 18 | HANDLE | 28 | SPRING,COMPRESSION | V450-002190 | V450-002190-Online |
| 18 | HANDLE | 29 | BOLT, TORX | V805-000240 | V805-000240-Online |
| 18 | HANDLE | 3 | PIPE | V471-001291 | V471-001291-Online |
| 18 | HANDLE | 30 | CAP,FUEL ASY | P100-004680 | P100-004680-Online |
| 18 | HANDLE | 31 | CONNECTOR,CAP | A365-000050 | A365-000050-Online |
| 18 | HANDLE | 32 | O-RING | 900720-20029 | 900720-20029-Online |
| 18 | HANDLE | 4 | PIPE | V471-005211 | V471-005211-Online |
| 18 | HANDLE | 5 | GROMMET, FUEL | 132115-55931 | 132115-55931-Online |
| 18 | HANDLE | 6 | PIPE | V471-005181 | V471-005181-Online |
| 18 | HANDLE | 7 | CLIP | 16499 | 16499-Online |
| 18 | HANDLE | 7 | STRAINER, FUEL | A369-000420 | A369-000420-Online |
| 18 | HANDLE | 8 | CLIP | V490-001240 | V490-001240-Online |
| 18 | HANDLE | 9 | VENT ASSEMBLY, FUEL | 131300-56431 | 131300-56431-Online |

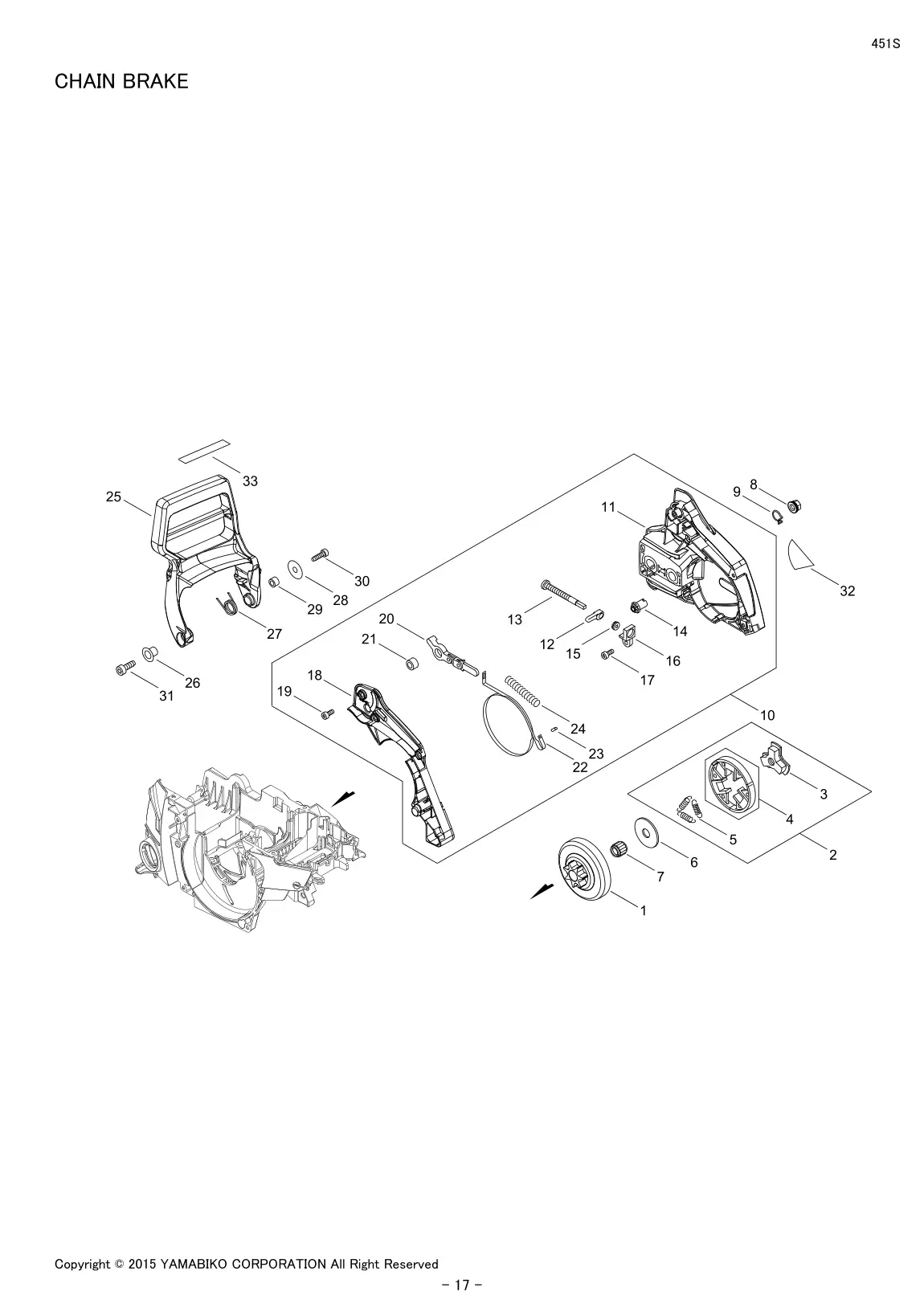

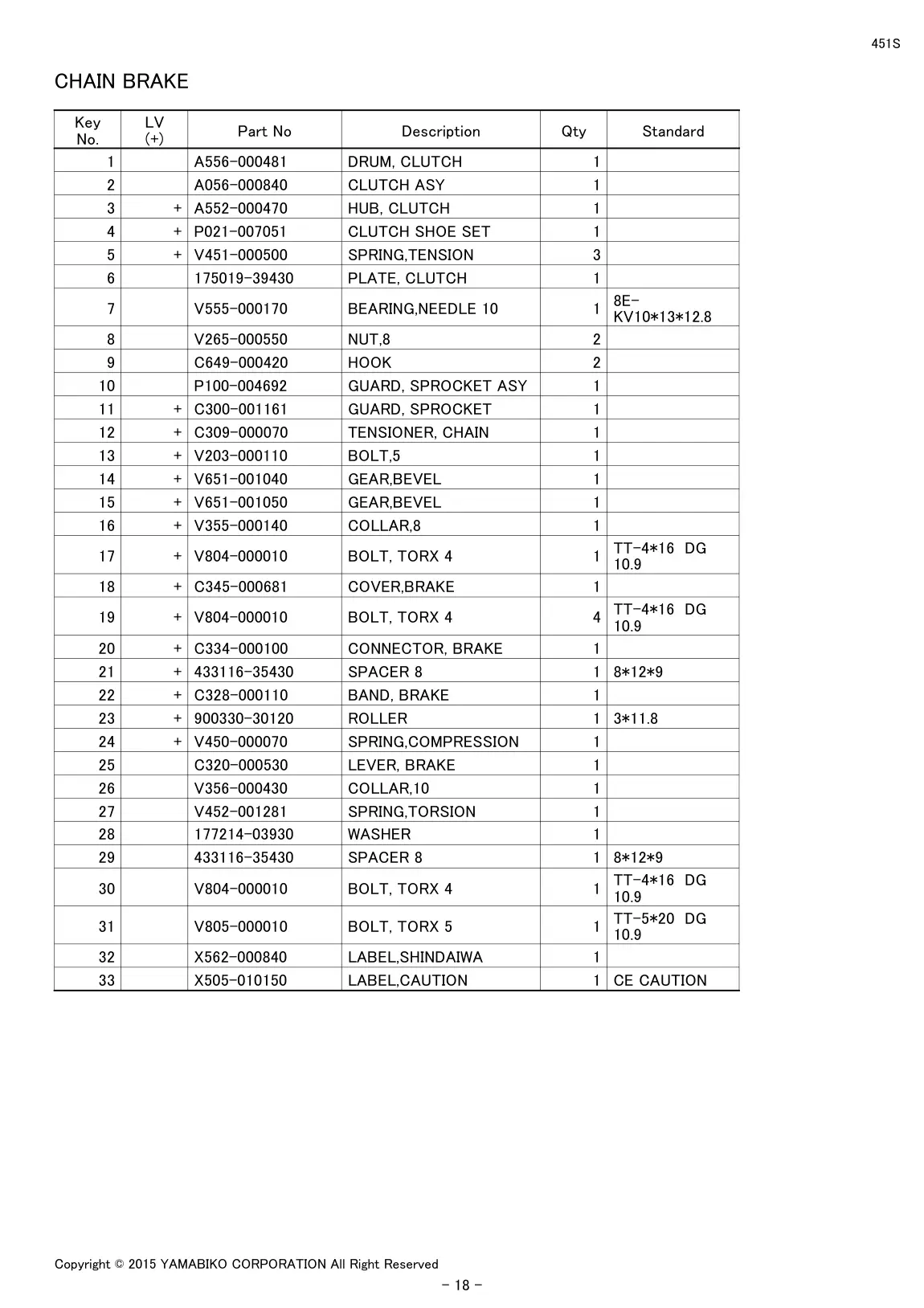

| 20 | CHAIN BRAKE | 1 | DRUM, CLUTCH | A556-000481 | A556-000481-Online |
| 20 | CHAIN BRAKE | 10 | GUARD, SPROCKET ASY | P100-004692 | P100-004692-Online |
| 20 | CHAIN BRAKE | 11 | GUARD, SPROCKET | C300-001161 | C300-001161-Online |
| 20 | CHAIN BRAKE | 12 | TENSIONER, CHAIN | C309-000070 | C309-000070-Online |
| 20 | CHAIN BRAKE | 13 | BOLT,5 | V203-000110 | V203-000110-Online |
| 20 | CHAIN BRAKE | 14 | GEAR,BEVEL | V651-001040 | V651-001040-Online |
| 20 | CHAIN BRAKE | 15 | GEAR,BEVEL | V651-001050 | V651-001050-Online |
| 20 | CHAIN BRAKE | 16 | COLLAR,8 | V355-000140 | V355-000140-Online |
| 20 | CHAIN BRAKE | 17 | BOLT, TORX | V804-000010 | V804-000010-Online |
| 20 | CHAIN BRAKE | 18 | COVER,BRAKE | C345-000681 | C345-000681-Online |
| 20 | CHAIN BRAKE | 19 | BOLT, TORX | V804-000010 | V804-000010-Online |
| 20 | CHAIN BRAKE | 2 | CLUTCH ASY | A056-000840 | A056-000840-Online |
| 20 | CHAIN BRAKE | 20 | CONNECTOR, BRAKE | C334-000100 | C334-000100-Online |
| 20 | CHAIN BRAKE | 21 | SPACER | 433116-35430 | 433116-35430-Online |
| 20 | CHAIN BRAKE | 22 | BAND, BRAKE | C328-000110 | C328-000110-Online |
| 20 | CHAIN BRAKE | 23 | ROLLER | 900330-30120 | 900330-30120-Online |
| 20 | CHAIN BRAKE | 24 | SPRING,COMPRESSION | V450-000070 | V450-000070-Online |
| 20 | CHAIN BRAKE | 25 | LEVER, BRAKE | C320-000530 | C320-000530-Online |
| 20 | CHAIN BRAKE | 26 | COLLAR,10 | V356-000430 | V356-000430-Online |
| 20 | CHAIN BRAKE | 27 | SPRING,TORSION | V452-001281 | V452-001281-Online |
| 20 | CHAIN BRAKE | 28 | WASHER | 177214-03930 | 177214-03930-Online |
| 20 | CHAIN BRAKE | 29 | SPACER | 433116-35430 | 433116-35430-Online |
| 20 | CHAIN BRAKE | 3 | HUB, CLUTCH | A552-000470 | A552-000470-Online |
| 20 | CHAIN BRAKE | 30 | BOLT, TORX | V804-000010 | V804-000010-Online |
| 20 | CHAIN BRAKE | 31 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 20 | CHAIN BRAKE | 32 | LABEL,SHINDAIWA | X562-000840 | X562-000840-Online |
| 20 | CHAIN BRAKE | 33 | LABEL,CAUTION | X505-010150 | X505-010150-Online |
| 20 | CHAIN BRAKE | 4 | CLUTCH SHOE SET | P021-007051 | P021-007051-Online |
| 20 | CHAIN BRAKE | 5 | SPRING,TENSION | V451-000500 | V451-000500-Online |
| 20 | CHAIN BRAKE | 6 | PLATE, CLUTCH | 175019-39430 | 175019-39430-Online |
| 20 | CHAIN BRAKE | 7 | BEARING,NEEDLE | V555-000170 | V555-000170-Online |
| 20 | CHAIN BRAKE | 8 | NUT,8 | V265-000550 | V265-000550-Online |

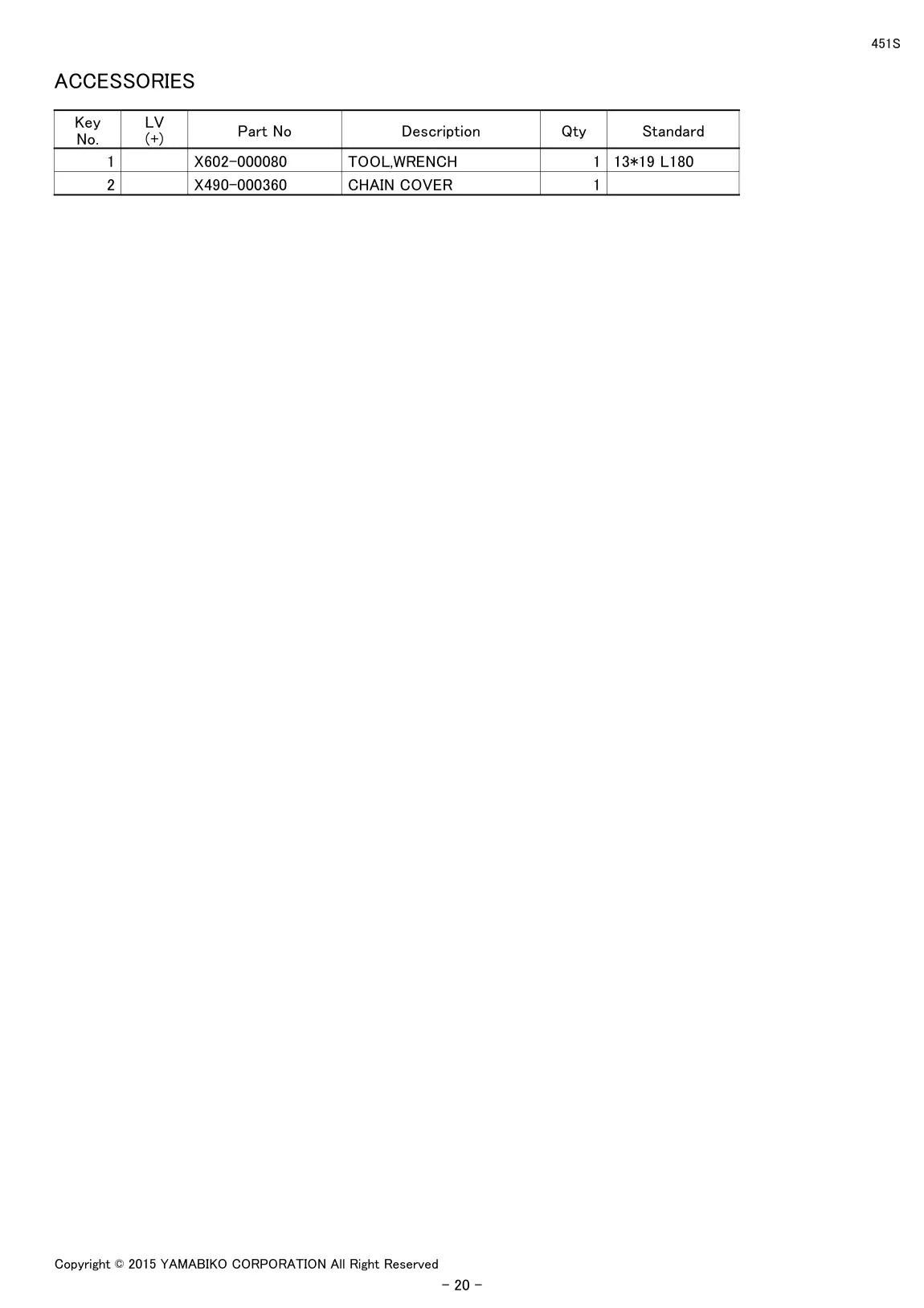

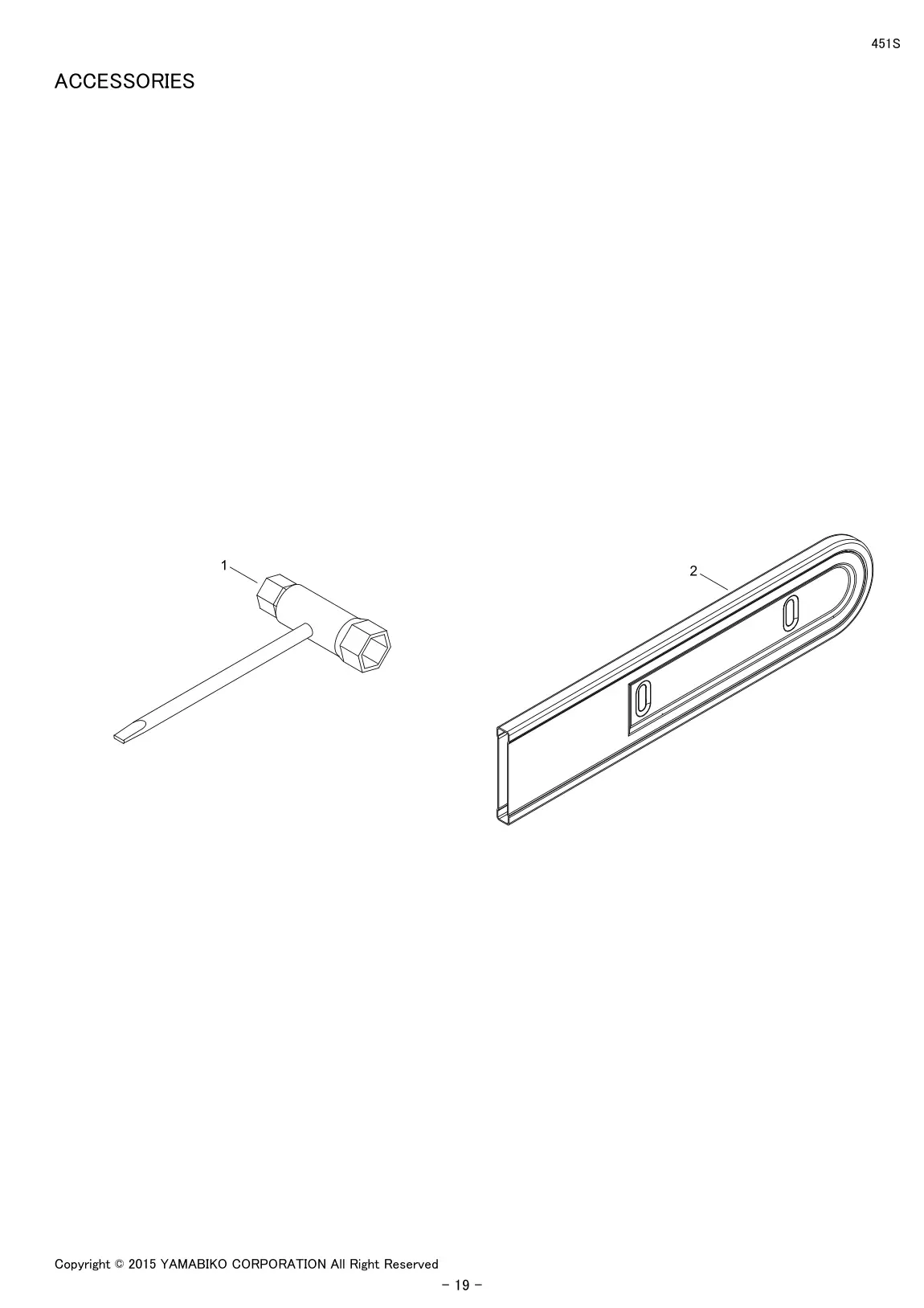

| 22 | ACCESSORIES | 1 | TOOL,WRENCH | X602-000080 | X602-000080-Online |
| 22 | ACCESSORIES | 2 | CHAIN COVER | X490-000360 | X490-000360-Online |

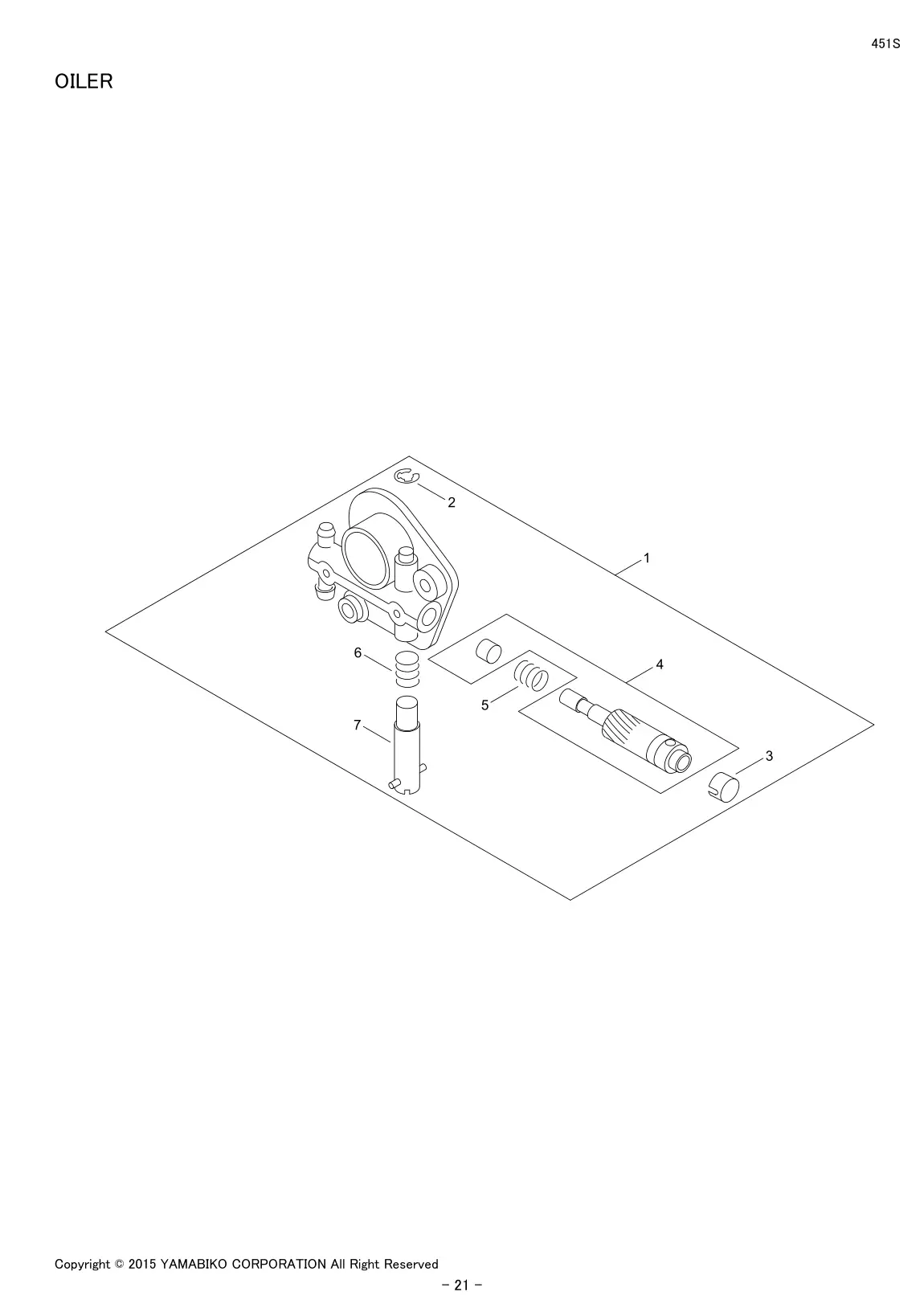

| 24 | OILER | 1 | OILER,ASM AUTO | C022-000010 | C022-000010-Online |
| 24 | OILER | 2 | CLIP | 125327-15130 | 125327-15130-Online |
| 24 | OILER | 3 | CAP, OIL PUMP | P022-010640 | P022-010640-Online |
| 24 | OILER | 4 | PLUNGER | P022-010650 | P022-010650-Online |
| 24 | OILER | 5 | SPRING | P022-010660 | P022-010660-Online |
| 24 | OILER | 6 | SPRING | P022-010670 | P022-010670-Online |
| 24 | OILER | 7 | SCREW ASS'Y, ADJUST | P022-010680 | P022-010680-Online |

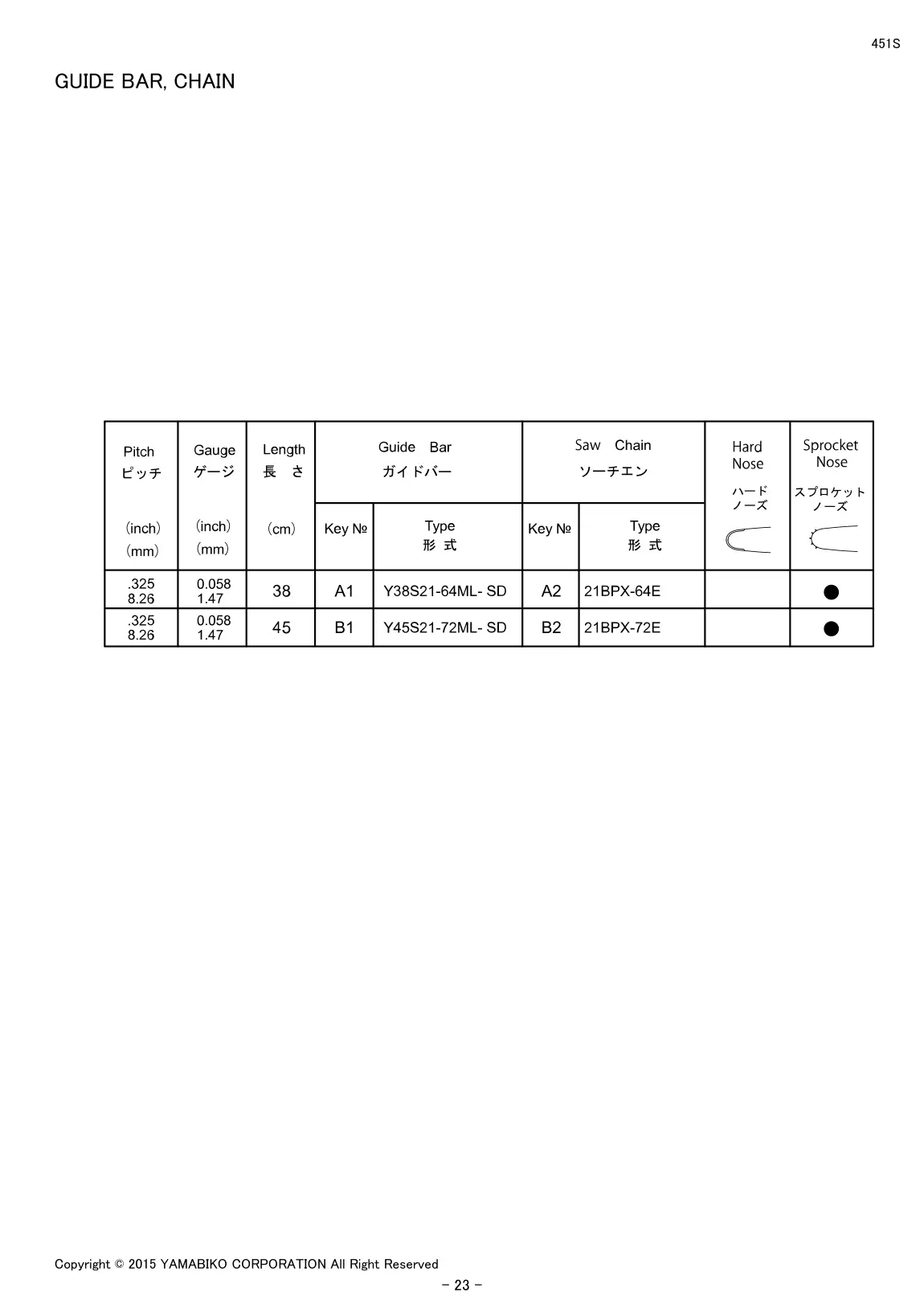

| 26 | GUIDE BAR, CHAIN | A1 | BAR,GUIDE | X123-000630 | X123-000630-Online |
| 26 | GUIDE BAR, CHAIN | A2 | CHAIN, SAW | 431721-30231 | 431721-30231-Online |
| 26 | GUIDE BAR, CHAIN | B1 | BAR,GUIDE | X125-000400 | X125-000400-Online |
| 26 | GUIDE BAR, CHAIN | B2 | CHAIN, SAW | 431717-30231 | 431717-30231-Online |

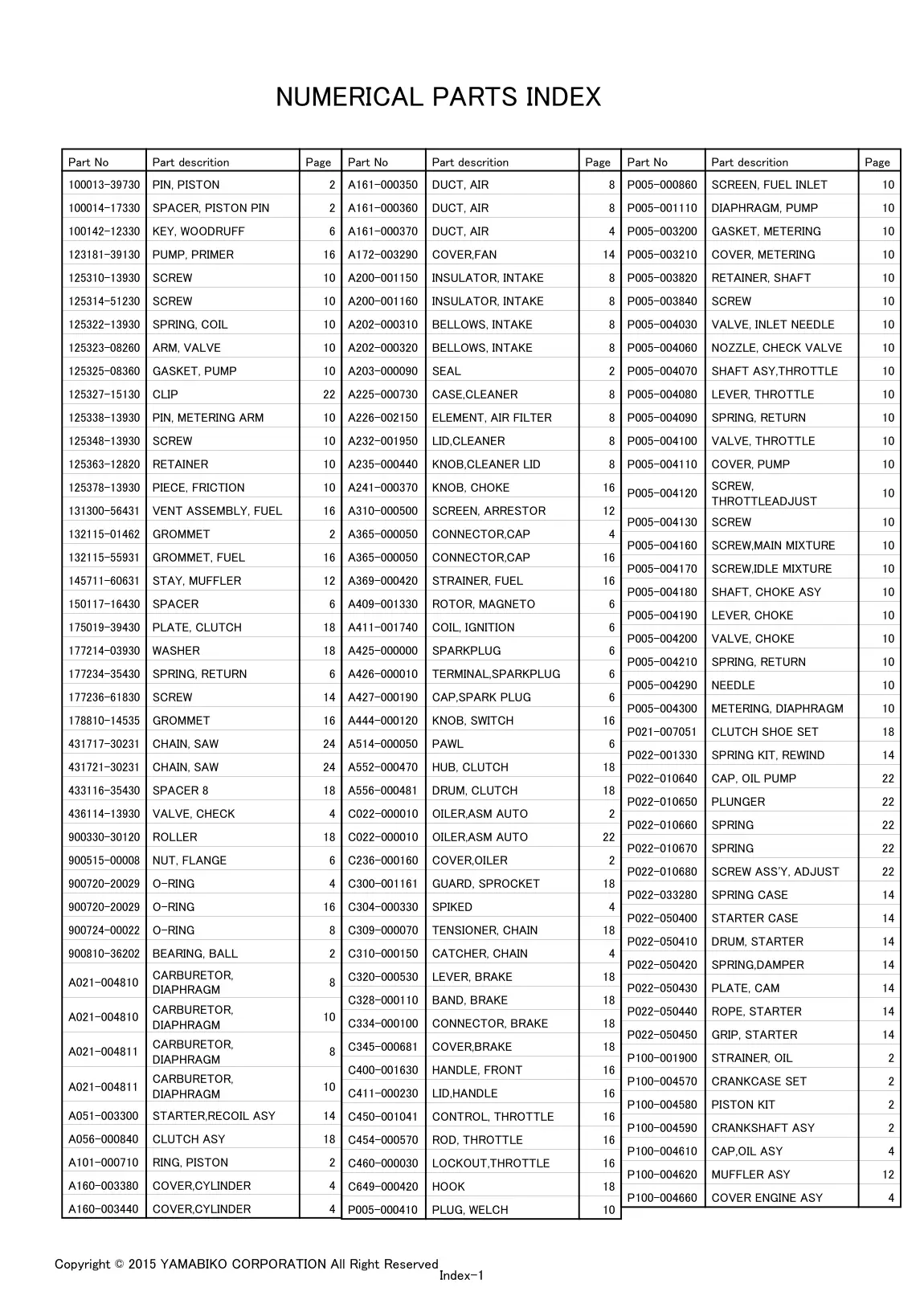

| 27 | COVER ENGINE ASY | PIN, PISTON | 100013-39730 | 100013-39730-Online | |
| 27 | COVER ENGINE ASY | 10 | SCREW | 125314-51230 | 125314-51230-Online |
| 27 | COVER ENGINE ASY | 10 | SPRING, COIL | 125322-13930 | 125322-13930-Online |
| 27 | COVER ENGINE ASY | 10 | ARM, VALVE | 125323-08260 | 125323-08260-Online |
| 27 | COVER ENGINE ASY | 10 | GASKET, PUMP | 125325-08360 | 125325-08360-Online |
| 27 | COVER ENGINE ASY | 10 | CLIP | 125327-15130 | 125327-15130-Online |
| 27 | COVER ENGINE ASY | 10 | SCREW | 125348-13930 | 125348-13930-Online |
| 27 | COVER ENGINE ASY | 10 | RETAINER | 125363-12820 | 125363-12820-Online |
| 27 | COVER ENGINE ASY | 10 | PIECE, FRICTION | 125378-13930 | 125378-13930-Online |
| 27 | COVER ENGINE ASY | 10 | VENT ASSEMBLY, FUEL | 131300-56431 | 131300-56431-Online |
| 27 | COVER ENGINE ASY | 10 | CARBURETOR, | A021-004811 | A021-004811-Online |
| 27 | COVER ENGINE ASY | 10 | STARTER,RECOIL ASY | A051-003300 | A051-003300-Online |
| 27 | COVER ENGINE ASY | 10 | SCREEN, FUEL INLET | P005-000860 | P005-000860-Online |
| 27 | COVER ENGINE ASY | 10 | DIAPHRAGM, PUMP | P005-001110 | P005-001110-Online |
| 27 | COVER ENGINE ASY | 10 | GASKET, METERING | P005-003200 | P005-003200-Online |
| 27 | COVER ENGINE ASY | 10 | COVER, METERING | P005-003210 | P005-003210-Online |
| 27 | COVER ENGINE ASY | 10 | RETAINER, SHAFT | P005-003820 | P005-003820-Online |
| 27 | COVER ENGINE ASY | 10 | SCREW | P005-003840 | P005-003840-Online |
| 27 | COVER ENGINE ASY | 10 | VALVE, INLET NEEDLE | P005-004030 | P005-004030-Online |
| 27 | COVER ENGINE ASY | 10 | NOZZLE, CHECK VALVE | P005-004060 | P005-004060-Online |
| 27 | COVER ENGINE ASY | 10 | SHAFT ASY,THROTTLE | P005-004070 | P005-004070-Online |
| 27 | COVER ENGINE ASY | 10 | LEVER, THROTTLE | P005-004080 | P005-004080-Online |
| 27 | COVER ENGINE ASY | 10 | SPRING, RETURN | P005-004090 | P005-004090-Online |
| 27 | COVER ENGINE ASY | 10 | VALVE, THROTTLE | P005-004100 | P005-004100-Online |
| 27 | COVER ENGINE ASY | 10 | COVER, PUMP | P005-004110 | P005-004110-Online |
| 27 | COVER ENGINE ASY | 10 | SCREW, | P005-004120 | P005-004120-Online |
| 27 | COVER ENGINE ASY | 10 | SCREW | P005-004130 | P005-004130-Online |
| 27 | COVER ENGINE ASY | 10 | SCREW,MAIN MIXTURE | P005-004160 | P005-004160-Online |
| 27 | COVER ENGINE ASY | 10 | SCREW,IDLE MIXTURE | P005-004170 | P005-004170-Online |
| 27 | COVER ENGINE ASY | 10 | SHAFT, CHOKE ASY | P005-004180 | P005-004180-Online |
| 27 | COVER ENGINE ASY | 10 | LEVER, CHOKE | P005-004190 | P005-004190-Online |
| 27 | COVER ENGINE ASY | 10 | VALVE, CHOKE | P005-004200 | P005-004200-Online |
| 27 | COVER ENGINE ASY | 10 | SPRING, RETURN | P005-004210 | P005-004210-Online |
| 27 | COVER ENGINE ASY | 10 | NEEDLE | P005-004290 | P005-004290-Online |
| 27 | COVER ENGINE ASY | 10 | METERING, DIAPHRAGM | P005-004300 | P005-004300-Online |
| 27 | COVER ENGINE ASY | 10 | CLUTCH SHOE SET | P021-007051 | P021-007051-Online |
| 27 | COVER ENGINE ASY | 12 | SPACER | 150117-16430 | 150117-16430-Online |
| 27 | COVER ENGINE ASY | 12 | CONNECTOR,CAP | A365-000050 | A365-000050-Online |
| 27 | COVER ENGINE ASY | 14 | GROMMET | 178810-14535 | 178810-14535-Online |
| 27 | COVER ENGINE ASY | 14 | CLUTCH ASY | A056-000840 | A056-000840-Online |
| 27 | COVER ENGINE ASY | 14 | INSULATOR, INTAKE | A200-001150 | A200-001150-Online |
| 27 | COVER ENGINE ASY | 14 | CAP, OIL PUMP | P022-010640 | P022-010640-Online |
| 27 | COVER ENGINE ASY | 14 | STARTER CASE | P022-050400 | P022-050400-Online |
| 27 | COVER ENGINE ASY | 14 | DRUM, STARTER | P022-050410 | P022-050410-Online |
| 27 | COVER ENGINE ASY | 14 | SPRING,DAMPER | P022-050420 | P022-050420-Online |
| 27 | COVER ENGINE ASY | 14 | PLATE, CAM | P022-050430 | P022-050430-Online |
| 27 | COVER ENGINE ASY | 14 | ROPE, STARTER | P022-050440 | P022-050440-Online |
| 27 | COVER ENGINE ASY | 14 | GRIP, STARTER | P022-050450 | P022-050450-Online |
| 27 | COVER ENGINE ASY | 14 | STRAINER, OIL | P100-001900 | P100-001900-Online |
| 27 | COVER ENGINE ASY | 16 | SCREW | 125310-13930 | 125310-13930-Online |
| 27 | COVER ENGINE ASY | 16 | GROMMET | 132115-01462 | 132115-01462-Online |
| 27 | COVER ENGINE ASY | 16 | STAY, MUFFLER | 145711-60631 | 145711-60631-Online |
| 27 | COVER ENGINE ASY | 16 | CHAIN, SAW | 431717-30231 | 431717-30231-Online |
| 27 | COVER ENGINE ASY | 16 | O-RING | 900724-00022 | 900724-00022-Online |
| 27 | COVER ENGINE ASY | 16 | SCREEN, ARRESTOR | A310-000500 | A310-000500-Online |
| 27 | COVER ENGINE ASY | 16 | STRAINER, FUEL | A369-000420 | A369-000420-Online |
| 27 | COVER ENGINE ASY | 16 | ROTOR, MAGNETO | A409-001330 | A409-001330-Online |
| 27 | COVER ENGINE ASY | 16 | PAWL | A514-000050 | A514-000050-Online |
| 27 | COVER ENGINE ASY | 16 | LID,HANDLE | C411-000230 | C411-000230-Online |
| 27 | COVER ENGINE ASY | 16 | CONTROL, THROTTLE | C450-001041 | C450-001041-Online |
| 27 | COVER ENGINE ASY | 16 | ROD, THROTTLE | C454-000570 | C454-000570-Online |
| 27 | COVER ENGINE ASY | 16 | LOCKOUT,THROTTLE | C460-000030 | C460-000030-Online |
| 27 | COVER ENGINE ASY | 18 | WASHER | 177214-03930 | 177214-03930-Online |
| 27 | COVER ENGINE ASY | 18 | SPRING, RETURN | 177234-35430 | 177234-35430-Online |
| 27 | COVER ENGINE ASY | 18 | VALVE, CHECK | 436114-13930 | 436114-13930-Online |
| 27 | COVER ENGINE ASY | 18 | NUT, FLANGE | 900515-00008 | 900515-00008-Online |
| 27 | COVER ENGINE ASY | 18 | RING, PISTON | A101-000710 | A101-000710-Online |
| 27 | COVER ENGINE ASY | 18 | DRUM, CLUTCH | A556-000481 | A556-000481-Online |
| 27 | COVER ENGINE ASY | 18 | OILER,ASM AUTO | C022-000010 | C022-000010-Online |
| 27 | COVER ENGINE ASY | 18 | SPIKED | C304-000330 | C304-000330-Online |
| 27 | COVER ENGINE ASY | 18 | CATCHER, CHAIN | C310-000150 | C310-000150-Online |
| 27 | COVER ENGINE ASY | 18 | BAND, BRAKE | C328-000110 | C328-000110-Online |
| 27 | COVER ENGINE ASY | 18 | CONNECTOR, BRAKE | C334-000100 | C334-000100-Online |
| 27 | COVER ENGINE ASY | 18 | COVER,BRAKE | C345-000681 | C345-000681-Online |
| 27 | COVER ENGINE ASY | 18 | HANDLE, FRONT | C400-001630 | C400-001630-Online |
| 27 | COVER ENGINE ASY | 18 | PLUG, WELCH | P005-000410 | P005-000410-Online |
| 27 | COVER ENGINE ASY | 18 | SPRING KIT, REWIND | P022-001330 | P022-001330-Online |
| 27 | COVER ENGINE ASY | 2 | SPACER, PISTON PIN | 100014-17330 | 100014-17330-Online |
| 27 | COVER ENGINE ASY | 2 | KEY, WOODRUFF | 100142-12330 | 100142-12330-Online |
| 27 | COVER ENGINE ASY | 2 | GROMMET, FUEL | 132115-55931 | 132115-55931-Online |
| 27 | COVER ENGINE ASY | 2 | CARBURETOR, | A021-004810 | A021-004810-Online |
| 27 | COVER ENGINE ASY | 2 | COVER,CYLINDER | A160-003380 | A160-003380-Online |
| 27 | COVER ENGINE ASY | 2 | CASE,CLEANER | A225-000730 | A225-000730-Online |
| 27 | COVER ENGINE ASY | 2 | OILER,ASM AUTO | C022-000010 | C022-000010-Online |
| 27 | COVER ENGINE ASY | 2 | GUARD, SPROCKET | C300-001161 | C300-001161-Online |
| 27 | COVER ENGINE ASY | 2 | CRANKCASE SET | P100-004570 | P100-004570-Online |
| 27 | COVER ENGINE ASY | 2 | PISTON KIT | P100-004580 | P100-004580-Online |
| 27 | COVER ENGINE ASY | 2 | CRANKSHAFT ASY | P100-004590 | P100-004590-Online |
| 27 | COVER ENGINE ASY | 2 | CAP,OIL ASY | P100-004610 | P100-004610-Online |
| 27 | COVER ENGINE ASY | 22 | PIN, METERING ARM | 125338-13930 | 125338-13930-Online |
| 27 | COVER ENGINE ASY | 22 | COVER,OILER | C236-000160 | C236-000160-Online |
| 27 | COVER ENGINE ASY | 22 | PLUNGER | P022-010650 | P022-010650-Online |
| 27 | COVER ENGINE ASY | 22 | SPRING | P022-010660 | P022-010660-Online |
| 27 | COVER ENGINE ASY | 22 | SPRING | P022-010670 | P022-010670-Online |
| 27 | COVER ENGINE ASY | 22 | SCREW ASS'Y, ADJUST | P022-010680 | P022-010680-Online |
| 27 | COVER ENGINE ASY | 22 | SPRING CASE | P022-033280 | P022-033280-Online |
| 27 | COVER ENGINE ASY | 24 | CHAIN, SAW | 431721-30231 | 431721-30231-Online |
| 27 | COVER ENGINE ASY | 24 | SPACER | 433116-35430 | 433116-35430-Online |
| 27 | COVER ENGINE ASY | 4 | ROLLER | 900330-30120 | 900330-30120-Online |
| 27 | COVER ENGINE ASY | 4 | O-RING | 900720-20029 | 900720-20029-Online |
| 27 | COVER ENGINE ASY | 4 | COVER,CYLINDER | A160-003440 | A160-003440-Online |
| 27 | COVER ENGINE ASY | 4 | DUCT, AIR | A161-000350 | A161-000350-Online |
| 27 | COVER ENGINE ASY | 4 | COVER,FAN | A172-003290 | A172-003290-Online |
| 27 | COVER ENGINE ASY | 4 | CONNECTOR,CAP | A365-000050 | A365-000050-Online |
| 27 | COVER ENGINE ASY | 4 | TENSIONER, CHAIN | C309-000070 | C309-000070-Online |
| 27 | COVER ENGINE ASY | 4 | LEVER, BRAKE | C320-000530 | C320-000530-Online |
| 27 | COVER ENGINE ASY | 4 | MUFFLER ASY | P100-004620 | P100-004620-Online |
| 27 | COVER ENGINE ASY | 6 | PUMP, PRIMER | 123181-39130 | 123181-39130-Online |
| 27 | COVER ENGINE ASY | 6 | PLATE, CLUTCH | 175019-39430 | 175019-39430-Online |
| 27 | COVER ENGINE ASY | 6 | SCREW | 177236-61830 | 177236-61830-Online |
| 27 | COVER ENGINE ASY | 6 | O-RING | 900720-20029 | 900720-20029-Online |
| 27 | COVER ENGINE ASY | 6 | COIL, IGNITION | A411-001740 | A411-001740-Online |
| 27 | COVER ENGINE ASY | 6 | SPARKPLUG | A425-000000 | A425-000000-Online |
| 27 | COVER ENGINE ASY | 6 | TERMINAL,SPARKPLUG | A426-000010 | A426-000010-Online |
| 27 | COVER ENGINE ASY | 6 | CAP,SPARK PLUG | A427-000190 | A427-000190-Online |
| 27 | COVER ENGINE ASY | 6 | KNOB, SWITCH | A444-000120 | A444-000120-Online |
| 27 | COVER ENGINE ASY | 6 | HUB, CLUTCH | A552-000470 | A552-000470-Online |
| 27 | COVER ENGINE ASY | 8 | BEARING, BALL | 900810-36202 | 900810-36202-Online |
| 27 | COVER ENGINE ASY | 8 | CARBURETOR, | A021-004810 | A021-004810-Online |
| 27 | COVER ENGINE ASY | 8 | CARBURETOR, | A021-004811 | A021-004811-Online |
| 27 | COVER ENGINE ASY | 8 | DUCT, AIR | A161-000360 | A161-000360-Online |
| 27 | COVER ENGINE ASY | 8 | DUCT, AIR | A161-000370 | A161-000370-Online |
| 27 | COVER ENGINE ASY | 8 | INSULATOR, INTAKE | A200-001160 | A200-001160-Online |
| 27 | COVER ENGINE ASY | 8 | BELLOWS, INTAKE | A202-000310 | A202-000310-Online |
| 27 | COVER ENGINE ASY | 8 | BELLOWS, INTAKE | A202-000320 | A202-000320-Online |
| 27 | COVER ENGINE ASY | 8 | SEAL | A203-000090 | A203-000090-Online |
| 27 | COVER ENGINE ASY | 8 | ELEMENT, AIR FILTER | A226-002150 | A226-002150-Online |
| 27 | COVER ENGINE ASY | 8 | LID,CLEANER | A232-001950 | A232-001950-Online |
| 27 | COVER ENGINE ASY | 8 | KNOB,CLEANER LID | A235-000440 | A235-000440-Online |
| 27 | COVER ENGINE ASY | 8 | KNOB, CHOKE | A241-000370 | A241-000370-Online |

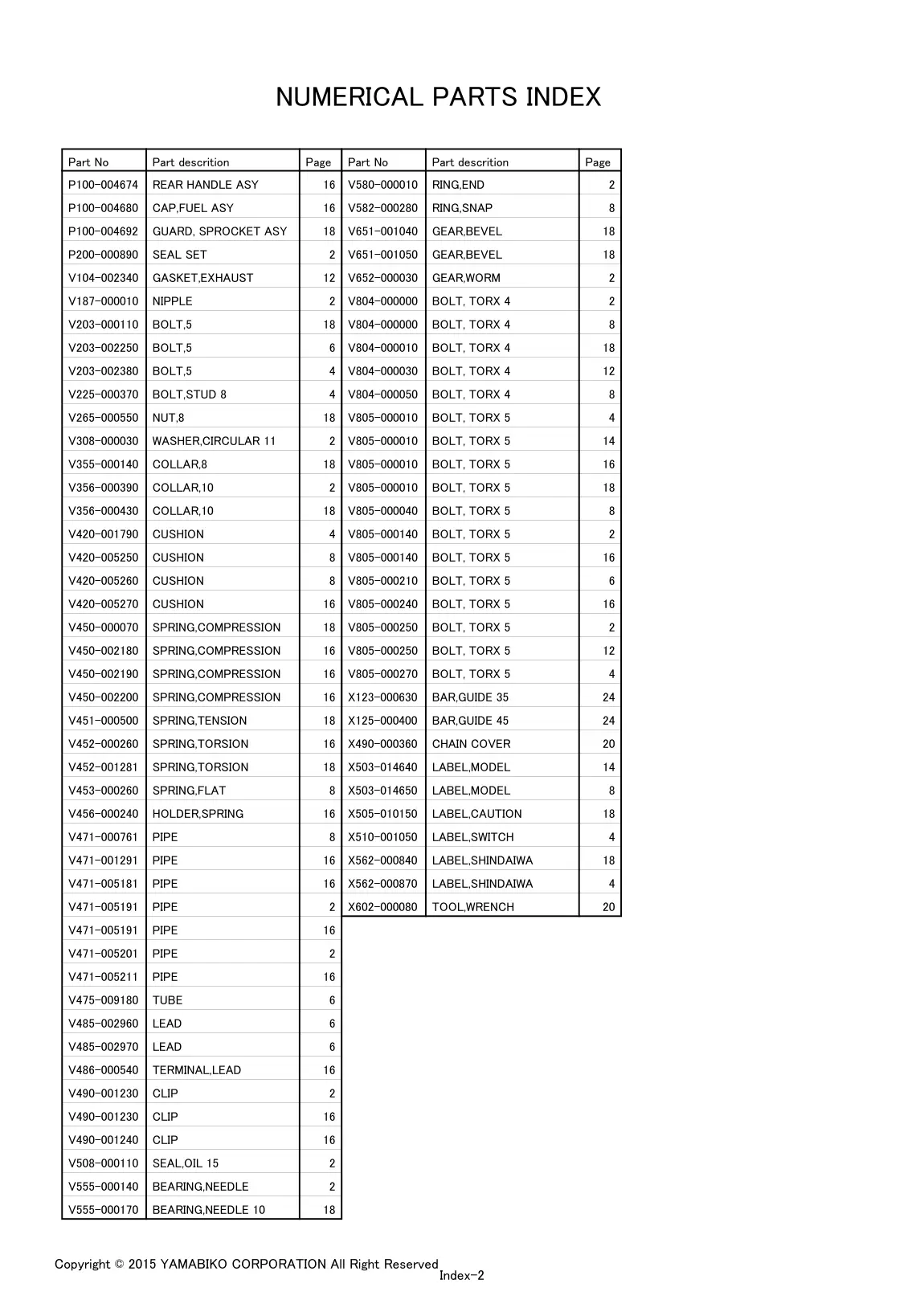

| 28 | TOOL,WRENCH | REAR HANDLE ASY | P100-004674 | P100-004674-Online | |
| 28 | TOOL,WRENCH | 12 | NIPPLE | V187-000010 | V187-000010-Online |
| 28 | TOOL,WRENCH | 12 | BOLT, TORX | V804-000050 | V804-000050-Online |
| 28 | TOOL,WRENCH | 12 | BOLT, TORX | V805-000270 | V805-000270-Online |
| 28 | TOOL,WRENCH | 14 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 28 | TOOL,WRENCH | 14 | LABEL,MODEL | X503-014650 | X503-014650-Online |
| 28 | TOOL,WRENCH | 16 | CAP,FUEL ASY | P100-004680 | P100-004680-Online |
| 28 | TOOL,WRENCH | 16 | GUARD, SPROCKET ASY | P100-004692 | P100-004692-Online |
| 28 | TOOL,WRENCH | 16 | SPRING,COMPRESSION | V450-000070 | V450-000070-Online |
| 28 | TOOL,WRENCH | 16 | SPRING,COMPRESSION | V450-002190 | V450-002190-Online |
| 28 | TOOL,WRENCH | 16 | SPRING,COMPRESSION | V450-002200 | V450-002200-Online |
| 28 | TOOL,WRENCH | 16 | SPRING,TENSION | V451-000500 | V451-000500-Online |
| 28 | TOOL,WRENCH | 16 | SPRING,TORSION | V452-001281 | V452-001281-Online |
| 28 | TOOL,WRENCH | 16 | PIPE | V471-000761 | V471-000761-Online |
| 28 | TOOL,WRENCH | 16 | PIPE | V471-005181 | V471-005181-Online |
| 28 | TOOL,WRENCH | 16 | PIPE | V471-005191 | V471-005191-Online |
| 28 | TOOL,WRENCH | 16 | PIPE | V471-005201 | V471-005201-Online |
| 28 | TOOL,WRENCH | 16 | TUBE | V475-009180 | V475-009180-Online |
| 28 | TOOL,WRENCH | 16 | CLIP | V490-001230 | V490-001230-Online |
| 28 | TOOL,WRENCH | 16 | CLIP | V490-001240 | V490-001240-Online |
| 28 | TOOL,WRENCH | 16 | SEAL,OIL | V508-000110 | V508-000110-Online |
| 28 | TOOL,WRENCH | 16 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 28 | TOOL,WRENCH | 16 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 28 | TOOL,WRENCH | 16 | BOLT, TORX | V805-000250 | V805-000250-Online |
| 28 | TOOL,WRENCH | 18 | SEAL SET | P200-000890 | P200-000890-Online |
| 28 | TOOL,WRENCH | 18 | BOLT,5 | V203-002250 | V203-002250-Online |
| 28 | TOOL,WRENCH | 18 | WASHER,CIRCULAR | V308-000030 | V308-000030-Online |
| 28 | TOOL,WRENCH | 18 | COLLAR,10 | V356-000390 | V356-000390-Online |
| 28 | TOOL,WRENCH | 18 | CUSHION | V420-001790 | V420-001790-Online |
| 28 | TOOL,WRENCH | 18 | SPRING,COMPRESSION | V450-002180 | V450-002180-Online |
| 28 | TOOL,WRENCH | 18 | SPRING,TORSION | V452-000260 | V452-000260-Online |
| 28 | TOOL,WRENCH | 18 | SPRING,FLAT | V453-000260 | V453-000260-Online |
| 28 | TOOL,WRENCH | 18 | RING,END | V580-000010 | V580-000010-Online |
| 28 | TOOL,WRENCH | 18 | GEAR,BEVEL | V651-001050 | V651-001050-Online |
| 28 | TOOL,WRENCH | 18 | GEAR,WORM | V652-000030 | V652-000030-Online |
| 28 | TOOL,WRENCH | 18 | BOLT, TORX | V804-000030 | V804-000030-Online |
| 28 | TOOL,WRENCH | 18 | BOLT, TORX | V805-000040 | V805-000040-Online |
| 28 | TOOL,WRENCH | 18 | LABEL,SWITCH | X510-001050 | X510-001050-Online |
| 28 | TOOL,WRENCH | 18 | LABEL,SHINDAIWA | X562-000870 | X562-000870-Online |
| 28 | TOOL,WRENCH | 2 | GASKET,EXHAUST | V104-002340 | V104-002340-Online |
| 28 | TOOL,WRENCH | 2 | BOLT,5 | V203-000110 | V203-000110-Online |
| 28 | TOOL,WRENCH | 2 | COLLAR,8 | V355-000140 | V355-000140-Online |
| 28 | TOOL,WRENCH | 2 | COLLAR,10 | V356-000430 | V356-000430-Online |
| 28 | TOOL,WRENCH | 2 | PIPE | V471-005191 | V471-005191-Online |
| 28 | TOOL,WRENCH | 2 | PIPE | V471-005211 | V471-005211-Online |
| 28 | TOOL,WRENCH | 2 | CLIP | V490-001230 | V490-001230-Online |
| 28 | TOOL,WRENCH | 2 | BEARING,NEEDLE | V555-000140 | V555-000140-Online |
| 28 | TOOL,WRENCH | 2 | BEARING,NEEDLE | V555-000170 | V555-000170-Online |
| 28 | TOOL,WRENCH | 2 | RING,SNAP | V582-000280 | V582-000280-Online |
| 28 | TOOL,WRENCH | 2 | BOLT, TORX | V804-000000 | V804-000000-Online |
| 28 | TOOL,WRENCH | 2 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 28 | TOOL,WRENCH | 2 | BOLT, TORX | V805-000250 | V805-000250-Online |
| 28 | TOOL,WRENCH | 20 | LABEL,MODEL | X503-014640 | X503-014640-Online |
| 28 | TOOL,WRENCH | 24 | BAR,GUIDE | X125-000400 | X125-000400-Online |
| 28 | TOOL,WRENCH | 24 | CHAIN COVER | X490-000360 | X490-000360-Online |
| 28 | TOOL,WRENCH | 4 | BOLT,STUD | V225-000370 | V225-000370-Online |
| 28 | TOOL,WRENCH | 4 | NUT,8 | V265-000550 | V265-000550-Online |
| 28 | TOOL,WRENCH | 4 | CUSHION | V420-005250 | V420-005250-Online |
| 28 | TOOL,WRENCH | 4 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 28 | TOOL,WRENCH | 4 | BAR,GUIDE | X123-000630 | X123-000630-Online |
| 28 | TOOL,WRENCH | 4 | LABEL,SHINDAIWA | X562-000840 | X562-000840-Online |
| 28 | TOOL,WRENCH | 6 | BOLT,5 | V203-002380 | V203-002380-Online |
| 28 | TOOL,WRENCH | 6 | LEAD | V485-002960 | V485-002960-Online |
| 28 | TOOL,WRENCH | 6 | LEAD | V485-002970 | V485-002970-Online |
| 28 | TOOL,WRENCH | 6 | TERMINAL,LEAD | V486-000540 | V486-000540-Online |
| 28 | TOOL,WRENCH | 6 | BOLT, TORX | V805-000240 | V805-000240-Online |
| 28 | TOOL,WRENCH | 8 | CUSHION | V420-005260 | V420-005260-Online |
| 28 | TOOL,WRENCH | 8 | CUSHION | V420-005270 | V420-005270-Online |
| 28 | TOOL,WRENCH | 8 | HOLDER,SPRING | V456-000240 | V456-000240-Online |
| 28 | TOOL,WRENCH | 8 | PIPE | V471-001291 | V471-001291-Online |
| 28 | TOOL,WRENCH | 8 | GEAR,BEVEL | V651-001040 | V651-001040-Online |
| 28 | TOOL,WRENCH | 8 | BOLT, TORX | V804-000010 | V804-000010-Online |
| 28 | TOOL,WRENCH | 8 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 28 | TOOL,WRENCH | 8 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 28 | TOOL,WRENCH | 8 | LABEL,CAUTION | X505-010150 | X505-010150-Online |
Source file: 20201111-46_451S_38_spec_chainsaw.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
