Echo DM-4610 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: DM-4610-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.

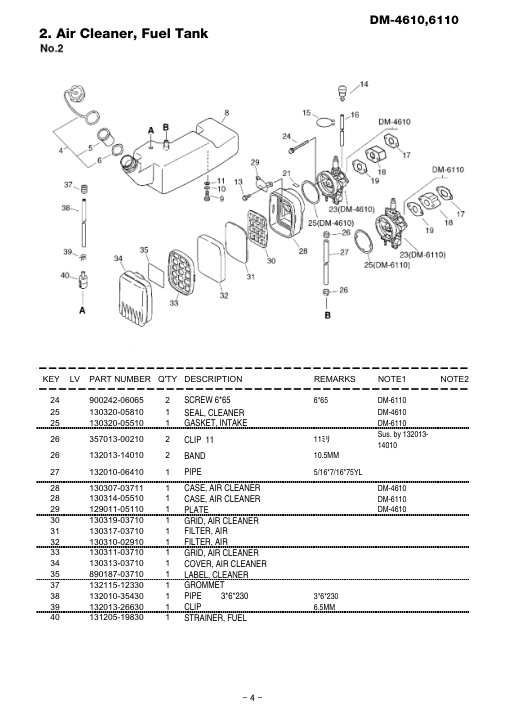

Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.

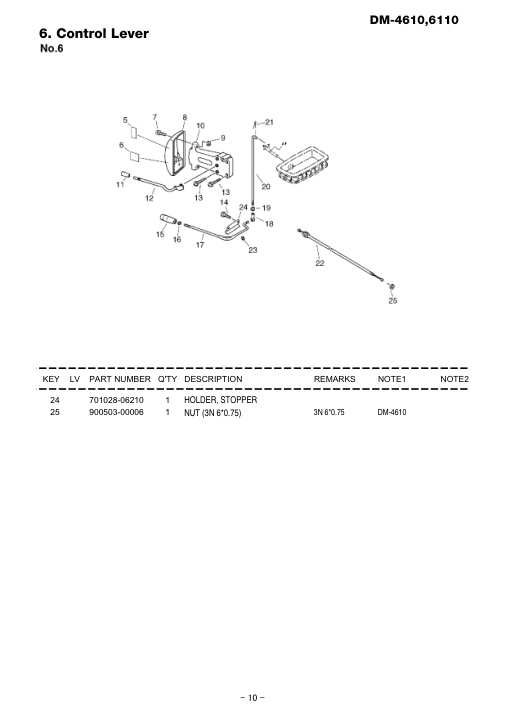

Page 11
Tap or click the page image to enlarge it.

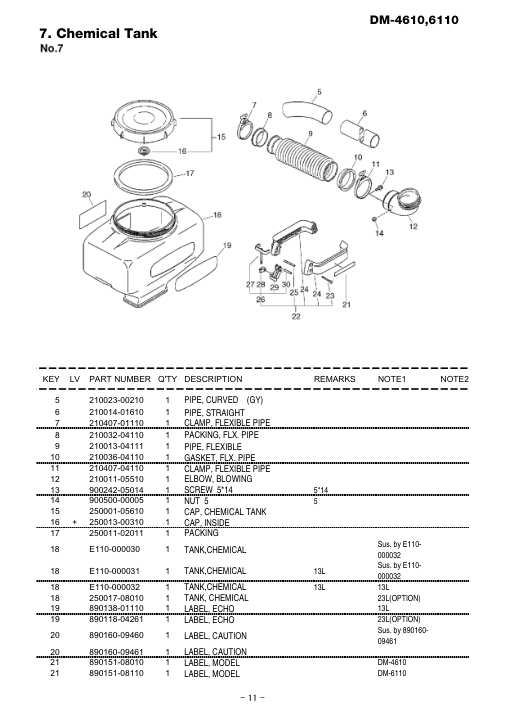

Page 12
Tap or click the page image to enlarge it.

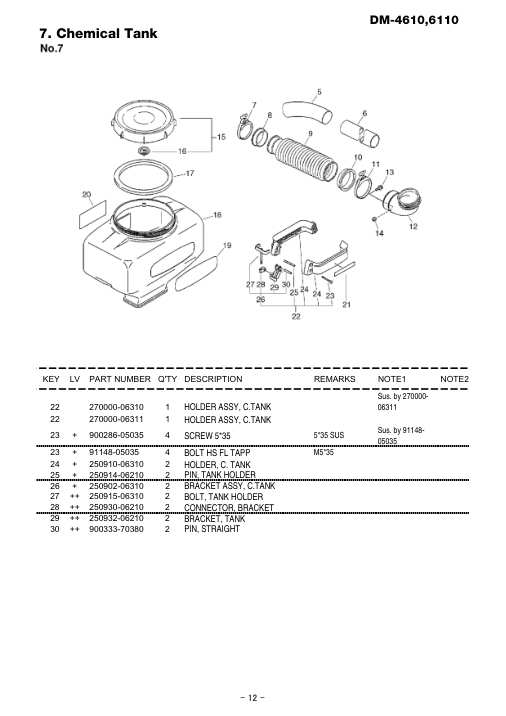

Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.

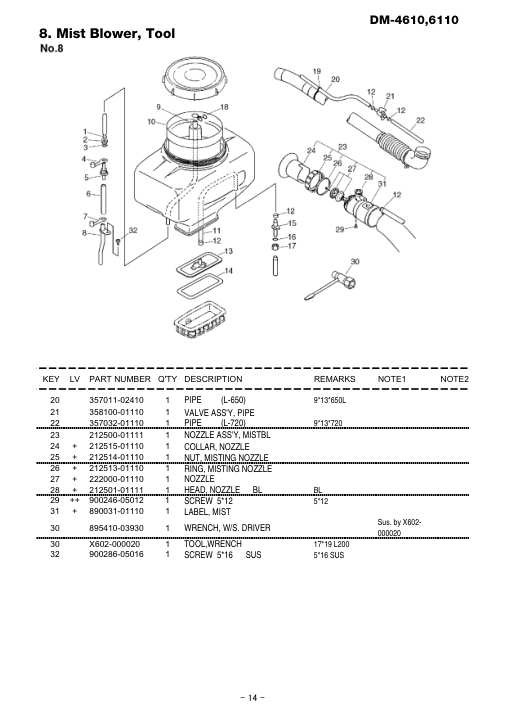

Page 15
Tap or click the page image to enlarge it.

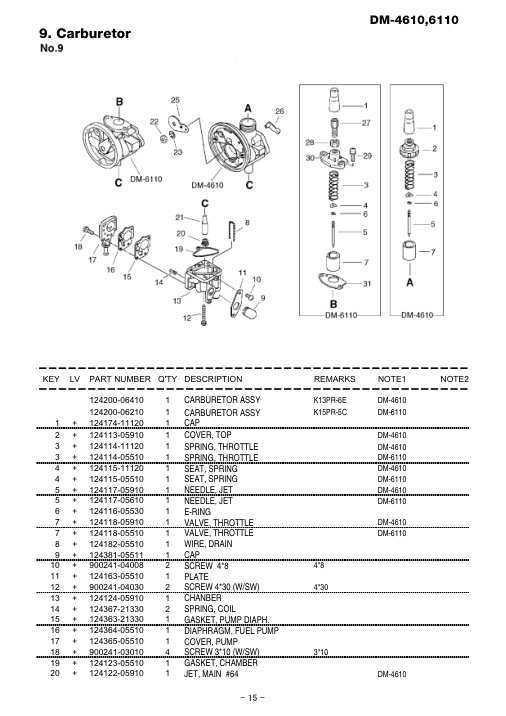

Page 16
Tap or click the page image to enlarge it.

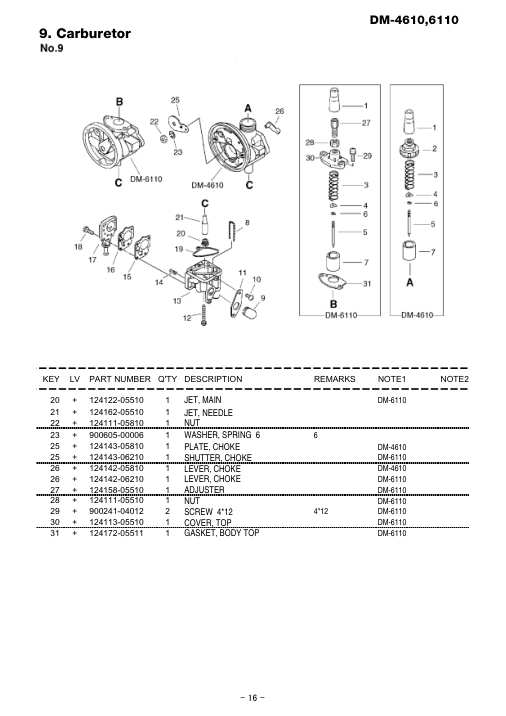

Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.

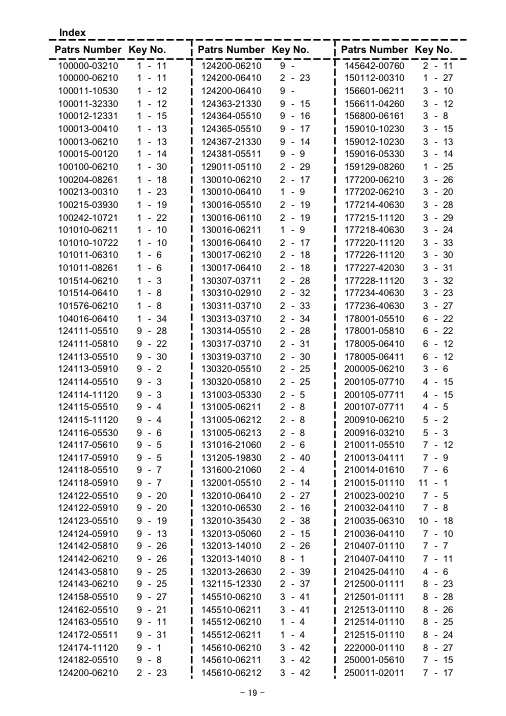

Page 20
Tap or click the page image to enlarge it.

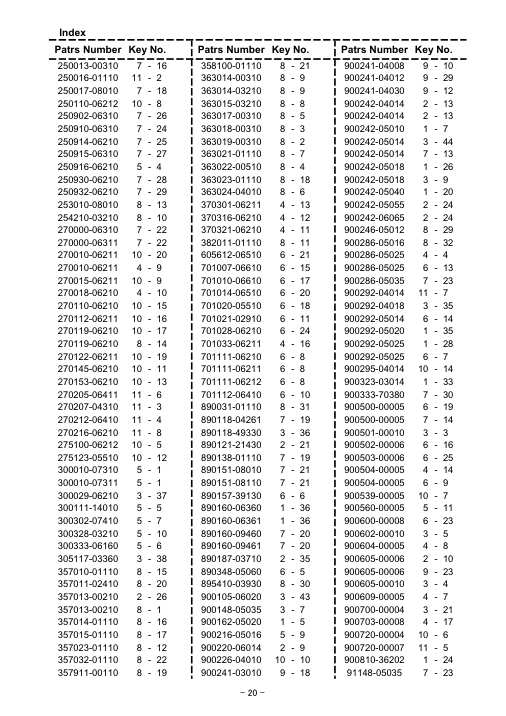

Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.
Page 23
Tap or click the page image to enlarge it.

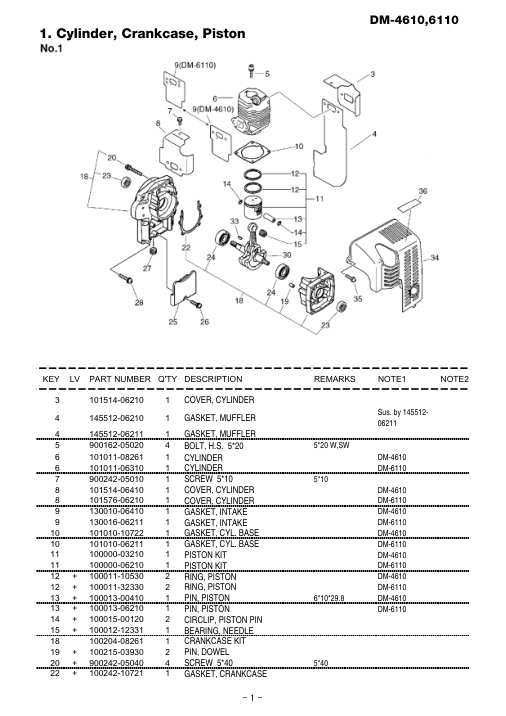

Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 3 | 1 | Cover, Cylinder | 101514-06210 | 101514-06210-Online | ||
| 4 | 1 | Gasket, Muffler | 145512-06210 | 145512-06210-Online | Sus. by 145512- | 06211 | |
| 4 | 1 | Gasket, Muffler | 145512-06211 | 145512-06211-Online | ||
| 5 | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 6 | 1 | Cylinder | 101011-08261 | 101011-08261-Online | DM-4610 | |
| 6 | 1 | Cylinder | 101011-06310 | 101011-06310-Online | DM-6110 | |
| 7 | 1 | Screw 5*10 | 900242-05010 | 900242-05010-Online | 5*10 | |
| 8 | 1 | Cover, Cylinder | 101514-06410 | 101514-06410-Online | DM-4610 | |
| 8 | 1 | Cover, Cylinder | 101576-06210 | 101576-06210-Online | DM-6110 | |
| 9 | 1 | Gasket, Intake | 130010-06410 | 130010-06410-Online | DM-4610 | |
| 9 | 1 | Gasket, Intake | 130016-06211 | 130016-06211-Online | DM-6110 | |
| 10 | 1 | Gasket, Cyl. Base | 101010-10722 | 101010-10722-Online | DM-4610 | |
| 10 | 1 | Gasket, Cyl. Base | 101010-06211 | 101010-06211-Online | DM-6110 | |
| 11 | 1 | Piston Kit | 100000-03210 | 100000-03210-Online | DM-4610 | |
| 11 | 1 | Piston Kit | 100000-06210 | 100000-06210-Online | DM-6110 | |
| 12 | + | 2 | Ring, Piston | 100011-10530 | 100011-10530-Online | DM-4610 |
| 12 | + | 2 | Ring, Piston | 100011-32330 | 100011-32330-Online | DM-6110 |
| 13 | + | 1 | Pin, Piston | 100013-00410 | 100013-00410-Online | 6*10*29.8 | DM-4610 |
| 13 | + | 1 | Pin, Piston | 100013-06210 | 100013-06210-Online | DM-6110 |
| 14 | + | 2 | Circlip, Piston Pin | 100015-00120 | 100015-00120-Online | |
| 15 | + | 1 | Bearing, Needle | 100012-12331 | 100012-12331-Online | |
| 18 | 1 | Crankcase Kit | 100204-08261 | 100204-08261-Online | ||
| 19 | + | 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 20 | + | 4 | Screw 5*40 | 900242-05040 | 900242-05040-Online | 5*40 |
| 22 | + | 1 | Gasket, Crankcase | 100242-10721 | 100242-10721-Online |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 23 | + | 2 | Oilseal | 100213-00310 | 100213-00310-Online | ISCD 15 25 7 |
| 24 | + | 2 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | 6202/C3 |
| 25 | 1 | Cover, Dust | 159129-08260 | 159129-08260-Online | ||
| 26 | 1 | Screw 5*18 | 900242-05018 | 900242-05018-Online | 5*18 | |
| 27 | 1 | Bushing | 150112-00310 | 150112-00310-Online | ||
| 28 | 6 | Screw 5*25 | 900292-05025 | 900292-05025-Online | 5*25 SUS | |
| 30 | 1 | Crankshaft Assy | 100100-06210 | 100100-06210-Online | ||
| 33 | 1 | Key Woodruff | 900323-03014 | 900323-03014-Online | 3*14 | |
| 34 | 1 | Cover, Engine | 104016-06410 | 104016-06410-Online | ||
| 35 | 3 | Screw 5*20 | 900292-05020 | 900292-05020-Online | 5*20 SUS | |
| 36 | 1 | Label, Caution | 890160-06360 | 890160-06360-Online | Sus. by 890160- | 06361 | |
| 36 | 1 | Label, Caution | 890160-06361 | 890160-06361-Online |

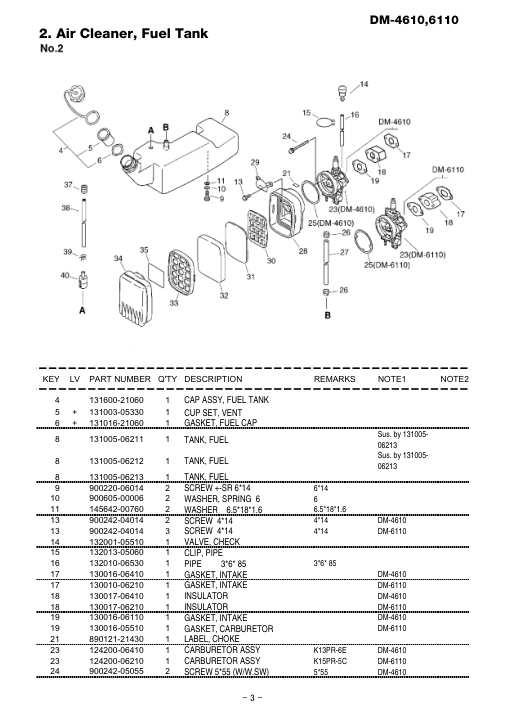

Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 4 | 1 | Cap Assy, Fuel Tank | 131600-21060 | 131600-21060-Online | ||
| 5 | + | 1 | Cup Set, Vent | 131003-05330 | 131003-05330-Online | |
| 6 | + | 1 | Gasket, Fuel Cap | 131016-21060 | 131016-21060-Online | |
| 8 | 1 | Tank, Fuel | 131005-06211 | 131005-06211-Online | Sus. by 131005- | 06213 | |
| 8 | 1 | Tank, Fuel | 131005-06212 | 131005-06212-Online | Sus. by 131005- | 06213 | |
| 8 | 1 | Tank, Fuel | 131005-06213 | 131005-06213-Online | ||
| 9 | 2 | Screw +-Sr 6*14 | 900220-06014 | 900220-06014-Online | 6*14 | |
| 10 | 2 | Washer, Spring 6 | 900605-00006 | 900605-00006-Online | ||
| 11 | 2 | Washer 6.5*18*1.6 | 145642-00760 | 145642-00760-Online | 6.5*18*1.6 | |
| 13 | 2 | Screw 4*14 | 900242-04014 | 900242-04014-Online | 4*14 | DM-4610 | |
| 13 | 3 | Screw 4*14 | 900242-04014 | 900242-04014-Online | 4*14 | DM-6110 | |
| 14 | 1 | Valve, Check | 132001-05510 | 132001-05510-Online | ||
| 15 | 1 | Clip, Pipe | 132013-05060 | 132013-05060-Online | ||
| 16 | 1 | Pipe 3*6* 85 | 132010-06530 | 132010-06530-Online | 3*6* 85 | |
| 17 | 1 | Gasket, Intake | 130016-06410 | 130016-06410-Online | DM-4610 | |
| 17 | 1 | Gasket, Intake | 130010-06210 | 130010-06210-Online | DM-6110 | |
| 18 | 1 | Insulator | 130017-06410 | 130017-06410-Online | DM-4610 | |
| 18 | 1 | Insulator | 130017-06210 | 130017-06210-Online | DM-6110 | |
| 19 | 1 | Gasket, Intake | 130016-06110 | 130016-06110-Online | DM-4610 | |
| 19 | 1 | Gasket, Carburetor | 130016-05510 | 130016-05510-Online | DM-6110 | |
| 21 | 1 | Label, Choke | 890121-21430 | 890121-21430-Online | ||
| 23 | 1 | Carburetor Assy | 124200-06410 | 124200-06410-Online | K13PR-6E | DM-4610 | |
| 23 | 1 | Carburetor Assy | 124200-06210 | 124200-06210-Online | K15PR-5C | DM-6110 | |
| 24 | 2 | Screw 5*55 (W/W.Sw) | 900242-05055 | 900242-05055-Online | 5*55 | DM-4610 |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 24 | 2 | Screw 6*65 | 900242-06065 | 900242-06065-Online | 6*65 | DM-6110 | |
| 25 | 1 | Seal, Cleaner | 130320-05810 | 130320-05810-Online | DM-4610 | |
| 25 | 1 | Gasket, Intake | 130320-05510 | 130320-05510-Online | DM-6110 | |
| 26 | 2 | Clip 11 | 357013-00210 | 357013-00210-Online | 11㺮㺶 | Sus. by 132013- | 14010 | |
| 26 | 2 | Band | 132013-14010 | 132013-14010-Online | 10.5MM | |
| 27 | 1 | Pipe | 132010-06410 | 132010-06410-Online | 5/16*7/16*75YL | |
| 28 | 1 | Case, Air Cleaner | 130307-03711 | 130307-03711-Online | DM-4610 | |
| 28 | 1 | Case, Air Cleaner | 130314-05510 | 130314-05510-Online | DM-6110 | |
| 29 | 1 | Plate | 129011-05110 | 129011-05110-Online | DM-4610 | |
| 30 | 1 | Grid, Air Cleaner | 130319-03710 | 130319-03710-Online | ||
| 31 | 1 | Filter, Air | 130317-03710 | 130317-03710-Online | ||
| 32 | 1 | Filter, Air | 130310-02910 | 130310-02910-Online | ||
| 33 | 1 | Grid, Air Cleaner | 130311-03710 | 130311-03710-Online | ||
| 34 | 1 | Cover, Air Cleaner | 130313-03710 | 130313-03710-Online | ||
| 35 | 1 | Label, Cleaner | 890187-03710 | 890187-03710-Online | ||
| 37 | 1 | Grommet | 132115-12330 | 132115-12330-Online | ||
| 38 | 1 | Pipe 3*6*230 | 132010-35430 | 132010-35430-Online | 3*6*230 | |
| 39 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 40 | 1 | Strainer, Fuel | 131205-19830 | 131205-19830-Online |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 3 | 1 | Nut 10*1.25 | 900501-00010 | 900501-00010-Online | 10*P1.25 | |
| 4 | 1 | Washer, Spring 10 | 900605-00010 | 900605-00010-Online | ||
| 5 | 1 | Washer 10(10.5*21*2) | 900602-00010 | 900602-00010-Online | 10.5*21*2 | |
| 6 | 1 | Part | 200005-06210 | 200005-06210-Online | ||
| 7 | 4 | Bolt 5*35 | 900148-05035 | 900148-05035-Online | 5*35 | |
| 8 | 1 | Rotor, Magneto | 156800-06161 | 156800-06161-Online | ||
| 9 | 2 | Screw 5*18 | 900242-05018 | 900242-05018-Online | 5*18 | |
| 10 | 1 | C.D. Ignition Module | 156601-06211 | 156601-06211-Online | ||
| 12 | 1 | Tube | 156611-04260 | 156611-04260-Online | 6*8*340 | |
| 13 | 1 | Cap, Spark Plug | 159012-10230 | 159012-10230-Online | ||
| 14 | 1 | Adapter, Plug Cap | 159016-05330 | 159016-05330-Online | ||
| 15 | 1 | Plug, Spark (Bpmr-7A | 159010-10230 | 159010-10230-Online | BPMR-7A | |
| 20 | 1 | Pawl Assy, Starter | 177202-06210 | 177202-06210-Online | ||
| 21 | + | 1 | E-Ring 4 | 900700-00004 | 900700-00004-Online | CE-4 |
| 23 | + | 1 | Spring, Return | 177234-40630 | 177234-40630-Online | |
| 24 | + | 1 | Pawl, Starter | 177218-40630 | 177218-40630-Online | WHITE |
| 26 | 1 | Starter Assy | 177200-06210 | 177200-06210-Online | ||
| 27 | + | 1 | Screw | 177236-40630 | 177236-40630-Online | |
| 28 | + | 1 | Washer | 177214-40630 | 177214-40630-Online | |
| 29 | + | 1 | Drum, Starter | 177215-11120 | 177215-11120-Online | |
| 30 | + | 1 | Rope, Starter | 177226-11120 | 177226-11120-Online | 3.8*1400 |
| 31 | + | 1 | Guide, Rope | 177227-42030 | 177227-42030-Online | |
| 32 | + | 1 | Grip, Starter | 177228-11120 | 177228-11120-Online | |
| 33 | + | 1 | Rewind Spring | 177220-11120 | 177220-11120-Online | |
| 35 | 4 | Screw 4*18 | 900292-04018 | 900292-04018-Online | 4*18 SUS | |
| 36 | 1 | Label, Echo | 890118-49330 | 890118-49330-Online |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 37 | 1 | Plate, Angle | 300029-06210 | 300029-06210-Online | ||
| 38 | 1 | Cushion | 305117-03360 | 305117-03360-Online | ||
| 41 | 1 | Gasket, Muffler | 145510-06210 | 145510-06210-Online | Sus. by 145510- | 06211 | |
| 41 | 1 | Gasket, Muffler | 145510-06211 | 145510-06211-Online | ||
| 42 | 1 | Muffler | 145610-06210 | 145610-06210-Online | Sus. by 145610- | 06212 | |
| 42 | 1 | Muffler | 145610-06211 | 145610-06211-Online | Sus. by 145610- | 06212 | |
| 42 | 1 | Muffler | 145610-06212 | 145610-06212-Online | ||
| 43 | 2 | Bolt, H.S. 6*20 | 900105-06020 | 900105-06020-Online | 6*20 | |
| 44 | 1 | Screw 5*14 | 900242-05014 | 900242-05014-Online | 5*14 |

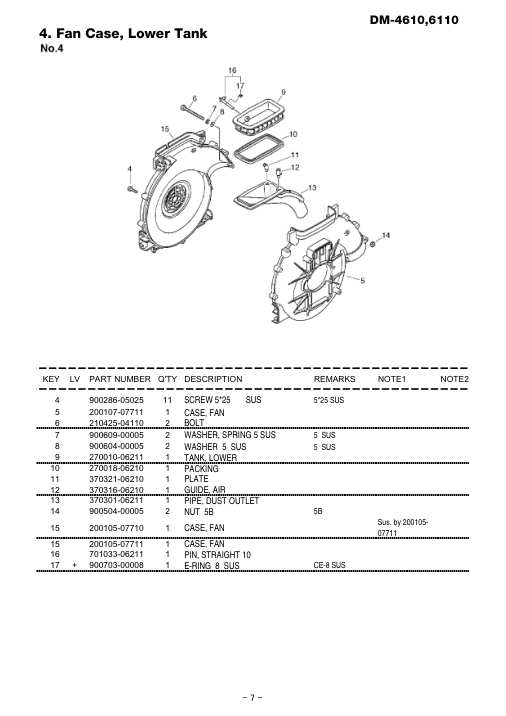

Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 4 | 11 | Screw 5*25 Sus | 900286-05025 | 900286-05025-Online | 5*25 SUS | |
| 5 | 1 | Case, Fan | 200107-07711 | 200107-07711-Online | ||
| 6 | 2 | Bolt | 210425-04110 | 210425-04110-Online | ||
| 7 | 2 | Washer, Spring 5 Sus | 900609-00005 | 900609-00005-Online | 5 SUS | |
| 8 | 2 | Washer 5 Sus | 900604-00005 | 900604-00005-Online | 5 SUS | |
| 9 | 1 | Tank, Lower | 270010-06211 | 270010-06211-Online | ||
| 10 | 1 | Packing | 270018-06210 | 270018-06210-Online | ||
| 11 | 1 | Plate | 370321-06210 | 370321-06210-Online | ||
| 12 | 1 | Guide, Air | 370316-06210 | 370316-06210-Online | ||
| 13 | 1 | Pipe, Dust Outlet | 370301-06211 | 370301-06211-Online | ||
| 14 | 2 | Nut 5B | 900504-00005 | 900504-00005-Online | ||
| 15 | 1 | Case, Fan | 200105-07710 | 200105-07710-Online | Sus. by 200105- | 07711 | |
| 15 | 1 | Case, Fan | 200105-07711 | 200105-07711-Online | ||
| 16 | 1 | Pin, Straight 10 | 701033-06211 | 701033-06211-Online | ||
| 17 | + | 1 | E-Ring 8 Sus | 900703-00008 | 900703-00008-Online | CE-8 SUS |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Frame, Backpack | 300010-07310 | 300010-07310-Online | Sus. by 300010- | 07311 | |
| 1 | 1 | Frame, Backpack | 300010-07311 | 300010-07311-Online | ||
| 2 | 2 | Cushion | 200910-06210 | 200910-06210-Online | ||
| 3 | 2 | Cushion | 200916-03210 | 200916-03210-Online | ||
| 4 | 4 | Part | 250916-06210 | 250916-06210-Online | ||
| 5 | 1 | Cushion, Knapsack | 300111-14010 | 300111-14010-Online | ||
| 6 | 4 | Clip | 300333-06160 | 300333-06160-Online | ||
| 7 | 2 | Harness, W/Pad | 300302-07410 | 300302-07410-Online | ||
| 9 | + | 2 | Screw, 5*16 | 900216-05016 | 900216-05016-Online | 5*16 |
| 10 | + | 4 | Washer, Harness | 300328-03210 | 300328-03210-Online | |
| 11 | + | 2 | Nut, Lock 5 | 900560-00005 | 900560-00005-Online |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Label, Speed | 890348-05060 | 890348-05060-Online | ||
| 6 | 1 | Label, Switch | 890157-39130 | 890157-39130-Online | ||
| 7 | 2 | Screw 5*25 | 900292-05025 | 900292-05025-Online | 5*25 SUS | |
| 8 | 1 | Dial | 701111-06210 | 701111-06210-Online | Sus. by 701111- | 06212 | |
| 8 | 1 | Dial | 701111-06211 | 701111-06211-Online | Sus. by 701111- | 06212 | |
| 8 | 1 | Dial | 701111-06212 | 701111-06212-Online | ||
| 9 | 2 | Nut 5B | 900504-00005 | 900504-00005-Online | ||
| 10 | 1 | Bracket, Dial | 701112-06410 | 701112-06410-Online | ||
| 11 | 1 | Knob, Lever | 701021-02910 | 701021-02910-Online | ||
| 12 | 1 | Lever, Throttle | 178005-06410 | 178005-06410-Online | Sus. by 178005- | 06411 | |
| 12 | 1 | Lever, Throttle | 178005-06411 | 178005-06411-Online | ||
| 13 | 4 | Screw 5*25 Sus | 900286-05025 | 900286-05025-Online | 5*25 SUS | |
| 14 | 2 | Screw 5*14 | 900292-05014 | 900292-05014-Online | 5*14 SUS | |
| 15 | 1 | Knob, Lever | 701007-06610 | 701007-06610-Online | ||
| 16 | 1 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 | |
| 17 | 1 | Lever, Control | 701010-06610 | 701010-06610-Online | ||
| 18 | 1 | Connector | 701020-05510 | 701020-05510-Online | ||
| 19 | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | ||
| 20 | 1 | Rod, Control Lever | 701014-06510 | 701014-06510-Online | ||
| 21 | 1 | Pin, Snap | 605612-06510 | 605612-06510-Online | ||
| 22 | 1 | Wire, Throttle | 178001-05810 | 178001-05810-Online | DM-4610 | |
| 22 | 1 | Wire, Throttle | 178001-05510 | 178001-05510-Online | DM-6110 | |
| 23 | 1 | Washer 8 | 900600-00008 | 900600-00008-Online |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 24 | 1 | Holder, Stopper | 701028-06210 | 701028-06210-Online | ||
| 25 | 1 | Nut (3N 6*0.75) | 900503-00006 | 900503-00006-Online | 3N 6*0.75 | DM-4610 |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Pipe, Curved (Gy) | 210023-00210 | 210023-00210-Online | ||
| 6 | 1 | Pipe, Straight | 210014-01610 | 210014-01610-Online | ||
| 7 | 1 | Clamp, Flexible Pipe | 210407-01110 | 210407-01110-Online | ||
| 8 | 1 | Packing, Flx. Pipe | 210032-04110 | 210032-04110-Online | ||
| 9 | 1 | Pipe, Flexible | 210013-04111 | 210013-04111-Online | ||
| 10 | 1 | Gasket, Flx. Pipe | 210036-04110 | 210036-04110-Online | ||
| 11 | 1 | Clamp, Flexible Pipe | 210407-04110 | 210407-04110-Online | ||
| 12 | 1 | Elbow, Blowing | 210011-05510 | 210011-05510-Online | ||
| 13 | 1 | Screw 5*14 | 900242-05014 | 900242-05014-Online | 5*14 | |
| 14 | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | ||
| 15 | 1 | Cap, Chemical Tank | 250001-05610 | 250001-05610-Online | ||
| 16 | + | 1 | Cap, Inside | 250013-00310 | 250013-00310-Online | |
| 17 | 1 | Packing | 250011-02011 | 250011-02011-Online | ||
| 18 | 1 | Tank,Chemical | E110-000030 | E110-000030-Online | Sus. by E110- | 000032 | |
| 18 | 1 | Tank,Chemical | E110-000031 | E110-000031-Online | 13L | Sus. by E110- | 000032 | |
| 18 | 1 | Tank,Chemical | E110-000032 | E110-000032-Online | ||
| 18 | 1 | Tank, Chemical | 250017-08010 | 250017-08010-Online | 23L(OPTION) | |
| 19 | 1 | Label, Echo | 890138-01110 | 890138-01110-Online | ||
| 19 | 1 | Label, Echo | 890118-04261 | 890118-04261-Online | 23L(OPTION) | |
| 20 | 1 | Label, Caution | 890160-09460 | 890160-09460-Online | Sus. by 890160- | 09461 | |
| 20 | 1 | Label, Caution | 890160-09461 | 890160-09461-Online | ||
| 21 | 1 | Label, Model | 890151-08010 | 890151-08010-Online | DM-4610 | |
| 21 | 1 | Label, Model | 890151-08110 | 890151-08110-Online | DM-6110 |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 22 | 1 | Holder Assy, C.Tank | 270000-06310 | 270000-06310-Online | Sus. by 270000- | 06311 | |
| 22 | 1 | Holder Assy, C.Tank | 270000-06311 | 270000-06311-Online | ||
| 23 | + | 4 | Screw 5*35 | 900286-05035 | 900286-05035-Online | 5*35 SUS | Sus. by 91148- | 05035 |
| 23 | + | 4 | Bolt Hs Fl Tapp | 91148-05035 | 91148-05035-Online | M5*35 |
| 24 | + | 2 | Holder, C. Tank | 250910-06310 | 250910-06310-Online | |
| 25 | + | 2 | Pin, Tank Holder | 250914-06210 | 250914-06210-Online | |
| 26 | + | 2 | Bracket Assy, C.Tank | 250902-06310 | 250902-06310-Online | 27 | ++ |
| 27 | 2 | Bolt, Tank Holder | 250915-06310 | 250915-06310-Online | 28 | ++ | |
| 28 | 2 | Connector, Bracket | 250930-06210 | 250930-06210-Online | 29 | ++ | |
| 29 | 2 | Bracket, Tank | 250932-06210 | 250932-06210-Online | 30 | ++ | |
| 30 | 2 | Pin, Straight | 900333-70380 | 900333-70380-Online |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Clip 11 | 357013-00210 | 357013-00210-Online | 11㺮㺶 | Sus. by 132013- | 14010 | |
| 1 | 1 | Band | 132013-14010 | 132013-14010-Online | 10.5MM | |
| 2 | 1 | Nut, Connector | 363019-00310 | 363019-00310-Online | ||
| 3 | 1 | Washer | 363018-00310 | 363018-00310-Online | ||
| 4 | 1 | Plug | 363022-00510 | 363022-00510-Online | ||
| 5 | 1 | Connector, Pipe | 363017-00310 | 363017-00310-Online | ||
| 6 | 1 | Pipe L-170 | 363024-04010 | 363024-04010-Online | 7*11*170L | |
| 7 | 1 | Plug | 363021-01110 | 363021-01110-Online | ||
| 8 | 1 | Pipe, Intake | 363015-03210 | 363015-03210-Online | Sus. by E105- | 000000 | |
| 8 | 1 | Pipe,Air | E105-000000 | E105-000000-Online | ||
| 9 | 1 | Pipe (Inner) | 363014-00310 | 363014-00310-Online | 7*11*400BL | |
| 9 | 1 | Pipe (Inner) | 363014-03210 | 363014-03210-Online | 7*11*500BL | 23L(OPTION) | |
| 10 | 1 | Filter | 254210-03210 | 254210-03210-Online | ||
| 11 | 1 | Pipe (9*13) | 382011-01110 | 382011-01110-Online | 9*13*350 | |
| 12 | 5 | Clip 13 | 357023-01110 | 357023-01110-Online | Sus. by V495- | 000310 | |
| 12 | 5 | Band | V495-000310 | V495-000310-Online | ||
| 13 | 1 | Plate, Tank Bottom | 253010-08010 | 253010-08010-Online | ||
| 14 | 1 | Gasket, Shutter | 270119-06210 | 270119-06210-Online | ||
| 15 | 1 | Nipple, Outlet | 357010-01110 | 357010-01110-Online | ||
| 16 | 1 | O-Ring | 357014-01110 | 357014-01110-Online | 3*13 | |
| 17 | 1 | Nut, Hollow | 357015-01110 | 357015-01110-Online | ||
| 18 | 1 | Clip | 363023-01110 | 363023-01110-Online | ||
| 19 | 1 | Clip, Pipe | 357911-00110 | 357911-00110-Online |
Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 20 | 1 | Pipe (L-650) | 357011-02410 | 357011-02410-Online | 9*13*650L | |
| 21 | 1 | Valve Ass'Y, Pipe | 358100-01110 | 358100-01110-Online | ||
| 22 | 1 | Pipe (L-720) | 357032-01110 | 357032-01110-Online | 9*13*720 | |
| 23 | 1 | Nozzle Ass'Y, Mistbl | 212500-01111 | 212500-01111-Online | ||
| 24 | + | 1 | Collar, Nozzle | 212515-01110 | 212515-01110-Online | |
| 25 | + | 1 | Nut, Misting Nozzle | 212514-01110 | 212514-01110-Online | |
| 26 | + | 1 | Ring, Misting Nozzle | 212513-01110 | 212513-01110-Online | |
| 27 | + | 1 | Nozzle | 222000-01110 | 222000-01110-Online | |
| 28 | + | 1 | Head, Nozzle Bl | 212501-01111 | 212501-01111-Online | BL | 29 | ++ |
| 29 | 1 | Screw 5*12 | 900246-05012 | 900246-05012-Online | 5*12 | |
| 31 | + | 1 | Label, Mist | 890031-01110 | 890031-01110-Online | |
| 30 | 1 | Wrench, W/S. Driver | 895410-03930 | 895410-03930-Online | Sus. by X602- | 000020 | |
| 30 | 1 | Tool,Wrench | X602-000020 | X602-000020-Online | 17*19 L200 | |
| 32 | 1 | Screw 5*16 Sus | 900286-05016 | 900286-05016-Online | 5*16 SUS |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 1 | Part | 124174-11120 | 124174-11120-Online | |
| 2 | + | 1 | Cover, Top | 124113-05910 | 124113-05910-Online | DM-4610 |
| 3 | + | 1 | Spring, Throttle | 124114-11120 | 124114-11120-Online | DM-4610 |
| 3 | + | 1 | Spring, Throttle | 124114-05510 | 124114-05510-Online | DM-6110 |
| 4 | + | 1 | Seat, Spring | 124115-11120 | 124115-11120-Online | DM-4610 |
| 4 | + | 1 | Seat, Spring | 124115-05510 | 124115-05510-Online | DM-6110 |
| 5 | + | 1 | Needle, Jet | 124117-05910 | 124117-05910-Online | DM-4610 |
| 5 | + | 1 | Needle, Jet | 124117-05610 | 124117-05610-Online | DM-6110 |
| 6 | + | 1 | E-Ring | 124116-05530 | 124116-05530-Online | |
| 7 | + | 1 | Valve, Throttle | 124118-05910 | 124118-05910-Online | DM-4610 |
| 7 | + | 1 | Valve, Throttle | 124118-05510 | 124118-05510-Online | DM-6110 |
| 8 | + | 1 | Wire, Drain | 124182-05510 | 124182-05510-Online | |
| 9 | + | 1 | Part | 124381-05511 | 124381-05511-Online | |
| 10 | + | 2 | Screw 4*8 | 900241-04008 | 900241-04008-Online | 4*8 |
| 11 | + | 1 | Plate | 124163-05510 | 124163-05510-Online | |
| 12 | + | 2 | Screw 4*30 (W/Sw) | 900241-04030 | 900241-04030-Online | 4*30 |
| 13 | + | 1 | Chanber | 124124-05910 | 124124-05910-Online | |
| 14 | + | 2 | Spring, Coil | 124367-21330 | 124367-21330-Online | |
| 15 | + | 1 | Gasket, Pump Diaph. | 124363-21330 | 124363-21330-Online | |
| 16 | + | 1 | Diaphragm, Fuel Pump | 124364-05510 | 124364-05510-Online | |
| 17 | + | 1 | Cover, Pump | 124365-05510 | 124365-05510-Online | |
| 18 | + | 4 | Screw 3*10 (W/Sw) | 900241-03010 | 900241-03010-Online | 3*10 |
| 19 | + | 1 | Gasket, Chamber | 124123-05510 | 124123-05510-Online | |
| 20 | + | 1 | Jet, Main #64 | 124122-05910 | 124122-05910-Online | DM-4610 |
Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 20 | + | 1 | Jet, Main | 124122-05510 | 124122-05510-Online | DM-6110 |
| 21 | + | 1 | Jet, Needle | 124162-05510 | 124162-05510-Online | |
| 22 | + | 1 | Part | 124111-05810 | 124111-05810-Online | |
| 23 | + | 1 | Washer, Spring 6 | 900605-00006 | 900605-00006-Online | |
| 25 | + | 1 | Plate, Choke | 124143-05810 | 124143-05810-Online | DM-4610 |
| 25 | + | 1 | Shutter, Choke | 124143-06210 | 124143-06210-Online | DM-6110 |
| 26 | + | 1 | Lever, Choke | 124142-05810 | 124142-05810-Online | DM-4610 |
| 26 | + | 1 | Lever, Choke | 124142-06210 | 124142-06210-Online | DM-6110 |
| 27 | + | 1 | Adjuster | 124158-05510 | 124158-05510-Online | DM-6110 |
| 28 | + | 1 | Nut | 124111-05510 | 124111-05510-Online | DM-6110 |
| 29 | + | 2 | Screw 4*12 | 900241-04012 | 900241-04012-Online | 4*12 | DM-6110 |
| 30 | + | 1 | Cover, Top | 124113-05510 | 124113-05510-Online | DM-6110 |
| 31 | + | 1 | Gasket, Body Top | 124172-05511 | 124172-05511-Online | DM-6110 |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Shutter Assy | 275100-06212 | 275100-06212-Online | OPTION | |
| 6 | + | 1 | O-Ring (P-4) | 900720-00004 | 900720-00004-Online | P-4 | OPTION |
| 7 | + | 1 | Nut, Wing 5 | 900539-00005 | 900539-00005-Online | 5 | OPTION |
| 8 | + | 1 | Stabilizer | 250110-06212 | 250110-06212-Online | OPTION |
| 9 | + | 1 | Bolt, Stud | 270015-06211 | 270015-06211-Online | 5*50 | OPTION |
| 10 | + | 2 | Screw, 4*10 | 900226-04010 | 900226-04010-Online | 4*10 SUS | OPTION |
| 11 | + | 1 | Shutter | 270145-06210 | 270145-06210-Online | OPTION |
| 12 | + | 2 | Spacer 10*19.5*0.3 | 275123-05510 | 275123-05510-Online | 10*19.5*0.3 | OPTION |
| 13 | + | 1 | Shaft, Shutter | 270153-06210 | 270153-06210-Online | OPTION |
| 14 | + | 4 | Screw 4*14 | 900295-04014 | 900295-04014-Online | 4*14 SUS | OPTION |
| 15 | + | 1 | Shutter | 270110-06210 | 270110-06210-Online | OPTION |
| 16 | + | 1 | Shutter, Metering | 270112-06211 | 270112-06211-Online | OPTION |
| 17 | + | 1 | Gasket, Shutter | 270119-06210 | 270119-06210-Online | OPTION |
| 18 | + | 1 | Packing, Dust | 210035-06310 | 210035-06310-Online | OPTION |
| 19 | + | 1 | Plate, Eye | 270122-06211 | 270122-06211-Online | OPTION |
| 20 | 1 | Tank, Lower | 270010-06211 | 270010-06211-Online | OPTION |
Page 19 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Pipe, Straight (Gy) | 210015-01110 | 210015-01110-Online | OPTION | |
| 2 | 1 | Plug | 250016-01110 | 250016-01110-Online | OPTION | |
| 3 | 1 | Nut (Bs) | 270207-04310 | 270207-04310-Online | OPTION | |
| 4 | 1 | Arm, Shutter | 270212-06410 | 270212-06410-Online | OPTION | |
| 5 | 1 | O-Ring 7 | 900720-00007 | 900720-00007-Online | P-7 | OPTION | |
| 6 | 1 | Shaft, Shutter | 270205-06411 | 270205-06411-Online | OPTION | |
| 7 | 2 | Screw 4*14 | 900292-04014 | 900292-04014-Online | 4*14 SUS | OPTION | |
| 8 | 1 | Arm | 270216-06210 | 270216-06210-Online | OPTION |
Source PDF: 20160107-799_DM-4610_DM-,6110_EN.pdf. Generated 2026-06-25 14:39.
