Husqvarna 320IB IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

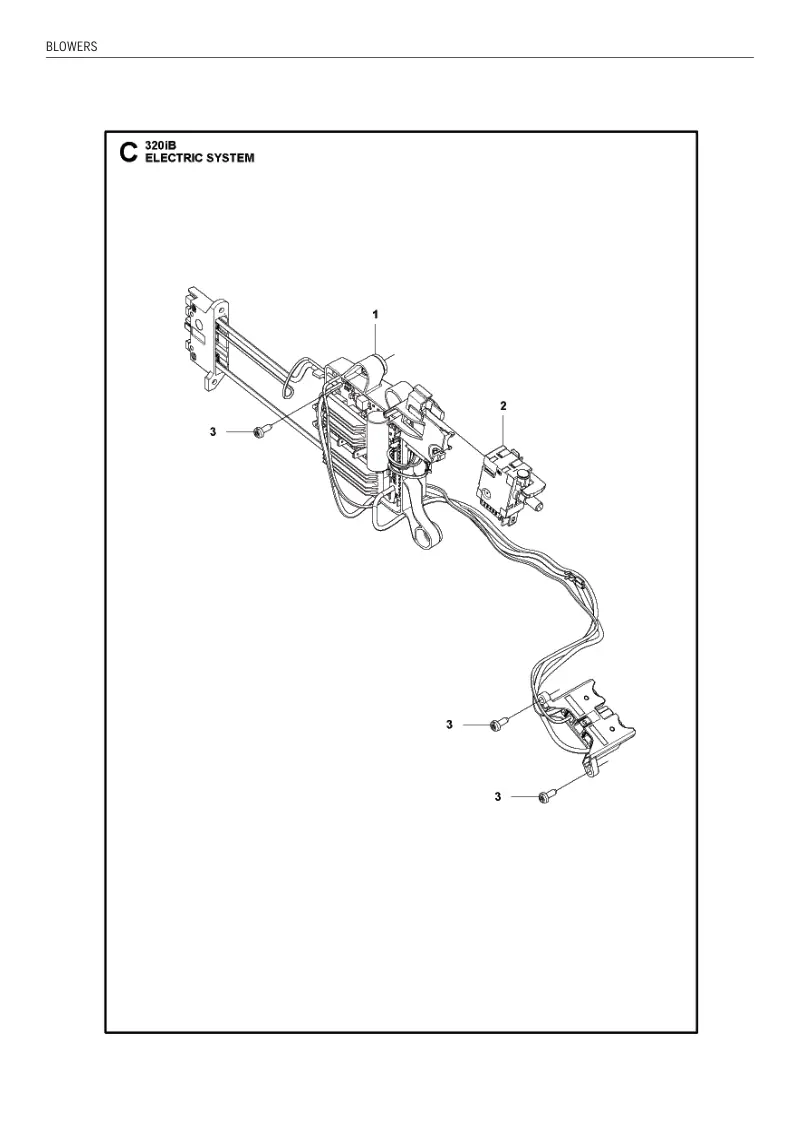

BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CONTROL UNIT | 582577602 | 582577602-Online | 1 |
| 2 | TRIGGER SWITCH | 578326901 | 578326901-Online | 1 |
| 3 | SCREW CCRPANT | 503212813 | 503212813-Online | 3 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | MOTOR KIT | 529996601 | 529996601-Online | 1 |
| 5 | SUSPENSION | 503911001 | 503911001-Online | 6 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | NOZZLE | 582599601 | 582599601-Online | 1 |
| 2 | TUBE | 582501601 | 582501601-Online | 1 |
| 3 | CONTROL | 582487601 | 582487601-Online | 1 |
| 4 | PULL ROD | 582370901 | 582370901-Online | 1 |
| 5 | THROTTLE CONTROL | 582369601 | 582369601-Online | 1 |
| 6 | COVER | 584914302 | 584914302-Online | 1 |
| 7 | SCREW ITXSCT | 580292901 | 580292901-Online | 15 |
| 8 | HANDLE INSERT | 544042003 | 544042003-Online | 2 |
| 9 | HOUSING | 584157402 | 584157402-Online | 1 |
| 10 | COVER | 576901201 | 576901201-Online | 1 |
| 11 | HOUSING | 584157302 | 584157302-Online | 1 |
| 12 | SPRING | 585480001 | 585480001-Online | 1 |
| 13 | PUSH BUTTON | 577996601 | 577996601-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | DECAL | 586834103 | 586834103-Online | 1 |
| 2 | DECAL | 586834203 | 586834203-Online | 1 |
| 3 | LABEL | 503709701 | 503709701-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | HARNESS | 537216201 | 537216201-Online | 1 |
| 2 | TUBE ASSY | 586106302 | 586106302-Online | 1 |
| 3 | EYELET | 588009701 | 588009701-Online | 1 |
| 4 | NOZZLE | 579797501 | 579797501-Online | 1 |
