Husqvarna TF 230 IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.
PARTNO

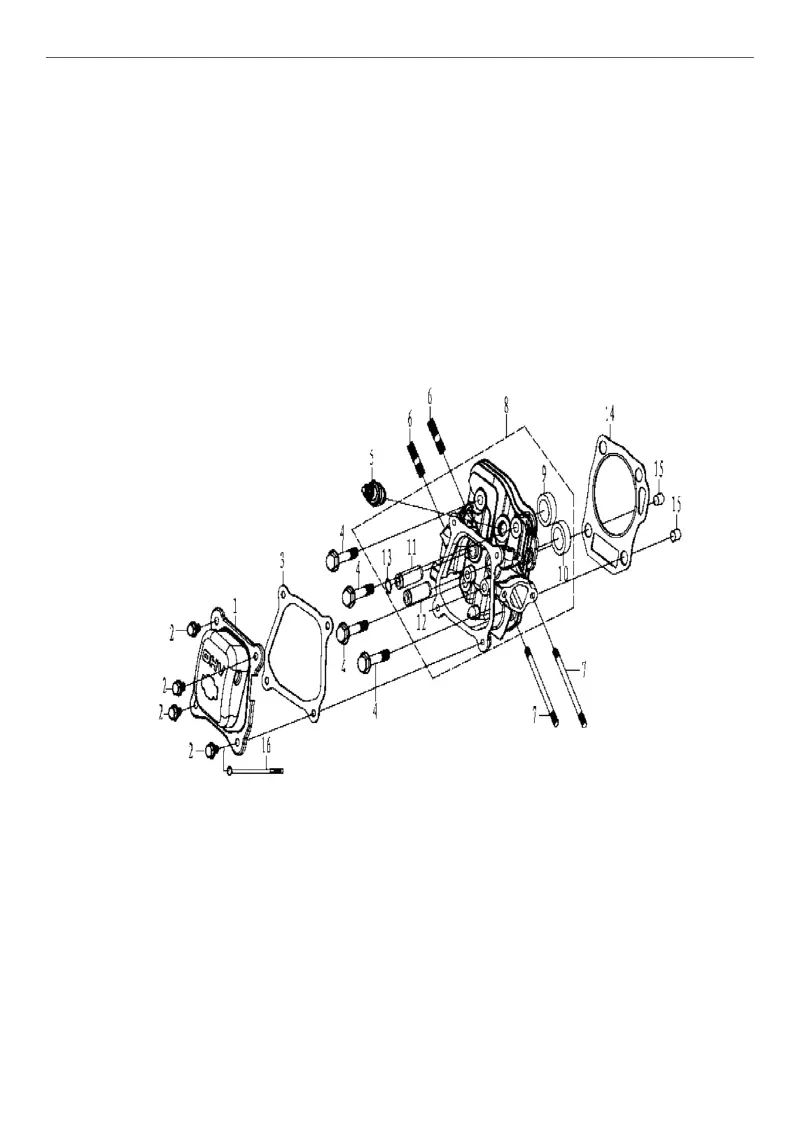

| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | COVER | 587999301 | 587999301-Online | 1 |
| 2 | BOLT | 587999401 | 587999401-Online | 4 |
| 3 | GASKET | 587999501 | 587999501-Online | 1 |
| 4 | BOLT | 587999601 | 587999601-Online | 4 |
| 5 | SPARK PLUG | 587999701 | 587999701-Online | 1 |
| 6 | BOLT | 587999801 | 587999801-Online | 1 |
| 7 | BOLT | 587999901 | 587999901-Online | 1 |
| 8 | CYLINDER | 588000001 | 588000001-Online | 1 |
| 9 | VALVE | 588000101 | 588000101-Online | 1 |
| 10 | VALVE | 588000201 | 588000201-Online | 1 |
| 11 | GUIDE | 588000301 | 588000301-Online | 1 |
| 12 | GUIDE | 588000401 | 588000401-Online | 1 |
| 13 | CLIP | 588000501 | 588000501-Online | 2 |
| 14 | GASKET | 588000601 | 588000601-Online | 1 |
| 15 | PIN | 588000701 | 588000701-Online | 2 |
| 16 | CONNECTION | 588476001 | 588476001-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CRANKCASE | 588000801 | 588000801-Online | 1 |
| 2 | SEAL | 588476101 | 588476101-Online | 1 |
| 3 | ARM | 588001001 | 588001001-Online | 1 |
| 4 | KEEPER | 588001101 | 588001101-Online | 1 |
| 5 | WASHER | 588001201 | 588001201-Online | 1 |
| 6 | GOVERNOR | 588001301 | 588001301-Online | 1 |
| 7 | BEARING | 588001601 | 588001601-Online | 1 |
| 8 | WASHER | 588001501 | 588001501-Online | 2 |
| 9 | BOLT | 588001701 | 588001701-Online | 2 |
| 10 | SEAL | 588001801 | 588001801-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | COVER | 588002001 | 588002001-Online | 1 |
| 2 | PLUG | 588002101 | 588002101-Online | 1 |
| 3 | SEALING | 588002201 | 588002201-Online | 1 |
| 4 | PLUG | 588002301 | 588002301-Online | 1 |
| 5 | BOLT | 588002501 | 588002501-Online | 1 |
| 6 | SEAL | 588001801 | 588001801-Online | 1 |
| 7 | DIPSTICK | 588002401 | 588002401-Online | 1 |
| 8 | DIPSTICK | 588002601 | 588002601-Online | 1 |
| 9 | BEARING | 587942101 | 587942101-Online | 1 |
| 10 | GASKET | 588002701 | 588002701-Online | 1 |
| 11 | PIN | 588002801 | 588002801-Online | 2 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CRANKSHAFT ASSY | 588002901 | 588002901-Online | 1 |
| 2 | WOODRUFF KEY | 588003001 | 588003001-Online | 1 |
| 3 | CRANKSHAFT | 588003101 | 588003101-Online | 1 |
| 4 | CONNECTING ROD | 588003201 | 588003201-Online | 1 |
| 5 | PISTON | 588003301 | 588003301-Online | 1 |
| 6 | CLIP | 588003401 | 588003401-Online | 2 |
| 7 | PISTON PIN | 588003501 | 588003501-Online | 1 |
| 8 | PISTON RING | 588003601 | 588003601-Online | 1 |
| 9 | FILM | 588003701 | 588003701-Online | 1 |
| 10 | BUSH | 588003801 | 588003801-Online | 1 |
| 11 | RING | 588003901 | 588003901-Online | 1 |
| 12 | RING | 588004001 | 588004001-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CAMSHAFT | 588004101 | 588004101-Online | 1 |
| 2 | ARM | 588004201 | 588004201-Online | 2 |
| 3 | ROD | 588004301 | 588004301-Online | 2 |
| 4 | PLATE | 588004401 | 588004401-Online | 1 |
| 5 | ARM | 588004501 | 588004501-Online | 2 |
| 6 | BOLT | 588004601 | 588004601-Online | 2 |
| 7 | ARM | 588004701 | 588004701-Online | 2 |
| 8 | NUT | 588004801 | 588004801-Online | 2 |
| 9 | NUT | 588005001 | 588005001-Online | 2 |
| 10 | INLET | 588005101 | 588005101-Online | 1 |
| 11 | EXHAUST | 588005201 | 588005201-Online | 1 |
| 12 | SEAL | 588005301 | 588005301-Online | 1 |
| 13 | SPRING | 588005401 | 588005401-Online | 2 |
| 14 | SPRING | 588005501 | 588005501-Online | 1 |
| 15 | SPRING | 588005601 | 588005601-Online | 1 |
| 16 | ADJUSTER | 588005701 | 588005701-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | STARTER | 588005901 | 588005901-Online | 1 |
| 2 | WASHER | 588006001 | 588006001-Online | 3 |
| 3 | BOLT | 587979401 | 587979401-Online | 4 |
| 4 | BOLT | 588006101 | 588006101-Online | 2 |
| 5 | BOLT | 588006201 | 588006201-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | WASHER | 588006301 | 588006301-Online | 1 |
| 2 | INSULATOR | 588006401 | 588006401-Online | 1 |
| 3 | GASKET | 588016801 | 588016801-Online | 1 |
| 4 | CARBURETTOR | 588006501 | 588006501-Online | 1 |
| 5 | GASKET | 588006601 | 588006601-Online | 1 |
| 6 | AIR CLEANER | 588006701 | 588006701-Online | 1 |
| 7 | BOLT | 588006801 | 588006801-Online | 1 |
| 8 | NUT | 588007001 | 588007001-Online | 2 |
| 9 | FILTER | 501160101 | 501160101-Online | 1 |
| 10 | FILTER | 501161301 | 501161301-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | ARM | 588006901 | 588006901-Online | 1 |
| 2 | BOLT | 588007101 | 588007101-Online | 1 |
| 3 | NUT | 588007201 | 588007201-Online | 1 |
| 4 | TIE ROD | 588007301 | 588007301-Online | 1 |
| 5 | SPRING | 588007401 | 588007401-Online | 1 |
| 6 | SPRING | 588007501 | 588007501-Online | 1 |
| 7 | CONTROL | 588007601 | 588007601-Online | 1 |
| 8 | BOLT | 588007701 | 588007701-Online | 2 |
| 9 | SCREW | 588007801 | 588007801-Online | 1 |
| 10 | CONNECTION | 588016901 | 588016901-Online | 1 |
| 11 | BOLT | 588007901 | 588007901-Online | 1 |
| 12 | CLAMP | 588017001 | 588017001-Online | 1 |
| 13 | WASHER | 588008001 | 588008001-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SWITCH | 588008101 | 588008101-Online | 1 |
| 2 | BOLT | 588008201 | 588008201-Online | 1 |
| 3 | FLYWHEEL | 588008301 | 588008301-Online | 1 |
| 4 | FAN | 588008401 | 588008401-Online | 1 |
| 5 | PULLEY | 588008501 | 588008501-Online | 1 |
| 6 | NUT | 588008601 | 588008601-Online | 2 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | MUFFLER | 588008701 | 588008701-Online | 1 |
| 2 | SCREW | 588008801 | 588008801-Online | 4 |
| 3 | SCREW | 588008901 | 588008901-Online | 4 |
| 4 | WASHER | 588009001 | 588009001-Online | 1 |
| 5 | NUT | 588009101 | 588009101-Online | 2 |
| 6 | WASHER | 588009201 | 588009201-Online | 2 |
| 7 | BOLT | 588007701 | 588007701-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | FUEL TANK | 588009301 | 588009301-Online | 1 |
| 2 | CAP | 588177401 | 588177401-Online | 1 |
| 3 | GASKET | 588177501 | 588177501-Online | 1 |
| 4 | FUEL FILTER | 588177601 | 588177601-Online | 1 |
| 5 | FUEL TANK | 588177701 | 588177701-Online | 1 |
| 6 | GASKET | 588177901 | 588177901-Online | 1 |
| 7 | JOINT | 588178001 | 588178001-Online | 1 |
| 8 | CLIP | 588178101 | 588178101-Online | 2 |
| 9 | FUEL HOSE | 588178301 | 588178301-Online | 1 |
| 10 | BOLT | 588009401 | 588009401-Online | 1 |
| 11 | WASHER | 588014001 | 588014001-Online | 1 |
| 12 | NUT | 588007201 | 588007201-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SHIELD | 588014101 | 588014101-Online | 1 |
| 2 | BOLT | 588007701 | 588007701-Online | 4 |
| 3 | SHROUD | 588014201 | 588014201-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | OIL PLUG | 587943101 | 587943101-Online | 1 |
| 2 | OIL PLUG | 587943001 | 587943001-Online | 3 |
| 3 | OIL PLUG | 587942901 | 587942901-Online | 1 |
| 4 | GEARBOX | 587979001 | 587979001-Online | 1 |
| 5 | FORK | 587940501 | 587940501-Online | 1 |
| 6 | BOLT | 587979101 | 587979101-Online | 1 |
| 7 | SHAFT | 587979201 | 587979201-Online | 1 |
| 8 | BALL | 587979301 | 587979301-Online | 1 |
| 9 | SPRING | 587945201 | 587945201-Online | 1 |
| 10 | SEAL | 587943301 | 587943301-Online | 1 |
| 11 | BEARING | 587939501 | 587939501-Online | 2 |
| 12 | BUSH | 587939901 | 587939901-Online | 1 |
| 13 | GEAR | 587940001 | 587940001-Online | 1 |
| 14 | GEAR | 587940101 | 587940101-Online | 1 |
| 15 | SHAFT | 587939801 | 587939801-Online | 1 |
| 16 | BEARING | 587940201 | 587940201-Online | 3 |
| 17 | BUSH | 587943601 | 587943601-Online | 1 |
| 18 | O-RING | 587943901 | 587943901-Online | 1 |
| 19 | STOP | 587944301 | 587944301-Online | 1 |
| 20 | BOLT | 587979401 | 587979401-Online | 3 |
| 21 | O-RING | 587944001 | 587944001-Online | 1 |
| 22 | BUSH | 587943701 | 587943701-Online | 1 |
| 23 | BEARING | 587941701 | 587941701-Online | 1 |
| 24 | PLATE | 587941401 | 587941401-Online | 1 |
| 25 | GEAR | 587941301 | 587941301-Online | 1 |
| 26 | SHAFT | 587940701 | 587940701-Online | 1 |
| 27 | BUSH | 587941101 | 587941101-Online | 1 |
| 28 | SPROCKET | 587941001 | 587941001-Online | 1 |
| 29 | GEAR | 587940901 | 587940901-Online | 1 |
| 30 | GEAR | 587939701 | 587939701-Online | 1 |
| 31 | CHAIN | 587979501 | 587979501-Online | 1 |
| 32 | SHAFT | 587939601 | 587939601-Online | 1 |
| 33 | CIRCLIP | 587979601 | 587979601-Online | 1 |
| 34 | SEAL | 587943501 | 587943501-Online | 1 |
| 35 | BOLT | 587979701 | 587979701-Online | 1 |
| 36 | BOLT | 587979801 | 587979801-Online | 1 |
| 37 | COVER | 587979901 | 587979901-Online | 1 |
| 38 | SEAL | 587942501 | 587942501-Online | 1 |
| 39 | O-RING | 587942801 | 587942801-Online | 1 |
| 40 | BEARING | 587942101 | 587942101-Online | 1 |
| 41 | SHAFT | 587980001 | 587980001-Online | 1 |
| 42 | SPROCKET | 587942001 | 587942001-Online | 1 |
| 43 | BEARING | 587941801 | 587941801-Online | 1 |
| 44 | BOLT | 587980101 | 587980101-Online | 1 |
| 45 | WASHER | 587980201 | 587980201-Online | 1 |
| 46 | COVER | 587980301 | 587980301-Online | 1 |
| 47 | SEAL | 587942401 | 587942401-Online | 1 |
| 48 | COVER | 587980401 | 587980401-Online | 1 |
| 49 | NUT | 587980501 | 587980501-Online | 2 |
| 50 | GEARBOX ASSY | 589634601 | 589634601-Online | 1 |
| 51 | COVER Gearbox cover | 536215401 | 536215401-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SEAL | 587980601 | 587980601-Online | 1 |
| 2 | SUPPORT PLATE | 587945701 | 587945701-Online | 1 |
| 3 | HANDLE BRACKET | 587948901 | 587948901-Online | 1 |
| 4 | WASHER | 587949001 | 587949001-Online | 4 |
| 5 | WASHER | 587949101 | 587949101-Online | 4 |
| 6 | BOLT | 587954001 | 587954001-Online | 4 |
| 7 | THROTTLE CABLE | 587949301 | 587949301-Online | 1 |
| 8 | STOP SWITCH | 587949401 | 587949401-Online | 1 |
| 9 | KNOB | 587949601 | 587949601-Online | 1 |
| 10 | COVER | 587949701 | 587949701-Online | 1 |
| 11 | WASHER | 587949801 | 587949801-Online | 1 |
| 12 | BOLT | 587949901 | 587949901-Online | 1 |
| 13 | SUSPENSION | 587950001 | 587950001-Online | 2 |
| 14 | NUT | 587950101 | 587950101-Online | 3 |
| 15 | WASHER | 587936901 | 587936901-Online | 3 |
| 16 | BOLT | 588089201 | 588089201-Online | 3 |
| 17 | COVER | 587950501 | 587950501-Online | 1 |
| 18 | HANDLE | 587950601 | 587950601-Online | 1 |
| 19 | THROTTLE CONTROL | 587950701 | 587950701-Online | 1 |
| 20 | HANDLE GRIP | 587950801 | 587950801-Online | 2 |
| 21 | CLUTCH | 587950901 | 587950901-Online | 1 |
| 22 | BOLT | 587951001 | 587951001-Online | 1 |
| 23 | CABLE | 587951101 | 587951101-Online | 1 |
| 24 | INDICATOR | 587951201 | 587951201-Online | 1 |
| 25 | PIN | 587951301 | 587951301-Online | 2 |
| 26 | COTTER | 587951401 | 587951401-Online | 2 |
| 27 | BOLT | 587951501 | 587951501-Online | 2 |
| 28 | LEVER | 587951601 | 587951601-Online | 1 |
| 29 | HOLDER | 588248201 | 588248201-Online | 1 |
| 30 | CLIP | 588265701 | 588265701-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | BOLT | 587937101 | 587937101-Online | 4 |
| 2 | BOLT | 587936701 | 587936701-Online | 2 |
| 3 | WASHER | 589017201 | 589017201-Online | 8 |
| 4 | WASHER | 589017301 | 589017301-Online | 8 |
| 5 | BUMPER | 587980701 | 587980701-Online | 1 |
| 6 | BOLT | 588089301 | 588089301-Online | 4 |
| 7 | NUT | 587937401 | 587937401-Online | 4 |
| 8 | WASHER | 587949101 | 587949101-Online | 5 |
| 9 | WASHER | 587937501 | 587937501-Online | 4 |
| 10 | ENGINE PLATE | 587980801 | 587980801-Online | 1 |
| 11 | NUT | 589017401 | 589017401-Online | 4 |
| 12 | BOLT | 587937201 | 587937201-Online | 1 |
| 13 | NUT | 587937301 | 587937301-Online | 1 |
| 14 | WASHER | 587949001 | 587949001-Online | 1 |
| 15 | BOLT | 588089401 | 588089401-Online | 1 |
| 16 | AXLE | 597086301 | 597086301-Online | 1 |
| 17 | BOLT | 587951901 | 587951901-Online | 4 |
| 18 | BOLT | 587952101 | 587952101-Online | 1 |
| 19 | SPRING WASHER | 587936801 | 587936801-Online | 1 |
| 20 | WASHER | 587982901 | 587982901-Online | 1 |
| 21 | NUT | 588089501 | 588089501-Online | 1 |
| 22 | PLATE | 587980901 | 587980901-Online | 1 |
| 23 | BOLT | 588089601 | 588089601-Online | 2 |
| 24 | PIN | 587952501 | 587952501-Online | 1 |
| 25 | CLIP | 587981001 | 587981001-Online | 2 |
| 26 | CONNECTOR | 587981101 | 587981101-Online | 1 |
| 27 | PIN | 587985601 | 587985601-Online | 1 |
| 28 | BAR | 587981201 | 587981201-Online | 1 |
| 29 | ENGINE For 967067801, 967067804, 967316701, 967342001, 967316704 | 587981301 | 587981301-Online | 1 |
| 29 | ENGINE For 967316702 | 587981302 | 587981302-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | BELT COVER | 587953401 | 587953401-Online | 1 |
| 2 | BOLT | 587949901 | 587949901-Online | 2 |
| 3 | WASHER | 587936901 | 587936901-Online | 2 |
| 4 | BELT Order 2 belts per machine | 587953501 | 587953501-Online | 2 |
| 5 | BOLT | 587954001 | 587954001-Online | 1 |
| 6 | WASHER | 587981401 | 587981401-Online | 1 |
| 7 | PULLEY | 587953701 | 587953701-Online | 1 |
| 8 | BOLT | 588089701 | 588089701-Online | 4 |
| 9 | LEVER | 587954201 | 587954201-Online | 4 |
| 10 | BOLT | 588089801 | 588089801-Online | 1 |
| 11 | NUT | 587937301 | 587937301-Online | 1 |
| 12 | BOLT | 588089901 | 588089901-Online | 1 |
| 13 | BOLT | 587937001 | 587937001-Online | 1 |
| 14 | PULLEY | 587957401 | 587957401-Online | 1 |
| 15 | BELT COVER | 587981501 | 587981501-Online | 1 |
| 16 | WASHER | 587937501 | 587937501-Online | 1 |
| 17 | WASHER | 588090001 | 588090001-Online | 1 |
| 18 | PULLEY | 587957001 | 587957001-Online | 1 |
| 19 | SPRING | 587957201 | 587957201-Online | 1 |
| 20 | SPRING | 587957301 | 587957301-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | BOLT | 587936701 | 587936701-Online | 4 |
| 2 | WASHER | 587949101 | 587949101-Online | 4 |
| 3 | WASHER | 587949001 | 587949001-Online | 4 |
| 4 | COVER | 587981601 | 587981601-Online | 1 |
| 5 | BOLT | 587949901 | 587949901-Online | 4 |
| 6 | WASHER | 587949801 | 587949801-Online | 8 |
| 7 | BRACKET | 587981701 | 587981701-Online | 1 |
| 8 | NUT | 587950101 | 587950101-Online | 4 |
| 9 | COVER | 587981801 | 587981801-Online | 1 |
| 10 | BRACKET | 587981901 | 587981901-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SUPPORT WHEEL | 587982001 | 587982001-Online | 1 |
| 2 | BOLT | 587982101 | 587982101-Online | 1 |
| 3 | STAND | 587982201 | 587982201-Online | 1 |
| 4 | PIN | 587982301 | 587982301-Online | 1 |
| 5 | BOLT | 587982401 | 587982401-Online | 1 |
| 6 | AXLE | 587982501 | 587982501-Online | 1 |
| 7 | NUT | 587937401 | 587937401-Online | 1 |
| 8 | COTTER | 587982801 | 587982801-Online | 1 |
| 9 | WASHER | 587982901 | 587982901-Online | 1 |
| 10 | NUT | 587985201 | 587985201-Online | 1 |
| 11 | CLIP | 587981001 | 587981001-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SCREW | 582151701 | 582151701-Online | 8 |
| 2 | SPOKE PLATE | 582150201 | 582150201-Online | 2 |
| 3 | TIRE Tyre and outside 3.5-4 (including tyre) inner | 582104401 | 582104401-Online | 2 |
| 3 | TUBE Inner tyre 3.5-4 | 582104501 | 582104501-Online | 2 |
| 3 | TIRE Outside tyre 3.5-4 | 582104701 | 582104701-Online | 2 |
| 4 | WHEEL AXLE | 582150401 | 582150401-Online | 2 |
| 5 | SPOKE PLATE | 582150601 | 582150601-Online | 2 |
| 6 | WASHER | 587949001 | 587949001-Online | 8 |
| 7 | WASHER | 587949101 | 587949101-Online | 8 |
| 8 | NUT | 582151801 | 582151801-Online | 8 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | BLADE | 587985301 | 587985301-Online | 12 |
| 2 | BLADE | 587985401 | 587985401-Online | 12 |
| 3 | HOLDER | 587985501 | 587985501-Online | 2 |
| 4 | BOLT | 587952401 | 587952401-Online | 2 |
| 5 | PIN | 587985601 | 587985601-Online | 4 |
| 6 | HOLDER | 587985701 | 587985701-Online | 2 |
| 7 | CLIP | 587981001 | 587981001-Online | 4 |
| 8 | WASHER | 587949001 | 587949001-Online | 2 |
| 9 | WASHER | 587949101 | 587949101-Online | 26 |
| 10 | NUT | 587937401 | 587937401-Online | 26 |
| 11 | BOLT | 587986001 | 587986001-Online | 24 |
| 12 | BLADE | 587986101 | 587986101-Online | 2 |
