Husqvarna 120IB IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

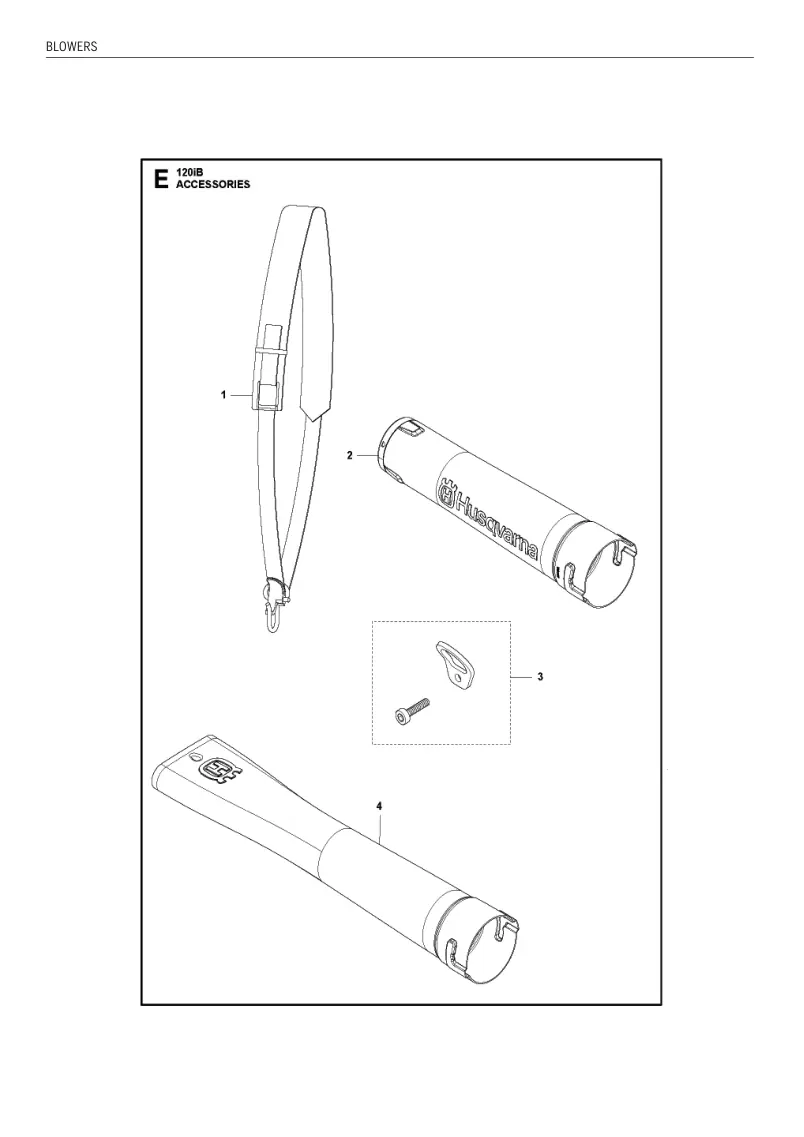

BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | HARNESS | 537216201 | 537216201-Online | 1 |
| 2 | TUBE ASSY | 586106302 | 586106302-Online | 1 |
| 3 | EYELET | 588009701 | 588009701-Online | 1 |
| 4 | NOZZLE | 579797501 | 579797501-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | DECAL | 586834108 | 586834108-Online | 1 |
| 2 | DECAL | 586834208 | 586834208-Online | 1 |
| 3 | LABEL | 503709701 | 503709701-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CONTROL UNIT | 598002201 | 598002201-Online | 1 |
| 2 | KEYPAD | 599233801 | 599233801-Online | 1 |
| 3 | SCREW CCRPANT | 503212813 | 503212813-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | MOTOR ASSY | 597213701 | 597213701-Online | 1 |
| 2 | STATOR | 590818203 | 590818203-Online | 1 |
| 3 | ROTOR | 590818302 | 590818302-Online | 1 |
| 4 | SCREW IHSCM | 503202512 | 503202512-Online | 3 |
| 5 | SUSPENSION | 503911001 | 503911001-Online | 6 |
| 6 | SCREW ITXSCT | 580292901 | 580292901-Online | 3 |
| 7 | TUBE | 582501601 | 582501601-Online | 1 |
| 8 | MOTOR KIT | 599302601 | 599302601-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | NOZZLE | 582599601 | 582599601-Online | 1 |
| 2 | TUBE | 582501601 | 582501601-Online | 1 |
| 3 | THROTTLE CONTROL | 579564102 | 579564102-Online | 1 |
| 4 | COVER | 584914301 | 584914301-Online | 1 |
| 5 | SCREW ITXSCT | 580292901 | 580292901-Online | 15 |
| 6 | HANDLE INSERT | 544042003 | 544042003-Online | 2 |
| 7 | HOUSING | 584157402 | 584157402-Online | 1 |
| 8 | COVER | 576901201 | 576901201-Online | 1 |
| 9 | HOUSING | 584157302 | 584157302-Online | 1 |
| 10 | SPRING | 585480001 | 585480001-Online | 1 |
| 11 | PUSH BUTTON | 577996601 | 577996601-Online | 1 |
