Lawn Star LSMP 6548 ML Mower IPL

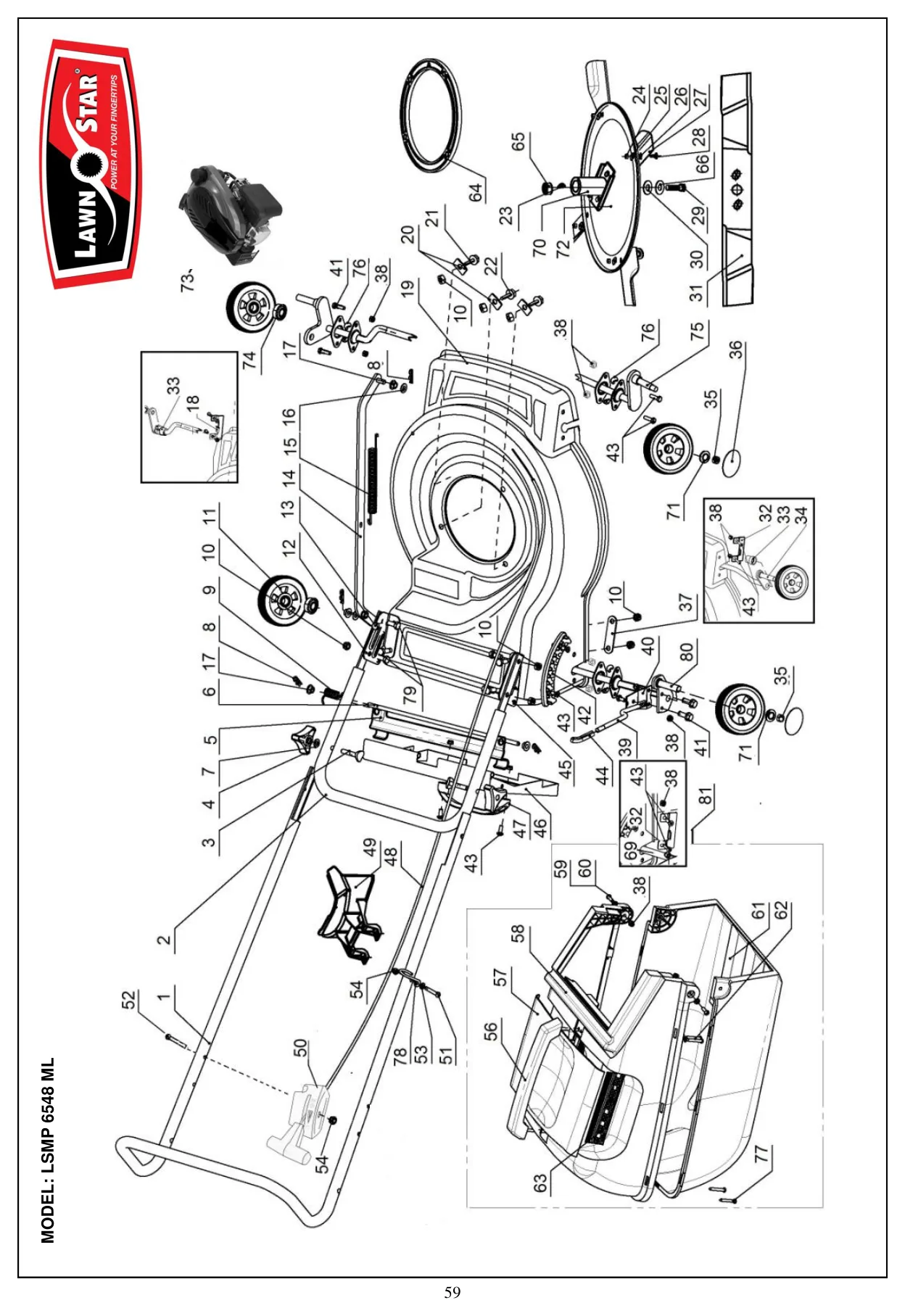

This IPL page has been prepared from the Lawn Star 2026 spare parts manual. Use the diagram reference numbers together with the parts table below.
Spare parts list
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | Upper handle | M-215-48 | M-215-48-Online | 1 |
| 41 | Bolt, hex M6X16 | M-110-20 | M-110-20-Online | 3 |
| 2 | Handle, lower | M-211-48 | M-211-48-Online | 1 |
| 42 | Bracket, height adjuster | M-221-53 | M-221-53-Online | 1 |
| 3 | Coach bolt, M8X46 | M-120-00 | M-120-00-Online | 2 |
| 43 | Pan head screw M6X16 | T-110-20 | T-110-20-Online | 4 |
| 4 | Knob, handle complete with nut | M-326-00 | M-326-00-Online | 2 |
| 44 | Knob, height adjuster | Refer to 39 Resolves to: M-220-48 | M-220-48-Online | 1 |
| 5 | Hook, grass catcher | M-205-48 | M-205-48-Online | 1 |
| 45 | Bracket, right - lower handle | M-222-48 | M-222-48-Online | 1 |
| 6 | Rod, flap | M-116-48 | M-116-48-Online | 1 |
| 46 | Flap, steel | M-208-48 | M-208-48-Online | 1 |
| 7 | Washer, M8 | M-125-00 | M-125-00-Online | 3 |
| 47 | Handle, steel flap | M-315-48 | M-315-48-Online | 1 |
| 8 | Split-pin | M-115-53 | M-115-53-Online | 3 |
| 48 | Throttle cable | Refer to 50 Resolves to: M-403-00 | M-403-00-Online | 1 |
| 9 | Spring, flap | M-210-48 | M-210-48-Online | 1 |
| 49 | Mulch plug, Pro 48 | M-350-48 | M-350-48-Online | 1 |
| 10 | Nut M8, nyloc | M-113-00 | M-113-00-Online | 11 |
| 50 | Pro throttle control assembly, (48, 50, 52, 54) | M-403-00 | M-403-00-Online | 1 |
| 11 | Wheel 8", with dual ball bearings and hubcap (11,74,36) | M-360-53 | M-360-53-Online | 4 |
| 51 | M6 x 30.0 Pan Head | Refer to 53 | 1 | |
| 12 | Bracket, left - lower handle | M-223-48 | M-223-48-Online | 1 |
| 52 | Pan head screw M6X50 | Refer to 50 Resolves to: M-403-00 | M-403-00-Online | 2 |
| 13 | Bolt, Flange M8 | M-119-53 | M-119-53-Online | 4 |
| 53 | washer M6 | Refer to 53 | 1 | |
| 14 | Height adjuster bar | M-206-48 | M-206-48-Online | 1 |
| 54 | M6 Nut | Refer to 50 Resolves to: M-403-00 | M-403-00-Online | 3 |
| 15 | Spring, counterbalance | M-207-48 | M-207-48-Online | 1 |
| 56 | Handle, grass catcher | M-306-48 | M-306-48-Online | 1 |
| 16 | Nylon washer | M-329-00 | M-329-00-Online | 2 |
| 57 | Cover, grass catcher | M-307-48 | M-307-48-Online | 1 |
| 17 | Nylon bush | M-329-10 | M-329-10-Online | 2 |
| 58 | Grass catcher, upper | M-307-47 | M-307-47-Online | 1 |
| 18 | Axle bracket, left | M-201-48 | M-201-48-Online | 2 |
| 59 | Screw M6 x 20 | M-116-20 | M-116-20-Online | 2 |
| 19 | Mower deck 48 cm - colour red RAL 3001 | M-200-48 | M-200-48-Online | 1 |
| 60 | Washer, M6 | T-131-00 | T-131-00-Online | 2 |
| 20 | Washer | M-112-53 | M-112-53-Online | 3 |
| 61 | Grass catcher, lower | M-307-46 | M-307-46-Online | 1 |
| 21 | Bolt M8x40 | M-111-00 | M-111-00-Online | 1 |
| 62 | Screw ST4.8x45 | M-131-45 | M-131-45-Online | 4 |
| 22 | Bolt M8x55 | M-126-55 | M-126-55-Online | 2 |
| 63 | Filter, grass | M-307-45 | M-307-45-Online | 1 |
| 23 | Key, petrol engine | M-251-00 | M-251-00-Online | 1 |
| 64 | Spacer ring, 8.5mm | M-315-00 | M-315-00-Online | 1 |
| 24 | Nyloc Nut M10 | M-105-00 | M-105-00-Online | 4 |
| 65 | Spacer, 30mm | Refer to 70 Resolves to: M-250-10 | M-250-10-Online | 1 |
| 25 | Washer, swing blade bolt | M-104-00 | M-104-00-Online | 4 |
| 66 | Washer, spring blade | M-100-00 | M-100-00-Online | 1 |
| 26 | Spring Washer, swing blade bolt | M-103-00 | M-103-00-Online | 4 |
| 69 | Axle assembly, rear (to suit 38, 18) | M-204-48 | M-204-48-Online | 1 |
| 27 | Swing blade(M-254-00) | 80-02544 | 80-02544-Online | 4 |
| 70 | Coupling, Steel, B&S | M-250-10 | M-250-10-Online | 1 |
| 28 | Bolt, swing blade M10x20 | M-102-00 | M-102-00-Online | 4 |
| 71 | Washer M10 | M-128-53 | M-128-53-Online | 4 |
| 29 | Bolt, blade 3/8"UNF x 65mm | M-101-00 | M-101-00-Online | 1 |
| 72 | Disc quadra-blade | M-252-00 | M-252-00-Online | 1 |
| 30 | Washer, Quadrablade disc bolt | M-253-00 | M-253-00-Online | 1 |
| 73 | LS 200 Petrol OHV 196cc 4-Stroke engine | M-672-00 | M-672-00-Online | 1 |
| 31 | Mulch blade, 46cm(M-255-10) | 80-02551 | 80-02551-Online | 1 |
| 74 | Bearing 6001-2RS | M-150-53 | M-150-53-Online | 8 |
| 32 | Axle bracket, right | M-202-48 | M-202-48-Online | 2 |
| 75 | Axle assembly front (to suit 76) NEW | M-203-49 | M-203-49-Online | 1 |
| 33 | Bush, axle | M-320-53 | M-320-53-Online | 4 |
| 76 | Bush axle (to suit 75,80) NEW | M-320-48 | M-320-48-Online | 8 |
| 34 | Axle assembly, front (To suit 32, 18) | M-203-48 | M-203-48-Online | 1 |
| 77 | Screw hilo pan 4.8x22 | T-150-00 | T-150-00-Online | 2 |
| 35 | Nyloc Nut M10 | M-105-00 | M-105-00-Online | 4 |
| 78 | Guide, pull stat cord | M-213-48 | M-213-48-Online | 1 |
| 36 | Hubcap 8 inch | M-321-80 | M-321-80-Online | 4 |
| 79 | Bolt coach, M8x20 | M-119-00 | M-119-00-Online | 4 |
| 37 | Support plate, handle bracket | M-226-00 | M-226-00-Online | 2 |
| 80 | Axle assembly rear (to suit 76) NEW | M-204-49 | M-204-49-Online | 1 |
| 38 | Nut M6, nyloc | T-111-00 | T-111-00-Online | 15 |
| 81 | Grass catcher assembly | MA-307-47 | MA-307-47-Online | 1 |
| 39 | Height adjuster lever(39,40,44) | M-220-48 | M-220-48-Online | 1 |
| 40 | Spring, height adjuster lever | Refer to 39 Resolves to: M-220-48 | M-220-48-Online | 1 |
