Husqvarna 525IB IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

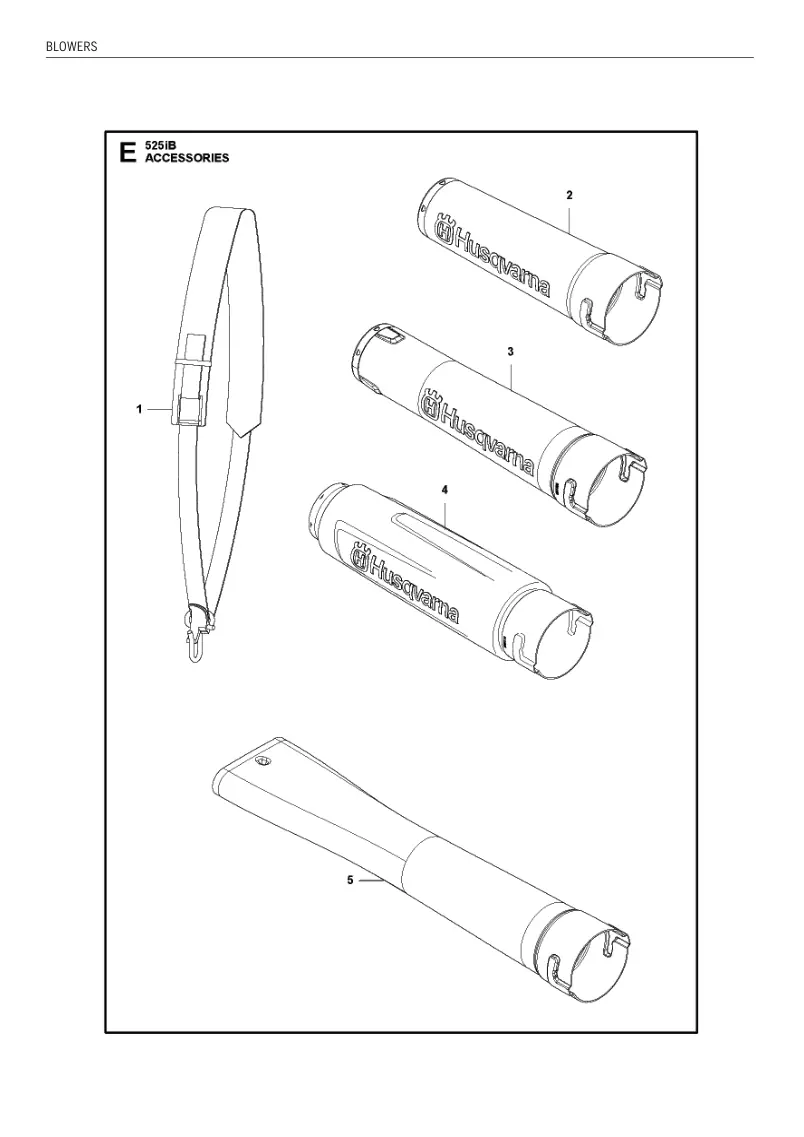

BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | HARNESS | 537216201 | 537216201-Online | 1 |
| 2 | TUBE ASSY Round Nozzle (300mm) | 586106301 | 586106301-Online | 1 |
| 3 | TUBE ASSY Round Nozzle (400mm) | 586106302 | 586106302-Online | 1 |
| 4 | TUBE ASSY Nozzle Silencer (400mm) | 589811701 | 589811701-Online | 1 |
| 5 | NOZZLE Flat Nozzle (600mm) | 579797501 | 579797501-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | DECAL | 586834106 | 586834106-Online | 1 |
| 2 | DECAL | 586834206 | 586834206-Online | 1 |
| 3 | LABEL | 503709701 | 503709701-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CONTROL UNIT | 587948601 | 587948601-Online | 1 |
| 2 | SWITCH | 582050701 | 582050701-Online | 1 |
| 3 | WIRING ASSY | 582837601 | 582837601-Online | 1 |
| 4 | BRACKET | 587327201 | 587327201-Online | 1 |
| 5 | SCREW CCRPANT | 503212813 | 503212813-Online | 2 |
| 6 | SPRING | 586492201 | 586492201-Online | 1 |
| 7 | WIRING ASSY | 586963901 | 586963901-Online | 1 |
| 8 | KIT | 588009801 | 588009801-Online | 1 |
| 9 | CONNECTOR | 593813001 | 593813001-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SPRING | 586492201 | 586492201-Online | 1 |
| 2 | SUSPENSION | 503911001 | 503911001-Online | 6 |
| 5 | MOTOR ASSY | 588009901 | 588009901-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | TUBE ASSY | 586106302 | 586106302-Online | 1 |
| 2 | TUBE | 582501601 | 582501601-Online | 1 |
| 3 | FRAME | 584213701 | 584213701-Online | 1 |
| 4 | COVER | 584914701 | 584914701-Online | 1 |
| 5 | SCREW IHSCT | 579211901 | 579211901-Online | 15 |
| 6 | THROTTLE CONTROL | 579564102 | 579564102-Online | 1 |
| 7 | HANDLE INSERT | 544042003 | 544042003-Online | 2 |
| 8 | EYELET | 586514201 | 586514201-Online | 1 |
| 9 | HOUSING | 584157402 | 584157402-Online | 1 |
| 10 | HOUSING | 584157302 | 584157302-Online | 1 |
| 11 | SPRING | 585480001 | 585480001-Online | 1 |
| 12 | PUSH BUTTON | 577996601 | 577996601-Online | 1 |
| 13 | COVER | 576901201 | 576901201-Online | 1 |
| 14 | SCREW CCRPANT | 503212813 | 503212813-Online | 1 |
| 15 | EYELET | 588009701 | 588009701-Online | 1 |
