Echo SRM-4605 IPL / Parts List

Echo SRM-4605 IPL / Parts List

Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.

Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.

View machine SKU: SRM-4605-Online

Source Pages

Page 1

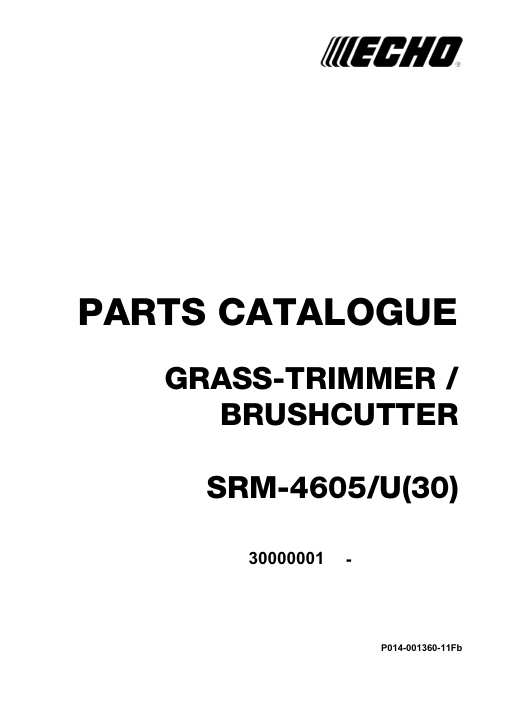

Echo SRM-4605 IPL / Parts List source page 1

Tap or click the page image to enlarge it.

Page 2

Echo SRM-4605 IPL / Parts List source page 2

Tap or click the page image to enlarge it.

Page 3

Echo SRM-4605 IPL / Parts List source page 3

Tap or click the page image to enlarge it.

Page 4

Echo SRM-4605 IPL / Parts List source page 4

Tap or click the page image to enlarge it.

Page 5

Echo SRM-4605 IPL / Parts List source page 5

Tap or click the page image to enlarge it.

Page 6

Echo SRM-4605 IPL / Parts List source page 6

Tap or click the page image to enlarge it.

Page 7

Echo SRM-4605 IPL / Parts List source page 7

Tap or click the page image to enlarge it.

Page 8

Echo SRM-4605 IPL / Parts List source page 8

Tap or click the page image to enlarge it.

Page 9

Echo SRM-4605 IPL / Parts List source page 9

Tap or click the page image to enlarge it.

Page 10

Echo SRM-4605 IPL / Parts List source page 10

Tap or click the page image to enlarge it.

Page 11

Echo SRM-4605 IPL / Parts List source page 11

Tap or click the page image to enlarge it.

Page 12

Echo SRM-4605 IPL / Parts List source page 12

Tap or click the page image to enlarge it.

Page 13

Echo SRM-4605 IPL / Parts List source page 13

Tap or click the page image to enlarge it.

Page 14

Echo SRM-4605 IPL / Parts List source page 14

Tap or click the page image to enlarge it.

Page 15

Echo SRM-4605 IPL / Parts List source page 15

Tap or click the page image to enlarge it.

Page 16

Echo SRM-4605 IPL / Parts List source page 16

Tap or click the page image to enlarge it.

Page 17

Echo SRM-4605 IPL / Parts List source page 17

Tap or click the page image to enlarge it.

Page 2 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1		3	Screw 5*14	900238-05014	900238-05014-Online	5*14
2		1	Guard, Top	159905-43130	159905-43130-Online
3		1	Screw 5*10	900238-05010	900238-05010-Online	5*10
4		1	Cover, Cylinder (Bs)	101514-42230	101514-42230-Online
5		1	Cylinder	101011-47530	101011-47530-Online
6		4	Bolt, H.S. 5*20	900162-05020	900162-05020-Online	5*20 W,SW
7		1	Gasket, Cyl. Base	101010-42231	101010-42231-Online
8		1	Piston Kit	P021-015770	P021-015770-Online
9	+	2	Ring, Piston	100011-43230	100011-43230-Online
10	+	1	Pin, Piston	100013-00410	100013-00410-Online	61029.8
11	+	2	Ring,End	V580-000010	V580-000010-Online	ĳ0.8
12	+	1	Bearing, Needle	100012-12331	100012-12331-Online
13	+	2	Washer,Circular 10	V307-000050	V307-000050-Online
14		1	Crankshaft Assy	100100-43130	100100-43130-Online
15		1	Key, Woodruff	100142-12330	100142-12330-Online
16		1	Crankcase Kit	100204-42230	100204-42230-Online
17	+	1	Oilseal	100212-27930	100212-27930-Online	ISD 12 25 7
18	+	4	Pin, Dowel	100215-02830	100215-02830-Online
19	+	1	Bearing Ball	94035-36201	94035-36201-Online	6201X3JR2C3
20	+	1	Bearing, Ball 6202	900810-36202	900810-36202-Online	6202/C3
21	+	1	Gasket, Crankcase	100242-42230	100242-42230-Online
22	+	1	Circlip 35	900702-00035	900702-00035-Online	CR㺎35
23	+	4	Bolt, H.S. 5*30	900162-05030	900162-05030-Online	5*30 W,SW
24	+	1	Oilseal	100213-02830	100213-02830-Online	ISMX15,35,6
25		4	Screw 4*10	900238-04010	900238-04010-Online	4*10
26		1	Plate, Guide	101534-42230	101534-42230-Online

Page 3 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
27		1	Cover, Fan (Bs)	101511-42230	101511-42230-Online
28		4	Bolt	91118-05025	91118-05025-Online
29		1	Label,Echo	X547-001110	X547-001110-Online	ECHO+SRM-4605

Page 4 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
5		1	Starter Pully Assy	A052-000370	A052-000370-Online
6	+	1	E-Ring 4	900700-00004	900700-00004-Online	CE-4
8	+	1	Spring, Return	177234-40630	177234-40630-Online
9	+	1	Pawl, Starter	177218-40630	177218-40630-Online	WHITE
10		1	Nut 8 (3N)	900502-00008	900502-00008-Online	3N8
11		1	Starter,Recoil	A051-000170	A051-000170-Online
12	+	1	Screw	177236-40630	177236-40630-Online
13	+	1	Washer	177214-41030	177214-41030-Online
14	+	1	Drum, Starter	177215-43130	177215-43130-Online
15	+	1	Spring, Rewind	177220-40630	177220-40630-Online
16	+	1	Clip, Starter Rope	177246-11120	177246-11120-Online
17	+	1	Rope, Starter	177226-01110	177226-01110-Online	4.0*880
18	+	1	Guide, Rope	177227-05530	177227-05530-Online
19	+	1	Grip, Starter	177228-11120	177228-11120-Online
20		4	Bolt	91118-04020	91118-04020-Online	CM-4*20
21		1	Label,Echo	X502-000450	X502-000450-Online

Page 5 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1		1	Plug, Spark (Bpmr-7A	159010-10230	159010-10230-Online	BPMR-7A
2		1	Coil, Spark Plug	159011-03432	159011-03432-Online
3		1	Cap, Spark Plug	159012-01620	159012-01620-Online
4		1	Grommet	156112-40630	156112-40630-Online
5		1	Lead	162021-42230	162021-42230-Online
6		1	Lead, Ground	156635-43130	156635-43130-Online
7		1	Screw 5*10	900238-05010	900238-05010-Online	5*10
8		1	Coil,Ignition	156601-12920	156601-12920-Online
9		2	Screw 5*20	900238-05020	900238-05020-Online	5*20
10		1	Flywheel	156801-42230	156801-42230-Online
11		1	Washer 10	900600-00010	900600-00010-Online
12		1	Washer, Spring 10	900605-00010	900605-00010-Online
13		1	Nut 10 (3N *1.25)	900503-00010	900503-00010-Online	3N10*P1.25
14		2	Washer	175049-03920	175049-03920-Online
15		2	Shoe, Clutch	175009-42231	175009-42231-Online
16		1	Spring, Clutch	175018-42230	175018-42230-Online
17		2	Washer	175048-03920	175048-03920-Online
18		2	Bolt, Clutch	175046-06230	175046-06230-Online
19		1	Drum, Clutch	175005-43130	175005-43130-Online
20		1	Circlip 28	900702-00028	900702-00028-Online	CR-28
21		2	Bearing, Ball 6001	900807-06001	900807-06001-Online	6001V(LB)
22		1	Circlip 12	900701-00012	900701-00012-Online	CS-12
23		4	Bolt	91118-05020	91118-05020-Online	CM-5*20
24		1	Case,Clutch Asy	P021-012920	P021-012920-Online	SRM-4605
25	+	1	Case, Clutch Drum	610205-43131	610205-43131-Online
26	+	1	Cushion	610910-51830	610910-51830-Online

Page 6 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
27	+	1	Holder Kit	P021-012810	P021-012810-Online	SRM-4605 \| 28 \| ++
28		1	Holder, Pipe	610922-55630	610922-55630-Online	29 \| ++
29		1	Holder, Main Pipe	610922-43130	610922-43130-Online	30 \| ++
30		2	Bolt	91118-05025	91118-05025-Online
31		2	Washer 6	900600-00006	900600-00006-Online

Page 7 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
4		2	Nut 5	900500-00005	900500-00005-Online
5		1	Gasket, Intake	130016-42231	130016-42231-Online
6		1	Insulator	130017-43130	130017-43130-Online
7		2	Bolt, H.S. 5*25	900162-05025	900162-05025-Online	5*25 W,SW
8		1	Gasket	130016-06231	130016-06231-Online
9		1	Carburetor Assy	123000-47532	123000-47532-Online	WT-120B
10		1	Rod, Choke	178510-47530	178510-47530-Online
11		1	Case, Air Cleaner	130301-43130	130301-43130-Online
12	+	1	Grommet	178810-05230	178810-05230-Online
13		1	Shutter, Choke	178515-43130	178515-43130-Online
14		2	Spacer	178516-00830	178516-00830-Online	5.280.8T
15		1	Plate	129006-43130	129006-43130-Online
16		2	Screw 5*57	900242-05057	900242-05057-Online	5*57
17		1	Filter, Air	130310-43130	130310-43130-Online
18		1	Cover Assy, Air Cln.	130302-43132	130302-43132-Online
19	+	1	O-Ring (P-4)	900720-00004	900720-00004-Online	P-4
20	+	1	Screw	130415-40630	130415-40630-Online
21		1	Label, Choke	890121-47530	890121-47530-Online

Page 8 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
4		1	Cap Assy, Fuel Tank	131004-55530	131004-55530-Online
5	+	1	Gasket, Fuel Cap	131016-55830	131016-55830-Online
6	+	1	Clip, Fuel Cap	131051-56030	131051-56030-Online
7		3	Cushion	131923-11120	131923-11120-Online
8		1	Tank, Fuel	131010-46931	131010-46931-Online
9		1	Cushion	131924-43130	131924-43130-Online
10		1	Bracket,Fueltank(Bl)	131910-43130	131910-43130-Online
11		2	Screw 5*14	900238-05014	900238-05014-Online	5*14
12		1	Cover, Vent	131328-40630	131328-40630-Online
13		1	Vent Assembly, Fuel	131300-56431	131300-56431-Online
14		1	Clip	132013-26630	132013-26630-Online	6.5MM
15		1	Pipe, Fuel (Inner)	132010-43130	132010-43130-Online
17		1	Strainer, Fuel	131205-19831	131205-19831-Online
20		1	Gasket, Muffler	145510-42231	145510-42231-Online
22		1	Muffler	145610-47530	145610-47530-Online
23		2	Bolt, H.S. 5*20	900162-05020	900162-05020-Online	5*20 W,SW
25		1	Gasket, Muffler Lid	145866-43131	145866-43131-Online
26		1	Lid, Muffler	145867-47530	145867-47530-Online
27		7	Screw 4*10	900238-04010	900238-04010-Online	4*10
28		1	Cover,Muffler	A320-000890	A320-000890-Online
29		1	Screw 5*14	900238-05014	900238-05014-Online	5*14

Page 9 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1		1	Tool,L Wrench	X605-000100	X605-000100-Online	4MM M5㺴㺑
2		1	Spanner 8*10	895112-00330	895112-00330-Online
3		1	Tool,Wrench	X602-000020	X602-000020-Online	17*19 L200
4		1	Tool,Bar	X606-000080	X606-000080-Online	5*120
5		1	Goggle	X690-000050	X690-000050-Online	GOGGLE + NOTE
6		1	Bag, Tool	898510-07130	898510-07130-Online
7		1	Scabbard,Blade	P021-007470	P021-007470-Online
25		1	Shield Asy	P021-012621	P021-012621-Online
26	+	1	Plate, Shield	699013-52130	699013-52130-Online
27	+	4	Bolt	91118-05018	91118-05018-Online
28	+	2	Bolt	91118-05014	91118-05014-Online
29	+	4	Bolt,5	V203-001980	V203-001980-Online
30	+	1	Plate, Shield	C552-000200	C552-000200-Online
31	+	1	Knife	699016-54530	699016-54530-Online
32	+	4	Washer 5	900603-00005	900603-00005-Online	5.5120.8
33	+	4	Nut 5	900500-00005	900500-00005-Online
34	+	1	Shield,Blade	699010-52931	699010-52931-Online

Page 10 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1		1	Grip Assy, F-Handle	351102-47530	351102-47530-Online
2	+	4	Screw 3*25	900246-03025	900246-03025-Online	3*25
3	+	1	Screw 5*30	900220-05030	900220-05030-Online	5*30
4	+	1	Nut 5	900500-00005	900500-00005-Online
5		1	Control, Throttle	178010-05960	178010-05960-Online
6		1	Spring, Thr. Lock	178013-35631	178013-35631-Online
7		1	Lockout, Throttle	178012-05960	178012-05960-Online
8		1	Switch, Ignition	163401-43130	163401-43130-Online
9		2	Nut 6 (3N)	900502-00006	900502-00006-Online	3N6
10		1	Wire, Throttle	178001-43230	178001-43230-Online
11		1	Tube	178127-43230	178127-43230-Online	7*820
12		1	Clip	159112-09961	159112-09961-Online
13		1	Label, Caution	890152-04930	890152-04930-Online
14		2	Clip	224924-52930	224924-52930-Online	28MM
15		1	Hook Asy	P021-012660	P021-012660-Online
16	+	1	Bolt	91119-05012	91119-05012-Online
34	+	1	Hook, Band	301015-05330	301015-05330-Online
35	+	1	Hook	301210-04630	301210-04630-Online
17		1	Fixture,Asy Handle	P021-012831	P021-012831-Online	SRM-4605
18	+	1	Part	900565-50008	900565-50008-Online
19	+	3	Bolt	91118-05030	91118-05030-Online
20	+	2	Bolt	91118-05020	91118-05020-Online	CM-5*20
21	+	1	Washer	605014-54230	605014-54230-Online
22	+	1	Bolt	351421-52130	351421-52130-Online
23		1	Fixture,Asy Handle	P021-012781	P021-012781-Online
24	+	4	Nut 5	900500-00005	900500-00005-Online

Page 11 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
25	+	4	Bolt	91118-05022	91118-05022-Online
26		1	Handle	351214-52931	351214-52931-Online
27		1	Handle, Front	351010-52931	351010-52931-Online
28		1	Grip, Handle	351311-22431	351311-22431-Online
29		1	Label,Caution	890617-43130	890617-43130-Online
30		1	Pipe, Main	C050-002340	C050-002340-Online
31		1	Shaft, Drive	610011-06230	610011-06230-Online
32		1	Harness,Shoulder	C062-000192	C062-000192-Online

Page 12 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1		1	Case,Gear	P021-012591	P021-012591-Online
2	+	1	Nut 10	610320-52130	610320-52130-Online
3	+	1	Plate, Cover	699229-56830	699229-56830-Online
4	+	1	Plate, Adapter (L)	610314-52130	610314-52130-Online
5	+	1	O-Ring 12	900720-00012	900720-00012-Online	P-12
6		1	Fixture,Blade	C535-000001	C535-000001-Online	11 \| ++
11		1	Plate, Cup	610352-56830	610352-56830-Online	14 \| ++
14		1	Fixture,Blade	610313-52132	610313-52132-Online
7	+	1	Circlip 32	900702-00032	900702-00032-Online	CR-32
8	+	1	Washer	610444-56830	610444-56830-Online
9	+	1	Bearing, Ball 6201	900812-06201	900812-06201-Online	6201DDU(LLU)
10	+	1	Shaft, P.T.O.	610310-56931	610310-56931-Online
12	+	1	Gear Set	610300-56930	610300-56930-Online
13	+	1	Bearing, Ball 629	900810-00629	900810-00629-Online
15	+	1	Spring,Torsion	V452-001310	V452-001310-Online
16	+	1	Washer	900603-50008	900603-50008-Online	8.5180.8T
17	+	1	Bolt 8* 8	610434-50031	610434-50031-Online	M8*8
18	+	1	Screw 5*10	900242-05010	900242-05010-Online
19	+	1	Bolt	91118-06030	91118-06030-Online
20	+	1	Bearing, Ball 6001	900800-06001	900800-06001-Online
21	+	1	Bearing, Ball 6001	900803-06001	900803-06001-Online
22	+	1	Circlip 28	900702-00028	900702-00028-Online	CR-28
23	+	1	Circlip 12	900701-00012	900701-00012-Online	CS-12
30		1	Saw,Bush Cutter	X405-000001	X405-000001-Online	325525.4*T2.0

Page 13 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1	+	5	Screw	123130-02960	123130-02960-Online
2	+	1	Cover, M. Diaphragm	123142-03930	123142-03930-Online
3	+	1	Diaphragm, Metering	123141-03930	123141-03930-Online
4	+	1	Gasket, M. Diaphragm	123140-03930	123140-03930-Online
5	+	1	Screw, M. Lever Pin	123139-03930	123139-03930-Online
6	+	1	Pin, Metering Lever	123138-03930	123138-03930-Online
7	+	1	Lever, Metering	123123-03930	123123-03930-Online
8	+	1	Spring, Meter. Lever	123122-47530	123122-47530-Online
9	+	1	Valve, Inlet Needle	123137-04260	123137-04260-Online
10	+	1	Clip, Throttle Shaft	123127-03930	123127-03930-Online
14	+	1	Screen, Inlet	123126-10631	123126-10631-Online
15	+	1	Spring, Thr. Rtn.	123113-47530	123113-47530-Online
16	+	1	Shaft, Throttle	123117-05020	123117-05020-Online
17	+	1	Swivel	123172-26030	123172-26030-Online
18	+	1	Clip	123173-07930	123173-07930-Online
19	+	1	Needle, High Speed	123120-47530	123120-47530-Online
20	+	1	Spring, Needle	123119-22130	123119-22130-Online
21	+	1	Needle, Idle	123118-40430	123118-40430-Online
22	+	1	Spring, Needle	123121-22130	123121-22130-Online
23	+	1	Screw	123114-38830	123114-38830-Online
24	+	1	Valve, Throttle	123116-10530	123116-10530-Online
28	+	1	Plug, Welch	123146-10631	123146-10631-Online
29	+	1	Diaphragm, Fuel Pump	123112-15030	123112-15030-Online
30	+	1	Gasket, Fuel Pump	123125-15030	123125-15030-Online
31	+	1	Cover, Fuel Pump	123124-24430	123124-24430-Online

Page 14 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
32	+	1	Screw, Idle Adjust	123134-04260	123134-04260-Online
33	+	1	Spring, Idle Adjust	123133-06320	123133-06320-Online
34	+	1	Screw, Pump Cover	123110-03930	123110-03930-Online
35	+	1	Washer	123149-26030	123149-26030-Online
40	+	1	Clip	V490-000440	V490-000440-Online

Source PDF: 20130718-404_SRM-4605_U(30)_P014-001360-11Fb_EN.pdf. Generated 2026-06-25 14:38.

\n

\n
